◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#9380) — 126 parça
çizim 38219
97 61 324 218 46 45 46 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0005-0411 ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0412- ●
45 BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0412- ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 03 1 0005-0411 ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		9-09525-535-0 03 1 0412-0606 ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		9-09525-535-0 03 1 0412-0606 ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 03 1 0607- ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 03 1 0607- ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4444 		1-79996-477-0 01 1 0005-0210 ●
61 CABLE; PARKING BRK
ENGINE REAR PTO(SV1) MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-475-0 01 1 0005-0210 ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4544 		1-79996-605-2 01 1 0211-0411 ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4544 		1-79996-605-2 01 1 0412- ●
61 CABLE; PARKING BRK
L=4544 		1-79996-605-2 01 1 0412- ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4344 		1-79996-474-0 01 1 0005-0210 ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 0005- ●
97 GROMMET; PARKING BRK CABLE 1-09983-078-0 01 1 0005- ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0005-0411 ● ● ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0412- ● ● ● ●
324 BRACKET 1-79998-750-3 01 1 0005-0210 ● ● ●
324 BRACKET 1-79996-594-0 01 1 0211-0411 ● ● ●
324 BRACKET 1-79996-594-0 01 1 0412- ● ● ● ●

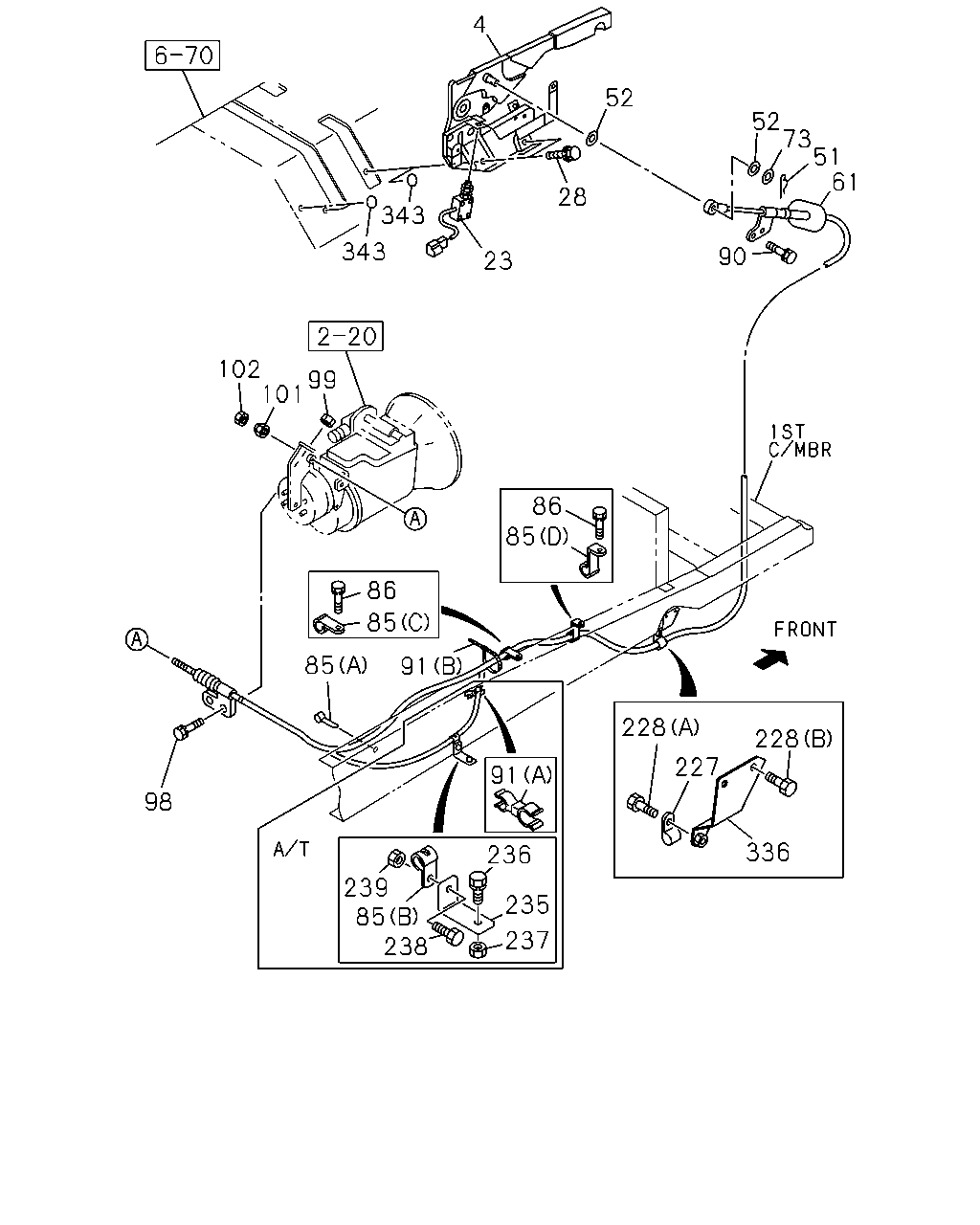

çizim 40946
4 52 52 73 51 61 28 343 90 343 23 102 99 101 86 85 86 85 85 91 228 228 227 91 98 336 236 239 85 238 235 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0211-0411 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0412- ●
4 STEM; PARKING BRK 1-79996-548-0 01 1 0412- ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-503-0 01 1 0005-0010 ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0011-0210 ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 0211-0411 ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 0412- ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 0412- ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 0005-0210 ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0005-0411 ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0412-0904 ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0412-0904 ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 0005-0411 ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 0412- ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 0412- ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 0005-0411 ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 0412- ●
52 WASHER; CURVED RELAY LEVER
ID=19 		8-94206-429-1 02 1 0412- ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4444 		1-79996-477-0 01 1 0005-0210 ●
61 CABLE; PARKING BRK
ENGINE REAR PTO(SV1) MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4394 		1-79996-475-0 01 1 0005-0210 ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4544 		1-79996-605-2 01 1 0211-0411 ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4544 		1-79996-605-2 01 1 0412- ●
61 CABLE; PARKING BRK
L=4544 		1-79996-605-2 01 1 0412- ●
61 CABLE; PARKING BRK
MBJ6 M/T<Y9B> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ENGINE REAR PTO(SV1) L=4344 		1-79996-474-0 01 1 0005-0210 ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 0005-0411 ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 0412-0605 ●
73 WASHER; PL,CABLE
ID=17 		9-09160-516-0 01 1 0412-0605 ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
73 WASHER; PL,CABLE
ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
85 CLIP; BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=28 		1-09701-013-0 01 1 0005-0105 ●
85 CLIP; BRKT
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 0005-0105 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 0106-0411 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 0412- ●
85 CLIP; BRKT
(A) ID=15 L=65 		1-09700-466-0 01 1 0412- ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 H=30 L=30 		1-09701-080-0 01 1 0005-0411 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 H=30 L=30 		1-09701-080-0 01 1 0412- ●
85 CLIP; BRKT
(D) ID=16 H=30 L=30 		1-09701-080-0 01 1 0412- ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=24 L=40 		1-09701-139-0 01 1 0005-0210 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=19 L=40 		9-09525-876-0 01 1 0211-0411 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=19 L=40 		9-09525-876-0 01 1 0412-0606 ●
85 CLIP; BRKT
(C) ID=19 L=40 		9-09525-876-0 01 1 0412-0606 ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
85 CLIP; BRKT
(C) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0411 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512 ●
86 BOLT
M8X25 FLANGE 		0-28680-825-0 02 1 0412-0512 ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
86 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0005-0411 ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0412-0904 ●
90 BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0412-0904 ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
90 BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ●
91 CLIP; PARKING BRK CABLE
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6 & 13 		8-94459-564-0 01 1 0005-0210 ●
91 CLIP; PARKING BRK CABLE
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=140 		5-09707-031-1 01 1 0106-0210 ●
91 CLIP; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=140 		5-09707-031-1 01 1 0211-0411 ●
91 CLIP; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=140 		5-09707-031-1 01 1 0412- ●
91 CLIP; PARKING BRK CABLE
(B) L=140 		5-09707-031-1 01 1 0412- ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0411 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28681-030-0 02 1 0412-0512 ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28681-030-0 02 1 0412-0512 ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 0005-0411 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 0412-0602 ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91150-210-0 02 1 0412-0602 ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46259-007-0 01 1 0005-0411 ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46259-007-0 01 1 0412- ●
101 NUT; CABLE TO LEVER 1-46259-007-0 01 1 0412- ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0005-0411 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0412-0602 ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91150-108-0 01 1 0412-0602 ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 0005-0411 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		9-09525-235-0 01 1 0412-0606 ●
227 CLIP; RAD
ID=13 L=20 		9-09525-235-0 01 1 0412-0606 ●
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20 		0-95235-235-0 01 1 0607- ●
227 CLIP; RAD
ID=13 L=20 		0-95235-235-0 01 1 0607- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0411 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0412-0512 ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0412-0512 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
228 BOLT; CLIP RAD MTG
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0411 ●
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0412- ●
228 BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0412- ●
235 BRACKET; CONT CABLE TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=50 		1-47475-663-1 01 1 0005-0105 ●
236 BOLT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28680-830-0 01 1 0005-0105 ●
237 NUT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ●
238 BOLT; CLIP TO BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0105 ●
239 NUT; CLIP TO BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 01 1 0005-0105 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-36183-199-0 01 1 0005-0210 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-36183-230-0 01 1 0211-0411 ●
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-36183-230-0 01 1 0412- ●
336 BRACKET; RADIATOR 1-36183-230-0 01 1 0412- ●
343 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 0005- ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 05 1 0005- ● ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 0005-0411 ●
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 02 1 0412- ●
343 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0412- ●
