2 |

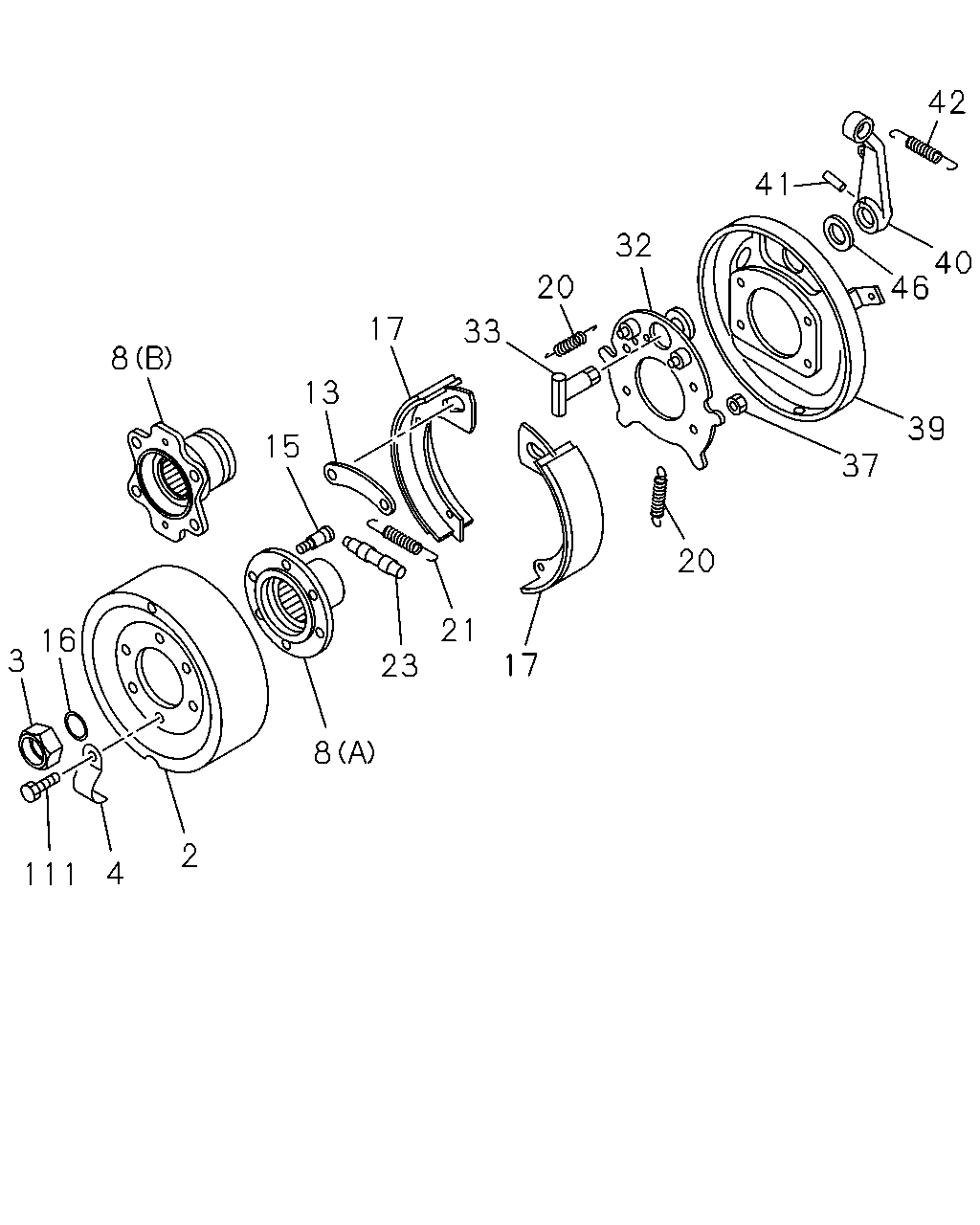

DRUM; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46211-004-1 |
01 |
1 |
0005-0210 |
● |
|
| |
2 |
DRUM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46211-020-0 |
01 |
1 |
0211- |
|
● |
| |
3 |
NUT; LK
PARKING BRAKE DRUM 8.5"(B1S)
M33 FLANGE
|
1-09449-077-0 |
01 |
1 |
0005-0210 |
● |
|
| |
3 |
NUT; LK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M36 FLANGE
|
1-09449-063-0 |
01 |
1 |
0211-0805 |
|
● |
| |
3 |
NUT; LK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M36 FLANGE
|
8-98014-140-0 |
01 |
1 |
0806- |
|
● |
| |
4 |
COVER; ADJ HOLE
PARKING BRAKE DRUM 8.5"(B1S)
|
9-46219-015-1 |
02 |
1 |
0005-0210 |
● |
|
| |
4 |
COVER; ADJ HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46219-018-0 |
02 |
1 |
0211- |
|
● |
| |
8 |
FLANGE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
(A)
|
1-37243-254-0 |
01 |
1 |
0005-0210 |
● |
|
| |
8 |
FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-37243-236-0 |
01 |
1 |
0211-1002 |
|
● |
| |
8 |
FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
8-98153-194-0 |
01 |
1 |
1003- |
|
● |
| |
13 |
BRACE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
9-46239-003-0 |
01 |
1 |
0005-0210 |
● |
|
| |
13 |
BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46239-003-0 |
01 |
1 |
0211- |
|
● |
| |
13 |
BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46239-003-0 |
01 |
1 |
0411-0411 |
|
● |
| |
15 |
BOLT; FLANGE
PARKING BRAKE DRUM 8.5"(B1S)
M12X39
|
1-09046-001-2 |
04 |
1 |
0005-0210 |
● |
|
| |
15 |
BOLT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X43 KNURL
|
1-09046-003-0 |
04 |
1 |
0211-0707 |
|
● |
| |
15 |
BOLT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X43 KNURL
|
8-98014-003-0 |
04 |
1 |
0708- |
|
● |
| |
16 |
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
PARKING BRAKE DRUM 8.5"(B1S)
ID=35.7 T=5
|
1-09623-379-0 |
01 |
1 |
0005-0210 |
● |
|
| |
16 |
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=47 T=5
|
1-09623-380-0 |
01 |
1 |
0211- |
|
● |
| |
17 |
SHOE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46220-024-0 |
02 |
1 |
0005-0210 |
● |
|
| |
17 |
SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46220-029-0 |
02 |
1 |
0211- |
|
● |
| |
17 |
SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46220-029-0 |
02 |
1 |
0411-0411 |
|
● |
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
9-09942-567-1 |
02 |
1 |
0005-0210 |
● |
|
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09942-567-1 |
02 |
1 |
0211- |
|
● |
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09942-567-1 |
02 |
1 |
0411-0411 |
|
● |
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
|
1-09583-268-0 |
01 |
1 |
0005-0210 |
● |
|
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09583-268-0 |
01 |
1 |
0211- |
|
● |
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09583-268-0 |
01 |
1 |
0411-0411 |
|
● |
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
|
9-46240-008-0 |
01 |
1 |
0005-0210 |
● |
|
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46240-008-0 |
01 |
1 |
0211- |
|
● |
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-46240-008-0 |
01 |
1 |
0411-0411 |
|
● |
| |
32 |
PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46213-023-0 |
01 |
1 |
0005-0210 |
● |
|
| |
32 |
PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46213-023-0 |
01 |
1 |
0211- |
|
● |
| |
32 |
PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46213-023-0 |
01 |
1 |
0411-0411 |
|
● |
| |
33 |
SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46251-002-0 |
01 |
1 |
0005-0210 |
● |
|
| |
33 |
SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46251-002-0 |
01 |
1 |
0211-0410 |
|
● |
| |
33 |
SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46251-070-0 |
01 |
1 |
0411- |
|
● |
| |
33 |
SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46251-070-0 |
01 |
1 |
0411-0411 |
|
● |
| |
37 |
NUT; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S)
M14 FLANGE
|
1-09440-048-0 |
04 |
1 |
0005-0210 |
● |
|
| |
37 |
NUT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14 FLANGE
|
1-09440-048-0 |
04 |
1 |
0211-0604 |
|
● |
| |
37 |
NUT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14 FLANGE
|
8-97365-444-0 |
04 |
1 |
0605- |
|
● |
| |
39 |
COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46213-067-0 |
01 |
1 |
0005-0210 |
● |
|
| |
39 |
COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46213-019-0 |
01 |
1 |
0211- |
|
● |
| |
39 |
COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46213-019-0 |
01 |
1 |
0411-0411 |
|
● |
| |
40 |
LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
|
1-46252-003-0 |
01 |
1 |
0005-0210 |
● |
|
| |
40 |
LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46252-003-0 |
01 |
1 |
0211-0410 |
|
● |
| |
40 |
LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46252-043-0 |
01 |
1 |
0411- |
|
● |
| |
40 |
LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-46252-043-0 |
01 |
1 |
0411-0411 |
|
● |
| |
41 |
PIN; KNOCK,LEVER
PARKING BRAKE DRUM 8.5"(B1S)
|
9-09878-594-0 |
01 |
1 |
0005-0210 |
● |
|
| |
41 |
PIN; KNOCK,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09878-594-0 |
01 |
1 |
0211- |
|
● |
| |
41 |
PIN; KNOCK,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09878-594-0 |
01 |
1 |
0411-0411 |
|
● |
| |
42 |
SPRING; RETURN,LEVER
PARKING BRAKE DRUM 8.5"(B1S)
|
9-09942-592-0 |
01 |
1 |
0005-0210 |
● |
|
| |
42 |
SPRING; RETURN,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09942-592-0 |
01 |
1 |
0211- |
|
● |
| |
42 |
SPRING; RETURN,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09942-592-0 |
01 |
1 |
0411-0411 |
|
● |
| |
46 |
WASHER; LEVER
PARKING BRAKE DRUM 8.5"(B1S)
|
9-09855-367-0 |
01 |
1 |
0005-0210 |
● |
|
| |
46 |
WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09855-367-0 |
01 |
1 |
0211- |
|
● |
| |
46 |
WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
9-09855-367-0 |
01 |
1 |
0411-0411 |
|
● |
| |
111 |
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 8.5"(B1S)
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
0005-0210 |
● |
|
| |
111 |
BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
0211-0906 |
|
● |
| |
111 |
BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 W/LK WASHER
|
0-50540-820-0 |
02 |
1 |
0907-1009 |
|
● |
| |
111 |
BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 W/LK WASHER
|
0-50740-820-0 |
02 |
1 |
1010- |
|
● |
