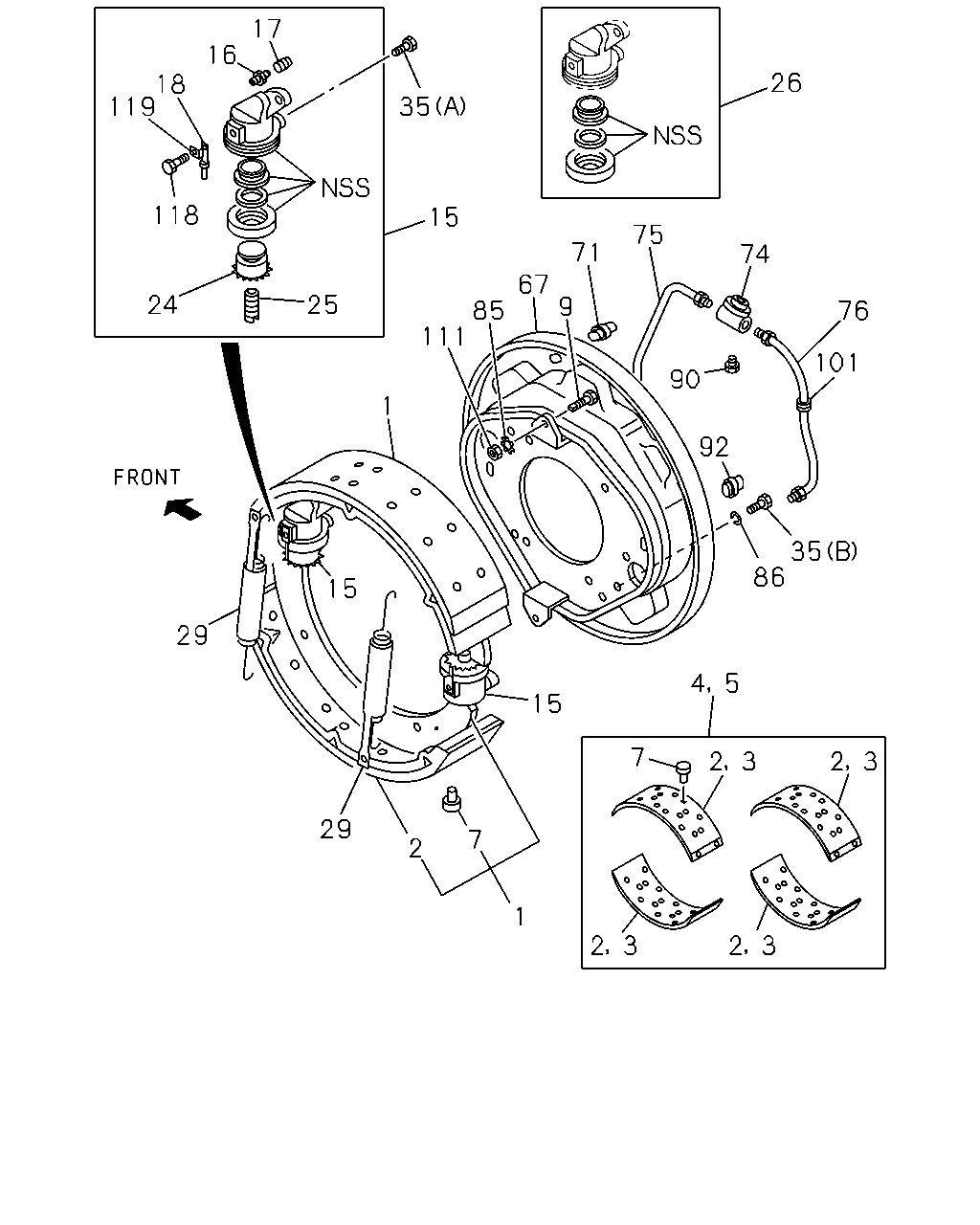

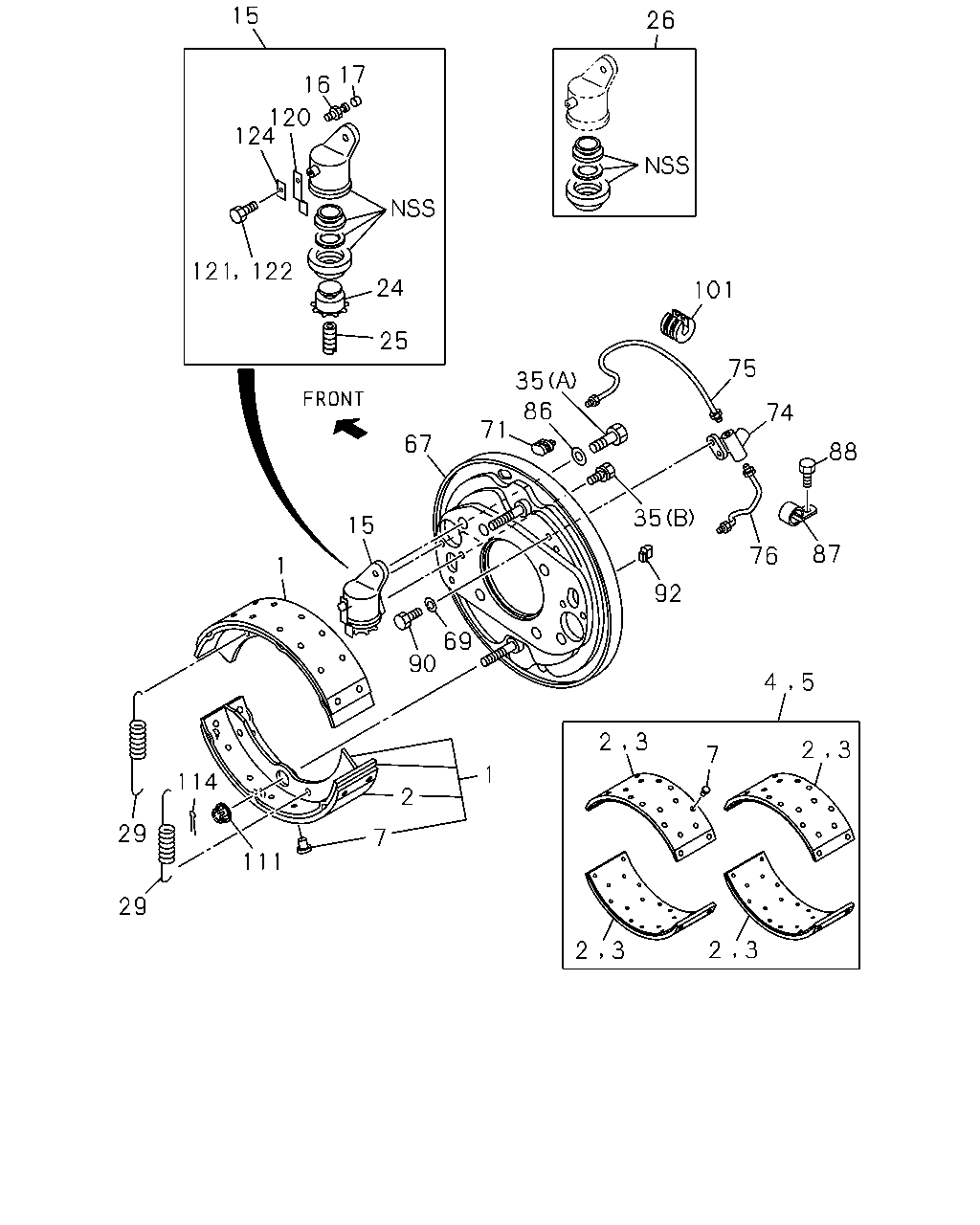

3-01 — FRONT WHEEL BRAKE (#9375) — 445 parça

15 26 17 16 120 124 121 122 24 101 25 75 35 86 74 71 67 88 35 15 87 76 1 92 69 90 5 4 2 3 2 3 7 1 114 2 29 7 111 29 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-625-0	04	1	0005-	●
1	SHOE; BRK,FRT	1-47120-625-0	04	1	0005-		●
1	SHOE; BRK,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-624-0	04	1	0005-0411	●
1	SHOE; BRK,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-624-0	04	1	0412-	●
1	SHOE; BRK,FRT	1-47120-624-0	04	1	0412-			●
1	SHOE; BRK,FRT	1-47120-628-0	04	1	0005-0210				●
1	SHOE; BRK,FRT	1-47170-195-0	04	1	0211-				●
2	LINING; FRT BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-801-0	08	1	0211-0411	●
2	LINING; FRT BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-801-0	08	1	0412-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-801-0	08	1	0412-			●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-801-0	04	1	0005-0210	●	●
2	LINING; FRT BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-801-0	04	1	0211-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-801-0	04	1	0211-		●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-805-0	04	1	0005-0210				●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-477-0	04	1	0211-				●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-802-0	08	1	0211-0411	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-802-0	08	1	0412-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-802-0	08	1	0412-			●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-802-0	04	1	0005-0210	●	●
3	LINING; FRT BRK SHOE,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-802-0	04	1	0211-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-802-0	04	1	0211-		●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-806-0	04	1	0005-0210				●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-478-0	04	1	0211-				●
4	LINING SET; FRT BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-503-0	01	1	0005-	●
4	LINING SET; FRT BRK,STANDARD	1-88310-503-0	01	1	0005-		●
4	LINING SET; FRT BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-501-1	01	1	0005-0411	●
4	LINING SET; FRT BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-501-1	01	1	0412-	●
4	LINING SET; FRT BRK,STANDARD	1-88310-501-1	01	1	0412-			●
4	LINING SET; FRT BRK,STANDARD	1-88310-505-0	01	1	0005-0210				●
4	LINING SET; FRT BRK,STANDARD	1-88311-147-0	01	1	0211-				●
5	LINING SET; FRT BRK,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-504-0	01	1	0005-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-504-0	01	1	0005-		●
5	LINING SET; FRT BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-502-1	01	1	0005-0411	●
5	LINING SET; FRT BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-502-1	01	1	0412-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-502-1	01	1	0412-			●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-506-0	01	1	0005-0210				●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-148-0	01	1	0211-				●
7	RIVET; LINING,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=11.5	1-09732-015-0	56	1	0005-	●
7	RIVET; LINING,FRT BRK L=11.5	1-09732-015-0	56	1	0005-		●
7	RIVET; LINING,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	56	1	0005-0411	●
7	RIVET; LINING,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	56	1	0412-	●
7	RIVET; LINING,FRT BRK	1-09732-029-0	56	1	0412-			●
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	0005-				●
15	CYLINDER; WHEEL,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-389-4	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-389-4	02	1	0005-		●
15	CYLINDER; WHEEL,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-388-4	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-388-4	02	1	0005-		●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-939-0	02	1	0005-0411	●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-939-0	02	1	0412-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-939-0	02	1	0412-			●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-938-0	02	1	0005-0411	●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-938-0	02	1	0412-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-938-0	02	1	0412-			●
15	CYLINDER; WHEEL,FRT BRK	1-47600-555-1	02	1	0005-				●
15	CYLINDER; WHEEL,FRT BRK	1-47600-554-1	02	1	0005-				●
16	SCREW; BLEEDER,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=44	1-47615-007-0	04	1	0005-	●
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	04	1	0005-		●		●
16	SCREW; BLEEDER,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47615-027-0	04	1	0005-0411	●
16	SCREW; BLEEDER,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47615-027-0	04	1	0412-0703	●
16	SCREW; BLEEDER,FRT BRK	9-47615-027-0	04	1	0412-0703			●
16	SCREW; BLEEDER,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98050-476-0	04	1	0704-	●
16	SCREW; BLEEDER,FRT BRK	8-98050-476-0	04	1	0704-			●
17	CAP; BLEEDER,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=9.5	9-47619-005-0	04	1	0005-	●
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	04	1	0005-		●		●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	04	1	0005-0411	●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	04	1	0412-0703	●
17	CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	04	1	0412-0703			●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98050-479-0	04	1	0704-	●
17	CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	04	1	0704-			●
24	PISTON; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-150-1	02	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-150-1	02	1	0005-		●
24	PISTON; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-149-1	02	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-149-1	02	1	0005-		●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-319-0	02	1	0005-0411	●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-319-0	02	1	0412-	●
24	PISTON; FRT WHEEL CYL	1-47624-319-0	02	1	0412-			●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-318-0	02	1	0005-0411	●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-318-0	02	1	0412-	●
24	PISTON; FRT WHEEL CYL	1-47624-318-0	02	1	0412-			●
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	0005-				●
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	0005-				●
25	SCREW; ADJ,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH THREAD	1-47622-019-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL RH THREAD	1-47622-019-0	02	1	0005-		●
25	SCREW; ADJ,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH THREAD	1-47622-018-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL LH THREAD	1-47622-018-0	02	1	0005-		●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH THREAD	1-47622-021-0	02	1	0005-0411	●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH THREAD	1-47622-021-0	02	1	0412-	●
25	SCREW; ADJ,FRT WHEEL CYL RH THREAD	1-47622-021-0	02	1	0412-			●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH THREAD	1-47622-020-0	02	1	0005-0411	●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH THREAD	1-47622-020-0	02	1	0412-	●
25	SCREW; ADJ,FRT WHEEL CYL LH THREAD	1-47622-020-0	02	1	0412-			●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	0005-				●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	0005-				●
26	CUP SET; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=22.5	1-87830-560-0	02	1	0005-	●
26	CUP SET; FRT WHEEL CYL ID=22.5	1-87830-560-0	02	1	0005-		●
26	CUP SET; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-679-0	04	1	0005-0411	●
26	CUP SET; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-679-0	04	1	0412-	●
26	CUP SET; FRT WHEEL CYL	1-87830-679-0	04	1	0412-			●
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	04	1	0005-				●
29	SPRING; RETURN,FRT BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-204-1	04	1	0005-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-204-1	04	1	0005-		●
29	SPRING; RETURN,FRT BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-288-0	04	1	0005-0411	●
29	SPRING; RETURN,FRT BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-288-0	04	1	0412-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-288-0	04	1	0412-			●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	0005-				●
35	BOLT; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X30	0-23801-430-0	04	1	0005-	●
35	BOLT; FRT WHEEL CYL (A) M14X30	0-23801-430-0	04	1	0005-		●
35	BOLT; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X25 W/LK WASHER	0-50051-025-0	08	1	0005-0906	●
35	BOLT; FRT WHEEL CYL (B) M10X25 W/LK WASHER	0-50051-025-0	08	1	0005-0906		●
35	BOLT; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X25 W/LK WASHER	0-50551-025-0	08	1	0907-	●
35	BOLT; FRT WHEEL CYL (B) M10X25 W/LK WASHER	0-50551-025-0	08	1	0907-		●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X30	1-09000-365-0	04	1	0005-0411	●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X30	1-09000-365-0	04	1	0412-	●
35	BOLT; FRT WHEEL CYL (A) M14X30	1-09000-365-0	04	1	0412-			●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X22	9-09802-475-0	08	1	0005-0411	●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X22	9-09802-475-0	08	1	0412-	●
35	BOLT; FRT WHEEL CYL (B) M8X22	9-09802-475-0	08	1	0412-			●
35	BOLT; FRT WHEEL CYL (B) M16X30	0-23801-630-0	04	1	0005-				●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50051-022-0	08	1	0005-0906				●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50551-022-0	08	1	0907-				●
67	PLATE; BACK,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-399-0	01	1	0005-	●
67	PLATE; BACK,FRT BRK	1-47150-399-0	01	1	0005-		●
67	PLATE; BACK,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-398-0	01	1	0005-	●
67	PLATE; BACK,FRT BRK	1-47150-398-0	01	1	0005-		●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-376-0	01	1	0005-0411	●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-376-0	01	1	0412-	●
67	PLATE; BACK,FRT BRK	1-47150-376-0	01	1	0412-			●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-375-0	01	1	0005-0411	●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-375-0	01	1	0412-	●
67	PLATE; BACK,FRT BRK	1-47150-375-0	01	1	0412-			●
67	PLATE; BACK,FRT BRK	1-47150-348-1	01	1	0005-				●
67	PLATE; BACK,FRT BRK	1-47150-347-1	01	1	0005-				●
69	WASHER; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	04	1	0005-0603	●
69	WASHER; LK,CONNECTOR ID=8.2	9-09150-508-0	04	1	0005-0603		●
69	WASHER; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	0-91510-508-0	04	1	0604-	●
69	WASHER; LK,CONNECTOR ID=8.2	0-91510-508-0	04	1	0604-		●
71	GROMMET; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-066-1	04	1	0005-	●
71	GROMMET; CHECK HOLE	1-09333-066-1	04	1	0005-		●
71	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	0005-0411	●
71	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	0412-	●
71	GROMMET; CHECK HOLE	1-09333-033-0	04	1	0412-			●
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	0005-				●
74	CONNECTOR; FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-009-1	01	1	0005-	●
74	CONNECTOR; FRT BRK	1-47630-009-1	01	1	0005-		●
74	CONNECTOR; FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-008-1	01	1	0005-	●
74	CONNECTOR; FRT BRK	1-47630-008-1	01	1	0005-		●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-014-1	01	1	0005-0411	●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-014-1	01	1	0412-	●
74	CONNECTOR; FRT BRK	1-47630-014-1	01	1	0412-			●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-013-1	01	1	0005-0411	●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-013-1	01	1	0412-	●
74	CONNECTOR; FRT BRK	1-47630-013-1	01	1	0412-			●
74	CONNECTOR; FRT BRK	1-47630-003-2	02	1	0005-				●
75	PIPE; OIL,FWD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-248-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-248-0	01	1	0005-		●
75	PIPE; OIL,FWD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-247-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-247-0	01	1	0005-		●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-238-0	01	1	0005-0411	●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-238-0	01	1	0412-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-238-0	01	1	0412-			●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-237-0	01	1	0005-0411	●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-237-0	01	1	0412-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-237-0	01	1	0412-			●
75	PIPE; OIL,FWD,FRT BRK	1-47413-792-0	01	1	0005-				●
75	PIPE; OIL,FWD,FRT BRK	1-47413-791-0	01	1	0005-				●
76	PIPE; OIL,BACKWARD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-445-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-445-0	01	1	0005-		●
76	PIPE; OIL,BACKWARD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-444-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-444-0	01	1	0005-		●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-242-0	01	1	0005-0411	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-242-0	01	1	0412-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-242-0	01	1	0412-			●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-241-0	01	1	0005-0411	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-241-0	01	1	0412-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-241-0	01	1	0412-			●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-790-0	01	1	0005-				●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-789-0	01	1	0005-				●
86	WASHER; LK,FRT WHEEL CYL ID=14.2	9-09150-614-0	04	1	0005-0411	●	●
86	WASHER; LK,FRT WHEEL CYL ID=14.2	9-09150-614-0	04	1	0412-0603	●	●	●
86	WASHER; LK,FRT WHEEL CYL ID=14.2	0-91510-614-0	04	1	0604-	●	●	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	0005-0603				●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	0-91510-616-0	04	1	0604-				●
87	CLAMP; BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09700-454-0	02	1	0005-	●
87	CLAMP; BRK PIPE	1-09700-454-0	02	1	0005-		●
88	BOLT; BRK PIPE CLAMP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	02	1	0005-	●
88	BOLT; BRK PIPE CLAMP M6X10	9-01900-610-0	02	1	0005-		●
90	BOLT; CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X14 W/LK WASHER	0-50040-814-0	04	1	0005-0805	●
90	BOLT; CONNECTOR M8X14 W/LK WASHER	0-50040-814-0	04	1	0005-0805		●
90	BOLT; CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X14 W/LK WASHER	8-98038-400-0	04	1	0806-	●
90	BOLT; CONNECTOR M8X14 W/LK WASHER	8-98038-400-0	04	1	0806-		●
90	BOLT; CONNECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16	9-09602-119-1	02	1	0005-0411	●
90	BOLT; CONNECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16	9-09602-119-1	02	1	0412-0703	●
90	BOLT; CONNECTOR M8X16	9-09602-119-1	02	1	0412-0703			●
90	BOLT; CONNECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	5-09030-036-1	02	1	0704-	●
90	BOLT; CONNECTOR	5-09030-036-1	02	1	0704-			●
90	BOLT; CONNECTOR M8X18 W/LK WASHER	0-50040-818-0	02	1	0005-0906				●
90	BOLT; CONNECTOR M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-				●
92	GROMMET; ADJ HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-065-2	04	1	0005-	●
92	GROMMET; ADJ HOLE	1-09333-065-2	04	1	0005-		●
92	GROMMET; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	0005-0411	●
92	GROMMET; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	0412-	●
92	GROMMET; ADJ HOLE	9-09956-640-0	04	1	0412-			●
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	0005-				●
101	PROTECTOR; OIL PIPE,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	0005-0411	●
101	PROTECTOR; OIL PIPE,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	0412-	●
101	PROTECTOR; OIL PIPE,FRT BRK	9-47461-158-0	02	1	0412-			●
101	PROTECTOR; OIL PIPE,FRT BRK ID=5 OD=18 T=8	1-09332-063-0	02	1	0005-				●
111	NUT; FLANGE,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-006-0	04	1	0005-	●
111	NUT; FLANGE,SHOE HOLD	1-09440-006-0	04	1	0005-		●
111	NUT; FLANGE,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-002-0	04	1	0005-0411	●
111	NUT; FLANGE,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-002-0	04	1	0412-	●
111	NUT; FLANGE,SHOE HOLD	1-09440-002-0	04	1	0412-			●
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	0005-0512				●
111	NUT; FLANGE,SHOE HOLD M16	0-91111-516-0	04	1	0601-				●
114	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	0005-0606	●
114	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	9-08112-020-0	04	1	0005-0606		●
114	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	04	1	0607-	●
114	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	04	1	0607-		●
114	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	0005-0411	●
114	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	0412-	●
114	PIN; SPLIT,SHOE HOLD	9-09874-040-0	04	1	0412-			●
120	SPRING; LK,ADJ,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-057-0	04	1	0005-	●
120	SPRING; LK,ADJ,FRT WHEEL CYL	1-47629-057-0	04	1	0005-		●
120	SPRING; LK,ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	0005-0411	●
120	SPRING; LK,ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	0412-	●
120	SPRING; LK,ADJ,FRT WHEEL CYL	1-47629-072-0	04	1	0412-			●
121	SCREW; LK SPR FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94128-727-0	04	1	0005-0411	●
121	SCREW; LK SPR FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94128-727-0	04	1	0412-	●
121	SCREW; LK SPR FRT WHEEL CYL	8-94128-727-0	04	1	0412-			●
122	BOLT; LOCK SPRING,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X8	0-20800-608-0	04	1	0005-	●
122	BOLT; LOCK SPRING,FRT WHEEL CYL M6X8	0-20800-608-0	04	1	0005-		●
124	PLATE; LK,ADJ LK SPRING,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	04	1	0005-	●
124	PLATE; LK,ADJ LK SPRING,FRT WHEEL CYL	1-47169-009-0	04	1	0005-		●

17 16 26 18 119 35 118 15 75 71 74 67 9 24 25 85 111 76 101 90 1 92 35 86 15 29 5 4 15 7 2 3 2 3 29 7 2 1 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-625-0	04	1	0005-	●
1	SHOE; BRK,FRT	1-47120-625-0	04	1	0005-		●
1	SHOE; BRK,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-624-0	04	1	0005-0411	●
1	SHOE; BRK,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-624-0	04	1	0412-	●
1	SHOE; BRK,FRT	1-47120-624-0	04	1	0412-			●
1	SHOE; BRK,FRT	1-47120-628-0	04	1	0005-0210				●
1	SHOE; BRK,FRT	1-47170-195-0	04	1	0211-				●
2	LINING; FRT BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-801-0	08	1	0211-0411	●
2	LINING; FRT BRK SHOE,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-801-0	08	1	0412-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-801-0	08	1	0412-			●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-801-0	04	1	0005-0210	●	●
2	LINING; FRT BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-801-0	04	1	0211-	●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-801-0	04	1	0211-		●
2	LINING; FRT BRK SHOE,STANDARD	1-47125-805-0	04	1	0005-0210				●
2	LINING; FRT BRK SHOE,STANDARD	1-47126-477-0	04	1	0211-				●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-802-0	08	1	0211-0411	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-802-0	08	1	0412-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-802-0	08	1	0412-			●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-802-0	04	1	0005-0210	●	●
3	LINING; FRT BRK SHOE,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-802-0	04	1	0211-	●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-802-0	04	1	0211-		●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47125-806-0	04	1	0005-0210				●
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-478-0	04	1	0211-				●
4	LINING SET; FRT BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-503-0	01	1	0005-	●
4	LINING SET; FRT BRK,STANDARD	1-88310-503-0	01	1	0005-		●
4	LINING SET; FRT BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-501-1	01	1	0005-0411	●
4	LINING SET; FRT BRK,STANDARD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-501-1	01	1	0412-	●
4	LINING SET; FRT BRK,STANDARD	1-88310-501-1	01	1	0412-			●
4	LINING SET; FRT BRK,STANDARD	1-88310-505-0	01	1	0005-0210				●
4	LINING SET; FRT BRK,STANDARD	1-88311-147-0	01	1	0211-				●
5	LINING SET; FRT BRK,OVER SIZE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-504-0	01	1	0005-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-504-0	01	1	0005-		●
5	LINING SET; FRT BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-502-1	01	1	0005-0411	●
5	LINING SET; FRT BRK,OVER SIZE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-502-1	01	1	0412-	●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-502-1	01	1	0412-			●
5	LINING SET; FRT BRK,OVER SIZE	1-88310-506-0	01	1	0005-0210				●
5	LINING SET; FRT BRK,OVER SIZE	1-88311-148-0	01	1	0211-				●
7	RIVET; LINING,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=11.5	1-09732-015-0	56	1	0005-	●
7	RIVET; LINING,FRT BRK L=11.5	1-09732-015-0	56	1	0005-		●
7	RIVET; LINING,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	56	1	0005-0411	●
7	RIVET; LINING,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	56	1	0412-	●
7	RIVET; LINING,FRT BRK	1-09732-029-0	56	1	0412-			●
7	RIVET; LINING,FRT BRK D6X11.5	1-09732-019-0	64	1	0005-				●
9	PIN; SHOE HOLDER	1-47162-012-0	04	1	0005-0303				●
9	PIN; SHOE HOLDER	1-47162-036-0	04	1	0304-				●
15	CYLINDER; WHEEL,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-389-4	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-389-4	02	1	0005-		●
15	CYLINDER; WHEEL,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-388-4	02	1	0005-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-388-4	02	1	0005-		●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-939-0	02	1	0005-0411	●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-939-0	02	1	0412-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-939-0	02	1	0412-			●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-938-0	02	1	0005-0411	●
15	CYLINDER; WHEEL,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47600-938-0	02	1	0412-	●
15	CYLINDER; WHEEL,FRT BRK	1-47600-938-0	02	1	0412-			●
15	CYLINDER; WHEEL,FRT BRK	1-47600-555-1	02	1	0005-				●
15	CYLINDER; WHEEL,FRT BRK	1-47600-554-1	02	1	0005-				●
16	SCREW; BLEEDER,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=44	1-47615-007-0	04	1	0005-	●
16	SCREW; BLEEDER,FRT BRK L=44	1-47615-007-0	04	1	0005-		●		●
16	SCREW; BLEEDER,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47615-027-0	04	1	0005-0411	●
16	SCREW; BLEEDER,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47615-027-0	04	1	0412-0703	●
16	SCREW; BLEEDER,FRT BRK	9-47615-027-0	04	1	0412-0703			●
16	SCREW; BLEEDER,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98050-476-0	04	1	0704-	●
16	SCREW; BLEEDER,FRT BRK	8-98050-476-0	04	1	0704-			●
17	CAP; BLEEDER,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=9.5	9-47619-005-0	04	1	0005-	●
17	CAP; BLEEDER,FRT WHEEL CYL OD=9.5	9-47619-005-0	04	1	0005-		●		●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	04	1	0005-0411	●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	04	1	0412-0703	●
17	CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	04	1	0412-0703			●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98050-479-0	04	1	0704-	●
17	CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	04	1	0704-			●
18	STOPPER; ADJ SCREW	1-47169-008-0	04	1	0005-				●
24	PISTON; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-150-1	02	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-150-1	02	1	0005-		●
24	PISTON; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-149-1	02	1	0005-	●
24	PISTON; FRT WHEEL CYL	1-47624-149-1	02	1	0005-		●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-319-0	02	1	0005-0411	●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-319-0	02	1	0412-	●
24	PISTON; FRT WHEEL CYL	1-47624-319-0	02	1	0412-			●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-318-0	02	1	0005-0411	●
24	PISTON; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-318-0	02	1	0412-	●
24	PISTON; FRT WHEEL CYL	1-47624-318-0	02	1	0412-			●
24	PISTON; FRT WHEEL CYL	1-47624-200-0	02	1	0005-				●
24	PISTON; FRT WHEEL CYL	1-47624-199-0	02	1	0005-				●
25	SCREW; ADJ,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH THREAD	1-47622-019-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL RH THREAD	1-47622-019-0	02	1	0005-		●
25	SCREW; ADJ,FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH THREAD	1-47622-018-0	02	1	0005-	●
25	SCREW; ADJ,FRT WHEEL CYL LH THREAD	1-47622-018-0	02	1	0005-		●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH THREAD	1-47622-021-0	02	1	0005-0411	●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH THREAD	1-47622-021-0	02	1	0412-	●
25	SCREW; ADJ,FRT WHEEL CYL RH THREAD	1-47622-021-0	02	1	0412-			●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH THREAD	1-47622-020-0	02	1	0005-0411	●
25	SCREW; ADJ,FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH THREAD	1-47622-020-0	02	1	0412-	●
25	SCREW; ADJ,FRT WHEEL CYL LH THREAD	1-47622-020-0	02	1	0412-			●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-015-0	02	1	0005-				●
25	SCREW; ADJ,FRT WHEEL CYL	1-47622-014-0	02	1	0005-				●
26	CUP SET; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=22.5	1-87830-560-0	02	1	0005-	●
26	CUP SET; FRT WHEEL CYL ID=22.5	1-87830-560-0	02	1	0005-		●
26	CUP SET; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-679-0	04	1	0005-0411	●
26	CUP SET; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-87830-679-0	04	1	0412-	●
26	CUP SET; FRT WHEEL CYL	1-87830-679-0	04	1	0412-			●
26	CUP SET; FRT WHEEL CYL	1-87830-577-0	04	1	0005-				●
29	SPRING; RETURN,FRT BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-204-1	04	1	0005-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-204-1	04	1	0005-		●
29	SPRING; RETURN,FRT BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-288-0	04	1	0005-0411	●
29	SPRING; RETURN,FRT BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-288-0	04	1	0412-	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-288-0	04	1	0412-			●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-126-1	04	1	0005-				●
35	BOLT; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X30	0-23801-430-0	04	1	0005-	●
35	BOLT; FRT WHEEL CYL (A) M14X30	0-23801-430-0	04	1	0005-		●
35	BOLT; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X25 W/LK WASHER	0-50051-025-0	08	1	0005-0906	●
35	BOLT; FRT WHEEL CYL (B) M10X25 W/LK WASHER	0-50051-025-0	08	1	0005-0906		●
35	BOLT; FRT WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X25 W/LK WASHER	0-50551-025-0	08	1	0907-	●
35	BOLT; FRT WHEEL CYL (B) M10X25 W/LK WASHER	0-50551-025-0	08	1	0907-		●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X30	1-09000-365-0	04	1	0005-0411	●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X30	1-09000-365-0	04	1	0412-	●
35	BOLT; FRT WHEEL CYL (A) M14X30	1-09000-365-0	04	1	0412-			●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X22	9-09802-475-0	08	1	0005-0411	●
35	BOLT; FRT WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X22	9-09802-475-0	08	1	0412-	●
35	BOLT; FRT WHEEL CYL (B) M8X22	9-09802-475-0	08	1	0412-			●
35	BOLT; FRT WHEEL CYL (B) M16X30	0-23801-630-0	04	1	0005-				●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50051-022-0	08	1	0005-0906				●
35	BOLT; FRT WHEEL CYL (A) M10X22 W/LK WASHER	0-50551-022-0	08	1	0907-				●
67	PLATE; BACK,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-399-0	01	1	0005-	●
67	PLATE; BACK,FRT BRK	1-47150-399-0	01	1	0005-		●
67	PLATE; BACK,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-398-0	01	1	0005-	●
67	PLATE; BACK,FRT BRK	1-47150-398-0	01	1	0005-		●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-376-0	01	1	0005-0411	●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-376-0	01	1	0412-	●
67	PLATE; BACK,FRT BRK	1-47150-376-0	01	1	0412-			●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-375-0	01	1	0005-0411	●
67	PLATE; BACK,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-375-0	01	1	0412-	●
67	PLATE; BACK,FRT BRK	1-47150-375-0	01	1	0412-			●
67	PLATE; BACK,FRT BRK	1-47150-348-1	01	1	0005-				●
67	PLATE; BACK,FRT BRK	1-47150-347-1	01	1	0005-				●
71	GROMMET; CHECK HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-066-1	04	1	0005-	●
71	GROMMET; CHECK HOLE	1-09333-066-1	04	1	0005-		●
71	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	0005-0411	●
71	GROMMET; CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	0412-	●
71	GROMMET; CHECK HOLE	1-09333-033-0	04	1	0412-			●
71	GROMMET; CHECK HOLE	1-09333-058-1	04	1	0005-				●
74	CONNECTOR; FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-009-1	01	1	0005-	●
74	CONNECTOR; FRT BRK	1-47630-009-1	01	1	0005-		●
74	CONNECTOR; FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-008-1	01	1	0005-	●
74	CONNECTOR; FRT BRK	1-47630-008-1	01	1	0005-		●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-014-1	01	1	0005-0411	●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-014-1	01	1	0412-	●
74	CONNECTOR; FRT BRK	1-47630-014-1	01	1	0412-			●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-013-1	01	1	0005-0411	●
74	CONNECTOR; FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47630-013-1	01	1	0412-	●
74	CONNECTOR; FRT BRK	1-47630-013-1	01	1	0412-			●
74	CONNECTOR; FRT BRK	1-47630-003-2	02	1	0005-				●
75	PIPE; OIL,FWD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-248-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-248-0	01	1	0005-		●
75	PIPE; OIL,FWD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-247-0	01	1	0005-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-247-0	01	1	0005-		●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-238-0	01	1	0005-0411	●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-238-0	01	1	0412-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-238-0	01	1	0412-			●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-237-0	01	1	0005-0411	●
75	PIPE; OIL,FWD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-237-0	01	1	0412-	●
75	PIPE; OIL,FWD,FRT BRK	1-47414-237-0	01	1	0412-			●
75	PIPE; OIL,FWD,FRT BRK	1-47413-792-0	01	1	0005-				●
75	PIPE; OIL,FWD,FRT BRK	1-47413-791-0	01	1	0005-				●
76	PIPE; OIL,BACKWARD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-445-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-445-0	01	1	0005-		●
76	PIPE; OIL,BACKWARD,FRT BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-444-0	01	1	0005-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-444-0	01	1	0005-		●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-242-0	01	1	0005-0411	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-242-0	01	1	0412-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-242-0	01	1	0412-			●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-241-0	01	1	0005-0411	●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47414-241-0	01	1	0412-	●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47414-241-0	01	1	0412-			●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-790-0	01	1	0005-				●
76	PIPE; OIL,BACKWARD,FRT BRK	1-47413-789-0	01	1	0005-				●
85	PLATE; LK,CONNECTOR	1-09533-006-0	04	1	0005-				●
86	WASHER; LK,FRT WHEEL CYL ID=14.2	9-09150-614-0	04	1	0005-0411	●	●
86	WASHER; LK,FRT WHEEL CYL ID=14.2	9-09150-614-0	04	1	0412-0603	●	●	●
86	WASHER; LK,FRT WHEEL CYL ID=14.2	0-91510-614-0	04	1	0604-	●	●	●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	9-09150-616-0	04	1	0005-0603				●
86	WASHER; LK,FRT WHEEL CYL ID=16.2	0-91510-616-0	04	1	0604-				●
90	BOLT; CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X14 W/LK WASHER	0-50040-814-0	04	1	0005-0805	●
90	BOLT; CONNECTOR M8X14 W/LK WASHER	0-50040-814-0	04	1	0005-0805		●
90	BOLT; CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X14 W/LK WASHER	8-98038-400-0	04	1	0806-	●
90	BOLT; CONNECTOR M8X14 W/LK WASHER	8-98038-400-0	04	1	0806-		●
90	BOLT; CONNECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16	9-09602-119-1	02	1	0005-0411	●
90	BOLT; CONNECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16	9-09602-119-1	02	1	0412-0703	●
90	BOLT; CONNECTOR M8X16	9-09602-119-1	02	1	0412-0703			●
90	BOLT; CONNECTOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	5-09030-036-1	02	1	0704-	●
90	BOLT; CONNECTOR	5-09030-036-1	02	1	0704-			●
90	BOLT; CONNECTOR M8X18 W/LK WASHER	0-50040-818-0	02	1	0005-0906				●
90	BOLT; CONNECTOR M8X18 W/LK WASHER	0-50540-818-0	02	1	0907-				●
92	GROMMET; ADJ HOLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-065-2	04	1	0005-	●
92	GROMMET; ADJ HOLE	1-09333-065-2	04	1	0005-		●
92	GROMMET; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	0005-0411	●
92	GROMMET; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	0412-	●
92	GROMMET; ADJ HOLE	9-09956-640-0	04	1	0412-			●
92	GROMMET; ADJ HOLE	1-09333-010-0	04	1	0005-				●
101	PROTECTOR; OIL PIPE,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	0005-0411	●
101	PROTECTOR; OIL PIPE,FRT BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	0412-	●
101	PROTECTOR; OIL PIPE,FRT BRK	9-47461-158-0	02	1	0412-			●
101	PROTECTOR; OIL PIPE,FRT BRK ID=5 OD=18 T=8	1-09332-063-0	02	1	0005-				●
111	NUT; FLANGE,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-006-0	04	1	0005-	●
111	NUT; FLANGE,SHOE HOLD	1-09440-006-0	04	1	0005-		●
111	NUT; FLANGE,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-002-0	04	1	0005-0411	●
111	NUT; FLANGE,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-002-0	04	1	0412-	●
111	NUT; FLANGE,SHOE HOLD	1-09440-002-0	04	1	0412-			●
111	NUT; FLANGE,SHOE HOLD M16	9-99111-416-0	04	1	0005-0512				●
111	NUT; FLANGE,SHOE HOLD M16	0-91111-516-0	04	1	0601-				●
118	BOLT; STOPPER M6X8	0-20800-608-0	04	1	0005-				●
119	PLATE; LK,STOPPER	1-47169-009-0	04	1	0005-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
