2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#9371) — 34 parça

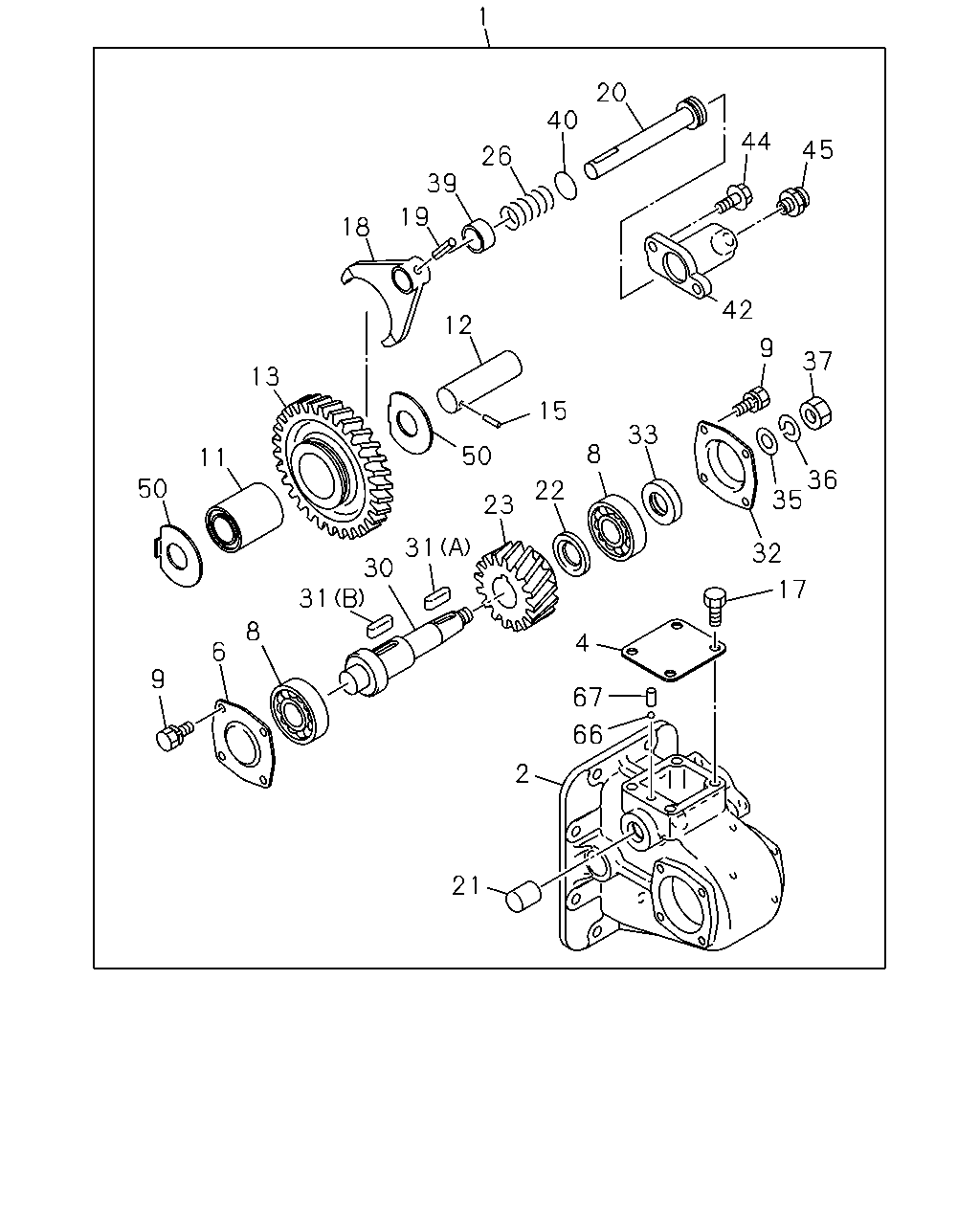

çizim 99805
1 20 40 44 45 26 39 19 18 42 12 9 37 13 15 33 8 50 11 36 35 50 22 23 31 30 31 32 17 8 4 6 9 67 66 2 21
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38000-309-1 01 1 0612-
2 CASE; GEAR,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38111-085-0 01 1 0612-
4 COVER; UPR,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38131-008-0 01 1 0612-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		8-97333-347-0 01 1 0612-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-09800-121-0 02 1 0612-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M8X12 FLANGE 		0-28080-812-0 08 1 0612-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-09811-144-0 01 1 0612-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38221-024-0 01 1 0612-
13 GEAR; IDLE,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> Z=32 		1-38241-063-0 01 1 0612-
15 PIN; SPR,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> L=16 		9-09878-613-0 01 1 0612-
17 BOLT; UPR COVER,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M10X16 FLANGE 		0-28181-016-0 04 1 0612-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38361-029-0 01 1 0612-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-09748-019-0 01 1 0612-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38371-033-1 01 1 0612-
21 COVER; SHIFTER ROD,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		9-33545-001-0 01 1 0612-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38226-044-0 01 1 0612-
23 GEAR; OUTPUT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> Z=22 		1-38241-064-0 01 1 0612-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38121-004-1 01 1 0612-
30 SHAFT; OUTPUT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38211-009-1 01 1 0612-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) L=25 		1-09735-024-0 01 1 0612-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (B) L=30 		9-08011-030-0 01 1 0612-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38152-024-0 01 1 0612-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38159-007-0 01 1 0612-
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=15 		9-09160-514-0 01 1 0612-
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=14.2 		9-09150-514-0 01 1 0612-
37 NUT; FLANGE FIX,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M14 		9-99111-414-0 01 1 0612-
39 STOPPER; SHIFTER ROD,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38379-006-0 01 1 0612-
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		9-09561-324-0 01 1 0612-
42 CYLINDER; AIR,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38377-003-0 01 1 0612-
44 BOLT; COVER,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M10X25 FLANGE 		0-28181-025-0 02 1 0612-
45 NIPPLE; AIR CYL,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0612-
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		1-38226-043-0 02 1 0612-
66 BALL; SHIFTER ROD,TRANS SIDE PTO
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> 		9-00097-009-0 01 1 0612-
67 PIN; STRAIGHT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> OD=8 L=16 		9-08160-816-0 01 1 0612-
