Sayfa 4-10 - Isuzu EPC

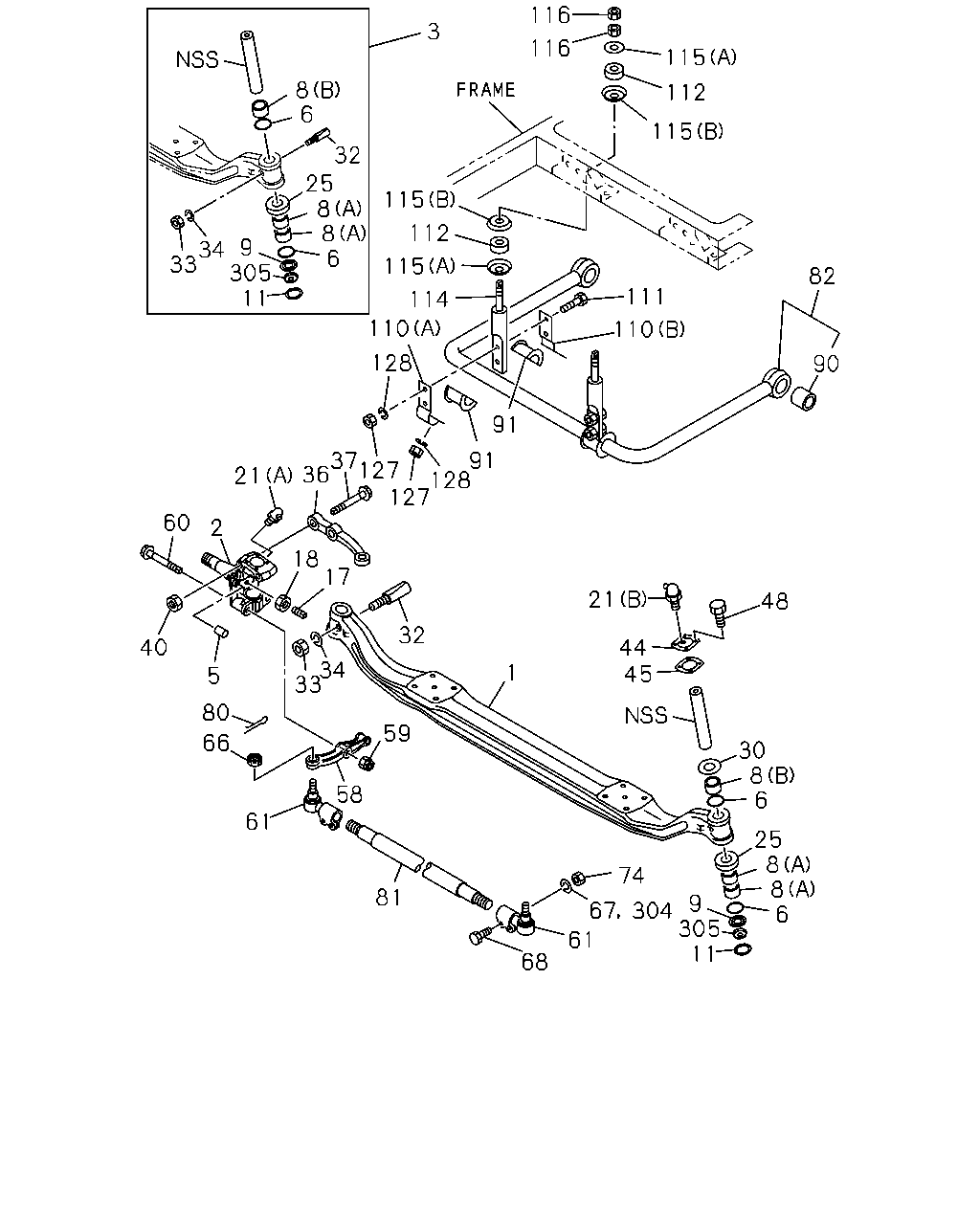

4-10 — FRONT AXLE (#937) — 276 parça

116 3 116 115 8 6 112 115 32 25 8 8 6 115 112 34 9 33 305 11 115 82 111 114 110 110 128 90 91 37 91 127 128 127 21 60 2 18 17 21 48 32 40 44 45 34 33 1 5 80 59 66 30 8 6 58 61 25 8 8 6 74 81 9 304 305 11 67 61 68 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-070-0	01	1	9202-9412	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9501-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-102-2	01	1	9202-9312	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9401-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-044-6	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-089-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-044-6	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-089-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-046-4	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-0	01	1	9405-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-046-3	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-0	01	1	9405-	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-363-0	02	1	9202-9412	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-804-0	02	1	9501-	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-039-5	02	1	9202-9404	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-737-0	02	1	9405-9412	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-0	02	1	9501-	●	●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	9-09878-625-0	02	1	9202-9404	●	●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	1-09740-072-0	02	1	9405-	●	●
6	SEAL; KING PIN FRONT AXLE F063(FS7)	9-09926-024-0	04	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NTN	1-09811-071-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NSK	1-09811-072-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9202-	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9202-9404	●	●
9	PLUG; KNUCKLE FRONT AXLE F049(FS4)	9-09201-363-0	02	1	9405-9412	●	●
11	RING; SNAP,KNUCKLE PLUG FRONT AXLE F063(FS7)	9-09950-204-0	02	1	9202-9412	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9501-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-058-0	02	1	9202-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	9-99112-814-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) (A) ANGLE 67.5? PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) (B) ANGLE 90.0? PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NTN	1-09829-026-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-028-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NTN	1-09829-027-1	02	1	9202-9412	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9501-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.800	1-43171-229-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.850	1-43171-230-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.900	1-43171-231-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.950	1-43171-232-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.000	1-43171-233-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.050	1-43171-234-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.100	1-43171-235-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.150	1-43171-236-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.200	1-43171-237-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.250	1-43171-238-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.300	1-43171-239-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4)	1-43116-005-1	02	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-1	02	1	9202-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9202-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9202-	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-031-1	01	1	9202-9503	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-069-0	01	1	9504-	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-057-1	01	1	9202-9404	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-0	01	1	9405-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) M22X162	1-09000-107-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) M22X147	1-09000-108-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) M22X179	1-09000-578-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) M22X167	9-09806-847-2	01	1	9202-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-0	02	1	9202-	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-012-0	02	1	9202-9202	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-016-0	02	1	9203-	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9202-	●	●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7)	1-42319-044-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F049(FS4) M12X25	1-09009-081-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X20 W/LK WASHER	0-50041-220-0	08	1	9202-9501	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9502-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43135-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43134-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-043-0	01	1	9405-		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-043-0	01	1	9405-		●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27	1-09449-016-0	02	1	9202-	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-0	04	1	9202-	●	●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	1-09000-154-1	04	1	9202-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-658-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-657-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-627-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-627-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-626-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-626-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-662-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-661-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRT AXLE GREASE NON MENTENANCE FREE<B3L> FRONT AXLE F049(FS4)	1-43150-671-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-671-1	01	1	9303-	●	●
61	ROD END; TIE ROD FRT AXLE GREASE NON MENTENANCE FREE<B3L> FRONT AXLE F049(FS4)	1-43150-670-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-670-1	01	1	9303-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9202-	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9202-9205	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9206-9410	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9202-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9202-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-120-1	01	1	9202-	●
81	ROD; TIE FRONT AXLE F049(FS4)	1-43151-077-0	01	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-119-1	01	1	9202-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> W/BUSH	1-51770-041-2	01	1	9202-	●	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	9202-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-1	02	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X30	0-20801-230-0	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X50	0-20801-250-0	04	1	9202-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	9202-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-064-0	02	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=14.5	9-51631-051-0	04	1	9202-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9202-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-512-0	06	1	9202-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9202-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9411-	●	●
305	COVER; KNUCKLE FRONT AXLE F063(FS7)	1-43175-021-0	02	1	9405-9412	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9501-	●	●

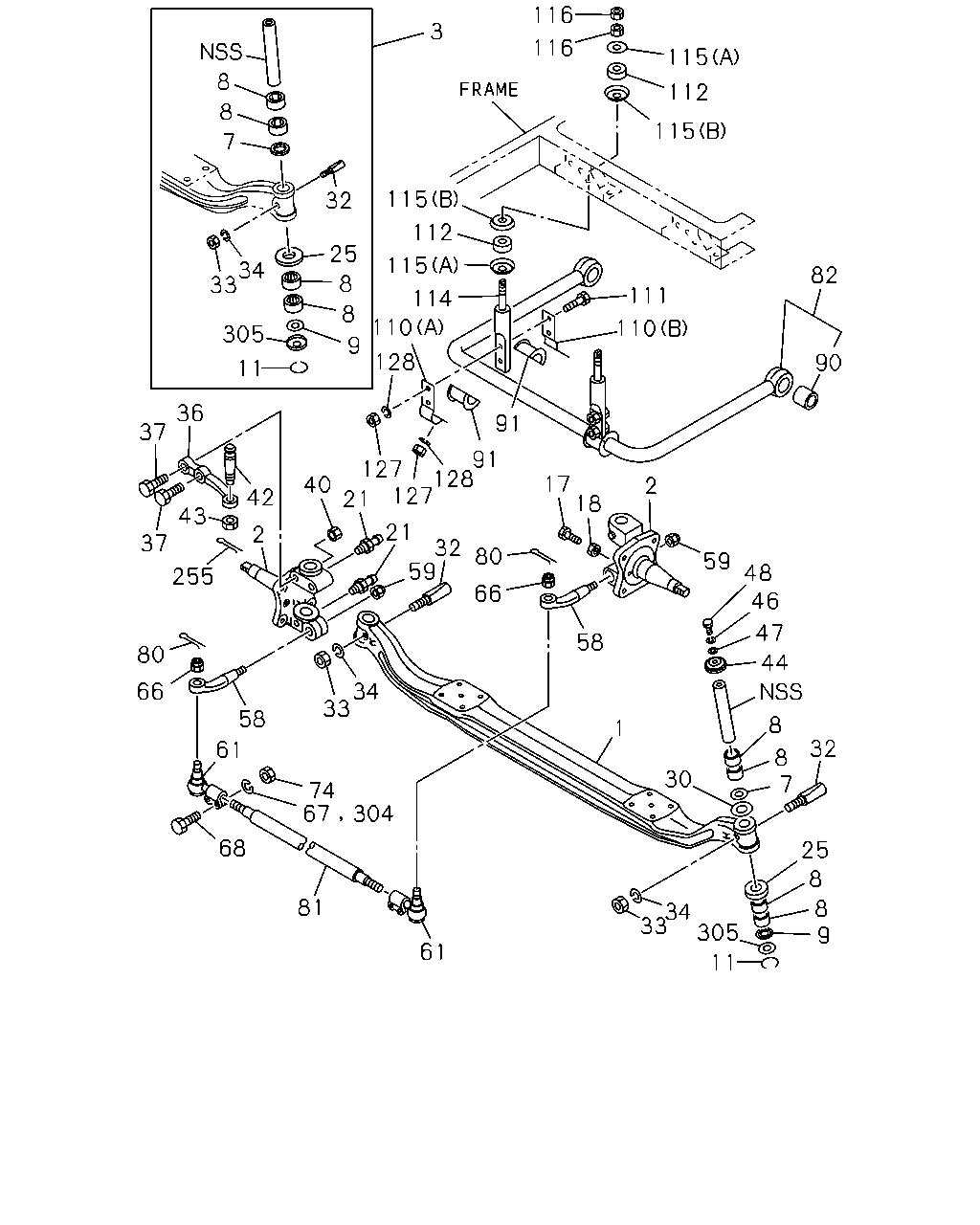

116 3 116 115 8 112 8 115 7 115 32 112 25 115 34 33 82 8 111 114 8 110 110 305 9 128 90 11 36 91 37 91 127 128 127 17 18 40 2 42 21 43 21 2 37 32 59 80 59 48 46 255 66 47 58 80 44 34 33 66 58 8 1 32 61 8 7 30 74 304 68 25 8 81 8 9 34 33 305 61 11 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-070-0	01	1	9202-9412	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9501-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-102-2	01	1	9202-9312	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9401-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-044-6	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-089-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-044-6	01	1	9202-9412	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-089-0	01	1	9501-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-046-4	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-0	01	1	9405-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-046-3	01	1	9202-9404	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-0	01	1	9405-	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-363-0	02	1	9202-9412	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-804-0	02	1	9501-	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-039-5	02	1	9202-9404	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-737-0	02	1	9405-9412	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-0	02	1	9501-	●	●
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) NSK NSK	1-09625-087-0	02	1	9202-	●	●
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) NTN NTN	1-09625-089-0	02	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NTN	1-09811-071-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) NSK	1-09811-072-0	08	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9202-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9202-	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9202-9404	●	●
9	PLUG; KNUCKLE FRONT AXLE F049(FS4)	9-09201-363-0	02	1	9405-9412	●	●
11	RING; SNAP,KNUCKLE PLUG FRONT AXLE F063(FS7)	9-09950-204-0	02	1	9202-9412	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9501-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-058-0	02	1	9202-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	9-99112-814-0	02	1	9202-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) (A) ANGLE 67.5? PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9202-	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) (B) ANGLE 90.0? PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NTN	1-09829-026-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-028-0	02	1	9202-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NTN	1-09829-027-1	02	1	9202-9412	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9501-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.800	1-43171-229-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.850	1-43171-230-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.900	1-43171-231-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.950	1-43171-232-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.000	1-43171-233-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.050	1-43171-234-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.100	1-43171-235-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.150	1-43171-236-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.200	1-43171-237-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.250	1-43171-238-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.300	1-43171-239-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9202-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4)	1-43116-005-1	02	1	9202-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-1	02	1	9202-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9202-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9202-	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-031-1	01	1	9202-9503	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-069-0	01	1	9504-	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-057-1	01	1	9202-9404	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-0	01	1	9405-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) M22X162	1-09000-107-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) M22X147	1-09000-108-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) M22X179	1-09000-578-0	01	1	9202-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) M22X167	9-09806-847-2	01	1	9202-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-0	02	1	9202-	●	●
42	JOINT; BALL,KNUCKLE ARM FRONT AXLE F049(FS4)	1-44361-060-0	01	1	9202-9503	●	●
42	JOINT; BALL,KNUCKLE ARM FRONT AXLE F049(FS4)	1-44361-110-1	01	1	9504-	●	●
43	NUT; JOINT BALL,KNUCKLE ARM FRONT AXLE F049(FS4) M24	9-09844-669-2	01	1	9202-9503	●	●
43	NUT; JOINT BALL,KNUCKLE ARM FRONT AXLE F049(FS4) M24 SLOTTED	1-09442-020-0	01	1	9504-	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-012-0	02	1	9202-9202	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-016-0	02	1	9203-	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9202-	●	●
46	WASHER; LK,COVER FRONT AXLE F049(FS4) ID=12.2	9-09150-512-0	02	1	9202-	●	●
47	WASHER; PL,COVER,KING PIN FRONT AXLE F049(FS4) ID=12.5 OD=32	9-09164-712-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F049(FS4) M12X25	1-09009-081-0	02	1	9202-	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X20 W/LK WASHER	0-50041-220-0	08	1	9202-9501	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9502-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-021-1	01	1	9202-9404	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-044-0	01	1	9405-	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43135-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43134-015-1	01	1	9202-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-043-0	01	1	9405-		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-036-0	01	1	9202-9404		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-043-0	01	1	9405-		●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27	1-09449-016-0	02	1	9202-	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-0	04	1	9202-	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-658-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-657-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-627-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-627-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-626-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-626-2	01	1	9303-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-662-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7) EXC. FRT AXLE GREASE NON MENTENANCE FREE<B3L>	1-43150-661-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRT AXLE GREASE NON MENTENANCE FREE<B3L> FRONT AXLE F049(FS4)	1-43150-671-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-671-1	01	1	9303-	●	●
61	ROD END; TIE ROD FRT AXLE GREASE NON MENTENANCE FREE<B3L> FRONT AXLE F049(FS4)	1-43150-670-1	01	1	9202-9302	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-670-1	01	1	9303-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9202-	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9202-9205	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9206-9410	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9202-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9202-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-120-1	01	1	9202-	●
81	ROD; TIE FRONT AXLE F049(FS4)	1-43151-077-0	01	1	9202-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	9-43151-119-1	01	1	9202-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> W/BUSH	1-51770-041-2	01	1	9202-	●	●
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	9202-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-1	02	1	9202-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X30	0-20801-230-0	02	1	9202-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> M12X50	0-20801-250-0	04	1	9202-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	9202-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-064-0	02	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	9202-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=14.5	9-51631-051-0	04	1	9202-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9202-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-512-0	06	1	9202-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9202-	●	●
255	PIN; SPLIT,JOINT BALL FRONT AXLE F049(FS4) OD=4.6 L=35	9-08115-035-0	01	1	9504-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9411-	●	●
305	COVER; KNUCKLE FRONT AXLE F063(FS7)	1-43175-021-0	02	1	9405-9412	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
