Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶

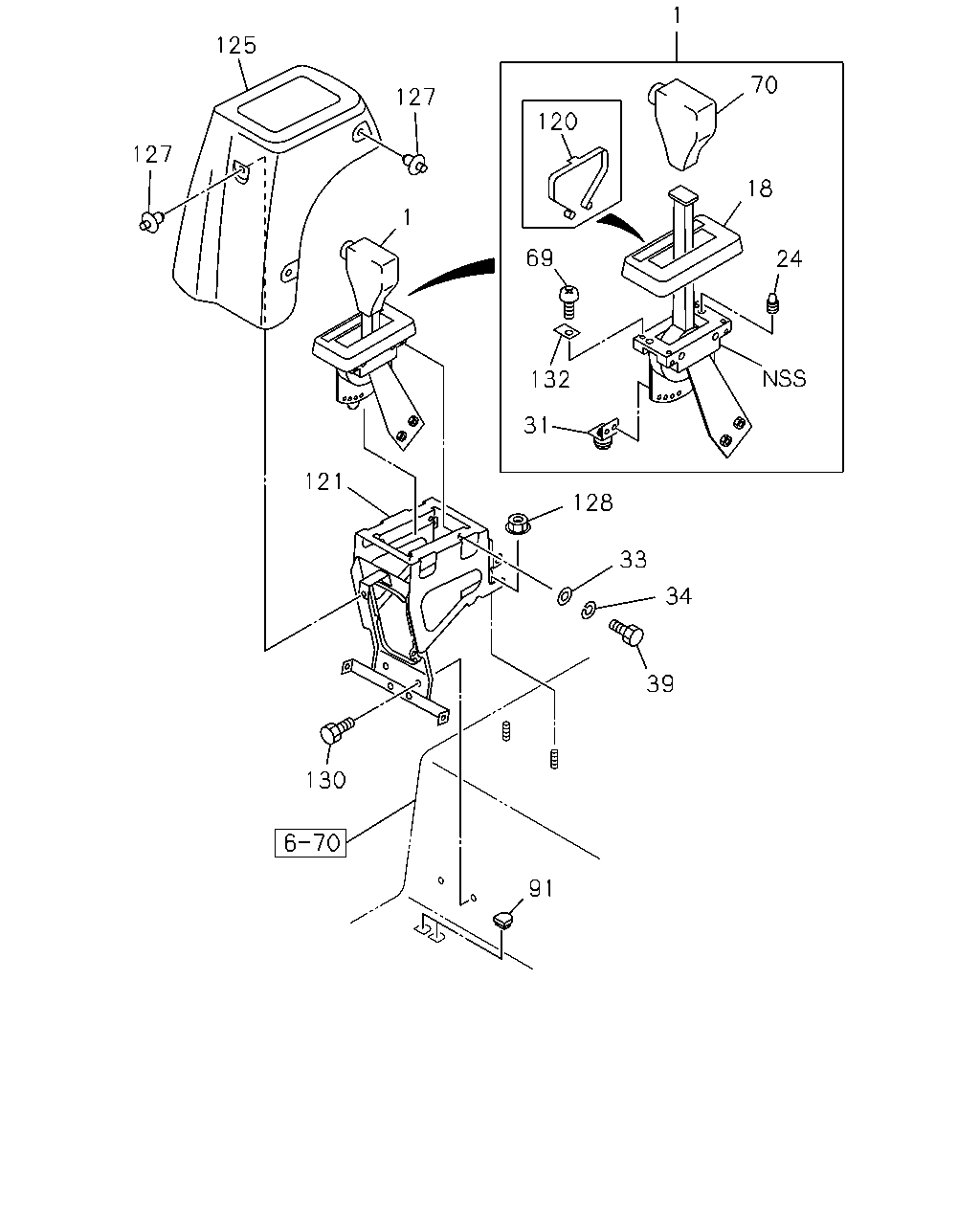

2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#9369) — 20 parça
1
125
70
127
120
127
18
1
69
24
132
31
121
128
33
34
39
130
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
1-34610-060-2
01
1
0005-
18
COVER; INDICATOR,UPR
1-34615-003-0
01
1
0005-
24
BULB; SHIFT LEVER,A/T
12V 1.1W
1-34619-026-0
02
1
0005-0104
24
BULB; SHIFT LEVER,A/T
1-34619-027-0
02
1
0105-
31
SWITCH; SHIFT LEVER,A/T
1-34619-022-0
02
1
0005-
33
WASHER; PL,CONT LEVER TO BODY
1-09503-061-0
04
1
0005-
34
WASHER; LK,SHIFT LEVER
1-09500-043-0
04
1
0005-
39
SCREW; SHIFT LEVER
M6X13
1-09981-540-0
04
1
0005-
69
SCREW; COVER,SHIFT LEVER
1-34619-056-0
04
1
0005-
70
KNOB; SHIFT LEVER
1-34612-003-0
01
1
0005-
91
GROMMET
1-09983-098-0
02
1
0005-
120
BELT; INDICATOR
1-34619-070-0
01
1
0005-
121
BRACKET
1-79998-916-3
01
1
0005-
125
COVER; SHIFT LEVER
1-79996-450-0
01
1
0005-
127
FASTENER; COVER
D8X13.5
1-09987-270-0
05
1
0005-
128
NUT; BRKT
M8 W/LK WASHER
8-97065-435-0
02
1
0005-0107
128
NUT; BRKT
M8 FLANGE
8-97046-127-0
02
1
0108-0805
128
NUT; BRKT
M8 W/DISHED WASHER
8-97329-625-0
02
1
0806-
130
BOLT; BRKT
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
0005-
132
CLIP; COVER
1-34619-057-0
04
1
0005-
