Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶

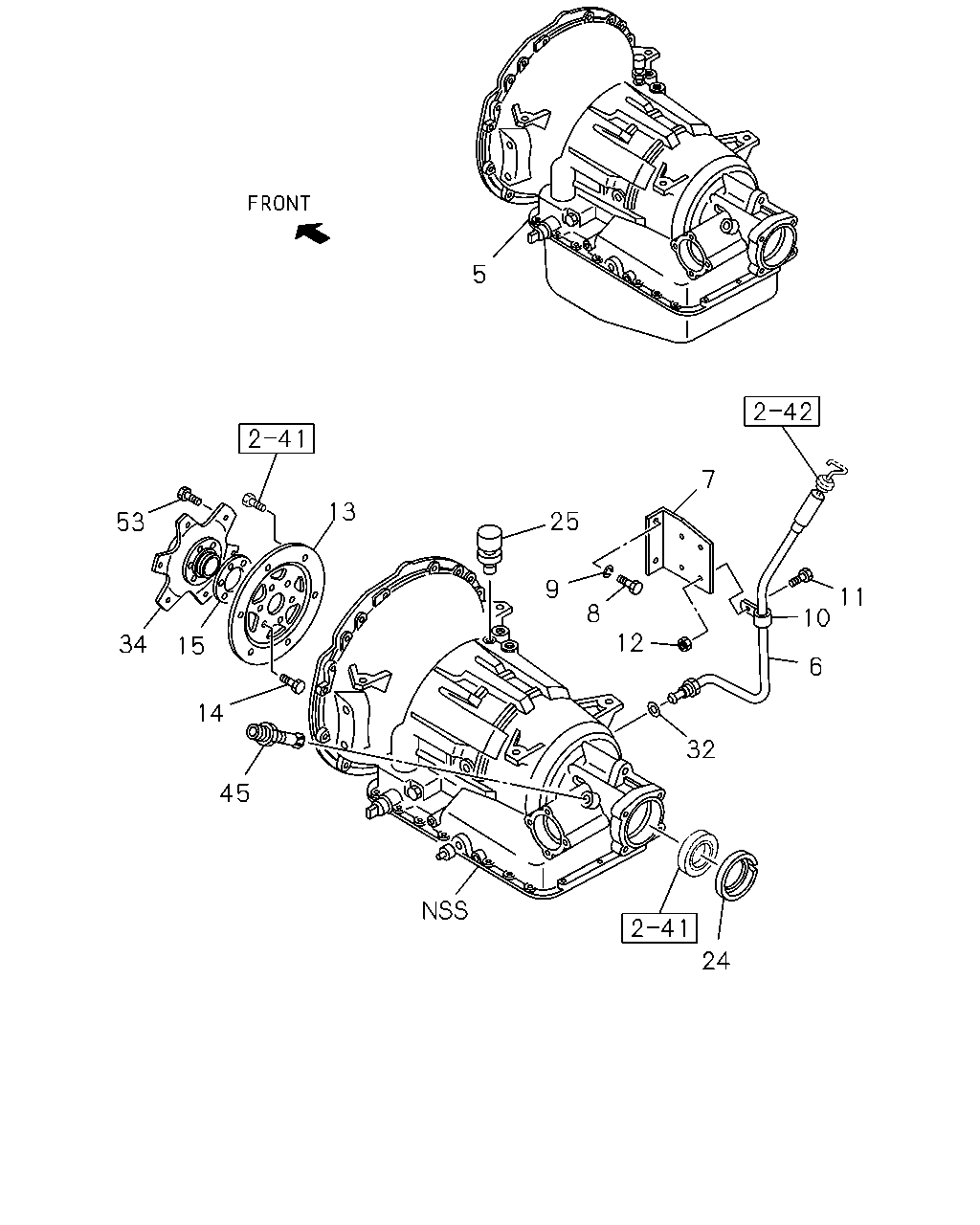

2-40 — AUTO TRANS ASM AND REPAIR KIT
(#9364) — 23 parça
5
7
13
25
53
9
11
8
10
12
34
15
6
14
32
45
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
TRANSMISSION ASM; AUTO
1-34000-270-0
01
1
0005-0210
5
TRANSMISSION ASM; AUTO
1-34000-337-0
01
1
0211-
6
FILLER; OIL
1-34121-126-0
01
1
0005-
7
BRACKET; OIL FILLER
1-34129-044-0
01
1
0005-
8
BOLT; BRKT
5/8"X30
1-09040-013-0
02
1
0005-
9
WASHER; LK
ID=16.2
9-09150-516-0
02
1
0005-0603
9
WASHER; LK
ID=16.2
0-91510-516-0
02
1
0604-
10
CLIP; OIL FILLER
ID=19
1-09700-664-0
02
1
0005-
11
BOLT; CLIP
M8X16 W/LK&PL WASHER
0-50140-816-0
04
1
0005-0512
11
BOLT; CLIP
M8X16 W/LK&PL WASHER
0-50640-816-0
04
1
0601-
12
NUT; BOLT
M8
9-09110-408-0
04
1
0005-0512
12
NUT; BOLT
M8
0-91110-508-0
04
1
0601-
13
PLATE; FLEX,A/T
1-32213-022-0
01
1
0005-
14
BOLT; FLEX PLATE
M14X25
9-92061-425-0
06
1
0005-0512
14
BOLT; FLEX PLATE
M14X25
0-20951-425-0
06
1
0601-
15
WASHER; FLEX PLATE
1-32213-009-1
01
1
0005-
24
COVER; SEALED
1-34125-002-0
01
1
0005-
25
BREATHER; AIR
1-33547-004-2
01
1
0005-
32
GASKET
9-09921-103-0
01
1
0005-
34
ADAPTER
8-94396-923-2
01
1
0005-
45
GEAR; DRIVEN,SPD,A/T
Z=17
1-33372-065-0
01
1
0005-
53
BOLT; ADAPTER
M10X30 FLANGE
0-28791-030-0
06
1
0005-0512
53
BOLT; ADAPTER
M10X30 FLANGE
0-28761-030-0
06
1
0601-
