2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#9358) — 78 parça

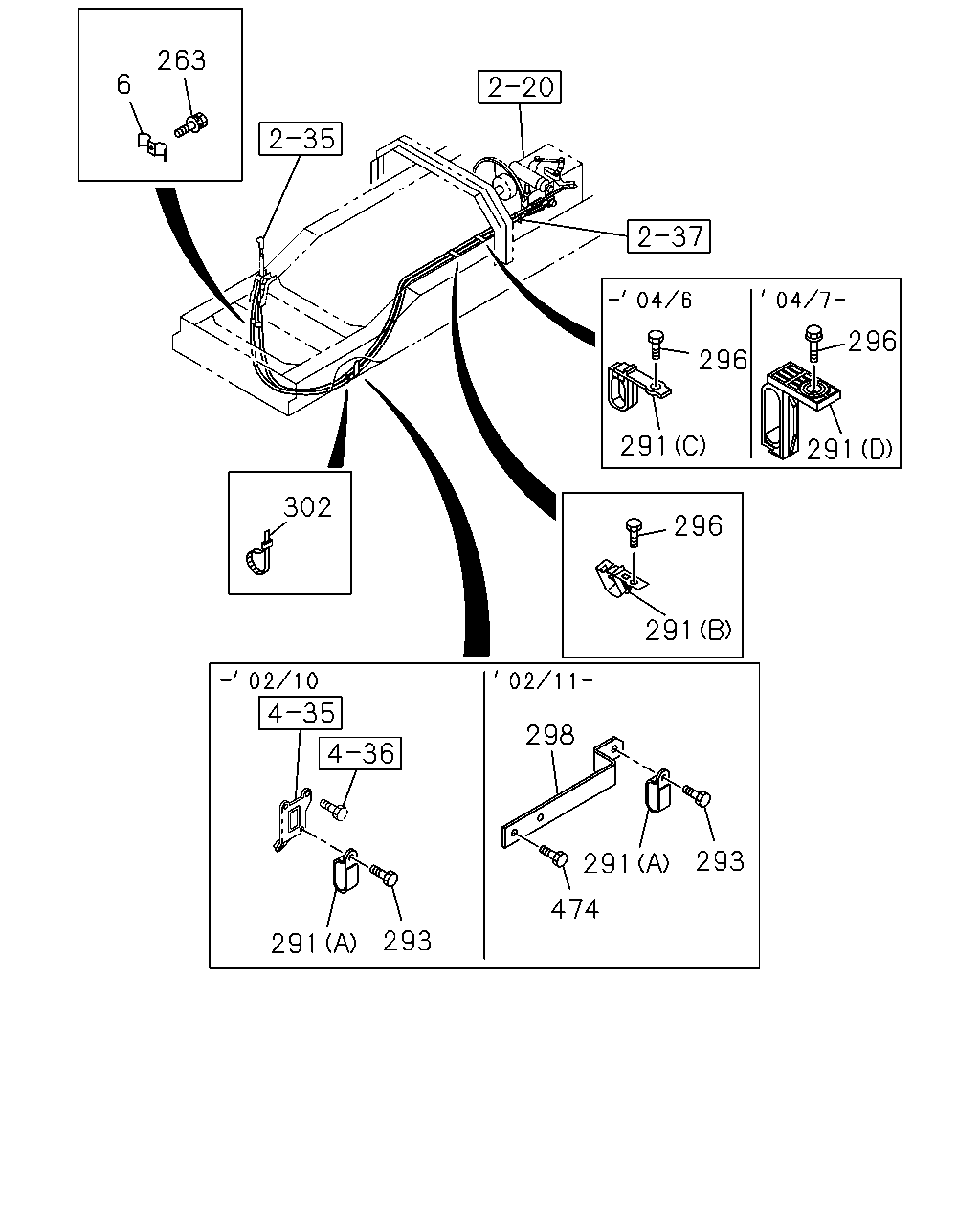

263 6 296 296 291 291 302 296 291 298 293 291 474 293 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0210	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0211-0306	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0307-	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0210	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0211-0306	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0307-	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0005-0210	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0211-0305	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0306-0406	●
291	CLIP; SHIFT TO SELECT,FRAME (D)	1-09701-307-2	01	1	0407-	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0005-0210	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0211-0305	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0306-0506	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-312-0	01	1	0507-	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0005-0210	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0211-0305	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0306-0606	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0211-0305	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0306-0512	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0211-0305	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0306-0512	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
298	BRACKET	1-36183-230-0	01	1	0211-	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0005-0210	●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0211-0305	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0306-	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0211-0305	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0306-	●

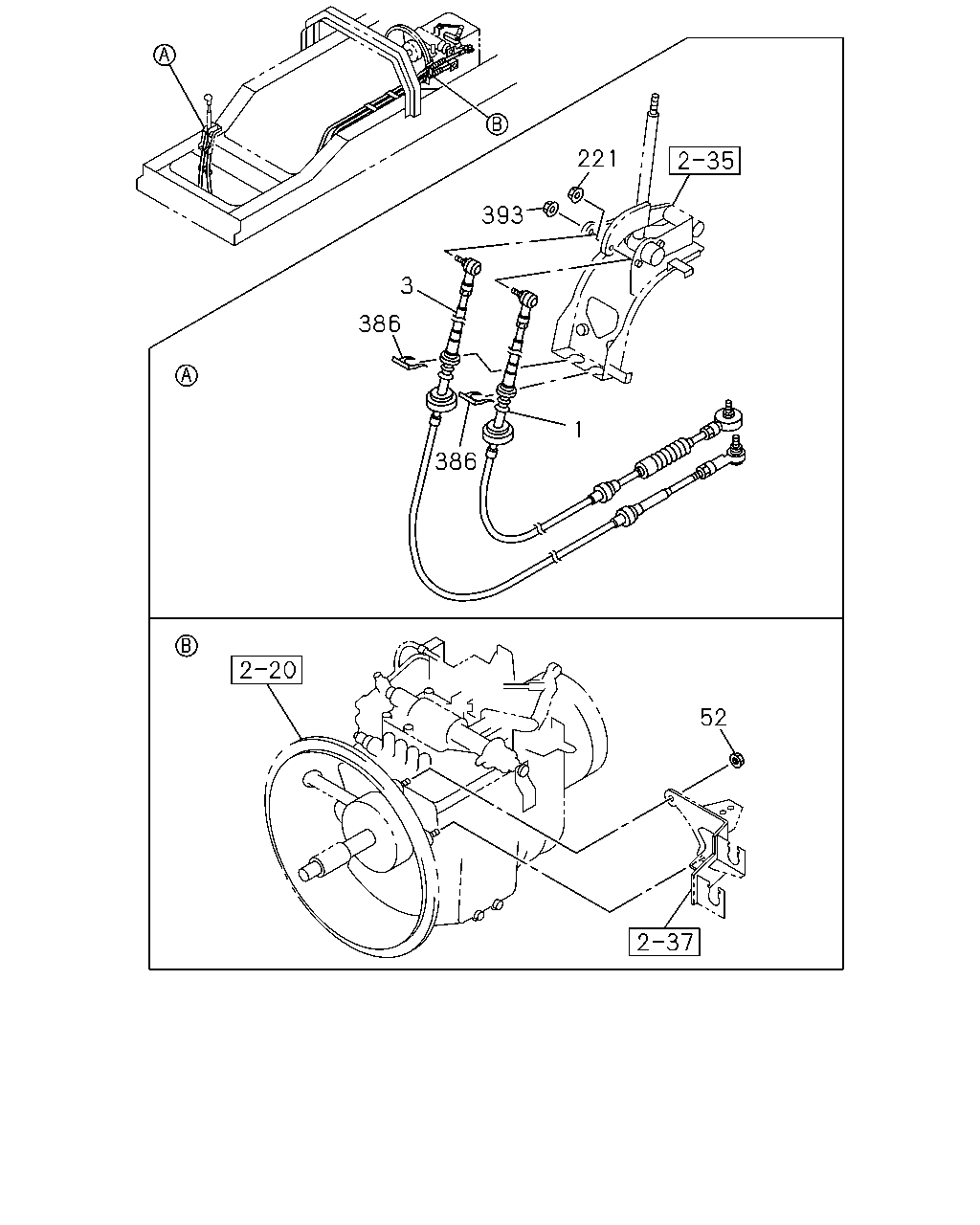

221 393 3 386 1 386 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT FRR STD CAB(FR*M) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3505	8-97383-459-0	01	1	0406-0411	●
1	CABLE; SHIFT,TRANS CONT FRR DOUBLE CAB(FR*W) ASSISTOR SHIFT CONTROL<WX8> L=3505	8-97383-459-0	01	1	0406-0411	●
1	CABLE; SHIFT,TRANS CONT FRR STD CAB(FR*M) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3505	8-97383-459-0	01	1	0412-	●
1	CABLE; SHIFT,TRANS CONT FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) ASSISTOR SHIFT CONTROL<WX8> L=3505	8-97383-459-0	01	1	0412-	●
1	CABLE; SHIFT,TRANS CONT FSR(FS****) ASSISTOR SHIFT CONTROL<WX8> L=3445	8-97383-460-0	01	1	0406-	●
1	CABLE; SHIFT,TRANS CONT L=3505	1-33671-128-0	01	1	0005-0210	●
1	CABLE; SHIFT,TRANS CONT FRR(FR****) ENGINE REAR PTO(SV1) L=3635	1-33671-835-1	01	1	0211-0405	●
1	CABLE; SHIFT,TRANS CONT FRR STD CAB(FR*M) ENGINE REAR PTO(SV1) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3635	1-33671-835-1	01	1	0406-	●
1	CABLE; SHIFT,TRANS CONT FSR(FS****) L=3620	1-33671-850-1	01	1	0211-0405	●
1	CABLE; SHIFT,TRANS CONT FSR(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620	1-33671-850-1	01	1	0406-	●
1	CABLE; SHIFT,TRANS CONT L=3400	1-33671-124-0	01	1	0005-0210		●
1	CABLE; SHIFT,TRANS CONT FRR(FR****) EXC. ENGINE REAR PTO(SV1) L=3575	1-33671-846-1	01	1	0211-0405	●
1	CABLE; SHIFT,TRANS CONT FRR STD CAB(FR*M) EXC. ENGINE REAR PTO(SV1),ASSISTOR SHIFT CONTROL<WX8> L=3575	1-33671-846-1	01	1	0406-0411	●
1	CABLE; SHIFT,TRANS CONT FRR DOUBLE CAB(FR*W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	1-33671-846-1	01	1	0406-0411	●
1	CABLE; SHIFT,TRANS CONT FRR STD CAB(FR*M) EXC. ENGINE REAR PTO(SV1),ASSISTOR SHIFT CONTROL<WX8> L=3575	1-33671-846-1	01	1	0412-	●
1	CABLE; SHIFT,TRANS CONT FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	1-33671-846-1	01	1	0412-	●
3	CABLE; SELECT,TRANS CONT FRR STD CAB(FR*M) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3635	8-97383-464-0	01	1	0406-0411	●
3	CABLE; SELECT,TRANS CONT FRR DOUBLE CAB(FR*W) ASSISTOR SHIFT CONTROL<WX8> L=3635	8-97383-464-0	01	1	0406-0411	●
3	CABLE; SELECT,TRANS CONT FRR STD CAB(FR*M) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3635	8-97383-464-0	01	1	0412-	●
3	CABLE; SELECT,TRANS CONT FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) ASSISTOR SHIFT CONTROL<WX8> L=3635	8-97383-464-0	01	1	0412-	●
3	CABLE; SELECT,TRANS CONT FSR(FS****) ASSISTOR SHIFT CONTROL<WX8> L=3575	8-97383-465-0	01	1	0406-	●
3	CABLE; SELECT,TRANS CONT L=3600	1-33671-134-0	01	1	0005-0210	●
3	CABLE; SELECT,TRANS CONT FRR(FR****) ENGINE REAR PTO(SV1) L=3750	1-33671-836-1	01	1	0211-0405	●
3	CABLE; SELECT,TRANS CONT FRR STD CAB(FR*M) ENGINE REAR PTO(SV1) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3750	1-33671-836-1	01	1	0406-	●
3	CABLE; SELECT,TRANS CONT FSR(FS****) L=3735	1-33671-851-1	01	1	0211-0405	●
3	CABLE; SELECT,TRANS CONT FSR(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3735	1-33671-851-1	01	1	0406-	●
3	CABLE; SELECT,TRANS CONT L=3525	1-33671-129-0	01	1	0005-0210		●
3	CABLE; SELECT,TRANS CONT FRR(FR****) EXC. ENGINE REAR PTO(SV1) L=3690	1-33671-847-1	01	1	0211-0405	●
3	CABLE; SELECT,TRANS CONT FRR STD CAB(FR*M) EXC. ENGINE REAR PTO(SV1),ASSISTOR SHIFT CONTROL<WX8> L=3690	1-33671-847-1	01	1	0406-0411	●
3	CABLE; SELECT,TRANS CONT FRR DOUBLE CAB(FR*W) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690	1-33671-847-1	01	1	0406-0411	●
3	CABLE; SELECT,TRANS CONT FRR STD CAB(FR*M) EXC. ENGINE REAR PTO(SV1),ASSISTOR SHIFT CONTROL<WX8> L=3690	1-33671-847-1	01	1	0412-	●
3	CABLE; SELECT,TRANS CONT FRD STD CAB(FRD5MF) FRR DOUBLE CAB(FRR5WF) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690	1-33671-847-1	01	1	0412-	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0210	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0602	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-0210	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0211-0306	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0307-1011	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0005-0210	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0211-0306	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0307-	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-0210	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0211-0306	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0307-1011	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●
