2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#9356) — 78 parça

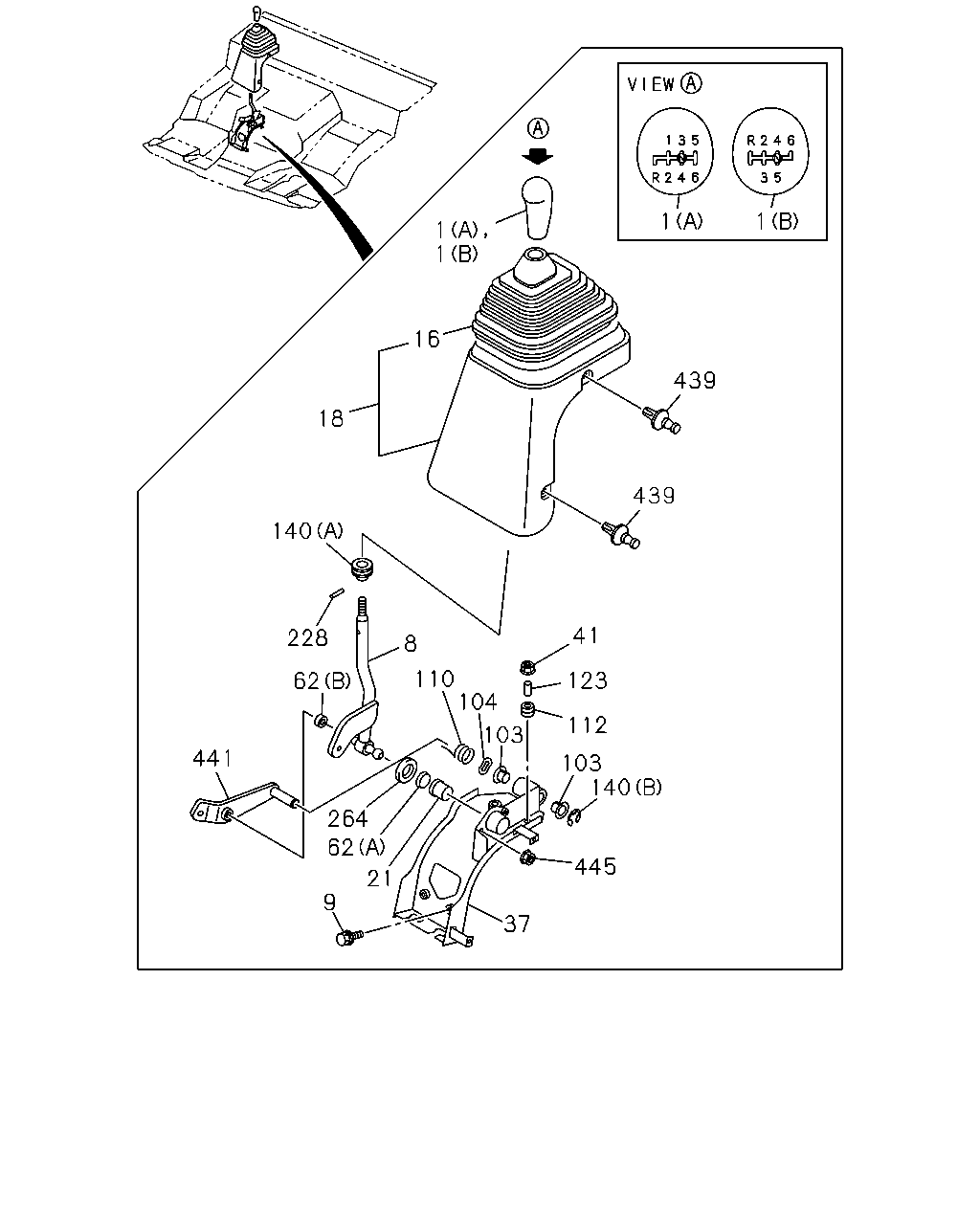

çizim 38453
1 1 1 1 16 439 18 439 140 41 228 8 110 104 123 62 112 103 441 103 140 264 62 445 21 9 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
(A) 		1-33611-070-0 01 1 0005-0306 ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-070-1 01 1 0307- ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-068-0 01 1 0005-0210 ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-605-0 01 1 0406- ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0005-0210 ● ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0211-0306 ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0307-0405 ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-553-0 01 1 0406- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0005-0210 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0211-0306 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0307- ●
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 0005-0210 ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0211-0511 ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0512- ●
18 BOOT; CHANGE LEVER 1-79996-394-1 01 1 0005-0210 ● ●
18 BOOT; CHANGE LEVER 1-79996-394-2 01 1 0211-0511 ●
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 0512- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0005-0210 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0211-0306 ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0307- ●
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-539-0 01 1 0406- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0005-0210 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0211-0306 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0307-0405 ●
37 BRACKET; CHANGE LEVER SUPPORT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-444-2 01 1 0406- ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0005-0107 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0210 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0211-0306 ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0307-0805 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005-0210 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0211-0306 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0307- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0005-0210 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0211-0306 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0307- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005-0210 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0211-0306 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0307- ●
104 WASHER; WAVED 1-09550-009-0 01 1 0005-0210 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0211-0306 ●
104 WASHER; WAVED 1-09550-009-0 01 1 0307- ●
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 0406- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0005-0210 ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0211-0306 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0307-0405 ●
110 SPRING; RETURN,CHANGE LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0406- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0005-0210 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0211-0306 ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0307- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0005-0210 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0211-0306 ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0307- ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0005-0210 ● ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0211-0306 ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0307- ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0005-0210 ● ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0211-0306 ●
140 RING; SNAP
(B) ID=10 		9-09185-410-0 01 1 0307-0604 ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0605- ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0005-0210 ● ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0211-0306 ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0307- ●
264 PLATE; COVER 1-33619-430-0 01 1 0005-0210 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0211-0306 ●
264 PLATE; COVER 1-33619-430-0 01 1 0307- ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005-0210 ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0211-0306 ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0307- ●
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-551-1 01 1 0406- ●
441 LEVER; SELECT 1-33619-437-2 01 1 0005-0210 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 0211-0306 ●
441 LEVER; SELECT 1-33619-437-2 01 1 0307-0405 ●
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-437-2 01 1 0406- ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0211-0306 ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0307-0602 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603- ●
