Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#9354) — 545 parça

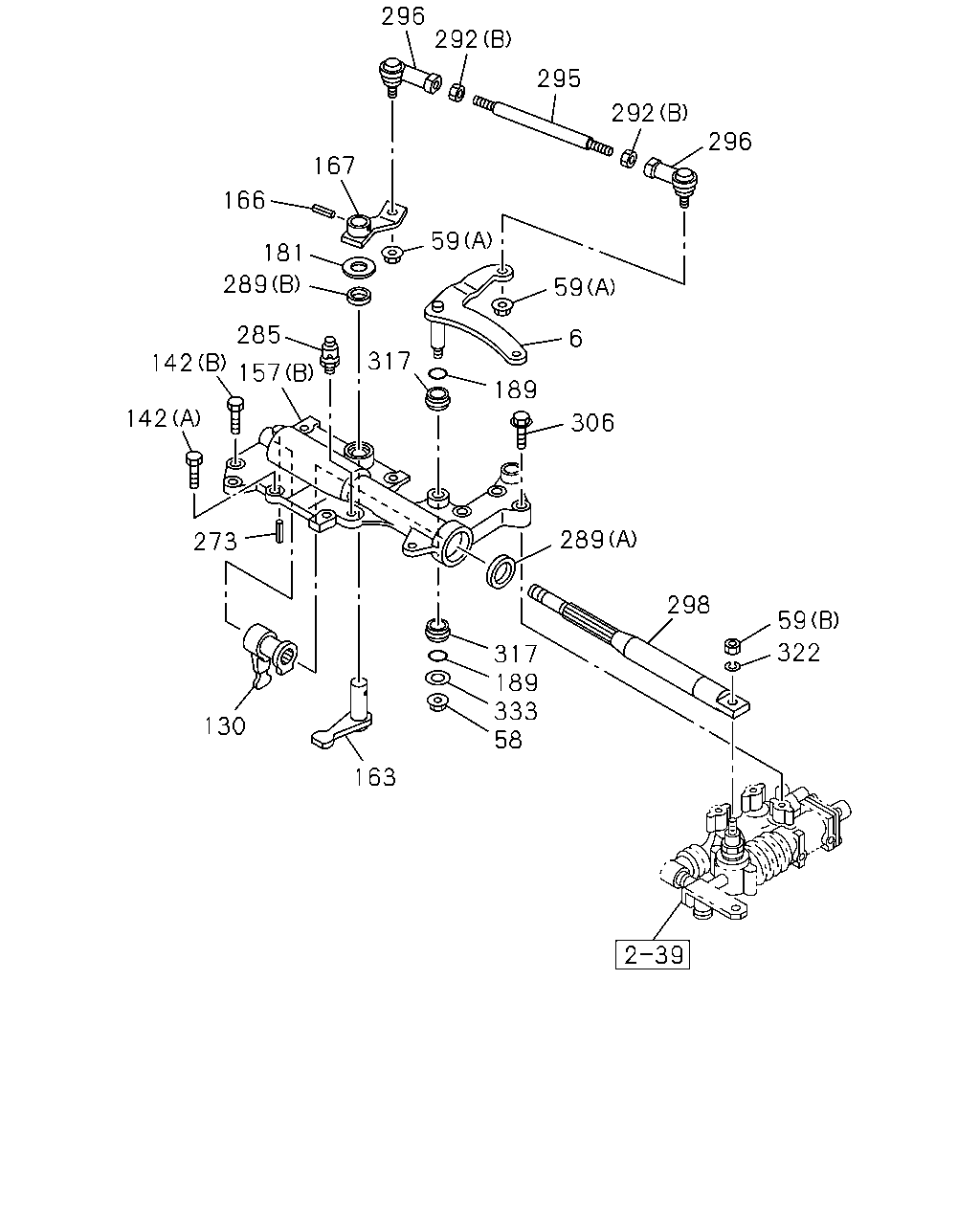

296 292 295 292 296 167 166 59 181 289 59 285 142 6 317 157 189 142 306 289 273 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	0406-	●
6	LEVER; RELAY	1-33511-462-0	01	1	0005-0005		●
6	LEVER; RELAY	1-33511-574-0	01	1	0006-0210		●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0406-0602	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0603-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91150-108-0	02	1	0406-0602	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	9-99110-412-0	01	1	0406-0512	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	0-91110-512-0	01	1	0601-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0005-0405	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0005-0210		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	03	1	0406-0512	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	03	1	0005-0405	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-0405	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0406-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	15	1	0005-0210		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	0005-0210		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0005-0405	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0005-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0005-0210		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0005-0210		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0005-0405	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0005-0210		●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0005-0405	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	0005-0210		●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0005-0405	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0005-0210		●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0406-	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0406-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-0210	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0211-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0005-0307	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0005-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	0005-0210		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	0005-0210		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-0210	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0211-0306	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0307-0405	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0406-	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0210	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0211-0512	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0406-0705	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0005-0210	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0211-0405	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0406-	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0210	●	●
296	ROD END L=48	1-09760-038-1	02	1	0211-0309	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-166-0	01	1	0005-0307	●
298	SHAFT; SHIFT LEVER	1-33522-187-0	01	1	0308-0405	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	0005-0210		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28081-050-0	03	1	0406-0512	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0601-	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-0210	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0211-0306	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0307-	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0406-0603	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-0705	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0706-	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=26	9-09160-710-0	01	1	0406-0705	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0706-	●

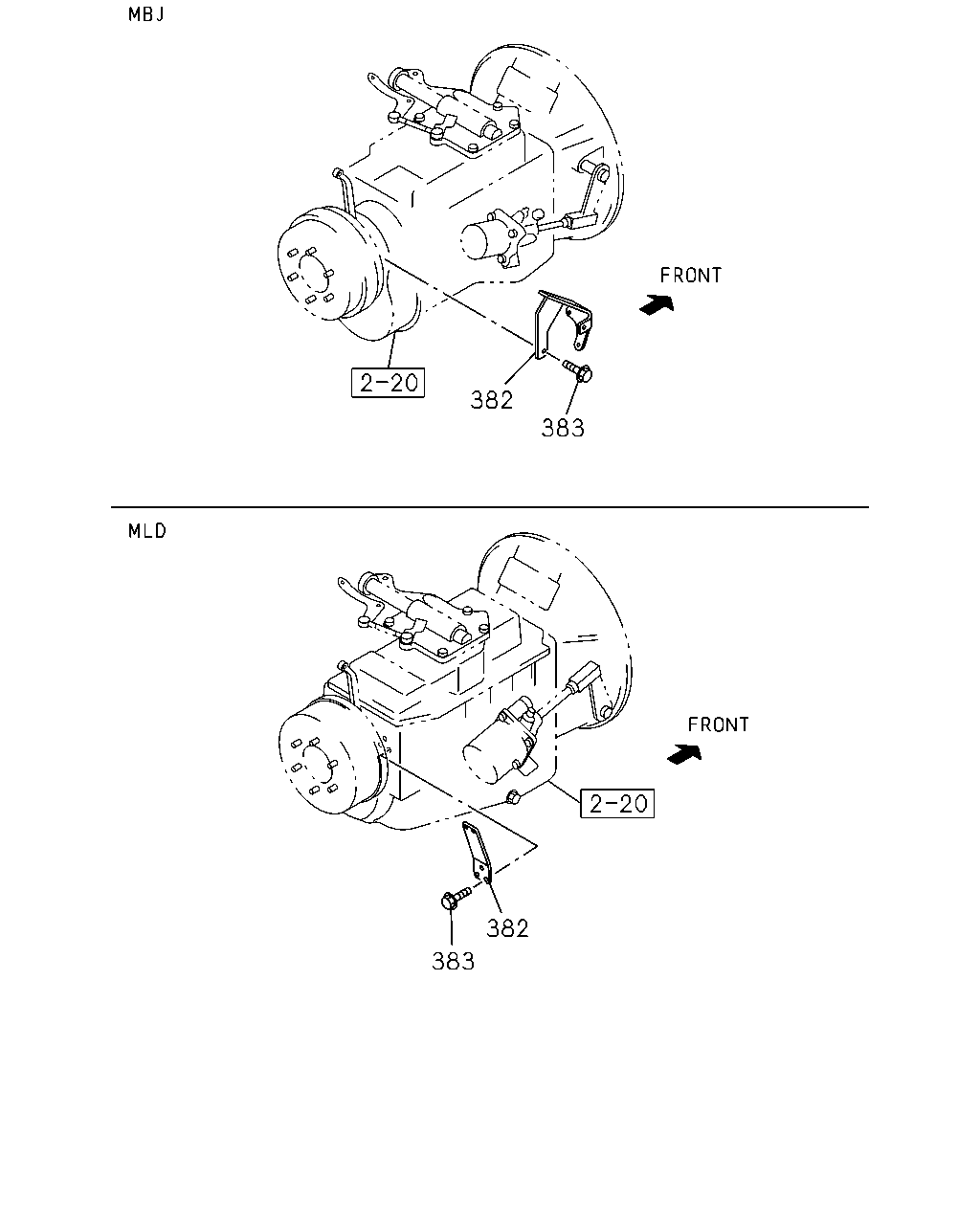

382 383 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
382	BRACKET; PARKING BRK CONT CABLE PARKING BRAKE DRUM 8.5"(B1S)	1-46147-187-2	01	1	0005-0210		●
382	BRACKET; PARKING BRK CONT CABLE 14" CLUTCH(WF6) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-223-0	01	1	0211-0302	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-223-0	01	1	0303-	●
383	BOLT; BRKT,PARK BRAKE PARKING BRAKE DRUM 8.5"(B1S) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210		●
383	BOLT; BRKT,PARK BRAKE 14" CLUTCH(WF6) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	0211-0302	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	0303-	●

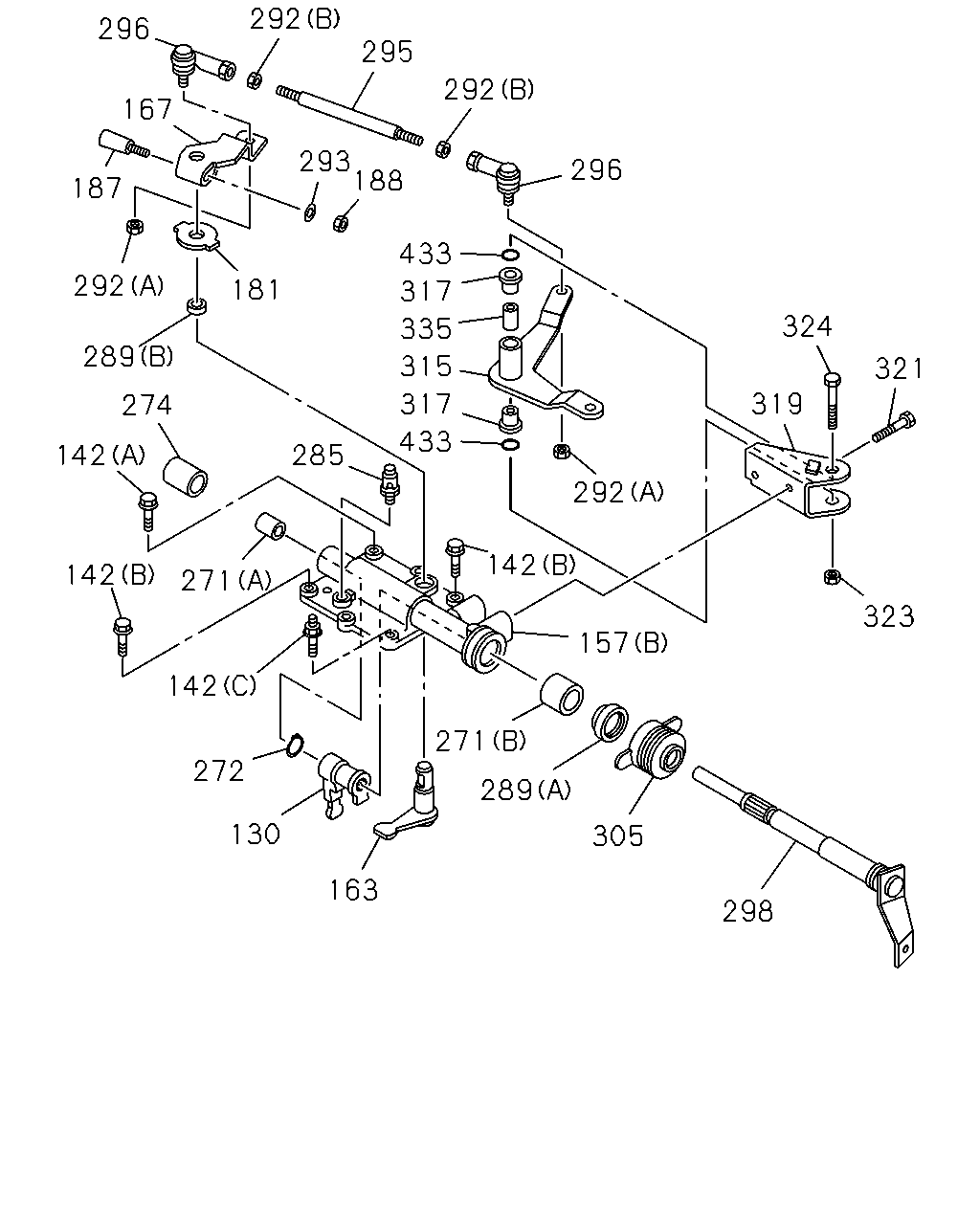

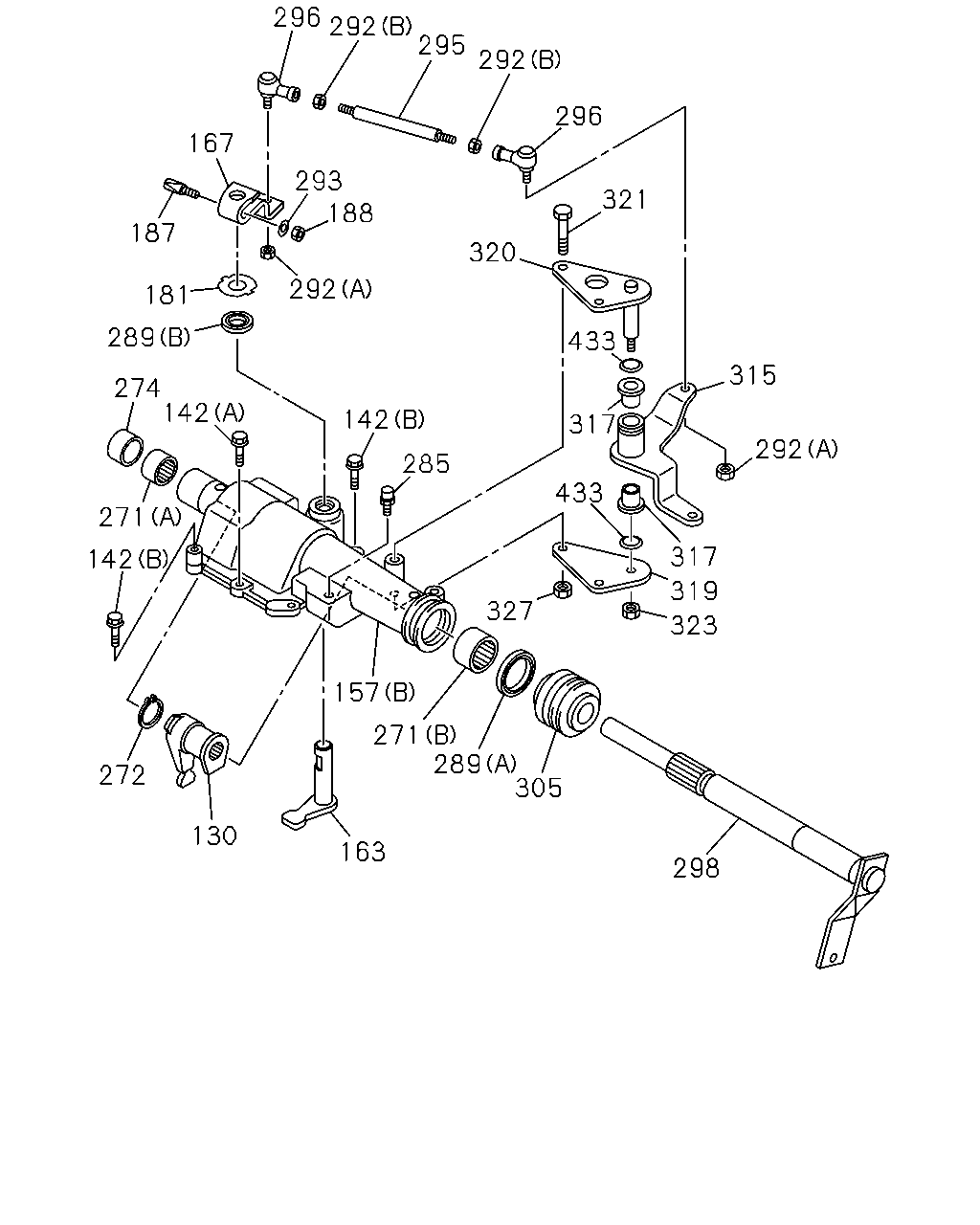

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 142 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0005-0405	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0005-0210		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	03	1	0406-0512	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	03	1	0005-0405	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-0405	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0406-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	15	1	0005-0210		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	0005-0210		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0005-0405	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0005-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0005-0210		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0005-0210		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0005-0405	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0005-0210		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0005-0405	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	0005-0210		●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0005-0405	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0005-0210		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0005-0210	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0211-0405	●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0406-	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0005-0210	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0211-0405	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0406-	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0005-0405	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0406-	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0005-0405	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0406-	●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	0005-0210		●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	0005-0210		●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0005-0405	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0406-	●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	0005-0210		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0005-0405	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0406-	●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	0005-0210		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-0210	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0211-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0005-0307	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0005-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	0005-0210		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	0005-0210		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-0210	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0211-0306	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0307-0405	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0406-	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0210	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0211-0512	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0005-0210	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0211-0405	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	0406-0605	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0406-0705	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0005-0210	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0211-0405	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0406-	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0210	●	●
296	ROD END L=48	1-09760-038-1	02	1	0211-0309	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-166-0	01	1	0005-0307	●
298	SHAFT; SHIFT LEVER	1-33522-187-0	01	1	0308-0405	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	0005-0210		●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0005-0405	●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0406-	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	0005-0210		●
315	LEVER; SELECT	1-33651-702-0	01	1	0005-0405	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	0406-	●
315	LEVER; SELECT	1-33651-703-0	01	1	0005-0210		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-0210	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0211-0306	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0307-	●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	0005-0405	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0406-	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0005-0210		●
320	SHAFT; LEVER	1-33619-474-0	01	1	0005-0405	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0406-	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0005-0405	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0406-0512	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0005-0210		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0005-0210	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0211-0306	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0307-0405	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0406-	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0005-0405	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0406-0602	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0603-	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0005-0210	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0211-0306	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0307-0405	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0406-	●

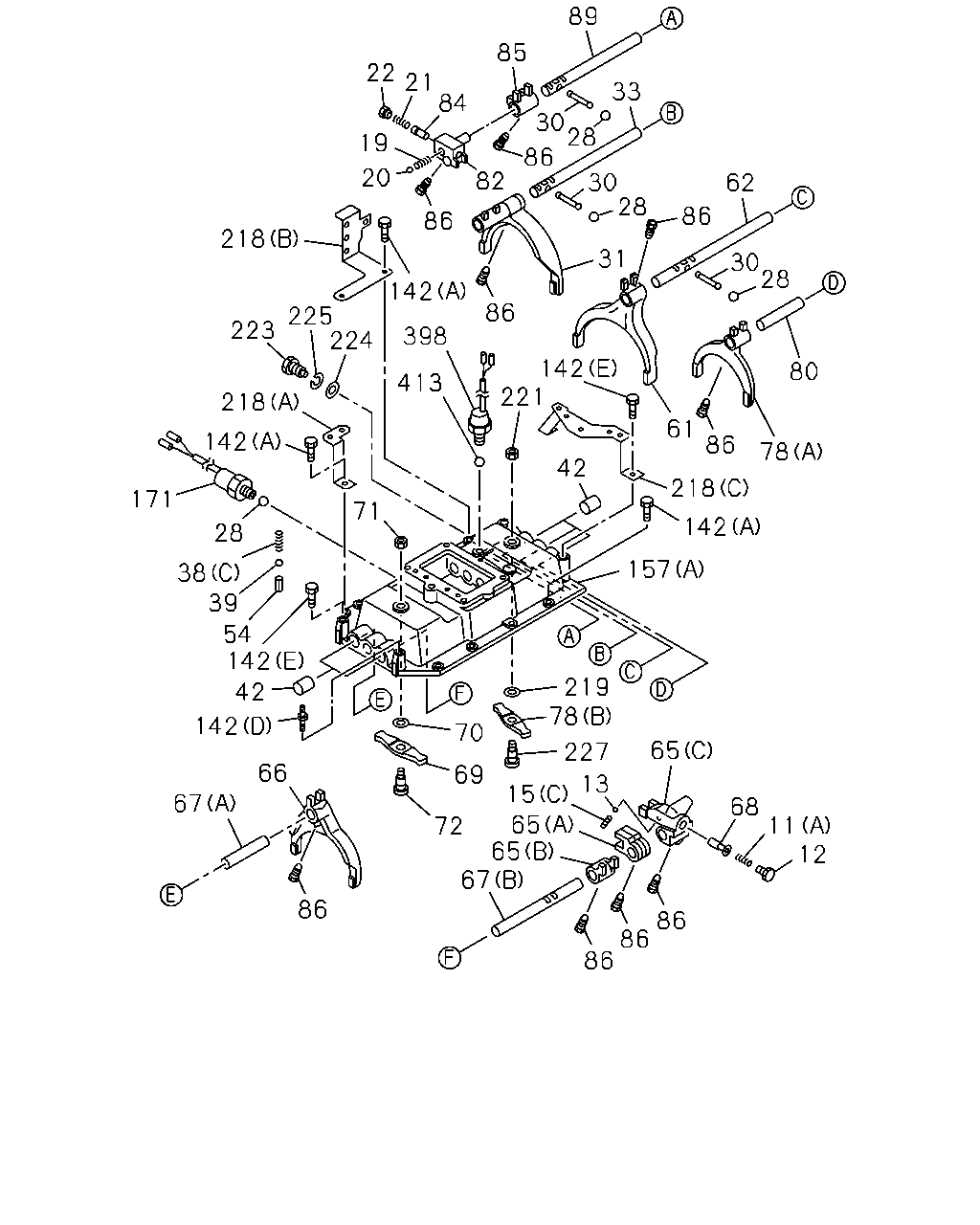

89 85 22 21 84 33 30 28 19 86 20 82 30 28 62 86 86 218 31 30 28 142 225 224 86 223 398 142 221 80 413 218 61 142 86 78 42 218 171 71 142 28 157 38 39 54 142 219 78 42 142 70 65 227 66 69 13 15 65 65 67 67 68 72 11 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0005-0210	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0211-	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0005-0210		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0211-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0005-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	0005-0210		●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	0005-	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	0005-0210		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	0005-0210		●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0005-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0005-	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	0005-0210		●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0005-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0211-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0005-	●
28	BALL; INTER LK	9-00097-010-0	07	1	0005-0210		●
30	PIN; INTER LK	9-33534-003-0	03	1	0005-	●
30	PIN; INTER LK	1-33534-002-0	03	1	0005-0210		●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0005-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0005-1202	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8> (C)	1-09580-379-0	04	1	0406-	●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	0005-0405	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-09580-419-0	04	1	0406-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0005-0210		●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	0005-0210		●
39	BALL; DETENT	1-09843-012-0	04	1	0005-	●
39	BALL; DETENT	9-00097-013-0	04	1	0005-0210		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0005-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	0005-0210		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0005-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0005-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0005-1202	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0005-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0005-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0005-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0005-	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0005-1202	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0005-1202	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0005-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0005-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0005-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0005-0602	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0005-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0005-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0005-	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0005-1202	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0005-	●
84	SLEEVE; REV	1-33516-025-0	01	1	0005-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0005-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0005-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0005-1202	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	03	1	0406-0512	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	03	1	0005-0405	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-0405	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0406-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	15	1	0005-0210		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	0005-0210		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0005-0405	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0005-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0005-0210		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0005-0210		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0005-0702	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	0005-0210		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0005-0306	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0307-0309	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0310-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0005-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0005-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	0005-0210		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	0005-0210		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0005-	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	0005-0210		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0005-0602	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	0005-0210		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0005-	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	0005-0210		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0005-0605	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0005-0603	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0005-	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	0005-0210		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0005-0210	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0211-0602	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
413	BALL; BACK SW	9-00097-013-0	01	1	0005-	●

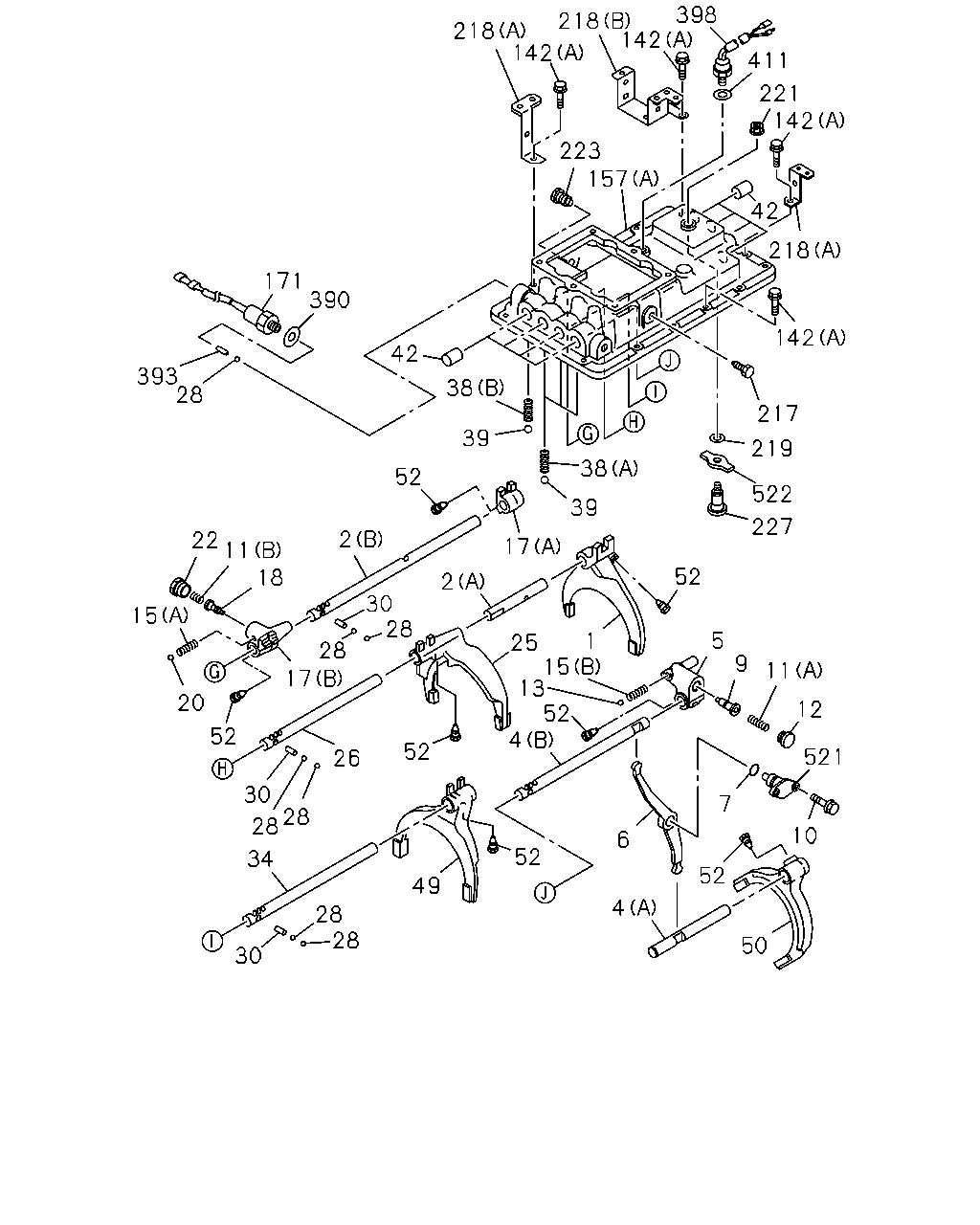

398 218 142 218 142 411 221 142 223 157 42 218 171 390 142 42 393 28 38 217 39 219 38 52 522 39 227 2 22 11 18 17 52 2 30 28 15 5 25 1 15 13 52 4 28 17 9 11 20 12 52 52 521 26 30 7 28 28 10 6 52 34 52 49 4 28 28 30 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0005-0210		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	0005-0210		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	0005-0210		●
4	ROD; SHIFT,6TH (A)	1-33531-341-1	01	1	0005-0210		●
4	ROD; SHIFT,6TH (B)	1-33531-387-0	01	1	0005-0210		●
5	BLOCK; SHIFT,6TH	1-33511-326-1	01	1	0005-0210		●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	0406-	●
6	LEVER; RELAY	1-33511-462-0	01	1	0005-0005		●
6	LEVER; RELAY	1-33511-574-0	01	1	0006-0210		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0005-0210		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	0005-0210		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0005-0210		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0005-0210	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0211-	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0005-0210		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0211-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0005-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	0005-0210		●
15	SPRING; LK,SHIFT SLEEVE (C)	1-09580-442-0	01	1	0005-	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	0005-0210		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	0005-0210		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	0005-0210		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	0005-0210		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	0005-0210		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0005-	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	0005-0210		●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0005-0210	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0211-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0005-0210		●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	0005-0210		●
28	BALL; INTER LK	9-00097-501-0	04	1	0005-	●
28	BALL; INTER LK	9-00097-010-0	07	1	0005-0210		●
30	PIN; INTER LK	9-33534-003-0	03	1	0005-	●
30	PIN; INTER LK	1-33534-002-0	03	1	0005-0210		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	0005-0210		●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8> (C)	1-09580-379-0	04	1	0406-	●
38	SPRING; DETENT (C)	1-09580-419-0	04	1	0005-0405	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-09580-419-0	04	1	0406-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0005-0210		●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	0005-0210		●
39	BALL; DETENT	1-09843-012-0	04	1	0005-	●
39	BALL; DETENT	9-00097-013-0	04	1	0005-0210		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0005-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	0005-0210		●
49	ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0005-0210		●
50	ARM; SHIFT,6TH	1-33511-477-0	01	1	0005-0210		●
52	BOLT; SHIFT ARM	1-09052-034-2	07	1	0005-0210		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	03	1	0406-0512	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	03	1	0005-0405	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-0405	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0406-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	15	1	0005-0210		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	0005-0210		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0005-0405	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0005-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0005-0210		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0005-0210		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0005-0702	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	0005-0210		●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0005-0210		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0005-0306	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0307-0309	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0310-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0005-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0005-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	0005-0210		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	0005-0210		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0005-	●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	0005-0210		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0005-0602	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	0005-0210		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0005-	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	0005-0210		●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0005-	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	0005-0210		●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0005-0210		●
393	PIN; SW	1-33534-003-0	01	1	0005-0210		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0005-0210	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0211-0602	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0005-0210		●
521	SPINDLE; 6TH	1-33519-008-1	01	1	0005-0210		●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	0005-0210		●

292 296 295 292 167 293 188 296 187 433 292 181 317 324 335 289 315 321 319 317 274 433 285 142 292 142 142 271 323 157 142 271 272 289 130 305 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0005-0405	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0406-	●
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0005-0210		●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	03	1	0406-0512	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0005-0805	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●
142	BOLT; QUAD BOX (E) M10X60 FLANGE	0-28181-060-0	03	1	0005-0405	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28181-060-0	04	1	0406-0512	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0005-0405	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0406-	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0005-0210	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0211-0805	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	15	1	0005-0210		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	01	1	0005-0210		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0406-	●
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0005-0405	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0406-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0005-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0005-0210		●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0005-0210		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0005-0405	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0406-	●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0005-0210		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0005-0405	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0406-	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	0005-0210		●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0005-0405	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0406-	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0005-0210		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0005-0210	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0211-0405	●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0406-	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0005-0210	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0211-0405	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0406-	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0005-0405	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0406-	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0005-0405	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0406-	●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	0005-0210		●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	0005-0210		●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0005-0405	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0406-	●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	0005-0210		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0005-0405	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0406-	●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	0005-0210		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0005-0210	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0211-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0005-0307	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0005-0405	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0406-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	0005-0210		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	0005-0210		●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0005-0210	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0211-0306	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0307-0405	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0406-	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0005-0210	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0211-0512	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-0705	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0005-0210	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0211-0405	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	0406-0605	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0406-0705	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0005-0210	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0211-0405	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0406-	●
296	ROD END L=48	1-09760-038-1	02	1	0005-0210	●	●
296	ROD END L=48	1-09760-038-1	02	1	0211-0309	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0705	●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-166-0	01	1	0005-0307	●
298	SHAFT; SHIFT LEVER	1-33522-187-0	01	1	0308-0405	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0406-	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	0005-0210		●
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0005-0405	●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0406-	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	0005-0210		●
315	LEVER; SELECT	1-33651-702-0	01	1	0005-0405	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	0406-	●
315	LEVER; SELECT	1-33651-703-0	01	1	0005-0210		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0005-0210	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0211-0306	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0307-	●
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	0005-0405	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0406-	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0005-0210		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0005-0405	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0406-0512	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0005-0210		●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0005-0210	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0211-0306	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0307-0405	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0406-	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0005-0210		●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0005-0210		●
433	GASKET; BUSHING	1-09623-594-0	02	1	0005-0210	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0211-0306	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0307-0405	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0406-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
