Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#935) — 215 parça

275 371 20 79 275 371 39 274 39 35 274 370 80 276 37 290 295 75 275 68 274 311 314 370 310 276 283 316 13 288 357 357 356 16 37 356 290 361 362 361 361 370 78 13 271

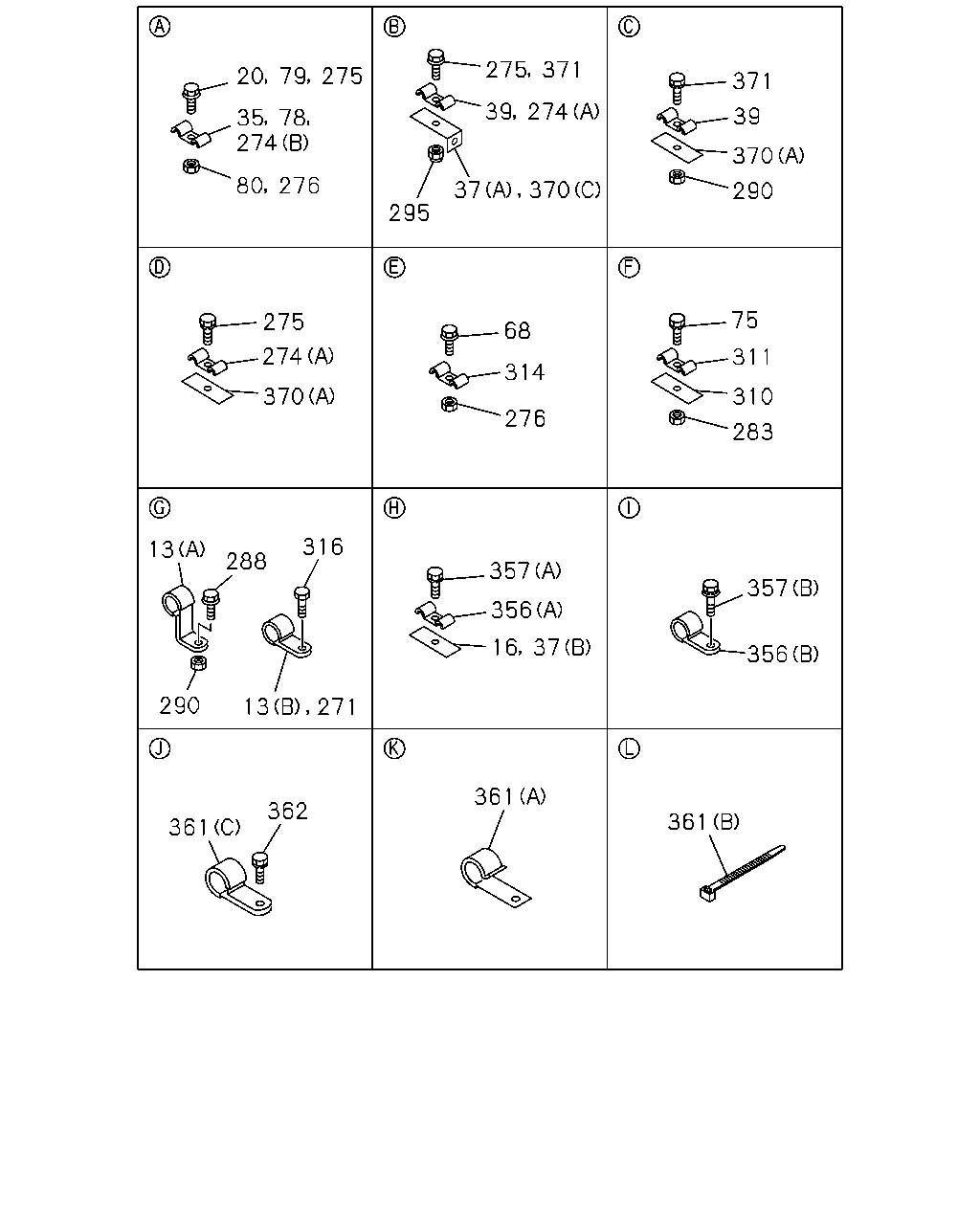

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9202-	●	●
16	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2>	1-47466-005-0	01	1	9202-	●	●
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
35	CLIP; AIR PIPE ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9202-9202	●	●
37	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	02	1	9202-9205	●	●
37	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9203-9205	●	●
37	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7> (A) L=55	1-47475-304-0	01	1	9202-9205	●	●
39	CLIP; AIR PIPE ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	9202-9202	●	●
39	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9202-	●	●
39	CLIP; AIR PIPE ID=16 & 7 L=18 & 15	1-09700-661-0	03	1	9206-9211	●	●
39	CLIP; AIR PIPE ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	9212-	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9206-9211	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-	●	●
68	BOLT; CLIP,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
78	CLIP; AIR PIPE AIR DRYER<PS7> ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9202-	●	●
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9202-9205	●	●
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-9205	●	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9206-	●	●
80	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9202-9205	●	●
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	01	1	9206-	●	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	9-09524-872-0	01	1	9202-	●	●
274	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9202-	●	●
274	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
275	BOLT; PIPE CLIP DUAL AIR GAUGE<UG2> M8X40 FLANGE	0-28080-840-0	02	1	9202-	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
275	BOLT; PIPE CLIP DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9202-9204	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
276	NUT; PIPE CLIP DUAL AIR GAUGE<UG2> M8	9-09110-408-0	02	1	9202-	●	●
276	NUT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9202-	●	●
283	NUT; CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	01	1	9202-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9202-	●	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9202-9202	●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9203-9205	●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9206-	●	●
295	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-9205	●	●
310	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> L=50	1-47475-299-2	01	1	9202-	●	●
311	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
314	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	9202-	●	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9202-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A) ID=5 & 8	5-09700-165-0	01	1	9202-	●	●
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (B) ID=6	9-09524-565-0	01	1	9202-	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> (A) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●
357	BOLT; CLIP FIX EXC. DUAL AIR GAUGE<UG2> (B) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9202-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) ID=14	1-09987-154-0	01	1	9202-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (B) L=250	5-09707-030-0	01	1	9202-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (C) ID=16 L=20	9-09525-532-0	01	1	9202-	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9202-9204	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●
370	BRACKET; PIPE CLIP DUAL AIR GAUGE<UG2> (B)	1-47475-427-1	02	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50	1-47475-299-2	01	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8 W/NUT	1-47475-729-0	01	1	9202-	●	●
371	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9202-9202	●	●
371	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	03	1	9203-9205	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X35 FLANGE	0-28080-835-0	01	1	9206-	●	●
371	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9206-	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9202-9205	●	●
371	BOLT; CLIP,AIR PIPE M8X35 FLANGE	0-28080-835-0	02	1	9206-9405	●	●
371	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	02	1	9406-	●	●

2 14 373 124 247 62 246 1 235 251 229 242 305 241 236 252 354 178 178 190 353 177 177 18 59 18 156 193 214 203 192 192 213 375 137 195 59 197 196 156 193 64 194 63 70 4 253 6 3 258 181 333 375 192 202 195 225 202 333 203 219

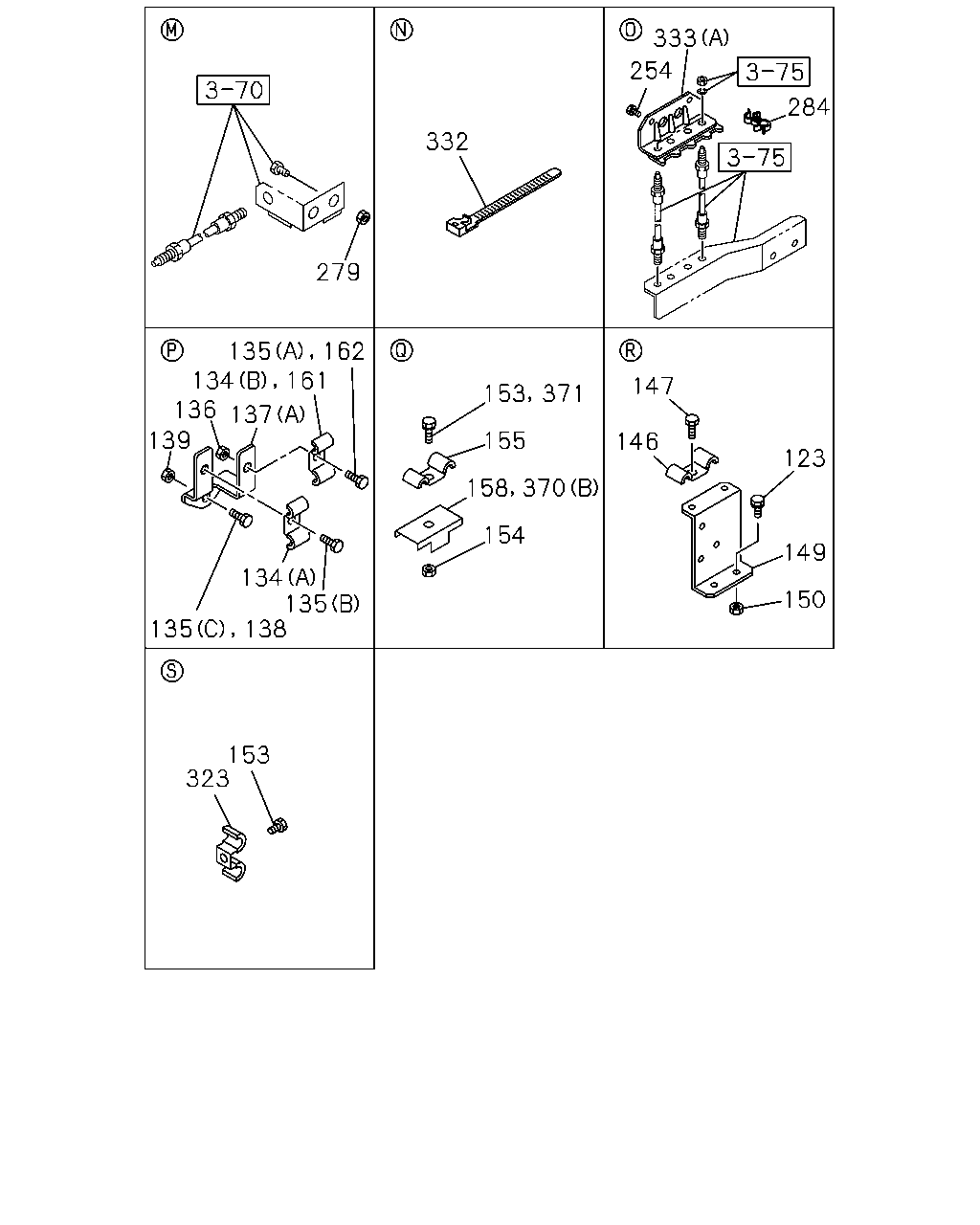

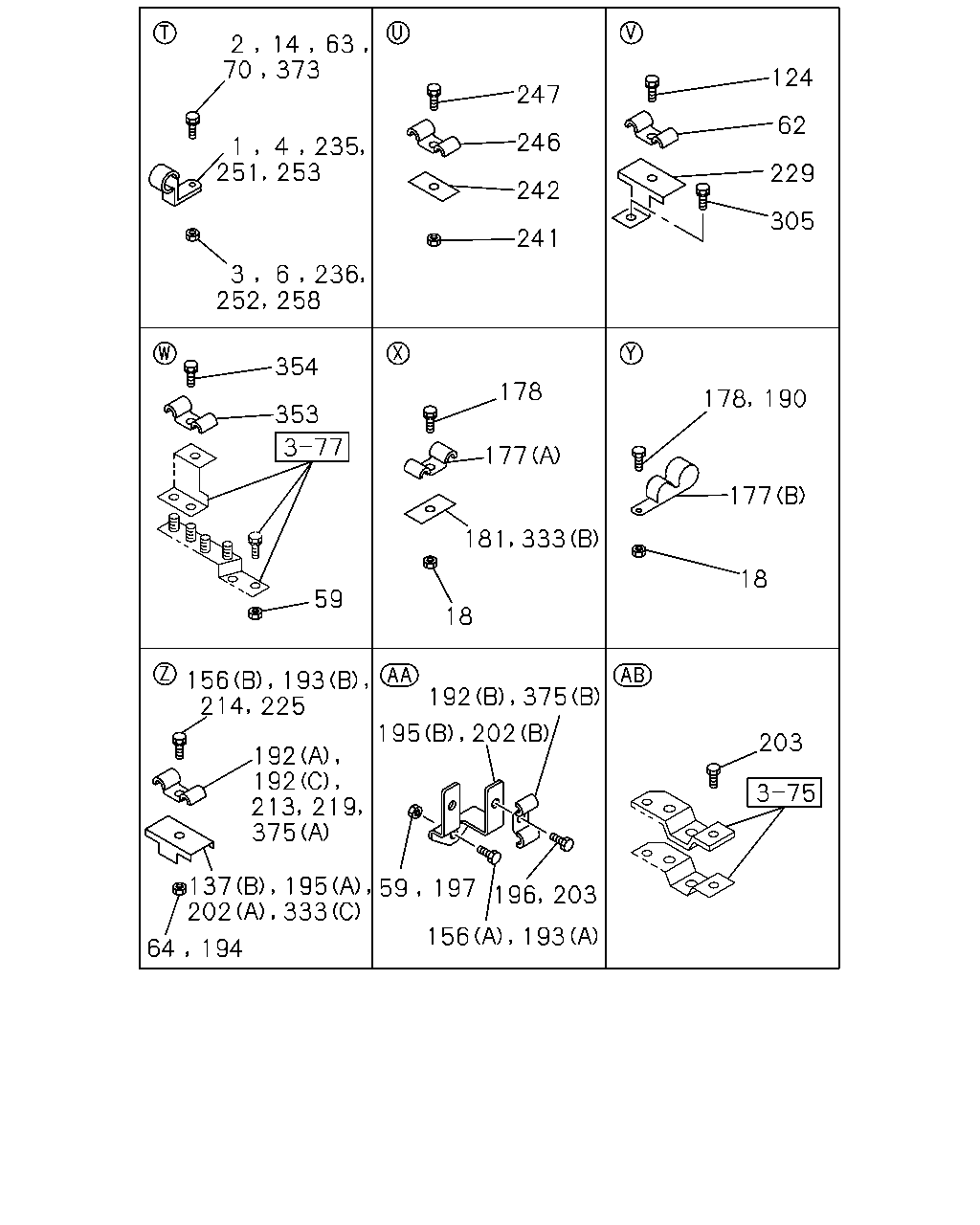

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE EXHAUST BRAKE<NF8> ID=6 H=20 L=20	1-09700-603-0	01	1	9208-	●	●
2	BOLT; CLIP FIX EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
3	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	01	1	9208-	●	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-	●
4	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	04	1	9411-		●
6	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●
6	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9411-		●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	04	1	9205-	●	●
18	NUT; CLIP M8	9-09110-408-0	02	1	9202-	●	●
59	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9202-	●	●
59	NUT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE	1-09984-141-0	02	1	9202-	●	●
62	CLIP; AIR PIPE ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9202-	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
64	NUT; CLIP M8	9-09110-408-0	01	1	9202-	●	●
70	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
70	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	04	1	9411-		●
124	BOLT; PIPE CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●
137	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9202-	●	●
137	BRACKET; PIPE CLIP (A) M8 W/NUT	1-47475-439-2	04	1	9202-	●	●
156	BOLT; PIPE CLIP (A) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
156	BOLT; PIPE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
156	BOLT; PIPE CLIP (B) M8X40	0-28010-840-0	01	1	9202-9204	●	●
156	BOLT; PIPE CLIP (B) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
177	CLIP; AIR PIPE (A) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9202-9211	●	●
177	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-9211	●	●
177	CLIP; AIR PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9212-	●	●
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
181	BRACKET; PIPE CLIP L=50	1-47475-299-2	02	1	9202-	●	●
190	BOLT; CLIP BRKT M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
192	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9202-	●	●
192	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-	●	●
192	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
192	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
193	BOLT; PIPE CLIP (A) M8X16 FLANGE	0-28010-816-0	03	1	9202-9204	●	●
193	BOLT; PIPE CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	9205-	●	●
193	BOLT; PIPE CLIP (B) M8X40	0-28010-840-0	02	1	9202-9204	●	●
193	BOLT; PIPE CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	9205-	●	●
194	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9202-	●	●
195	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9202-	●	●
195	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	03	1	9202-	●	●
196	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
196	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-	●	●
202	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9202-	●	●
202	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	02	1	9202-	●	●
203	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
203	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
203	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9202-	●	●
213	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-	●	●
213	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-	●	●
214	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
214	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
219	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
219	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
219	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
219	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
225	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	03	1	9202-9204	●	●
225	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9205-	●	●
229	BRACKET; PIPE CLIP	1-47465-169-1	01	1	9202-	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-	●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●	●
241	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9202-	●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=50	1-47475-299-2	01	1	9202-	●	●
246	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
247	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
247	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
251	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9202-		●
252	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9202-		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	04	1	9202-	●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9202-	●	●
305	BOLT; CLIP BRKT M6X16 W/LK&PL WASHER	1-09980-586-0	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79738-175-1	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE (B) L=50	1-47475-299-2	01	1	9206-	●	●
333	BRACKET; BRK AIR PIPE (C)	1-47475-427-1	02	1	9206-	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (C)	1-47475-427-1	01	1	9206-	●	●
353	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9202-	●	●
354	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9202-	●	●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204		●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
375	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
375	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-	●	●

333 254 284 332 279 135 162 134 161 136 147 153 137 139 155 146 123 154 149 134 135 138 150 135 153 323 158 370 371

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
134	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
134	CLIP; AIR PIPE (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	9202-	●	●
135	BOLT; PIPE CLIP (A) M8X16 FLANGE	0-28010-816-0	04	1	9202-9204	●	●
135	BOLT; PIPE CLIP (A) M8X16 FLANGE	0-28080-816-0	04	1	9205-	●	●
135	BOLT; PIPE CLIP (B) M8X40	0-28010-840-0	01	1	9202-9204	●	●
135	BOLT; PIPE CLIP (B) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
135	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●
137	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9202-	●	●
137	BRACKET; PIPE CLIP (A) M8 W/NUT	1-47475-439-2	04	1	9202-	●	●
138	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●	●
138	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9202-	●	●
146	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
147	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
147	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
149	BRACKET; PIPE CLIP	1-47475-728-1	01	1	9202-	●	●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9202-	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
153	BOLT; PIPE CLIP M8X40	0-28010-840-0	01	1	9202-9204	●	●
153	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
154	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●
155	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	9202-	●	●
158	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9202-	●	●
161	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
161	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
162	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
162	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●
279	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	9202-	●	●
323	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
332	CLIP; BAND L=140	5-09707-031-0	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79738-175-1	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE (B) L=50	1-47475-299-2	01	1	9206-	●	●
333	BRACKET; BRK AIR PIPE (C)	1-47475-427-1	02	1	9206-	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (C)	1-47475-427-1	01	1	9206-	●	●
370	BRACKET; PIPE CLIP DUAL AIR GAUGE<UG2> (B)	1-47475-427-1	02	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50	1-47475-299-2	01	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8 W/NUT	1-47475-729-0	01	1	9202-	●	●
371	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9202-9202	●	●
371	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	03	1	9203-9205	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X35 FLANGE	0-28080-835-0	01	1	9206-	●	●
371	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9206-	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9202-9205	●	●
371	BOLT; CLIP,AIR PIPE M8X35 FLANGE	0-28080-835-0	02	1	9206-9405	●	●
371	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	02	1	9406-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
