Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20B - MANUAL TRANSMISSION ASM AND CASE
▶

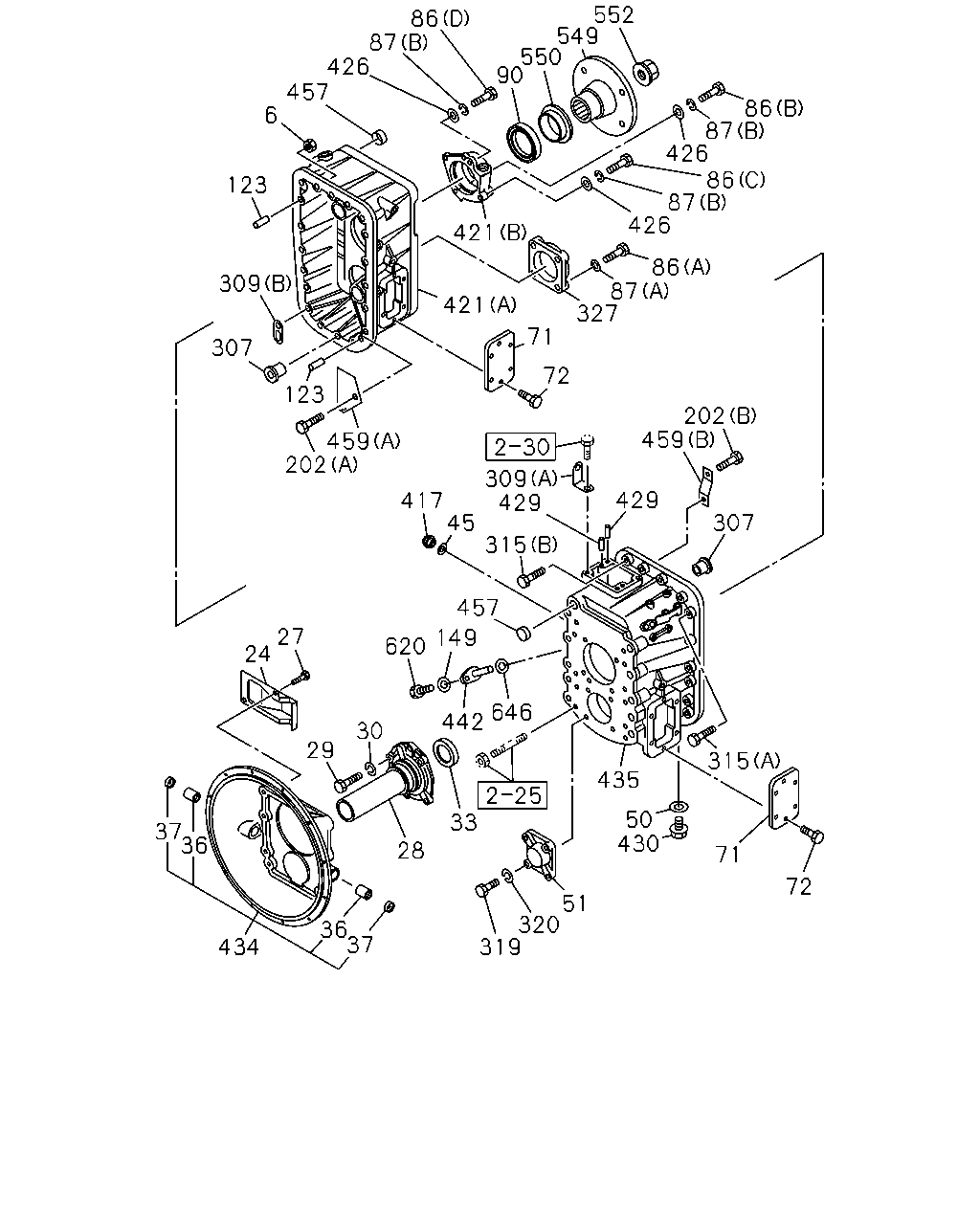

2-20B — MANUAL TRANSMISSION ASM AND CASE
(#9348) — 53 parça
◀
[220B] NO.2 (52 parça)
[220B] NO.1 (1 parça)
▶
552
549
550
90
86
87
426
457
6
86
87
426
86
87
426
123
1
421
86
87
327
309
421
71
72
123
202
459
459
202
309
429
429
417
45
307
315
457
27
24
149
620
646
442
30
29
315
435
33
50
430
37
36
28
71
72
51
320
319
36
37
434
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
1-33043-644-3
01
1
0307-
6
NUT; CASE,TRANS
1-33119-571-0
15
1
0307-
24
COVER; CHECK HOLE,DUST
1-31131-041-0
01
1
0307-
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28080-816-0
02
1
0307-0512
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
02
1
0601-
28
COVER; FRT,TRANS CASE
1-33111-345-0
01
1
0307-
29
BOLT; FRT COVER
1-33129-017-0
05
1
0307-
30
WASHER; LK,FRT COVER
1-33119-568-0
05
1
0307-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
1-33219-194-0
01
1
0307-
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-002-1
02
1
0307-
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
0307-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-459-0
01
1
0307-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-459-0
01
1
0307-
51
COVER; SEAL,COUNTER,FRT
1-33131-267-0
01
1
0307-
71
COVER; SIDE,TRANS CASE
1-33141-073-0
02
1
0307-
72
BOLT; SIDE COVER
1-33119-589-0
12
1
0307-
86
BOLT; RR COVER
(D)
1-33119-569-0
02
1
0307-
86
BOLT; RR COVER
(A)
1-33119-583-0
04
1
0307-
86
BOLT; RR COVER
(B)
1-33139-221-0
01
1
0307-
86
BOLT; RR COVER
(C)
1-33139-222-0
01
1
0307-
87
WASHER; LK,RR COVER
(A)
1-33119-568-0
04
1
0307-
87
WASHER; LK,RR COVER
(B)
1-33159-079-0
04
1
0307-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33139-121-0
01
1
0307-
123
DOWEL; TRANS CASE
1-33119-305-0
02
1
0307-
149
WASHER; LK
1-33119-564-0
02
1
0307-
202
BOLT; PLATE
(A)
1-33119-480-0
02
1
0307-
202
BOLT; PLATE
(B)
1-33119-485-0
02
1
0307-
307
BUSHING; SHIFT FORK SHAFT
1-33119-562-0
02
1
0307-
309
EYE; LIFTING
(A)
1-33119-566-0
01
1
0307-
309
EYE; LIFTING
(B)
1-33119-584-0
01
1
0307-
315
BOLT; CASE
(A) M10X40
1-33119-572-0
03
1
0307-
315
BOLT; CASE
(B) M10X58
1-33119-573-0
15
1
0307-
319
BOLT; COVER
1-33119-579-0
04
1
0307-
320
WASHER; COVER
1-33159-079-0
04
1
0307-
327
COVER; RR,COUNTER
1-33131-267-0
01
1
0307-
417
PLUG; OIL FILLER,TRANS
1-33119-576-0
01
1
0307-
421
COVER; RR,TRANS
(A)
1-33131-251-0
01
1
0307-
421
COVER; RR,TRANS
(B)
1-33131-253-0
01
1
0307-
426
WASHER; PL,RR COVER
1-33119-567-0
04
1
0307-
429
PIN; STRAIGHT
1-33119-311-0
02
1
0307-
430
PLUG; OIL DRAIN
1-33119-577-0
01
1
0307-
434
HOUSING; CLU
1-31110-188-2
01
1
0307-
435
CASE; TRANS
1-33111-377-0
01
1
0307-
442
PIN; SHIFT FORK
1-33119-563-0
02
1
0307-
457
CUP; SEALING,CASE
1-33119-578-0
02
1
0307-
459
PLATE; OIL
(A)
1-33119-479-0
01
1
0307-
459
PLATE; OIL
(B)
1-33119-484-0
01
1
0307-
549
FLANGE; COUPLING
1-37243-433-0
01
1
0307-
550
COVER; DUST,FLANGE
1-33139-124-0
01
1
0307-
552
NUT; FLANGE
1-33239-371-0
01
1
0307-
620
BOLT; CASE
1-33119-565-0
02
1
0307-
646
GASKET; PIN
1-33119-483-0
02
1
0307-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

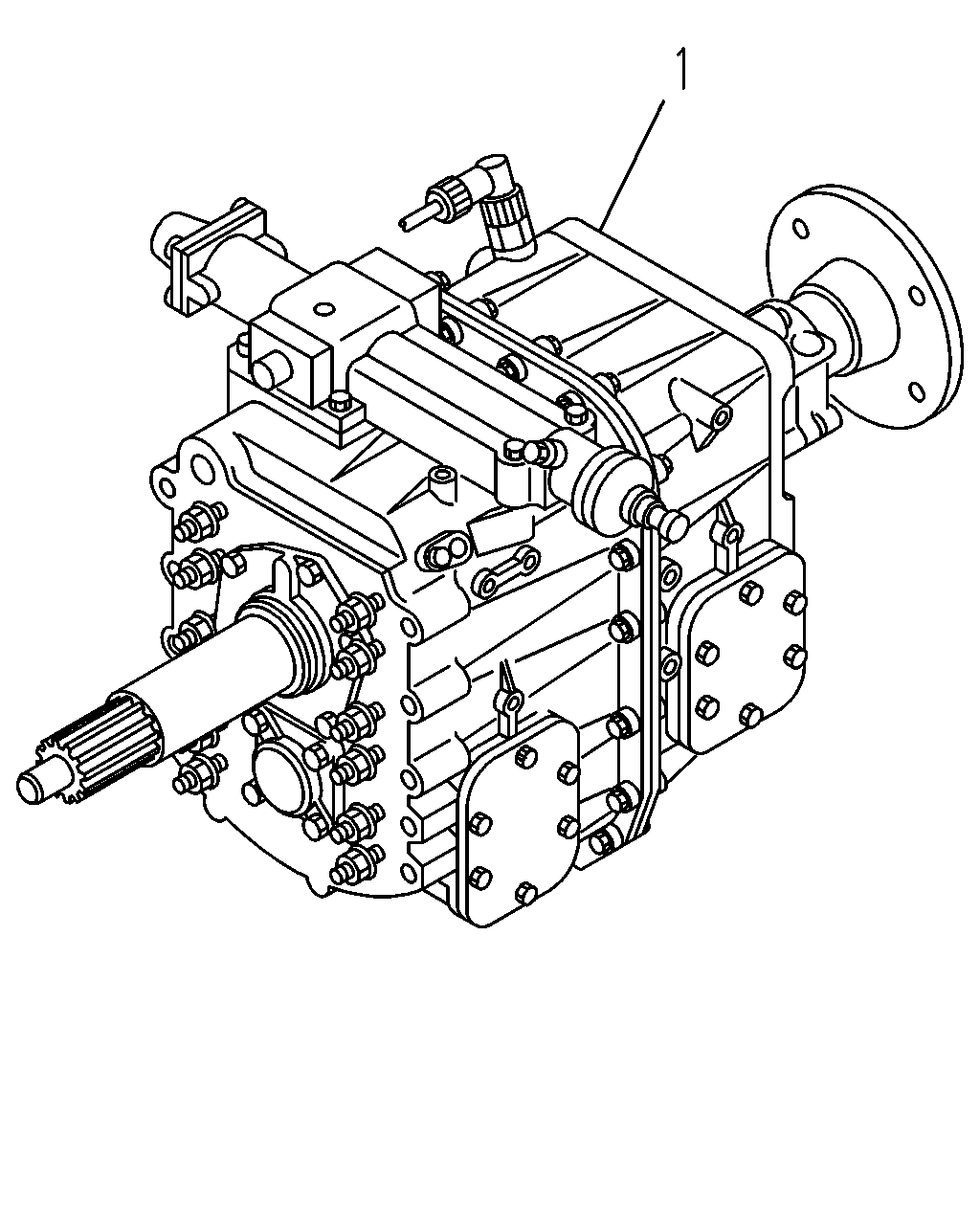

1
TRANSMISSION ASM; MANUAL
1-33043-644-3
01
1
0307-
