2-08A — CLUTCH MASTER CYLINDER (#9344) — 18 parça

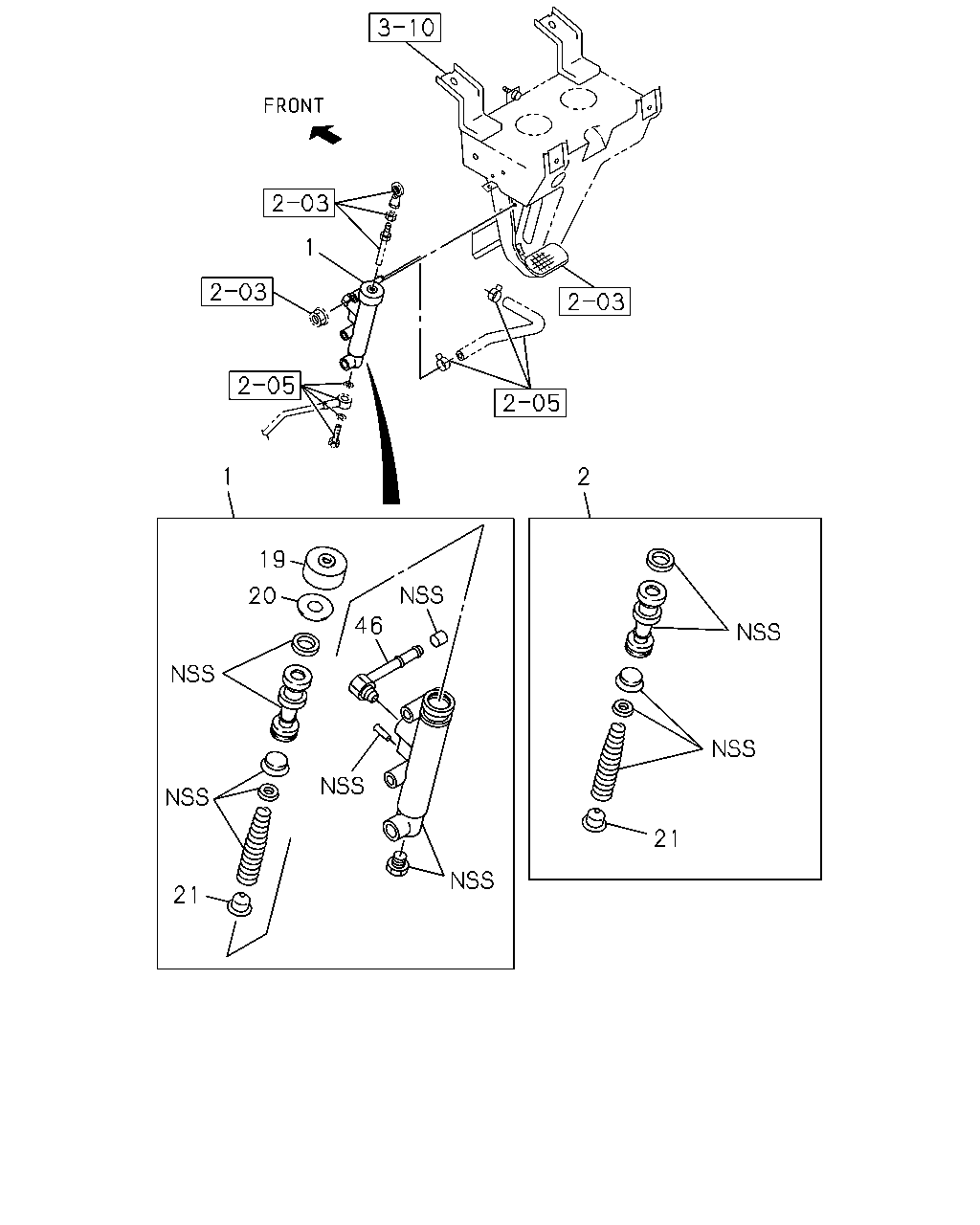

çizim 38476
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0005-0211 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0212-0305 ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0306- ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0005-0211 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0212-0305 ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0306- ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0005-0211 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0212-0305 ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0306- ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0005-0211 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0212-0305 ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0306- ●
21 VALVE; CHECK 1-47565-004-0 01 1 0005-0211 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0212-0305 ●
21 VALVE; CHECK 1-47565-004-0 01 1 0306- ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0005-0211 ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0212-0305 ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0306- ●
