3-77 — BRAKE PIPING; AIR,REAR (#934) — 119 parça

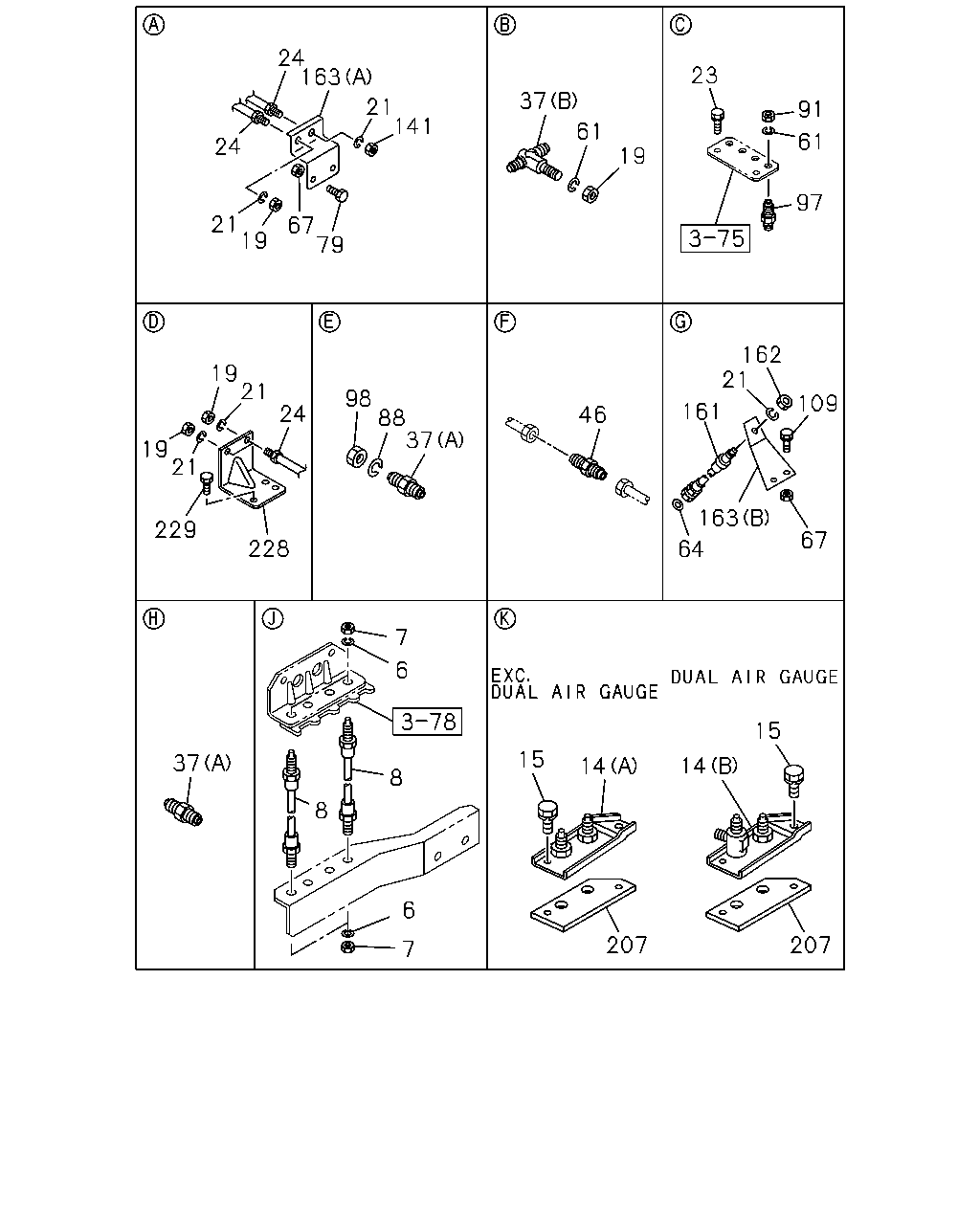

24 163 23 37 21 141 91 61 61 24 19 97 67 79 21 19 162 21 19 21 98 88 37 109 161 24 46 19 21 163 229 67 228 64 7 6 15 15 37 14 14 8 8 6 207 207 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9202-	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9202-	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	02	1	9202-	●	●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-219-1	01	1	9202-	●	●
14	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-47470-196-1	01	1	9202-	●	●
15	BOLT; PIPE UNION M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	04	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	03	1	9202-9312	●	●
23	BOLT; UNION BRKT M8X25 FLANGE	0-28080-825-0	02	1	9202-	●	●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	02	1	9202-	●	●
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	02	1	9202-	●	●
37	UNION; AIR PIPE (A) M16 L=74	9-09233-310-1	03	1	9202-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9202-	●	●
37	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT	9-09223-008-1	01	1	9202-	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	01	1	9202-	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	01	1	9202-		●
61	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	01	1	9202-9312	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	01	1	9202-9312	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9202-	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	03	1	9202-9312	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	03	1	9202-	●	●
97	UNION; AIR PIPE M16 L=74	9-09233-310-1	01	1	9202-	●	●
98	NUT; PIPE UNION M16	9-99111-416-0	01	1	9202-	●	●
109	BOLT; PIPE BRKT M8X25 FLANGE	0-28080-825-0	02	1	9202-	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9202-	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47475-464-0	01	1	9202-	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-708-0	01	1	9202-	●	●
207	SEAL; PLATE,UNION	1-79998-233-0	01	1	9202-	●	●
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-098-3	01	1	9202-	●	●
229	BOLT; HOSE UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●

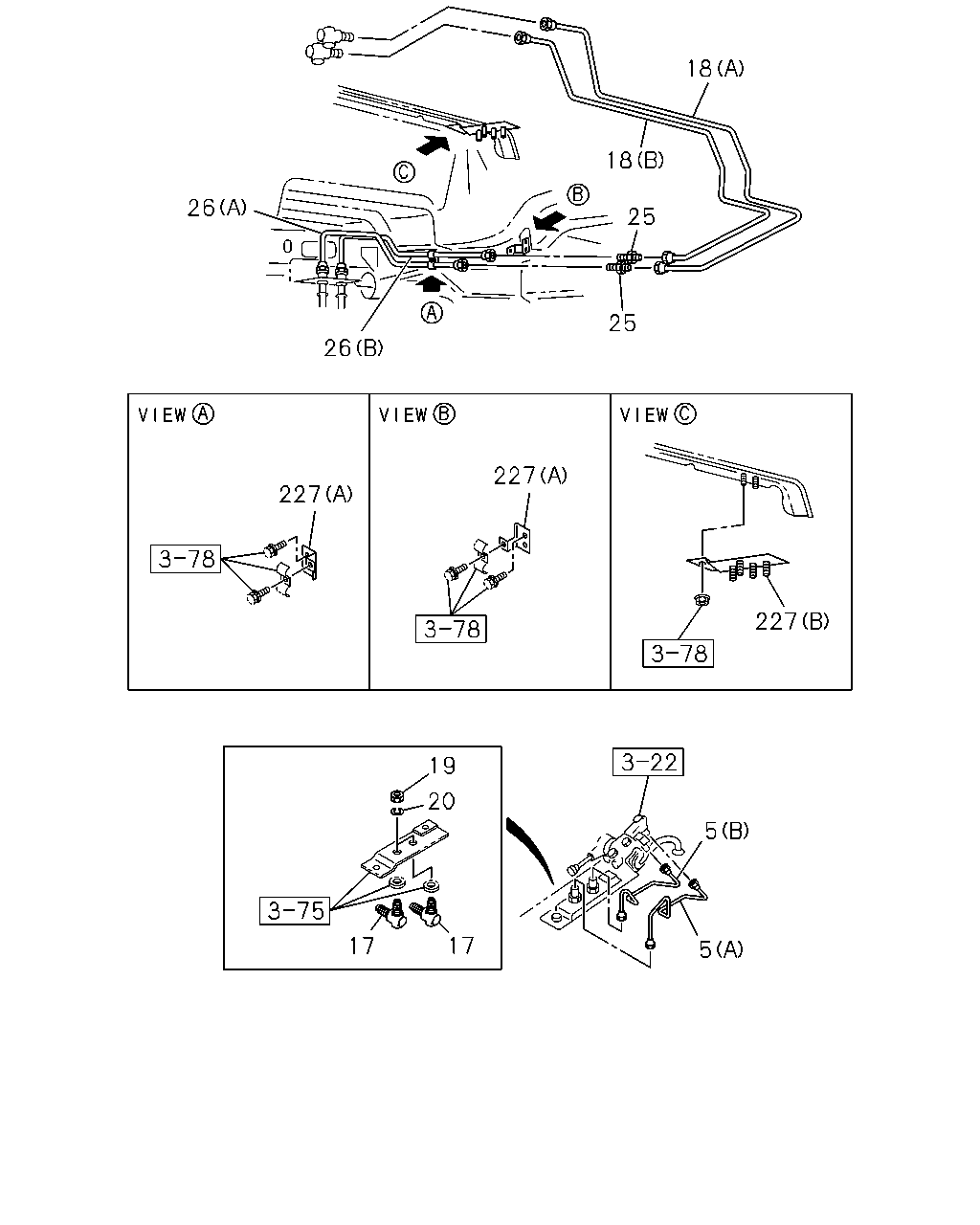

18 18 26 25 25 26 227 227 227 19 20 5 17 17 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=688	1-47482-988-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=688	1-47497-612-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=759	1-47482-989-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=759	1-47497-613-0	01	1	9301-	●	●
17	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-09225-208-1	02	1	9202-	●	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100	1-47434-409-0	01	1	9202-9212	●	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1034 SERVICED BY L=1100	1-47426-387-0	01	1	9301-	●	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=951 SERVICED BY L=1000	1-47437-956-0	01	1	9202-9212	●	●
18	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=951 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	04	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
20	WASHER; LK,PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-	●	●
25	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 STRAIGHT	9-09223-008-1	02	1	9202-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=620	1-47483-335-0	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=620	1-47497-690-0	01	1	9301-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47492-695-0	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=778	1-47497-679-0	01	1	9301-	●	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-71998-376-1	01	1	9202-	●	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-71998-421-0	02	1	9202-	●	●

13 16 8 4 201 8 201 87 8 4 118 13 16 152 8 103 59 27 93 101 24 152 96 28 24 102 161 31 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212	●	●
4	PIPE; AIR,UNION TO BRK VLV DUAL AIR GAUGE<UG2> L=294 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=350	1-47426-403-0	01	1	9202-9212	●	●
4	PIPE; AIR,UNION TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=318 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=630	0-07424-630-0	02	1	9202-	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=300	1-47426-402-0	01	1	9202-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION L=261 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1000	1-47434-476-0	01	1	9202-9212	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=954 SERVICED BY L=1100	1-47426-415-0	01	1	9301-	●	●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	02	1	9202-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1660 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9212	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1660 SERVICED BY L=1700	1-47426-391-0	01	1	9301-	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1686 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9212	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1686 SERVICED BY L=1700	1-47426-391-0	01	1	9301-	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2274 SERVICED BY L=2400	1-47437-959-0	01	1	9202-9207	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2272 SERVICED BY L=2400	1-47437-959-0	01	1	9208-9212	●	●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2272 SERVICED BY L=2400	1-47426-395-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE L=1113 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212	●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F049(FS4) L=1113 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212		●
59	PIPE; AIR,UNION TO FLEX HOSE L=1113 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F049(FS4) L=1113 SERVICED BY L=1400	1-47426-418-0	01	1	9301-		●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F063(FS7) L=1138 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212		●
59	PIPE; AIR,UNION TO FLEX HOSE FRONT AXLE F063(FS7) L=1138 SERVICED BY L=1400	1-47426-418-0	01	1	9301-		●
87	PIPE; AIR,AIR TANK TO UNION L=1204 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1204 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION L=2685 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●	●
93	PIPE; AIR,UNION TO UNION L=2680 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●	●
93	PIPE; AIR,UNION TO UNION L=2680 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
96	PIPE; AIR,UNION TO UNION L=1684 SERVICED BY L=1700	1-47434-478-0	01	1	9202-9212	●	●
96	PIPE; AIR,UNION TO UNION L=1684 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●	●
101	PIPE; AIR,FLEX HOSE TO UNION L=1241 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212	●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F049(FS4) L=1241 SERVICED BY L=1400	1-47437-969-0	01	1	9202-9212		●
101	PIPE; AIR,FLEX HOSE TO UNION L=1241 SERVICED BY L=1400	1-47426-418-0	01	1	9301-	●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F049(FS4) L=1241 SERVICED BY L=1400	1-47426-418-0	01	1	9301-		●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F063(FS7) L=1231 SERVICED BY L=1250	1-47437-968-0	01	1	9202-9212		●
101	PIPE; AIR,FLEX HOSE TO UNION FRONT AXLE F063(FS7) L=1231 SERVICED BY L=1250	1-47426-416-0	01	1	9301-		●
102	PIPE; AIR,UNION TO UNION L=1665 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9212	●	●
102	PIPE; AIR,UNION TO UNION L=1665 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION L=2566 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●	●
103	PIPE; AIR,UNION TO UNION L=2561 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●	●
103	PIPE; AIR,UNION TO UNION L=2561 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=432	1-47494-310-1	01	1	9202-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=413	1-47499-723-0	01	1	9301-	●	●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2813 SERVICED BY L=2900	1-47434-400-0	01	1	9202-9212	●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2813 SERVICED BY L=2900	1-47434-400-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2814 SERVICED BY L=3000	1-47426-397-0	01	1	9301-	●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2814 SERVICED BY L=3000	1-47426-397-0	01	1	9301-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=581 SERVICED BY L=600	1-47426-379-0	01	1	9202-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2523 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2523 SERVICED BY L=2700	1-47426-396-0	01	1	9301-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=981 SERVICED BY L=1000	1-47426-386-0	01	1	9202-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1381 SERVICED BY L=1400	1-47434-411-0	01	1	9202-9212		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1381 SERVICED BY L=1400	1-47426-389-0	01	1	9301-		●
152	PIPE; AIR,UNION TO UNION WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1881 SERVICED BY L=1950	1-47426-393-0	01	1	9411-		●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1985 SERVICED BY L=2150	1-47426-394-0	01	1	9202-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9202-	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805 SERVICED BY L=900	1-47426-413-0	01	1	9202-9212	●	●
201	PIPE; AIR,FLEX HOSE TO UNION L=805	1-47497-058-0	01	1	9301-	●	●
