Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#9338) — 293 parça

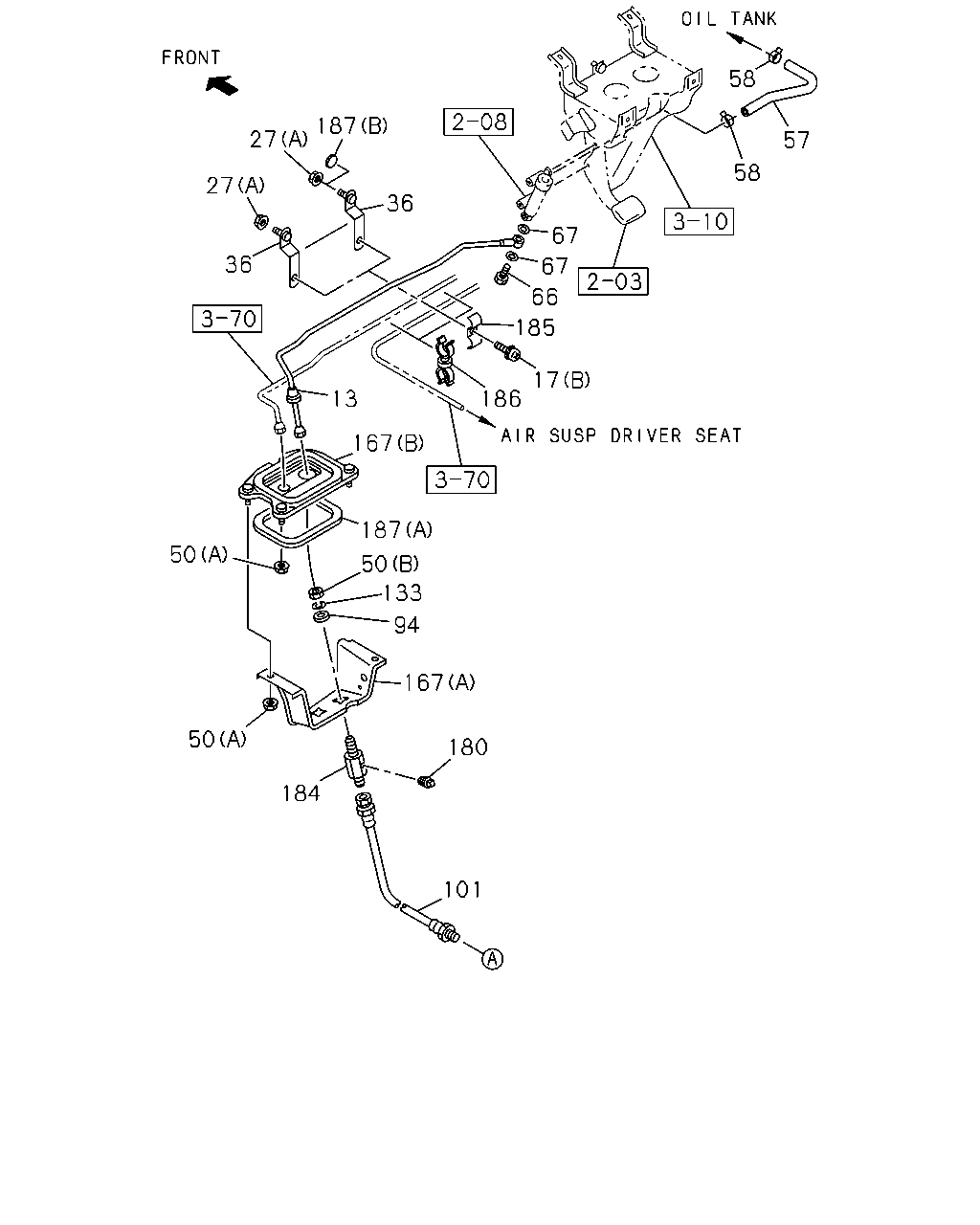

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-0210	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0211-0306	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0307-	●
17	BOLT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0306	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0307-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●	●
27	NUT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0306	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210	●	●
36	BRACKET; CLIP EXC. DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0005-0210	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0211-	●
36	BRACKET; CLIP DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0005-0210	●	●
50	NUT; UNION FRR STD CAB(FRR*) FSR(FS**) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0406-0411	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0412-	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0211-0306	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0307-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0210	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0211-0306	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0307-	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0210	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0211-0306	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0307-	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0210	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0211-0306	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0307-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0210	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0211-0306	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0307-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0211-0306	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0307-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0211-0306	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0307-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0211-	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0210	●	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	0005-0210	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0211-	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0210	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0211-0306	●
180	PLUG; PIPE	9-09204-510-0	01	1	0307-0804	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0005-0210	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0211-0306	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0307-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●
185	CLIP; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0005-0210	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0211-	●
185	CLIP; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0005-0210	●	●
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0005-0210	●	●
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0211-	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0210	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0211-	●
187	SEAL; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0210	●	●
187	SEAL; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0211-0411	●
187	SEAL; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0412-	●

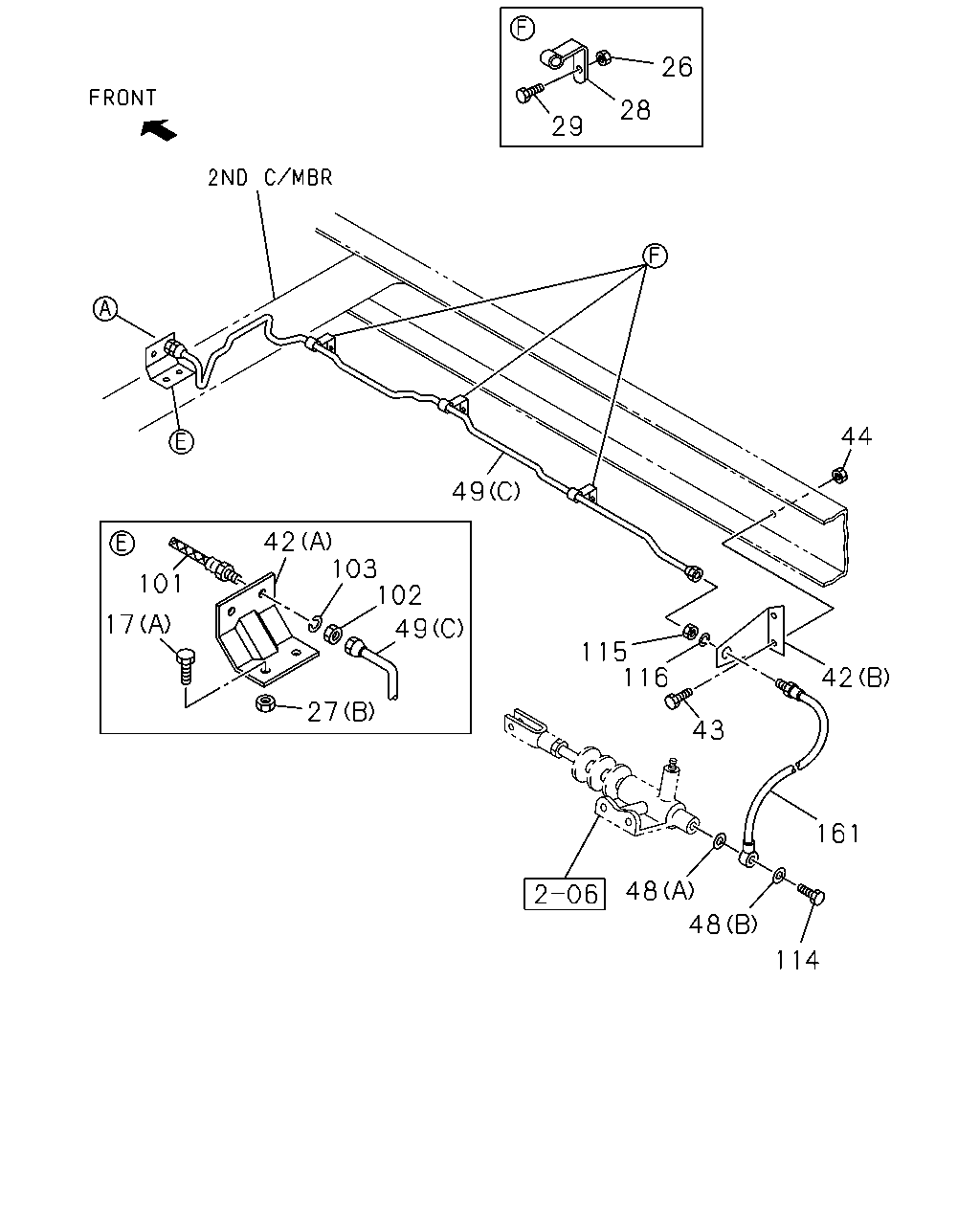

26 28 29 44 49 42 103 102 101 17 49 115 116 42 27 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0306	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0307-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●	●
26	NUT; CLIP,OIL PIPE FRR(FR****) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
26	NUT; CLIP,OIL PIPE FRR(FR****) M8 FLANGE	0-91150-108-0	03	1	0211-	●
26	NUT; CLIP,OIL PIPE FSR(FS****) M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
26	NUT; CLIP,OIL PIPE FSR(FS****) M8 FLANGE	0-91150-108-0	04	1	0211-0602	●
26	NUT; CLIP,OIL PIPE FSR(FS****) M8 FLANGE	0-91180-108-0	04	1	0603-	●
27	NUT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0306	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210	●	●
28	CLIP; OIL PIPE FRR(FR****) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210		●
28	CLIP; OIL PIPE FRR(FR****) ID=8 H=20 L=20	1-09700-604-0	03	1	0211-0306	●
28	CLIP; OIL PIPE FRR(FR****) ID=8 H=20 L=20	1-09700-604-0	03	1	0307-	●
28	CLIP; OIL PIPE FSR(FS****) ID=8 H=20 L=20	1-09700-604-0	04	1	0005-0210	●
28	CLIP; OIL PIPE FSR(FS****) ID=8 H=20 L=20	1-09700-604-0	04	1	0211-	●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0210		●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28680-830-0	02	1	0211-0306	●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28680-830-0	02	1	0307-0512	●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
29	BOLT; CLIP,OIL PIPE FSR(FS****) M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●
29	BOLT; CLIP,OIL PIPE FSR(FS****) M8X30 FLANGE	0-28680-830-0	03	1	0211-0512	●
29	BOLT; CLIP,OIL PIPE FSR(FS****) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0211-0306	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0307-0512	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
42	BRACKET; FLEX HOSE,CLU CONT FRR(FR****) (C)	1-47477-944-0	01	1	0005-0306	●
42	BRACKET; FLEX HOSE,CLU CONT FRR(FR****) (C)	1-47477-944-0	01	1	0307-	●
42	BRACKET; FLEX HOSE,CLU CONT FSR(FS****) (D)	1-47476-912-1	01	1	0005-0210	●
42	BRACKET; FLEX HOSE,CLU CONT FSR(FS****) (D)	1-47476-912-1	01	1	0211-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0210	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-0306	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0307-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0005-0210		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0306	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0307-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0306	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0306	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0307-	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-0210		●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=14.2	9-09851-004-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0005-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR STD CAB(FR*M) (A) L=3111 SERVICED BY L=3300	1-47426-398-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (A) L=3113 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0306	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (A) L=3113 SERVICED BY L=3300	1-47426-398-0	01	1	0307-0507	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (A) L=3110 SERVICED BY L=3300	1-47426-398-0	01	1	0508-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) L=3071 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0307	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) L=3047 SERVICED BY L=3300	1-47426-398-0	01	1	0308-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (C) L=2445 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) L=3044 SERVICED BY L=3300	1-47426-398-0	01	1	0005-0210	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0211-0306	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0307-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0306	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0307-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0306	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0307-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0005-0210		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0306	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0307-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0306	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0307-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
161	HOSE; FLEX,SLAVE CYL L=310	0-05567-310-0	01	1	0005-0006		●
161	HOSE; FLEX,SLAVE CYL EXC. ENGINE REAR PTO(SV1) L=310	0-05567-310-0	01	1	0007-0210		●
161	HOSE; FLEX,SLAVE CYL ENGINE REAR PTO(SV1) L=400	1-09364-597-0	01	1	0007-0210		●

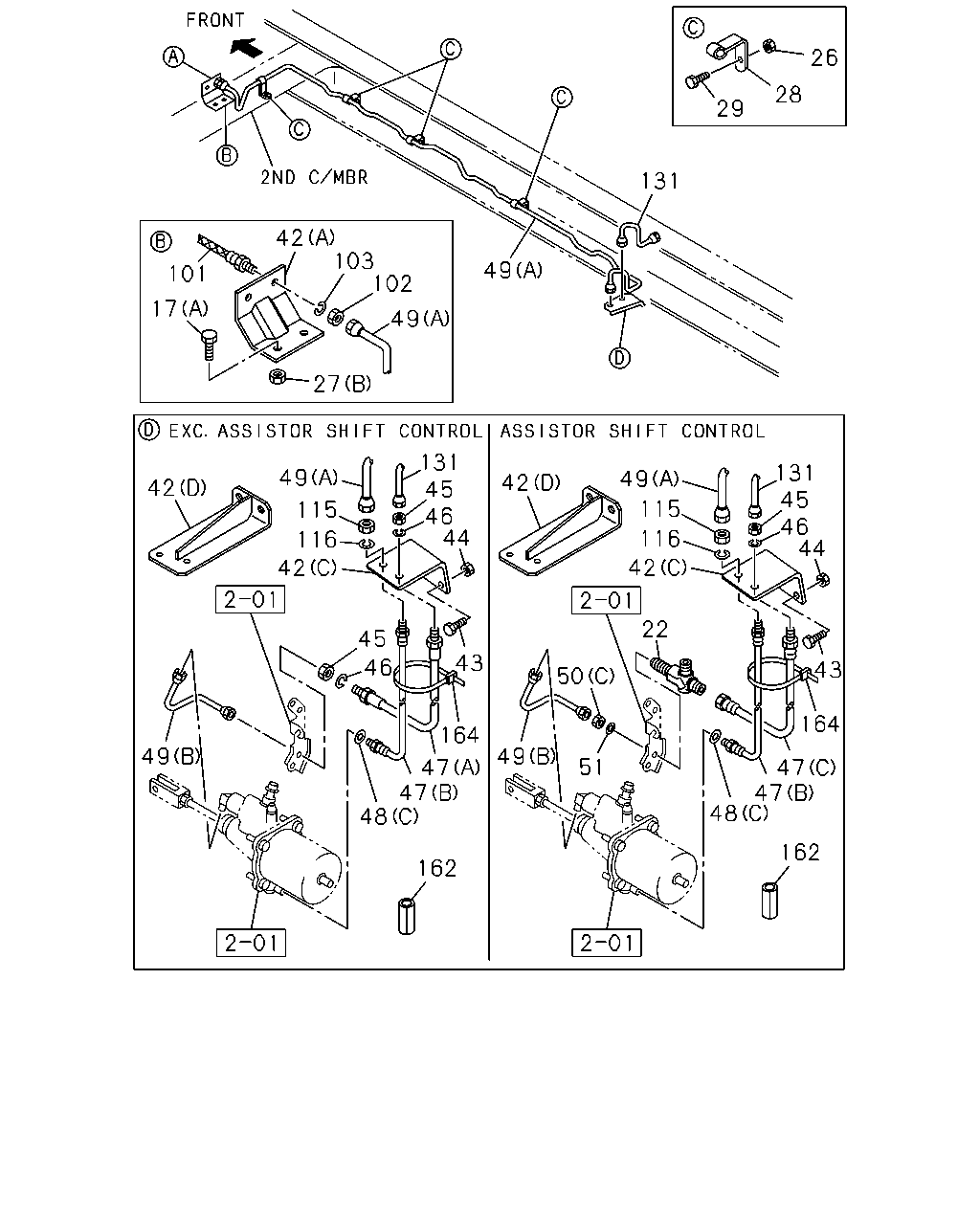

26 28 29 131 42 103 102 49 101 17 49 27 131 45 46 44 131 45 46 44 49 49 42 42 115 115 116 116 42 42 22 45 43 46 43 50 164 164 49 49 51 47 47 48 47 47 48 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0306	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0307-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●	●
22	UNION; CLU PIPE FRR STD CAB(FRR*) FSR(FS**) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	0406-0411	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	0412-0607	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0608-	●
26	NUT; CLIP,OIL PIPE FRR(FR****) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
26	NUT; CLIP,OIL PIPE FRR(FR****) M8 FLANGE	0-91150-108-0	03	1	0211-	●
26	NUT; CLIP,OIL PIPE FSR(FS****) M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
26	NUT; CLIP,OIL PIPE FSR(FS****) M8 FLANGE	0-91150-108-0	04	1	0211-0602	●
26	NUT; CLIP,OIL PIPE FSR(FS****) M8 FLANGE	0-91180-108-0	04	1	0603-	●
27	NUT; BRKT EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0306	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210	●	●
28	CLIP; OIL PIPE FRR(FR****) ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0210		●
28	CLIP; OIL PIPE FRR(FR****) ID=8 H=20 L=20	1-09700-604-0	03	1	0211-0306	●
28	CLIP; OIL PIPE FRR(FR****) ID=8 H=20 L=20	1-09700-604-0	03	1	0307-	●
28	CLIP; OIL PIPE FSR(FS****) ID=8 H=20 L=20	1-09700-604-0	04	1	0005-0210	●
28	CLIP; OIL PIPE FSR(FS****) ID=8 H=20 L=20	1-09700-604-0	04	1	0211-	●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0210		●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28680-830-0	02	1	0211-0306	●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28680-830-0	02	1	0307-0512	●
29	BOLT; CLIP,OIL PIPE FRR(FR****) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
29	BOLT; CLIP,OIL PIPE FSR(FS****) M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●
29	BOLT; CLIP,OIL PIPE FSR(FS****) M8X30 FLANGE	0-28680-830-0	03	1	0211-0512	●
29	BOLT; CLIP,OIL PIPE FSR(FS****) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0211-0306	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0307-0512	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
42	BRACKET; FLEX HOSE,CLU CONT FRR(FR****) (C)	1-47477-944-0	01	1	0005-0306	●
42	BRACKET; FLEX HOSE,CLU CONT FRR(FR****) (C)	1-47477-944-0	01	1	0307-	●
42	BRACKET; FLEX HOSE,CLU CONT FSR(FS****) (D)	1-47476-912-1	01	1	0005-0210	●
42	BRACKET; FLEX HOSE,CLU CONT FSR(FS****) (D)	1-47476-912-1	01	1	0211-	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0210	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-0306	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0307-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0005-0210		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0306	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0307-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0306	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0307-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0005-0306	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0307-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0005-0306	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0307-0603	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-	●
47	HOSE; FLEX,CLU CONT FRR(FR****) ASSISTOR SHIFT CONTROL<WX8> (C) OD=12.7 L=450	1-09363-631-0	01	1	0406-	●
47	HOSE; FLEX,CLU CONT FSR(FS****) ASSISTOR SHIFT CONTROL<WX8> (C) L=380	1-09363-884-0	01	1	0406-	●
47	HOSE; FLEX,CLU CONT FRR(FR****) (A) L=560	1-09363-689-0	01	1	0005-0405	●
47	HOSE; FLEX,CLU CONT FRR(FR****) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=560	1-09363-689-0	01	1	0406-	●
47	HOSE; FLEX,CLU CONT FRR(FR****) (B) L=470	1-09364-692-0	01	1	0005-	●
47	HOSE; FLEX,CLU CONT FSR(FS****) (A) L=430	1-09363-726-0	01	1	0005-0210	●
47	HOSE; FLEX,CLU CONT FSR(FS****) (A) L=430	1-09363-726-0	01	1	0211-0405	●
47	HOSE; FLEX,CLU CONT FSR(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=430	1-09363-726-0	01	1	0406-	●
47	HOSE; FLEX,CLU CONT FSR(FS****) (B) L=390	1-09364-475-0	01	1	0005-	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0306	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0307-	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=10.5	1-09630-074-1	01	1	0005-0210		●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=14.2	9-09851-004-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0005-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR STD CAB(FR*M) (A) L=3111 SERVICED BY L=3300	1-47426-398-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (A) L=3113 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0306	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (A) L=3113 SERVICED BY L=3300	1-47426-398-0	01	1	0307-0507	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (A) L=3110 SERVICED BY L=3300	1-47426-398-0	01	1	0508-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR(FR****) (C) L=2459 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) L=3071 SERVICED BY L=3300	1-47426-398-0	01	1	0211-0307	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) L=3047 SERVICED BY L=3300	1-47426-398-0	01	1	0308-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (C) L=2445 SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FSR(FS****) (A) L=3044 SERVICED BY L=3300	1-47426-398-0	01	1	0005-0210	●
50	NUT; UNION FRR STD CAB(FRR*) FSR(FS**) ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0406-0411	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0412-	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0211-0306	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0307-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●
51	WASHER; LK FRR STD CAB(FRR*) FSR(FS**) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0406-0411	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0412-0603	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0211-0306	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0307-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0306	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0307-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0306	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0307-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0306	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0307-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0306	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0307-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
131	PIPE; AIR,UNION TO FLEX HOSE FRR(FR****)	1-49119-152-0	01	1	0005-0306	●
131	PIPE; AIR,UNION TO FLEX HOSE FRR(FR****)	1-49119-152-0	01	1	0307-	●
131	PIPE; AIR,UNION TO FLEX HOSE FSR(FS****)	1-49122-486-0	01	1	0005-0210	●
131	PIPE; AIR,UNION TO FLEX HOSE FSR(FS****)	1-49122-486-0	01	1	0211-	●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0005-0306	●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0307-	●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0005-0306	●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0307-	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0005-0306	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0307-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
