Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#9335) — 292 parça

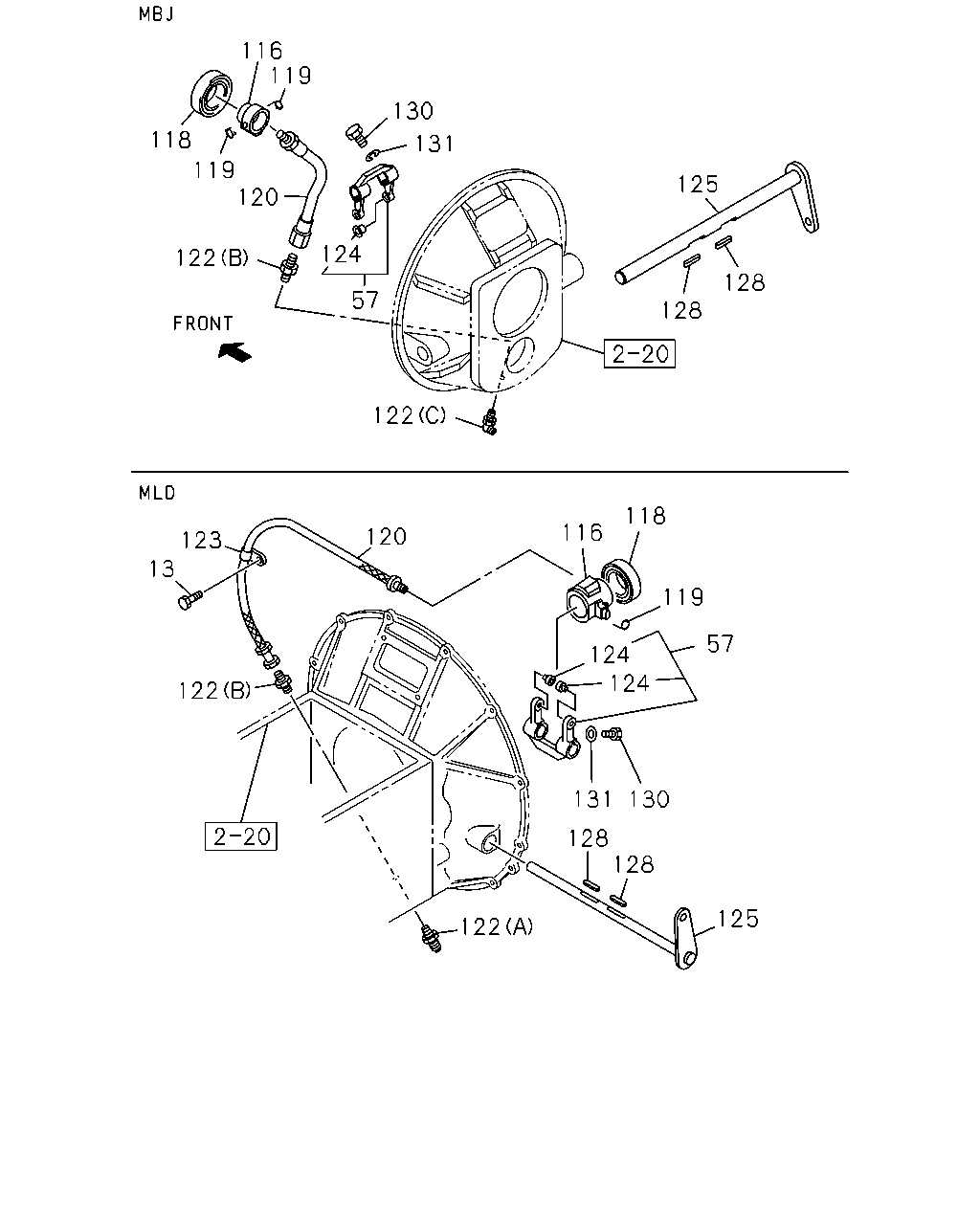

116 119 130 118 131 119 120 125 124 122 128 57 128 122 118 116 120 123 13 119 57 124 124 122 131 130 128 128 125 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0306	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
57	FORK; SHIFT,CLU 15" CLUTCH(RE9)	1-31340-060-0	01	1	0211-1306	●
57	FORK; SHIFT,CLU 15" CLUTCH(RE9)	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	0005-0210	●	●
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31340-056-1	01	1	0211-	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	0005-0210	●
116	BLOCK; SHIFT,CLU 14" CLUTCH(WF6)	1-31321-052-3	01	1	0211-	●
116	BLOCK; SHIFT,CLU	1-31321-070-2	01	1	0005-0210		●
116	BLOCK; SHIFT,CLU 15" CLUTCH(RE9)	1-31321-075-1	01	1	0211-1204	●
116	BLOCK; SHIFT,CLU 15" CLUTCH(RE9)	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU 15" CLUTCH(RE9)	1-31321-114-0	01	1	1307-	●
118	BEARING; CLU RELEASE 15" CLUTCH(RE9)	1-09820-117-0	01	1	0211-0306	●
118	BEARING; CLU RELEASE 15" CLUTCH(RE9)	1-09820-117-0	01	1	0307-	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	0005-0111	●	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0210	●	●
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-09820-114-0	01	1	0211-	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0005-0210	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0211-	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0005-0210	●	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0211-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-0306	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0307-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=170	1-09364-869-0	01	1	0005-0210		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0306	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0307-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-0210	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0211-0306	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0307-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0005-0210		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0005-0306	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0307-0606	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0005-0210	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0211-	●
125	SHAFT; CLU	1-31342-169-1	01	1	0005-	●
125	SHAFT; CLU	1-31342-299-0	01	1	0005-0210		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0210	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0211-0306	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0307-	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0005-0210	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0211-0512	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0210	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0211-0306	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0307-0603	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●

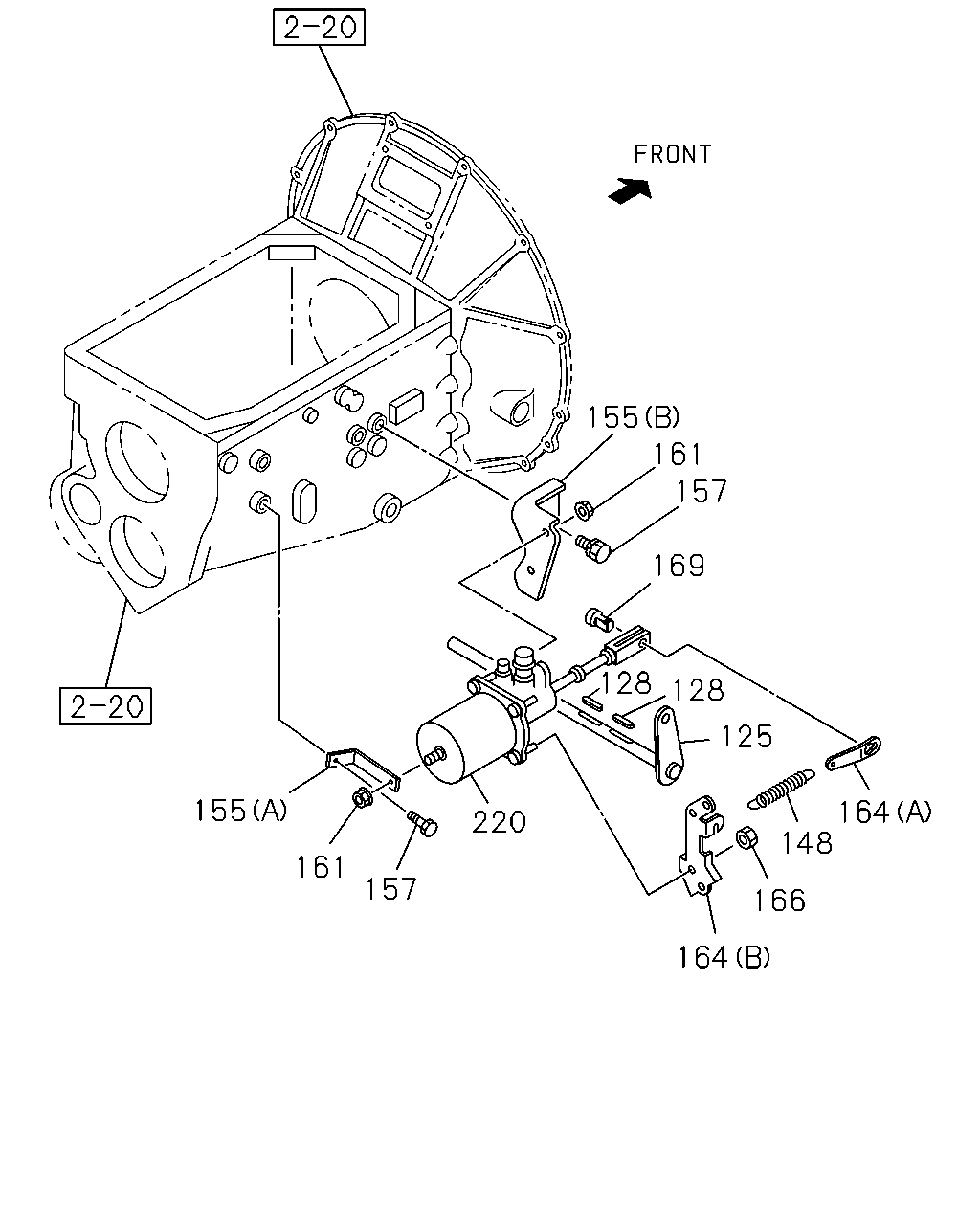

155 161 157 169 128 128 125 155 164 148 220 161 157 166 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
125	SHAFT; CLU	1-31342-169-1	01	1	0005-	●
125	SHAFT; CLU	1-31342-299-0	01	1	0005-0210		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0210	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0211-0306	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0307-	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0005-0306	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0307-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0005-0210		●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	0005-	●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	0005-	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0005-	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	0005-0602	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-	●
164	EYE; SPRING (A)	1-31426-041-0	01	1	0005-	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	0005-	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	0005-0602	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0005-0210	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0211-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-383-1	01	1	0005-0210	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-383-3	01	1	0211-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-388-1	01	1	0211-0306	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-388-3	01	1	0307-	●

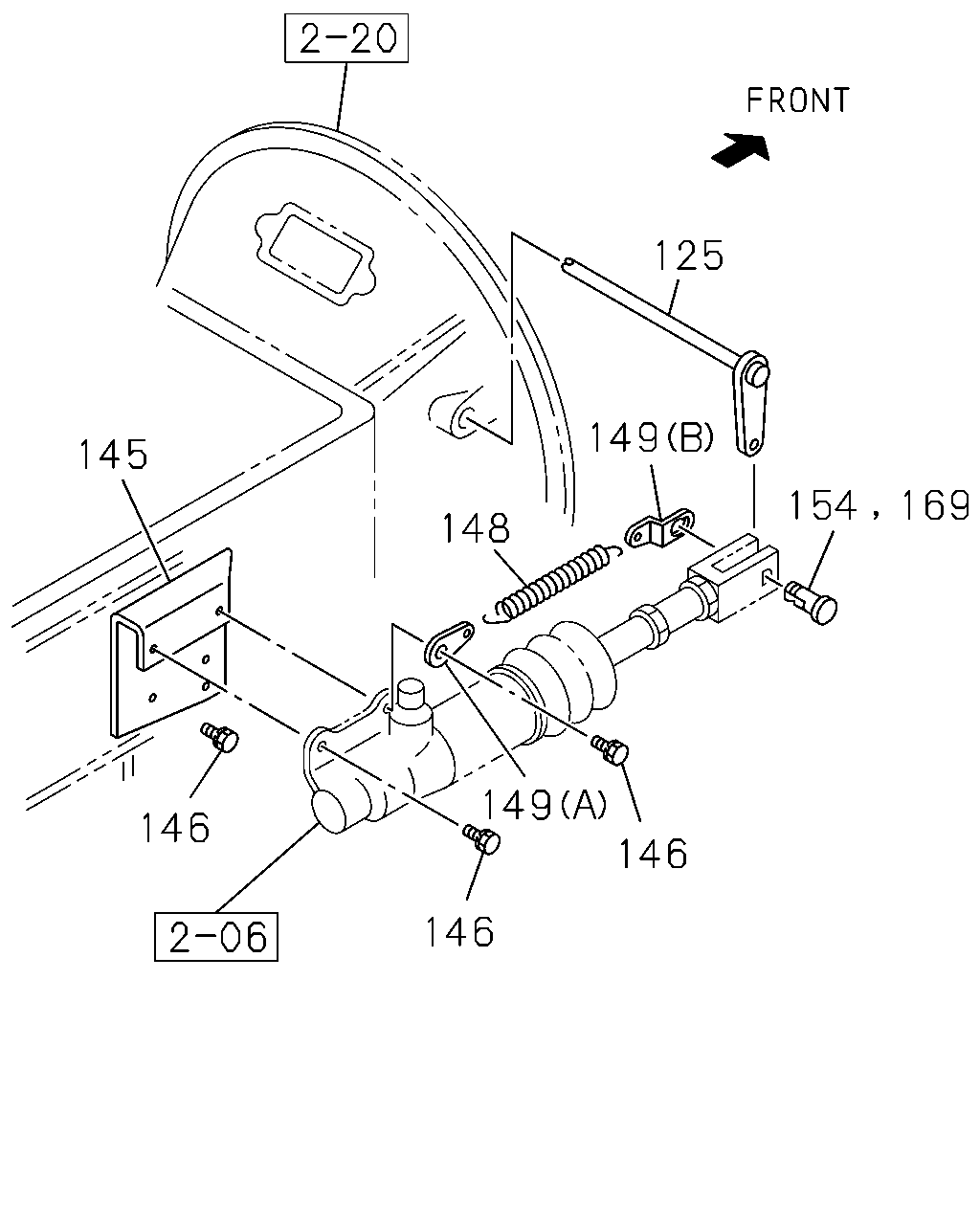

125 149 145 154 169 148 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
125	SHAFT; CLU	1-31342-169-1	01	1	0005-	●
125	SHAFT; CLU	1-31342-299-0	01	1	0005-0210		●
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-059-0	01	1	0005-0210		●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	0005-0210		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0005-0306	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0307-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	0005-0210		●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	0005-0210		●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	0005-0210		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0005-0210		●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0005-0210	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0211-	●

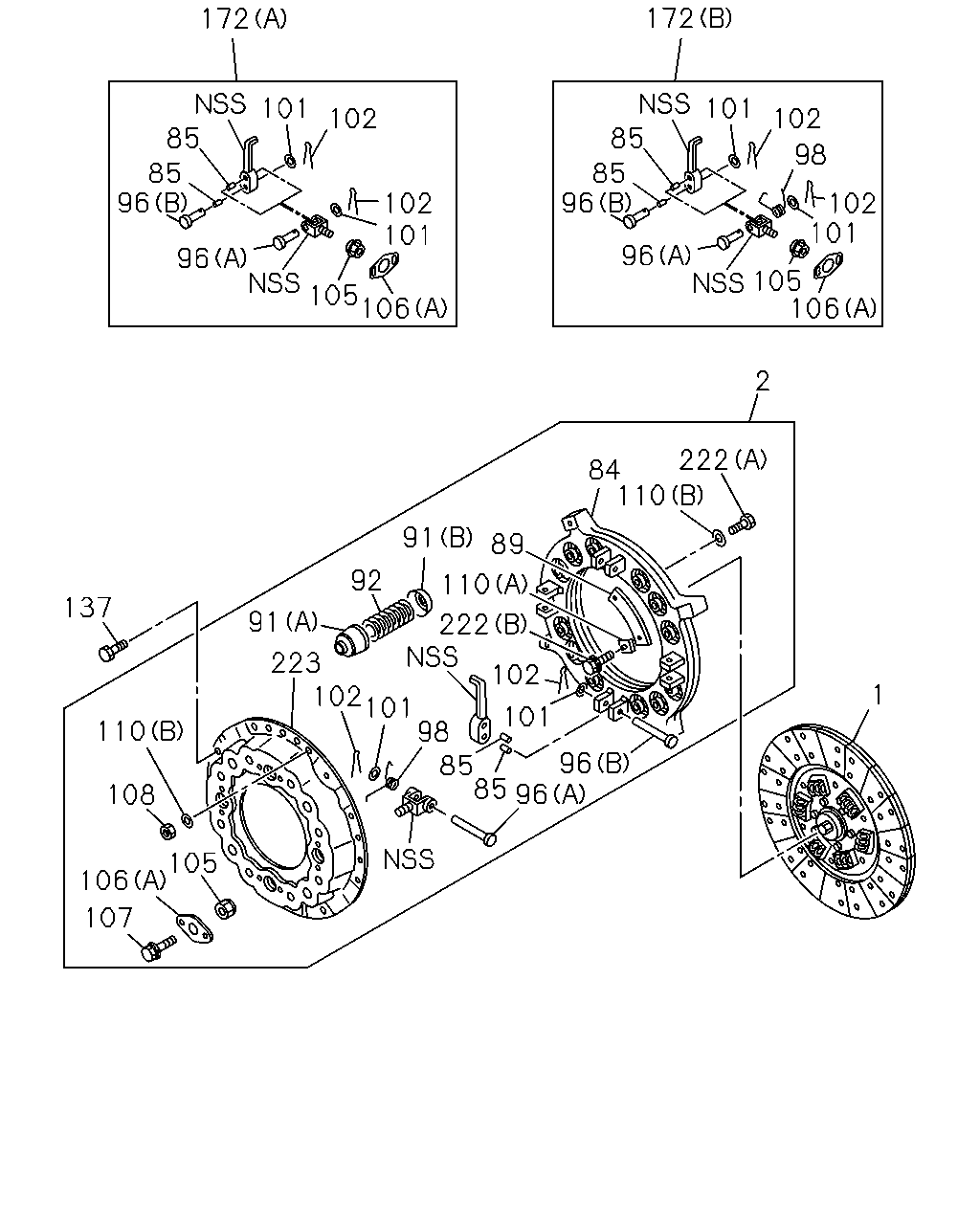

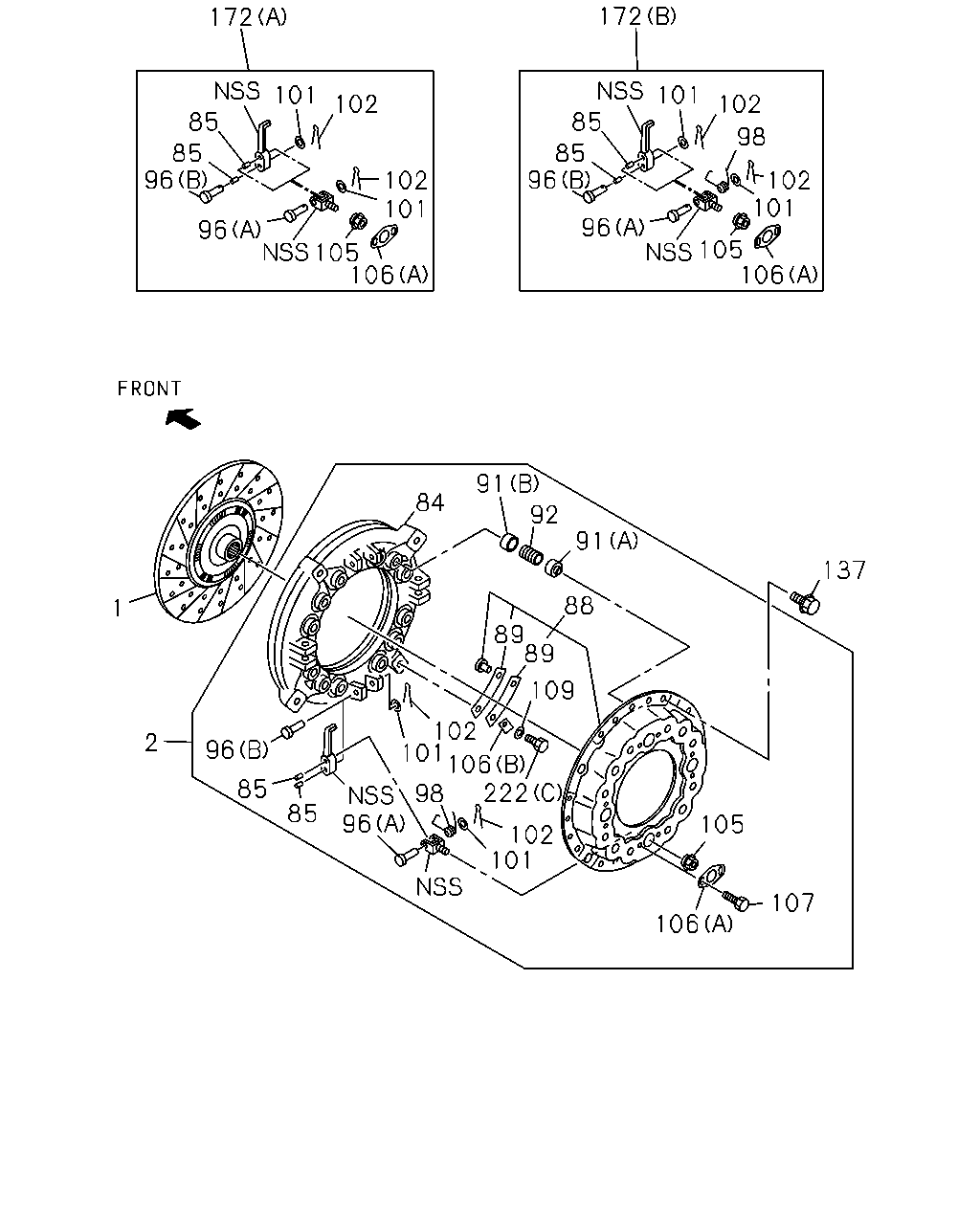

172 172 85 85 101 101 102 102 98 85 96 85 96 102 101 102 101 96 106 96 105 106 2 222 84 110 91 89 92 110 137 91 222 223 102 101 101 98 85 96 85 96 102 1 110 108 105 106 107 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	0005-0105	●
1	DISC; CLUTCH 15"	1-31240-902-0	01	1	0106-0210	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-889-0	01	1	0211-0306	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-889-0	01	1	0307-	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	0005-0105		●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-0210		●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-901-0	01	1	0211-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-305-1	01	1	0005-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-373-0	01	1	0110-0210	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-365-2	01	1	0211-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	0005-0109		●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-0	01	1	0110-0210		●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	0211-	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0005-0210	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0211-0308	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0309-	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	0005-0210		●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-082-0	01	1	0211-	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0210	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0211-0308	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0309-	●
89	PLATE; STRAP	1-31229-050-0	16	1	0005-0210	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0211-0308	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0309-	●
89	PLATE; STRAP	1-31229-001-0	08	1	0005-0210		●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0211-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0210	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0211-0308	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0309-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0210	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0211-0308	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0309-	●
92	SPRING; CLU	1-31214-039-0	12	1	0005-0109	●
92	SPRING; CLU	1-31214-065-0	12	1	0110-0210	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-064-0	12	1	0211-	●
92	SPRING; CLU	1-09580-234-0	12	1	0005-0210		●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-019-0	12	1	0211-0308	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	0309-	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0005-0210	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0211-0308	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0309-	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0005-0210	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0211-0308	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0309-	●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0210	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0211-0308	●
98	SPRING; RETURN	1-31233-003-0	04	1	0309-	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0210	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	0211-0308	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	0309-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-0210		●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-039-0	08	1	0211-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0005-0210	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0211-0308	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0309-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0005-0210		●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0211-	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0309-0309	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0210	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0211-0308	●
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-012-0	04	1	0309-0309	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0210	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0211-0308	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0309-	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0005-0109		●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-0210		●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	08	1	0211-	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0309-0309	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0210	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0211-0308	●
107	BOLT; LK PLATE 15" CLUTCH(RE9) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309	●
108	NUT; STRAP	1-09449-036-0	04	1	0005-0210	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	0211-0308	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	0309-	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0005-0210	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	1-09503-095-0	08	1	0211-0308	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	1-09503-095-0	08	1	0309-0403	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	0404-	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0005-0210	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	0211-0308	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	0309-	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0210	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0211-0305	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0306-0512	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6) (B)	1-87830-902-1	01	1	0211-0306	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6) (B)	1-87831-173-1	01	1	0307-	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9) (B)	1-87831-170-1	01	1	0308-	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-808-0	01	1	0005-0109	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9) (B)	1-87830-760-3	01	1	0211-0307	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-1	01	1	0005-0109		●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-2	01	1	0110-0210	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0005-0210	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0211-0308	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0309-	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-0210	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0211-0308	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0309-	●
222	BOLT; STRAP (C) M10X26 HEX SOKET	1-09040-101-0	04	1	0005-0109		●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-0210		●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0211-	●
223	COVER; CLU	1-31211-019-1	01	1	0005-0210	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	0211-0308	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	0309-	●

172 172 101 101 102 102 85 85 98 85 96 85 96 102 101 102 101 96 105 106 96 106 91 92 84 91 137 88 1 89 89 109 102 101 106 96 2 96 85 85 105 102 101 107 106 222 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	0005-0105	●
1	DISC; CLUTCH 15"	1-31240-902-0	01	1	0106-0210	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-889-0	01	1	0211-0306	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-889-0	01	1	0307-	●
1	DISC; CLUTCH 14"	1-31240-671-0	01	1	0005-0105		●
1	DISC; CLUTCH 14"	1-31240-901-0	01	1	0106-0210		●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-901-0	01	1	0211-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-305-1	01	1	0005-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-373-0	01	1	0110-0210	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-365-2	01	1	0211-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-291-0	01	1	0005-0109		●
2	PLATE ASM; PRESSURE,CLU	1-31220-364-0	01	1	0110-0210		●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	0211-	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0005-0210	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0211-0308	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	0309-	●
84	PLATE; PRESSURE 14"	1-31221-082-0	01	1	0005-0210		●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-082-0	01	1	0211-	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0210	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0211-0308	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0309-	●
88	COVER SUB ASM; CLU	1-31211-036-0	01	1	0005-0210		●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-036-0	01	1	0211-	●
89	PLATE; STRAP	1-31229-050-0	16	1	0005-0210	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0211-0308	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	0309-	●
89	PLATE; STRAP	1-31229-001-0	08	1	0005-0210		●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	0211-	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0210	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0211-0308	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0309-	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0210	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0211-0308	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0309-	●
92	SPRING; CLU	1-31214-039-0	12	1	0005-0109	●
92	SPRING; CLU	1-31214-065-0	12	1	0110-0210	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-064-0	12	1	0211-	●
92	SPRING; CLU	1-09580-234-0	12	1	0005-0210		●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-019-0	12	1	0211-0308	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	0309-	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0005-0210	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0211-0308	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0309-	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0005-0210	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0211-0308	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0309-	●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0210	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0211-0308	●
98	SPRING; RETURN	1-31233-003-0	04	1	0309-	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0210	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	0211-0308	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	0309-	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0110-0210		●
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-039-0	08	1	0211-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0005-0210	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0211-0308	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	0309-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0005-0210		●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	0211-	●
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	0309-0309	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0210	●	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0211-0308	●
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-012-0	04	1	0309-0309	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0210	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0211-0308	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0309-	●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	08	1	0005-0109		●
106	PLATE; LK,LEVER SUPPORT (B)	1-31235-008-0	04	1	0110-0210		●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	08	1	0211-	●
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	0309-0309	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0210	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0211-0308	●
107	BOLT; LK PLATE 15" CLUTCH(RE9) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0309-0309	●
109	WASHER; LK,STRAP ID=10.2	9-09150-510-0	04	1	0005-0210		●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	9-09150-510-0	04	1	0211-0603	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	0604-	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0210	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0211-0305	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0306-0512	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6) (B)	1-87830-902-1	01	1	0211-0306	●
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6) (B)	1-87831-173-1	01	1	0307-	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9) (B)	1-87831-170-1	01	1	0308-	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-808-0	01	1	0005-0109	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9) (B)	1-87830-760-3	01	1	0211-0307	●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-1	01	1	0005-0109		●
172	LEVER KIT; RELEASE,CLU (A)	1-87830-620-2	01	1	0110-0210	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0005-0210	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0211-0308	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	0309-	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-0210	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0211-0308	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0309-	●
222	BOLT; STRAP (C) M10X26 HEX SOKET	1-09040-101-0	04	1	0005-0109		●
222	BOLT; STRAP (C)	1-31239-059-0	04	1	0110-0210		●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
