1-56 — EXHAUST BRAKE SYSTEM (#9334) — 116 parça

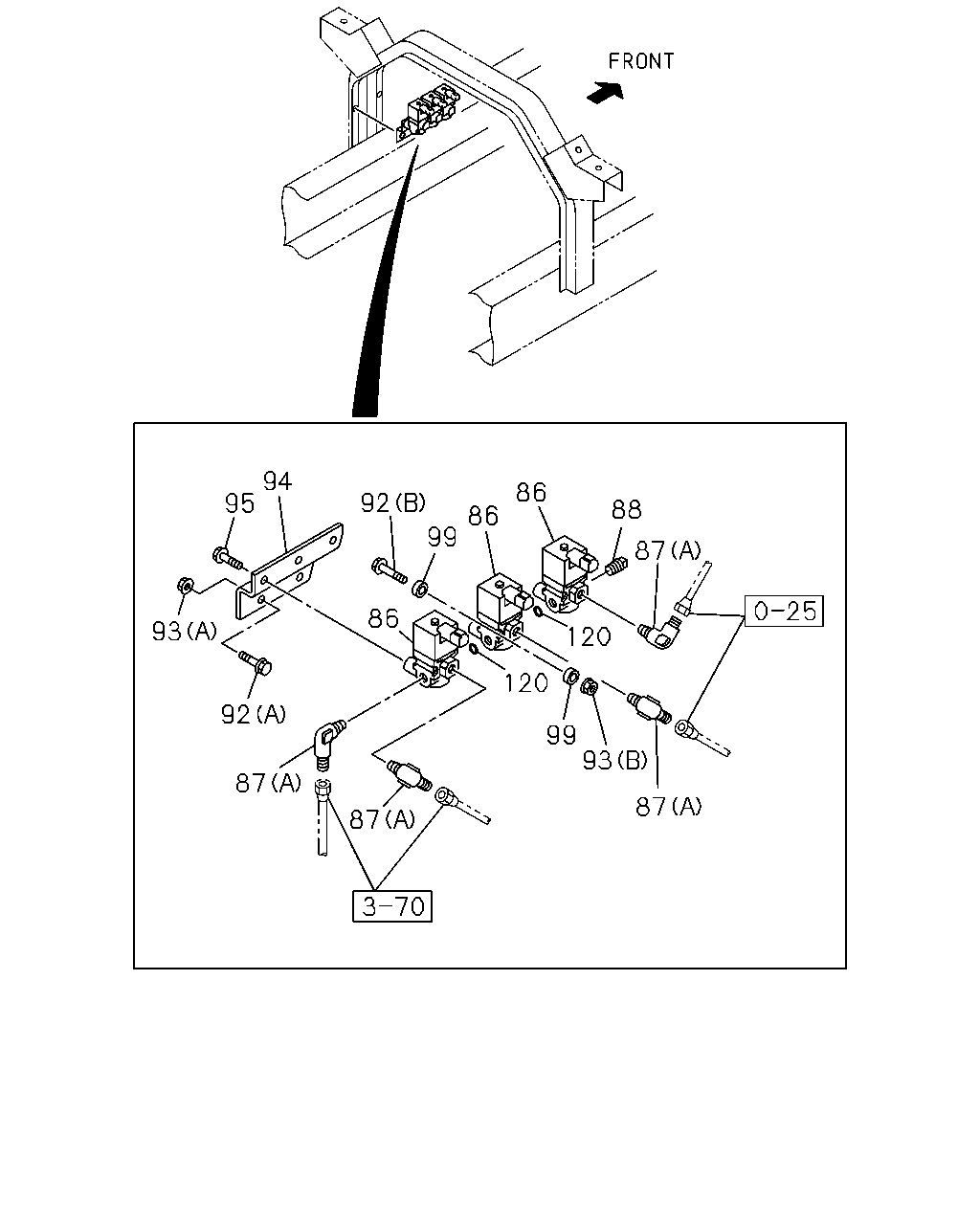

94 95 86 92 88 86 99 87 86 93 120 120 92 99 93 87 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
86	VALVE; MAG,EXH BRK FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-82563-871-2	03	1	0307-	●
86	VALVE; MAG,EXH BRK FSR(FS****)	1-82563-871-2	03	1	0307-	●
86	VALVE; MAG,EXH BRK	1-82563-602-5	01	1	0005-0210		●	●
86	VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	1-82563-602-5	01	1	0005-0210				●
86	VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	1-82563-602-6	01	1	0211-					●	●
87	CONNECTOR FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0307-	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0307-	●
87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210		●	●
87	CONNECTOR EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
87	CONNECTOR FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0211-0305					●	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0211-0305					●
87	CONNECTOR FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0306-0411					●	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0306-0411					●
87	CONNECTOR FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0412-					●	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0412-					●
87	CONNECTOR FRD STD CAB(FRD***) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0412-						●
87	CONNECTOR (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0005-0210		●	●
87	CONNECTOR EXHAUST BRAKE<NF8> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0005-0210				●
87	CONNECTOR FRR DOUBLE CAB(FR*W) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-					●	●
87	CONNECTOR FRR DOUBLE CAB(FR*W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-					●	●
88	PLUG FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> PT1/4	9-99204-513-0	01	1	0307-	●
88	PLUG FSR(FS****) PT1/4	9-99204-513-0	01	1	0307-	●
92	BOLT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6X50 FLANGE	0-28080-650-0	02	1	0307-0512	●
92	BOLT; MAG VLV FSR(FS****) (B) M6X50 FLANGE	0-28080-650-0	02	1	0307-0512	●
92	BOLT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-	●
92	BOLT; MAG VLV FSR(FS****) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0005		●	●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0005				●
92	BOLT; MAG VLV FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●	●
92	BOLT; MAG VLV FSR(FS****) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●	●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●				●	●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●				●	●
92	BOLT; MAG VLV FRR DOUBLE CAB(FR*W) (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●	●	●
93	NUT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6 FLANGE	0-91150-106-0	02	1	0307-0602	●
93	NUT; MAG VLV FSR(FS****) (B) M6 FLANGE	0-91150-106-0	02	1	0307-0602	●
93	NUT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●
93	NUT; MAG VLV FSR(FS****) (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●
93	NUT; MAG VLV (A) M8 FLANGE	0-91150-108-0	02	1	0005-0210		●	●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> (A) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●				●	●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●				●	●
94	BRACKET; MAG VLV,EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-47478-888-0	01	1	0307-	●
94	BRACKET; MAG VLV,EXH BRAKE FSR(FS****)	1-47478-888-0	01	1	0307-	●
94	BRACKET; MAG VLV,EXH BRAKE	1-47477-266-0	01	1	0005-0005		●	●
94	BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8>	1-47477-266-0	01	1	0005-0005				●
94	BRACKET; MAG VLV,EXH BRAKE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8>	1-47477-266-0	01	1	0005-0210		●	●	●
94	BRACKET; MAG VLV,EXH BRAKE FSR(FS****)	1-47477-266-0	01	1	0005-0210		●	●	●
94	BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8>	1-47477-266-0	01	1	0211-					●	●
94	BRACKET; MAG VLV,EXH BRAKE FRR DOUBLE CAB(FR*W)	1-47478-145-0	01	1	0005-0210		●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FSR(FS****) M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FSR(FS****) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0211-0512					●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	02	1	0601-					●	●
99	WASHER; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-82569-266-0	04	1	0307-	●
99	WASHER; MAG VLV FSR(FS****)	1-82569-266-0	04	1	0307-	●
120	GASKET; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> ID=16.8	9-09565-117-0	02	1	0307-	●
120	GASKET; MAG VLV FSR(FS****) ID=16.8	9-09565-117-0	02	1	0307-	●

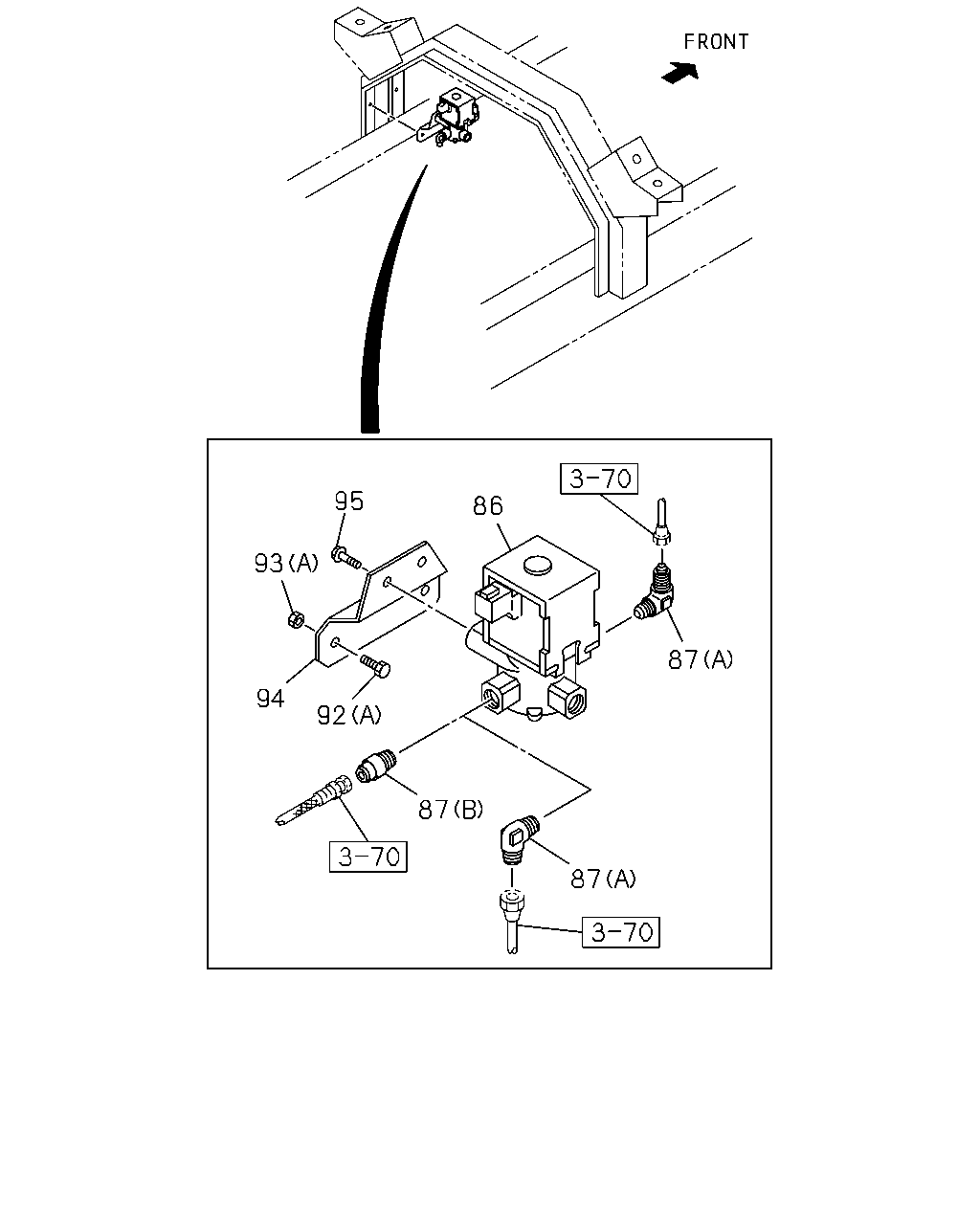

95 86 93 87 94 92 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
86	VALVE; MAG,EXH BRK FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-82563-871-2	03	1	0307-	●
86	VALVE; MAG,EXH BRK FSR(FS****)	1-82563-871-2	03	1	0307-	●
86	VALVE; MAG,EXH BRK	1-82563-602-5	01	1	0005-0210		●	●
86	VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	1-82563-602-5	01	1	0005-0210				●
86	VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	1-82563-602-6	01	1	0211-					●	●
87	CONNECTOR FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0307-	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0307-	●
87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210		●	●
87	CONNECTOR EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
87	CONNECTOR FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0211-0305					●	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0211-0305					●
87	CONNECTOR FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0306-0411					●	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0306-0411					●
87	CONNECTOR FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0412-					●	●
87	CONNECTOR FSR(FS****) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0412-					●
87	CONNECTOR FRD STD CAB(FRD***) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0412-						●
87	CONNECTOR (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0005-0210		●	●
87	CONNECTOR EXHAUST BRAKE<NF8> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0005-0210				●
87	CONNECTOR FRR DOUBLE CAB(FR*W) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-					●	●
87	CONNECTOR FRR DOUBLE CAB(FR*W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-					●	●
92	BOLT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6X50 FLANGE	0-28080-650-0	02	1	0307-0512	●
92	BOLT; MAG VLV FSR(FS****) (B) M6X50 FLANGE	0-28080-650-0	02	1	0307-0512	●
92	BOLT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-	●
92	BOLT; MAG VLV FSR(FS****) (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0005		●	●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0005				●
92	BOLT; MAG VLV FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●	●
92	BOLT; MAG VLV FSR(FS****) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●	●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●				●	●
92	BOLT; MAG VLV EXHAUST BRAKE<NF8> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●				●	●
92	BOLT; MAG VLV FRR DOUBLE CAB(FR*W) (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●	●	●
93	NUT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6 FLANGE	0-91150-106-0	02	1	0307-0602	●
93	NUT; MAG VLV FSR(FS****) (B) M6 FLANGE	0-91150-106-0	02	1	0307-0602	●
93	NUT; MAG VLV FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●
93	NUT; MAG VLV FSR(FS****) (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●
93	NUT; MAG VLV (A) M8 FLANGE	0-91150-108-0	02	1	0005-0210		●	●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> (A) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●				●	●
93	NUT; MAG VLV EXHAUST BRAKE<NF8> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●				●	●
94	BRACKET; MAG VLV,EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-47478-888-0	01	1	0307-	●
94	BRACKET; MAG VLV,EXH BRAKE FSR(FS****)	1-47478-888-0	01	1	0307-	●
94	BRACKET; MAG VLV,EXH BRAKE	1-47477-266-0	01	1	0005-0005		●	●
94	BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8>	1-47477-266-0	01	1	0005-0005				●
94	BRACKET; MAG VLV,EXH BRAKE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8>	1-47477-266-0	01	1	0005-0210		●	●	●
94	BRACKET; MAG VLV,EXH BRAKE FSR(FS****)	1-47477-266-0	01	1	0005-0210		●	●	●
94	BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8>	1-47477-266-0	01	1	0211-					●	●
94	BRACKET; MAG VLV,EXH BRAKE FRR DOUBLE CAB(FR*W)	1-47478-145-0	01	1	0005-0210		●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FSR(FS****) M8X20 FLANGE	0-28680-820-0	03	1	0307-0512	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE FSR(FS****) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0211-0512					●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	02	1	0601-					●	●
