Sayfa 1-55 - Isuzu EPC

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#9333) — 445 parça

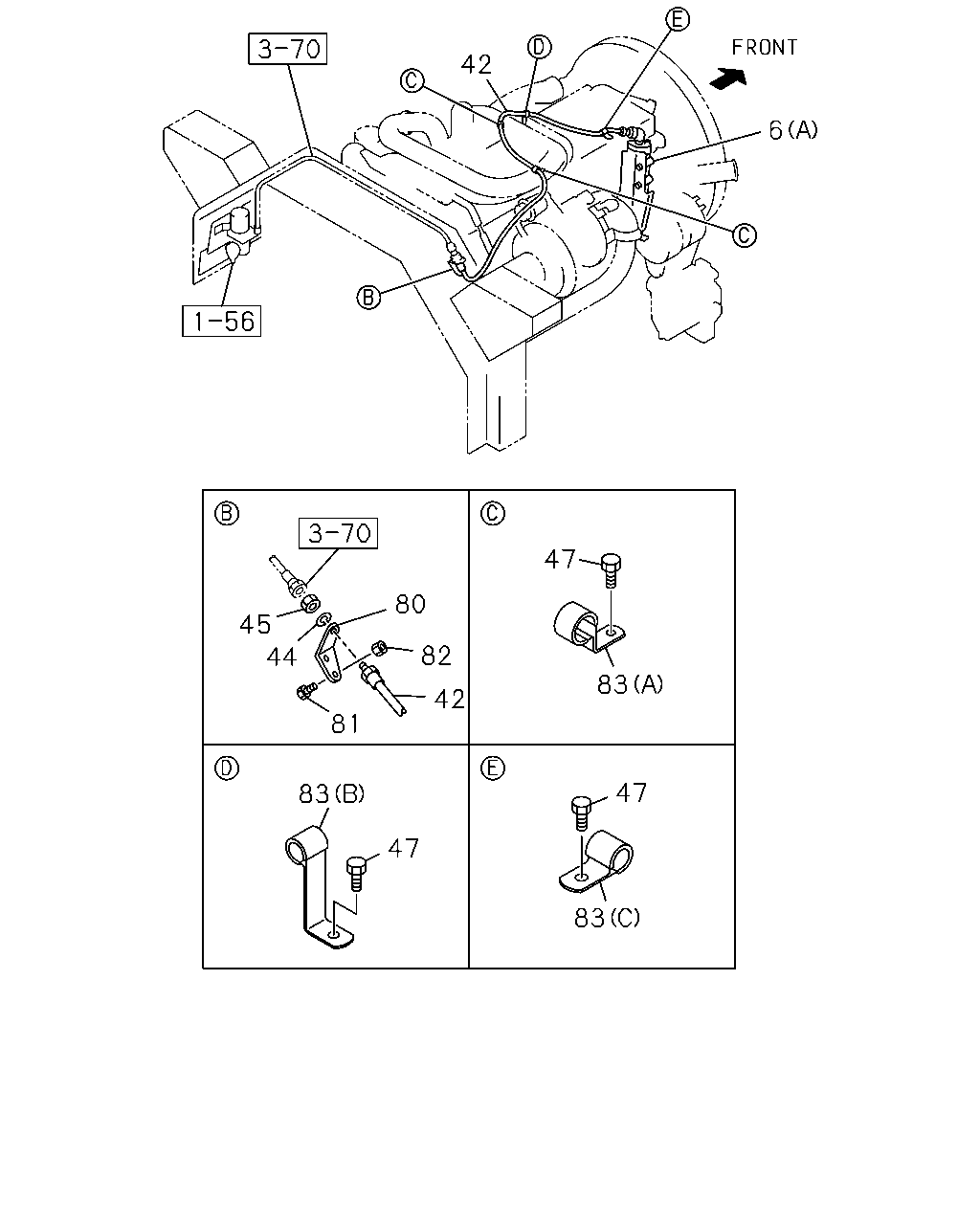

42 6 47 80 45 82 44 83 42 81 47 83 47 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-97602-533-1	01	1	0211-		●	●	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (B)	1-22181-158-0	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (A)	8-94391-043-1	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (A)	8-94390-569-2	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (B)	8-97600-874-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> L=350	1-09363-651-0	01	1	0211-		●	●	●
42	HOSE; FLEX,EXH BRK FSR(FS****) L=350	1-09363-651-0	01	1	0211-		●	●
42	HOSE; FLEX,EXH BRK FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> L=300	1-09363-608-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK FSR(FS****) L=300	1-09363-608-0	01	1	0005-0210					●
42	HOSE; FLEX,EXH BRK FRR DOUBLE CAB(FR*W) L=260	1-09363-609-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK FRR DOUBLE CAB(FR*W) L=260	1-09363-876-0	01	1	0211-			●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0005-0210	●
44	WASHER; LK,FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	02	1	0211-0603		●	●	●
44	WASHER; LK,FLEX HOSE FSR(FS****) ID=12.2	9-09150-512-0	02	1	0211-0603		●	●
44	WASHER; LK,FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> ID=12.2	0-91510-512-0	02	1	0604-		●	●	●
44	WASHER; LK,FLEX HOSE FSR(FS****) ID=12.2	0-91510-512-0	02	1	0604-		●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0005-0210					●
44	WASHER; LK,FLEX HOSE EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	02	1	0005-0210						●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0005-0210	●
45	NUT; FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> M12	9-09840-280-0	02	1	0211-		●	●	●
45	NUT; FLEX HOSE FSR(FS****) M12	9-09840-280-0	02	1	0211-		●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0005-0210					●
45	NUT; FLEX HOSE EXHAUST BRAKE<NF8> M12	9-09840-280-0	02	1	0005-0210						●
47	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
47	BOLT; CLIP EXHAUST BRAKE<NF8> M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●	●	●
47	BOLT; CLIP EXHAUST BRAKE<NF8> M6X35 FLANGE	0-28650-635-0	01	1	0601-		●	●	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0005-0210	●
80	BRACKET; FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8>	1-47476-880-1	01	1	0211-		●	●	●
80	BRACKET; FLEX HOSE FSR(FS****)	1-47476-880-1	01	1	0211-		●	●
80	BRACKET; FLEX HOSE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-47476-355-0	01	1	0005-0210					●	●
80	BRACKET; FLEX HOSE FSR(FS****)	1-47476-355-0	01	1	0005-0210					●
80	BRACKET; FLEX HOSE FRR DOUBLE CAB(FR*W)	1-47477-345-0	01	1	0005-0210					●	●
80	BRACKET; FLEX HOSE FRR DOUBLE CAB(FR*W)	1-47479-321-0	01	1	0211-			●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●				●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210						●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●				●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0005-0210						●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●	●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	0603-		●	●	●
83	CLIP; FLEX HOSE (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0005-0210	●
83	CLIP; FLEX HOSE (B) ID=11 H=34 L=27	1-09701-023-0	01	1	0005-0210	●
83	CLIP; FLEX HOSE (C) ID=13 L=32	9-09525-265-0	01	1	0005-0210	●

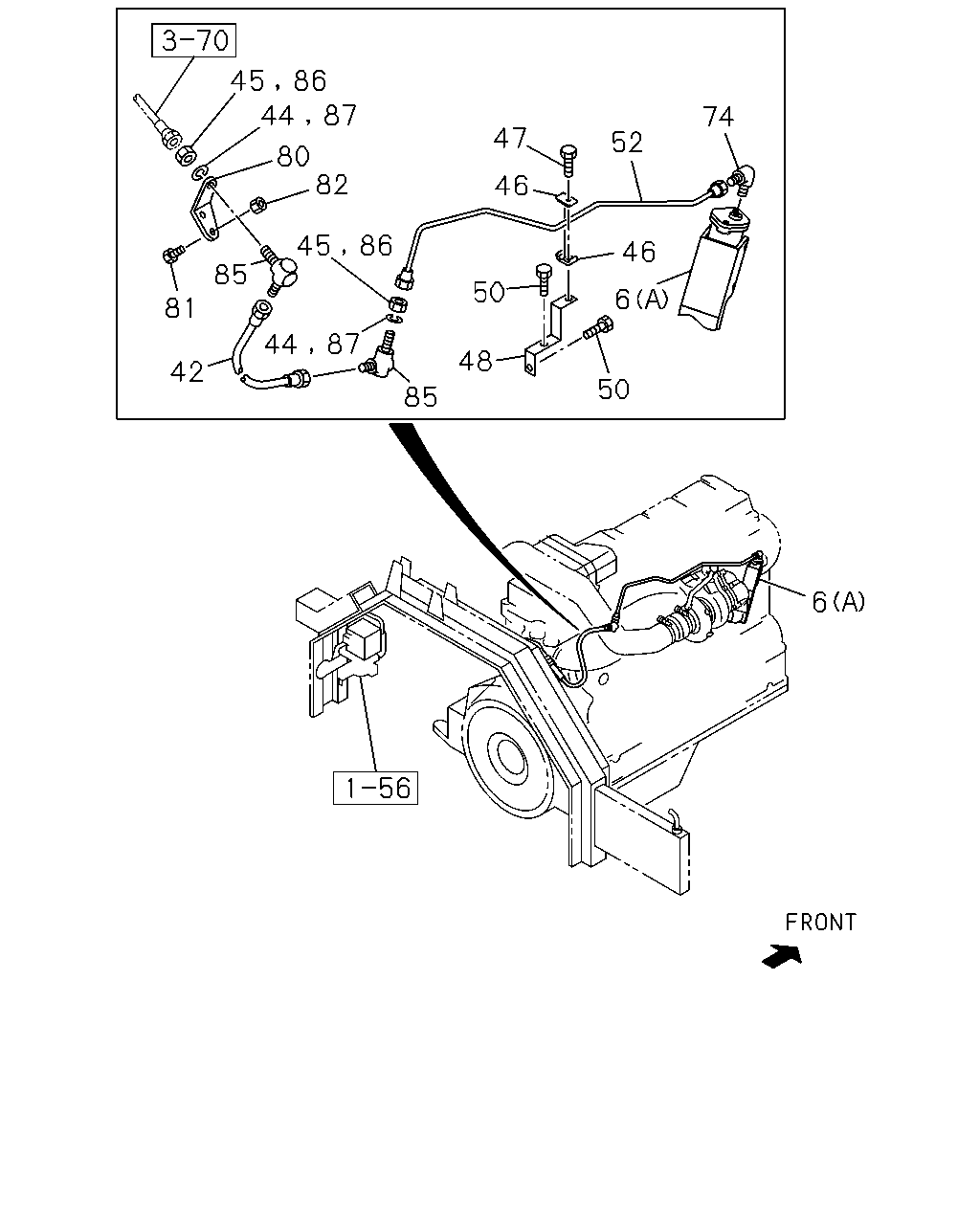

45 86 87 44 74 47 52 80 82 46 45 86 46 85 50 6 81 87 44 48 42 50 85 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-97602-533-1	01	1	0211-		●	●	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (B)	1-22181-158-0	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (A)	8-94391-043-1	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (A)	8-94390-569-2	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (B)	8-97600-874-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> L=350	1-09363-651-0	01	1	0211-		●	●	●
42	HOSE; FLEX,EXH BRK FSR(FS****) L=350	1-09363-651-0	01	1	0211-		●	●
42	HOSE; FLEX,EXH BRK FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> L=300	1-09363-608-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK FSR(FS****) L=300	1-09363-608-0	01	1	0005-0210					●
42	HOSE; FLEX,EXH BRK FRR DOUBLE CAB(FR*W) L=260	1-09363-609-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK FRR DOUBLE CAB(FR*W) L=260	1-09363-876-0	01	1	0211-			●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0005-0210	●
44	WASHER; LK,FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	02	1	0211-0603		●	●	●
44	WASHER; LK,FLEX HOSE FSR(FS****) ID=12.2	9-09150-512-0	02	1	0211-0603		●	●
44	WASHER; LK,FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> ID=12.2	0-91510-512-0	02	1	0604-		●	●	●
44	WASHER; LK,FLEX HOSE FSR(FS****) ID=12.2	0-91510-512-0	02	1	0604-		●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0005-0210					●
44	WASHER; LK,FLEX HOSE EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	02	1	0005-0210						●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0005-0210	●
45	NUT; FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> M12	9-09840-280-0	02	1	0211-		●	●	●
45	NUT; FLEX HOSE FSR(FS****) M12	9-09840-280-0	02	1	0211-		●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0005-0210					●
45	NUT; FLEX HOSE EXHAUST BRAKE<NF8> M12	9-09840-280-0	02	1	0005-0210						●
46	CLIP; AIR PIPE EXHAUST BRAKE<NF8>	1-09701-240-0	02	1	0211-		●	●	●
47	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
47	BOLT; CLIP EXHAUST BRAKE<NF8> M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●	●	●
47	BOLT; CLIP EXHAUST BRAKE<NF8> M6X35 FLANGE	0-28650-635-0	01	1	0601-		●	●	●
48	BRACKET; AIR PIPE EXHAUST BRAKE<NF8>	8-97600-122-1	01	1	0211-		●	●	●
50	BOLT; BRKT EXHAUST BRAKE<NF8> M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●	●	●
50	BOLT; BRKT EXHAUST BRAKE<NF8> M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●	●
52	PIPE ASM; AIR FLEX HOSE EXHAUST BRAKE<NF8>	8-97602-396-0	01	1	0211-		●	●	●
74	CONNECTOR; EXH BRK VLV EXHAUST BRAKE<NF8> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-		●	●	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0005-0210	●
80	BRACKET; FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8>	1-47476-880-1	01	1	0211-		●	●	●
80	BRACKET; FLEX HOSE FSR(FS****)	1-47476-880-1	01	1	0211-		●	●
80	BRACKET; FLEX HOSE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-47476-355-0	01	1	0005-0210					●	●
80	BRACKET; FLEX HOSE FSR(FS****)	1-47476-355-0	01	1	0005-0210					●
80	BRACKET; FLEX HOSE FRR DOUBLE CAB(FR*W)	1-47477-345-0	01	1	0005-0210					●	●
80	BRACKET; FLEX HOSE FRR DOUBLE CAB(FR*W)	1-47479-321-0	01	1	0211-			●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●				●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210						●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●				●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0005-0210						●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●	●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	0603-		●	●	●
85	UNION; FLEX HOSE,EXH BRAKE FRR DOUBLE CAB(FR*W) M12 ELBOW	9-09225-206-1	02	1	0211-0607			●	●
85	UNION; FLEX HOSE,EXH BRAKE FRR DOUBLE CAB(FR*W) M12 ELBOW	0-92125-206-0	02	1	0608-			●	●
86	NUT; HOSE UNION FRR DOUBLE CAB(FR*W) M12	9-09840-280-0	02	1	0211-			●	●
87	WASHER; LK,HOSE UNION FRR DOUBLE CAB(FR*W) ID=12.2	9-09150-512-0	02	1	0211-0603			●	●
87	WASHER; LK,HOSE UNION FRR DOUBLE CAB(FR*W) ID=12.2	0-91510-512-0	02	1	0604-			●	●

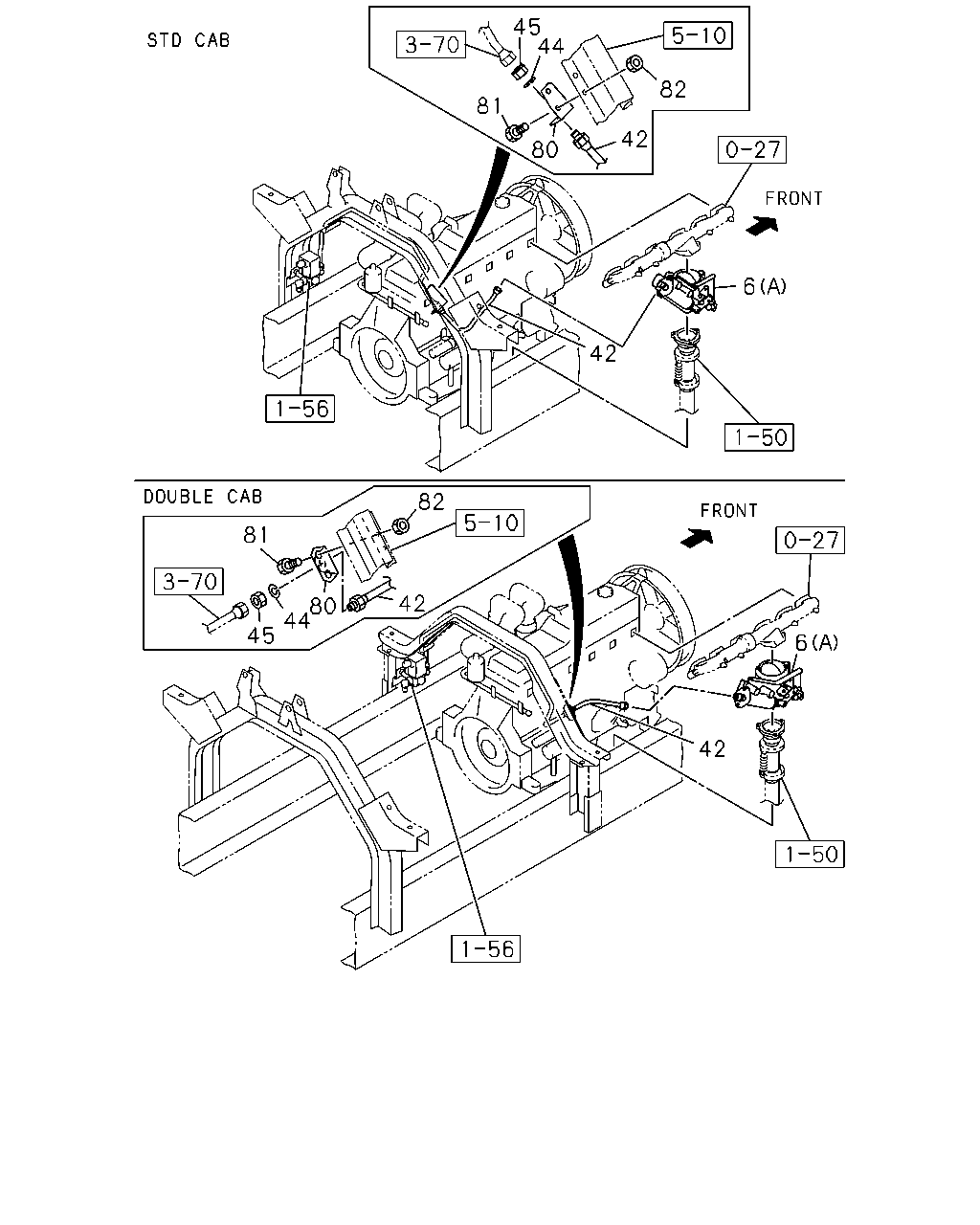

45 44 82 80 81 42 6 42 82 81 42 80 44 45 6 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-97602-533-1	01	1	0211-		●	●	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (B)	1-22181-158-0	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (A)	8-94391-043-1	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (A)	8-94390-569-2	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (B)	8-97600-874-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0005-0210	●
42	HOSE; FLEX,EXH BRK FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> L=350	1-09363-651-0	01	1	0211-		●	●	●
42	HOSE; FLEX,EXH BRK FSR(FS****) L=350	1-09363-651-0	01	1	0211-		●	●
42	HOSE; FLEX,EXH BRK FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> L=300	1-09363-608-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK FSR(FS****) L=300	1-09363-608-0	01	1	0005-0210					●
42	HOSE; FLEX,EXH BRK FRR DOUBLE CAB(FR*W) L=260	1-09363-609-0	01	1	0005-0210					●	●
42	HOSE; FLEX,EXH BRK FRR DOUBLE CAB(FR*W) L=260	1-09363-876-0	01	1	0211-			●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0005-0210	●
44	WASHER; LK,FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	02	1	0211-0603		●	●	●
44	WASHER; LK,FLEX HOSE FSR(FS****) ID=12.2	9-09150-512-0	02	1	0211-0603		●	●
44	WASHER; LK,FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> ID=12.2	0-91510-512-0	02	1	0604-		●	●	●
44	WASHER; LK,FLEX HOSE FSR(FS****) ID=12.2	0-91510-512-0	02	1	0604-		●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0005-0210					●
44	WASHER; LK,FLEX HOSE EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	02	1	0005-0210						●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0005-0210	●
45	NUT; FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8> M12	9-09840-280-0	02	1	0211-		●	●	●
45	NUT; FLEX HOSE FSR(FS****) M12	9-09840-280-0	02	1	0211-		●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0005-0210					●
45	NUT; FLEX HOSE EXHAUST BRAKE<NF8> M12	9-09840-280-0	02	1	0005-0210						●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0005-0210	●
80	BRACKET; FLEX HOSE FRR STD CAB(FR*M) EXHAUST BRAKE<NF8>	1-47476-880-1	01	1	0211-		●	●	●
80	BRACKET; FLEX HOSE FSR(FS****)	1-47476-880-1	01	1	0211-		●	●
80	BRACKET; FLEX HOSE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-47476-355-0	01	1	0005-0210					●	●
80	BRACKET; FLEX HOSE FSR(FS****)	1-47476-355-0	01	1	0005-0210					●
80	BRACKET; FLEX HOSE FRR DOUBLE CAB(FR*W)	1-47477-345-0	01	1	0005-0210					●	●
80	BRACKET; FLEX HOSE FRR DOUBLE CAB(FR*W)	1-47479-321-0	01	1	0211-			●	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●				●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0005-0210						●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●				●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0005-0210						●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●	●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	02	1	0603-		●	●	●

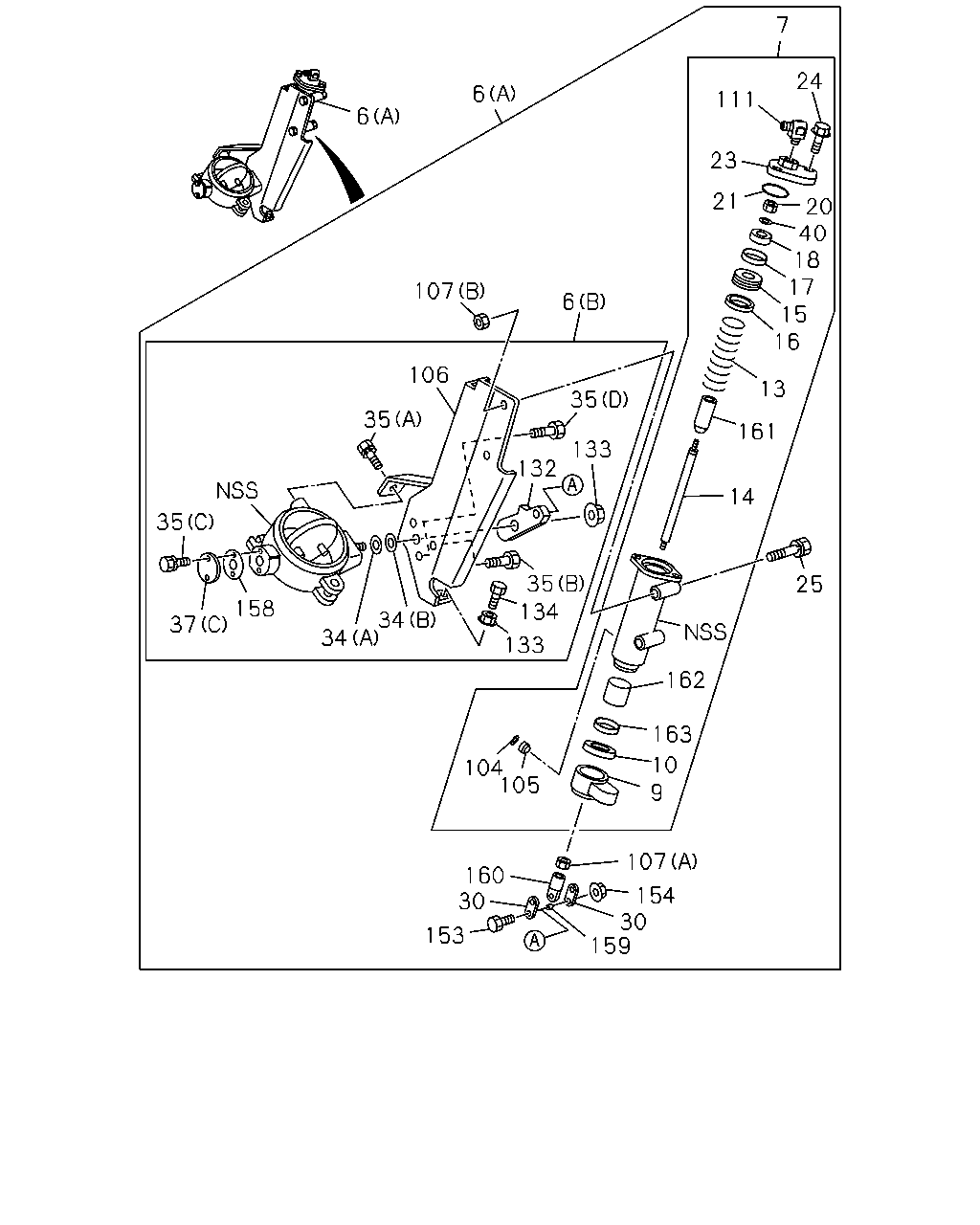

7 24 6 111 6 23 21 20 40 18 17 15 16 107 6 106 13 35 35 161 133 132 14 35 35 134 25 158 37 34 34 133 162 163 10 9 104 105 107 160 30 154 30 159 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-97602-533-1	01	1	0211-		●	●	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (B)	1-22181-158-0	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (A)	8-94391-043-1	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (A)	8-94390-569-2	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (B)	8-97600-874-0	01	1	0005-0210					●	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0005-0210	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0005-0210					●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	1-22190-655-0	01	1	0005-0210						●

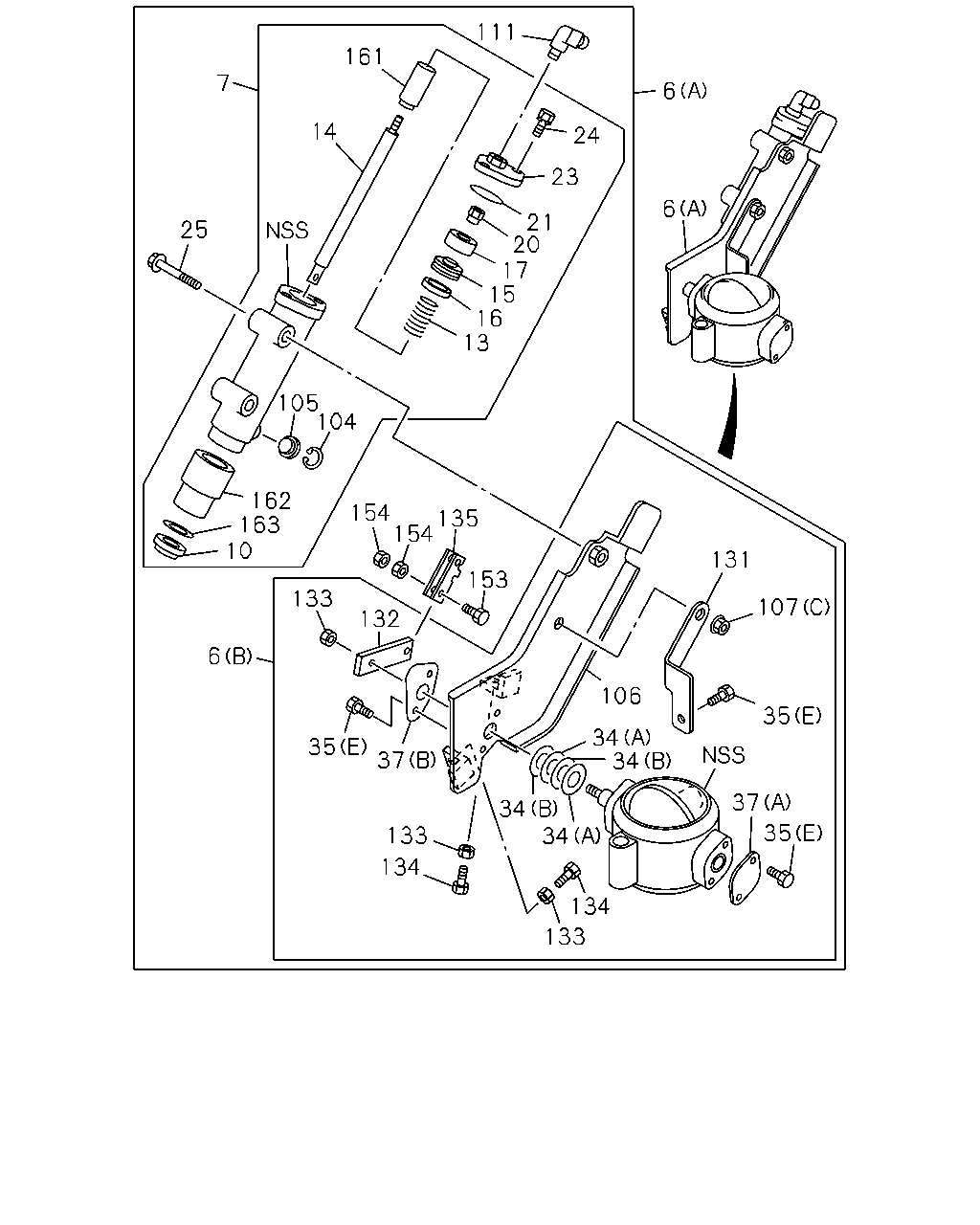

9	COVER; CYL	1-22199-070-0	01	1	0005-0210	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0005-0210	●				●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	0005-0210						●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0005-0210	●				●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-517-0	01	1	0005-0210						●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	0005-0210	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0005-0210					●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22199-145-0	01	1	0005-0210						●
15	PLATE; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN>	1-22199-156-0	01	1	0005-0210	●
15	PLATE; CONT CYL FSR(FS****) EURO2 SPECIFICATION<THN>	1-22199-156-0	01	1	0005-0210	●
15	PLATE; CONT CYL FRR DOUBLE CAB(FR*W)	1-22199-156-0	01	1	0005-0210					●	●
15	PLATE; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-97600-316-0	01	1	0005-0210					●	●
15	PLATE; CONT CYL FSR(FS****)	8-97600-316-0	01	1	0005-0210					●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	0005-0210	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0005-0210					●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	8-97600-317-0	01	1	0005-0210						●
17	GASKET; CONT CYL	1-22199-103-0	01	1	0005-0210	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0005-0210					●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-318-0	01	1	0005-0210						●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	0005-0210	●
20	NUT; CONT CYL	9-83315-085-0	01	1	0005-0210	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0005-0210					●
20	NUT; CONT CYL EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0005-0210						●
21	GASKET; COVER	1-22199-072-0	01	1	0005-0210	●				●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	0005-0210						●
23	COVER; CONT CYL	1-22199-066-0	01	1	0005-0210	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0005-0210					●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	8-97600-319-0	01	1	0005-0210						●
24	BOLT; COVER	1-22199-155-0	02	1	0005-0210	●
24	BOLT; COVER FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-22199-174-0	02	1	0005-0210					●	●
24	BOLT; COVER FSR(FS****)	1-22199-174-0	02	1	0005-0210					●
24	BOLT; COVER FRR DOUBLE CAB(FR*W)	1-22199-227-0	02	1	0005-0210					●	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0005-0210	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0005-0210					●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60 FLANGE	1-22199-160-0	02	1	0005-0210						●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	0005-0210	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0005-0210	●				●
34	RING; SEAL EXHAUST BRAKE<NF8> (A) ID=15	8-94397-184-0	02	1	0005-0210						●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0005-0210	●				●
34	RING; SEAL EXHAUST BRAKE<NF8> (B) ID=13.7	9-22189-124-0	02	1	0005-0210						●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	01	1	0005-0210	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0005-0210	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	0005-0210	●
35	BOLT; PLATE FIX (B)	1-22199-188-0	01	1	0005-0210	●
35	BOLT; PLATE FIX (E)	1-22199-174-0	05	1	0005-0210					●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8> (E)	1-22199-174-0	05	1	0005-0210						●
37	COVER; BODY (C)	1-22189-327-0	01	1	0005-0210	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0005-0210					●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	1-22199-130-0	01	1	0005-0210						●
37	COVER; BODY (A)	9-22189-160-0	01	1	0005-0210					●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	9-22189-160-0	01	1	0005-0210						●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	0005-0210	●
104	RING; RET	9-88510-331-0	01	1	0005-0210	●				●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	0005-0210						●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0005-0210	●				●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	0005-0210						●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0005-0210	●
106	BRACKET; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-97600-313-0	01	1	0005-0210					●	●
106	BRACKET; CONT CYL FSR(FS****)	8-97600-313-0	01	1	0005-0210					●
106	BRACKET; CONT CYL FRR DOUBLE CAB(FR*W)	8-97600-875-0	01	1	0005-0210					●	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	0005-0210	●
107	NUT; CONT CYL (C) M10 FLANGE	0-91150-110-0	01	1	0005-0210					●
107	NUT; CONT CYL EXHAUST BRAKE<NF8> (C) M10 FLANGE	0-91150-110-0	01	1	0005-0210						●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0005-0210	●				●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	1-09650-358-1	01	1	0005-0210						●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0005-0210	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0005-0210					●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	0005-0210						●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0005-0210	●				●
133	NUT; LK EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	0005-0210						●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0005-0210	●				●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	0005-0210						●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	0005-0210	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0005-0210					●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8>	8-97600-320-0	02	1	0005-0210						●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0005-0210					●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	04	1	0005-0210						●
158	GASKET; COVER	1-22189-286-0	01	1	0005-0210	●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	0005-0210	●
160	JOINT; CONT CYL	1-22199-137-0	01	1	0005-0210	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0005-0210	●				●
161	PROTECTOR; CONT CYL EXHAUST BRAKE<NF8>	1-22199-146-0	01	1	0005-0210						●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0005-0210	●				●
162	GUIDE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-147-0	01	1	0005-0210						●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0005-0210	●				●
163	WASHER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-148-0	01	1	0005-0210						●

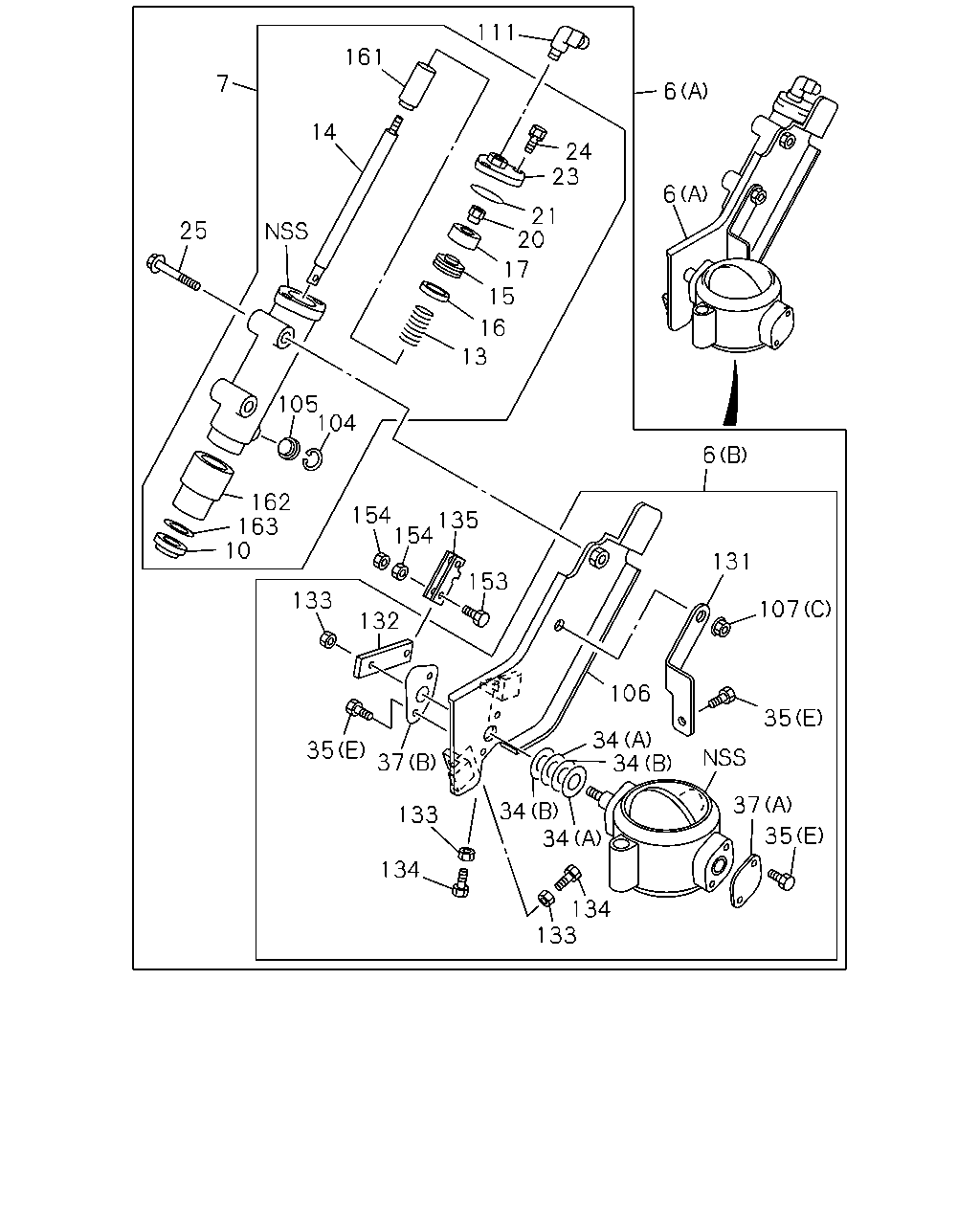

111 161 7 6 14 24 23 6 21 20 17 15 16 13 25 105 104 162 163 10 154 135 154 131 153 133 107 132 6 106 35 34 34 35 37 37 34 34 35 133 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-97602-533-1	01	1	0211-		●	●	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (B)	1-22181-158-0	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (A)	8-94391-043-1	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (A)	8-94390-569-2	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (B)	8-97600-874-0	01	1	0005-0210					●	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0005-0210	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0005-0210					●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	1-22190-655-0	01	1	0005-0210						●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0005-0210	●				●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	0005-0210						●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0005-0210	●				●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-517-0	01	1	0005-0210						●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	0005-0210	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0005-0210					●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22199-145-0	01	1	0005-0210						●
15	PLATE; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN>	1-22199-156-0	01	1	0005-0210	●
15	PLATE; CONT CYL FSR(FS****) EURO2 SPECIFICATION<THN>	1-22199-156-0	01	1	0005-0210	●
15	PLATE; CONT CYL FRR DOUBLE CAB(FR*W)	1-22199-156-0	01	1	0005-0210					●	●
15	PLATE; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-97600-316-0	01	1	0005-0210					●	●
15	PLATE; CONT CYL FSR(FS****)	8-97600-316-0	01	1	0005-0210					●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	0005-0210	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0005-0210					●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	8-97600-317-0	01	1	0005-0210						●
17	GASKET; CONT CYL	1-22199-103-0	01	1	0005-0210	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0005-0210					●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-318-0	01	1	0005-0210						●
20	NUT; CONT CYL	9-83315-085-0	01	1	0005-0210	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0005-0210					●
20	NUT; CONT CYL EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0005-0210						●
21	GASKET; COVER	1-22199-072-0	01	1	0005-0210	●				●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	0005-0210						●
23	COVER; CONT CYL	1-22199-066-0	01	1	0005-0210	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0005-0210					●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	8-97600-319-0	01	1	0005-0210						●
24	BOLT; COVER	1-22199-155-0	02	1	0005-0210	●
24	BOLT; COVER FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-22199-174-0	02	1	0005-0210					●	●
24	BOLT; COVER FSR(FS****)	1-22199-174-0	02	1	0005-0210					●
24	BOLT; COVER FRR DOUBLE CAB(FR*W)	1-22199-227-0	02	1	0005-0210					●	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0005-0210	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0005-0210					●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60 FLANGE	1-22199-160-0	02	1	0005-0210						●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0005-0210	●				●
34	RING; SEAL EXHAUST BRAKE<NF8> (A) ID=15	8-94397-184-0	02	1	0005-0210						●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0005-0210	●				●
34	RING; SEAL EXHAUST BRAKE<NF8> (B) ID=13.7	9-22189-124-0	02	1	0005-0210						●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	01	1	0005-0210	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0005-0210	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	0005-0210	●
35	BOLT; PLATE FIX (B)	1-22199-188-0	01	1	0005-0210	●
35	BOLT; PLATE FIX (E)	1-22199-174-0	05	1	0005-0210					●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8> (E)	1-22199-174-0	05	1	0005-0210						●
37	COVER; BODY (C)	1-22189-327-0	01	1	0005-0210	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0005-0210					●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	1-22199-130-0	01	1	0005-0210						●
37	COVER; BODY (A)	9-22189-160-0	01	1	0005-0210					●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	9-22189-160-0	01	1	0005-0210						●
104	RING; RET	9-88510-331-0	01	1	0005-0210	●				●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	0005-0210						●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0005-0210	●				●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	0005-0210						●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0005-0210	●
106	BRACKET; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-97600-313-0	01	1	0005-0210					●	●
106	BRACKET; CONT CYL FSR(FS****)	8-97600-313-0	01	1	0005-0210					●
106	BRACKET; CONT CYL FRR DOUBLE CAB(FR*W)	8-97600-875-0	01	1	0005-0210					●	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	0005-0210	●
107	NUT; CONT CYL (C) M10 FLANGE	0-91150-110-0	01	1	0005-0210					●
107	NUT; CONT CYL EXHAUST BRAKE<NF8> (C) M10 FLANGE	0-91150-110-0	01	1	0005-0210						●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0005-0210	●				●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	1-09650-358-1	01	1	0005-0210						●
131	PLATE; BODY FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-94391-039-0	01	1	0005-0210					●	●
131	PLATE; BODY FSR(FS****)	8-94391-039-0	01	1	0005-0210					●
131	PLATE; BODY FRR DOUBLE CAB(FR*W)	8-97600-872-0	01	1	0005-0210					●	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0005-0210	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0005-0210					●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	0005-0210						●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0005-0210	●				●
133	NUT; LK EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	0005-0210						●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0005-0210	●				●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	0005-0210						●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	0005-0210					●
135	CLEVIS; CONT CYL EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	0005-0210						●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	0005-0210	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0005-0210					●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8>	8-97600-320-0	02	1	0005-0210						●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0005-0210					●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	04	1	0005-0210						●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0005-0210	●				●
161	PROTECTOR; CONT CYL EXHAUST BRAKE<NF8>	1-22199-146-0	01	1	0005-0210						●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0005-0210	●				●
162	GUIDE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-147-0	01	1	0005-0210						●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0005-0210	●				●
163	WASHER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-148-0	01	1	0005-0210						●

111 161 7 6 14 24 23 6 21 20 25 17 15 16 13 105 104 6 162 163 10 154 135 154 131 153 133 107 132 106 35 34 34 35 37 37 34 34 133 35 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0005-0210	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-97602-533-1	01	1	0211-		●	●	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0005-0210	●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (B)	1-22181-158-0	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (B)	1-22181-158-0	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> (A)	8-94391-043-1	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FSR(FS****) (A)	8-94391-043-1	01	1	0005-0210					●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (A)	8-94390-569-2	01	1	0005-0210					●	●
6	VALVE; EXH BRAKE FRR DOUBLE CAB(FR*W) (B)	8-97600-874-0	01	1	0005-0210					●	●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0005-0210	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0005-0210					●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	1-22190-655-0	01	1	0005-0210						●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0005-0210	●				●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	0005-0210						●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0005-0210	●				●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-517-0	01	1	0005-0210						●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	0005-0210	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0005-0210					●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22199-145-0	01	1	0005-0210						●
15	PLATE; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN>	1-22199-156-0	01	1	0005-0210	●
15	PLATE; CONT CYL FSR(FS****) EURO2 SPECIFICATION<THN>	1-22199-156-0	01	1	0005-0210	●
15	PLATE; CONT CYL FRR DOUBLE CAB(FR*W)	1-22199-156-0	01	1	0005-0210					●	●
15	PLATE; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-97600-316-0	01	1	0005-0210					●	●
15	PLATE; CONT CYL FSR(FS****)	8-97600-316-0	01	1	0005-0210					●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	0005-0210	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0005-0210					●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	8-97600-317-0	01	1	0005-0210						●
17	GASKET; CONT CYL	1-22199-103-0	01	1	0005-0210	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0005-0210					●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	8-97600-318-0	01	1	0005-0210						●
20	NUT; CONT CYL	9-83315-085-0	01	1	0005-0210	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0005-0210					●
20	NUT; CONT CYL EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	0005-0210						●
21	GASKET; COVER	1-22199-072-0	01	1	0005-0210	●				●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	0005-0210						●
23	COVER; CONT CYL	1-22199-066-0	01	1	0005-0210	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0005-0210					●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	8-97600-319-0	01	1	0005-0210						●
24	BOLT; COVER	1-22199-155-0	02	1	0005-0210	●
24	BOLT; COVER FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	1-22199-174-0	02	1	0005-0210					●	●
24	BOLT; COVER FSR(FS****)	1-22199-174-0	02	1	0005-0210					●
24	BOLT; COVER FRR DOUBLE CAB(FR*W)	1-22199-227-0	02	1	0005-0210					●	●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0005-0210	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0005-0210					●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X60 FLANGE	1-22199-160-0	02	1	0005-0210						●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0005-0210	●				●
34	RING; SEAL EXHAUST BRAKE<NF8> (A) ID=15	8-94397-184-0	02	1	0005-0210						●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0005-0210	●				●
34	RING; SEAL EXHAUST BRAKE<NF8> (B) ID=13.7	9-22189-124-0	02	1	0005-0210						●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	01	1	0005-0210	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	0005-0210	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	0005-0210	●
35	BOLT; PLATE FIX (B)	1-22199-188-0	01	1	0005-0210	●
35	BOLT; PLATE FIX (E)	1-22199-174-0	05	1	0005-0210					●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8> (E)	1-22199-174-0	05	1	0005-0210						●
37	COVER; BODY (C)	1-22189-327-0	01	1	0005-0210	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0005-0210					●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	1-22199-130-0	01	1	0005-0210						●
37	COVER; BODY (A)	9-22189-160-0	01	1	0005-0210					●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	9-22189-160-0	01	1	0005-0210						●
104	RING; RET	9-88510-331-0	01	1	0005-0210	●				●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	0005-0210						●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0005-0210	●				●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	0005-0210						●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0005-0210	●
106	BRACKET; CONT CYL FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-97600-313-0	01	1	0005-0210					●	●
106	BRACKET; CONT CYL FSR(FS****)	8-97600-313-0	01	1	0005-0210					●
106	BRACKET; CONT CYL FRR DOUBLE CAB(FR*W)	8-97600-875-0	01	1	0005-0210					●	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	0005-0210	●
107	NUT; CONT CYL (C) M10 FLANGE	0-91150-110-0	01	1	0005-0210					●
107	NUT; CONT CYL EXHAUST BRAKE<NF8> (C) M10 FLANGE	0-91150-110-0	01	1	0005-0210						●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0005-0210	●				●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	1-09650-358-1	01	1	0005-0210						●
131	PLATE; BODY FRR STD CAB(FRRM) EXHAUST BRAKE<NF8>	8-94391-039-0	01	1	0005-0210					●	●
131	PLATE; BODY FSR(FS****)	8-94391-039-0	01	1	0005-0210					●
131	PLATE; BODY FRR DOUBLE CAB(FR*W)	8-97600-872-0	01	1	0005-0210					●	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0005-0210	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0005-0210					●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	0005-0210						●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0005-0210	●				●
133	NUT; LK EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	0005-0210						●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0005-0210	●				●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	0005-0210						●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	0005-0210					●
135	CLEVIS; CONT CYL EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	0005-0210						●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	0005-0210	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0005-0210					●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8>	8-97600-320-0	02	1	0005-0210						●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0005-0210					●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	04	1	0005-0210						●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0005-0210	●				●
161	PROTECTOR; CONT CYL EXHAUST BRAKE<NF8>	1-22199-146-0	01	1	0005-0210						●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0005-0210	●				●
162	GUIDE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-147-0	01	1	0005-0210						●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0005-0210	●				●
163	WASHER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-148-0	01	1	0005-0210						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
