32 |

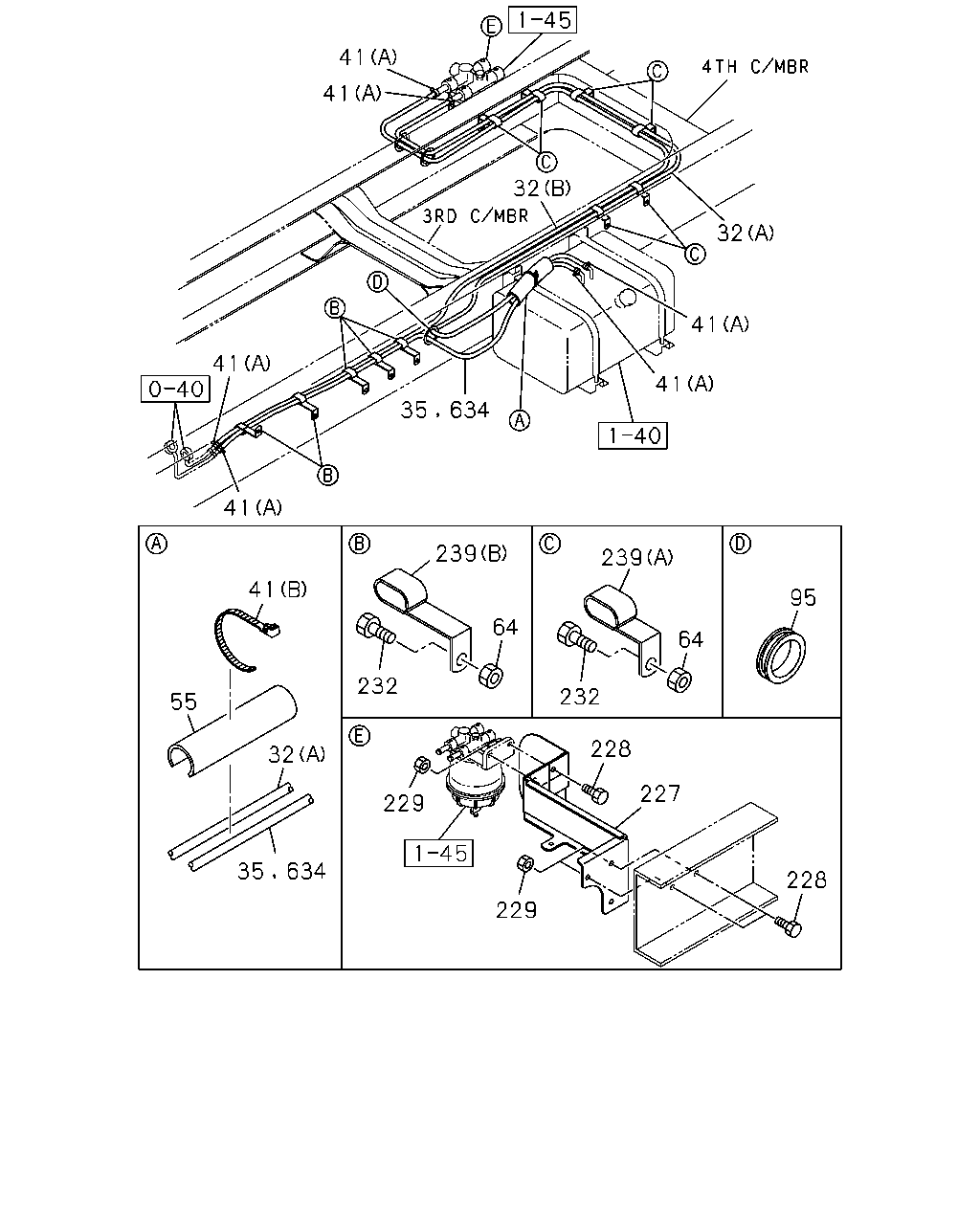

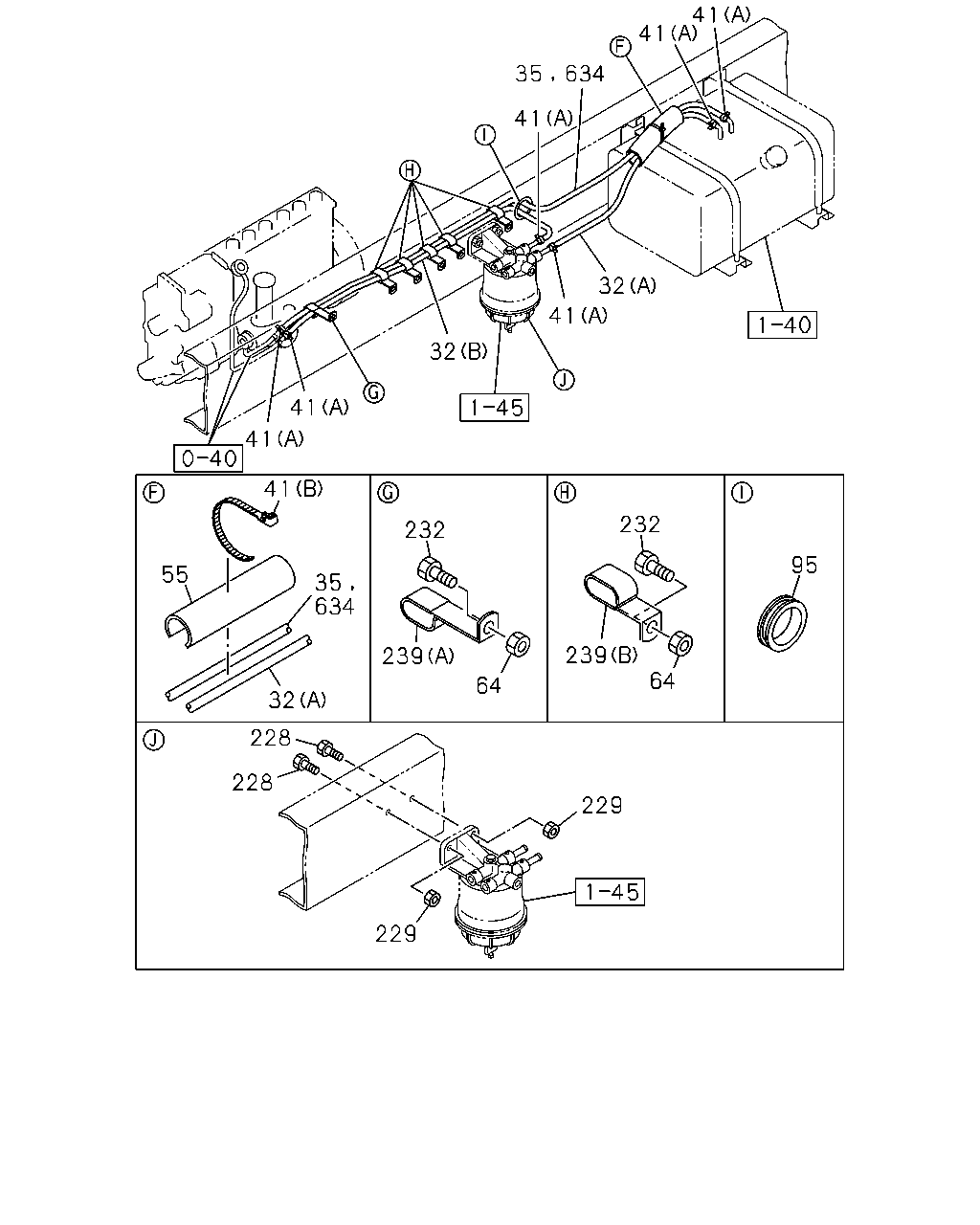

PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5100MM(51W)
(B)
L=2100
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0307- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FSR(FS****)
(B)
L=1700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0307- |
● |
|
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W)
EURO2 SPECIFICATION<THN>
(A)
L=900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W)
EURO2 SPECIFICATION<THN>
(B)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W)
EXC. EURO2 SPECIFICATION<THN>
(B)
L=2250
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W)
(B)
L=2250
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
● |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W)
EXC. EURO2 SPECIFICATION<THN>
(A)
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4800MM(48W)
(A)
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
● |
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FSR(FS****)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211-0411 |
● |
|
|
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FSR(FS****)
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0412- |
|
|
|
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
(B)
L=1850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FSR(FS****)
(B)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211-0305 |
|
|
|
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
FSR(FS****)
(B)
L=1750
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0306- |
|
|
|
|
● |
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5100MM(51W)
EXC. EURO2 SPECIFICATION<THN>
(B)
L=2100
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
(B)
L=2100
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
● |
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W)
(B)
L=2100
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
(B)
L=2150
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211- |
|
|
|
|
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5100MM(51W)
EXC. EURO2 SPECIFICATION<THN>
(A)
L=820
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
(A)
L=820
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
● |
|
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W)
(A)
L=820
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
(A)
L=700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211- |
● |
|
|
|
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W)
(A)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W)
(B)
L=4200
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W)
(B)
L=4200
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W)
(A)
L=1150
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W)
(A)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
32 |
PIPE; DELIVERY,FUEL TANK
WHEEL BASE 3700MM(37W)
(B)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W)
EURO2 SPECIFICATION<THN>
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W)
EXC. EURO2 SPECIFICATION<THN>
L=2850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 4800MM(48W)
L=2850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
● |
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
L=1650
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 5100MM(51W)
EXC. EURO2 SPECIFICATION<THN>
L=2650
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
L=2650
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
● |
|
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 4200MM(42W)
L=2650
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
35 |
PIPE; FUEL TANK,RETURN
WHEEL BASE 3700MM(37W)
L=2600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W)
(B)
L=250
|
5-09707-030-1 |
03 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
0211- |
● |
|
|
|
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W),
WHEEL BASE 5500MM(55W)
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
WHEEL BASE 3700MM(37W)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
L=250
|
1-09360-677-1 |
01 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
55 |
COVER; PIPE,FUEL TANK
L=250
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
55 |
COVER; PIPE,FUEL TANK
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W),
WHEEL BASE 5500MM(55W)
L=250
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
64 |
NUT; CLIP
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0005-0005 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0006-0210 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
FSR(FS****)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0211-0602 |
● |
|
|
|
● |
|
| |
64 |
NUT; CLIP
FSR(FS****)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
● |
|
|
|
● |
|
| |
64 |
NUT; CLIP
WHEEL BASE 5100MM(51W)
EXC. EURO2 SPECIFICATION<THN>
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
64 |
NUT; CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0005-0210 |
|
|
● |
|
|
|
| |
64 |
NUT; CLIP
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
64 |
NUT; CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
0211-0602 |
● |
|
|
|
● |
● |
| |
64 |
NUT; CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
M8 FLANGE
|
0-91180-108-0 |
07 |
1 |
0603-0611 |
● |
|
|
|
● |
● |
| |
64 |
NUT; CLIP
FRR(FR****)
M8 FLANGE
|
0-91180-108-0 |
07 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
64 |
NUT; CLIP
WHEEL BASE 4800MM(48W)
M8 FLANGE
|
0-91150-108-0 |
07 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
64 |
NUT; CLIP
FRR STD CAB(FR**M*)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
64 |
NUT; CLIP
FRR STD CAB(FR**M*)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0410 |
● |
|
|
|
● |
● |
| |
64 |
NUT; CLIP
WHEEL BASE 3700MM(37W)
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
64 |
NUT; CLIP
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
0211-0410 |
● |
|
|
|
● |
● |
| |
64 |
NUT; CLIP
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8 FLANGE
|
0-91150-108-0 |
15 |
1 |
0411-0602 |
● |
|
|
|
● |
● |
| |
64 |
NUT; CLIP
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8 FLANGE
|
0-91180-108-0 |
15 |
1 |
0603-0611 |
● |
|
|
|
● |
● |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-1 |
01 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
0211- |
● |
|
|
|
● |
● |
| |
227 |
BRACKET; FUEL SEDIMENTER
WHEEL BASE 3700MM(37W)
|
8-98063-425-1 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
WHEEL BASE 3700MM(37W)
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0612-0612 |
● |
|
|
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
WHEEL BASE 3700MM(37W)
M10X30 FLANGE
|
0-28651-030-0 |
03 |
1 |
0701- |
● |
|
|
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0211-0512 |
● |
|
|
|
● |
● |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
● |
|
|
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
WHEEL BASE 3700MM(37W)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0612-0612 |
● |
|
|
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0211-0602 |
● |
|
|
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603-0703 |
● |
|
|
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
FRD STD CAB(FRD5MF)
FRR DOUBLE CAB(FRR5WF)
FSR(FS****)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0704- |
● |
|
|
|
● |
● |
| |
229 |
NUT; BRKT,FUEL FILTER
FRR STD CAB(FRR*M*)
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0704- |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W)
EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
07 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W)
EXC. EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
06 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4800MM(48W)
M8X30 FLANGE
|
0-28680-830-0 |
06 |
1 |
0005-0210 |
|
|
● |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
0005-0005 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0006-0210 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
FSR(FS****)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0211-0512 |
● |
|
|
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
FSR(FS****)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
● |
|
|
|
● |
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 5100MM(51W)
EXC. EURO2 SPECIFICATION<THN>
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
0005-0210 |
|
|
● |
|
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W)
M8X30 FLANGE
|
0-28680-830-0 |
05 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
M8X30 FLANGE
|
0-28680-830-0 |
07 |
1 |
0211-0512 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
M8X30 FLANGE
|
0-28650-830-0 |
07 |
1 |
0601- |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
FRR STD CAB(FR**M*)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FRR STD CAB(FR**M*)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0211-0410 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0211-0411 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0412-0512 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601-0611 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W)
M8X30 FLANGE
|
0-28680-830-0 |
12 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
232 |
BOLT; CLIP,PIPE
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8X30 FLANGE
|
0-28680-830-0 |
12 |
1 |
0211-0410 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8X30 FLANGE
|
0-28680-830-0 |
13 |
1 |
0411-0512 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
FRR STD CAB(FR**M*)
WHEEL BASE 3700MM(37W)
M8X30 FLANGE
|
0-28650-830-0 |
13 |
1 |
0601-0611 |
● |
|
|
|
● |
● |
| |
232 |
BOLT; CLIP,PIPE
WHEEL BASE 3700MM(37W)
M8X30 FLANGE
|
0-28650-830-0 |
06 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W)
EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 4800MM(48W)
EXC. EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W),
WHEEL BASE 4800MM(48W)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
05 |
1 |
0005-0210 |
|
|
● |
● |
|
|
| |
239 |
CLIP; FUEL PIPE
FRR(FR****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0211- |
● |
|
|
|
● |
● |
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
02 |
1 |
0005-0005 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 5100MM(51W)
EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
03 |
1 |
0006-0210 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
FSR(FS****)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
03 |
1 |
0211- |
● |
|
|
|
● |
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 5100MM(51W)
EXC. EURO2 SPECIFICATION<THN>
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0005-0210 |
|
● |
|
|
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 5100MM(51W)
(B)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
04 |
1 |
0005-0210 |
|
|
● |
|
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W),
WHEEL BASE 5100MM(51W)
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
0005-0210 |
|
● |
● |
● |
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W),
WHEEL BASE 5500MM(55W)
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
239 |
CLIP; FUEL PIPE
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W)
(B)
ID=14X2 H=85 L=30
|
1-09701-062-0 |
02 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W)
(B)
ID=14X2 H=85 L=30
|
1-09701-062-0 |
02 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W)
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
07 |
1 |
0005-0210 |
|
|
|
● |
|
|
| |
239 |
CLIP; FUEL PIPE
WHEEL BASE 3700MM(37W)
(A)
M13X2 H=20 L=60
|
1-09701-280-0 |
07 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W)
L=2700
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211- |
|
|
|
|
● |
● |
| |
634 |
HOSE; RUBBER RETURN
FSR(FS****)
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211-0305 |
|
|
|
|
● |
|
| |
634 |
HOSE; RUBBER RETURN
FSR(FS****)
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0306- |
|
|
|
|
● |
|
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W)
L=2600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0211-0611 |
● |
|
|
|
● |
● |
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W)
L=2400
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
● |
| |
634 |
HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W)
L=2650
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0307- |
● |
|
|
|
|
|
| |
634 |
HOSE; RUBBER RETURN
FSR(FS****)
L=1500
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0307- |
● |
|
|
|
|
|
