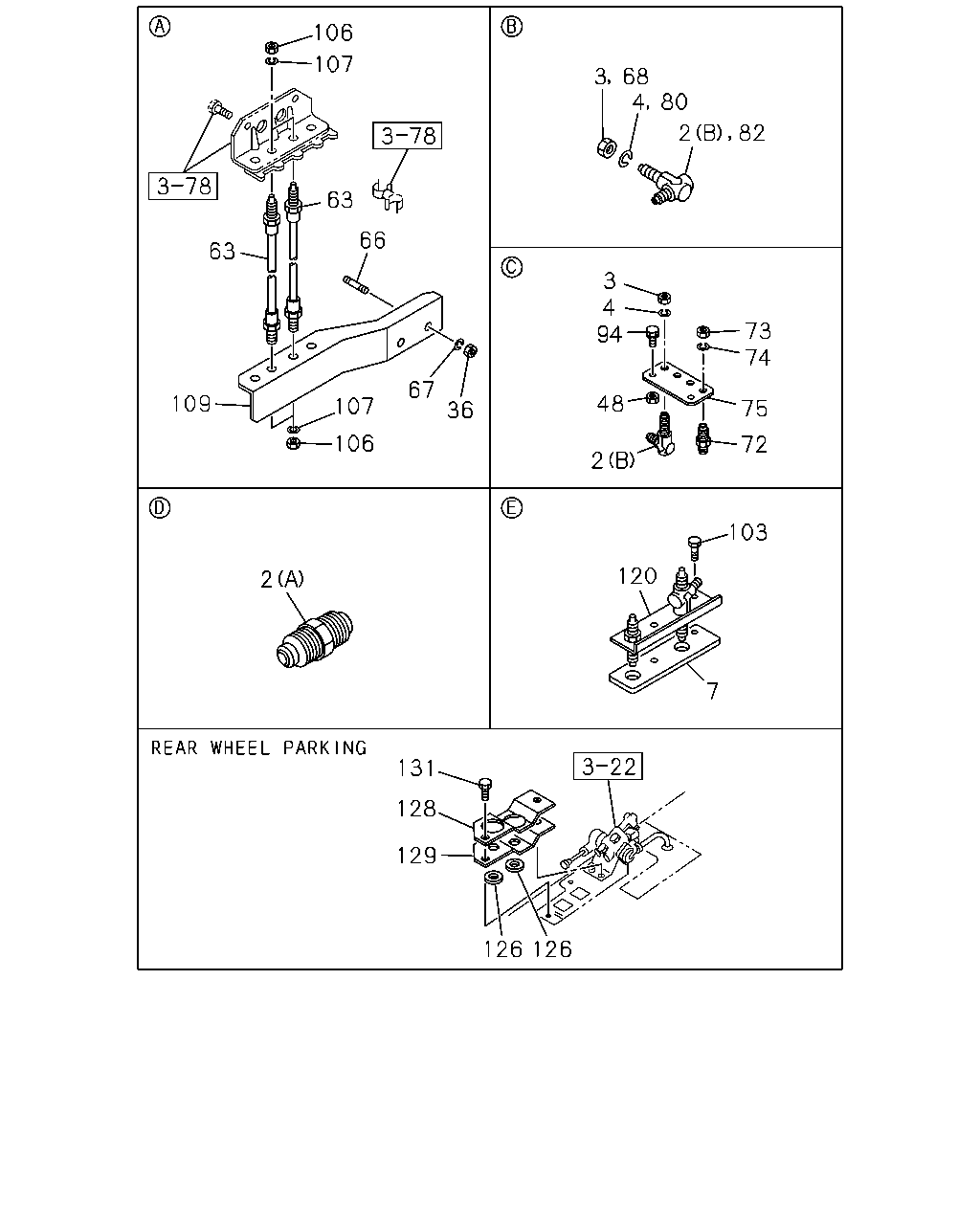

3-75 — BRAKE PIPING; AIR,FRONT (#933) — 66 parça
çizim 29166
106 107 3 68 4 80 82 63 66 63 3 4 94 73 74 67 109 48 107 75 36 106 72 2 103 120 2 7 131 128 129 126 126 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(A) M16 L=42 		9-09233-010-1 02 1 9202- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		9-09235-210-1 02 1 9202- ● ●
3 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9202- ● ●
4 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 02 1 9202-9312 ● ●
7 SEAL; PLATE UNION 1-79998-232-0 01 1 9202- ● ●
36 NUT; HOSE BRKT
M10 		9-09110-510-0 02 1 9202- ● ●
48 NUT; UNION BRKT
M8 		9-09110-408-0 02 1 9202- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=630 		0-07424-630-0 02 1 9202- ● ●
66 BOLT; HOSE BRKT
M10X25 L=40 		9-04411-025-0 02 1 9202- ● ●
67 WASHER; LK,HOSE BRKT
ID=10.2 		9-09150-510-0 02 1 9202- ● ●
68 NUT; UNION
M16 		9-99111-416-0 01 1 9202- ● ●
72 UNION; AIR PIPE
M16 L=74 		9-09233-310-1 01 1 9202- ● ●
73 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9202- ● ●
74 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
75 BRACKET; UNION 1-47475-613-2 01 1 9202- ● ●
80 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
82 UNION; AIR PIPE
M16 ELBOW 		9-09235-210-1 01 1 9202- ● ●
94 BOLT; BRKT
M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ●
94 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
103 BOLT; PIPE UNION
M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9202- ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 04 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 04 1 9202- ● ●
109 BRACKET; FLEX HOSE
POWER STEERING(N40) FRONT AXLE F049(FS4) 		1-47476-455-0 01 1 9202- ● ●
109 BRACKET; FLEX HOSE
POWER STEERING(N40) FRONT AXLE F063(FS7) 		1-47475-866-0 01 1 9202- ● ●
109 BRACKET; FLEX HOSE
EXC. POWER STEERING(N40) 		1-47475-778-1 01 1 9202- ● ●
120 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-47470-220-1 01 1 9202- ● ●
120 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-218-1 01 1 9202- ● ●
126 SPACER; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09503-191-0 02 1 9202- ● ●
128 PLATE; 2 WAY UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-397-0 01 1 9202- ● ●
129 SEAL; UNION PLATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-237-0 01 1 9202- ● ●
131 BOLT; PLATE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9202- ● ●
çizim 95460
1 87 5 81 5 76 62 70 102 63 104 97 121 63 62 70 63 102 104 97 121 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=359 		1-47492-413-0 01 1 9202-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
L=359 		1-47499-696-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=1236 SERVICED BY L=1250 		1-47437-968-0 01 1 9202-9212 ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=1236 SERVICED BY L=1250 		1-47426-416-0 01 1 9301- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=1695 SERVICED BY L=1900 		1-47437-971-0 01 1 9202-9212 ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=1695 SERVICED BY L=1700 		1-47426-420-0 01 1 9301- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1316 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F049(FS4) L=1316 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1316 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F049(FS4) L=1316 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F063(FS7) L=1313 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9212 ●
62 PIPE; AIR,UNION TO FLEX HOSE
FRONT AXLE F063(FS7) L=1313 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
L=630 		0-07424-630-0 02 1 9202- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1336 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9212 ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F049(FS4) L=1336 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9212 ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1336 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F049(FS4) L=1336 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F063(FS7) L=1327 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9212 ●
70 PIPE; AIR,FLEX HOSE TO UNION
FRONT AXLE F063(FS7) L=1327 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
76 PIPE; AIR,UNION TO UNION
L=1663 SERVICED BY L=1700 		1-47434-478-0 01 1 9202-9212 ● ●
76 PIPE; AIR,UNION TO UNION
L=1663 SERVICED BY L=1700 		1-47426-420-0 01 1 9301- ● ●
81 PIPE; AIR,UNION TO UNION
L=1904 SERVICED BY L=2100 		1-47437-972-0 01 1 9202-9212 ● ●
81 PIPE; AIR,UNION TO UNION
L=1903 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=422 		1-47492-418-0 01 1 9202-9205 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=431 SERVICED BY L=450 		1-47426-405-0 01 1 9206- ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=454 		1-47482-292-0 01 1 9202-9212 ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=455 		1-47497-060-0 01 1 9301- ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=495 SERVICED BY L=500 		1-47426-406-0 01 1 9202-9212 ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=495 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ●
104 PIPE; AIR,UNION TO BRK VLV
DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500 		1-47434-472-0 01 1 9202-9212 ● ●
104 PIPE; AIR,UNION TO BRK VLV
DUAL AIR GAUGE<UG2> L=492 SERVICED BY L=500 		1-47426-406-0 01 1 9301- ● ●
104 PIPE; AIR,UNION TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550 		1-47437-963-0 01 1 9202-9212 ● ●
104 PIPE; AIR,UNION TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=516 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=489 		1-47482-997-0 01 1 9202-9212 ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=489 		1-47497-061-0 01 1 9301- ● ●
