1-40 — FUEL TANK (#9329) — 126 parça

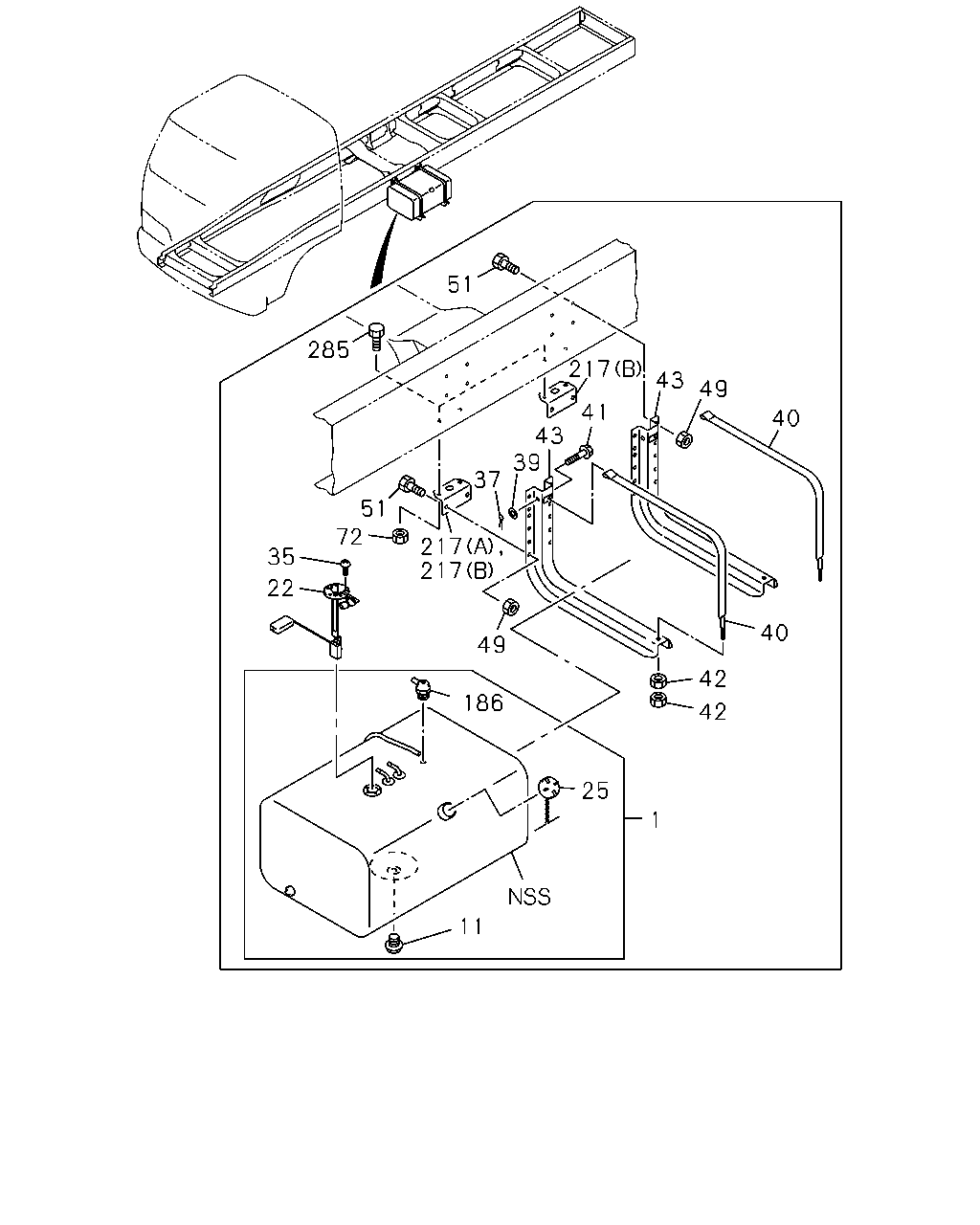

51 217 41 285 43 49 40 43 39 37 51 72 217 217 35 22 40 49 42 186 42 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL 869X597X413 200L	1-22400-819-0	01	1	0005-0107	●	●	●
1	TANK; FUEL 864X597X413 200L	1-22401-174-0	01	1	0108-0210	●	●	●
1	TANK; FUEL 864X597X413 200L	1-22401-174-0	01	1	0211-0501				●	●	●
1	TANK; FUEL 864X597X413 200L	8-98003-138-0	01	1	0502-0804				●	●	●
1	TANK; FUEL 864X597X413 200L	8-98114-400-0	01	1	0805-				●	●	●
11	PLUG; DRAIN,FUEL TANK	1-09604-082-0	01	1	0005-0107	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0108-0210	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0211-				●	●	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0005-0210	●	●	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0211-0501				●	●	●
22	UNIT; FUEL TANK	1-83141-149-0	01	1	0502-				●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-050-0	01	1	0005-0107	●	●	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0108-0210	●	●	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0211-				●	●	●
35	SCREW; FUEL TANK UNIT	1-09187-007-0	05	1	0005-0107	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0108-0210	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0604				●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-				●	●	●
37	PIN; SPLIT,SUPPORT BELT OD=3.7 L=28	9-08114-028-0	02	1	0005-0107	●	●	●
39	WASHER; PL,SUPPORT BELT ID=17	9-09164-516-0	02	1	0005-0107	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1035	1-22550-221-0	02	1	0005-0107	●	●	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0108-0210	●	●	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0211-				●	●	●
41	PIN; SUPPORT BELT OD=16 L=75	9-08224-675-0	02	1	0005-0107	●	●	●
42	NUT; SUPPORT BELT	1-09487-027-1	04	1	0005-0107	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0108-0210	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0211-0512				●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-				●	●	●
43	BRACKET; FUEL TANK	1-53461-354-2	02	1	0005-0107	●	●	●
43	BRACKET; FUEL TANK	1-53461-527-1	02	1	0108-0210	●	●	●
43	BRACKET; FUEL TANK	1-53461-527-1	02	1	0211-				●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0210	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0211-0602				●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-				●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0210	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0211-0512				●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-				●	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0005-0210	●	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0211-0602				●	●	●
72	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0603-				●	●	●
186	VALVE; GT,FUEL TANK	1-22453-005-0	01	1	0005-0107	●	●	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0108-0210	●	●	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0211-0804				●	●	●
186	VALVE; GT,FUEL TANK	8-98103-512-0	01	1	0805-				●	●	●
217	BRACKET; FUEL TANK,LOW (B)	1-53461-432-1	02	1	0005-0210	●	●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B)	1-53461-432-1	02	1	0005-0210			●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (B)	1-53461-432-1	02	1	0211-				●	●	●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (B)	1-53461-432-1	01	1	0005-0210			●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (B)	1-53461-432-1	01	1	0211-0411				●	●	●
217	BRACKET; FUEL TANK,LOW FRR STD CAB(FR*M) WHEEL BASE 3700MM(37W) (B)	1-53461-432-1	01	1	0412-				●	●	●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (A)	1-53461-486-0	01	1	0005-0210			●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (A)	1-53461-486-0	01	1	0211-0411				●	●	●
217	BRACKET; FUEL TANK,LOW FRR STD CAB(FR*M) WHEEL BASE 3700MM(37W) (A)	1-53461-486-0	01	1	0412-				●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0005-0210	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0211-0512				●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0601-				●	●	●

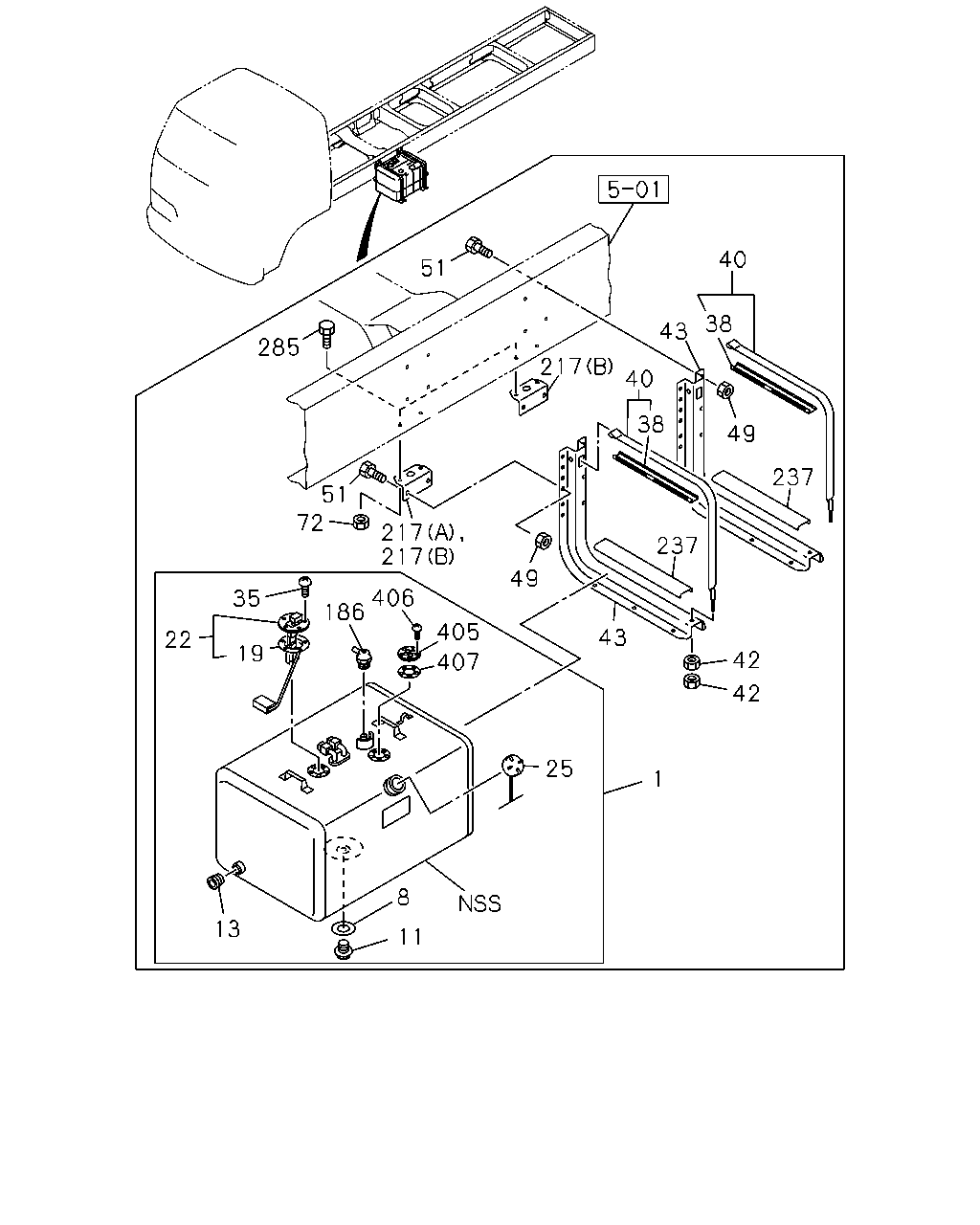

40 51 38 43 217 285 40 38 49 237 51 72 217 217 237 49 406 186 35 405 43 22 19 42 407 42 25 1 8 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL 869X597X413 200L	1-22400-819-0	01	1	0005-0107	●	●	●
1	TANK; FUEL 864X597X413 200L	1-22401-174-0	01	1	0108-0210	●	●	●
1	TANK; FUEL 864X597X413 200L	1-22401-174-0	01	1	0211-0501				●	●	●
1	TANK; FUEL 864X597X413 200L	8-98003-138-0	01	1	0502-0804				●	●	●
1	TANK; FUEL 864X597X413 200L	8-98114-400-0	01	1	0805-				●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0108-0210	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0211-				●	●	●
11	PLUG; DRAIN,FUEL TANK	1-09604-082-0	01	1	0005-0107	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0108-0210	●	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0211-				●	●	●
13	PLUG; SCREW,SUB TANK JOINT	8-94421-626-0	02	1	0108-0210	●	●	●
13	PLUG; SCREW,SUB TANK JOINT	8-94421-626-0	02	1	0211-				●	●	●
19	GASKET; FUEL TANK UNIT	1-83149-003-0	01	1	0211-				●	●	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0005-0210	●	●	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0211-0501				●	●	●
22	UNIT; FUEL TANK	1-83141-149-0	01	1	0502-				●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-050-0	01	1	0005-0107	●	●	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0108-0210	●	●	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0211-				●	●	●
35	SCREW; FUEL TANK UNIT	1-09187-007-0	05	1	0005-0107	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0108-0210	●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0604				●	●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-				●	●	●
38	INSULATION; SUPPORT BELT	1-22553-059-0	02	1	0108-0210	●	●	●
38	INSULATION; SUPPORT BELT	1-22553-059-0	02	1	0211-				●	●	●
40	BELT; SUPPORT,FUEL TANK L=1035	1-22550-221-0	02	1	0005-0107	●	●	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0108-0210	●	●	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0211-				●	●	●
42	NUT; SUPPORT BELT	1-09487-027-1	04	1	0005-0107	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0108-0210	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0211-0512				●	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-				●	●	●
43	BRACKET; FUEL TANK	1-53461-354-2	02	1	0005-0107	●	●	●
43	BRACKET; FUEL TANK	1-53461-527-1	02	1	0108-0210	●	●	●
43	BRACKET; FUEL TANK	1-53461-527-1	02	1	0211-				●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0005-0210	●	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0211-0602				●	●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-				●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0005-0210	●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	0211-0512				●	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-				●	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0005-0210	●	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0211-0602				●	●	●
72	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0603-				●	●	●
186	VALVE; GT,FUEL TANK	1-22453-005-0	01	1	0005-0107	●	●	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0108-0210	●	●	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0211-0804				●	●	●
186	VALVE; GT,FUEL TANK	8-98103-512-0	01	1	0805-				●	●	●
217	BRACKET; FUEL TANK,LOW (B)	1-53461-432-1	02	1	0005-0210	●	●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B)	1-53461-432-1	02	1	0005-0210			●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 4200MM(42W),WHEEL BASE 5100MM(51W), WHEEL BASE 5500MM(55W) (B)	1-53461-432-1	02	1	0211-				●	●	●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (B)	1-53461-432-1	01	1	0005-0210			●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (B)	1-53461-432-1	01	1	0211-0411				●	●	●
217	BRACKET; FUEL TANK,LOW FRR STD CAB(FR*M) WHEEL BASE 3700MM(37W) (B)	1-53461-432-1	01	1	0412-				●	●	●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (A)	1-53461-486-0	01	1	0005-0210			●
217	BRACKET; FUEL TANK,LOW WHEEL BASE 3700MM(37W) (A)	1-53461-486-0	01	1	0211-0411				●	●	●
217	BRACKET; FUEL TANK,LOW FRR STD CAB(FR*M) WHEEL BASE 3700MM(37W) (A)	1-53461-486-0	01	1	0412-				●	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0108-0210	●	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	0211-				●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0005-0210	●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	0211-0512				●	●	●
285	BOLT; BRKT M12X40 FLANGE	0-28651-240-0	04	1	0601-				●	●	●
405	VALVE ASM; SAFETY,PRESS FUEL TANK	1-22451-012-0	01	1	0108-0210	●	●	●
405	VALVE ASM; SAFETY,PRESS FUEL TANK	1-22451-012-0	01	1	0211-0804				●	●	●
405	VALVE ASM; SAFETY,PRESS FUEL TANK	8-98106-041-0	01	1	0805-				●	●	●
406	SCREW; PRESS SAFETY VLV,FUEL TANK M5X14 W/LK WASHER	9-03910-514-0	05	1	0108-0210	●	●	●
406	SCREW; PRESS SAFETY VLV,FUEL TANK M5X14 W/LK WASHER	9-03910-514-0	05	1	0211-0604				●	●	●
406	SCREW; PRESS SAFETY VLV,FUEL TANK M5X14 W/LK WASHER	0-36220-514-0	05	1	0605-				●	●	●
407	GASKET; PRESS SAFETY VLV,FUEL TANK	1-22459-001-1	01	1	0108-0210	●	●	●
407	GASKET; PRESS SAFETY VLV,FUEL TANK	1-22459-001-1	01	1	0211-				●	●	●
