1-31 — AIR DUCT (#9327) — 305 parça

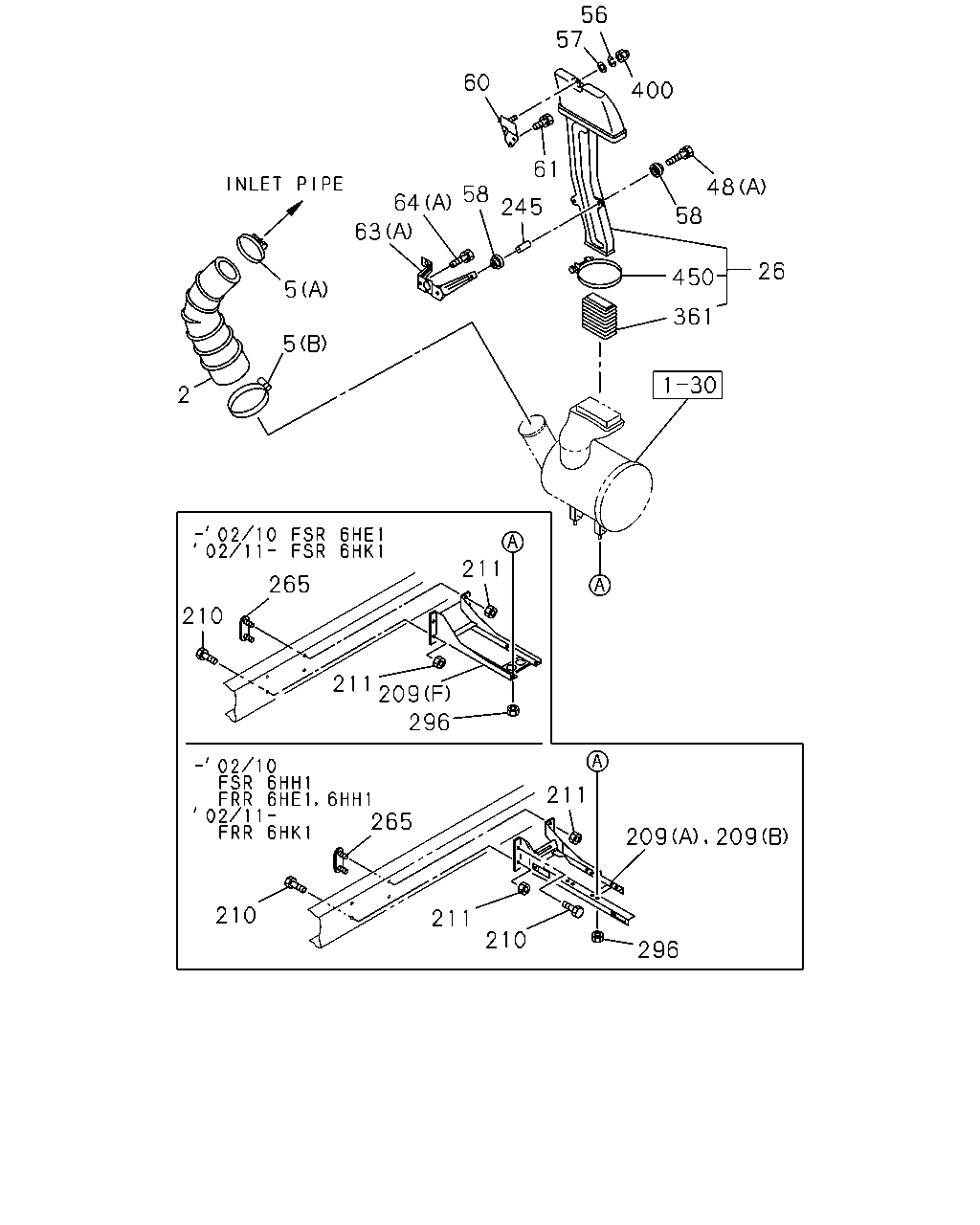

çizim 38444
56 57 60 400 61 48 58 64 245 58 63 26 450 5 361 5 2 211 265 210 211 209 296 211 265 209 210 211 210 296 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; ACL
FRR STD CAB(FRR*M*) 		1-14231-853-1 01 1 0005-0210 ●
2 HOSE; ACL
FRR STD CAB(FR**M*) 		1-14232-151-0 01 1 0211-0305 ● ● ●
2 HOSE; ACL
FRR STD CAB(FR**M*) 		1-14232-161-0 01 1 0306- ● ● ●
2 HOSE; ACL
FSR(FS****) 		1-14231-939-1 01 1 0005-0210 ●
2 HOSE; ACL
FSR(FS****) 		1-14232-129-0 01 1 0211- ● ●
2 HOSE; ACL
FSR(FS****) 		1-14231-919-1 01 1 0005-0210 ●
2 HOSE; ACL
FRR STD CAB(FRR*M*) 		1-14231-907-1 01 1 0005-0210 ● ●
2 HOSE; ACL
FRR DOUBLE CAB(FR**W*) 		1-14231-876-0 01 1 0005-0101 ● ●
2 HOSE; ACL
FRR DOUBLE CAB(FR**W*) 		1-14232-123-0 01 1 0102-0106 ● ●
2 HOSE; ACL
FRR DOUBLE CAB(FR**W*) 		1-14232-125-0 01 1 0107-0210 ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) (A) ID=77-95 		1-09707-114-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=77-95 		1-09707-114-0 01 1 0211-0212 ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=77-95 		1-09707-198-0 01 1 0301-0810 ● ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=75-95 		8-98133-357-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) (B) ID=130-169 		1-09707-157-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) FSR(FS****) (A) ID=87-116 		1-09707-144-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) (A) ID=87-116 		1-09707-144-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) FSR(FS****) (B) ID=104-142 		1-09707-155-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) (B) ID=104-142 		1-09707-155-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0211-0212 ● ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0301-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=130-150 		8-98133-360-0 01 1 0811- ● ● ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14230-173-0 01 1 0005-0210 ●
26 DUCT; AIR INT 1-14230-173-2 01 1 0211- ● ● ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14230-176-0 01 1 0005-0210 ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) 		1-14230-176-0 01 1 0005-0210 ●
26 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) 		1-14230-142-0 01 1 0005-0210 ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0005-0210 ● ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0211- ● ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0005-0210 ● ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0211- ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0210 ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0211- ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0005-0210 ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0211- ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-748-2 01 1 0005-0210 ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-748-2 01 1 0211- ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR DOUBLE CAB(FR**W*) 		1-79998-571-2 01 1 0005-0210 ● ●
60 BRACKET; AIR DUCT,UPR
FRR DOUBLE CAB(FR**W*) 		1-79996-596-1 01 1 0211- ● ●
61 BOLT; BRKT,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ● ●
61 BOLT; BRKT,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ● ●
61 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ●
61 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
63 BRACKET; AIR DUCT,LWR
FRR STD CAB(FR**M*) FSR(FS****) (A) 		1-79998-749-3 01 1 0005-0210 ● ● ●
63 BRACKET; AIR DUCT,LWR
FRR STD CAB(FR**M*) FSR(FS****) (A) 		1-79998-749-3 01 1 0211- ● ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (B) 		1-79998-572-2 01 1 0005-0210 ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (B) 		1-79998-572-2 01 1 0211- ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (C) 		1-79996-597-0 01 1 0211- ● ●
64 BOLT; BRKT,AIR DUCT
(A) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ● ●
64 BOLT; BRKT,AIR DUCT
(A) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ● ●
64 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0211- ● ●
209 BRACKET; ACL
FSR(FS****) (F) 		1-53497-545-1 01 1 0005-0210 ●
209 BRACKET; ACL
FSR(FS****) (F) 		1-53497-545-1 01 1 0211- ● ●
209 BRACKET; ACL
FRR STD CAB(FRR*M*) (B) 		1-53497-478-2 01 1 0005-0210 ● ● ●
209 BRACKET; ACL
FRR(FR****) (B) 		1-53497-478-2 01 1 0211- ● ● ●
209 BRACKET; ACL
FSR(FS****) (A) 		1-53497-508-2 01 1 0005-0210 ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (D) 		1-53497-687-2 01 1 0211- ● ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (C) 		1-53497-328-1 01 1 0005-0210 ● ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (E) 		1-53497-688-2 01 1 0211- ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0210 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X35 FLANGE 		0-28681-235-0 02 1 0211-0512 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X35 FLANGE 		0-28651-235-0 02 1 0601-0610 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X40 FLANGE 		0-28651-240-0 02 1 0611- ● ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 02 1 0005-0210 ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 04 1 0211-0512 ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ●
211 NUT; BRKT
FSR(FS****) M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
211 NUT; BRKT
FSR(FS****) M12 FLANGE 		0-91150-212-0 04 1 0211-0602 ● ●
211 NUT; BRKT
FSR(FS****) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
211 NUT; BRKT
FRR STD CAB(FRR*M*) FSR(FS****) M12 FLANGE 		0-91150-212-0 03 1 0005-0210 ●
211 NUT; BRKT
FRR STD CAB(FRR*M*) M12 FLANGE 		0-91150-212-0 03 1 0005-0210 ●
211 NUT; BRKT
FRR STD CAB(FR**M*) M12 FLANGE 		0-91150-212-0 03 1 0211-0602 ● ● ●
211 NUT; BRKT
FRR STD CAB(FR**M*) M12 FLANGE 		0-91180-212-0 03 1 0603- ● ● ●
245 PIECE; DIST,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-228-0 02 1 0005-0210 ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0211- ● ● ●
245 PIECE; DIST,AIR DUCT
FRR DOUBLE CAB(FR**W*) 		1-79998-228-0 03 1 0005-0210 ● ●
265 BRACKET; STUD,ACL
FSR(FS****) 		1-53497-523-0 01 1 0005-0210 ●
265 BRACKET; STUD,ACL
FSR(FS****) 		1-53497-650-0 01 1 0211- ● ●
265 BRACKET; STUD,ACL
FRR STD CAB(FR**M*) 		1-53497-477-0 01 1 0005-0210 ● ● ●
265 BRACKET; STUD,ACL
FRR STD CAB(FR**M*) 		1-53497-477-0 01 1 0211- ● ● ●
265 BRACKET; STUD,ACL
FSR(FS****) 		1-53497-397-0 01 1 0005-0210 ●
296 NUT; ACL
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
296 NUT; ACL
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ● ● ●
296 NUT; ACL
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
296 NUT; ACL
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 06 1 0211-0602 ● ●
296 NUT; ACL
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
361 RUBBER; CUSHION,AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14231-973-0 01 1 0005-0210 ● ●
361 RUBBER; CUSHION,AIR DUCT
FRR STD CAB(FRR*M*) 		1-14231-973-0 01 1 0005-0210 ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 0211- ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0005-0210 ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0211- ● ● ●
450 CLAMP; HOSE
FRR STD CAB(FRR*M*) FSR(FS****) 		9-09915-504-1 01 1 0005-0210 ● ●
450 CLAMP; HOSE
FRR STD CAB(FRR*M*) 		9-09915-504-1 01 1 0005-0210 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0211- ● ● ●

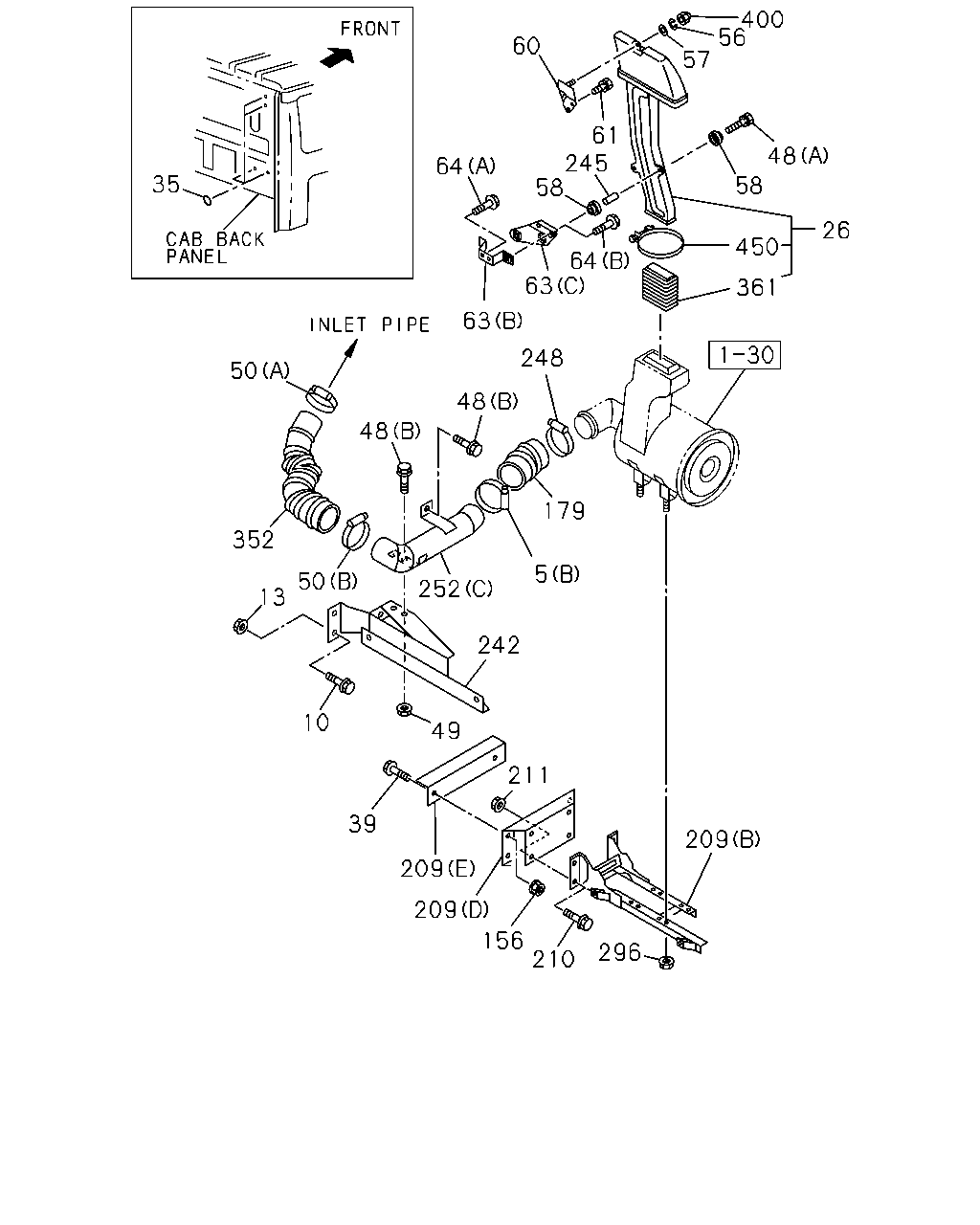

çizim 99795
400 56 57 60 61 245 58 48 64 35 58 26 450 64 63 361 63 248 50 48 48 179 352 5 50 252 13 242 10 49 211 39 209 209 209 156 210 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 CLIP; AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) (A) ID=77-95 		1-09707-114-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=77-95 		1-09707-114-0 01 1 0211-0212 ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=77-95 		1-09707-198-0 01 1 0301-0810 ● ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=75-95 		8-98133-357-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) (B) ID=130-169 		1-09707-157-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) FSR(FS****) (A) ID=87-116 		1-09707-144-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) (A) ID=87-116 		1-09707-144-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) FSR(FS****) (B) ID=104-142 		1-09707-155-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) (B) ID=104-142 		1-09707-155-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0211-0212 ● ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0301-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=130-150 		8-98133-360-0 01 1 0811- ● ● ●
10 BOLT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12X30 FLANGE 		0-28081-230-0 01 1 0301-0512 ● ●
10 BOLT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12X30 FLANGE 		0-28051-230-0 01 1 0601- ● ●
10 BOLT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 03 1 0211-0212 ● ●
10 BOLT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 02 1 0301-0512 ● ●
10 BOLT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28651-235-0 02 1 0601- ● ●
13 NUT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12 FLANGE 		0-91150-212-0 03 1 0211-0212 ● ●
13 NUT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12 FLANGE 		0-91150-212-0 01 1 0301-0602 ● ●
13 NUT; BRKT FIX
FRR DOUBLE CAB(FR**W*) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14230-173-0 01 1 0005-0210 ●
26 DUCT; AIR INT 1-14230-173-2 01 1 0211- ● ● ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14230-176-0 01 1 0005-0210 ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) 		1-14230-176-0 01 1 0005-0210 ●
26 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) 		1-14230-142-0 01 1 0005-0210 ● ●
35 SEAL; DUCT,INT
FRR DOUBLE CAB(FR**W*) OD=30 BLACK 		1-76798-035-0 04 1 0005-0210 ● ●
35 SEAL; DUCT,INT
FRR DOUBLE CAB(FR**W*) OD=30 BLACK 		1-76798-035-0 04 1 0211- ● ●
39 BOLT; BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 06 1 0211-0512 ● ●
39 BOLT; BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28651-235-0 06 1 0601- ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0005-0210 ● ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0211- ● ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
49 NUT; AIR DUCT
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
49 NUT; AIR DUCT
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
50 CLIP; JOINT HOSE
FRR DOUBLE CAB(FR**W*) (A) ID=77-95 		1-09707-114-0 01 1 0211-0212 ● ●
50 CLIP; JOINT HOSE
FRR DOUBLE CAB(FR**W*) (A) ID=77-95 		1-09707-198-0 01 1 0301-0810 ● ●
50 CLIP; JOINT HOSE
FRR DOUBLE CAB(FR**W*) (A) ID=75-95 		8-98133-357-0 01 1 0811- ● ●
50 CLIP; JOINT HOSE
FRR DOUBLE CAB(FR**W*) (B) ID=130-169 		1-09707-157-0 01 1 0211-0212 ● ●
50 CLIP; JOINT HOSE
FRR DOUBLE CAB(FR**W*) (B) ID=130-165 		1-09707-201-0 01 1 0301-0810 ● ●
50 CLIP; JOINT HOSE
FRR DOUBLE CAB(FR**W*) (B) ID=130-150 		8-98133-360-0 01 1 0811- ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0005-0210 ● ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0211- ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0210 ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0211- ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0005-0210 ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0211- ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-748-2 01 1 0005-0210 ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-748-2 01 1 0211- ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR DOUBLE CAB(FR**W*) 		1-79998-571-2 01 1 0005-0210 ● ●
60 BRACKET; AIR DUCT,UPR
FRR DOUBLE CAB(FR**W*) 		1-79996-596-1 01 1 0211- ● ●
61 BOLT; BRKT,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ● ●
61 BOLT; BRKT,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ● ●
61 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ●
61 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
63 BRACKET; AIR DUCT,LWR
FRR STD CAB(FR**M*) FSR(FS****) (A) 		1-79998-749-3 01 1 0005-0210 ● ● ●
63 BRACKET; AIR DUCT,LWR
FRR STD CAB(FR**M*) FSR(FS****) (A) 		1-79998-749-3 01 1 0211- ● ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (B) 		1-79998-572-2 01 1 0005-0210 ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (B) 		1-79998-572-2 01 1 0211- ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (C) 		1-79996-597-0 01 1 0211- ● ●
64 BOLT; BRKT,AIR DUCT
(A) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ● ●
64 BOLT; BRKT,AIR DUCT
(A) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ● ●
64 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0211- ● ●
156 NUT; BRKT
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
156 NUT; BRKT
FRR DOUBLE CAB(FR**W*) M12 FLANGE 		0-91150-212-0 05 1 0211-0602 ● ●
156 NUT; BRKT
FRR DOUBLE CAB(FR**W*) M12 FLANGE 		0-91180-212-0 05 1 0603- ● ●
179 HOSE; AIR INT
FRR DOUBLE CAB(FR**W*) 		1-14231-810-1 01 1 0005-0210 ● ●
179 HOSE; AIR INT
FRR DOUBLE CAB(FR**W*) 		1-14232-131-0 01 1 0211- ● ●
209 BRACKET; ACL
FSR(FS****) (F) 		1-53497-545-1 01 1 0005-0210 ●
209 BRACKET; ACL
FSR(FS****) (F) 		1-53497-545-1 01 1 0211- ● ●
209 BRACKET; ACL
FRR STD CAB(FRR*M*) (B) 		1-53497-478-2 01 1 0005-0210 ● ● ●
209 BRACKET; ACL
FRR(FR****) (B) 		1-53497-478-2 01 1 0211- ● ● ●
209 BRACKET; ACL
FSR(FS****) (A) 		1-53497-508-2 01 1 0005-0210 ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (D) 		1-53497-687-2 01 1 0211- ● ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (C) 		1-53497-328-1 01 1 0005-0210 ● ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (E) 		1-53497-688-2 01 1 0211- ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0210 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X35 FLANGE 		0-28681-235-0 02 1 0211-0512 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X35 FLANGE 		0-28651-235-0 02 1 0601-0610 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X40 FLANGE 		0-28651-240-0 02 1 0611- ● ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 02 1 0005-0210 ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 04 1 0211-0512 ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ●
211 NUT; BRKT
FSR(FS****) M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
211 NUT; BRKT
FSR(FS****) M12 FLANGE 		0-91150-212-0 04 1 0211-0602 ● ●
211 NUT; BRKT
FSR(FS****) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
211 NUT; BRKT
FRR STD CAB(FRR*M*) FSR(FS****) M12 FLANGE 		0-91150-212-0 03 1 0005-0210 ●
211 NUT; BRKT
FRR STD CAB(FRR*M*) M12 FLANGE 		0-91150-212-0 03 1 0005-0210 ●
211 NUT; BRKT
FRR STD CAB(FR**M*) M12 FLANGE 		0-91150-212-0 03 1 0211-0602 ● ● ●
211 NUT; BRKT
FRR STD CAB(FR**M*) M12 FLANGE 		0-91180-212-0 03 1 0603- ● ● ●
242 BRACKET; AIR DUCT
FRR DOUBLE CAB(FR**W*) 		1-53497-704-0 01 1 0211- ● ●
245 PIECE; DIST,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-228-0 02 1 0005-0210 ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0211- ● ● ●
245 PIECE; DIST,AIR DUCT
FRR DOUBLE CAB(FR**W*) 		1-79998-228-0 03 1 0005-0210 ● ●
248 CLIP; RUBBER HOSE
FRR DOUBLE CAB(FR**W*) ID=130-169 		1-09707-157-0 01 1 0211-0212 ● ●
248 CLIP; RUBBER HOSE
FRR DOUBLE CAB(FR**W*) ID=130-165 		1-09707-201-0 01 1 0301-0810 ● ●
248 CLIP; RUBBER HOSE
FRR DOUBLE CAB(FR**W*) ID=130-150 		8-98133-360-0 01 1 0811- ● ●
252 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) (A) 		1-14219-222-0 01 1 0005-0210 ● ●
252 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) (C) 		1-14232-144-1 01 1 0211- ● ●
252 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) (B) 		1-14231-819-1 01 1 0005-0210 ● ●
296 NUT; ACL
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
296 NUT; ACL
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ● ● ●
296 NUT; ACL
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
296 NUT; ACL
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 06 1 0211-0602 ● ●
296 NUT; ACL
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
352 HOSE; RUBBER,AIR DUCT TO ENG
FRR DOUBLE CAB(FR**W*) 		1-14232-151-0 01 1 0211-0305 ● ●
352 HOSE; RUBBER,AIR DUCT TO ENG
FRR DOUBLE CAB(FR**W*) 		1-14232-161-0 01 1 0306- ● ●
361 RUBBER; CUSHION,AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14231-973-0 01 1 0005-0210 ● ●
361 RUBBER; CUSHION,AIR DUCT
FRR STD CAB(FRR*M*) 		1-14231-973-0 01 1 0005-0210 ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 0211- ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0005-0210 ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0211- ● ● ●
450 CLAMP; HOSE
FRR STD CAB(FRR*M*) FSR(FS****) 		9-09915-504-1 01 1 0005-0210 ● ●
450 CLAMP; HOSE
FRR STD CAB(FRR*M*) 		9-09915-504-1 01 1 0005-0210 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0211- ● ● ●

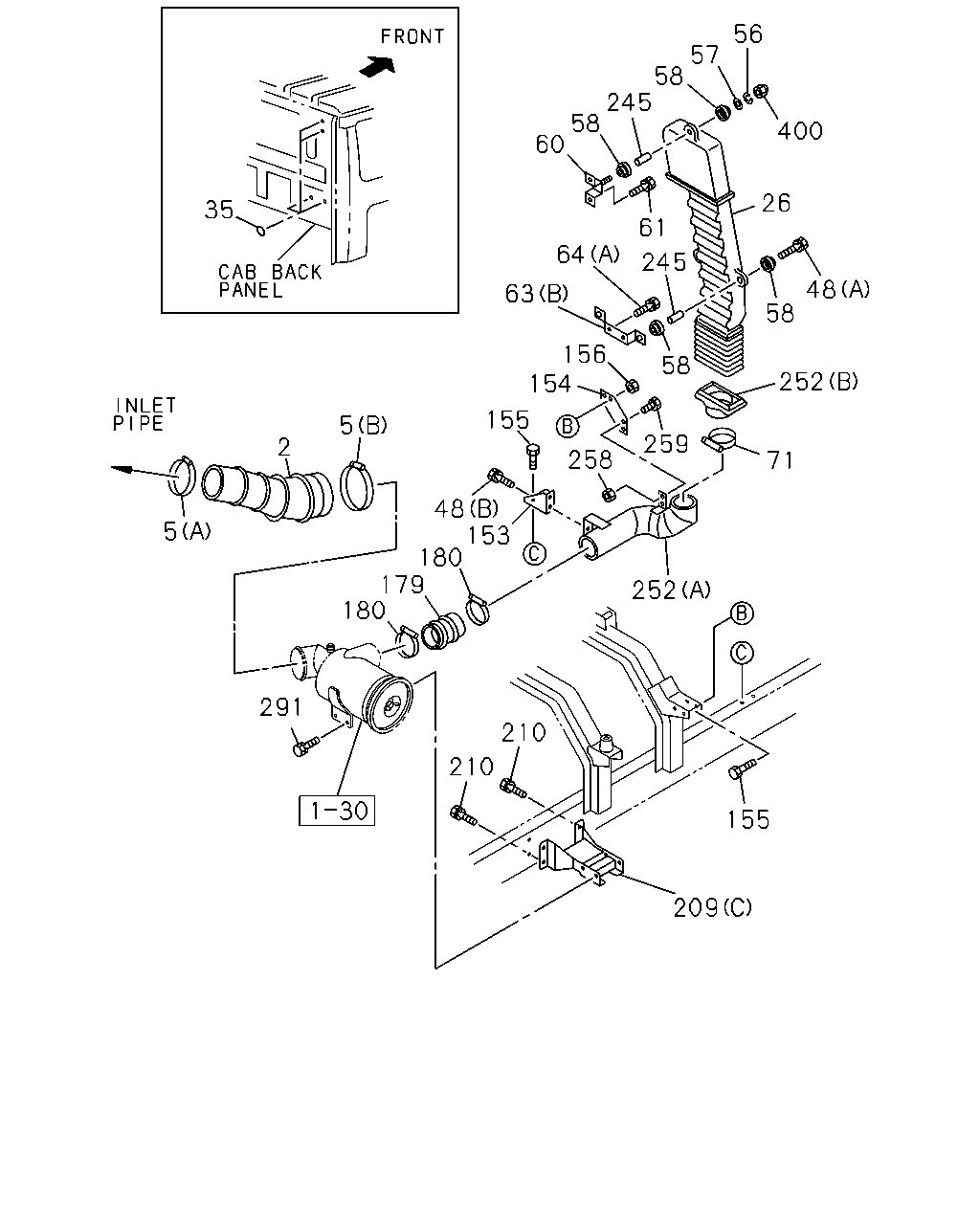

çizim 99797
56 57 58 245 58 60 400 26 35 61 64 245 48 63 58 156 154 58 252 155 5 259 2 258 71 48 153 180 179 180 5 252 291 210 210 155 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; ACL
FRR STD CAB(FRR*M*) 		1-14231-853-1 01 1 0005-0210 ●
2 HOSE; ACL
FRR STD CAB(FR**M*) 		1-14232-151-0 01 1 0211-0305 ● ● ●
2 HOSE; ACL
FRR STD CAB(FR**M*) 		1-14232-161-0 01 1 0306- ● ● ●
2 HOSE; ACL
FSR(FS****) 		1-14231-939-1 01 1 0005-0210 ●
2 HOSE; ACL
FSR(FS****) 		1-14232-129-0 01 1 0211- ● ●
2 HOSE; ACL
FSR(FS****) 		1-14231-919-1 01 1 0005-0210 ●
2 HOSE; ACL
FRR STD CAB(FRR*M*) 		1-14231-907-1 01 1 0005-0210 ● ●
2 HOSE; ACL
FRR DOUBLE CAB(FR**W*) 		1-14231-876-0 01 1 0005-0101 ● ●
2 HOSE; ACL
FRR DOUBLE CAB(FR**W*) 		1-14232-123-0 01 1 0102-0106 ● ●
2 HOSE; ACL
FRR DOUBLE CAB(FR**W*) 		1-14232-125-0 01 1 0107-0210 ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) (A) ID=77-95 		1-09707-114-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=77-95 		1-09707-114-0 01 1 0211-0212 ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=77-95 		1-09707-198-0 01 1 0301-0810 ● ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) (A) ID=75-95 		8-98133-357-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR*M*) FSR(FS****) (B) ID=130-169 		1-09707-157-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) FSR(FS****) (A) ID=87-116 		1-09707-144-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) (A) ID=87-116 		1-09707-144-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) FSR(FS****) (B) ID=104-142 		1-09707-155-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
FRR STD CAB(FRR***) (B) ID=104-142 		1-09707-155-0 01 1 0005-0210 ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0211-0212 ● ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0301-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=130-150 		8-98133-360-0 01 1 0811- ● ● ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14230-173-0 01 1 0005-0210 ●
26 DUCT; AIR INT 1-14230-173-2 01 1 0211- ● ● ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) FSR(FS****) 		1-14230-176-0 01 1 0005-0210 ●
26 DUCT; AIR INT
FRR STD CAB(FRR*M*) 		1-14230-176-0 01 1 0005-0210 ●
26 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) 		1-14230-142-0 01 1 0005-0210 ● ●
35 SEAL; DUCT,INT
FRR DOUBLE CAB(FR**W*) OD=30 BLACK 		1-76798-035-0 04 1 0005-0210 ● ●
35 SEAL; DUCT,INT
FRR DOUBLE CAB(FR**W*) OD=30 BLACK 		1-76798-035-0 04 1 0211- ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0005-0210 ● ● ●
48 BOLT; AIR DUCT
(A) M10X26 		1-09030-044-1 02 1 0211- ● ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ●
48 BOLT; AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0005-0210 ● ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0211- ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0210 ● ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0211- ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0005-0210 ● ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0211- ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-748-2 01 1 0005-0210 ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-748-2 01 1 0211- ● ● ●
60 BRACKET; AIR DUCT,UPR
FRR DOUBLE CAB(FR**W*) 		1-79998-571-2 01 1 0005-0210 ● ●
60 BRACKET; AIR DUCT,UPR
FRR DOUBLE CAB(FR**W*) 		1-79996-596-1 01 1 0211- ● ●
61 BOLT; BRKT,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ● ●
61 BOLT; BRKT,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ● ●
61 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ●
61 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
63 BRACKET; AIR DUCT,LWR
FRR STD CAB(FR**M*) FSR(FS****) (A) 		1-79998-749-3 01 1 0005-0210 ● ● ●
63 BRACKET; AIR DUCT,LWR
FRR STD CAB(FR**M*) FSR(FS****) (A) 		1-79998-749-3 01 1 0211- ● ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (B) 		1-79998-572-2 01 1 0005-0210 ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (B) 		1-79998-572-2 01 1 0211- ● ●
63 BRACKET; AIR DUCT,LWR
FRR DOUBLE CAB(FR**W*) (C) 		1-79996-597-0 01 1 0211- ● ●
64 BOLT; BRKT,AIR DUCT
(A) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005-0210 ● ● ●
64 BOLT; BRKT,AIR DUCT
(A) M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0211- ● ● ●
64 BOLT; BRKT,AIR DUCT
FRR DOUBLE CAB(FR**W*) (B) M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0211- ● ●
71 CLIP; AIR DUCT
FRR DOUBLE CAB(FR**W*) ID=104-142 		1-09707-155-0 01 1 0005-0210 ● ●
153 BRACKET; ACL,FRT
FRR DOUBLE CAB(FR**W*) 		1-14239-222-0 01 1 0005-0210 ● ●
154 BRACKET; ACL,RR
FRR DOUBLE CAB(FR**W*) 		1-14239-232-0 01 1 0005-0210 ● ●
155 BOLT; BRKT
FRR DOUBLE CAB(FR**W*) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0210 ● ●
156 NUT; BRKT
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
156 NUT; BRKT
FRR DOUBLE CAB(FR**W*) M12 FLANGE 		0-91150-212-0 05 1 0211-0602 ● ●
156 NUT; BRKT
FRR DOUBLE CAB(FR**W*) M12 FLANGE 		0-91180-212-0 05 1 0603- ● ●
179 HOSE; AIR INT
FRR DOUBLE CAB(FR**W*) 		1-14231-810-1 01 1 0005-0210 ● ●
179 HOSE; AIR INT
FRR DOUBLE CAB(FR**W*) 		1-14232-131-0 01 1 0211- ● ●
180 CLIP; AIR INT HOSE
FRR DOUBLE CAB(FR**W*) ID=104-142 		1-09707-155-0 02 1 0005-0210 ● ●
209 BRACKET; ACL
FSR(FS****) (F) 		1-53497-545-1 01 1 0005-0210 ●
209 BRACKET; ACL
FSR(FS****) (F) 		1-53497-545-1 01 1 0211- ● ●
209 BRACKET; ACL
FRR STD CAB(FRR*M*) (B) 		1-53497-478-2 01 1 0005-0210 ● ● ●
209 BRACKET; ACL
FRR(FR****) (B) 		1-53497-478-2 01 1 0211- ● ● ●
209 BRACKET; ACL
FSR(FS****) (A) 		1-53497-508-2 01 1 0005-0210 ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (D) 		1-53497-687-2 01 1 0211- ● ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (C) 		1-53497-328-1 01 1 0005-0210 ● ●
209 BRACKET; ACL
FRR DOUBLE CAB(FR**W*) (E) 		1-53497-688-2 01 1 0211- ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0210 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X35 FLANGE 		0-28681-235-0 02 1 0211-0512 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X35 FLANGE 		0-28651-235-0 02 1 0601-0610 ● ● ●
210 BOLT; ACL BRKT
FRR STD CAB(FR**M*) FSR(FS****) M12X40 FLANGE 		0-28651-240-0 02 1 0611- ● ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 02 1 0005-0210 ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28681-235-0 04 1 0211-0512 ● ●
210 BOLT; ACL BRKT
FRR DOUBLE CAB(FR**W*) M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ●
245 PIECE; DIST,AIR DUCT
FRR STD CAB(FR**M*) FSR(FS****) 		1-79998-228-0 02 1 0005-0210 ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0211- ● ● ●
245 PIECE; DIST,AIR DUCT
FRR DOUBLE CAB(FR**W*) 		1-79998-228-0 03 1 0005-0210 ● ●
252 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) (A) 		1-14219-222-0 01 1 0005-0210 ● ●
252 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) (C) 		1-14232-144-1 01 1 0211- ● ●
252 DUCT; AIR INT
FRR DOUBLE CAB(FR**W*) (B) 		1-14231-819-1 01 1 0005-0210 ● ●
258 NUT; AIR DUCT
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
259 BOLT; AIR DUCT TO BRKT
FRR DOUBLE CAB(FR**W*) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ●
291 BOLT; ACL
FRR DOUBLE CAB(FR**W*) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0210 ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0005-0210 ● ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
