1-30 — AIR CLEANER (#9326) — 282 parça

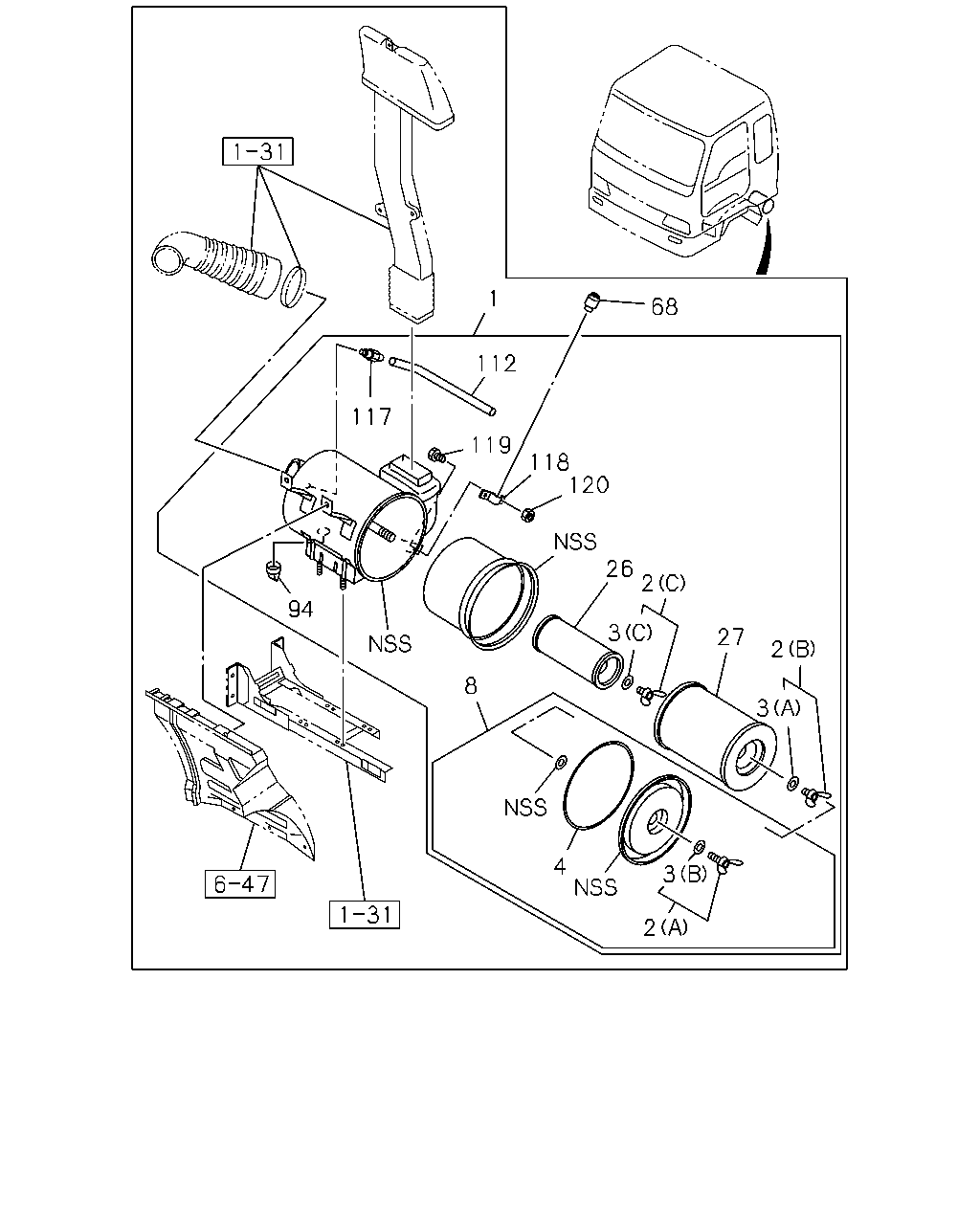

çizim 38038
1 68 112 117 119 118 120 26 2 94 3 27 2 8 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
FRR(FR****) 		1-14210-803-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-830-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-777-4 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-835-2 01 1 0211- ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-776-4 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-820-1 01 1 0211- ● ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-790-1 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-860-2 01 1 0211- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) FSR(FS****) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR DOUBLE CAB(FR**W*) (C) 		1-14219-177-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0211- ● ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0211- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211- ● ● ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) FSR(FS****) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR DOUBLE CAB(FR**W*) 		1-14212-092-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) 		1-14219-129-0 01 1 0005-0210 ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FSR(FS****) 		1-14219-279-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-14219-279-0 01 1 0211- ● ● ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0211- ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-260-0 01 1 0005-0210 ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-260-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FRR(FR****) 		1-14219-260-0 01 1 0211- ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) FSR(FS****) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0211- ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211- ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211- ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211- ● ● ●

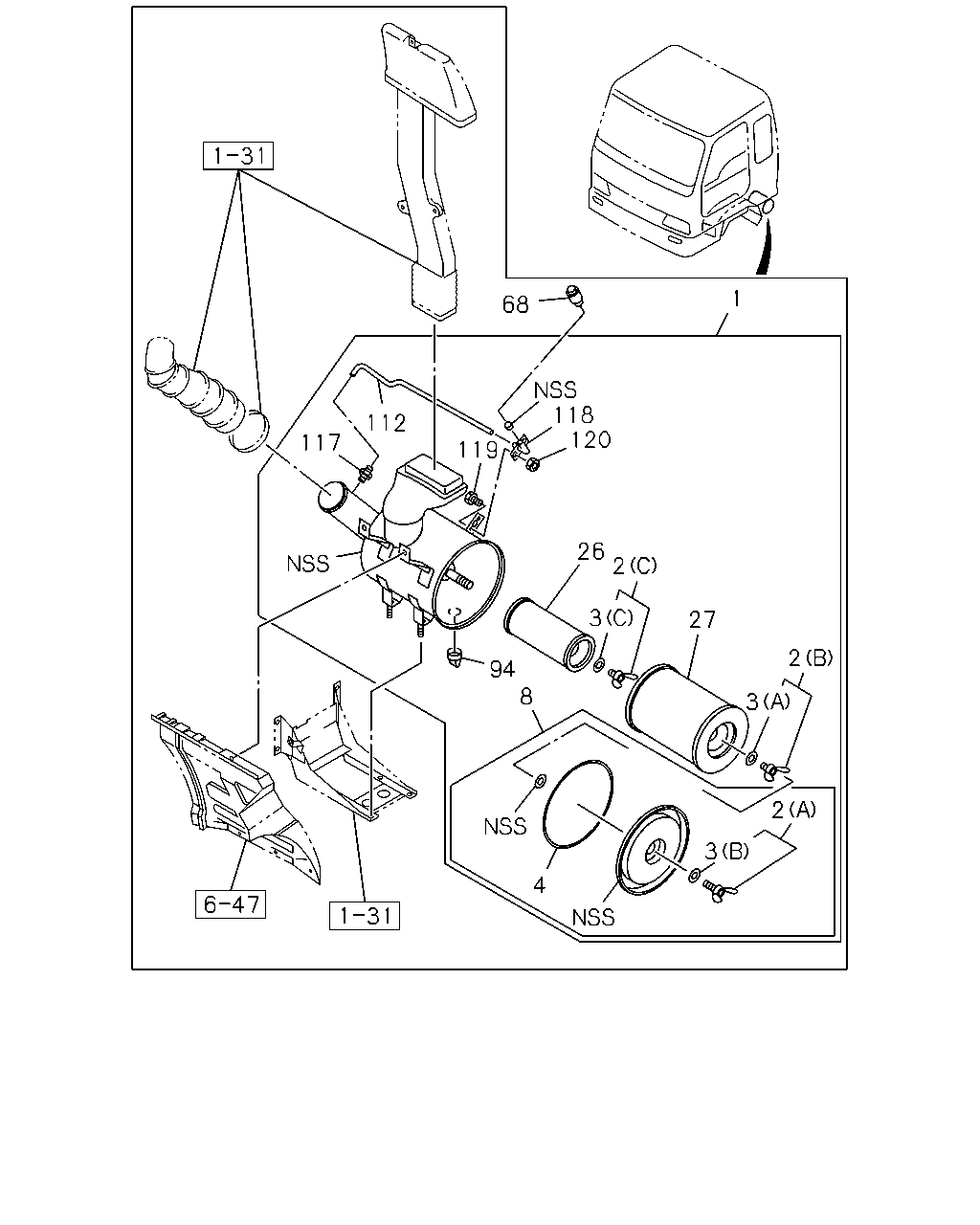

çizim 38417
1 68 118 120 112 117 119 26 2 3 27 2 94 8 3 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
FRR(FR****) 		1-14210-803-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-830-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-777-4 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-835-2 01 1 0211- ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-776-4 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-820-1 01 1 0211- ● ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-790-1 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-860-2 01 1 0211- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) FSR(FS****) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR DOUBLE CAB(FR**W*) (C) 		1-14219-177-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0211- ● ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0211- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211- ● ● ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) FSR(FS****) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR DOUBLE CAB(FR**W*) 		1-14212-092-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) 		1-14219-129-0 01 1 0005-0210 ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FSR(FS****) 		1-14219-279-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-14219-279-0 01 1 0211- ● ● ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0211- ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-260-0 01 1 0005-0210 ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-260-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FRR(FR****) 		1-14219-260-0 01 1 0211- ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) FSR(FS****) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0211- ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211- ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211- ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211- ● ● ●

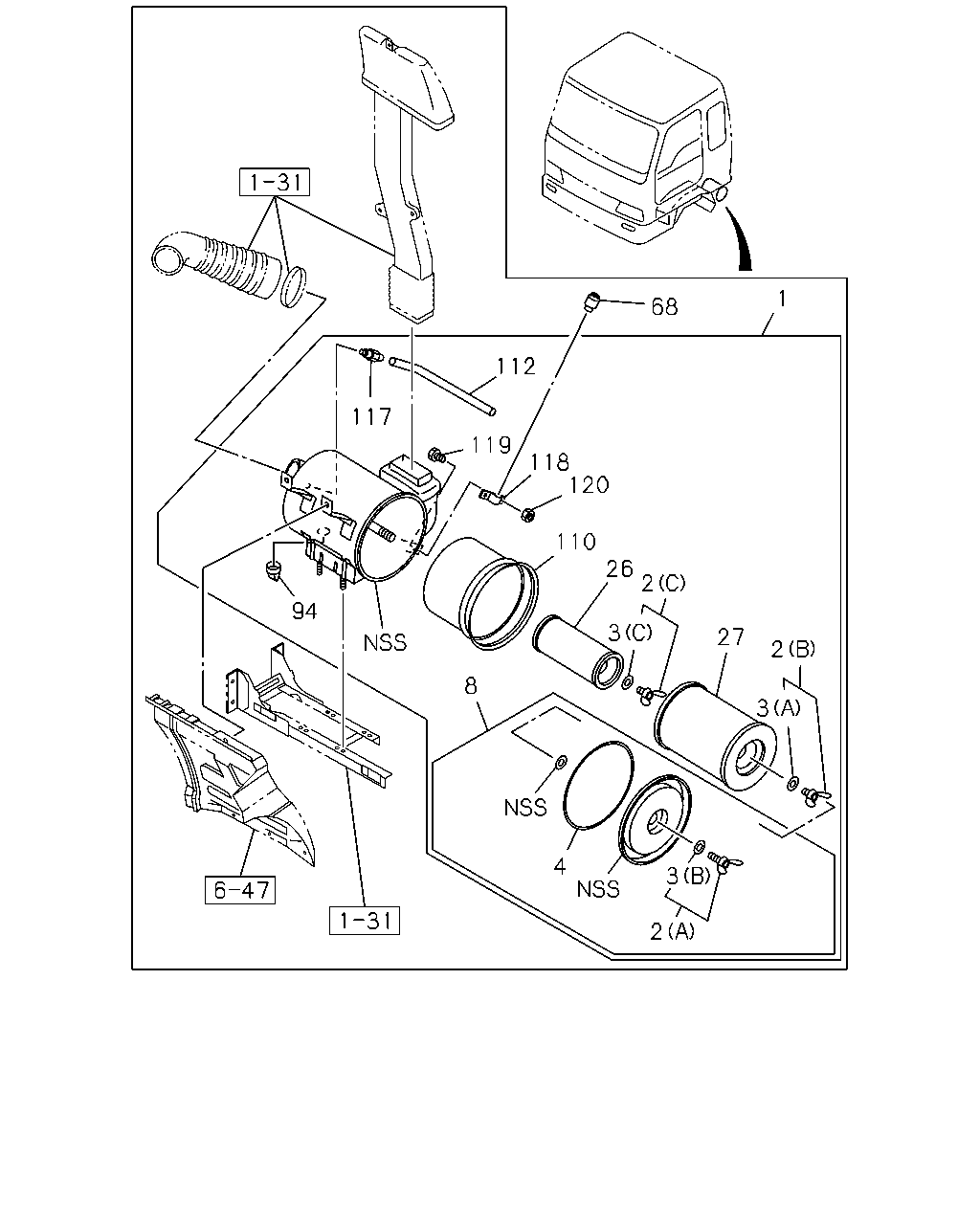

çizim 38445
1 68 112 117 119 118 120 110 26 2 94 3 27 2 8 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
FRR(FR****) 		1-14210-803-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-830-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-777-4 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-835-2 01 1 0211- ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-776-4 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-820-1 01 1 0211- ● ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-790-1 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-860-2 01 1 0211- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) FSR(FS****) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR DOUBLE CAB(FR**W*) (C) 		1-14219-177-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0211- ● ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0211- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211- ● ● ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) FSR(FS****) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR DOUBLE CAB(FR**W*) 		1-14212-092-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) 		1-14219-129-0 01 1 0005-0210 ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FSR(FS****) 		1-14219-279-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-14219-279-0 01 1 0211- ● ● ●
110 ADAPTER; ACL
FRR(FR****) 		1-14219-175-0 01 1 0005-0210 ●
110 ADAPTER; ACL
FRR STD CAB(FR**M*) 		1-14219-175-0 01 1 0211- ● ● ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0211- ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-260-0 01 1 0005-0210 ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-260-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FRR(FR****) 		1-14219-260-0 01 1 0211- ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) FSR(FS****) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0211- ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211- ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211- ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211- ● ● ●

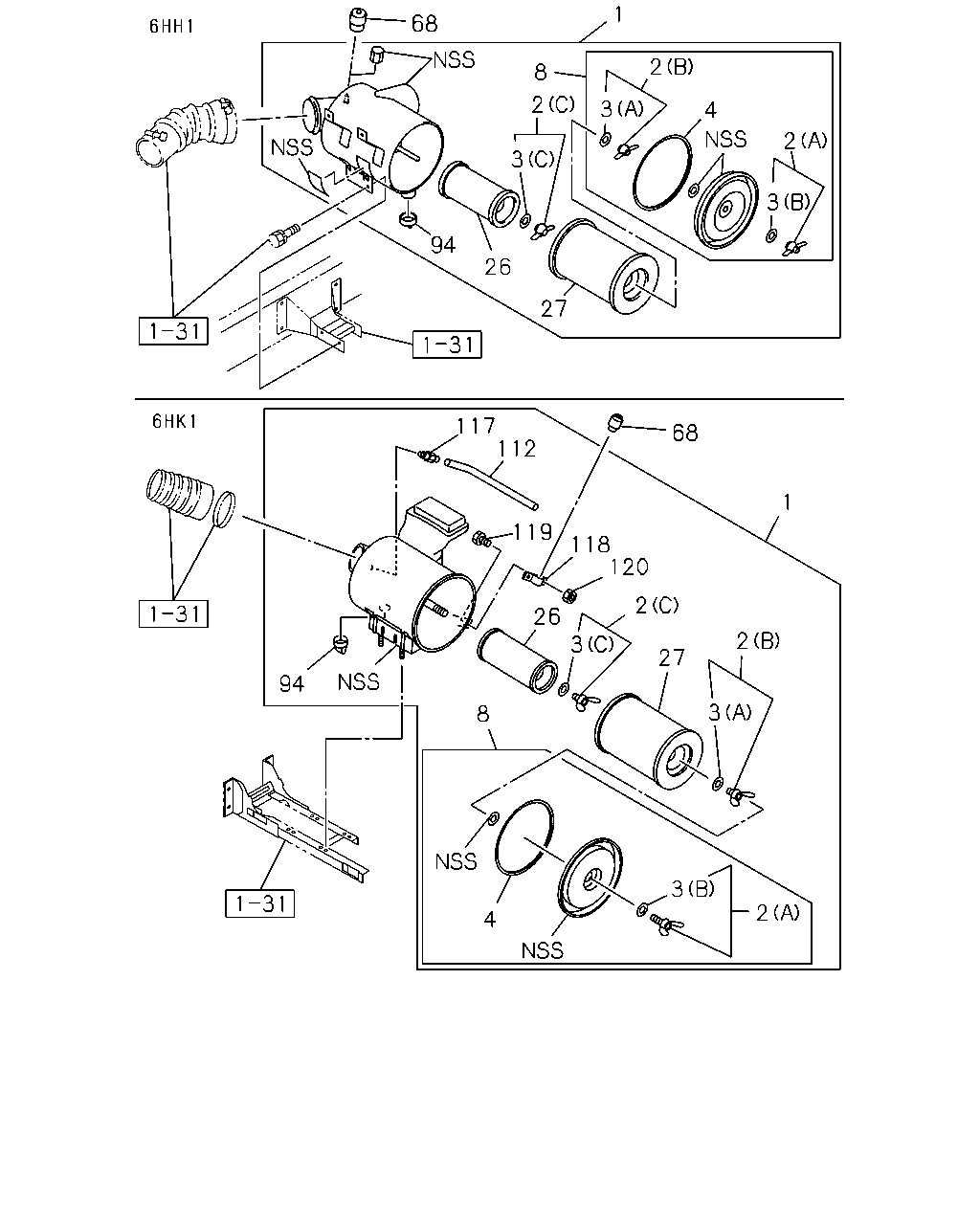

çizim 38446
1 68 2 8 2 3 4 2 3 3 94 26 27 117 112 68 1 119 118 120 26 2 2 3 27 94 3 8 3 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
FRR(FR****) 		1-14210-803-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-830-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-777-4 01 1 0005-0210 ●
1 CLEANER ASM; AIR
FSR(FS****) 		1-14210-835-2 01 1 0211- ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-776-4 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR STD CAB(FR**M*) 		1-14210-820-1 01 1 0211- ● ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-790-1 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR
FRR DOUBLE CAB(FR**W*) 		1-14210-860-2 01 1 0211- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211- ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211- ● ● ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) FSR(FS****) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR STD CAB(FR**M*) (C) 		9-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
FRR DOUBLE CAB(FR**W*) (C) 		1-14219-177-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
FRR(FR****) 		1-14218-128-0 01 1 0211- ● ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY
FSR(FS****) 		1-14219-128-0 01 1 0211- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211- ● ● ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) FSR(FS****) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR STD CAB(FR**M*) 		1-14212-084-0 01 1 0005-0210 ●
8 COVER ASM; ACL
FRR DOUBLE CAB(FR**W*) 		1-14212-092-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211- ● ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) 		1-14219-129-0 01 1 0005-0210 ● ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-129-0 01 1 0211- ● ● ●
94 VALVE; VACUATOR
FSR(FS****) 		1-14219-279-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR STD CAB(FR**M*) 		1-14219-192-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-14219-279-0 01 1 0211- ● ● ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FSR(FS****) 		1-14219-269-0 01 1 0211- ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-260-0 01 1 0005-0210 ● ●
112 HOSE; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-260-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
FRR(FR****) 		1-14219-260-0 01 1 0211- ● ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) FSR(FS****) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE
FRR STD CAB(FR**M*) 		1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0211- ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) FSR(FS****) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR
FRR STD CAB(FR**M*) 		1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211- ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211- ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) FSR(FS****) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
FRR STD CAB(FR**M*) M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
