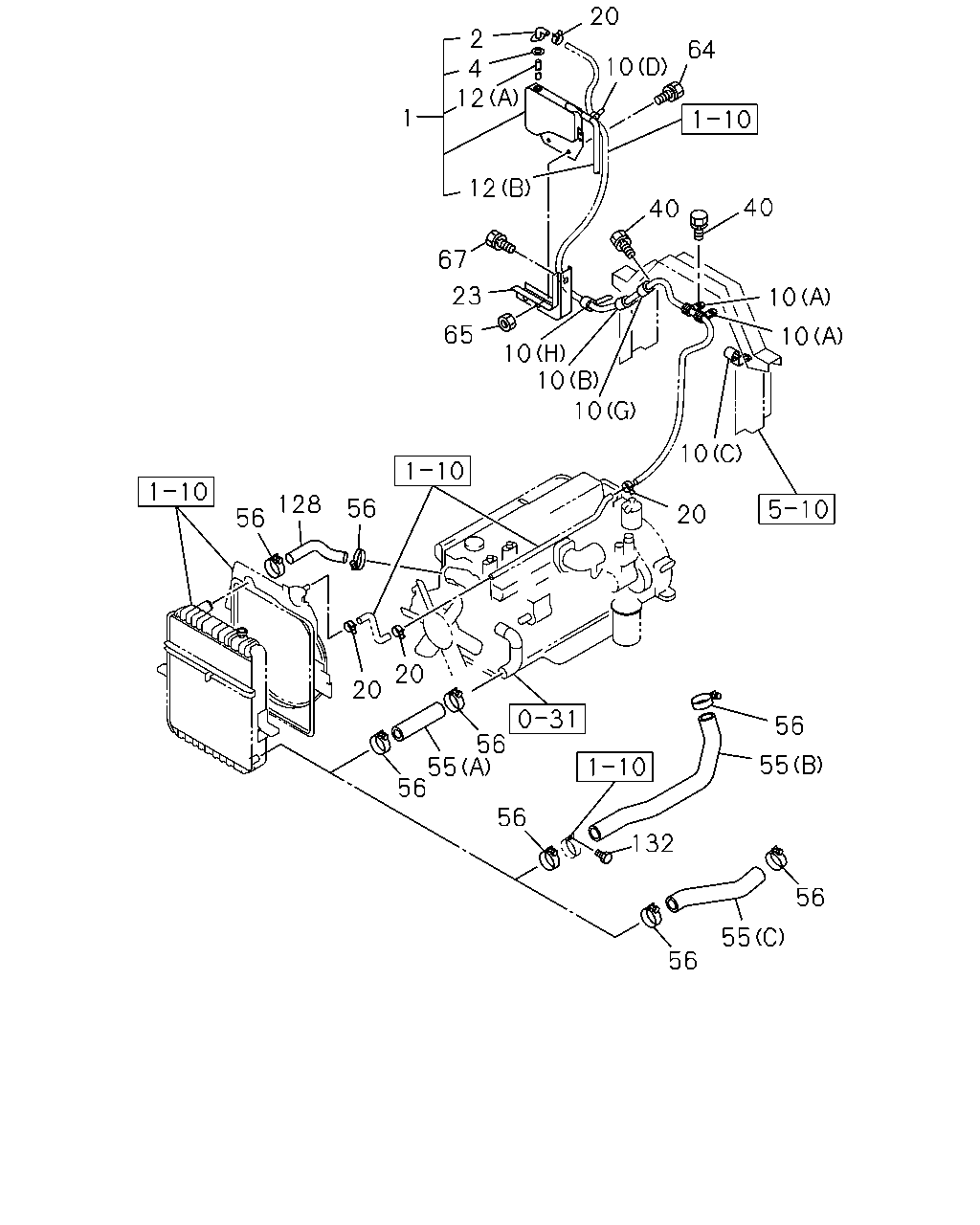

1-11 — RADIATOR HOSE AND SUB TANK (#9325) — 116 parça

20 2 4 12 64 10 1 12 67 23 65 10 10 10 10 10 10 10 10 40 128 56 20 56 20 56 20 55 56 55 56 56 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-104-0	01	1	0005-0210	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0211-				●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0210	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0211-				●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0210	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0005-0008	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (G) ID=12 L=70	1-09700-097-1	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (G) ID=12 L=70	1-09700-097-1	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (A) ID=14.5 L=40	1-09701-014-0	02	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (D) L=140	5-09707-031-1	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (D) L=140	5-09707-031-1	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (B) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (B) ID=13 L=20	9-09525-235-0	01	1	0211-0606				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (B) ID=13 L=20	0-95235-235-0	01	1	0607-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (H) ID=14 L=44	9-09917-427-0	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (H) ID=14 L=44	9-09917-427-0	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (E) ID=13 L=50	1-09700-027-1	01	1	0005-0210		●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (E) ID=13 L=50	1-09700-027-1	01	1	0211-					●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0008		●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) EURO2 SPECIFICATION<THN> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0210	●	●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0210		●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (F) ID=13 L=40	9-09525-276-0	01	1	0005-0210		●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (A) ID=14.5 L=40	1-09701-014-0	03	1	0211-					●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (D) L=140	5-09707-031-1	03	1	0211-					●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0210	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0211-				●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0210	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0211-				●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0210	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0211-				●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0210	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0211-				●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0211-0512				●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-				●	●	●
40	BOLT; CLIP FRR STD CAB(FR*M) FSR(FS****) M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●	●
40	BOLT; CLIP FRR DOUBLE CAB(FR*W) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●
55	HOSE; WATER,RAD OUTLET (C)	1-21437-869-1	01	1	0307-				●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0005-0210	●	●	●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-758-1	01	1	0211-					●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-0210	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0211-				●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0211-0707				●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-				●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0211-0602				●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-				●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0210	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0211-0512				●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-				●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0210	●	●	●
128	HOSE; WATER,RAD INL	1-21437-756-0	01	1	0211-				●	●	●
132	BOLT; CLIP,WATER HOSE,OUTLET M8X30 FLANGE	0-28680-830-0	01	1	0211-0512					●	●
132	BOLT; CLIP,WATER HOSE,OUTLET M8X30 FLANGE	0-28650-830-0	01	1	0601-					●	●

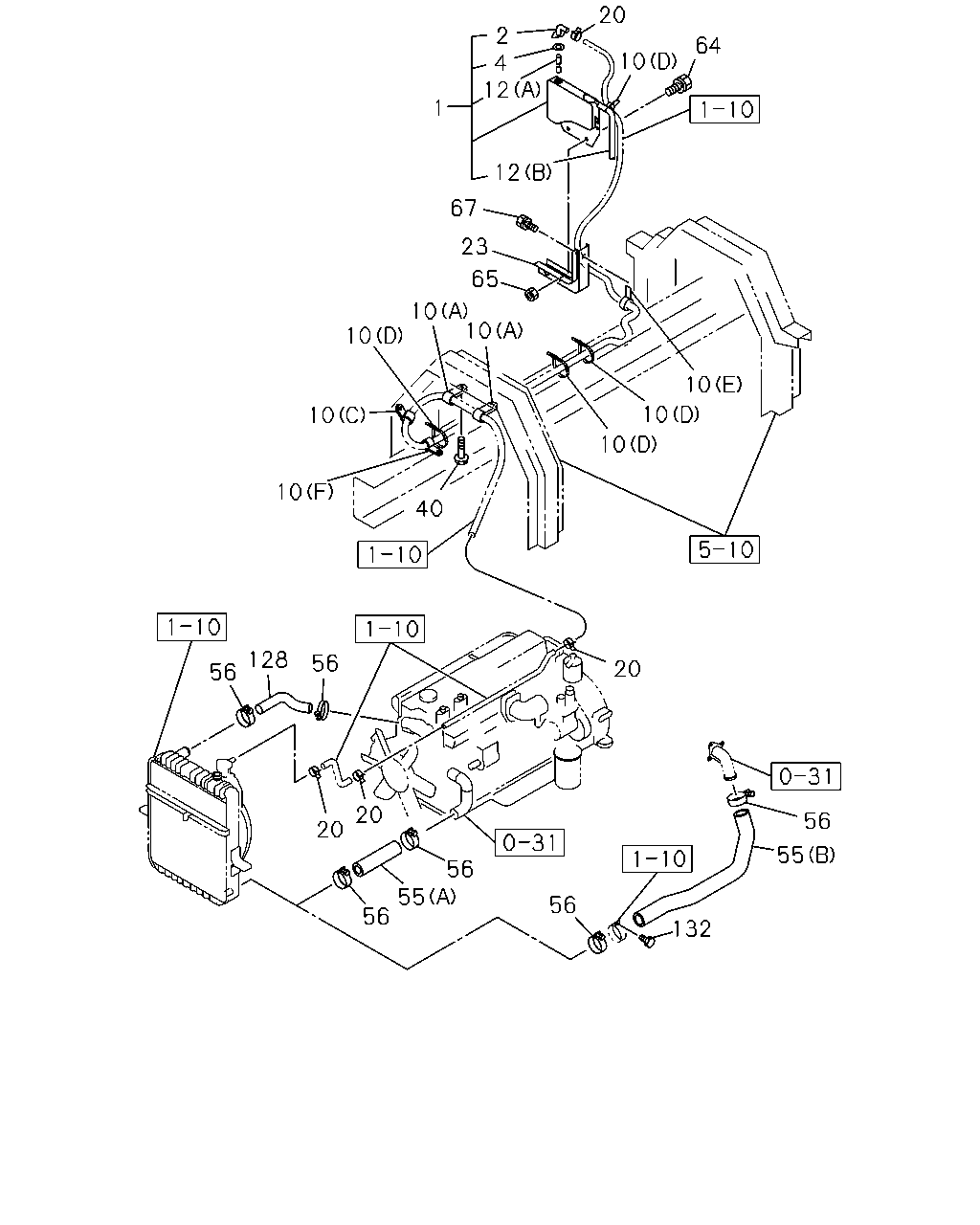

20 2 4 12 64 10 1 12 40 40 67 23 10 65 10 10 10 10 10 128 56 20 56 20 20 56 56 55 56 55 56 132 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-104-0	01	1	0005-0210	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0211-				●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0210	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0211-				●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0210	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0005-0008	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (G) ID=12 L=70	1-09700-097-1	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (G) ID=12 L=70	1-09700-097-1	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (A) ID=14.5 L=40	1-09701-014-0	02	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (D) L=140	5-09707-031-1	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (D) L=140	5-09707-031-1	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (B) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (B) ID=13 L=20	9-09525-235-0	01	1	0211-0606				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (B) ID=13 L=20	0-95235-235-0	01	1	0607-				●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (H) ID=14 L=44	9-09917-427-0	01	1	0005-0210	●	●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) (H) ID=14 L=44	9-09917-427-0	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (E) ID=13 L=50	1-09700-027-1	01	1	0005-0210		●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (E) ID=13 L=50	1-09700-027-1	01	1	0211-					●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0008		●	●
10	CLIP; RUBBER HOSE FRR STD CAB(FR*M) FSR(FS****) EURO2 SPECIFICATION<THN> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0210	●	●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0210		●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0211-				●	●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (F) ID=13 L=40	9-09525-276-0	01	1	0005-0210		●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (A) ID=14.5 L=40	1-09701-014-0	03	1	0211-					●	●
10	CLIP; RUBBER HOSE FRR DOUBLE CAB(FR*W) (D) L=140	5-09707-031-1	03	1	0211-					●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0210	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0211-				●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0210	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0211-				●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0210	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0211-				●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0210	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0211-				●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0211-0512				●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-				●	●	●
40	BOLT; CLIP FRR STD CAB(FR*M) FSR(FS****) M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●	●
40	BOLT; CLIP FRR DOUBLE CAB(FR*W) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●	●
55	HOSE; WATER,RAD OUTLET (C)	1-21437-869-1	01	1	0307-				●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0005-0210	●	●	●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-758-1	01	1	0211-					●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-0210	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0211-				●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0211-0707				●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-				●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0211-0602				●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-				●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0210	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0211-0512				●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-				●	●	●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0210	●	●	●
128	HOSE; WATER,RAD INL	1-21437-756-0	01	1	0211-				●	●	●
132	BOLT; CLIP,WATER HOSE,OUTLET M8X30 FLANGE	0-28680-830-0	01	1	0211-0512					●	●
132	BOLT; CLIP,WATER HOSE,OUTLET M8X30 FLANGE	0-28650-830-0	01	1	0601-					●	●
