◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#9324) — 241 parça

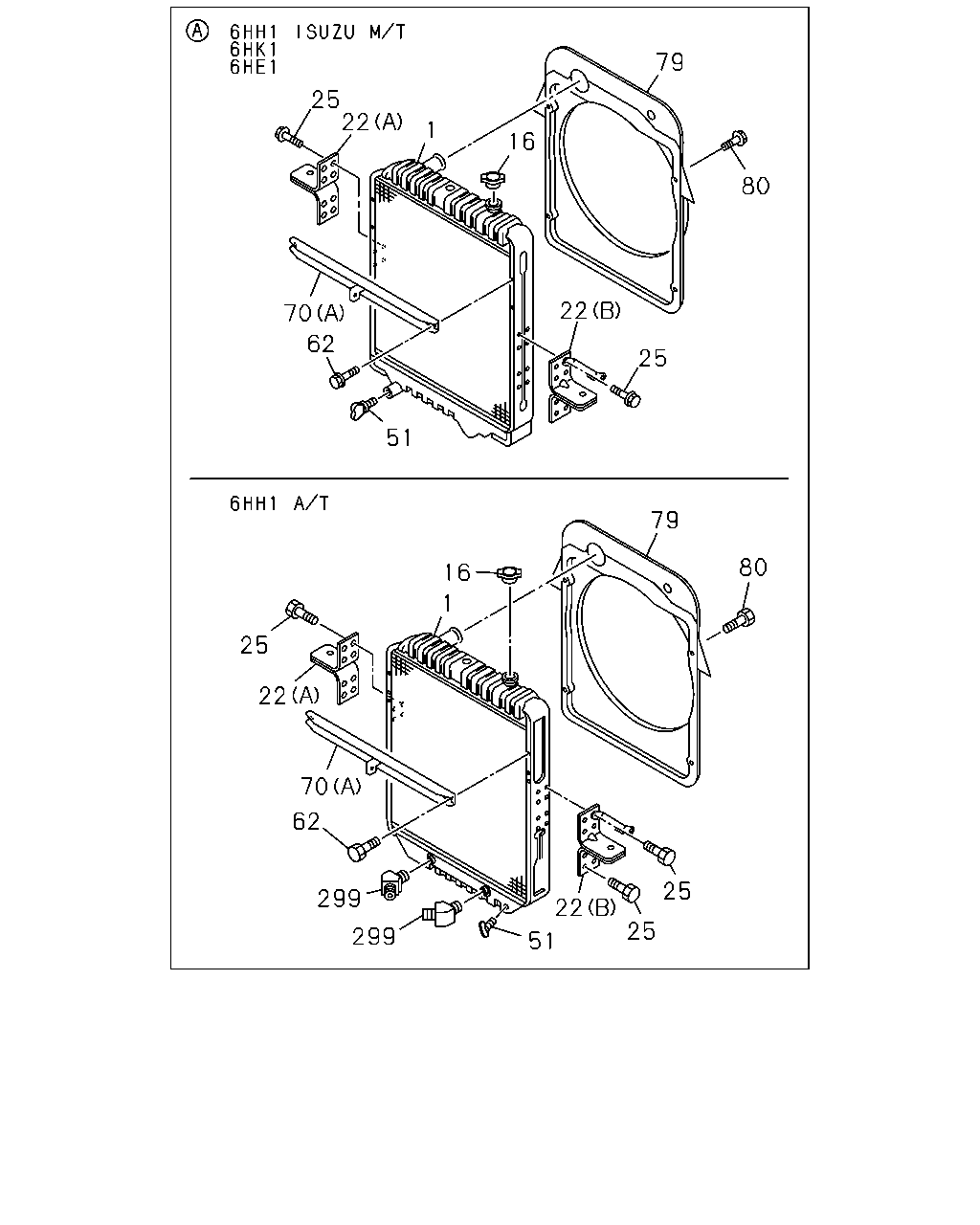

çizim 38003
79 25 22 1 16 80 22 70 62 25 51 79 80 16 1 25 22 70 62 25 299 22 25 299 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM 1-21410-895-0 01 1 0312- ●
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0210 ● ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-675-1 01 1 0005-0210 ●
1 RADIATOR ASM 1-21410-886-0 01 1 0211-0306 ●
1 RADIATOR ASM 1-21410-886-0 01 1 0307-0311 ● ●
1 RADIATOR ASM 1-21410-886-0 01 1 0312- ●
1 RADIATOR ASM
A/T<X9D> 		1-21410-689-2 01 1 0005-0210 ●
1 RADIATOR ASM
A/T<X9D> 		1-21410-864-1 01 1 0211- ●
1 RADIATOR ASM
EXC. A/T<X9D> 		1-21410-863-0 01 1 0211- ●
16 CAP; RAD 1-21450-053-1 01 1 0005-0210 ● ● ●
16 CAP; RAD 1-21450-097-2 01 1 0211-0306 ● ●
16 CAP; RAD 1-21450-097-2 01 1 0307- ● ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-646-0 01 1 0211-0306 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-646-0 01 1 0307- ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0005-0210 ● ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-654-0 01 1 0211-0306 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-654-0 01 1 0307- ● ● ●
22 BRACKET; RAD MTG
FRR STD CAB(FRR***) FSR(FS****) (B) 		1-21464-544-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
FRR STD CAB(FRR***) (B) 		1-21464-544-0 01 1 0005-0210 ●
25 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ●
25 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005-0210 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 16 1 0211-0306 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 16 1 0307- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
25 BOLT; BRKT
EXC. A/T<X9D> M8X16 FLANGE 		0-28080-816-0 01 1 0211- ●
25 BOLT; BRKT
A/T<X9D> M8X12 FLANGE 		0-28080-812-0 18 1 0211- ●
25 BOLT; BRKT
EXC. A/T<X9D> M8X12 FLANGE 		0-28080-812-0 15 1 0211- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0210 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0211-0306 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0307- ● ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0210 ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0210 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ● ● ●
79 GUIDE; FAN,RAD 1-21551-374-1 01 1 0005-0210 ● ● ●
79 GUIDE; FAN,RAD 1-21551-471-0 01 1 0211-0306 ●
79 GUIDE; FAN,RAD
EXC. A/T<X9D> 		1-21551-471-0 01 1 0211-0306 ●
79 GUIDE; FAN,RAD 1-21551-471-1 01 1 0307- ● ●
79 GUIDE; FAN,RAD
EXC. A/T<X9D> 		1-21551-471-1 01 1 0307- ●
79 GUIDE; FAN,RAD
A/T<X9D> 		1-21551-458-0 01 1 0211- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0210 ● ● ●
80 BOLT; FAN GUIDE
FRR STD CAB(FRR***) FSR(FS****) M6X10 FLANGE 		0-28080-610-0 06 1 0211-0306 ●
80 BOLT; FAN GUIDE
FRR STD CAB(FRR*M*) A/T<X9D> M6X10 FLANGE 		0-28080-610-0 06 1 0211-0306 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 06 1 0307- ● ●
80 BOLT; FAN GUIDE
A/T<X9D> M6X10 FLANGE 		0-28080-610-0 06 1 0307- ●
80 BOLT; FAN GUIDE
EXC. A/T<X9D> M6X10 FLANGE 		0-28080-610-0 04 1 0211- ●
299 NIPPLE; RAD
A/T<X9D> 		1-09660-646-0 02 1 0005-0203 ●

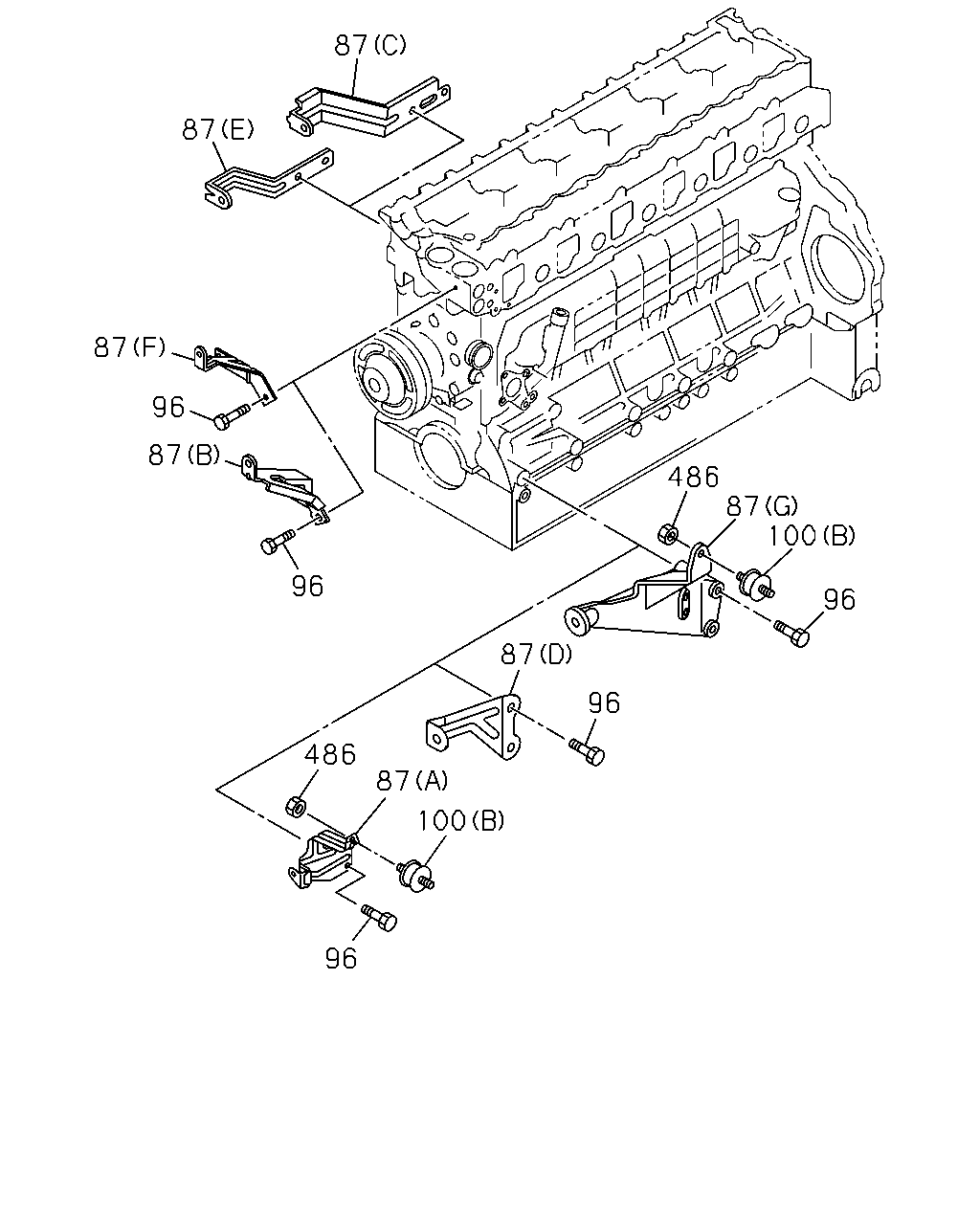

çizim 38383
87 87 87 96 87 486 87 100 96 96 87 96 486 87 100 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 STAY; FAN GUIDE
(B) 		8-94393-776-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-0 01 1 0211-0306 ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0307- ● ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-777-1 01 1 0005-0012 ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0101-0210 ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0211-0306 ● ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0307- ● ● ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0005-0210 ●
87 STAY; FAN GUIDE
ENGINE REAR PTO(SV1) (A) 		8-94393-778-2 01 1 0211-0306 ●
87 STAY; FAN GUIDE
ENGINE REAR PTO(SV1) (A) 		8-94393-778-2 01 1 0307-0401 ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0307-0401 ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0402-0402 ● ● ●
87 STAY; FAN GUIDE
ENGINE REAR PTO(SV1) (A) 		8-94393-778-2 01 1 0403-0407 ●
87 STAY; FAN GUIDE
ENGINE REAR PTO(SV1) (A) 		8-94393-778-2 01 1 0408- ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0408- ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0005-0210 ● ●
87 STAY; FAN GUIDE
EXC. ENGINE REAR PTO(SV1) (G) 		8-94391-022-1 01 1 0211-0402 ● ●
87 STAY; FAN GUIDE
EXC. ENGINE REAR PTO(SV1) (G) 		8-94391-022-1 01 1 0403-0407 ● ● ●
87 STAY; FAN GUIDE
EXC. ENGINE REAR PTO(SV1) (G) 		8-94391-022-1 01 1 0408- ● ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0005-0210 ● ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0005-0210 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0210 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0211-0306 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0307-0512 ● ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ● ●
96 BOLT; STAY FIX
EXC. ENGINE REAR PTO(SV1) M10X45 FLANGE 		0-28181-045-0 01 1 0211-0512 ● ●
96 BOLT; STAY FIX
EXC. ENGINE REAR PTO(SV1) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ● ●
96 BOLT; STAY FIX
EXC. ENGINE REAR PTO(SV1) M10X75 FLANGE 		8-94399-669-1 01 1 0211- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94394-268-1 01 1 0211-0306 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0211-0306 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0307-0910 ● ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
486 NUT; MTG RUBBER
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 01 1 0211-0306 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0211-0306 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0307-0602 ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●

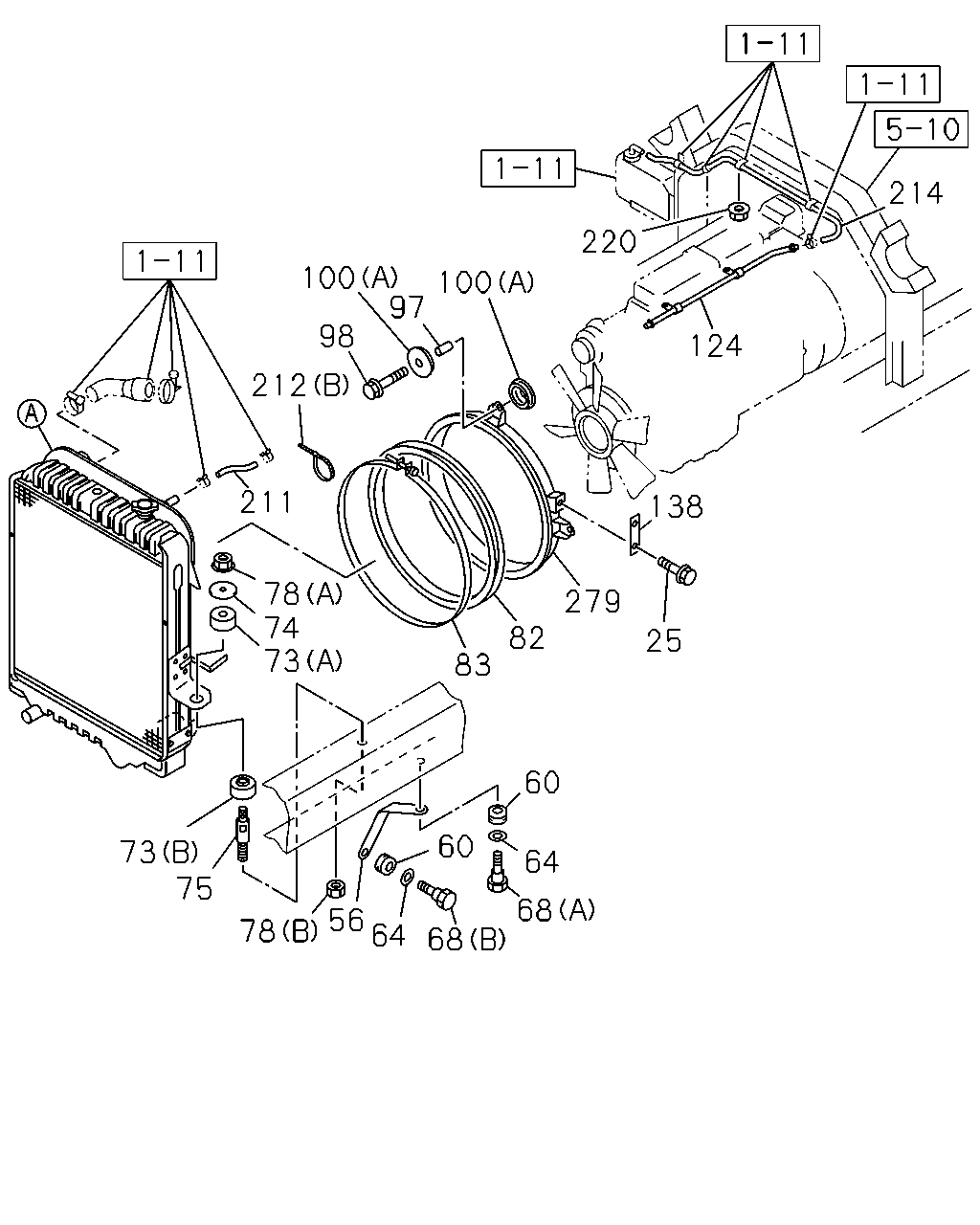

çizim 38403
214 220 100 97 100 98 124 212 211 138 78 74 73 279 82 25 83 60 60 73 75 64 68 68 56 78 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ●
25 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005-0210 ● ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 16 1 0211-0306 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 16 1 0307- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
25 BOLT; BRKT
EXC. A/T<X9D> M8X16 FLANGE 		0-28080-816-0 01 1 0211- ●
25 BOLT; BRKT
A/T<X9D> M8X12 FLANGE 		0-28080-812-0 18 1 0211- ●
25 BOLT; BRKT
EXC. A/T<X9D> M8X12 FLANGE 		0-28080-812-0 15 1 0211- ●
56 STAY; RAD 1-21464-570-0 01 1 0211- ● ● ●
56 STAY; RAD 1-21464-569-0 01 1 0211- ● ● ●
60 GROMMET 1-09332-117-0 04 1 0211- ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0210 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0211-0605 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ● ●
68 BOLT; STAY TO BRKT
(A) M8X30 		1-09009-020-1 02 1 0211- ● ● ●
68 BOLT; STAY TO BRKT
(B) M8X22 		1-09009-123-0 02 1 0211- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0210 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0211- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0211- ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0211- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0211- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0211- ● ● ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0005-0210 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0211- ● ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005-0210 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0211- ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0211- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94394-268-1 01 1 0211-0306 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0211-0306 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0307-0910 ● ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-97601-482-0 01 1 0307- ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0005-0210 ●
124 PIPE; WATER,TANK TO RAD 8-97602-556-1 01 1 0211- ● ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 0005-0210 ● ●
138 BRACKET; CLIP 1-47476-881-0 01 1 0307- ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0307- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ● ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
212 CLIP; HOSE
(B) L=250 		5-09707-030-1 01 1 0307- ●
212 CLIP; HOSE
(A) ID=13 & 21 		8-94417-626-0 01 1 0211- ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0307- ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) FSR(FS****) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) FSR(FS****) L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FR**M*) FSR(FS****) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR DOUBLE CAB(FR**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR DOUBLE CAB(FR**W*) L=1800 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR DOUBLE CAB(FR**W*) L=2100 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
220 NUT; CLIP
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
220 NUT; CLIP
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0211-0602 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ● ●
220 NUT; CLIP
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
279 BELL MOUTH 8-97601-172-1 01 1 0307- ●
279 BELL MOUTH 8-97601-300-0 01 1 0005-0210 ●
279 BELL MOUTH 8-94394-808-2 01 1 0005-0210 ● ●
279 BELL MOUTH 8-94393-779-1 01 1 0211- ● ●

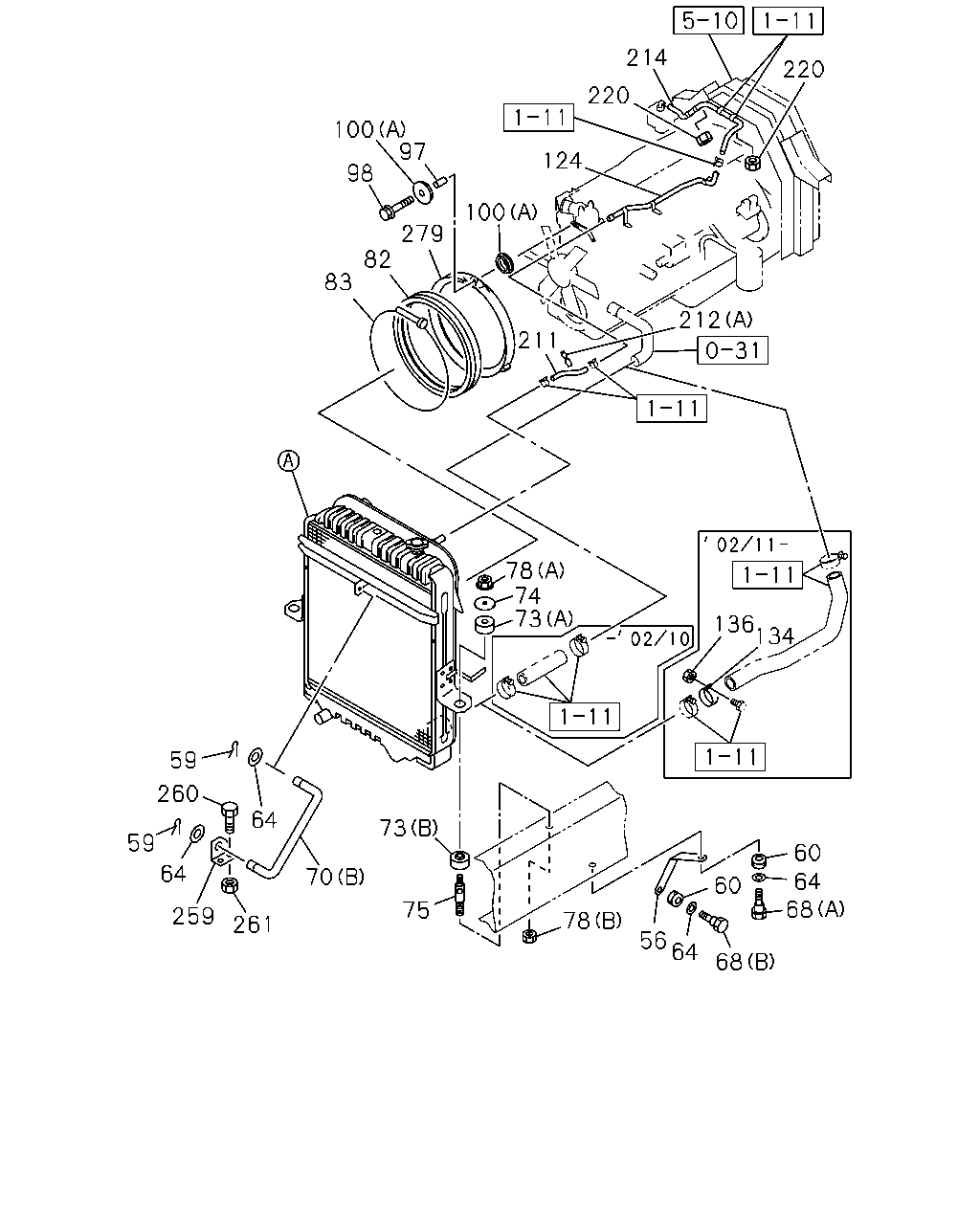

çizim 99793
214 220 220 100 97 124 98 100 279 82 83 212 211 78 74 73 136 134 59 260 64 73 59 60 64 70 64 68 60 78 75 259 261 56 64 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
56 STAY; RAD 1-21464-570-0 01 1 0211- ● ● ●
56 STAY; RAD 1-21464-569-0 01 1 0211- ● ● ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005-0210 ● ● ●
60 GROMMET 1-09332-117-0 04 1 0211- ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0210 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0211-0605 ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ● ●
68 BOLT; STAY TO BRKT
(A) M8X30 		1-09009-020-1 02 1 0211- ● ● ●
68 BOLT; STAY TO BRKT
(B) M8X22 		1-09009-123-0 02 1 0211- ● ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0210 ● ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0210 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0211- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0211- ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0211- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0211- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0211- ● ● ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0005-0210 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0211- ● ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005-0210 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0211- ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0211- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
EXC. ENGINE REAR PTO(SV1) (B) 		8-94394-268-1 01 1 0211-0306 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0211-0306 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0307-0910 ● ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-97601-482-0 01 1 0307- ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0005-0210 ●
124 PIPE; WATER,TANK TO RAD 8-97602-556-1 01 1 0211- ● ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 0005-0210 ● ●
134 CLIP; OUTLET PIPE,RAD 1-09700-842-1 01 1 0211- ● ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0307- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ● ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
212 CLIP; HOSE
(B) L=250 		5-09707-030-1 01 1 0307- ●
212 CLIP; HOSE
(A) ID=13 & 21 		8-94417-626-0 01 1 0211- ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0307- ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) FSR(FS****) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) FSR(FS****) L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FRR*M*) L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
FRR STD CAB(FR**M*) FSR(FS****) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR DOUBLE CAB(FR**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR DOUBLE CAB(FR**W*) L=1800 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ●
214 HOSE; PIPE TO RESERVE TANK
FRR DOUBLE CAB(FR**W*) L=2100 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
220 NUT; CLIP
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
220 NUT; CLIP
FRR DOUBLE CAB(FR**W*) M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0211-0602 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ● ●
220 NUT; CLIP
FRR STD CAB(FR**M*) FSR(FS****) M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0005-0210 ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
279 BELL MOUTH 8-97601-172-1 01 1 0307- ●
279 BELL MOUTH 8-97601-300-0 01 1 0005-0210 ●
279 BELL MOUTH 8-94394-808-2 01 1 0005-0210 ● ●
279 BELL MOUTH 8-94393-779-1 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
