Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#9323) — 307 parça

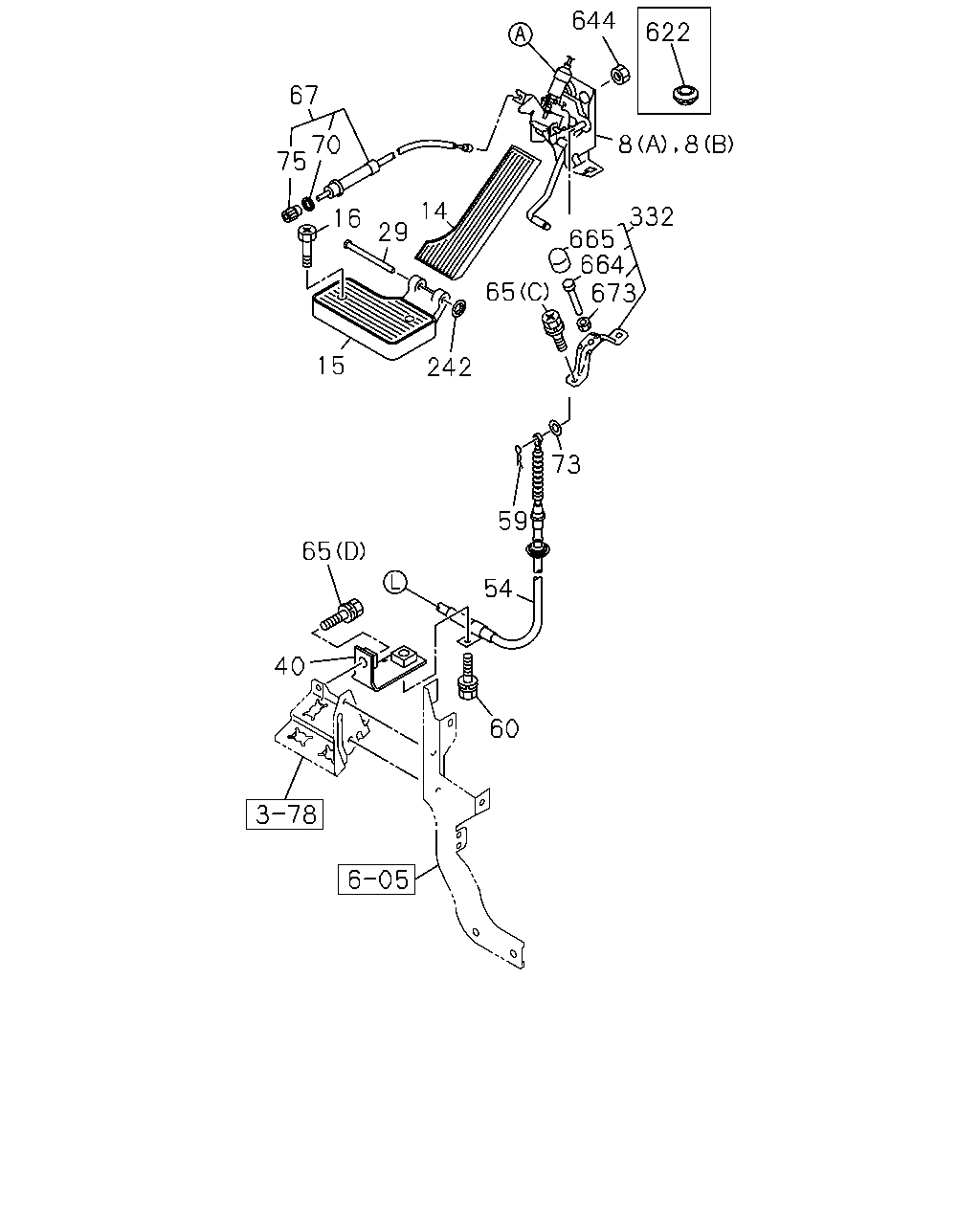

644 622 67 8 8 70 75 14 332 16 29 665 664 673 65 15 242 73 59 65 54 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	LINK ASM; ENG CONT (B)	1-73996-545-3	01	1	0307-	●
8	LINK ASM; ENG CONT EURO2 SPECIFICATION<THN> (A)	1-73996-206-6	01	1	0005-0210		●
8	LINK ASM; ENG CONT (A)	1-73996-532-0	01	1	0211-0306	●		●	●
8	LINK ASM; ENG CONT (A)	1-73996-532-0	01	1	0307-			●	●
8	LINK ASM; ENG CONT EXC. EURO2 SPECIFICATION<THN> (B)	1-73996-276-2	01	1	0005-0210		●
8	LINK ASM; ENG CONT (B)	1-73996-276-2	01	1	0005-0210					●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0005-0210		●			●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0211-	●		●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	0005-0210		●			●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0211-	●		●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0005-0210		●			●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0211-	●		●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0005-0210		●			●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0211-	●		●	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	0307-	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	0005-0210		●			●	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0307-	●
54	CABLE; ENG CONT L=2996.5	1-73996-348-3	01	1	0005-0210		●
54	CABLE; ENG CONT FRR STD CAB(FRR*) FSR(FS**) L=2939	1-73998-940-6	01	1	0005-0210					●
54	CABLE; ENG CONT FRR STD CAB(FRR***) L=2939	1-73998-940-6	01	1	0005-0210						●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0005-0210		●			●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0210		●			●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0307-0904	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0307-0512				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210		●			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●		●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0210		●			●	●
65	BOLT AT545 A/T ALLISON(MD1) (E) M6X25 W/LK WASHER	0-50040-625-0	02	1	0005-0210						●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0005-0204		●			●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-0210		●			●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0005-0210		●			●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0210		●			●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0005-0109		●			●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204		●			●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-0210		●			●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0005-0210		●			●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0211-	●		●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0005-0210		●			●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0211-0212			●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0301-	●		●	●
622	GROMMET; ACCEL CONT CABLE OD=30	8-94107-655-0	01	1	0211-			●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0005-0210		●			●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0211-	●		●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0005-0210		●			●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0211-	●		●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0005-0210		●			●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0211-0212			●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0005-0210		●			●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0211-0512	●		●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●		●	●

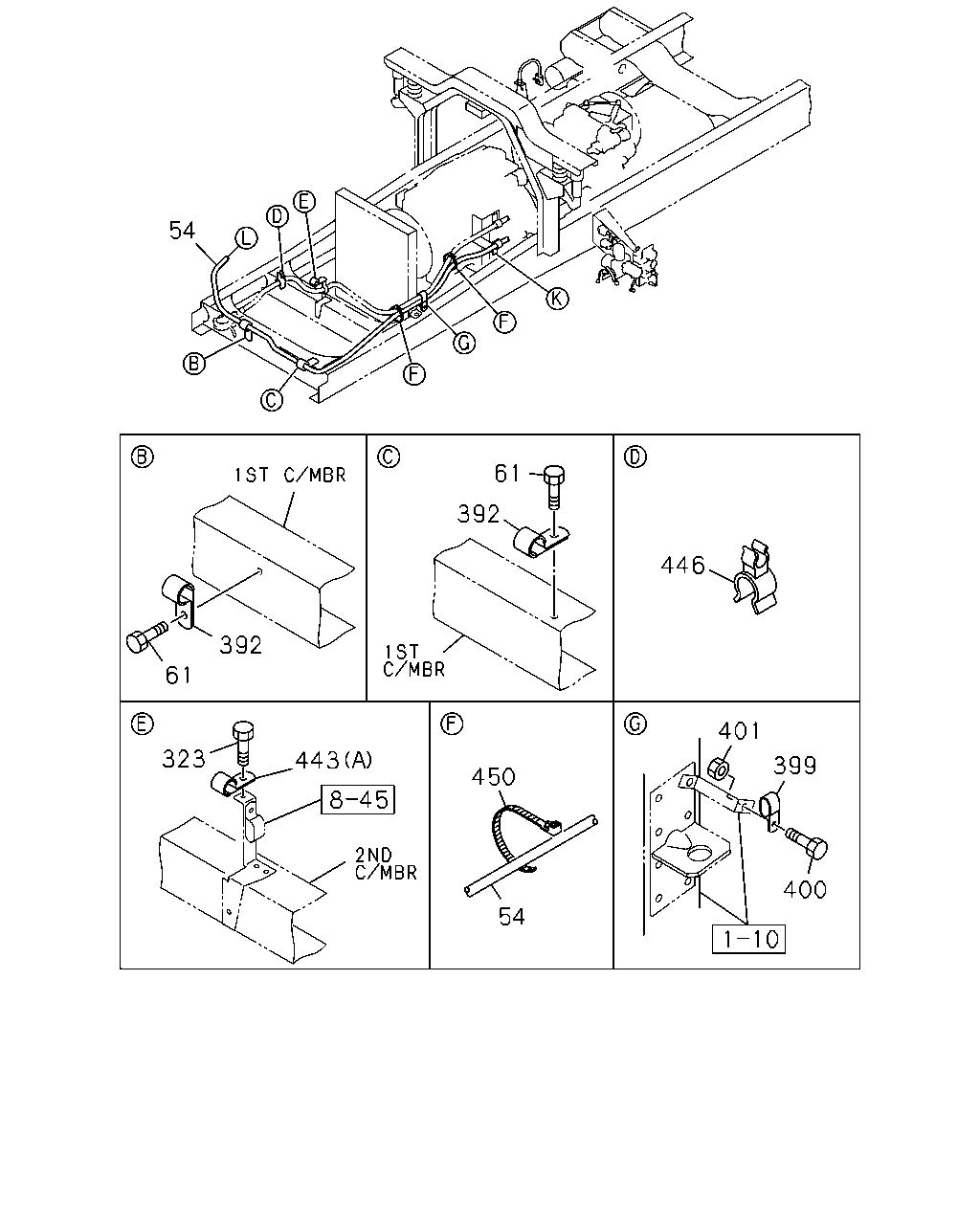

54 61 392 446 392 61 401 323 443 399 450 400 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0307-	●
54	CABLE; ENG CONT L=2996.5	1-73996-348-3	01	1	0005-0210		●
54	CABLE; ENG CONT FRR STD CAB(FRR*) FSR(FS**) L=2939	1-73998-940-6	01	1	0005-0210			●
54	CABLE; ENG CONT FRR STD CAB(FRR***) L=2939	1-73998-940-6	01	1	0005-0210				●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0307-0512	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	02	1	0005-0210		●	●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0005-0210		●	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	0005-0210		●	●	●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	0307-0606	●
443	CLIP; CABLE (A) ID=7 L=20	0-95234-635-0	01	1	0607-	●
443	CLIP; CABLE (B) ID=13 L=32	9-09525-265-0	02	1	0307-0606	●
443	CLIP; CABLE (B) ID=13 L=32	0-95235-265-0	02	1	0607-	●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	0005-0210		●	●	●
446	CLIP; ENG CONT ID=6.8X11.8	1-09709-127-0	01	1	0005-0210		●	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	0005-0210		●	●	●

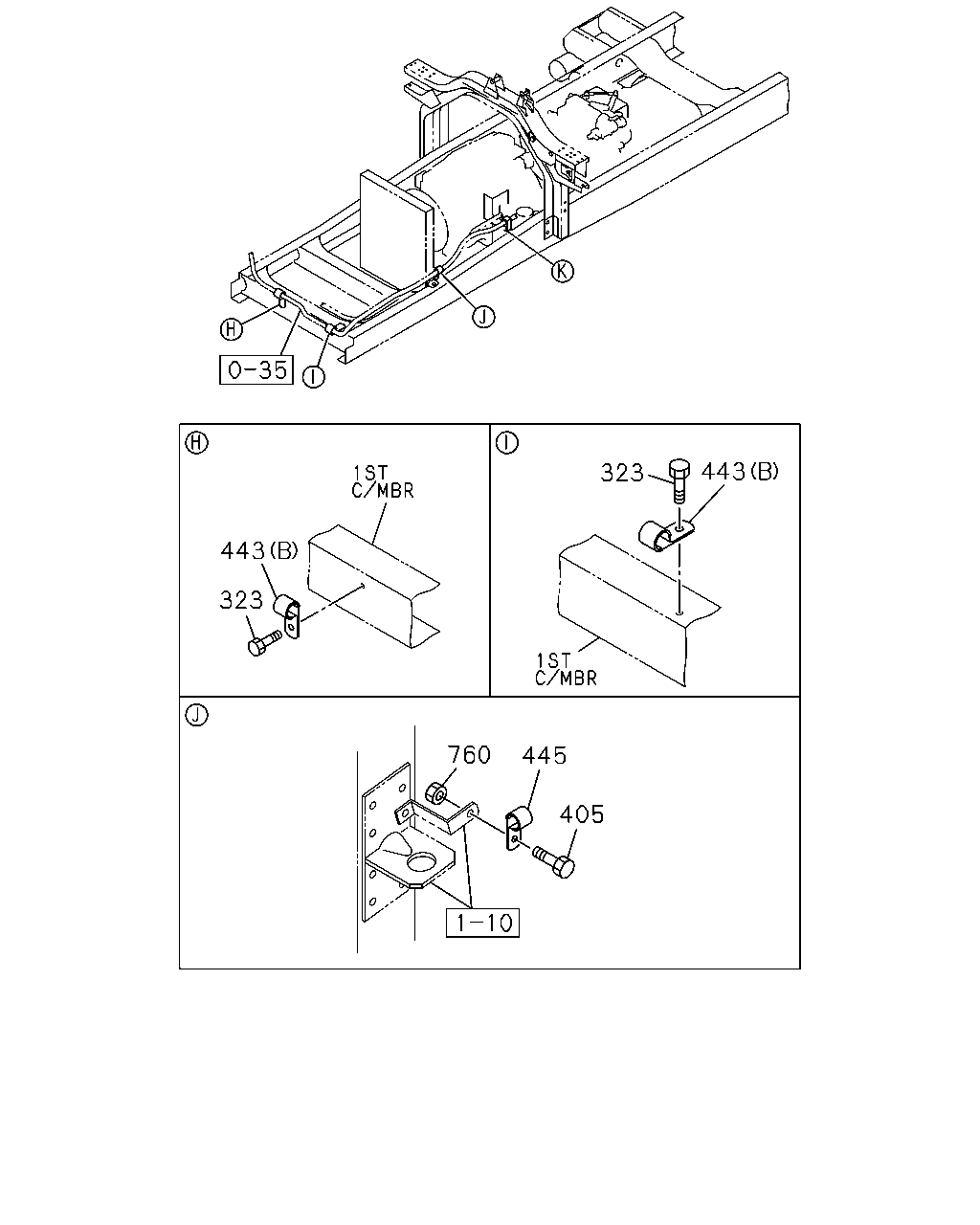

443 323 443 323 760 445 405

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0307-0512	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0307-0512	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	0307-0606	●
443	CLIP; CABLE (A) ID=7 L=20	0-95234-635-0	01	1	0607-	●
443	CLIP; CABLE (B) ID=13 L=32	9-09525-265-0	02	1	0307-0606	●
443	CLIP; CABLE (B) ID=13 L=32	0-95235-265-0	02	1	0607-	●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	0005-0210		●	●	●
445	CLIP; RAD ID=7 L=20	9-09524-635-0	01	1	0307-0606	●
445	CLIP; RAD ID=7 L=20	0-95234-635-0	01	1	0607-	●
760	NUT; CLIP,BRKT M8 FLANGE	0-91150-108-0	01	1	0307-0602	●
760	NUT; CLIP,BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●

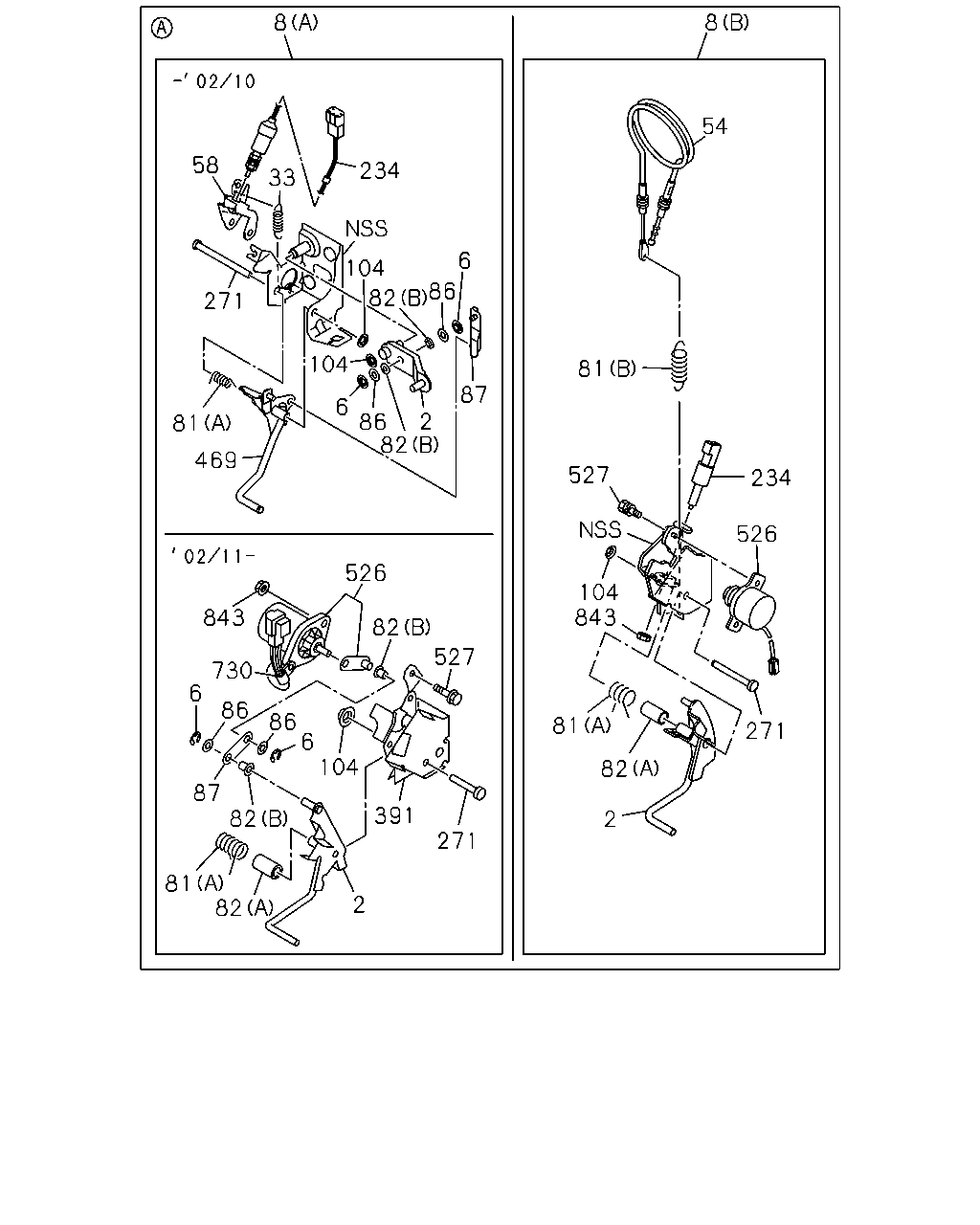

8 8 54 58 234 33 6 104 86 82 271 104 81 87 6 82 81 469 527 234 526 526 104 843 843 82 527 730 6 86 6 104 86 81 271 82 87 82 391 2 271 81 82 2 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	LEVER; ENG CONT	1-71907-500-2	01	1	0307-	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0005-0210		●			●	●
2	LEVER; ENG CONT	1-71907-535-1	01	1	0211-0306	●		●	●
2	LEVER; ENG CONT	1-71907-535-1	01	1	0307-			●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0005-0210		●			●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0211-0306	●		●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0307-0604			●	●
6	RING; SNAP,LINK TO LINK ID=4	0-91805-504-0	02	1	0605-			●	●
8	LINK ASM; ENG CONT (B)	1-73996-545-3	01	1	0307-	●
8	LINK ASM; ENG CONT EURO2 SPECIFICATION<THN> (A)	1-73996-206-6	01	1	0005-0210		●
8	LINK ASM; ENG CONT (A)	1-73996-532-0	01	1	0211-0306	●		●	●
8	LINK ASM; ENG CONT (A)	1-73996-532-0	01	1	0307-			●	●
8	LINK ASM; ENG CONT EXC. EURO2 SPECIFICATION<THN> (B)	1-73996-276-2	01	1	0005-0210		●
8	LINK ASM; ENG CONT (B)	1-73996-276-2	01	1	0005-0210					●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0005-0210		●			●	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0307-	●
54	CABLE; ENG CONT L=2996.5	1-73996-348-3	01	1	0005-0210		●
54	CABLE; ENG CONT FRR STD CAB(FRR*) FSR(FS**) L=2939	1-73998-940-6	01	1	0005-0210					●
54	CABLE; ENG CONT FRR STD CAB(FRR***) L=2939	1-73998-940-6	01	1	0005-0210						●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0005-0210		●			●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0307-	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0005-0210		●			●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0211-	●		●	●
82	BUSHING; ENG CONT LVR (B)	1-71907-244-1	02	1	0005-0210		●			●	●
82	BUSHING; ENG CONT LVR (B)	1-71907-244-1	02	1	0211-0306	●		●	●
82	BUSHING; ENG CONT LVR (B)	1-71907-244-1	02	1	0307-			●	●
82	BUSHING; ENG CONT LVR (A) L=31.5	1-53459-627-0	01	1	0211-	●		●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0005-0210		●			●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0211-0306	●		●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0307-			●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0005-0210		●			●	●
87	LINK; ENG CONT	8-97865-545-0	01	1	0211-0306	●		●	●
87	LINK; ENG CONT	8-97865-545-0	01	1	0307-			●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0005-0210		●			●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0211-	●		●	●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0307-	●
234	SWITCH; ACCEL EURO2 SPECIFICATION<THN>	1-82380-114-2	01	1	0005-0210		●
234	SWITCH; ACCEL EXC. EURO2 SPECIFICATION<THN>	1-82440-098-0	01	1	0005-0210		●
234	SWITCH; ACCEL	1-82440-098-0	01	1	0005-0210					●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0307-	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0005-0210		●			●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0211-0306	●		●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0307-			●	●
391	BRACKET; ENG CONT	1-73996-533-0	01	1	0211-0306	●		●	●
391	BRACKET; ENG CONT	1-73996-533-0	01	1	0307-			●	●
469	LEVER ASM	1-71907-209-5	01	1	0005-0210		●			●	●
526	SENSOR; ACCEL	1-80250-030-0	01	1	0307-	●
526	SENSOR; ACCEL	8-94390-280-0	01	1	0211-0306	●		●	●
526	SENSOR; ACCEL	8-94390-280-0	01	1	0307-			●	●
527	BOLT; ACCEL SENSOR M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0307-	●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28680-625-0	02	1	0211-0306	●		●	●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28680-625-0	02	1	0307-0512			●	●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28650-625-0	02	1	0601-			●	●
730	CLIP ID=11 L=20	9-09525-032-0	01	1	0211-0306	●		●	●
730	CLIP ID=11 L=20	9-09525-032-0	01	1	0307-0606			●	●
730	CLIP ID=11 L=20	0-95235-032-0	01	1	0607-			●	●
843	NUT M12	9-99111-412-0	01	1	0307-0512	●
843	NUT M12	0-91111-512-0	01	1	0601-	●
843	NUT M6 FLANGE	0-91150-106-0	02	1	0211-0306	●		●	●
843	NUT M6 FLANGE	0-91150-106-0	02	1	0307-0602			●	●
843	NUT M6 FLANGE	0-91180-106-0	02	1	0603-			●	●

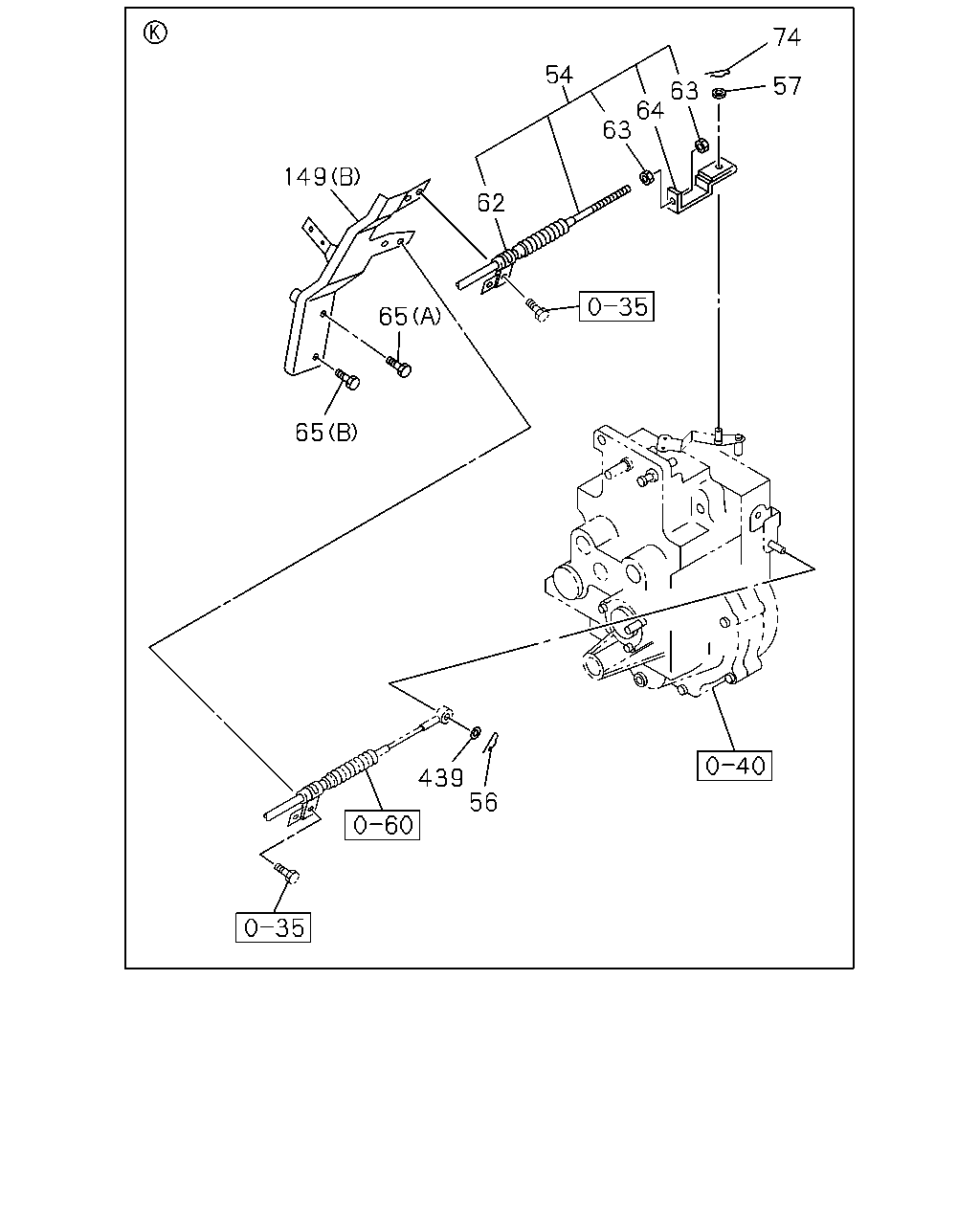

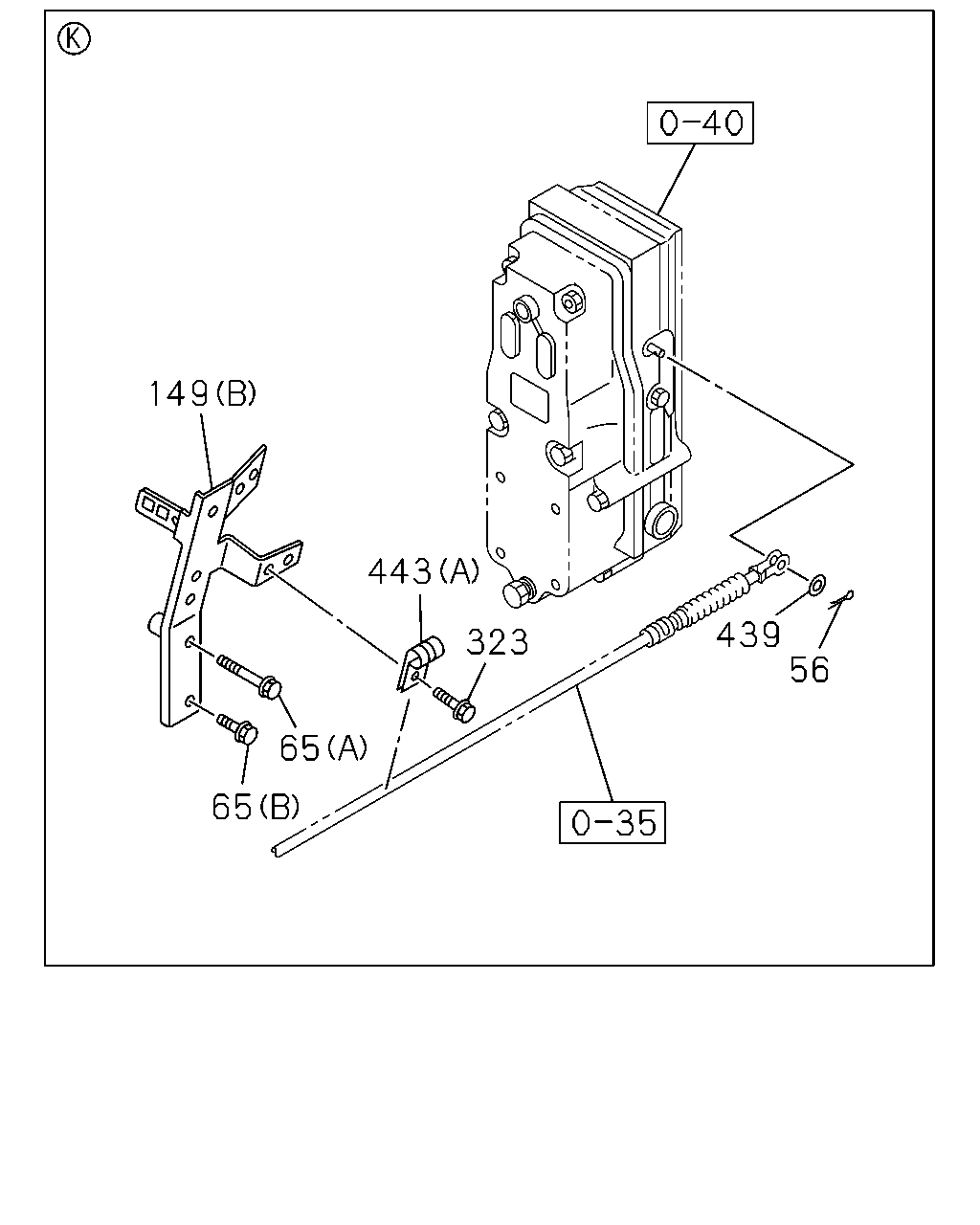

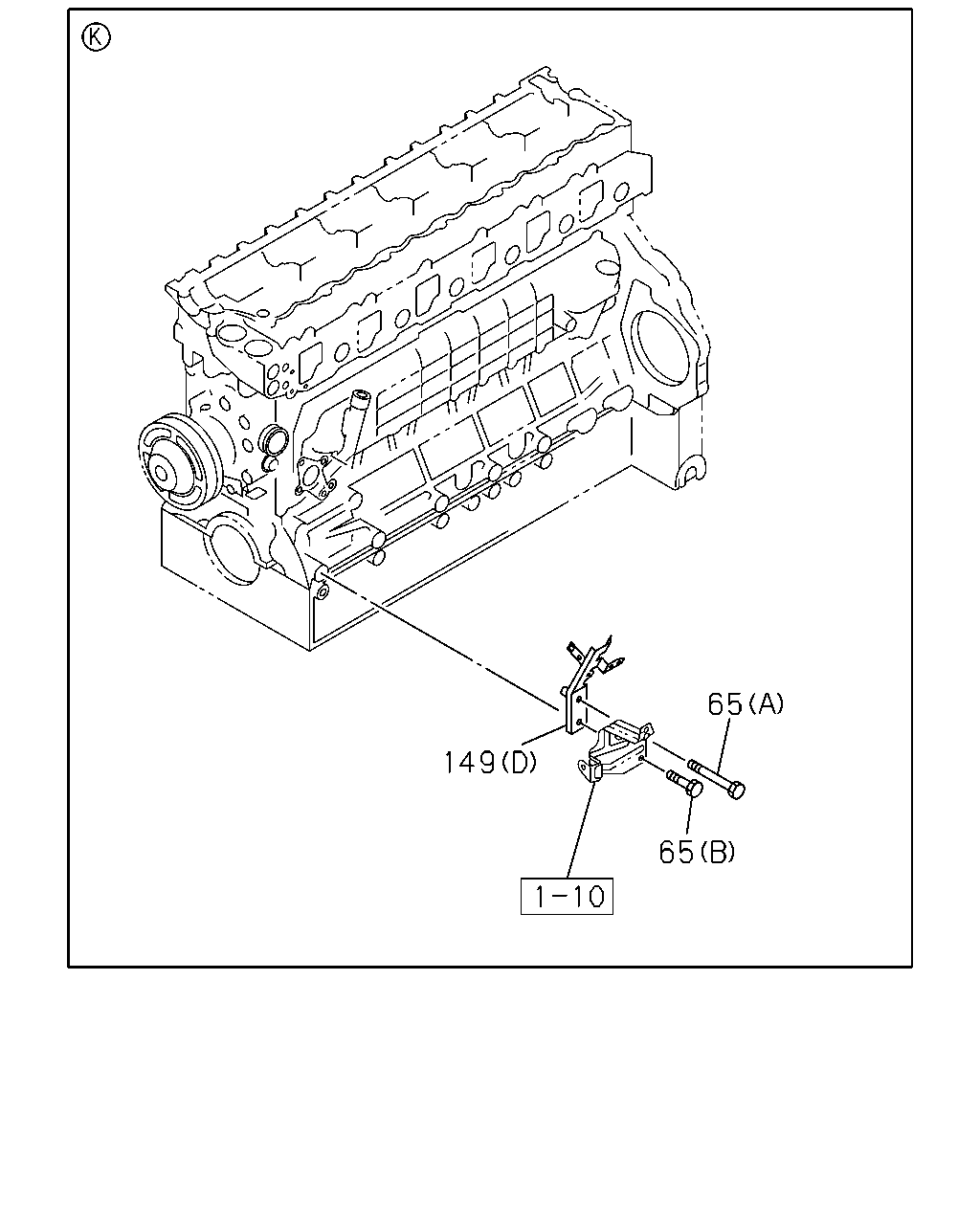

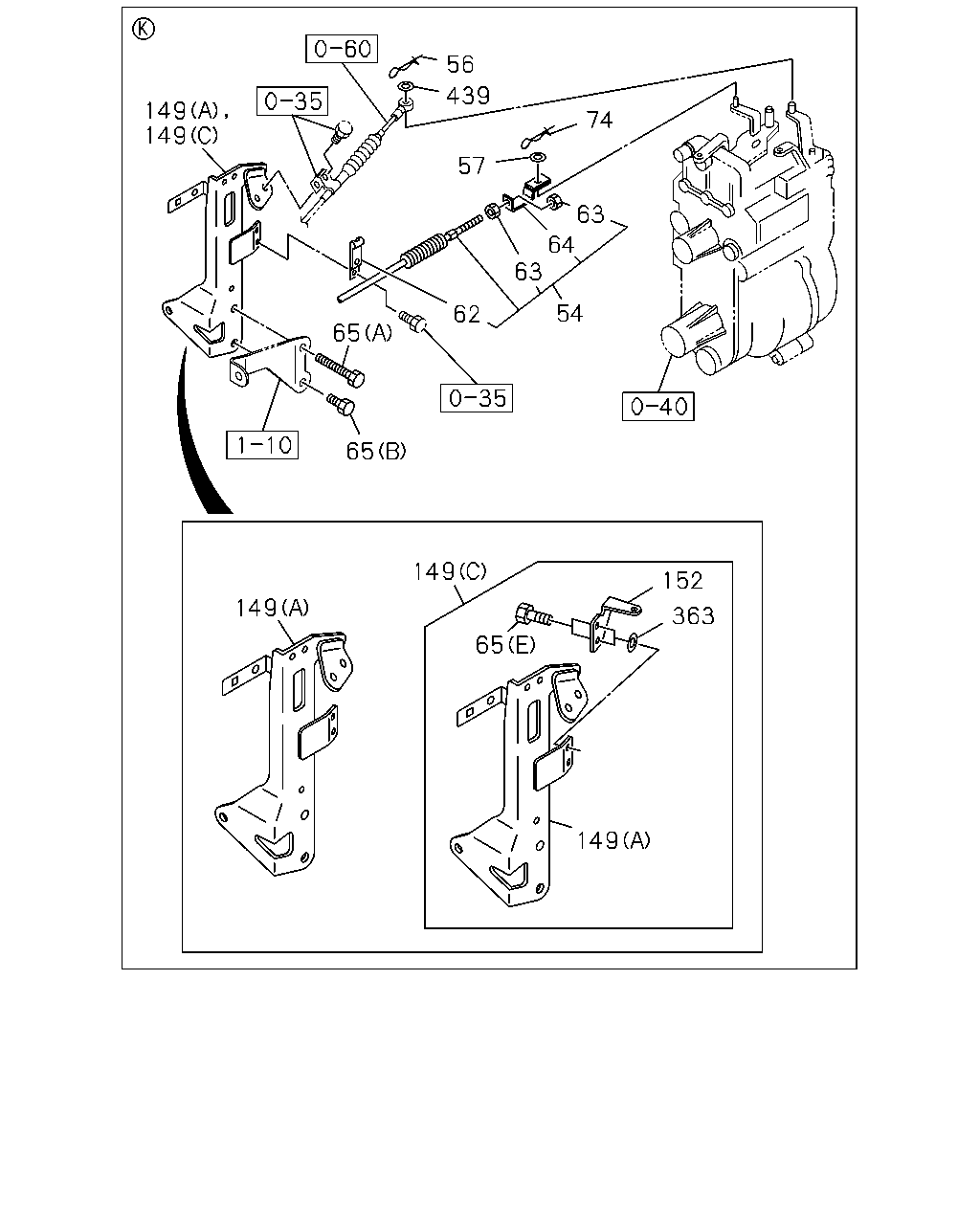

56 439 149 149 74 57 63 64 63 54 62 65 65 149 152 149 363 65 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0307-	●
54	CABLE; ENG CONT L=2996.5	1-73996-348-3	01	1	0005-0210		●
54	CABLE; ENG CONT FRR STD CAB(FRR*) FSR(FS**) L=2939	1-73998-940-6	01	1	0005-0210					●
54	CABLE; ENG CONT FRR STD CAB(FRR***) L=2939	1-73998-940-6	01	1	0005-0210						●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0307-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0005-0210		●			●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0210		●			●	●
62	CLIP; ENG CONT CABLE	8-94397-228-0	01	1	0005-0210		●
62	CLIP; ENG CONT CABLE FRR STD CAB(FRR*) FSR(FS**) L=30	1-09701-104-0	01	1	0005-0007					●
62	CLIP; ENG CONT CABLE FRR STD CAB(FRR***) L=30	1-09701-104-0	01	1	0005-0007						●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0005-0210		●			●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0005-0210		●			●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0307-0904	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0307-0512				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210		●			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●		●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0210		●			●	●
65	BOLT AT545 A/T ALLISON(MD1) (E) M6X25 W/LK WASHER	0-50040-625-0	02	1	0005-0210						●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0005-0210		●			●	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0307-	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0005-0210		●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0211-0401				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	02	1	0402-0407				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0408-				●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	0005-0210					●
149	BRACKET; ENG CONT FRR(FR****) MBJ6T M/T(Y2A) (A)	8-94390-006-2	01	1	0005-0210						●
149	BRACKET; ENG CONT AT545 A/T ALLISON(MD1) (C)	8-94390-009-2	01	1	0005-0210						●
152	BRACKET; SPRING AT545 A/T ALLISON(MD1)	8-94393-718-0	01	1	0005-0210						●
363	SPACER; BRKT,ENG CONT SHAFT AT545 A/T ALLISON(MD1) ID=6.4	9-09164-506-0	02	1	0005-0210						●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0307-0605	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0210		●			●	●

74 54 57 63 64 63 149 62 65 65 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0307-	●
54	CABLE; ENG CONT L=2996.5	1-73996-348-3	01	1	0005-0210		●
54	CABLE; ENG CONT FRR STD CAB(FRR*) FSR(FS**) L=2939	1-73998-940-6	01	1	0005-0210					●
54	CABLE; ENG CONT FRR STD CAB(FRR***) L=2939	1-73998-940-6	01	1	0005-0210						●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0307-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0005-0210		●			●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0005-0210		●			●	●
62	CLIP; ENG CONT CABLE	8-94397-228-0	01	1	0005-0210		●
62	CLIP; ENG CONT CABLE FRR STD CAB(FRR*) FSR(FS**) L=30	1-09701-104-0	01	1	0005-0007					●
62	CLIP; ENG CONT CABLE FRR STD CAB(FRR***) L=30	1-09701-104-0	01	1	0005-0007						●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0005-0210		●			●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0005-0210		●			●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0307-0904	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0307-0512				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210		●			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●		●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0210		●			●	●
65	BOLT AT545 A/T ALLISON(MD1) (E) M6X25 W/LK WASHER	0-50040-625-0	02	1	0005-0210						●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0005-0210		●			●	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0307-	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0005-0210		●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0211-0401				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	02	1	0402-0407				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0408-				●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	0005-0210					●
149	BRACKET; ENG CONT FRR(FR****) MBJ6T M/T(Y2A) (A)	8-94390-006-2	01	1	0005-0210						●
149	BRACKET; ENG CONT AT545 A/T ALLISON(MD1) (C)	8-94390-009-2	01	1	0005-0210						●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0307-0605	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0210		●			●	●

65 149 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0307-0904	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0307-0512				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210		●			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●		●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0210		●			●	●
65	BOLT AT545 A/T ALLISON(MD1) (E) M6X25 W/LK WASHER	0-50040-625-0	02	1	0005-0210						●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0307-	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0005-0210		●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0211-0401				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	02	1	0402-0407				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0408-				●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	0005-0210					●
149	BRACKET; ENG CONT FRR(FR****) MBJ6T M/T(Y2A) (A)	8-94390-006-2	01	1	0005-0210						●
149	BRACKET; ENG CONT AT545 A/T ALLISON(MD1) (C)	8-94390-009-2	01	1	0005-0210						●

149 443 439 56 323 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0307-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0005-0210		●			●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0307-0904	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16811-060-0	01	1	0307-0512				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0005-0210		●			●	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0211-0306				●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512				●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0307-0512	●
65	BOLT ENGINE REAR PTO(SV1) (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210		●			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●		●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0210		●			●	●
65	BOLT AT545 A/T ALLISON(MD1) (E) M6X25 W/LK WASHER	0-50040-625-0	02	1	0005-0210						●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0307-	●
149	BRACKET; ENG CONT (B)	8-94394-532-1	01	1	0005-0210		●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0211-0401				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	02	1	0402-0407				●
149	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (D)	8-97600-017-0	01	1	0408-				●
149	BRACKET; ENG CONT (A)	8-94390-006-2	01	1	0005-0210					●
149	BRACKET; ENG CONT FRR(FR****) MBJ6T M/T(Y2A) (A)	8-94390-006-2	01	1	0005-0210						●
149	BRACKET; ENG CONT AT545 A/T ALLISON(MD1) (C)	8-94390-009-2	01	1	0005-0210						●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0307-0512	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●			●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0307-0605	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0005-0210		●			●	●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	0307-0606	●
443	CLIP; CABLE (A) ID=7 L=20	0-95234-635-0	01	1	0607-	●
443	CLIP; CABLE (B) ID=13 L=32	9-09525-265-0	02	1	0307-0606	●
443	CLIP; CABLE (B) ID=13 L=32	0-95235-265-0	02	1	0607-	●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	01	1	0005-0210		●			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
