0-87 — COUPLING; INJECTION PUMP (#9321) — 76 parça

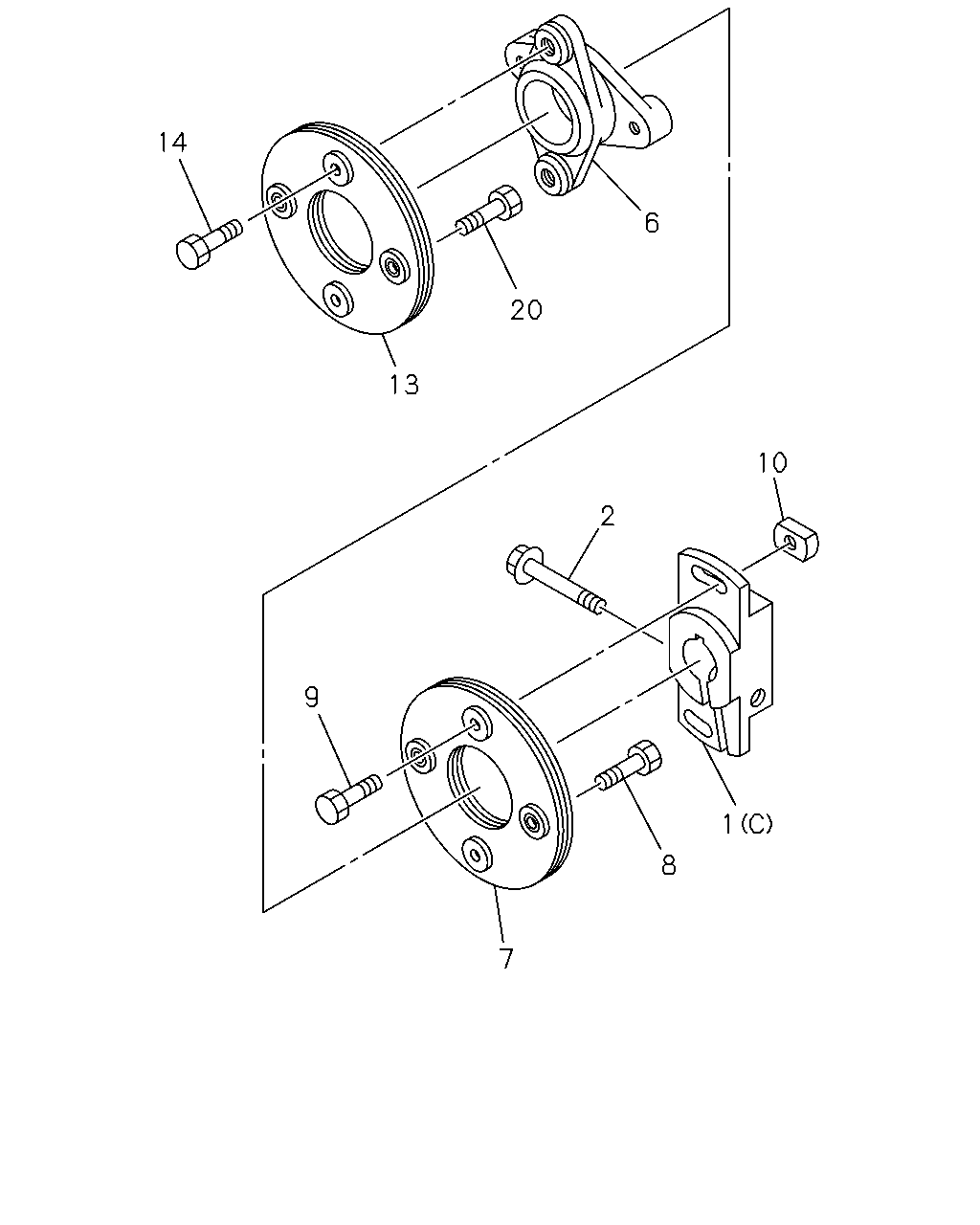

14 6 20 13 10 2 9 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	0307-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-046-0	01	1	0307-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0005-0210		●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	0005-0210		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-014-0	01	1	0005-0210			●	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	0307-	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	0005-0210		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-010-0	01	1	0005-0210			●	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	0307-	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	0005-0210		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-155-0	01	1	0005-0210			●	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	0307-	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	0005-0210		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-194-0	01	1	0005-0210			●	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	0307-	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	0005-0210		●
8	BOLT; PLATE TO CROSS COUPLING	1-15749-501-0	02	1	0005-0210			●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	0307-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	0005-0210		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-122-0	02	1	0005-0210			●	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-066-0	02	1	0005-0210			●	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	0307-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	0005-0210		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-194-0	01	1	0005-0210			●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	0307-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	0005-0210		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	0005-0210			●	●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	0307-	●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	0005-0210		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	0005-0210			●	●

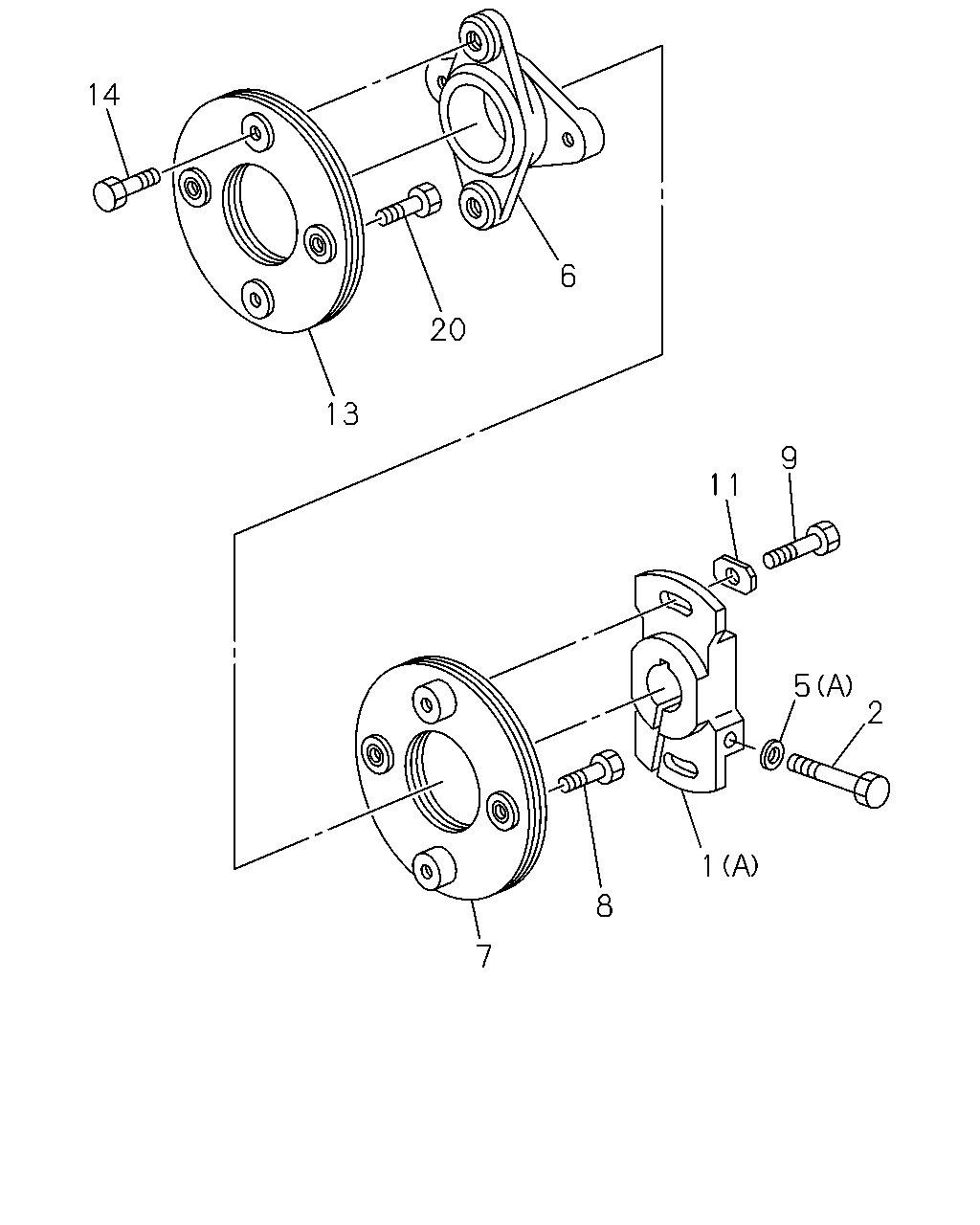

14 6 20 13 11 5 2 1 8 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	0307-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-046-0	01	1	0307-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0005-0210		●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	0005-0210		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-014-0	01	1	0005-0210			●	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	0307-	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	0005-0210		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-010-0	01	1	0005-0210			●	●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0307-	●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	0307-	●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0005-0210		●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	0005-0210		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	0307-	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-161-0	01	1	0005-0210		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-155-0	01	1	0005-0210			●	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	0307-	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-189-1	01	1	0005-0210		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-194-0	01	1	0005-0210			●	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	0307-	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	0005-0210		●
8	BOLT; PLATE TO CROSS COUPLING	1-15749-501-0	02	1	0005-0210			●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	0307-	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	0005-0210		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-122-0	02	1	0005-0210			●	●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-188-0	02	1	0307-	●
11	WASHER; PLATE TO COUPLING,INJ PUMP	1-15789-188-0	02	1	0005-0210		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	0307-	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15619-181-0	01	1	0005-0210		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-194-0	01	1	0005-0210			●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	0307-	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15619-183-0	02	1	0005-0210		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-120-0	02	1	0005-0210			●	●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	0307-	●
20	BOLT; COUPLING TO INJ PUMP	1-15619-183-0	02	1	0005-0210		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-119-0	02	1	0005-0210			●	●

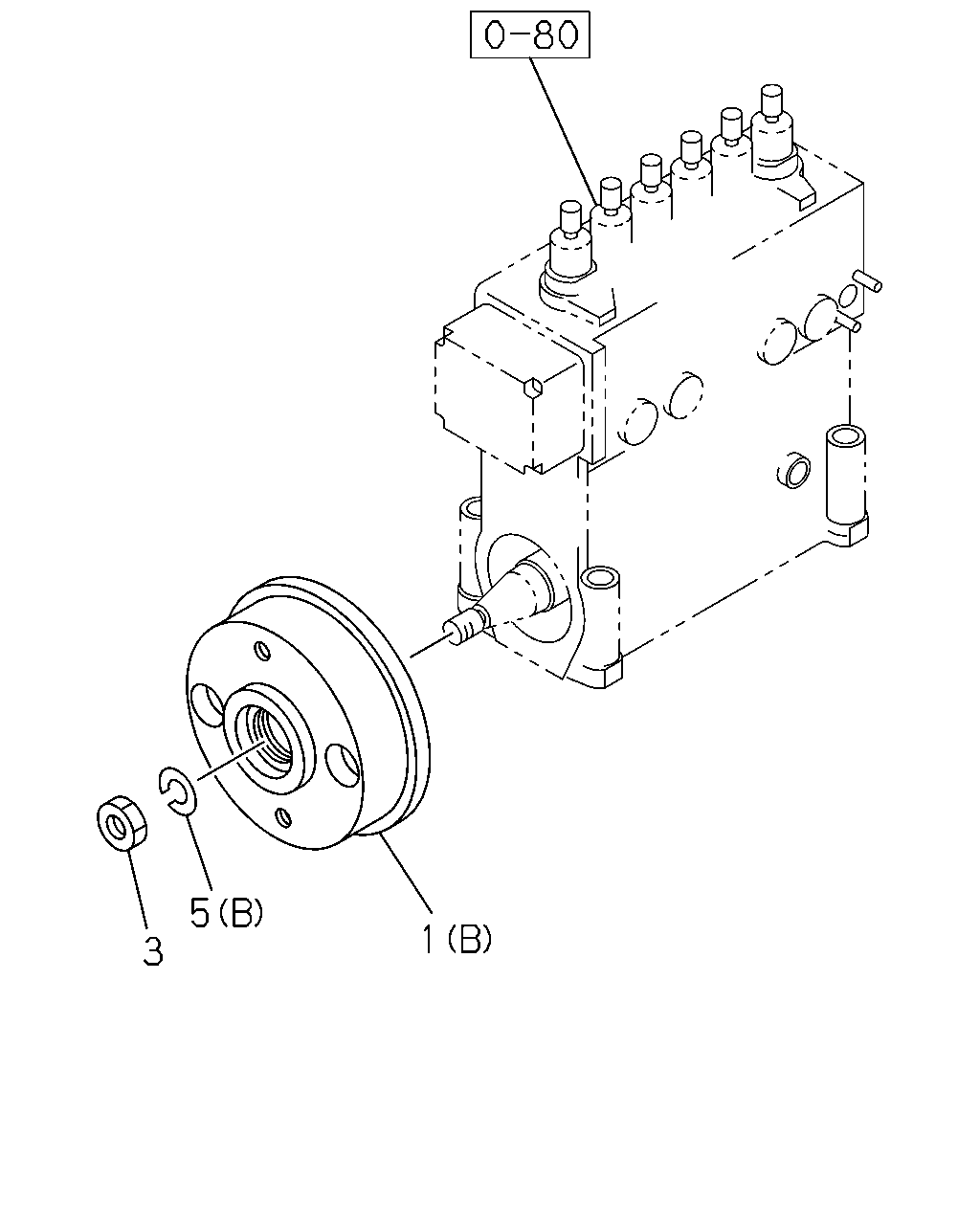

5 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	0307-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-046-0	01	1	0307-	●
1	COUPLING; INJ PUMP DRIVE (B)	1-15781-031-0	01	1	0005-0210		●
1	COUPLING; INJ PUMP DRIVE (A)	1-15781-041-0	01	1	0005-0210		●
1	COUPLING; INJ PUMP DRIVE (C)	1-15782-014-0	01	1	0005-0210			●	●
3	NUT; COUPLING FIX,INJ PUMP	1-15619-132-0	01	1	0307-	●
3	NUT; COUPLING FIX,INJ PUMP	1-15619-132-0	01	1	0005-0210		●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0307-	●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	0307-	●
5	WASHER; COUPLING FIX,INJ PUMP (B)	1-15619-131-0	01	1	0005-0210		●
5	WASHER; COUPLING FIX,INJ PUMP (A)	1-15789-021-0	01	1	0005-0210		●
