0-85 — AUTO TIMER; INJECTION PUMP (#9320) — 119 parça

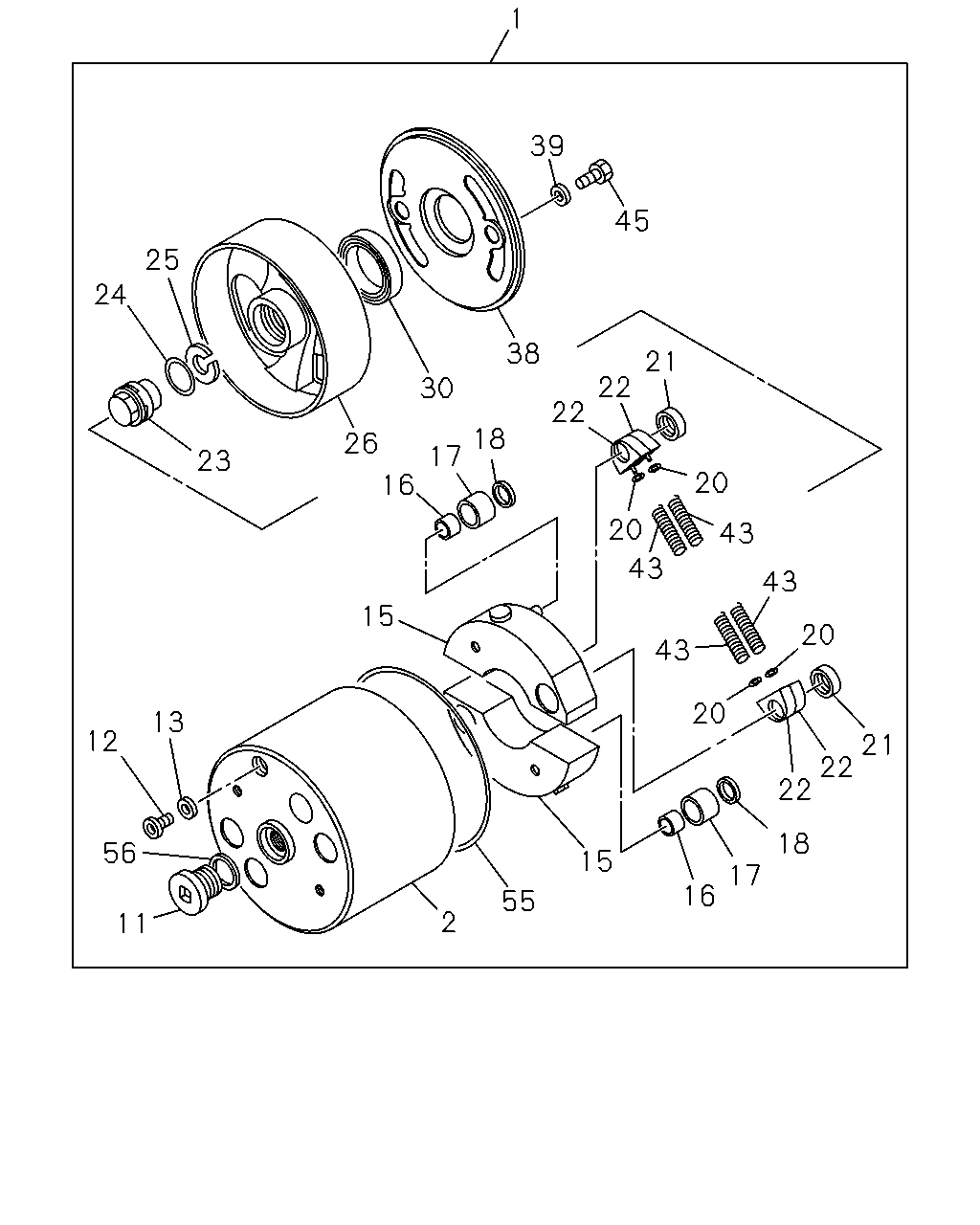

1 39 45 25 24 38 21 22 30 22 18 26 17 23 20 16 20 43 43 43 15 20 43 20 13 12 21 22 22 56 18 15 17 16 55 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94391-333-0	1-15740-471-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15740-475-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15741-045-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15743-100-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15743-139-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-043-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-044-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-045-0	AR	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-046-0	AR	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94391-333-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94391-333-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94391-333-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94391-333-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94391-333-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94391-333-0	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: A = 8-94391-333-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: A = 8-94391-333-0	1-15749-587-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (C) ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-051-1	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-455-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15742-115-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15742-146-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-592-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-591-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15339-010-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-851-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-029-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-94391-333-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: A = 8-94391-333-0, B = 8-94391-334-0, C = 8-94391-335-0	1-15749-453-0	01	1	-

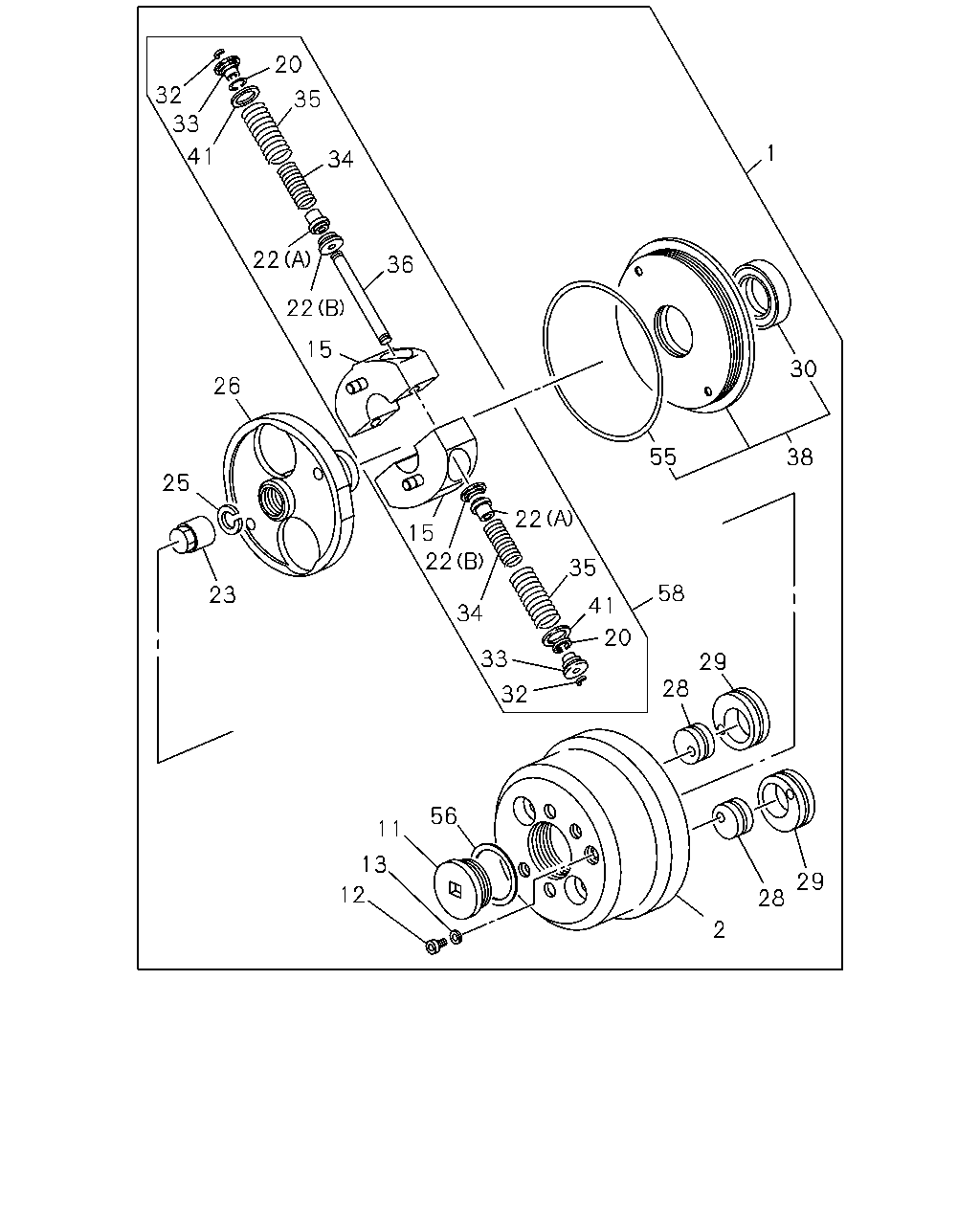

20 32 35 33 1 41 34 22 36 22 15 30 26 55 38 25 22 15 22 35 58 23 41 34 20 33 29 28 32 56 11 13 29 12 28 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 8-94391-333-0	1-15740-471-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15740-475-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15741-045-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15743-100-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15743-139-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94391-333-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94391-333-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94391-333-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94391-333-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94391-333-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94391-333-0	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	9-81325-382-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: A = 8-94391-333-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: A = 8-94391-333-0	1-15749-587-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (C) ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	5-15749-051-1	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15742-115-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15742-146-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-592-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-354-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-844-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-843-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-849-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15749-591-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-94391-333-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94391-333-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94391-333-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94391-333-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94391-333-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-94391-333-0	1-15749-494-0	AR	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 8-94391-334-0, C = 8-94391-335-0	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-94391-333-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: A = 8-94391-333-0, B = 8-94391-334-0, C = 8-94391-335-0	1-15749-453-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 8-94391-333-0	1-15743-136-0	01	1	-
