3-70 — BRAKE PIPING; AIR,AIR MASTER (#932) — 100 parça

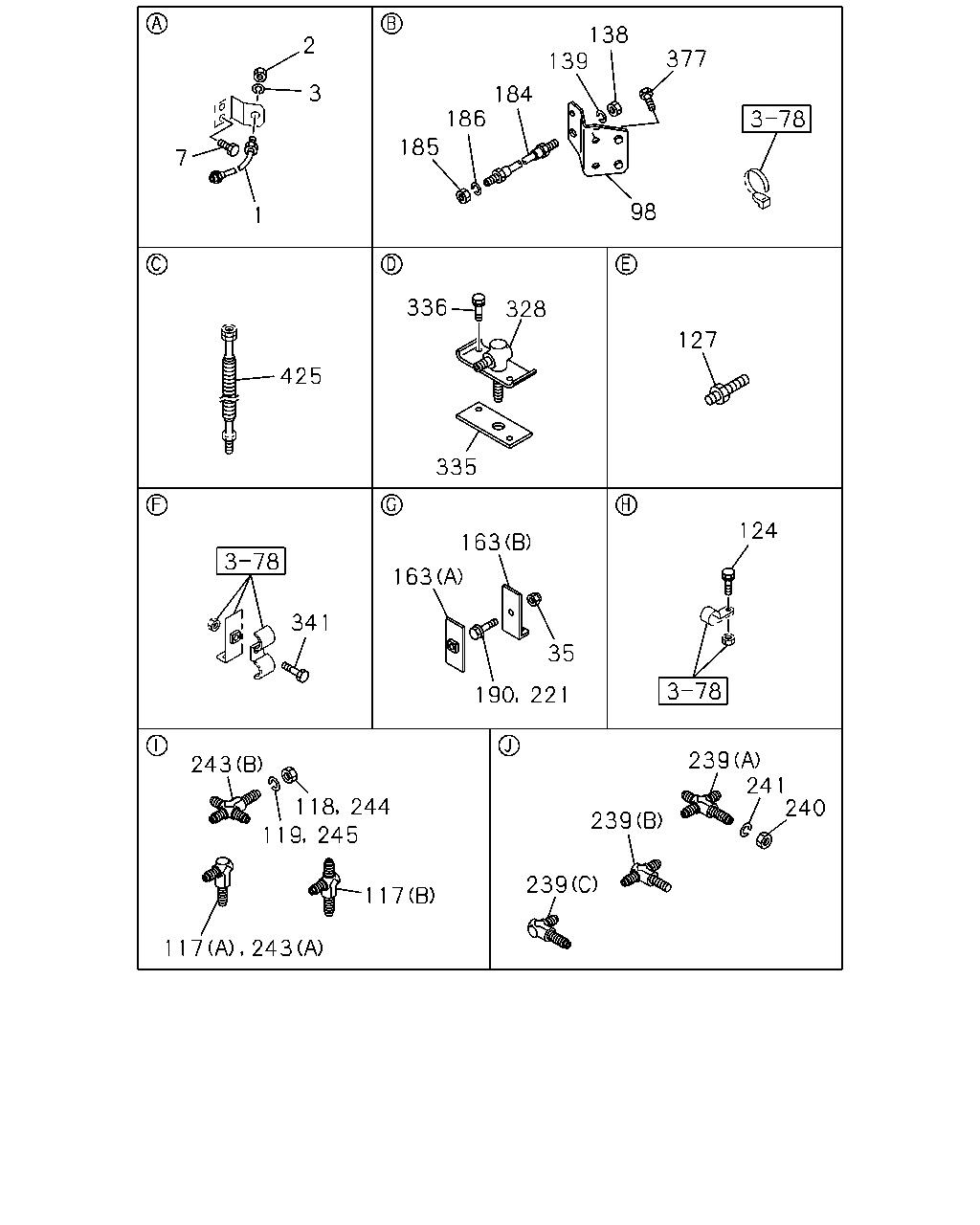

çizim 27519
138 139 2 377 3 184 186 185 7 98 1 336 328 127 425 335 124 163 163 341 35 190 221 239 241 240 243 118 244 239 119 245 239 117 117 243
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9202-9307 ● ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) 		1-09363-505-0 01 1 9308- ●
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9308- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9202- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9202-9312 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9202- ● ●
35 NUT; BRKT
EXC. AIR DRYER<PS7> M8 		9-09110-408-0 01 1 9202-9205 ● ●
98 BRACKET; AIR PIPE 1-53497-333-2 01 1 9202- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09654-315-1 01 1 9202- ● ●
117 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-09654-293-1 01 1 9202- ● ●
118 NUT; UNION
M16 		9-99111-416-0 01 1 9202- ● ●
119 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
124 BOLT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9202- ● ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9202- ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> (A) L=50 		1-47475-299-2 01 1 9202- ● ●
163 BRACKET; AIR PIPE
EXC. AIR DRYER<PS7> (B) 		1-47465-745-0 01 1 9202-9205 ● ●
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9202- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9202- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
190 BOLT; FLEX HOSE
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ● ●
221 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9205 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (C) M12 2WAY 		1-09654-059-2 01 1 9202- ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> (A) M12 		9-09228-306-1 01 1 9202- ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> (B) M12 3WAY 		1-09654-137-2 01 1 9202- ● ●
240 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
240 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
241 WASHER; LK,UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
241 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
243 UNION; AIR PIPE
ASSISTER SHIFT CONTROL<WX8> (B) M12 		9-09228-306-1 01 1 9202- ● ●
243 UNION; AIR PIPE
EXC. ASSISTER SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 9202- ● ●
244 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
245 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-194-1 01 1 9202- ● ●
335 SEAL; UNION
EXC. DUAL AIR GAUGE<UG2> 		1-79998-236-0 01 1 9202- ● ●
336 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9202- ● ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28080-825-0 04 1 9205-9211 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28080-825-0 02 1 9212- ● ●
377 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9212- ● ●
425 SLEEVE; RUBBER,PIPE 1-09368-625-0 01 1 9206-9312 ● ●
çizim 29087
266 155 165 319 320 137 434
BalonParca AdiParca NoAdetTipApplied Date A B
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ●
165 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
165 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
266 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M12 L=40 		9-09223-006-1 01 1 9206- ● ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9202- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9202- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> ID=13 H=50 L=25 		1-09700-529-0 01 1 9202- ● ●
çizim 94292
172 154 358 184 262 14 1 154 171 242 34 358 337 184 176 359 14 1 238 113 238 113 217 222 337 251 137 126 250 325 272
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9202-9307 ● ●
1 HOSE; FLEX,AIR TANK
EXC. ENGINE REAR PTO(SV1) 		1-09363-505-0 01 1 9308- ●
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9308- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-47494-304-0 01 1 9202-9205 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-47495-516-0 01 1 9206- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-47494-303-0 01 1 9202-9205 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-47495-513-0 01 1 9206- ● ●
34 PIPE; AIR
AIR DRYER<PS7> L=533 SERVICED BY L=550 		1-49111-436-0 01 1 9202- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47437-953-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=692 SERVICED BY L=730 		1-47437-955-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=848 		1-47492-859-0 01 1 9202-9207 ● ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=850 SERVICED BY L=900 		1-47434-385-0 01 1 9208- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
L=450 		1-47486-409-0 01 1 9202- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=1322 		1-47492-357-0 01 1 9202- ● ●
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> 		1-47494-305-1 01 1 9202-9205 ● ●
172 PIPE; AIR,GOV TO UNION
EXC. AIR DRYER<PS7> 		1-47495-514-0 01 1 9206- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=2045 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9205 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=2038 SERVICED BY L=2200 		1-47434-396-0 01 1 9206- ● ●
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9202- ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-47492-863-0 01 1 9202-9207 ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> 		1-47495-923-0 01 1 9208- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLOATING<SDK> L=1089 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLOATING<SDK> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1306 SERVICED BY L=1370 		1-47434-390-0 01 1 9202- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) (A) L=1306 SERVICED BY L=1370 		1-47434-390-0 01 1 9202- ●
238 PIPE; AIR,UNION TO UNION
(B) L=1346 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (A) L=1076 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1250 		1-47437-968-0 01 1 9202-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1250 		1-47426-416-0 01 1 9301-9305 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9306- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1461 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=965 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> L=965 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
262 PIPE; AIR,UNION TO FLEX
EXC. AIR DRYER<PS7> L=1482 SERVICED BY L=1620 		1-47434-392-0 01 1 9206- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> L=421 		1-47492-858-0 01 1 9202- ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> L=421 		1-47492-858-0 01 1 9202- ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=810 		1-47483-116-0 01 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=850 		0-07210-850-0 01 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 01 1 9202- ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=579 SERVICED BY L=600 		1-47434-473-0 01 1 9202-9212 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=579 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=534 		1-47494-899-0 01 1 9202-9212 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=534 SERVICED BY L=550 		1-47426-407-0 01 1 9301-9305 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=534 SERVICED BY L=550 		1-47426-407-0 01 1 9306- ● ●
