Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#9310) — 470 parça

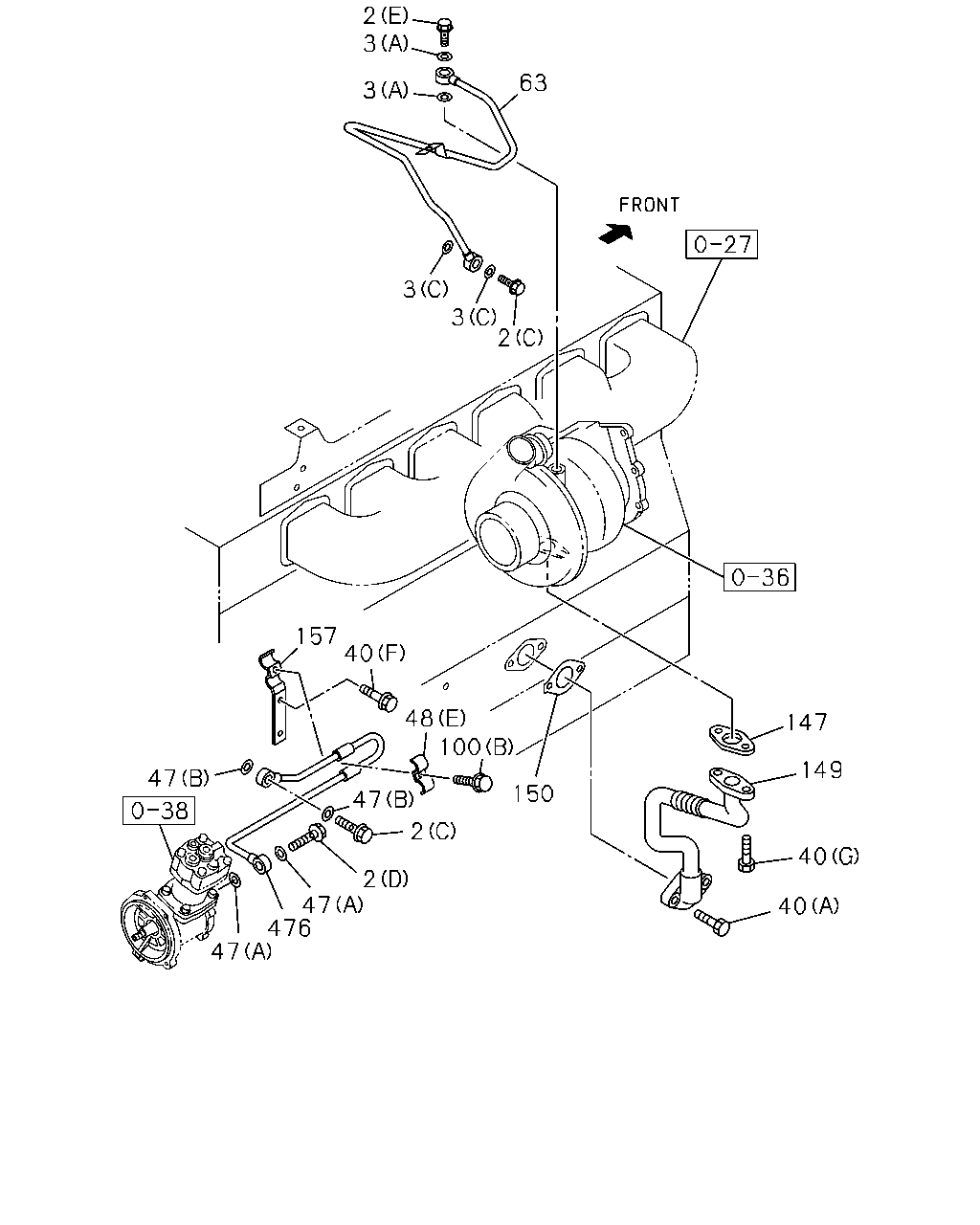

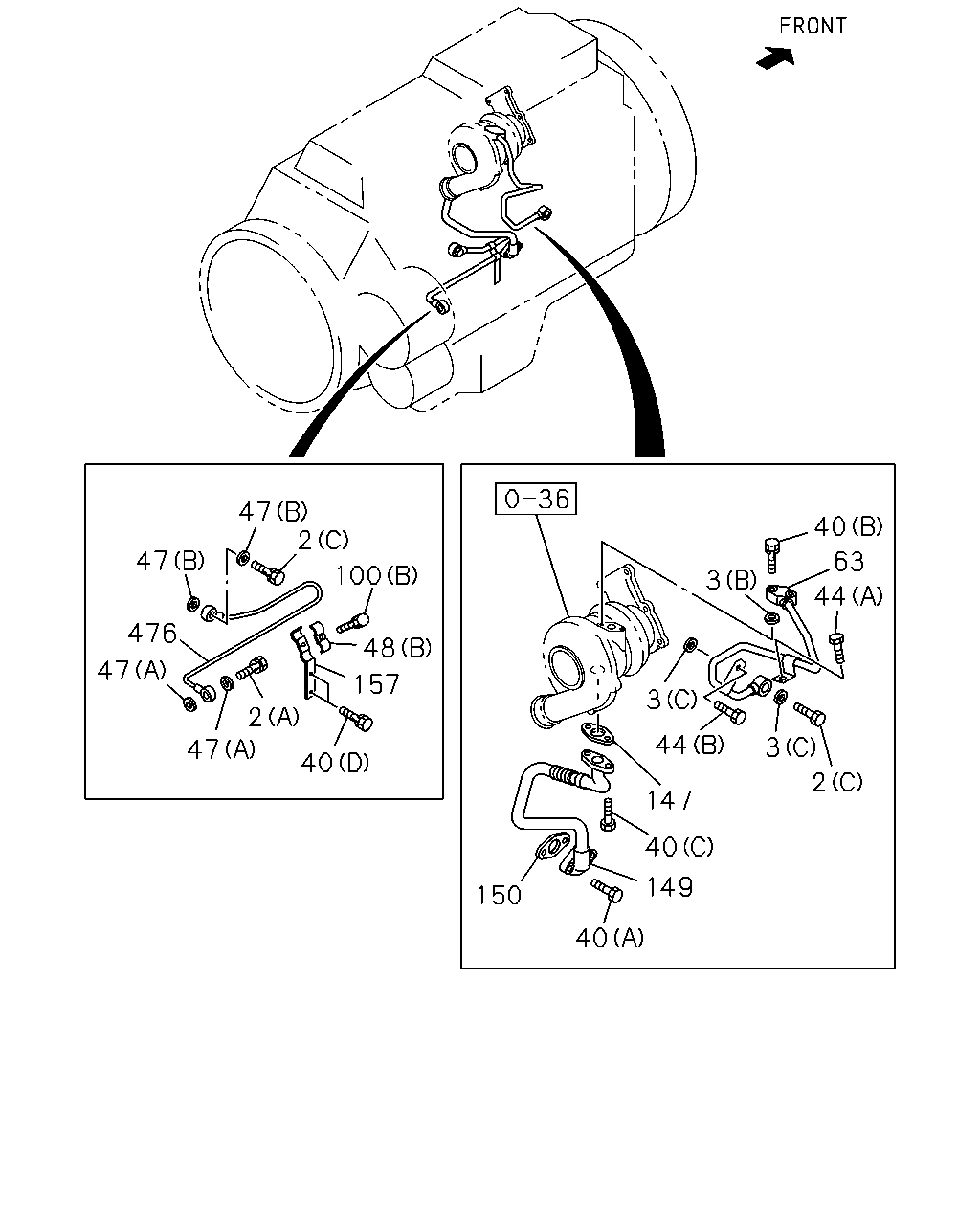

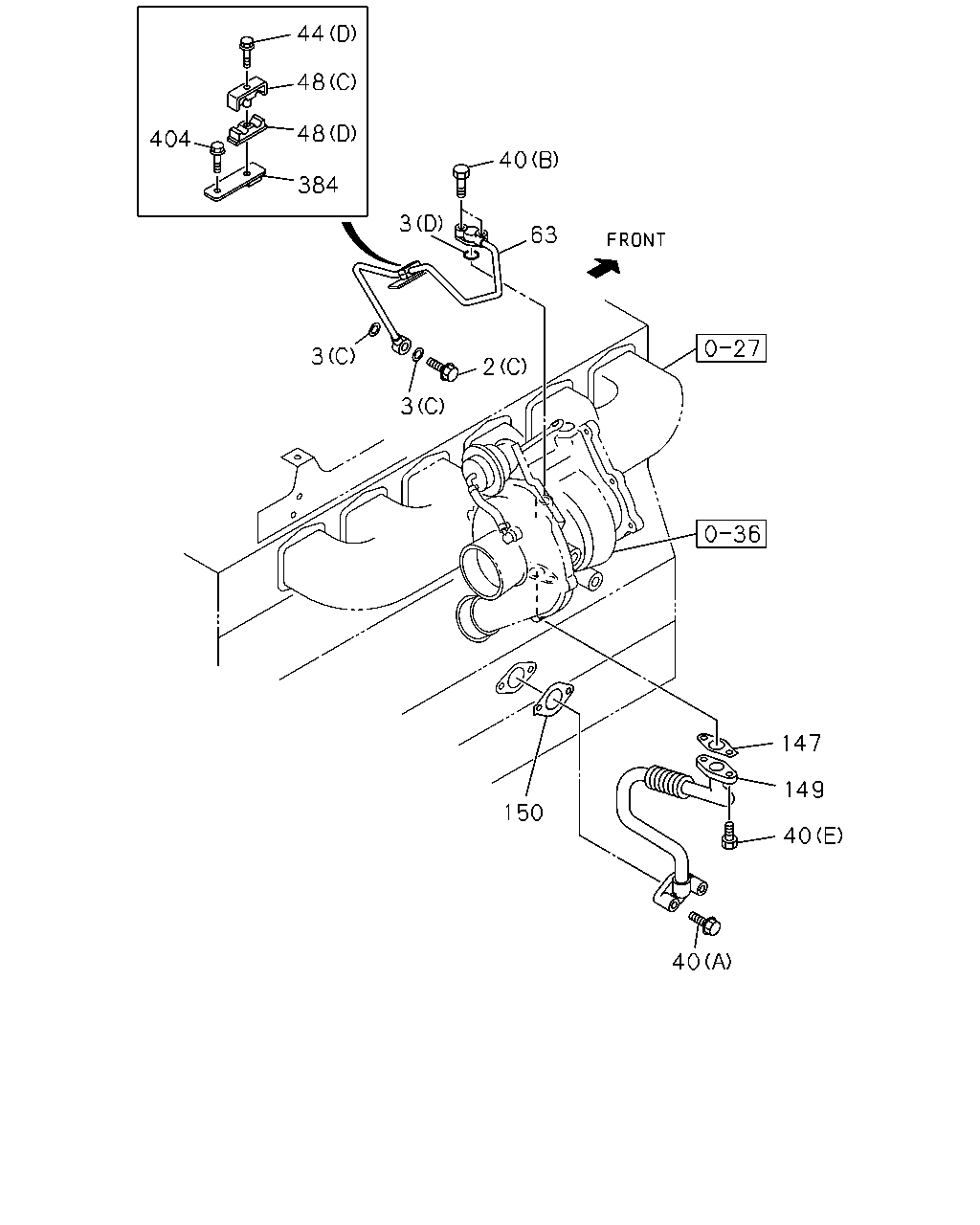

47 2 40 47 63 100 3 44 476 48 47 157 3 2 44 3 47 40 2 147 40 149 150 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0211-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210		●			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0307-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-344-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	0307-0512	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
40	BOLT; OIL PIPE (G) M10X22 FLANGE	0-28181-022-0	02	1	0307-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0211-0512			●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0211-0306			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0307-0512	●		●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●		●	●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (E) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●	●
40	BOLT; OIL PIPE (E) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0307-0605	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●		●	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210					●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0307-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-0210		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
48	CLIP; OIL PIPE (E)	8-94395-170-0	01	1	0307-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0005-0210						●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0211-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210		●
48	CLIP; OIL PIPE (C)	1-09701-228-3	01	1	0211-			●	●
48	CLIP; OIL PIPE (D)	1-09701-229-2	01	1	0211-			●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97601-975-0	01	1	0307-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0005-0210		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97602-629-0	01	1	0211-			●	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0307-0512	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0512				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-				●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X22 FLANGE	0-28280-622-0	01	1	0005-0210						●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0307-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0211-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97601-976-0	01	1	0307-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0005-0210		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0211-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0005-0210		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0211-0306			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0307-	●		●	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0307-	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0005-0210		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0307-	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0005-0210		●

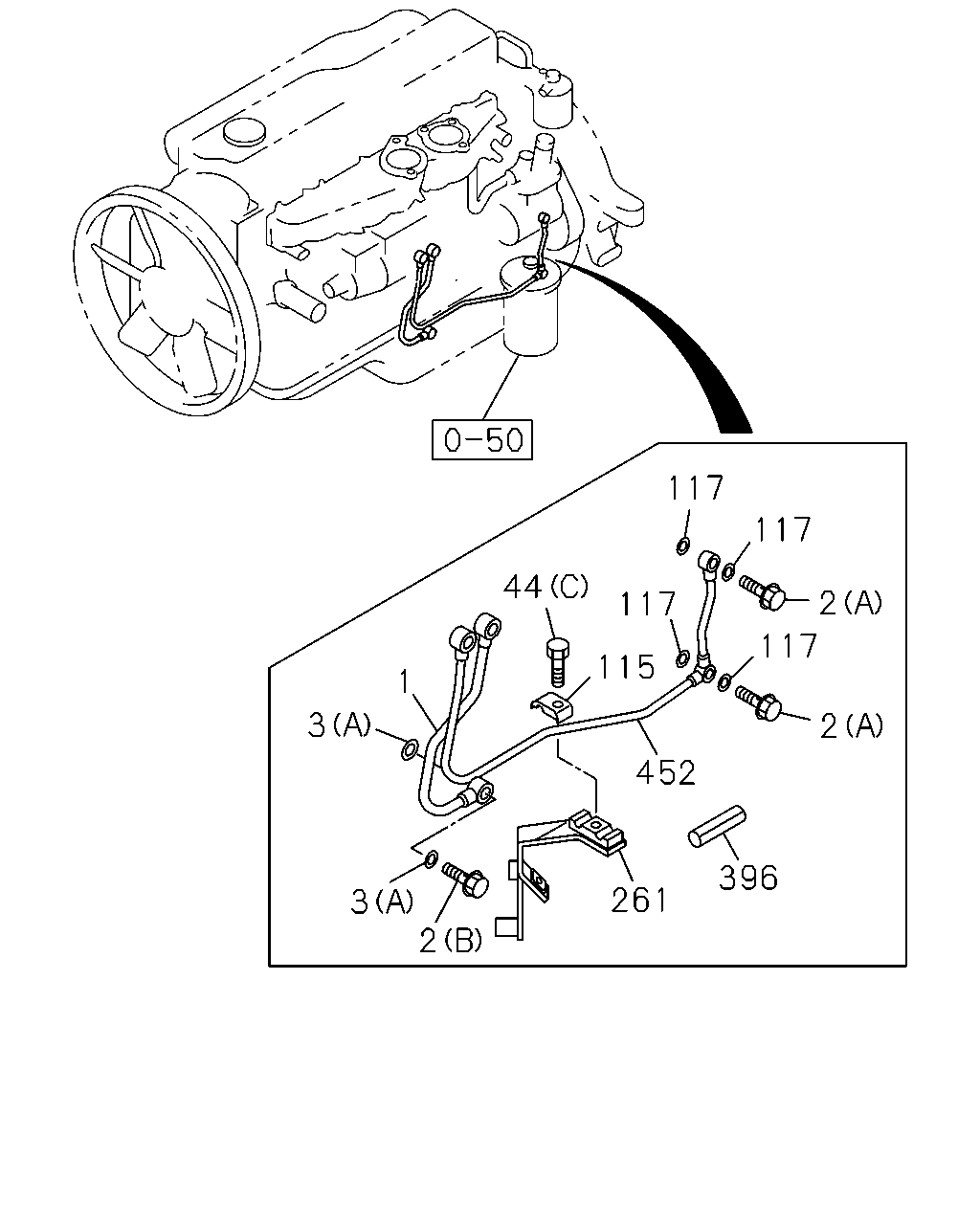

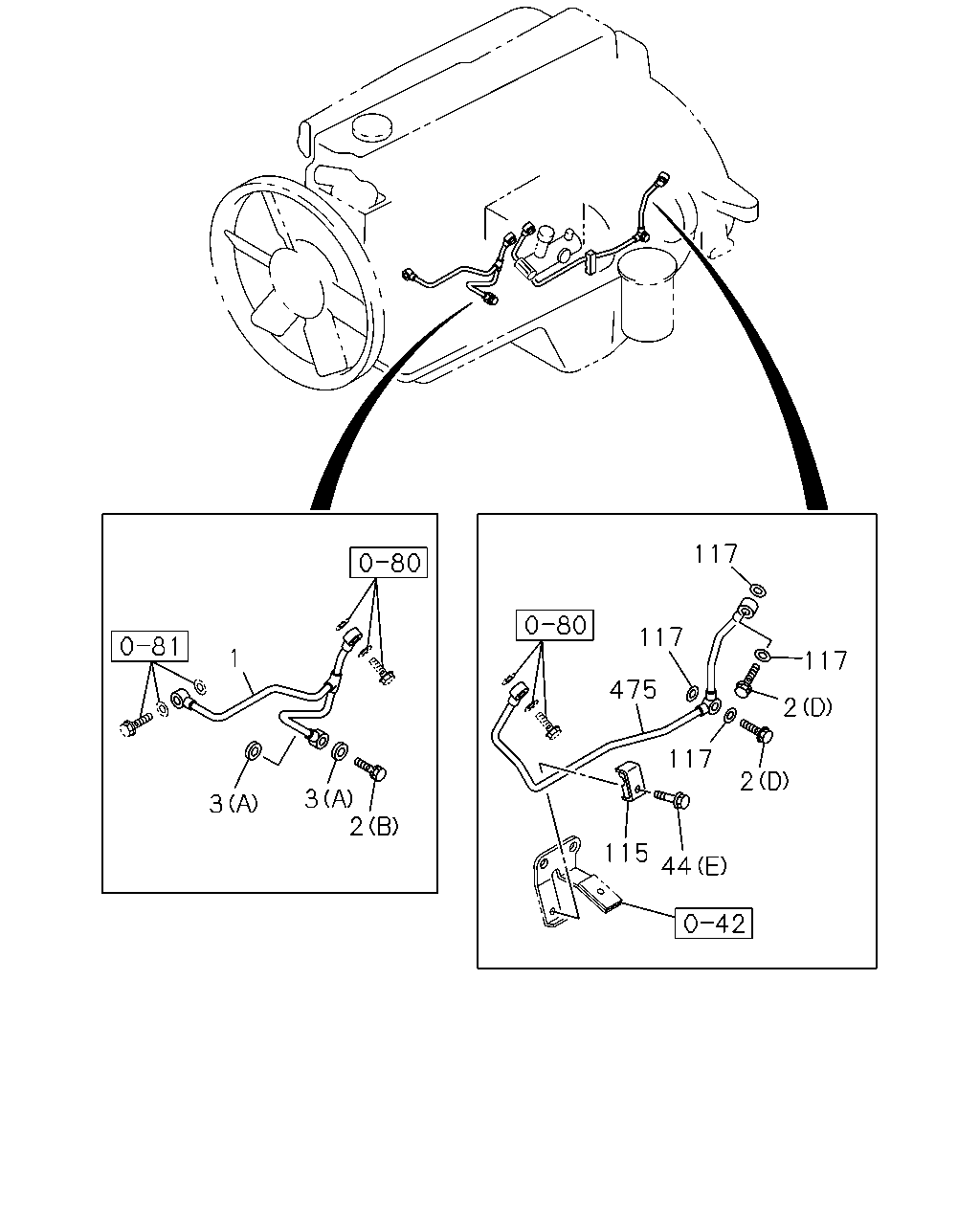

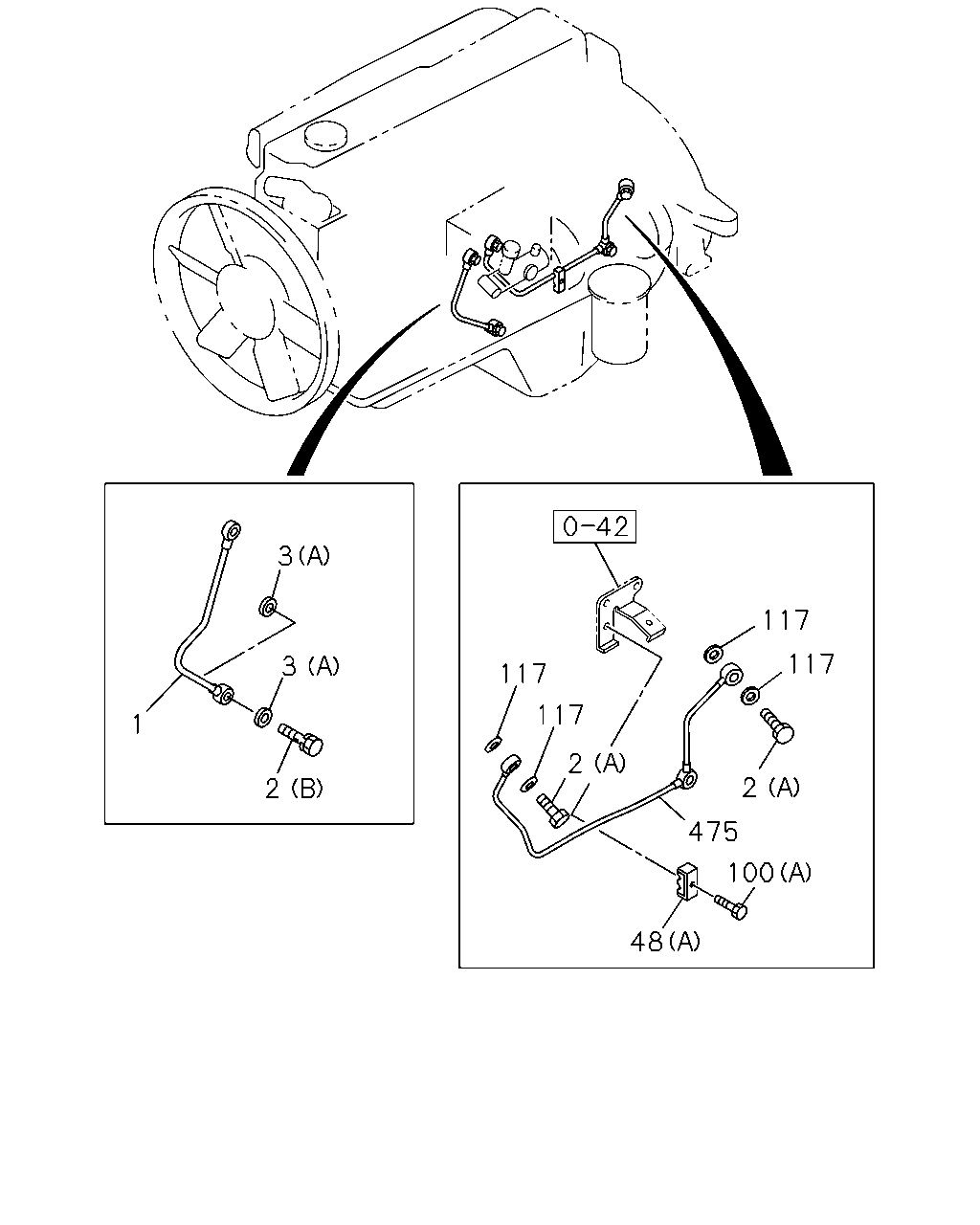

3 117 117 3 117 117 1 2 2 475 100 48 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0307-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0211-			●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0211-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210		●			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0307-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-344-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●
48	CLIP; OIL PIPE (E)	8-94395-170-0	01	1	0307-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0005-0210						●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0211-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210		●
48	CLIP; OIL PIPE (C)	1-09701-228-3	01	1	0211-			●	●
48	CLIP; OIL PIPE (D)	1-09701-229-2	01	1	0211-			●	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0307-0512	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0512				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-				●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X22 FLANGE	0-28280-622-0	01	1	0005-0210						●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210		●			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0306			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0307-	●		●	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0307-	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0005-0210		●

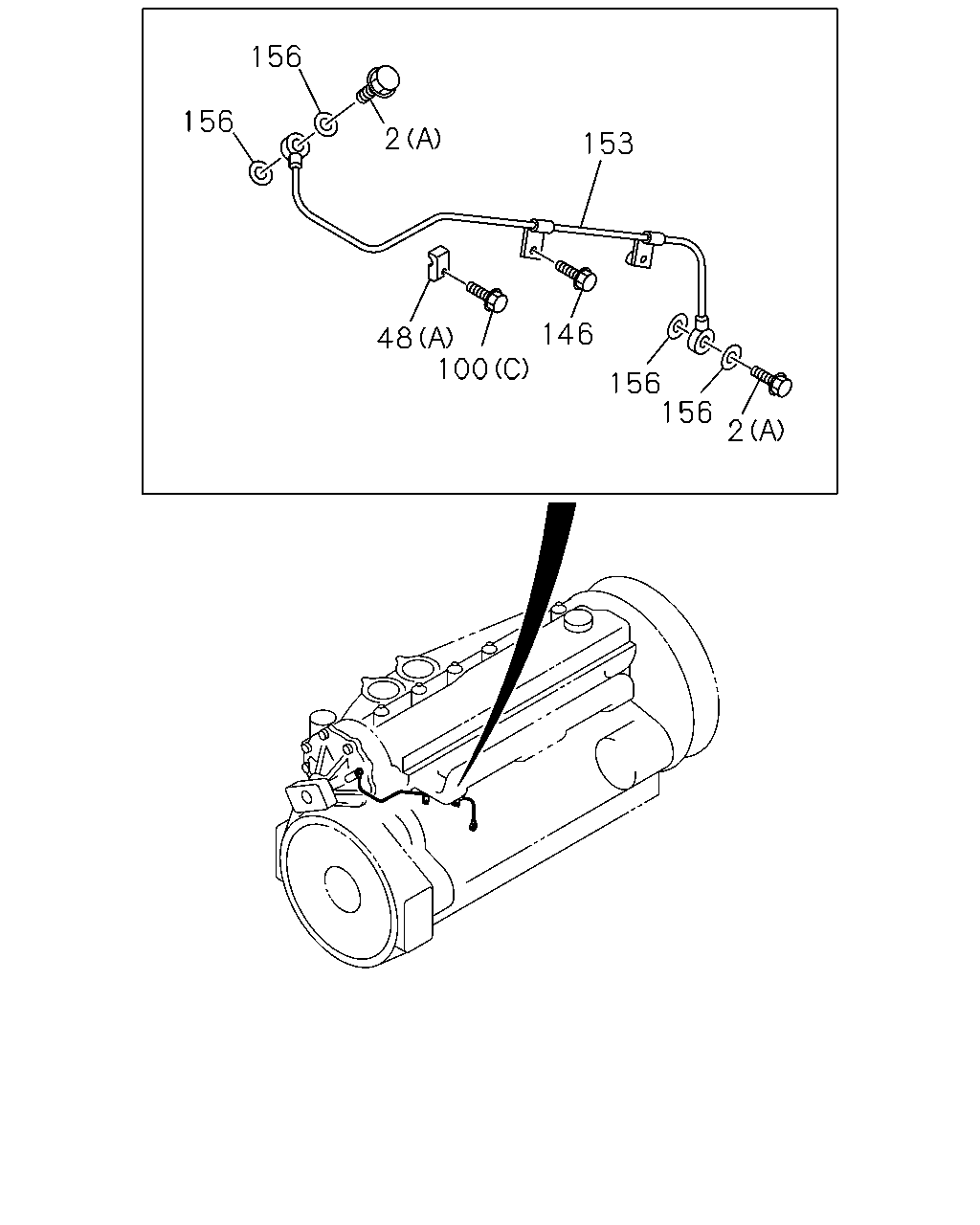

156 156 2 153 146 48 100 156 156 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
48	CLIP; OIL PIPE (E)	8-94395-170-0	01	1	0307-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0005-0210						●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0211-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210		●
48	CLIP; OIL PIPE (C)	1-09701-228-3	01	1	0211-			●	●
48	CLIP; OIL PIPE (D)	1-09701-229-2	01	1	0211-			●	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0307-0512	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0512				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-				●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X22 FLANGE	0-28280-622-0	01	1	0005-0210						●
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X25 FLANGE	0-28080-825-0	01	1	0005-0210						●
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28680-830-0	01	1	0211-0512				●
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	01	1	0601-				●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-94395-330-0	01	1	0005-0210						●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-94392-527-3	01	1	0211-				●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=16.0	9-09571-410-0	04	1	0005-0210						●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=16.0	9-09571-410-0	04	1	0211-				●

117 117 44 2 117 117 115 1 3 2 452 396 261 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0307-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0211-			●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0211-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210		●			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0307-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-344-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0307-0605	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●		●	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210					●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0307-0605	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0606-	●		●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0005-0210					●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210		●			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0306			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0307-	●		●	●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	0005-0210					●	●
396	SLEEVE; RUBBER,OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0005-0210					●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0005-0210					●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0211-			●	●

2 3 63 3 3 3 2 157 40 48 100 147 149 47 150 47 2 40 2 47 476 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0211-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210		●			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0307-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-344-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	0307-0512	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
40	BOLT; OIL PIPE (G) M10X22 FLANGE	0-28181-022-0	02	1	0307-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0211-0512			●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0211-0306			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0307-0512	●		●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●		●	●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (E) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●	●
40	BOLT; OIL PIPE (E) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0005-0210		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0307-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0005-0210		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
48	CLIP; OIL PIPE (E)	8-94395-170-0	01	1	0307-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0005-0210						●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0211-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210		●
48	CLIP; OIL PIPE (C)	1-09701-228-3	01	1	0211-			●	●
48	CLIP; OIL PIPE (D)	1-09701-229-2	01	1	0211-			●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97601-975-0	01	1	0307-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0005-0210		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97602-629-0	01	1	0211-			●	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0307-0512	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28680-620-0	01	1	0211-0512				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-				●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X22 FLANGE	0-28280-622-0	01	1	0005-0210						●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0307-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0211-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97601-976-0	01	1	0307-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0005-0210		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0211-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0005-0210		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0211-0306			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0307-	●		●	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0307-	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0005-0210		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0307-	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0005-0210		●

117 117 1 117 475 2 117 2 3 2 3 115 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0307-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0211-			●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0211-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210		●			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0307-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-344-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0307-0605	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●		●	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210					●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0307-0605	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0606-	●		●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0005-0210					●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210		●			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0306			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0307-	●		●	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0307-	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0005-0210		●

44 48 48 404 40 384 3 63 3 2 3 147 149 150 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0211-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210		●			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0307-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-344-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	0307-0512	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
40	BOLT; OIL PIPE (G) M10X22 FLANGE	0-28181-022-0	02	1	0307-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0211-0512			●	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0211-0306			●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0307-0512	●		●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●		●	●
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0005-0210		●
40	BOLT; OIL PIPE (E) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●	●
40	BOLT; OIL PIPE (E) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0307-0605	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●		●	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210					●	●
48	CLIP; OIL PIPE (E)	8-94395-170-0	01	1	0307-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0005-0210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0005-0210						●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0211-				●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0005-0210		●
48	CLIP; OIL PIPE (C)	1-09701-228-3	01	1	0211-			●	●
48	CLIP; OIL PIPE (D)	1-09701-229-2	01	1	0211-			●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97601-975-0	01	1	0307-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0005-0210		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97602-629-0	01	1	0211-			●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0307-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	0005-0210		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0211-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97601-976-0	01	1	0307-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0005-0210		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0211-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0005-0210		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0211-0306			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0307-	●		●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0211-			●	●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0211-			●	●

117 117 117 2 117 1 2 452 3 115 44 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PIPE; OIL,INJ PUMP TO C/BL	8-97600-649-1	01	1	0307-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0005-0210		●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0211-			●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	03	1	0307-0805	●
2	BOLT; EYE,OIL PIPE (D) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (E) M12X25	5-09675-006-1	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●	●
2	BOLT; EYE,OIL PIPE FRR(FR****) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-0210		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210		●			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-0306			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0307-	●		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210					●	●
2	BOLT; EYE,OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210						●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0211-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210		●			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-0306			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-084-0	02	1	0307-1312	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0307-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-344-0	02	1	1401-	●		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0307-0605	●
44	BOLT; CLIP,OIL PIPE (E) M6X22 FLANGE	0-28080-622-0	01	1	0606-	●		●	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0210					●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0307-0605	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0606-	●		●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0005-0210					●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210		●			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0306			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0307-	●		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0005-0210					●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0211-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
