◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#9308) — 199 parça

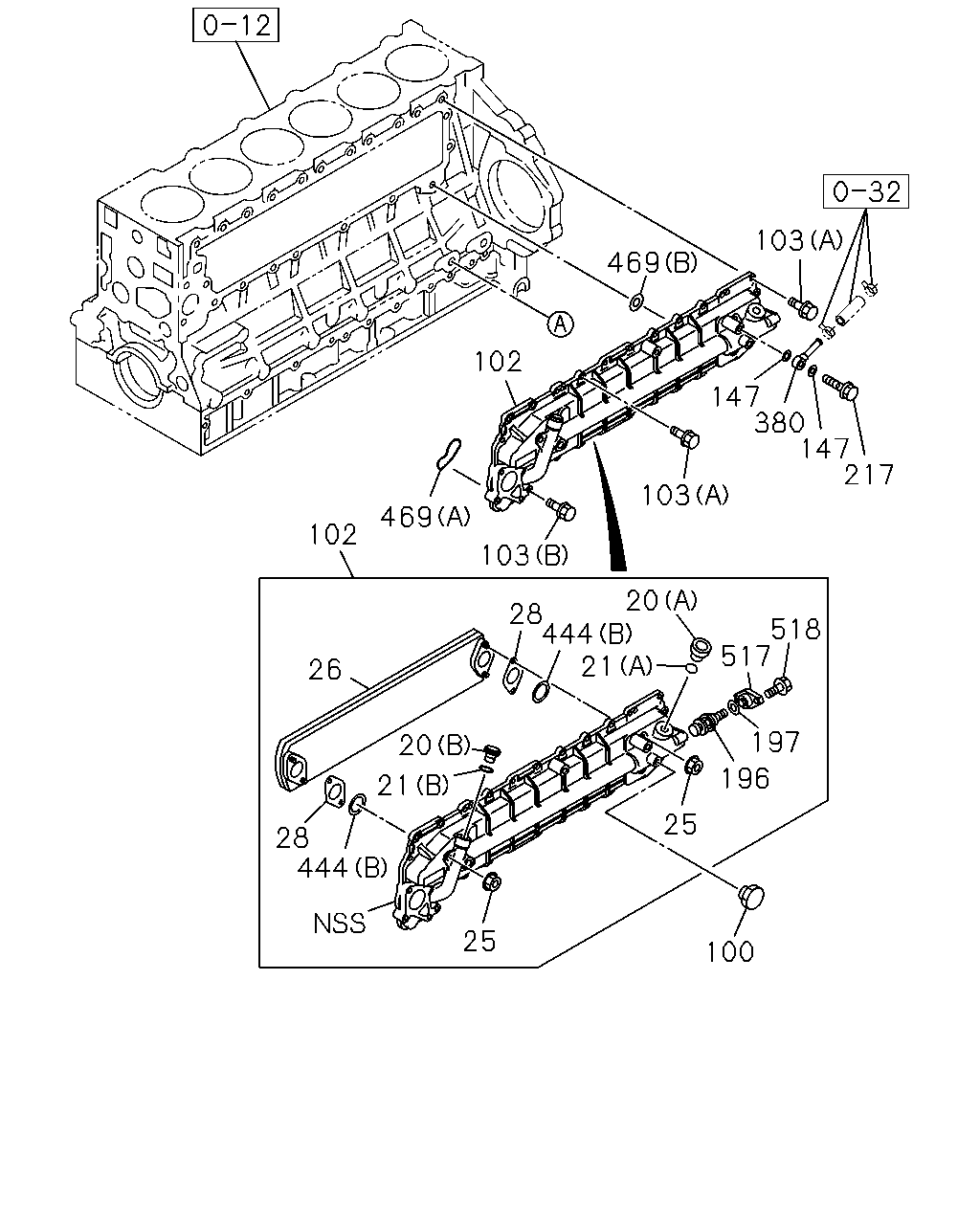

çizim 37927
103 469 102 147 380 147 217 103 469 102 103 20 28 444 21 518 517 26 197 20 196 21 25 28 444 25 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0210 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0211-0306 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0307- ● ● ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0211-0306 ● ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0307- ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0210 ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0211-0306 ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0307- ● ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0211-0306 ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0307- ● ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 0005-0210 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0211-0306 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0307- ● ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0307- ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 0005-0210 ● ●
26 CORE ASM; OIL COOLER 8-94391-739-0 01 1 0211- ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0210 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0211-0306 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0307- ● ● ●
100 PLUG; OIL COOLER
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M14 		8-94399-225-0 01 1 0211-0302 ●
100 PLUG; OIL COOLER
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M14 		8-94399-225-0 01 1 0303-0306 ● ●
100 PLUG; OIL COOLER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 		8-94399-225-0 01 1 0307- ● ●
102 COOLER ASM; OIL 8-97601-079-1 01 1 0307- ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 0005-0210 ●
102 COOLER ASM; OIL 8-94392-620-1 01 1 0211- ● ●
102 COOLER ASM; OIL
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94390-074-4 01 1 0005-0210 ● ●
102 COOLER ASM; OIL
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		8-94390-074-4 01 1 0005-0210 ●
102 COOLER ASM; OIL
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94390-075-4 01 1 0005-0210 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0307-0512 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005-0210 ● ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0211-0306 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0307- ● ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0210 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 01 1 0211-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 01 1 0601- ● ●
147 GASKET; PLUG
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0307-1312 ●
147 GASKET; PLUG
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 0005-0111 ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-935-0 01 1 0112-0210 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0112-0210 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0211-0306 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0307- ● ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0005-0210 ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0211-0306 ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0307- ● ● ●
217 BOLT; CONNECTOR
M14X33 FLANGE 		1-09675-088-0 01 1 0307- ●
380 CONNECTOR; WATER 8-97601-493-0 01 1 0307- ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 0005-0210 ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0211-0306 ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0307- ● ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0211-0306 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0307- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0211-0306 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0307-0606 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98045-449-0 01 1 0607- ● ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94395-191-0 01 1 0005-0210 ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0211-0306 ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0307- ● ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0211-0306 ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0307-0512 ● ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●

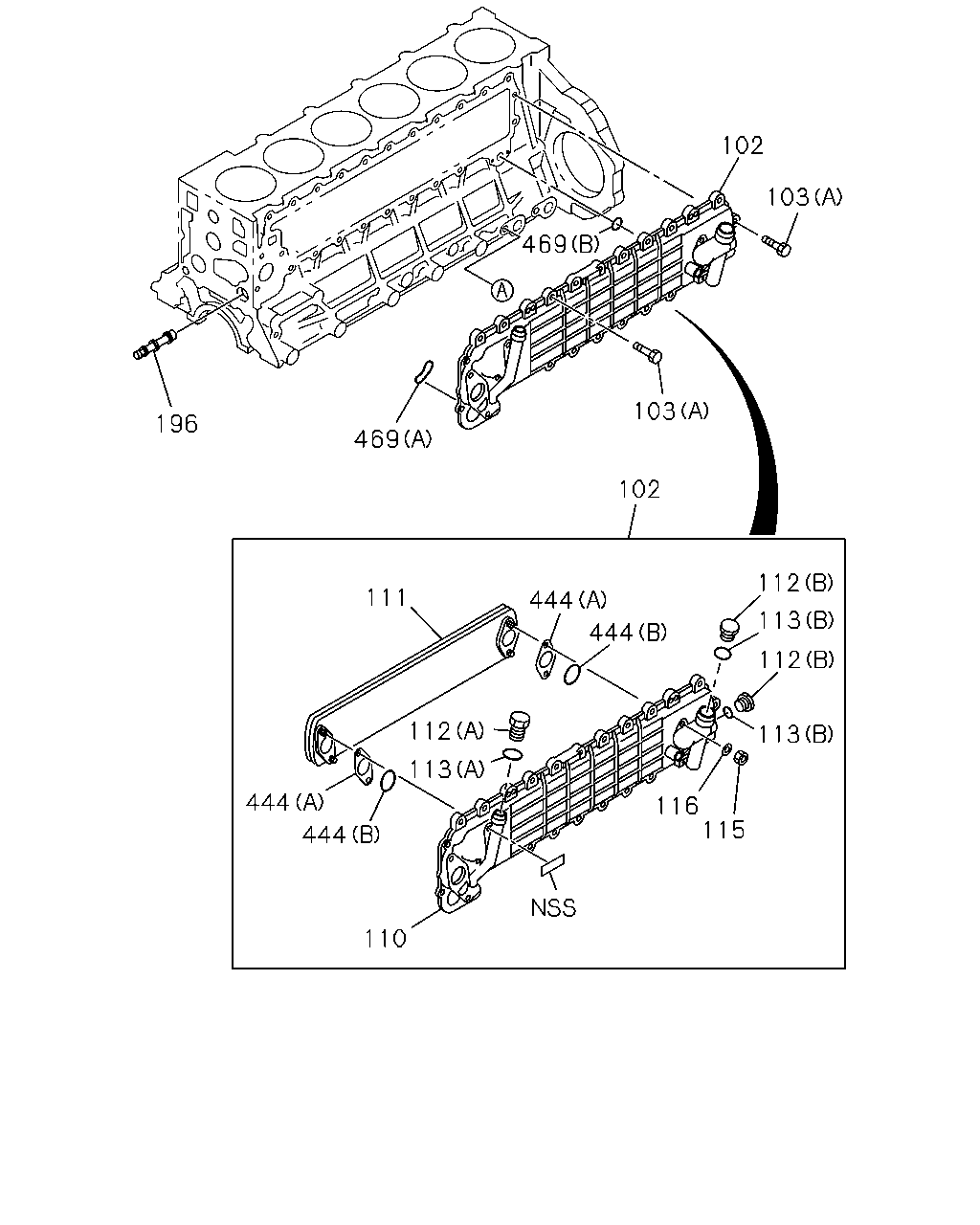

çizim 38675
102 469 103 103 196 469 102 112 111 444 113 444 112 112 113 113 444 116 115 444 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
102 COOLER ASM; OIL 8-97601-079-1 01 1 0307- ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 0005-0210 ●
102 COOLER ASM; OIL 8-94392-620-1 01 1 0211- ● ●
102 COOLER ASM; OIL
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94390-074-4 01 1 0005-0210 ● ●
102 COOLER ASM; OIL
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		8-94390-074-4 01 1 0005-0210 ●
102 COOLER ASM; OIL
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94390-075-4 01 1 0005-0210 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0307-0512 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005-0210 ● ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0211-0306 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0307- ● ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0210 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 01 1 0211-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 01 1 0601- ● ●
110 BODY; CASE,OIL COOLER 8-94395-283-4 01 1 0005-0210 ●
111 CORE; OIL COOLER 8-94390-537-0 01 1 0005-0210 ●
112 PLUG; OIL COOLER CASE
(A) 		8-94393-604-0 01 1 0005-0210 ●
112 PLUG; OIL COOLER CASE
(B) 		8-94396-753-0 02 1 0005-0210 ●
113 GASKET; PLUG,OIL COOLER CASE
(A) 		1-09623-499-0 01 1 0005-0210 ●
113 GASKET; PLUG,OIL COOLER CASE
(B) M24 		8-94396-755-0 02 1 0005-0210 ●
115 NUT; ELEMENT
M10 		9-09111-410-0 04 1 0005-0210 ●
116 WASHER; PL,ELEMENT
ID=10.5 		9-09164-510-0 04 1 0005-0210 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 0005-0111 ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-935-0 01 1 0112-0210 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0112-0210 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0211-0306 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0307- ● ● ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 0005-0210 ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0211-0306 ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0307- ● ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0211-0306 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0307- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0211-0306 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0307-0606 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98045-449-0 01 1 0607- ● ● ●

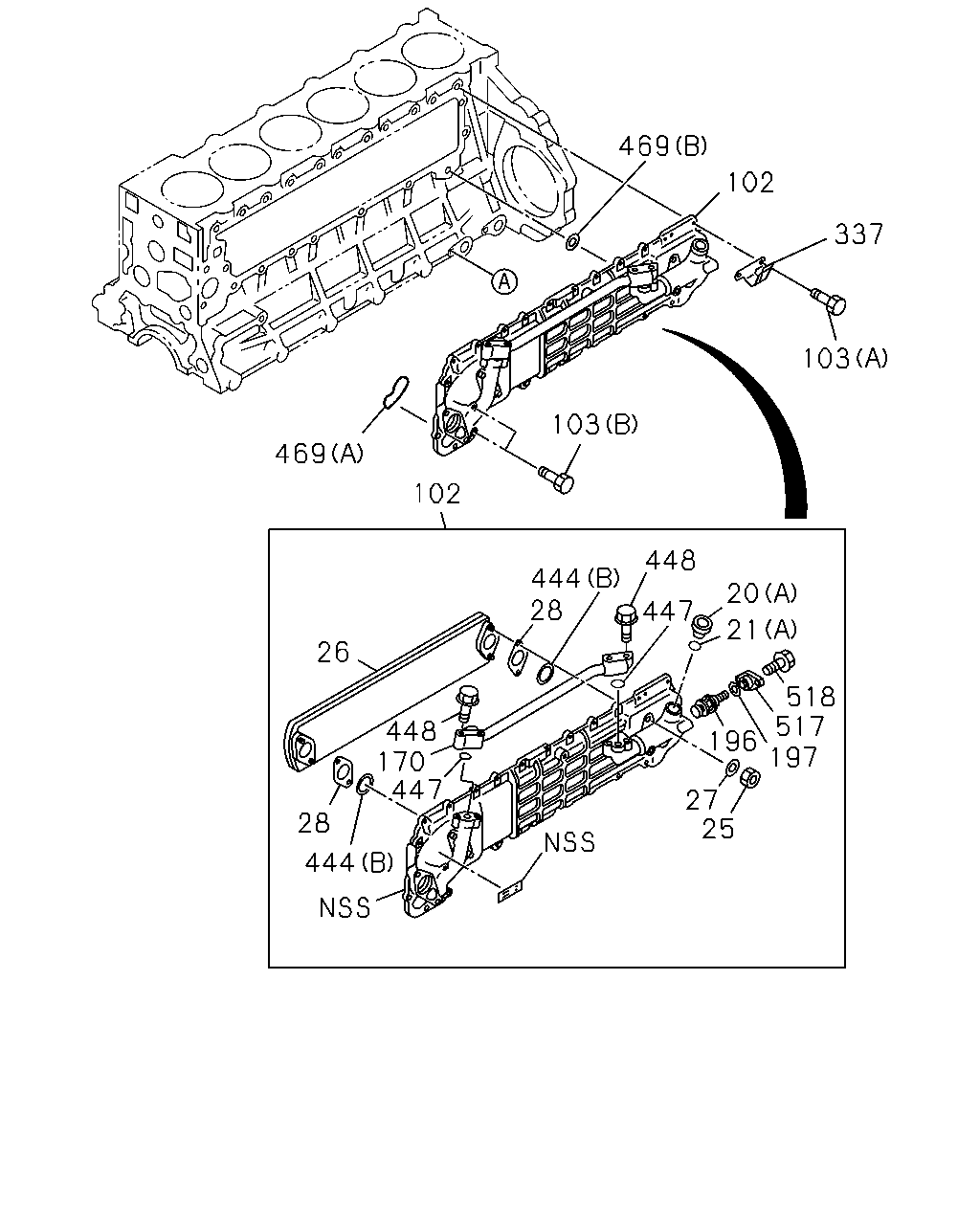

çizim 38676
469 102 337 103 103 469 102 448 444 28 20 447 21 26 518 517 197 448 170 447 196 27 25 28 444
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0005-0210 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0211-0306 ● ●
20 PLUG; COOLER BODY
(A) 		8-94396-753-0 01 1 0307- ● ● ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0211-0306 ● ●
20 PLUG; COOLER BODY
(B) 		8-94393-604-0 01 1 0307- ● ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0005-0210 ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0211-0306 ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0307- ● ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0211-0306 ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0307- ● ● ●
25 NUT; CORE TO BODY
M10 		9-09111-410-0 04 1 0005-0210 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0211-0306 ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0307- ● ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0307- ●
26 CORE ASM; OIL COOLER 8-94395-711-0 01 1 0005-0210 ● ●
26 CORE ASM; OIL COOLER 8-94391-739-0 01 1 0211- ● ●
27 WASHER; PL,CORE TO BODY
ID=10.5 		9-09164-510-0 04 1 0005-0210 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0005-0210 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0211-0306 ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0307- ● ● ●
102 COOLER ASM; OIL 8-97601-079-1 01 1 0307- ●
102 COOLER ASM; OIL 8-94390-536-0 01 1 0005-0210 ●
102 COOLER ASM; OIL 8-94392-620-1 01 1 0211- ● ●
102 COOLER ASM; OIL
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94390-074-4 01 1 0005-0210 ● ●
102 COOLER ASM; OIL
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		8-94390-074-4 01 1 0005-0210 ●
102 COOLER ASM; OIL
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94390-075-4 01 1 0005-0210 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 03 1 0307-0512 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 0601- ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 25 1 0005-0210 ● ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0211-0306 ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0307- ● ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 02 1 0005-0210 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28080-835-0 01 1 0211-0512 ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 01 1 0601- ● ●
170 PIPE; BYPASS 8-94390-078-1 01 1 0005-0210 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-94394-815-2 01 1 0005-0111 ● ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-935-0 01 1 0112-0210 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0112-0210 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0211-0306 ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0307- ● ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0005-0210 ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0211-0306 ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0307- ● ● ●
337 BRACKET; FUEL PIPE 8-94396-688-1 01 1 0005-0210 ● ●
444 GASKET; ELEMENT TO BODY
(A) 		8-94394-930-0 02 1 0005-0210 ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0211-0306 ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0307- ● ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-94396-810-0 02 1 0005-0210 ● ● ●
447 GASKET; BYPASS PIPE 1-09623-588-0 02 1 0005-0210 ● ●
448 BOLT; BYPASS PIPE
M8X30 FLANGE 		0-28080-830-0 04 1 0005-0210 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0211-0306 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0307- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0005-0210 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0211-0306 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7 		8-94399-279-0 01 1 0307-0606 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98045-449-0 01 1 0607- ● ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94395-191-0 01 1 0005-0210 ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0211-0306 ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0307- ● ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0211-0306 ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0307-0512 ● ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●

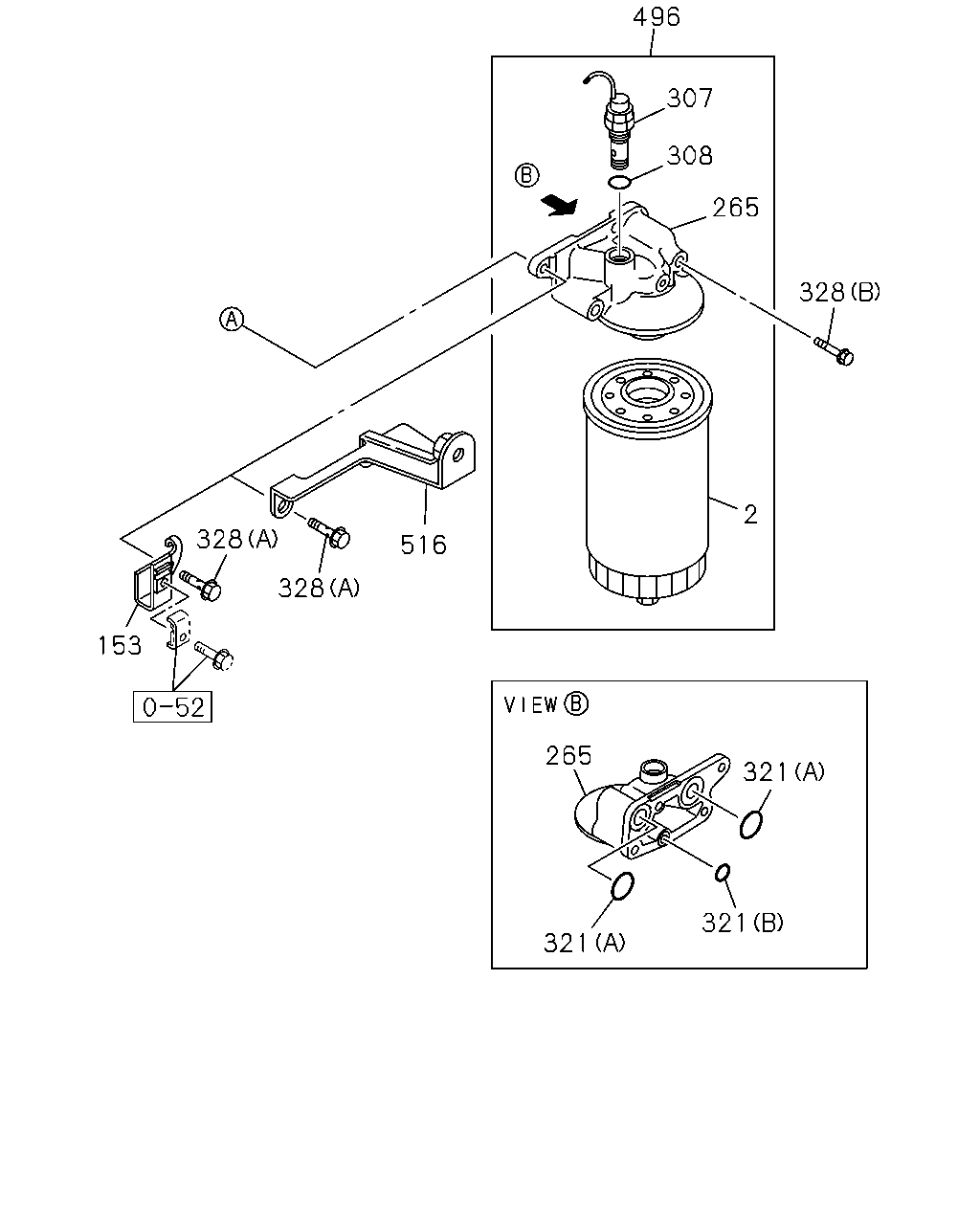

çizim 39183
496 307 308 265 328 2 328 516 328 153 265 321 321 321
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 ELEMENT; OIL FILTER 8-94391-049-2 01 1 0005-0210 ● ● ●
2 ELEMENT; OIL FILTER 8-94391-049-2 01 1 0211-0306 ● ●
2 ELEMENT; OIL FILTER 8-94391-049-4 01 1 0307- ● ● ●
153 BRACKET; OIL PIPE 8-94392-297-0 01 1 0606- ● ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0005-0210 ● ● ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0211-0306 ● ●
265 BODY; OIL FILTER 8-94391-016-4 01 1 0307- ● ● ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0005-0210 ● ● ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0211-0306 ● ●
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0307- ● ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0005-0210 ● ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0211-0306 ● ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0307- ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 0005-0210 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 0211-0306 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 0307- ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0005-0210 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0211-0306 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0307- ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0005-0210 ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0211-0306 ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28181-030-0 02 1 0307-0512 ● ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ● ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0005-0210 ● ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0211-0306 ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0307-0512 ● ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ● ● ●
496 FILTER ASM; OIL 8-94391-015-5 01 1 0005-0210 ● ● ●
496 FILTER ASM; OIL 8-94391-015-5 01 1 0211-0306 ● ●
496 FILTER ASM; OIL 8-94391-015-8 01 1 0307- ● ● ●
516 BRACKET; COVER 8-94394-986-2 01 1 0005-0210 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
