Sayfa 0-42 - Isuzu EPC

0-42 — FUEL PUMP AND PIPE (#9307) — 218 parça

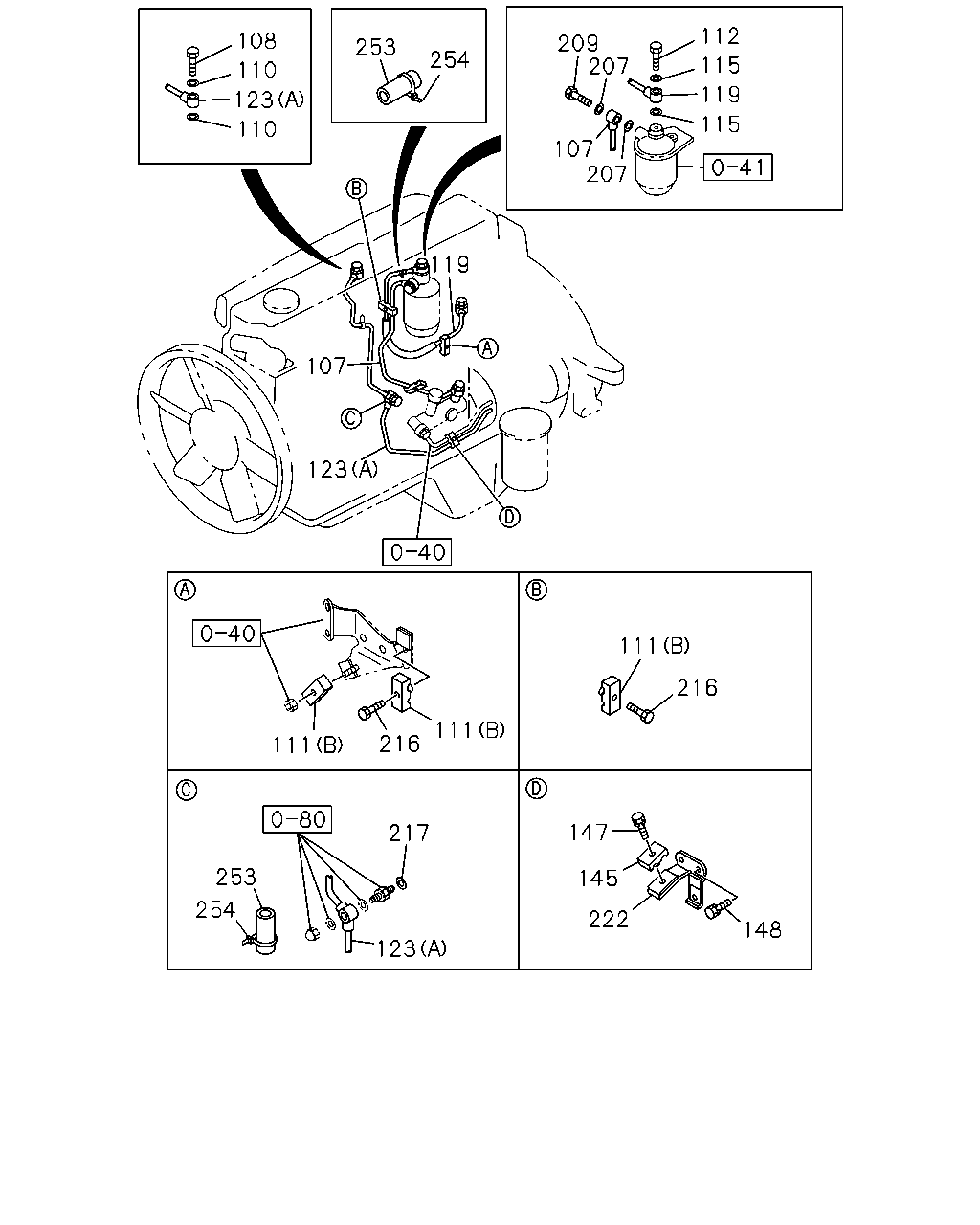

112 108 209 207 253 254 115 110 119 123 115 110 107 207 119 107 123 111 216 111 216 111 147 217 253 145 254 222 148 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0307-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0005-0210		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0211-			●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	0005-0210					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0005		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0210		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0005		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112					●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0210		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
111	CLIP; FUEL PIPE (E)	1-15419-215-1	01	1	0307-	●
111	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	01	1	0307-	●
111	CLIP; FUEL PIPE (D) ID=6.0 & 9.5	8-94100-359-0	01	1	0307-	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-0210		●			●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	0005-0210					●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0307-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0005-0210		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0211-			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	0005-0210					●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	0005-0210		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (D)	8-94391-513-0	01	1	0211-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94394-556-1	01	1	0005-0210					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF FRR(FR****) MBJ6T M/T(Y2A) (B)	8-94394-556-1	01	1	0005-0210						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0211-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF AT545 A/T ALLISON(MD1) (B)	8-94394-571-1	01	1	0005-0210						●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0005-0210		●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	0211-			●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0210		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0211-0512			●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-			●	●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0005-0112		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0307-0512	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	0005-0108		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0005-0210		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0005-0210					●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0307-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0210		●			●	●
222	BRACKET; CLIP	8-94395-079-2	01	1	0307-	●
222	BRACKET; CLIP	8-94395-079-2	01	1	0005-0210		●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0005-0210		●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0005-0005		●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0006-0210		●
254	CLIP L=250	5-09707-030-1	02	1	0005-0005		●

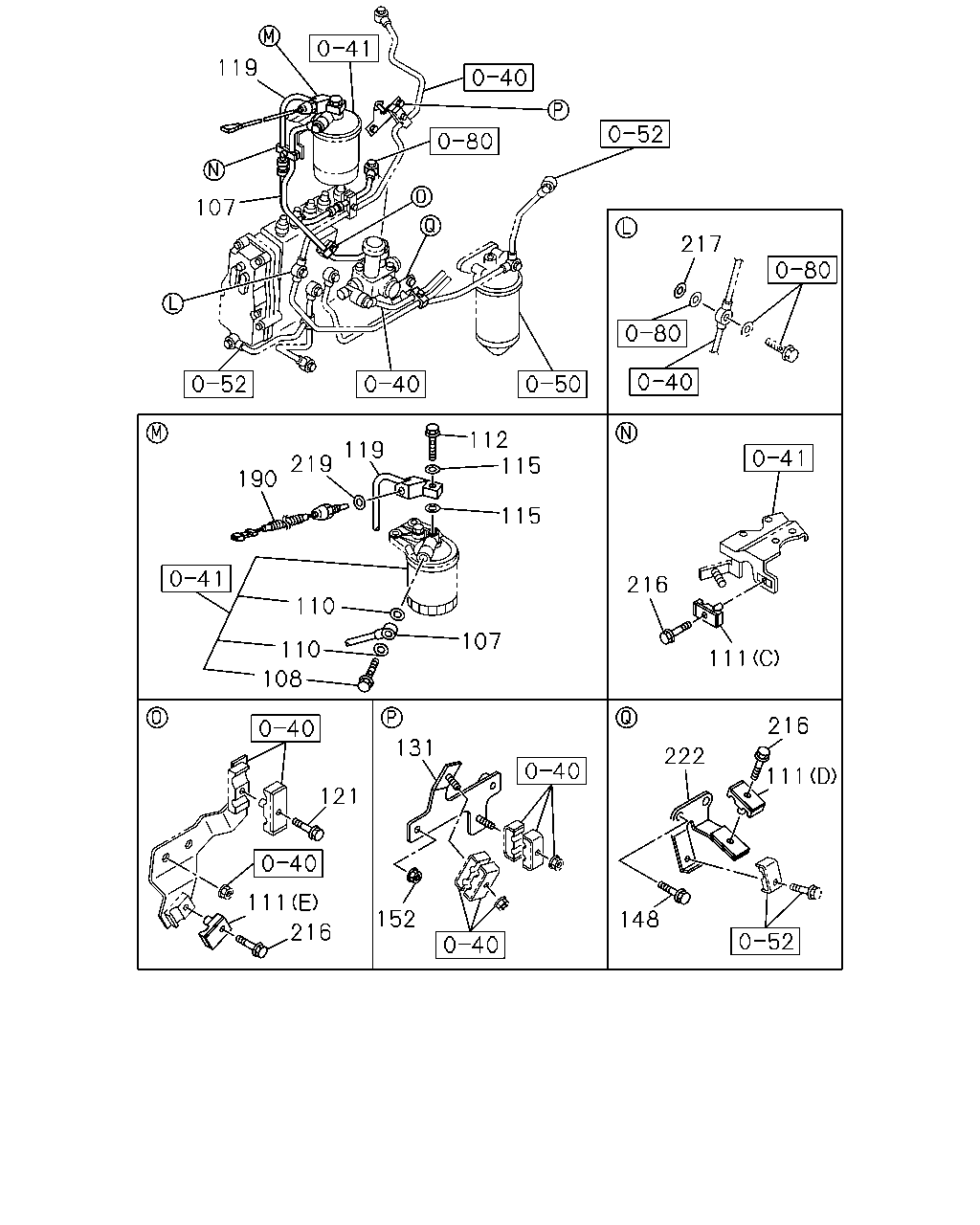

119 107 217 112 115 119 219 190 115 216 110 107 110 111 108 216 131 222 111 121 111 152 148 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0307-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0005-0210		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0211-			●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	0005-0210					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0005		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0210		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0005		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112					●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0210		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
111	CLIP; FUEL PIPE (E)	1-15419-215-1	01	1	0307-	●
111	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	01	1	0307-	●
111	CLIP; FUEL PIPE (D) ID=6.0 & 9.5	8-94100-359-0	01	1	0307-	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-0210		●			●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	0005-0210					●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0307-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0005-0210		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0211-			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	0005-0210					●	●
121	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	0307-0512	●
121	BOLT; CLIP M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●
131	BRACKET; FUEL PIPE CLIP	8-97601-488-0	01	1	0307-	●
131	BRACKET; FUEL PIPE CLIP	8-94390-958-0	01	1	0211-			●	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
152	NUT; BRKT M6 FLANGE	0-91150-206-0	02	1	0307-0602	●
152	NUT; BRKT M6 FLANGE	0-91180-206-0	02	1	0603-	●
190	SENSOR; FUEL TEMP	8-97601-754-3	01	1	0307-	●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	0211-			●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0307-0512	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	0005-0108		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0005-0210		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0005-0210					●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0307-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0210		●			●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0306			●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0307-1312	●		●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	8-98251-344-0	01	1	1401-	●		●	●
222	BRACKET; CLIP	8-94395-079-2	01	1	0307-	●
222	BRACKET; CLIP	8-94395-079-2	01	1	0005-0210		●

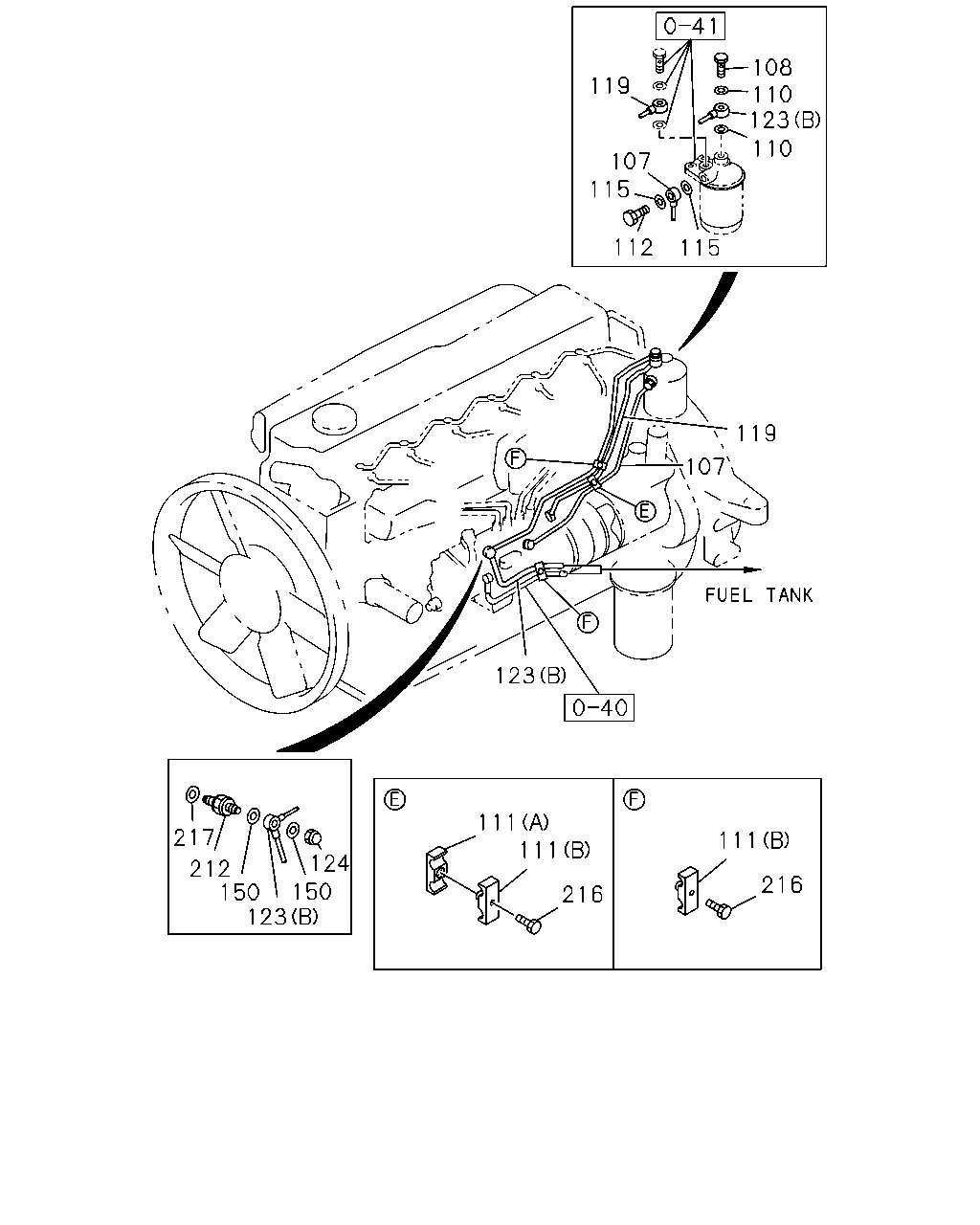

108 110 123 119 110 107 115 115 112 119 107 123 111 111 217 111 124 212 150 150 123 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0307-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0005-0210		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0211-			●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	0005-0210					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0005		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0210		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0005		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112					●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0210		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
111	CLIP; FUEL PIPE (E)	1-15419-215-1	01	1	0307-	●
111	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	01	1	0307-	●
111	CLIP; FUEL PIPE (D) ID=6.0 & 9.5	8-94100-359-0	01	1	0307-	●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	0005-0210		●			●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	0005-0210					●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0307-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0005-0210		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0211-			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	0005-0210					●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	0005-0210		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (D)	8-94391-513-0	01	1	0211-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94394-556-1	01	1	0005-0210					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF FRR(FR****) MBJ6T M/T(Y2A) (B)	8-94394-556-1	01	1	0005-0210						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0211-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF AT545 A/T ALLISON(MD1) (B)	8-94394-571-1	01	1	0005-0210						●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0005-0210					●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	0005-0210					●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0307-0512	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	0005-0108		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0005-0210		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0005-0210					●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0307-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0005-0210		●			●	●

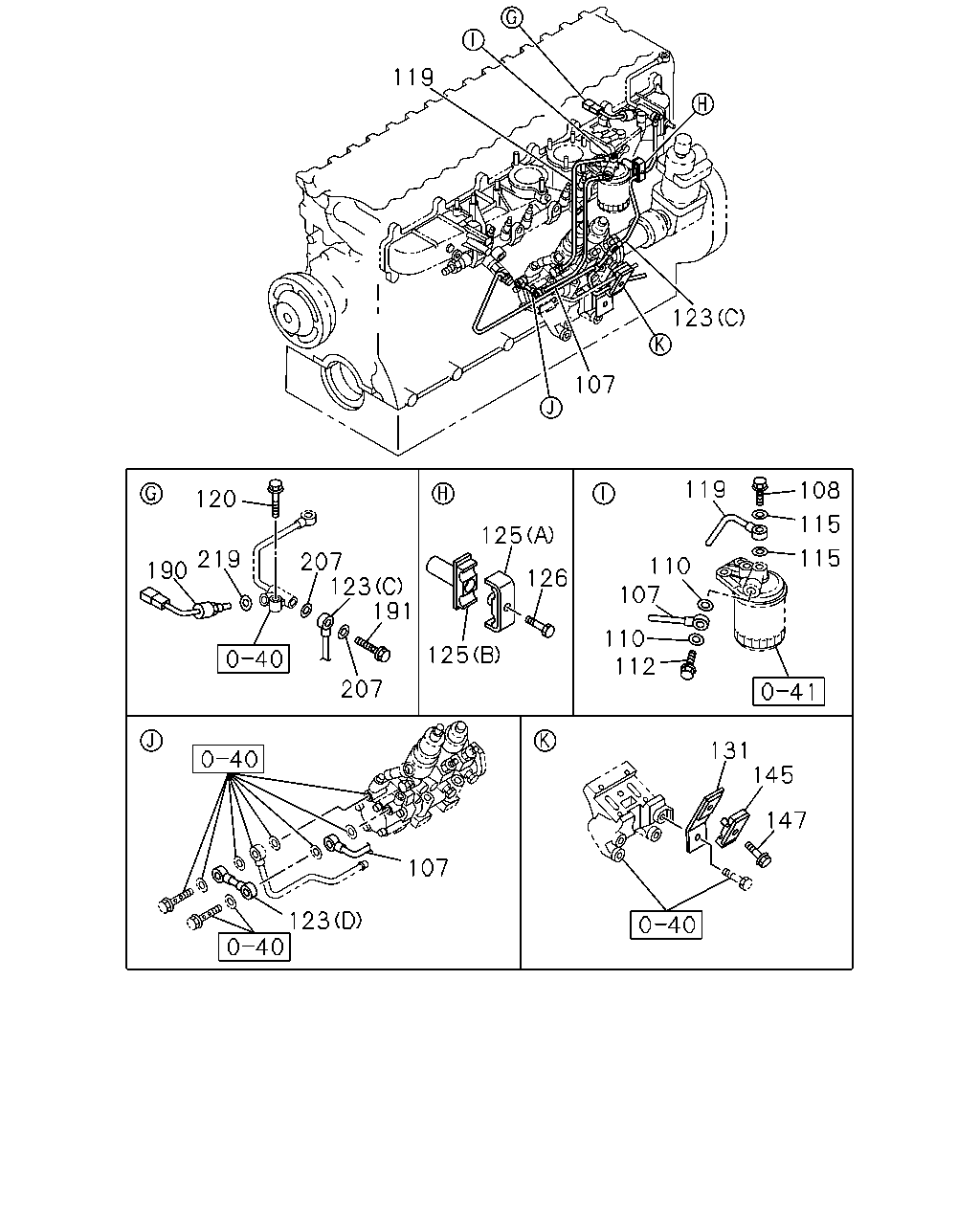

119 123 107 119 108 120 115 125 115 219 190 207 123 191 110 107 126 110 112 125 207 131 145 147 107 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0307-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0005-0210		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	0211-			●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	0005-0210					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0005		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112					●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0210		●			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0005		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112					●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0210		●			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0307-	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●		●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0307-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0005-0210		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	0211-			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	0005-0210					●	●
120	BOLT; STAY M8X40 FLANGE	0-28080-840-0	01	1	0211-0512			●	●
120	BOLT; STAY M8X40 FLANGE	0-28050-840-0	01	1	0601-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-94390-831-2	01	1	0005-0210		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (D)	8-94391-513-0	01	1	0211-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94394-556-1	01	1	0005-0210					●
123	PIPE; FUEL,FUEL FILTER LEAK OFF FRR(FR****) MBJ6T M/T(Y2A) (B)	8-94394-556-1	01	1	0005-0210						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (C)	8-97600-387-0	01	1	0211-			●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF AT545 A/T ALLISON(MD1) (B)	8-94394-571-1	01	1	0005-0210						●
125	CLIP; FUEL PIPE (A)	1-09701-172-3	01	1	0211-			●	●
125	CLIP; FUEL PIPE (B)	8-94391-370-1	01	1	0211-			●	●
126	BOLT; CLIP,FUEL PIPE M6X60 FLANGE	0-28080-660-0	01	1	0211-0512			●	●
126	BOLT; CLIP,FUEL PIPE M6X60 FLANGE	0-28050-660-0	01	1	0601-			●	●
131	BRACKET; FUEL PIPE CLIP	8-97601-488-0	01	1	0307-	●
131	BRACKET; FUEL PIPE CLIP	8-94390-958-0	01	1	0211-			●	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0005-0210		●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	0211-			●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0005-0210		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0211-0512			●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-			●	●
190	SENSOR; FUEL TEMP	8-97601-754-3	01	1	0307-	●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	0211-			●	●
191	BOLT; EYE,FUEL PIPE M10X21 FLANGE	8-94396-711-0	01	1	0211-			●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112		●
207	GASKET; EYE BOLT ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-			●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0211-0306			●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0307-1312	●		●	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	8-98251-344-0	01	1	1401-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
