◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#9305) — 671 parça

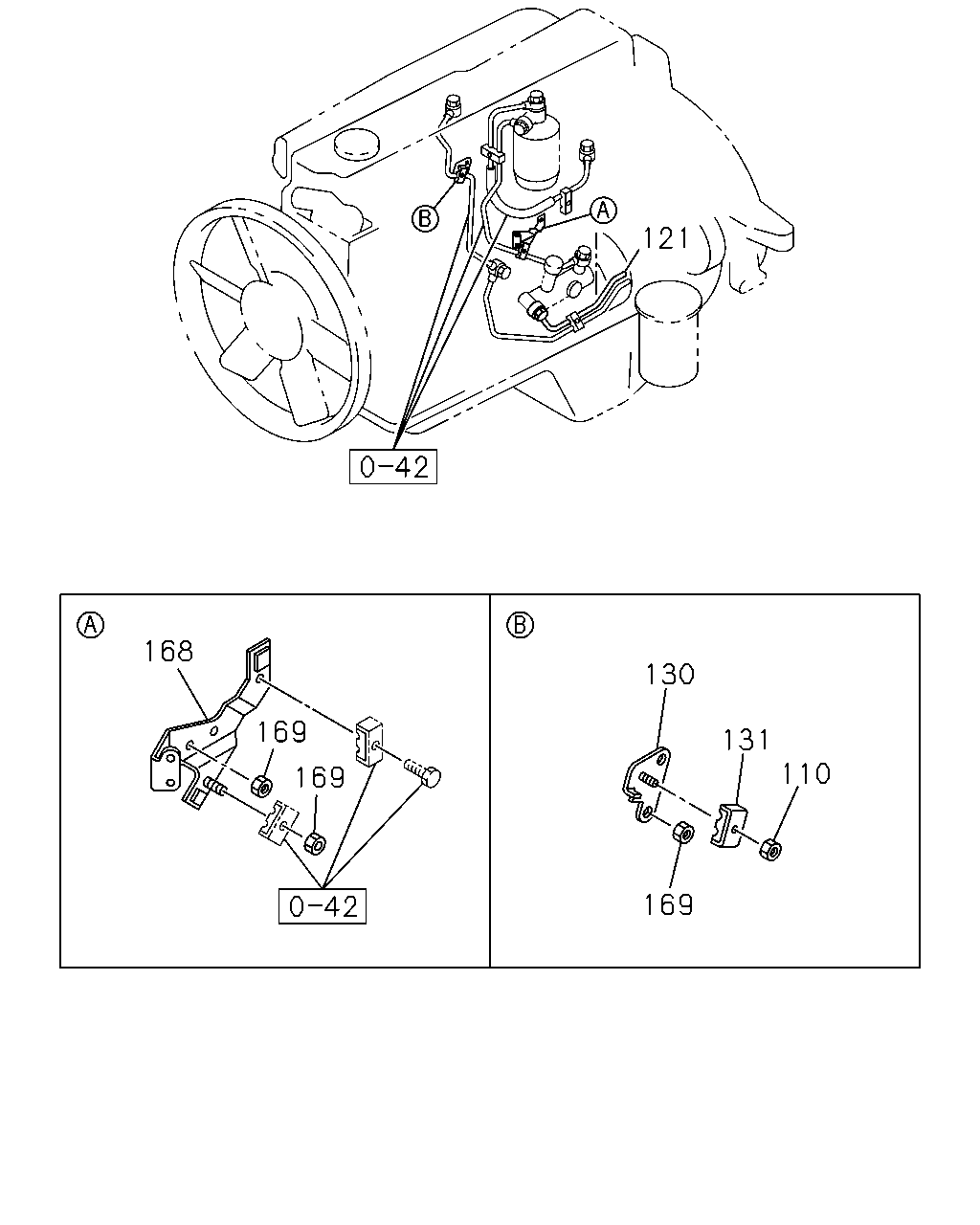

çizim 38313
121 168 130 169 131 110 169 169
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0307- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 0005-0210 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 0211- ● ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-980-2 01 1 0005-0210 ●
131 CLIP; OVERFLOW LEAK OFF
L=48 		5-09709-103-0 01 1 0307- ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 0005-0210 ●
168 BRACKET; FUEL PIPE 8-97602-186-0 01 1 0307- ●
168 BRACKET; FUEL PIPE 8-94395-046-2 01 1 0005-0210 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0307-0602 ●
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●

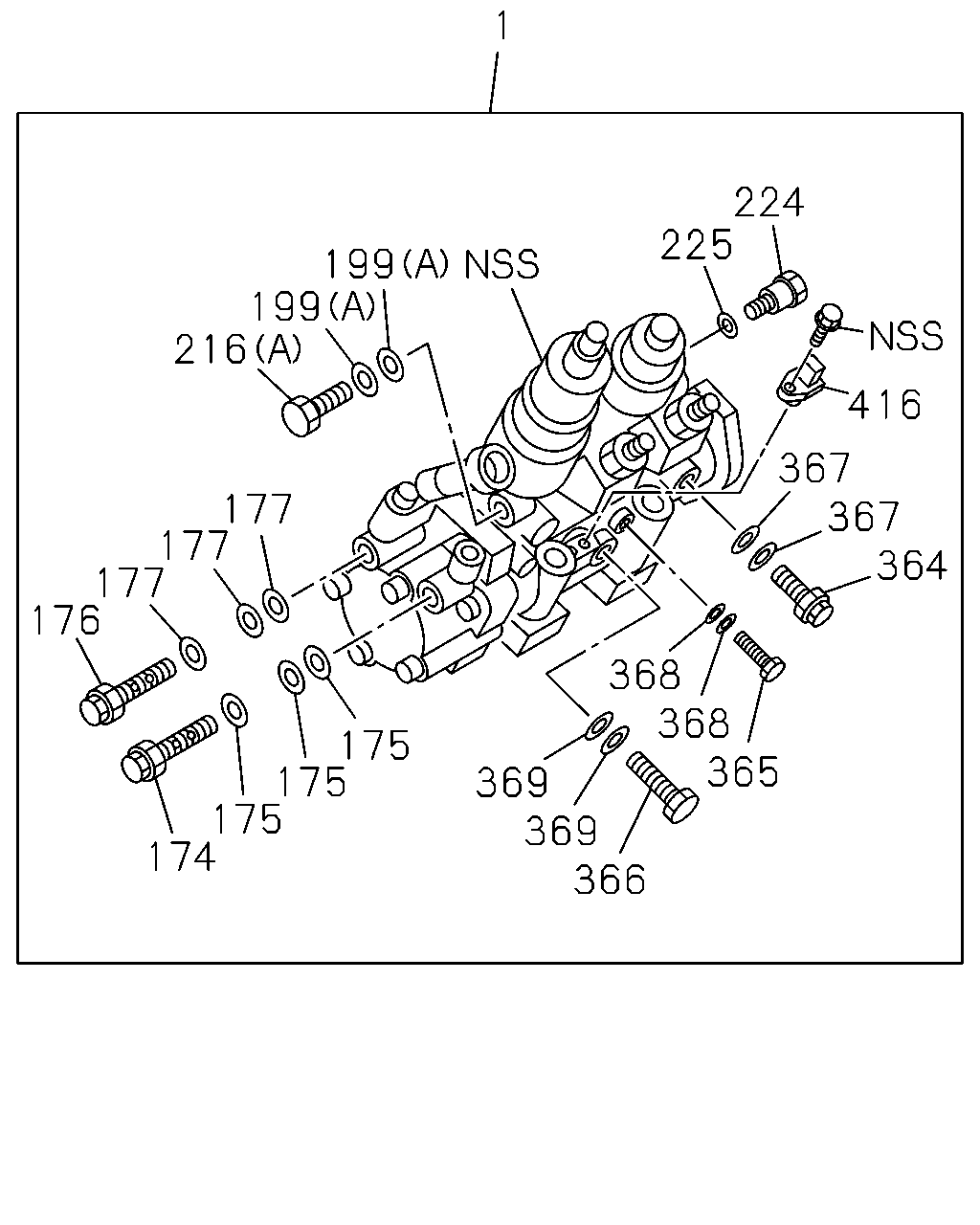

çizim 39045
1 224 225 199 199 216 416 367 367 364 177 177 177 176 368 368 365 175 175 175 174 369 369 366
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0307- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AT545 A/T ALLISON(MD1) 		8-94391-335-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR STD CAB(FR**M*) ISUZU M/T<X9A> 		8-94391-334-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR DOUBLE CAB(FR**W*) 		8-94391-334-0 01 1 0005-0210 ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 1-15619-499-0 01 1 0211- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-501-0 03 1 0211- ● ●
176 BOLT; EYE,FEED PUMP 1-15619-498-0 01 1 0211- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-501-0 03 1 0211- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 0211- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0211- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0211- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0211- ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0211- ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 0211- ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0211- ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0211- ● ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0211- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0211- ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-503-0 02 1 0211- ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0211- ● ●
416 SENSOR; POSITION,PUMP 8-97174-899-0 01 1 0211- ● ●
çizim 39193
31 42 32 145 140 44 141 46 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0307- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ● ●
32 HOLDER ASM; NOZZLE 8-97602-022-0 06 1 0307- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 8-94395-990-1 06 1 0005-0210 ● ●
33 NOZZLE; INJ 8-97602-021-0 06 1 0307- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 0005-0210 ●
33 NOZZLE; INJ 8-94395-988-0 06 1 0005-0210 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-142-0 06 1 0307- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 0005-0210 ● ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 9-09561-112-0 06 1 0307- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15345-003-0 06 1 0307- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 06 1 0005-0210 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		1-15347-001-1 12 1 0307- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(C) 		9-15347-003-0 12 1 0307- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(A) 		8-94174-139-0 12 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-120-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-121-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-122-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-123-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-124-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-125-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-126-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-127-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 0005-0210 ● ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15349-132-0 06 1 0307- ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-006-0 06 1 0005-0210 ● ●
145 GASKET; RET NUT
ID=23.3 		8-94173-412-0 06 1 0307- ●
145 GASKET; RET NUT 8-94128-915-0 06 1 0005-0210 ●
146 SPACER; NOZZLE 1-15349-133-0 06 1 0307- ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 0005-0210 ●

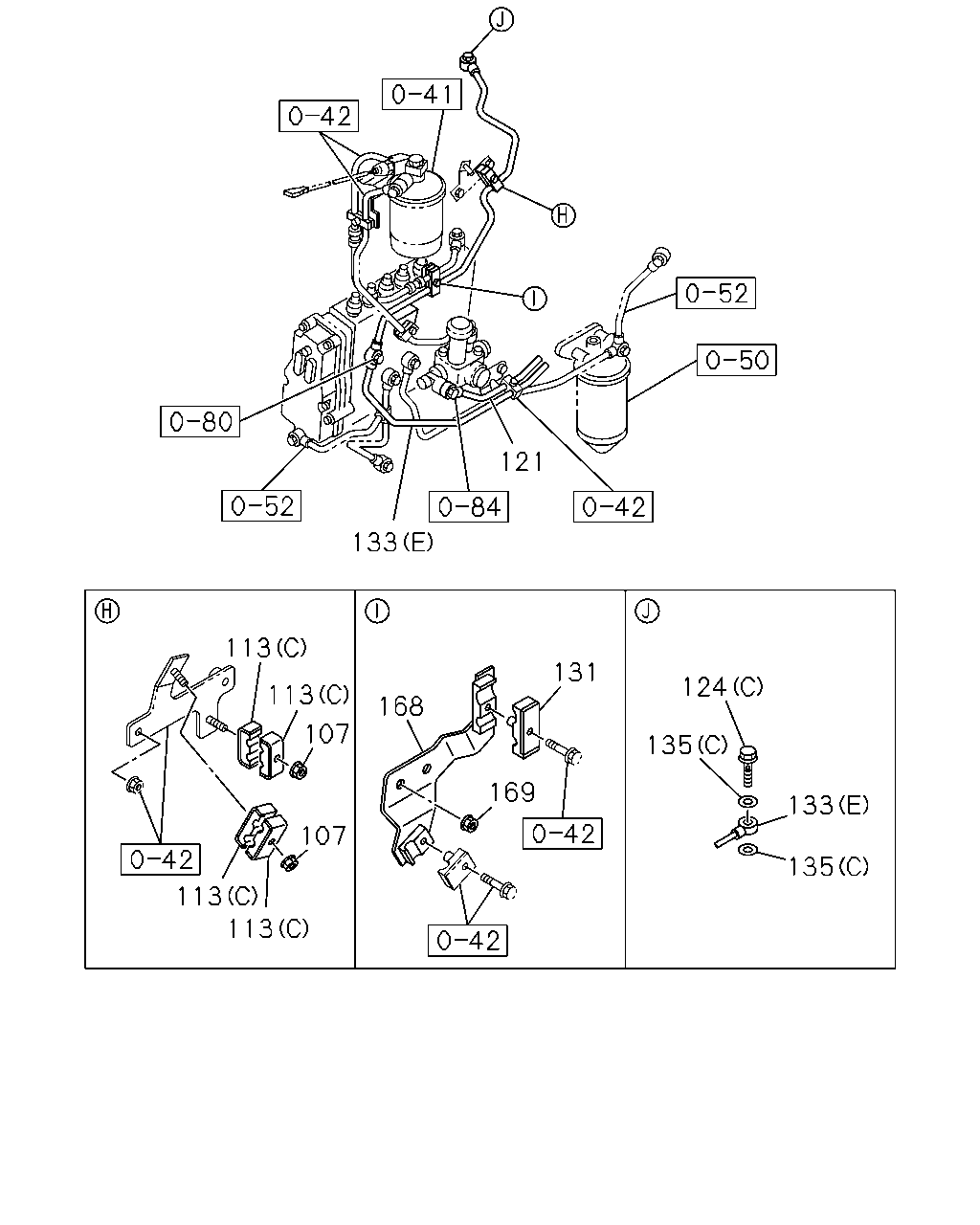

çizim 39249
121 133 113 131 124 113 168 107 135 169 133 107 135 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0307-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 0005-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ● ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0307-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ● ● ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0109-0210 ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 0005-0210 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0307- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 0005-0210 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 0211- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M10X21 FLANGE 		8-94396-711-0 01 1 0307- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 0005-0210 ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X30 FLANGE 		1-09675-039-1 01 1 0005-0210 ● ● ●
131 CLIP; OVERFLOW LEAK OFF
L=48 		5-09709-103-0 01 1 0307- ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(F) 		8-94390-451-0 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94391-311-0 01 1 0211-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94390-178-0 01 1 0005-0210 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94391-356-1 01 1 0211- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 15 1 0005-0210 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909- ● ● ●
168 BRACKET; FUEL PIPE 8-97602-186-0 01 1 0307- ●
168 BRACKET; FUEL PIPE 8-94395-046-2 01 1 0005-0210 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0307-0602 ●
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●

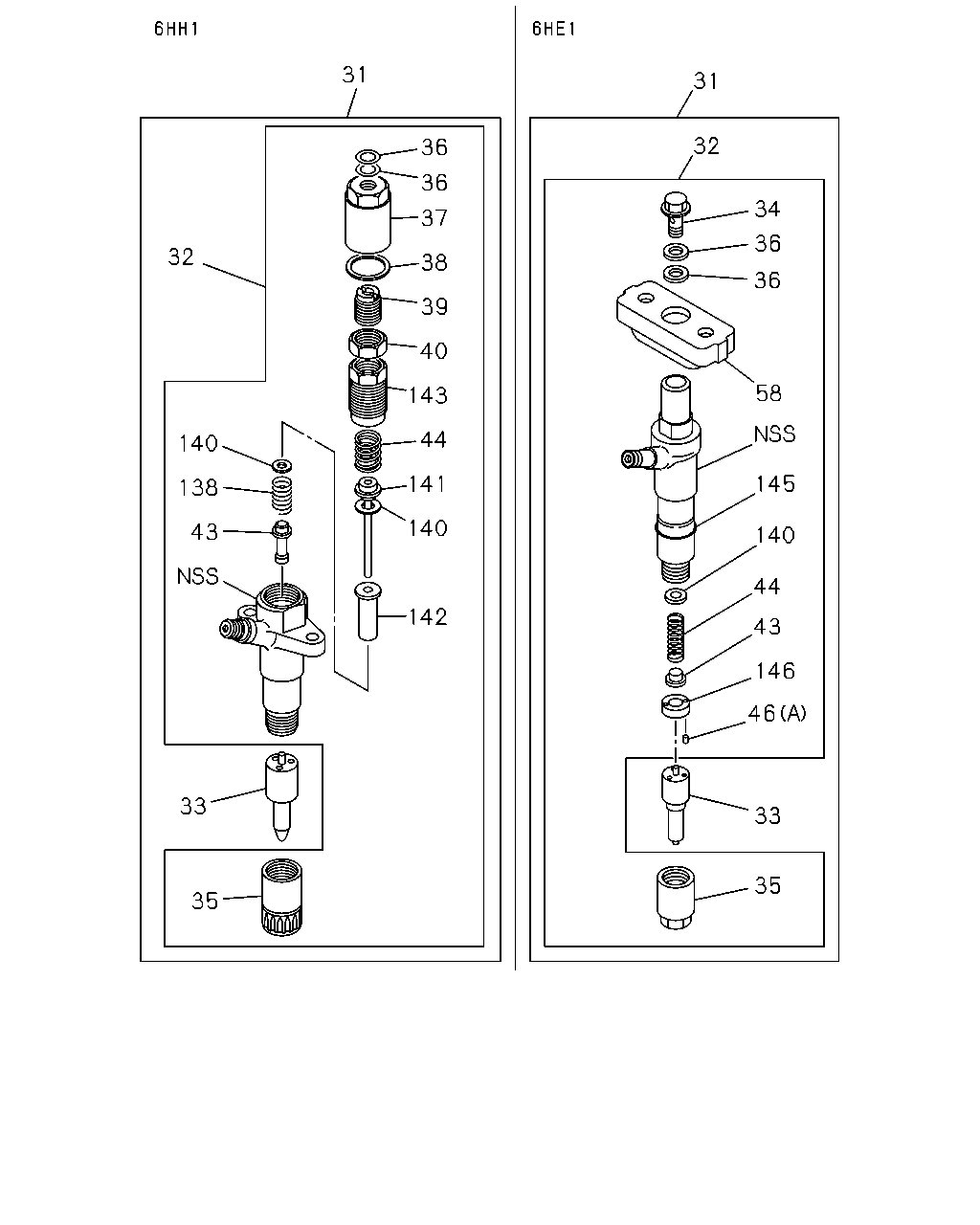

çizim 41017
31 31 32 36 36 34 37 36 32 38 36 39 40 58 143 44 140 145 141 138 140 43 140 44 142 43 146 46 33 33 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0307- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ● ●
32 HOLDER ASM; NOZZLE 8-97602-022-0 06 1 0307- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 8-94395-990-1 06 1 0005-0210 ● ●
33 NOZZLE; INJ 8-97602-021-0 06 1 0307- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 0005-0210 ●
33 NOZZLE; INJ 8-94395-988-0 06 1 0005-0210 ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-142-0 06 1 0307- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 0005-0210 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 0005-0210 ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-010-0 06 1 0005-0210 ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 06 1 0005-0210 ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 06 1 0005-0210 ● ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 06 1 0005-0210 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 0005-0210 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 1-15341-004-0 06 1 0005-0210 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15345-003-0 06 1 0307- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 06 1 0005-0210 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		1-15347-001-1 12 1 0307- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(C) 		9-15347-003-0 12 1 0307- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(A) 		8-94174-139-0 12 1 0005-0210 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 0005-0210 ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 06 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-120-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-121-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-122-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-123-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-124-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-125-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-126-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-127-0 AR 1 0307- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 0005-0210 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 0005-0210 ● ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15349-132-0 06 1 0307- ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-006-0 06 1 0005-0210 ● ●
142 SPACER; PUSH ROD 1-15339-093-0 06 1 0005-0210 ● ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 06 1 0005-0210 ● ●
145 GASKET; RET NUT
ID=23.3 		8-94173-412-0 06 1 0307- ●
145 GASKET; RET NUT 8-94128-915-0 06 1 0005-0210 ●
146 SPACER; NOZZLE 1-15349-133-0 06 1 0307- ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 0005-0210 ●

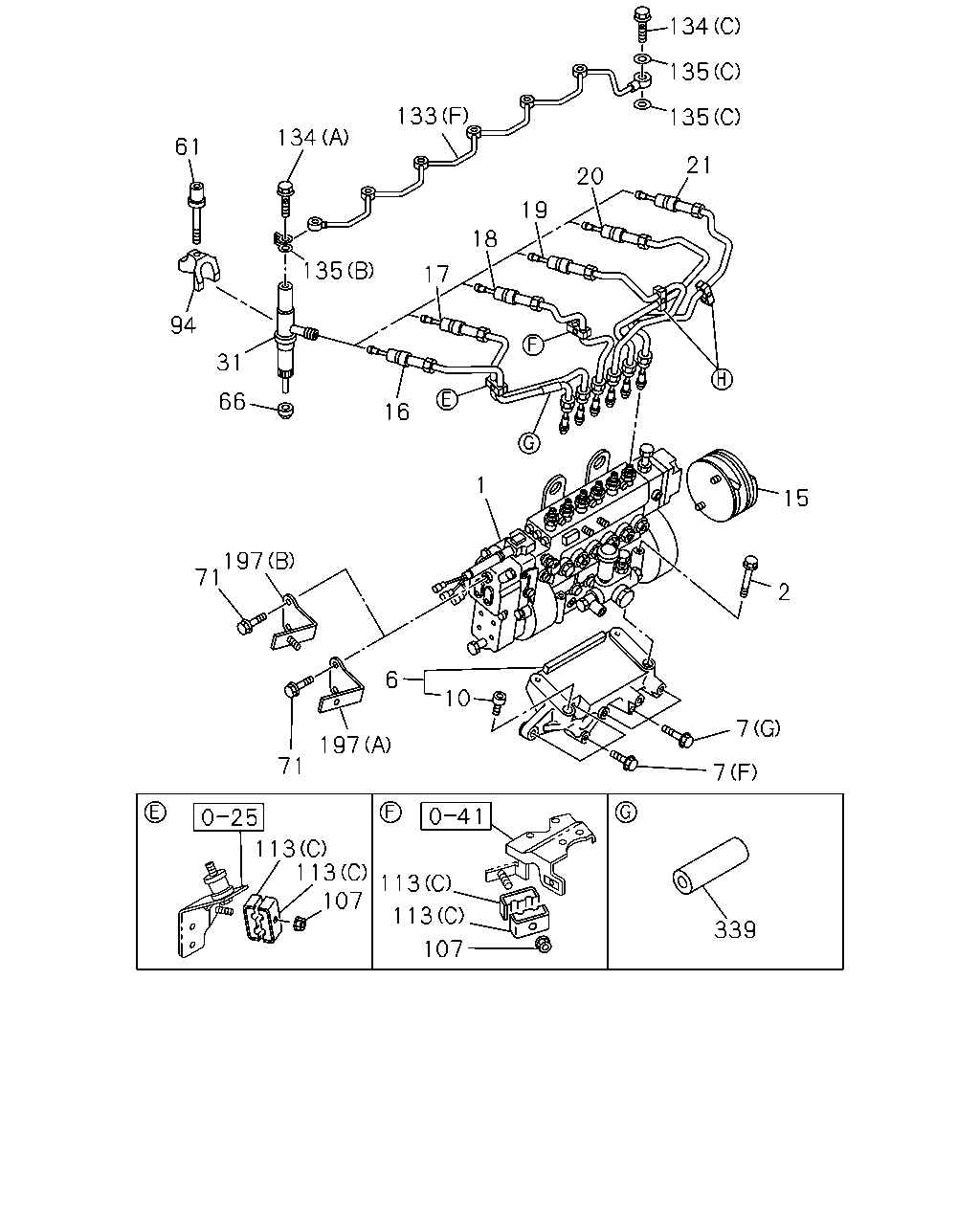

çizim 99616
134 135 133 135 134 61 21 20 19 18 135 17 94 31 66 16 1 15 197 71 2 6 10 7 197 71 7 113 113 107 113 113 339 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0307- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AT545 A/T ALLISON(MD1) 		8-94391-335-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR STD CAB(FR**M*) ISUZU M/T<X9A> 		8-94391-334-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR DOUBLE CAB(FR**W*) 		8-94391-334-0 01 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0211-0306 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0307-0512 ● ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 0005-0210 ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0307- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28181-060-0 03 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ● ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0307- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0307- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94391-467-0 01 1 0211- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 0005-0210 ● ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0307- ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 8-94390-230-6 01 1 0211- ● ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0307- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 0211- ● ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0307- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 0005-0210 ● ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0307- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-94394-145-0 01 1 0005-0210 ● ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0307- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 0211- ● ●
20 PIPE; INJ NO.5 8-94394-146-0 01 1 0005-0210 ● ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0307- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 0211- ● ●
21 PIPE; INJ NO.6 8-94394-147-0 01 1 0005-0210 ● ●
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0307- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ● ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94390-989-1 06 1 0211-0306 ● ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94390-989-1 06 1 0307-0412 ● ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0501- ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005-0006 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0210 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0211-0306 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0307-0909 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ● ●
71 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0307-0512 ●
71 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 0211-0306 ● ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 0307-0410 ● ● ●
94 BRACKET; INJ NOZZLE 8-97306-074-1 06 1 0411-0606 ● ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0607- ● ● ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0307-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 0005-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ● ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0307-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ● ● ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0109-0210 ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 0005-0210 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(F) 		8-94390-451-0 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94391-311-0 01 1 0211-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94390-178-0 01 1 0005-0210 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94391-356-1 01 1 0211- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(C) M10X21 FLANGE 		8-94396-711-0 01 1 0307- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005-0210 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0211-0306 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0307- ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0211- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 15 1 0005-0210 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909- ● ● ●
197 BRACKET; FUEL CUT CABLE
(A) 		8-97600-860-0 01 1 0307-0308 ●
197 BRACKET; FUEL CUT CABLE
(B) 		8-97603-534-0 01 1 0309- ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0307- ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0005-0210 ● ●

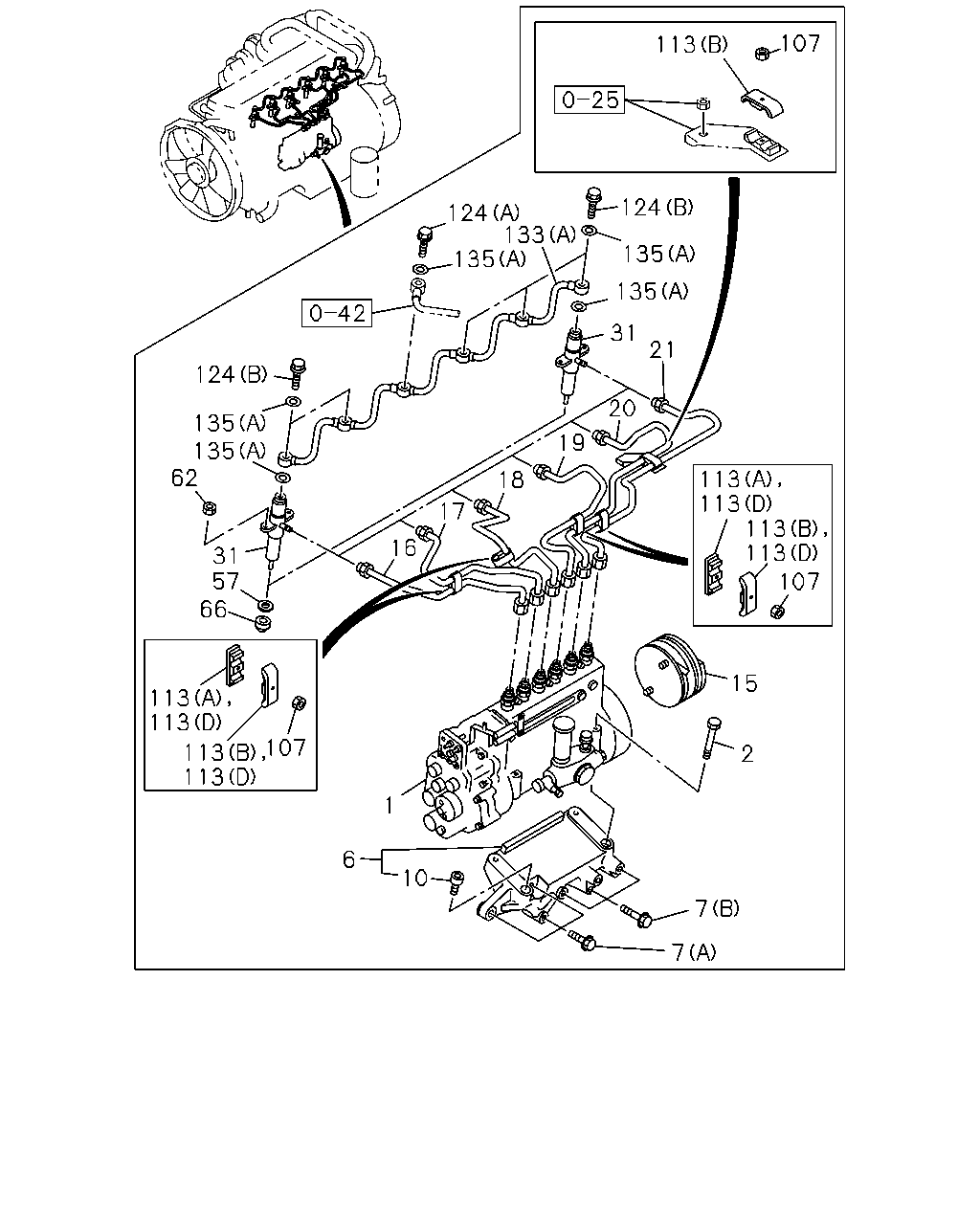

çizim 99669
107 113 124 124 133 135 135 135 31 1 124 20 135 135 62 19 113 113 113 113 107 18 17 16 31 57 66 15 113 113 107 113 113 2 1 6 10 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0307- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AT545 A/T ALLISON(MD1) 		8-94391-335-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR STD CAB(FR**M*) ISUZU M/T<X9A> 		8-94391-334-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR DOUBLE CAB(FR**W*) 		8-94391-334-0 01 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0211-0306 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0307-0512 ● ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 0005-0210 ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0307- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28181-060-0 03 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ● ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0307- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0307- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94391-467-0 01 1 0211- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 0005-0210 ● ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0307- ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 8-94390-230-6 01 1 0211- ● ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0307- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 0211- ● ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0307- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 0005-0210 ● ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0307- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-94394-145-0 01 1 0005-0210 ● ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0307- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 0211- ● ●
20 PIPE; INJ NO.5 8-94394-146-0 01 1 0005-0210 ● ●
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0307- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 0005-0210 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005-0006 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0210 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0211-0306 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0307-0909 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ● ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0307-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 0005-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ● ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0307-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ● ● ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0109-0210 ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 0005-0210 ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M10X21 FLANGE 		8-94396-711-0 01 1 0307- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 0005-0210 ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X30 FLANGE 		1-09675-039-1 01 1 0005-0210 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(F) 		8-94390-451-0 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94391-311-0 01 1 0211-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94390-178-0 01 1 0005-0210 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94391-356-1 01 1 0211- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 15 1 0005-0210 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909- ● ● ●

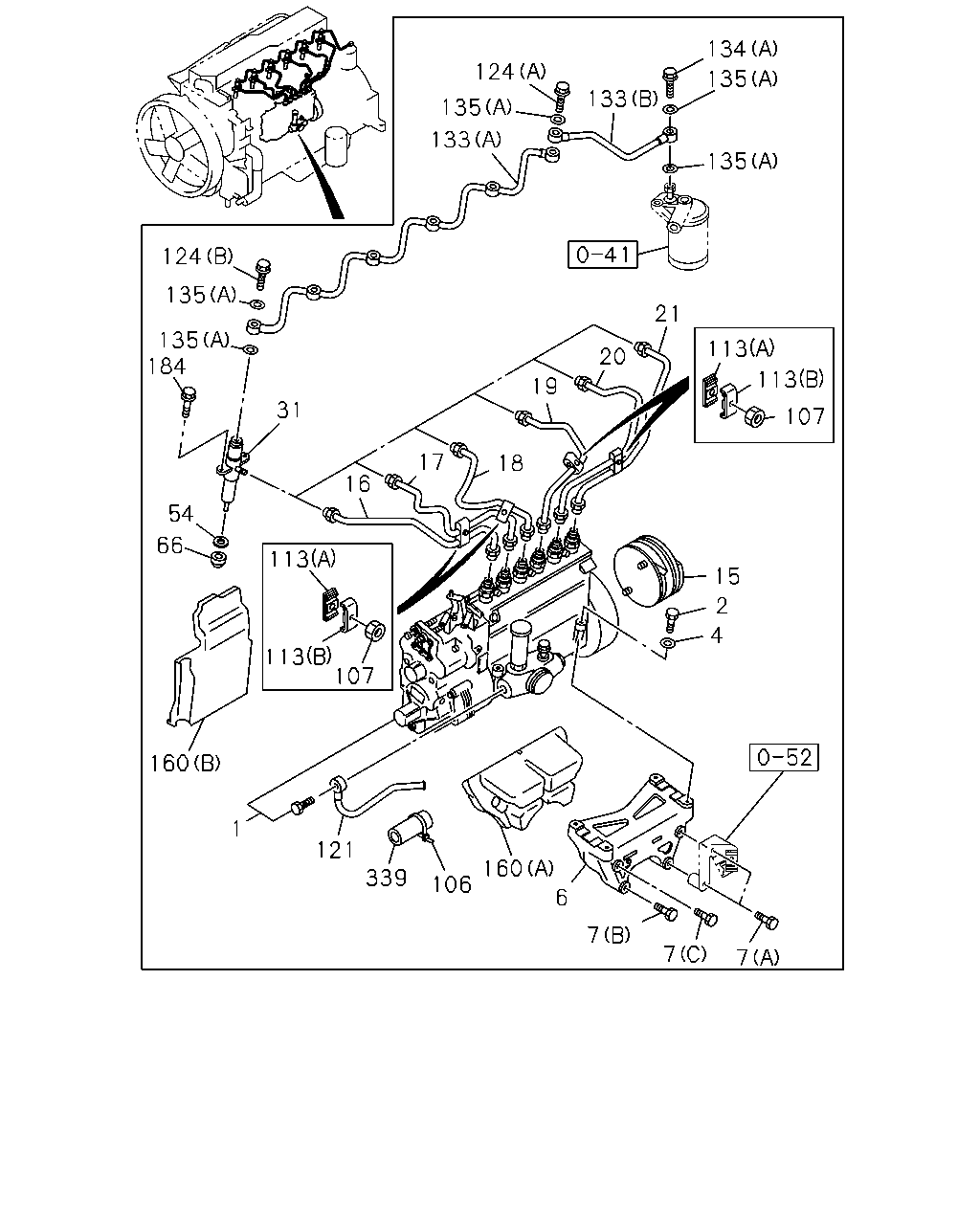

çizim 99670
134 124 135 133 135 133 135 124 135 21 135 184 113 20 113 19 31 107 17 18 6 54 66 113 15 2 4 113 107 160 1 121 160 339 106 6 7 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0307- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AT545 A/T ALLISON(MD1) 		8-94391-335-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR STD CAB(FR**M*) ISUZU M/T<X9A> 		8-94391-334-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR DOUBLE CAB(FR**W*) 		8-94391-334-0 01 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0211-0306 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0307-0512 ● ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 0005-0210 ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 0005-0210 ● ●
4 WASHER; INJ PUMP
ID=8.5 KAWASAKI 		9-09851-983-0 04 1 0005-0210 ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0307- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28181-060-0 03 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0307- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94391-467-0 01 1 0211- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0307- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 0211- ● ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0307- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 0005-0210 ● ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0307- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-94394-145-0 01 1 0005-0210 ● ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0307- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 0211- ● ●
20 PIPE; INJ NO.5 8-94394-146-0 01 1 0005-0210 ● ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0307- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 0211- ● ●
21 PIPE; INJ NO.6 8-94394-147-0 01 1 0005-0210 ● ●
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0307- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ● ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 0005-0210 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005-0006 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0210 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0211-0306 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0307-0909 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ● ●
106 CLIP; INJ PIPE
L=140 		5-09707-031-1 01 1 0005-0106 ● ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0307-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 0005-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ● ●
113 CLIP; INJ PIPE
(C) 		1-09701-132-1 08 1 0307-1202 ●
113 CLIP; INJ PIPE
(C) 		1-09701-240-0 08 1 1203- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 0005-0108 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-0 10 1 0109-0210 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0108 ● ● ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0109-0210 ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 0005-0210 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0307- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 0005-0210 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 0211- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M10X21 FLANGE 		8-94396-711-0 01 1 0307- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 0005-0210 ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X30 FLANGE 		1-09675-039-1 01 1 0005-0210 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(F) 		8-94390-451-0 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94391-311-0 01 1 0211-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94390-178-0 01 1 0005-0210 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94391-356-1 01 1 0211- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(C) M10X21 FLANGE 		8-94396-711-0 01 1 0307- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005-0210 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0211-0306 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0307- ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0211- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 15 1 0005-0210 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909- ● ● ●
160 SPACER; INJ PUMP
(B) 		8-94390-169-0 01 1 0005-0210 ● ●
160 SPACER; INJ PUMP
(A) 		8-94395-673-1 01 1 0005-0210 ● ●
184 BOLT; NOZZLE HOLDER
M8X40 FLANGE 		0-28080-840-0 12 1 0005-0210 ● ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0307- ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0005-0210 ● ●
çizim 100593
31 154 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0307- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0211- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0211-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●

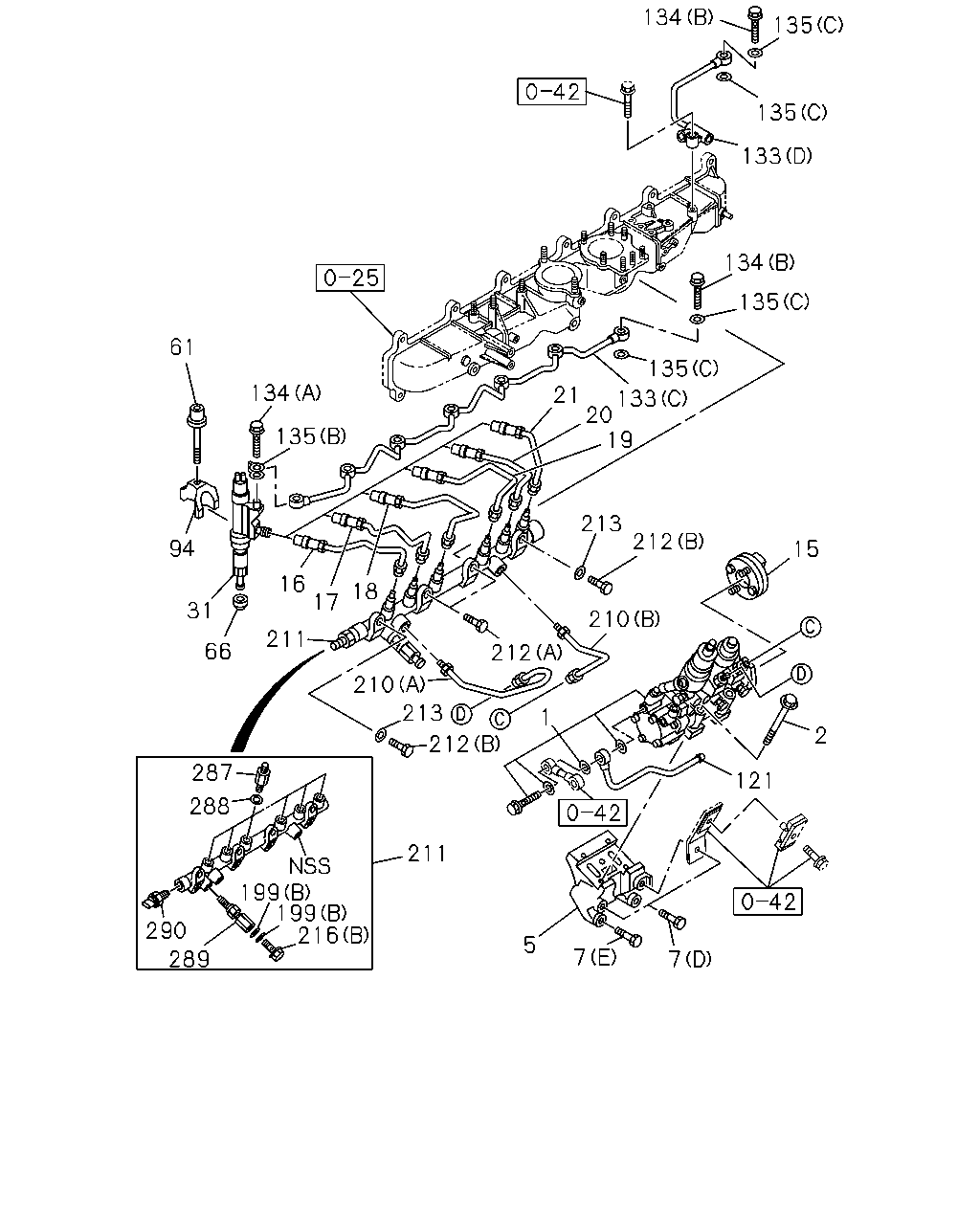

çizim 100597
134 135 135 133 134 135 61 135 134 21 133 20 19 135 213 212 94 15 16 18 17 31 210 211 66 212 210 213 1 212 2 287 121 288 211 199 199 216 290 5 7 289 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97600-665-4 01 1 0307- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-618-3 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AT545 A/T ALLISON(MD1) 		8-94391-335-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR STD CAB(FR**M*) ISUZU M/T<X9A> 		8-94391-334-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FRR DOUBLE CAB(FR**W*) 		8-94391-334-0 01 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0211-0306 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0307-0512 ● ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 0005-0210 ● ●
5 BRACKET; INJ PUMP 8-94390-661-0 01 1 0211- ● ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28181-040-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(F) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28181-080-0 03 1 0307-0512 ●
7 BOLT; INJ PUMP BRKT
(G) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28181-060-0 03 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 0005-0210 ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0307- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94391-467-0 01 1 0211- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 0005-0210 ● ●
16 PIPE; INJ NO.1 8-97600-667-0 01 1 0307- ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 0005-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109-0210 ●
16 PIPE; INJ NO.1 8-94390-230-6 01 1 0211- ● ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-97600-668-0 01 1 0307- ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 0005-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110-0210 ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 0005-0210 ● ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 0211- ● ●
18 PIPE; INJ NO.3 8-97600-669-0 01 1 0307- ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 0005-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109-0210 ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 0005-0210 ● ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-97600-670-0 01 1 0307- ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 0005-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109-0210 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-94394-145-0 01 1 0005-0210 ● ●
20 PIPE; INJ NO.5 8-97600-671-1 01 1 0307- ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 0005-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109-0210 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 0211- ● ●
20 PIPE; INJ NO.5 8-94394-146-0 01 1 0005-0210 ● ●
21 PIPE; INJ NO.6 8-97600-672-0 01 1 0307- ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 0005-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109-0210 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 0211- ● ●
21 PIPE; INJ NO.6 8-94394-147-0 01 1 0005-0210 ● ●
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-97600-666-0 06 1 0307- ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 0005-0210 ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ● ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94390-989-1 06 1 0211-0306 ● ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94390-989-1 06 1 0307-0412 ● ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0501- ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005-0006 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0210 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0211-0306 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0307-0909 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ● ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 0211-0306 ● ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 0307-0410 ● ● ●
94 BRACKET; INJ NOZZLE 8-97306-074-1 06 1 0411-0606 ● ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0607- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0307- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 0005-0210 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 0211- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(F) 		8-94390-451-0 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(E) 		8-97600-692-2 01 1 0307- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94391-311-0 01 1 0211-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94390-178-0 01 1 0005-0210 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94391-356-1 01 1 0211- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(C) M10X21 FLANGE 		8-94396-711-0 01 1 0307- ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005-0210 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0211-0306 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0307- ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0211- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 13 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 15 1 0005-0210 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0211-0306 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0307-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 0211- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0211- ● ●
210 PIPE; INJ,C/R
(A) 		8-94390-824-3 01 1 0211- ● ●
210 PIPE; INJ,C/R
(B) 		8-94390-825-3 01 1 0211- ● ●
211 RAIL ASM; COMMON 8-97601-512-2 01 1 0211- ● ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28085-813-0 02 1 0211-0512 ● ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28055-813-0 02 1 0601- ● ●
212 BOLT; RAIL ASM
(B) M8X130 		1-09000-200-1 02 1 0211- ● ●
213 WASHER; RAIL ASM
ID=8.4 OD=18 		9-09160-608-0 02 1 0211-0605 ● ●
213 WASHER; RAIL ASM
ID=8.4 OD=18 		0-91610-608-0 02 1 0606- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0211- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0211- ● ●
287 DAMPER; FUEL FLOW 8-97601-514-0 06 1 0211- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0211- ● ●
289 LIMITER; FUEL PRESS 8-97602-325-0 01 1 0211- ● ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
