◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10826 - FRR/FSR/FRD(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#9304) — 874 parça

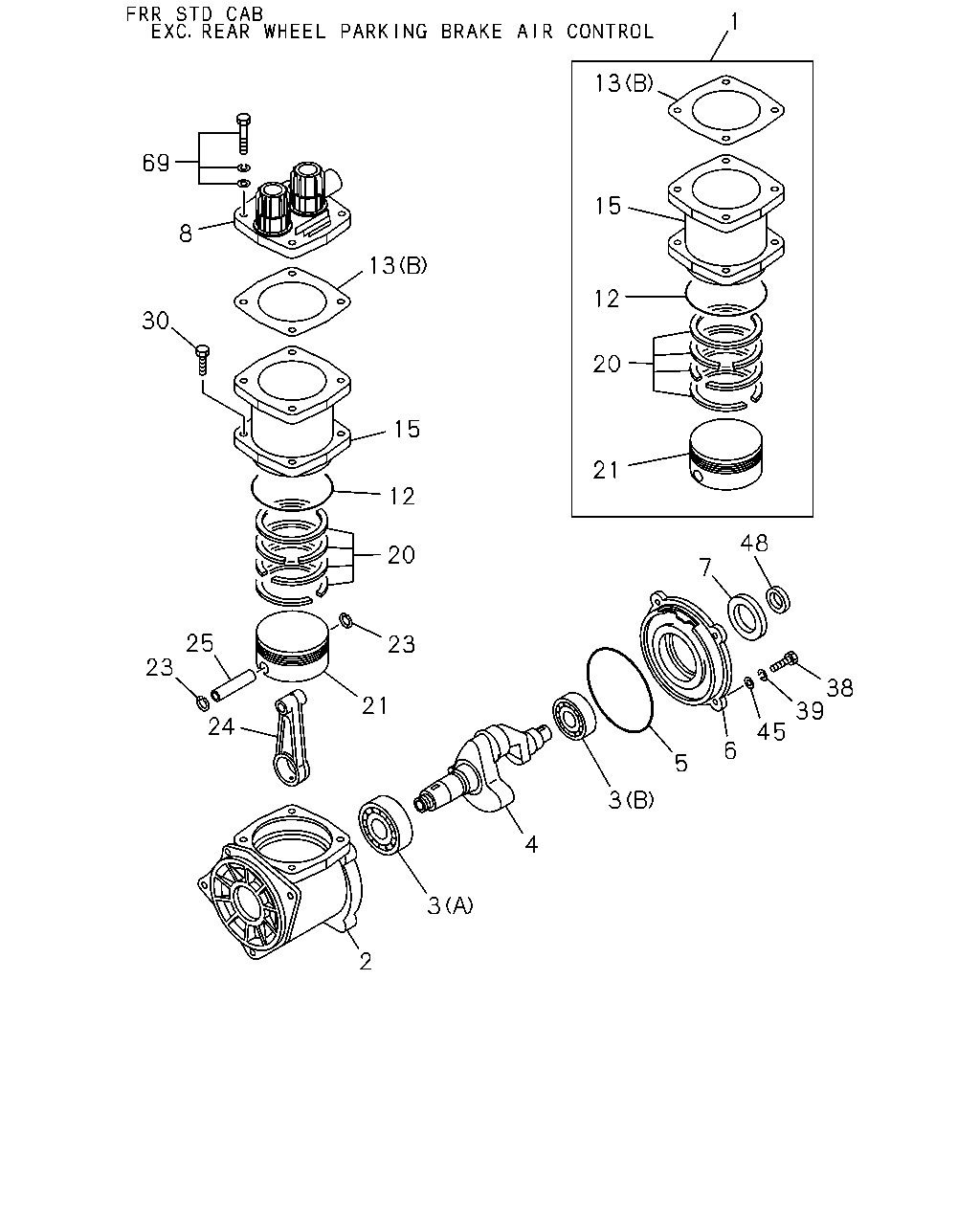

çizim 37876
1 13 69 15 8 13 12 30 20 15 21 12 48 20 7 25 23 23 38 39 45 21 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0307-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-062-1 01 1 0211-0812 ● ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-076-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-053-2 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-053-2 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-050-1 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0211-0302 ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0303-0306 ● ●
1 LINER KIT; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-063-0 01 1 0307- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0307- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211-0302 ● ●
2 CRANKCASE; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19151-282-2 01 1 0211-0302 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0303- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0307-1202 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0307- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (C) 		1-19177-009-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0303- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (D) 		1-19177-010-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0303- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0307-1202 ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-074-1 01 1 0211- ● ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-048-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19171-048-1 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-047-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0211-0302 ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0303-0306 ● ●
4 CRANKSHAFT; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-077-1 01 1 0307- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0307-1107 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211-0302 ● ●
5 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-627-0 01 1 0211-0302 ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0307-1202 ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211-0302 ● ●
6 COVER ASM; BRG,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19156-075-1 01 1 0211-0302 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211-0302 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09625-534-0 01 1 0211-0302 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0303- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0307-0812 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-056-1 01 1 0901- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-055-0 01 1 0211-0812 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-052-1 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19110-052-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0211-0302 ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0303-0306 ● ●
8 HEAD ASM; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0307- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211-0302 ● ●
12 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-539-0 01 1 0211-0302 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0303-0306 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0307-1107 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0211-0302 ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0303-0306 ● ●
13 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98113-036-0 01 1 0307- ● ●
13 GASKET; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98112-947-0 01 1 0211- ● ●
13 GASKET; AIR CMPR
(E) 		1-19139-016-0 01 1 0307- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09623-626-0 01 1 0005-0210 ● ●
13 GASKET; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) 		1-09623-626-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-19115-006-1 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0307- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-283-1 01 1 0211- ● ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-219-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19151-219-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-250-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0211-0302 ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0303-0306 ● ●
15 CYLINDER; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-285-0 01 1 0307- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0211-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0307-0812 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0307-0812 ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-058-0 01 1 0901- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0211-0302 ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0303-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0307- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0211-0306 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0307-0812 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0307-0812 ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-027-0 01 1 0901- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
21 PISTON; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0211-0302 ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0303-0306 ● ●
21 PISTON; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0307- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0307-0812 ●
23 RING; SNAP,PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19169-004-0 02 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0302 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		9-19168-003-0 02 1 0211-0302 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0303-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19168-003-0 02 1 0901- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0307-1202 ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-007-0 01 1 0211- ● ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-017-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0211-0302 ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0303-0306 ● ●
24 ROD ASM; CONN,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-020-0 01 1 0307- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0211-0306 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0307-0812 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0307-0812 ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19167-003-0 01 1 0901- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0211-0302 ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0303-0306 ● ●
25 PIN; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0307- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211-0302 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> M10X25 		9-01911-025-0 04 1 0211-0302 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0303- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0307- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211-0302 ● ●
38 BOLT; COVER FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09100-018-0 02 1 0211-0302 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0303- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0307- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0005-0210 ● ● ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211-0302 ● ●
48 SLEEVE; CR/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19179-024-0 01 1 0211-0302 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0303- ● ●
69 BOLT ASM; AIR COMP
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19119-031-0 04 1 0005-0210 ● ●
69 BOLT ASM; AIR COMP
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19119-031-0 04 1 0211-0302 ●
69 BOLT ASM; AIR COMP
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19119-031-0 04 1 0303-0306 ● ●
69 BOLT ASM; AIR COMP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19119-031-0 04 1 0307- ● ●

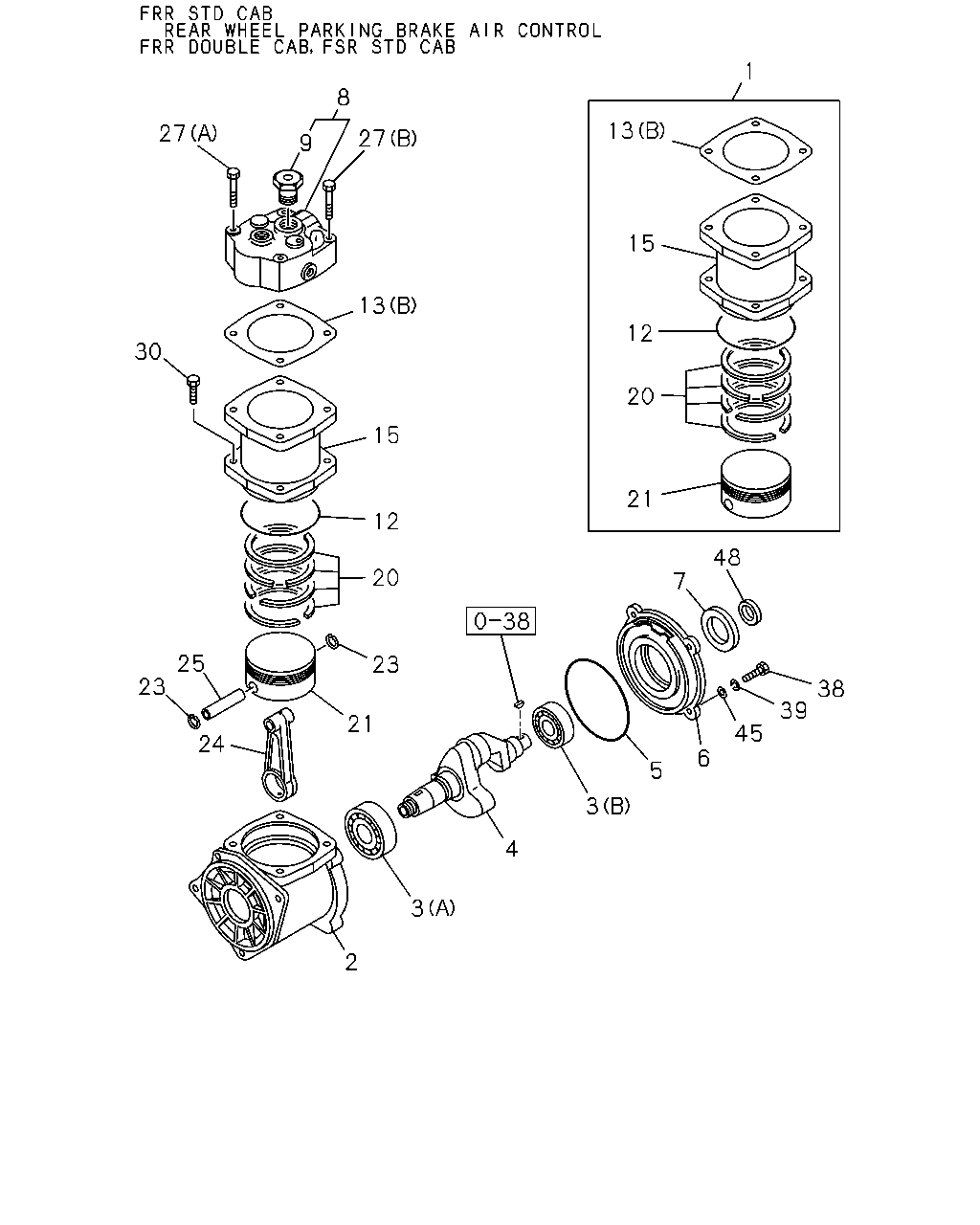

çizim 38312
1 8 13 27 27 9 15 13 12 30 20 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0307-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-062-1 01 1 0211-0812 ● ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-076-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-053-2 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-053-2 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-050-1 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0211-0302 ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0303-0306 ● ●
1 LINER KIT; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-063-0 01 1 0307- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0307- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211-0302 ● ●
2 CRANKCASE; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19151-282-2 01 1 0211-0302 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0303- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0307-1202 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0307- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (C) 		1-19177-009-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0303- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (D) 		1-19177-010-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0303- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0307-1202 ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-074-1 01 1 0211- ● ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-048-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19171-048-1 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-047-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0211-0302 ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0303-0306 ● ●
4 CRANKSHAFT; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-077-1 01 1 0307- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0307-1107 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211-0302 ● ●
5 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-627-0 01 1 0211-0302 ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0307-1202 ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211-0302 ● ●
6 COVER ASM; BRG,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19156-075-1 01 1 0211-0302 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211-0302 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09625-534-0 01 1 0211-0302 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0303- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0307-0812 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-056-1 01 1 0901- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-055-0 01 1 0211-0812 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-052-1 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19110-052-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0211-0302 ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0303-0306 ● ●
8 HEAD ASM; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0307- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0211-0306 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0307- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0307- ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211-0302 ● ●
12 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-539-0 01 1 0211-0302 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0303-0306 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0307-1107 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0211-0302 ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0303-0306 ● ●
13 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98113-036-0 01 1 0307- ● ●
13 GASKET; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98112-947-0 01 1 0211- ● ●
13 GASKET; AIR CMPR
(E) 		1-19139-016-0 01 1 0307- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09623-626-0 01 1 0005-0210 ● ●
13 GASKET; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) 		1-09623-626-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-19115-006-1 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0307- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-283-1 01 1 0211- ● ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-219-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19151-219-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-250-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0211-0302 ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0303-0306 ● ●
15 CYLINDER; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-285-0 01 1 0307- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0211-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0307-0812 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0307-0812 ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-058-0 01 1 0901- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0211-0302 ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0303-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0307- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0211-0306 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0307-0812 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0307-0812 ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-027-0 01 1 0901- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
21 PISTON; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0211-0302 ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0303-0306 ● ●
21 PISTON; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0307- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0307-0812 ●
23 RING; SNAP,PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19169-004-0 02 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0302 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		9-19168-003-0 02 1 0211-0302 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0303-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19168-003-0 02 1 0901- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0307-1202 ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-007-0 01 1 0211- ● ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-017-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0211-0302 ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0303-0306 ● ●
24 ROD ASM; CONN,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-020-0 01 1 0307- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0211-0306 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0307-0812 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0307-0812 ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19167-003-0 01 1 0901- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0211-0302 ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0303-0306 ● ●
25 PIN; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0307- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ●
27 BOLT; HD
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0211-0306 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0307- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0307- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ●
27 BOLT; HD
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
FRR DOUBLE CAB(FR**W*) FSR(FS****) (A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0211-0306 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0307- ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211-0302 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> M10X25 		9-01911-025-0 04 1 0211-0302 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0303- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0307- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211-0302 ● ●
38 BOLT; COVER FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09100-018-0 02 1 0211-0302 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0303- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0307- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0005-0210 ● ● ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211-0302 ● ●
48 SLEEVE; CR/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19179-024-0 01 1 0211-0302 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0303- ● ●

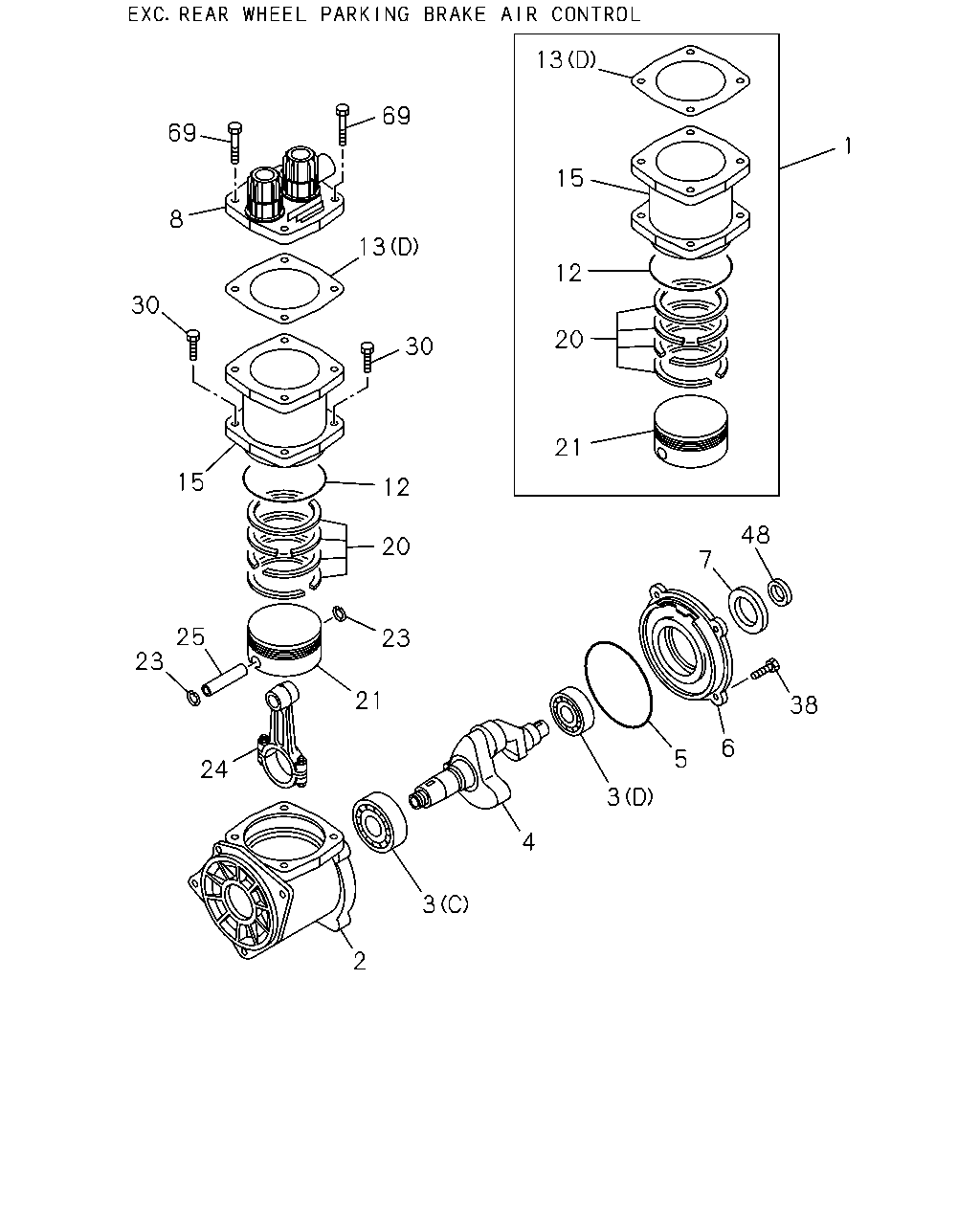

çizim 38653
13 69 69 1 15 8 13 12 30 20 30 21 15 12 48 20 7 25 23 23 21 38 6 5 24 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0307-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-062-1 01 1 0211-0812 ● ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-076-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-053-2 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-053-2 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-050-1 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0211-0302 ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0303-0306 ● ●
1 LINER KIT; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-063-0 01 1 0307- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0307- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211-0302 ● ●
2 CRANKCASE; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19151-282-2 01 1 0211-0302 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0303- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0307-1202 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0307- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (C) 		1-19177-009-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0303- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (D) 		1-19177-010-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0303- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0307-1202 ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-074-1 01 1 0211- ● ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-048-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19171-048-1 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-047-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0211-0302 ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0303-0306 ● ●
4 CRANKSHAFT; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-077-1 01 1 0307- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0307-1107 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211-0302 ● ●
5 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-627-0 01 1 0211-0302 ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0307-1202 ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211-0302 ● ●
6 COVER ASM; BRG,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19156-075-1 01 1 0211-0302 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211-0302 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09625-534-0 01 1 0211-0302 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0303- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0307-0812 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-056-1 01 1 0901- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-055-0 01 1 0211-0812 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-052-1 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19110-052-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0211-0302 ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0303-0306 ● ●
8 HEAD ASM; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0307- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211-0302 ● ●
12 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-539-0 01 1 0211-0302 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0303-0306 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0307-1107 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0211-0302 ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0303-0306 ● ●
13 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98113-036-0 01 1 0307- ● ●
13 GASKET; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98112-947-0 01 1 0211- ● ●
13 GASKET; AIR CMPR
(E) 		1-19139-016-0 01 1 0307- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09623-626-0 01 1 0005-0210 ● ●
13 GASKET; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) 		1-09623-626-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-19115-006-1 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0307- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-283-1 01 1 0211- ● ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-219-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19151-219-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-250-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0211-0302 ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0303-0306 ● ●
15 CYLINDER; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-285-0 01 1 0307- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0211-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0307-0812 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0307-0812 ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-058-0 01 1 0901- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0211-0302 ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0303-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0307- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0211-0306 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0307-0812 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0307-0812 ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-027-0 01 1 0901- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
21 PISTON; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0211-0302 ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0303-0306 ● ●
21 PISTON; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0307- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0307-0812 ●
23 RING; SNAP,PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19169-004-0 02 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0302 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		9-19168-003-0 02 1 0211-0302 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0303-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19168-003-0 02 1 0901- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0307-1202 ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-007-0 01 1 0211- ● ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-017-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0211-0302 ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0303-0306 ● ●
24 ROD ASM; CONN,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-020-0 01 1 0307- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0211-0306 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0307-0812 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0307-0812 ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19167-003-0 01 1 0901- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0211-0302 ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0303-0306 ● ●
25 PIN; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0307- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211-0302 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> M10X25 		9-01911-025-0 04 1 0211-0302 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0303- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0307- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211-0302 ● ●
38 BOLT; COVER FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09100-018-0 02 1 0211-0302 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0303- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211-0302 ● ●
48 SLEEVE; CR/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19179-024-0 01 1 0211-0302 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0303- ● ●
69 BOLT ASM; AIR COMP
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19119-031-0 04 1 0005-0210 ● ●
69 BOLT ASM; AIR COMP
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19119-031-0 04 1 0211-0302 ●
69 BOLT ASM; AIR COMP
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19119-031-0 04 1 0303-0306 ● ●
69 BOLT ASM; AIR COMP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19119-031-0 04 1 0307- ● ●

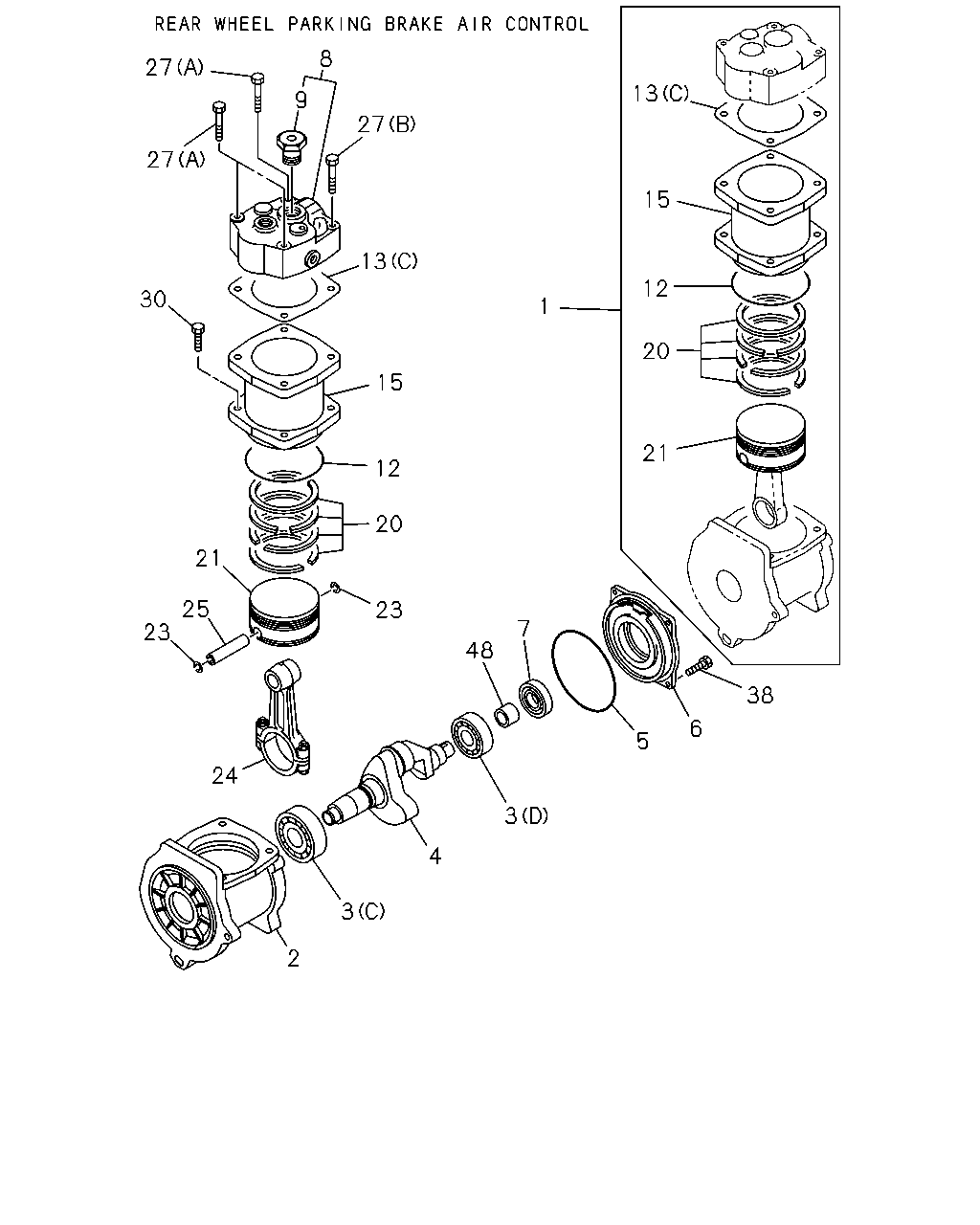

çizim 38684
8 27 13 9 27 27 15 13 12 30 1 20 15 21 12 20 21 25 23 7 23 48 38 6 5 24 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0307-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-062-1 01 1 0211-0812 ● ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-076-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-053-2 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-053-2 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-050-1 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0211-0302 ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0303-0306 ● ●
1 LINER KIT; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-063-0 01 1 0307- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0307- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211-0302 ● ●
2 CRANKCASE; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19151-282-2 01 1 0211-0302 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0303- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0307-1202 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0307- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (C) 		1-19177-009-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0303- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (D) 		1-19177-010-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0303- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0307-1202 ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-074-1 01 1 0211- ● ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-048-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19171-048-1 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-047-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0211-0302 ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0303-0306 ● ●
4 CRANKSHAFT; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-077-1 01 1 0307- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0307-1107 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211-0302 ● ●
5 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-627-0 01 1 0211-0302 ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0307-1202 ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211-0302 ● ●
6 COVER ASM; BRG,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19156-075-1 01 1 0211-0302 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211-0302 ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09625-534-0 01 1 0211-0302 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0303- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0307-0812 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-056-1 01 1 0901- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-055-0 01 1 0211-0812 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-052-1 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19110-052-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0211-0302 ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0303-0306 ● ●
8 HEAD ASM; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0307- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0211-0306 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0307- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0307- ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211-0302 ● ●
12 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-539-0 01 1 0211-0302 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0303-0306 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0307-1107 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0211-0302 ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0303-0306 ● ●
13 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98113-036-0 01 1 0307- ● ●
13 GASKET; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98112-947-0 01 1 0211- ● ●
13 GASKET; AIR CMPR
(E) 		1-19139-016-0 01 1 0307- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09623-626-0 01 1 0005-0210 ● ●
13 GASKET; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) 		1-09623-626-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-19115-006-1 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0307- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-283-1 01 1 0211- ● ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-219-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19151-219-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-250-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0211-0302 ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0303-0306 ● ●
15 CYLINDER; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-285-0 01 1 0307- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0211-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0307-0812 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0307-0812 ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-058-0 01 1 0901- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0211-0302 ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0303-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0307- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0211-0306 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0307-0812 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0307-0812 ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-027-0 01 1 0901- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
21 PISTON; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0211-0302 ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0303-0306 ● ●
21 PISTON; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0307- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0307-0812 ●
23 RING; SNAP,PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19169-004-0 02 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0302 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		9-19168-003-0 02 1 0211-0302 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0303-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19168-003-0 02 1 0901- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0307-1202 ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-007-0 01 1 0211- ● ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-017-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0211-0302 ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0303-0306 ● ●
24 ROD ASM; CONN,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-020-0 01 1 0307- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0211-0306 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0307-0812 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0307-0812 ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19167-003-0 01 1 0901- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0211-0302 ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0303-0306 ● ●
25 PIN; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0307- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ●
27 BOLT; HD
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0211-0306 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0307- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0307- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ●
27 BOLT; HD
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
FRR DOUBLE CAB(FR**W*) FSR(FS****) (A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0211-0306 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0307- ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211-0302 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> M10X25 		9-01911-025-0 04 1 0211-0302 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0303- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0307- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211-0302 ● ●
38 BOLT; COVER FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09100-018-0 02 1 0211-0302 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0303- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ● ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211-0302 ● ●
48 SLEEVE; CR/SHF
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19179-024-0 01 1 0211-0302 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0303- ● ●
çizim 40519
8 1 27 9 27 13 13 13 15 13 13 13 12 30 20 43 15 21 12 20 25 23 23 38 39 21 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0307-0812 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-062-1 01 1 0211-0812 ● ●
1 LINER KIT; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-076-0 01 1 0901- ● ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-053-2 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-053-2 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-050-1 01 1 0005-0210 ● ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0211-0302 ●
1 LINER KIT; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-063-0 01 1 0303-0306 ● ●
1 LINER KIT; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-063-0 01 1 0307- ● ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0307- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211-0302 ● ●
2 CRANKCASE; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19151-282-2 01 1 0211-0302 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0303- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0307-1202 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0307- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (C) 		1-19177-009-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(C) 		1-19177-009-0 01 1 0303- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ● ● ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0211-0302 ● ●
3 BEARING; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> (D) 		1-19177-010-0 01 1 0211-0302 ●
3 BEARING; AIR CMPR
(D) 		1-19177-010-0 01 1 0303- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0307-1202 ●
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-074-1 01 1 0211- ● ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-048-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19171-048-1 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-047-1 01 1 0005-0210 ● ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0211-0302 ●
4 CRANKSHAFT; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19171-077-1 01 1 0303-0306 ● ●
4 CRANKSHAFT; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19171-077-1 01 1 0307- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0307-1107 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ● ● ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211-0302 ● ●
5 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-627-0 01 1 0211-0302 ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0307-1202 ●
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211-0302 ● ●
6 COVER ASM; BRG,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-19156-075-1 01 1 0211-0302 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0303- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0307-0812 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-056-1 01 1 0901- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-055-0 01 1 0211-0812 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-052-1 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19110-052-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0005-0210 ● ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0211-0302 ●
8 HEAD ASM; CYL,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19110-019-0 01 1 0303-0306 ● ●
8 HEAD ASM; CYL,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19110-019-0 01 1 0307- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19120-017-1 01 1 0005-0210 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0211-0306 ● ●
9 VALVE ASM; UNLOADER,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19120-017-1 01 1 0307- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0307- ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108- ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211-0302 ● ●
12 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09623-539-0 01 1 0211-0302 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0303-0306 ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0307-1107 ● ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1108- ● ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0211-0302 ●
13 GASKET; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (D) 		8-98113-036-0 01 1 0303-0306 ● ●
13 GASKET; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98113-036-0 01 1 0307- ● ●
13 GASKET; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98112-947-0 01 1 0211- ● ●
13 GASKET; AIR CMPR
(E) 		1-19139-016-0 01 1 0307- ●
13 GASKET; AIR CMPR
(A) 		1-19139-002-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
(B) T=0.8 		1-19139-004-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-09623-626-0 01 1 0005-0210 ● ●
13 GASKET; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) 		1-09623-626-0 01 1 0005-0210 ●
13 GASKET; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-19115-006-1 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0307- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-283-1 01 1 0211- ● ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-219-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19151-219-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-250-0 01 1 0005-0210 ● ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0211-0302 ●
15 CYLINDER; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19151-285-0 01 1 0303-0306 ● ●
15 CYLINDER; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19151-285-0 01 1 0307- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19163-051-1 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0211-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-051-1 01 1 0307-0812 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0307-0812 ●
20 RING KIT; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-058-0 01 1 0901- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ●
20 RING KIT; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0005-0210 ● ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0211-0302 ●
20 RING KIT; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19163-043-0 01 1 0303-0306 ● ●
20 RING KIT; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19163-043-0 01 1 0307- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19161-016-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0211-0306 ● ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-016-0 01 1 0307-0812 ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0307-0812 ●
21 PISTON; AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-027-0 01 1 0901- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ●
21 PISTON; AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0005-0210 ● ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0211-0302 ●
21 PISTON; AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19161-021-0 01 1 0303-0306 ● ●
21 PISTON; AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19161-021-0 01 1 0307- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0307-0812 ●
23 RING; SNAP,PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19169-004-0 02 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0302 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		9-19168-003-0 02 1 0211-0302 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0303-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19168-003-0 02 1 0901- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0307-1202 ●
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		1-19173-010-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-007-0 01 1 0211- ● ●
24 ROD ASM; CONN,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-017-0 01 1 0005-0210 ● ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0211-0302 ●
24 ROD ASM; CONN,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		1-19173-020-0 01 1 0303-0306 ● ●
24 ROD ASM; CONN,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19173-020-0 01 1 0307- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
FRR DOUBLE CAB(FR**W*) FSR(FS****) 		9-19167-003-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0211-0306 ● ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-003-0 01 1 0307-0812 ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0307-0812 ●
25 PIN; PISTON,AIR CMPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-19167-003-0 01 1 0901- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ●
25 PIN; PISTON,AIR CMPR
FRR STD CAB(FRR*M*) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0005-0210 ● ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0211-0302 ●
25 PIN; PISTON,AIR CMPR
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) 		9-19167-006-0 01 1 0303-0306 ● ●
25 PIN; PISTON,AIR CMPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-19167-006-0 01 1 0307- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ●
27 BOLT; HD
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
FRR DOUBLE CAB(FR**W*) FSR(FS****) (B) M10X45 		9-01066-045-0 02 1 0005-0210 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0211-0306 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X45 		9-01066-045-0 02 1 0307- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0307- ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ●
27 BOLT; HD
FRR STD CAB(FR**M*) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
FRR DOUBLE CAB(FR**W*) FSR(FS****) (A) M10X60 		9-01066-060-0 02 1 0005-0210 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0211-0306 ● ●
27 BOLT; HD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M10X60 		9-01066-060-0 02 1 0307- ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211-0302 ● ●
30 BOLT; CYL TO CRANKCASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> M10X25 		9-01911-025-0 04 1 0211-0302 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0303- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0307- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211-0302 ● ●
38 BOLT; COVER FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1),A/T<X9D> 		1-09100-018-0 02 1 0211-0302 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0303- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0307- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0005-0210 ● ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0307- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
