0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#9303) — 775 parça

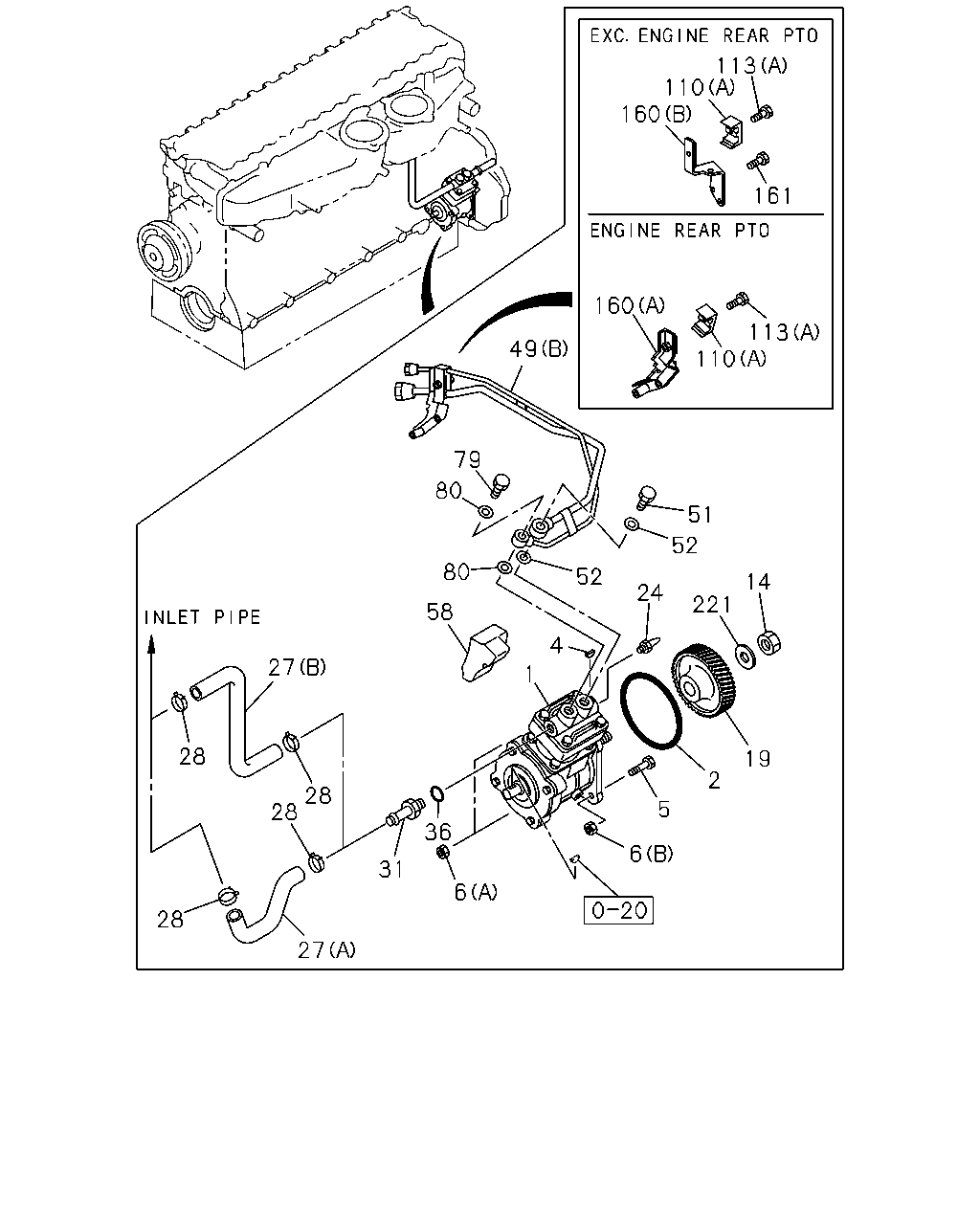

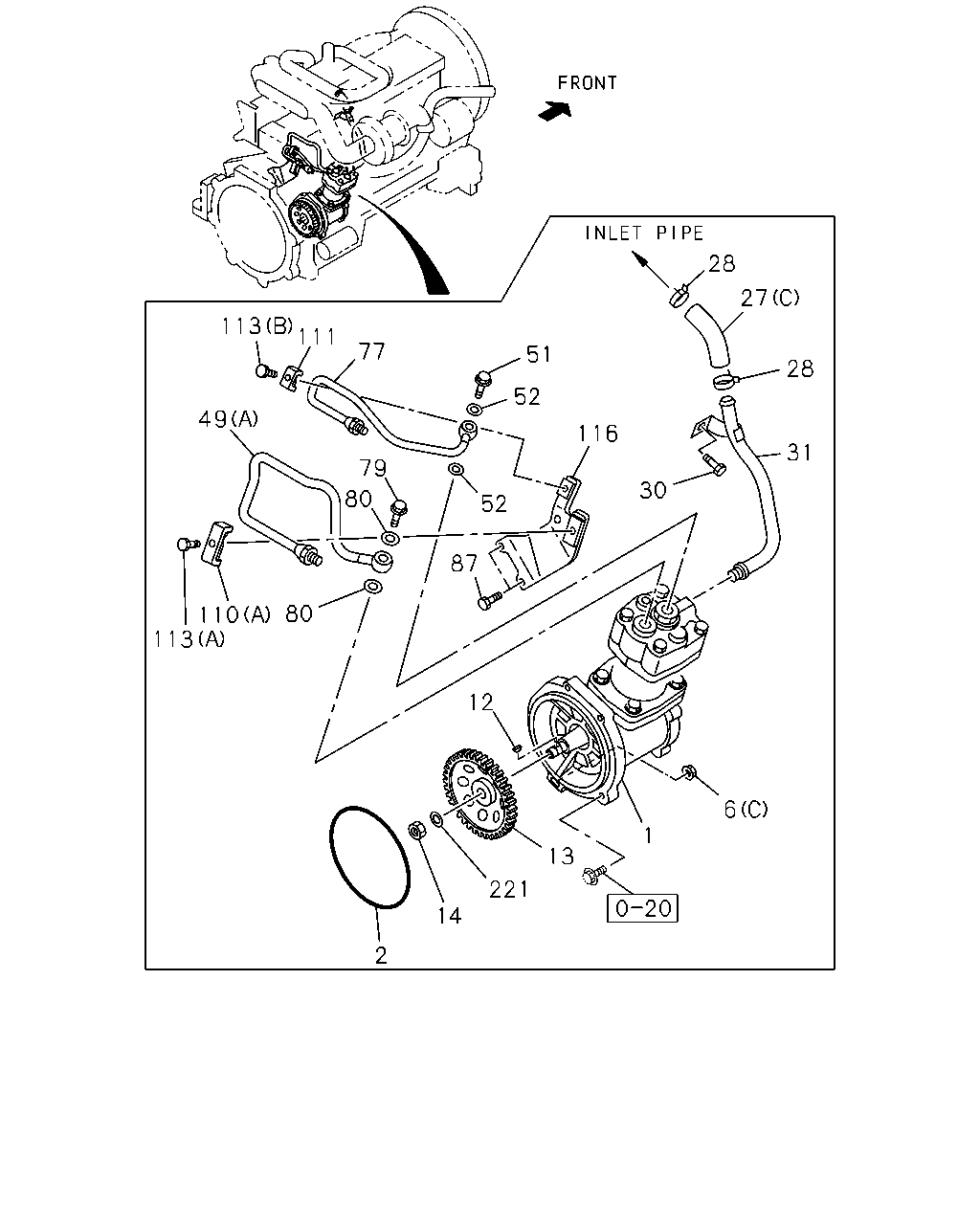

28 27 113 111 77 51 28 52 49 116 31 79 30 80 52 87 80 110 113 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0307-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-704-2	01	1	0211-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-892-8	01	1	0005-0210					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94396-892-8	01	1	0005-0210					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0211-0302				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0303-0306			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-700-1	01	1	0307-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-891-4	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0307-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-			●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0307-0602	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210					●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210					●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-			●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0307-	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0005-0210		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0307-	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0005-0210		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0307-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210		●			●	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512			●	●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-			●	●
27	HOSE; AIR CMPR,SUCTION (E)	8-97602-063-1	01	1	0307-	●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-809-1	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FR*M) FSR(FS****) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-967-0	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR DOUBLE CAB(FR*W) (B)	8-94395-085-0	01	1	0005-0210					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210		●			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-0306			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0307-	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0211-0306			●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●	●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0307-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94390-859-1	01	1	0211-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-954-0	01	1	0005-0210					●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94399-954-0	01	1	0005-0210					●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0211-0302				●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0303-0306			●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94391-629-1	01	1	0307-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-942-1	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0307-	●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210		●
49	PIPE; AIR,CHARGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (D)	8-97600-184-1	01	1	0211-			●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE FRR DOUBLE CAB(FR*W) FSR(FS****) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	8-94391-376-3	01	1	0211-				●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94390-063-1	01	1	0005-0112					●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94394-275-1	01	1	0201-0210					●	●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0211-0302				●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0303-0306			●	●
49	PIPE; AIR,CHARGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-97602-706-0	01	1	0307-			●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	8-94390-192-0	01	1	0005-0210						●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0211-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-1	01	1	0307-1404			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0307-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-0	01	1	0211-0302				●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-1	01	1	0303-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-1	01	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0210		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR DOUBLE CAB(FR*W) FSR(FS****) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0211-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A). ID=24.5 OD=32	9-09571-424-0	02	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0307-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0211-0302				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0307-			●	●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0307-	●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0307-			●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0211-0302				●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0303-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0307-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0211-0302				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0307-			●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
110	CLIP; AIR PIPE (B)	1-09701-282-0	02	1	0307-	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0211-0306			●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0211-0306			●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0307-	●		●	●
110	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0307-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0005-0210					●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-090-0	01	1	0211-				●
111	CLIP; AIR PIPE	8-94396-371-0	01	1	0307-	●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28080-620-0	01	1	0307-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28050-620-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210					●	●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	0005-0210		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0307-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210		●			●	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-			●	●

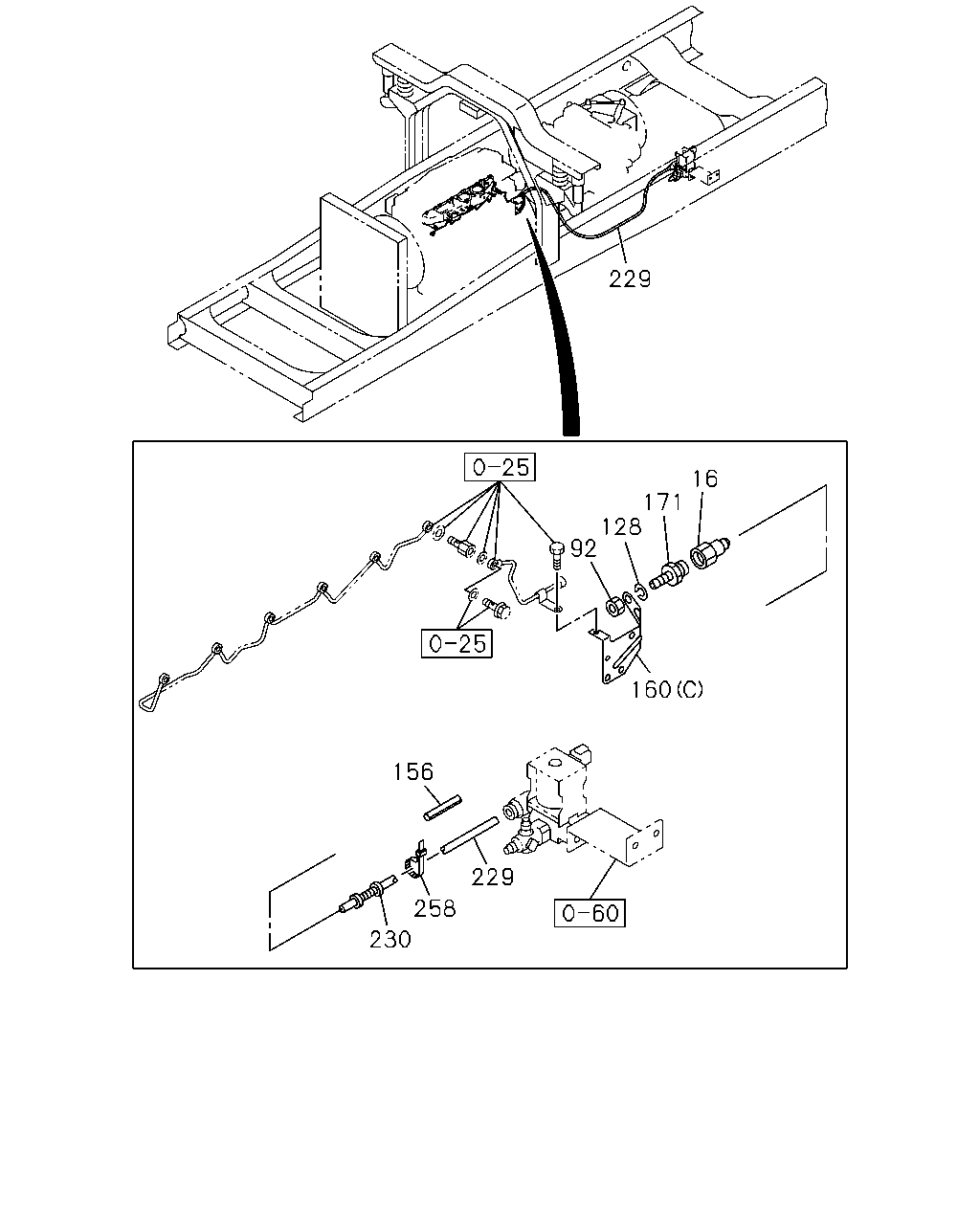

229 16 171 128 92 160 156 229 258 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	ADAPTER DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0007		●			●	●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210		●			●	●
92	NUT; UNION M12	9-09840-280-0	01	1	0005-0210		●			●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0005-0210		●			●	●
156	SLEEVE FRR(FR****) A/T<X9D> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0005-0210		●
160	BRACKET; AIR PIPE (F)	8-97601-489-0	01	1	0307-	●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-94392-031-1	01	1	0211-			●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	0005-0210						●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (E)	8-94394-372-0	01	1	0211-				●
171	UNION M12 L=56.5	9-09223-106-1	01	1	0005-0210		●			●	●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210		●			●	●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0210		●			●	●
230	TUBE; CORRUGATE FRR STD CAB(FRRM) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. EXHAUST BRAKE<NF8> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0210	●	●	●	●	●	●
258	CLIP; BAND,NYLON TUBE FRR(FR****) A/T<X9D> L=250	1-09707-126-0	01	1	0005-0210		●

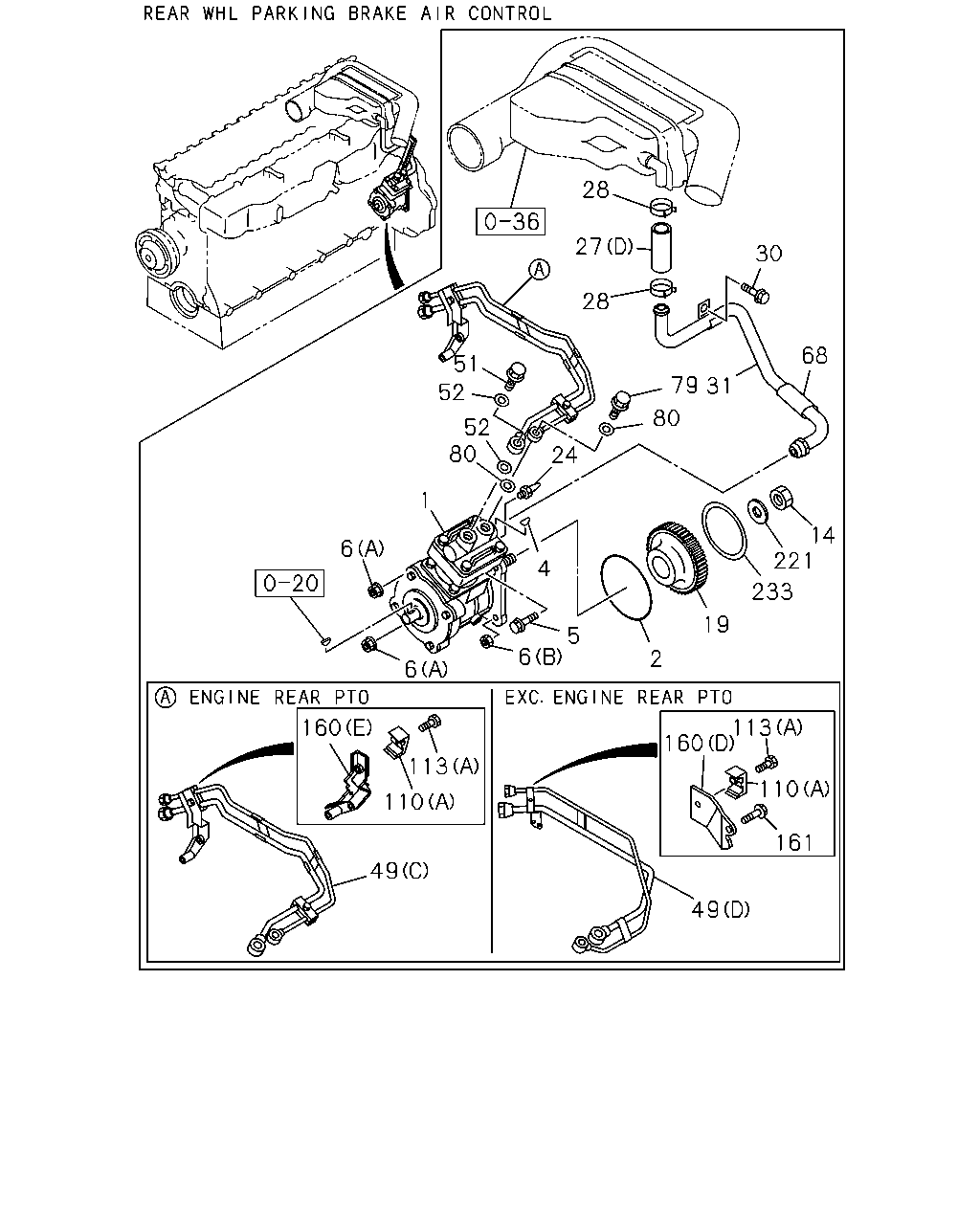

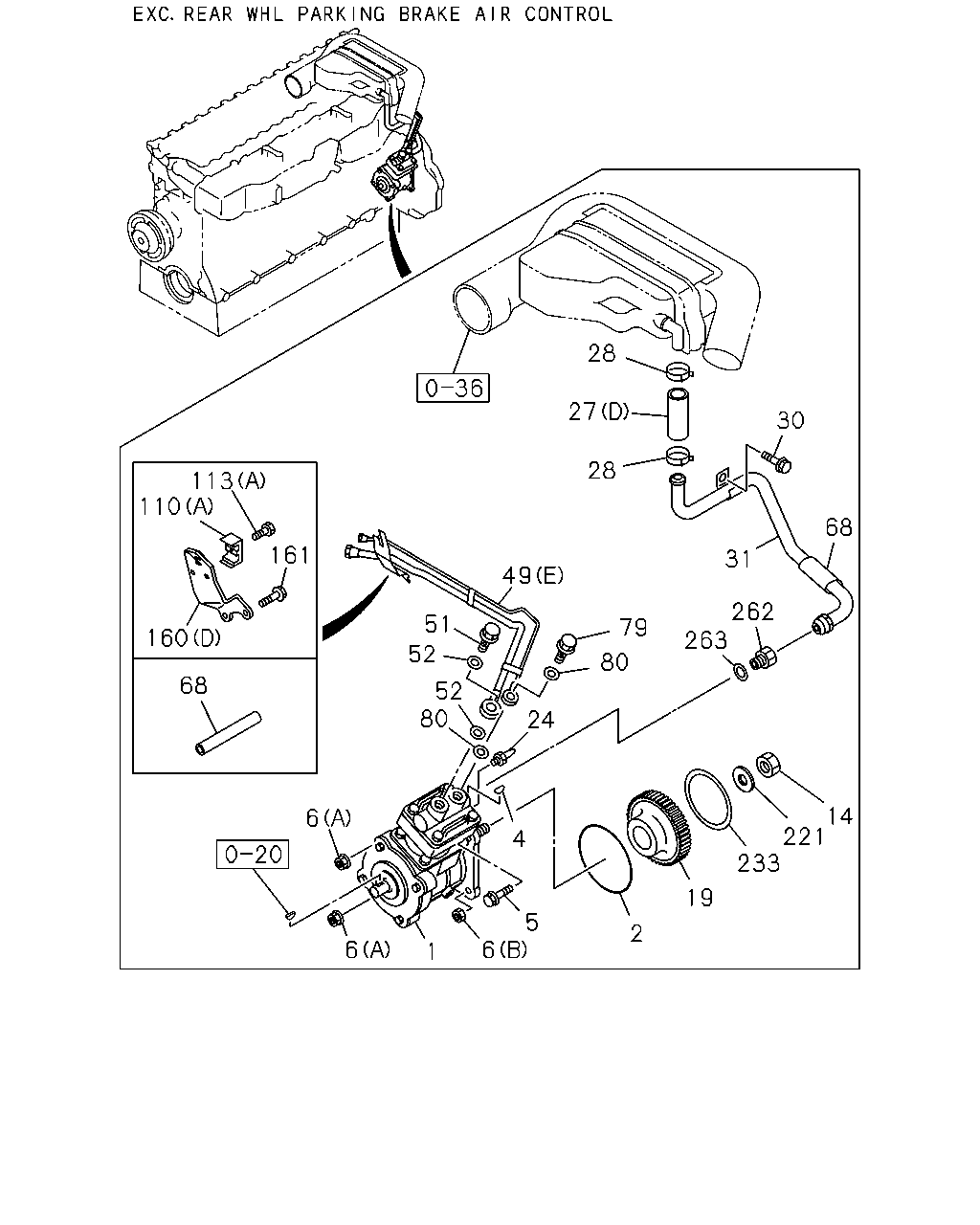

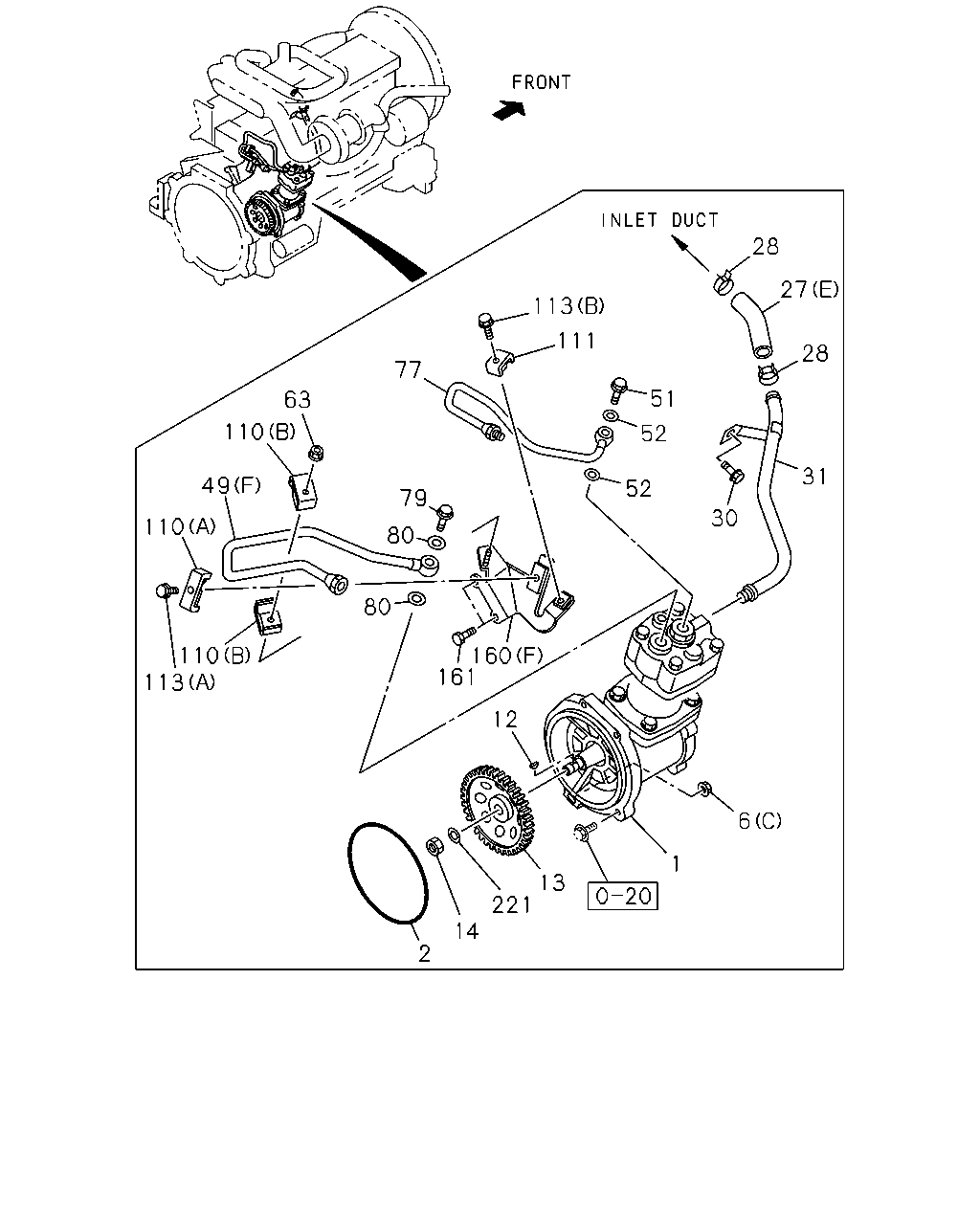

28 27 113 111 28 77 51 63 110 52 31 49 52 79 30 110 80 80 110 113 160 161 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0307-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-704-2	01	1	0211-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-892-8	01	1	0005-0210					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94396-892-8	01	1	0005-0210					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0211-0302				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0303-0306			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-700-1	01	1	0307-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-891-4	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0307-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-			●	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0307-0602	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210					●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210					●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-			●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0307-	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0005-0210		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0307-	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0005-0210		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0307-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210		●			●	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512			●	●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-			●	●
27	HOSE; AIR CMPR,SUCTION (E)	8-97602-063-1	01	1	0307-	●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-809-1	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FR*M) FSR(FS****) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-967-0	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR DOUBLE CAB(FR*W) (B)	8-94395-085-0	01	1	0005-0210					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210		●			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-0306			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0307-	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0211-0306			●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●	●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0307-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94390-859-1	01	1	0211-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-954-0	01	1	0005-0210					●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94399-954-0	01	1	0005-0210					●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0211-0302				●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0303-0306			●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94391-629-1	01	1	0307-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-942-1	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0307-	●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210		●
49	PIPE; AIR,CHARGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (D)	8-97600-184-1	01	1	0211-			●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE FRR DOUBLE CAB(FR*W) FSR(FS****) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	8-94391-376-3	01	1	0211-				●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94390-063-1	01	1	0005-0112					●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94394-275-1	01	1	0201-0210					●	●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0211-0302				●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0303-0306			●	●
49	PIPE; AIR,CHARGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-97602-706-0	01	1	0307-			●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	8-94390-192-0	01	1	0005-0210						●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0211-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-1	01	1	0307-1404			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0307-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-0	01	1	0211-0302				●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-1	01	1	0303-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-1	01	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0210		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR DOUBLE CAB(FR*W) FSR(FS****) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0211-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A). ID=24.5 OD=32	9-09571-424-0	02	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0307-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0211-0302				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0307-			●	●
63	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0307-0602	●
63	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0307-	●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0307-			●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0211-0302				●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0303-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0307-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0211-0302				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0307-			●	●
110	CLIP; AIR PIPE (B)	1-09701-282-0	02	1	0307-	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0211-0306			●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0211-0306			●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0307-	●		●	●
110	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0307-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0005-0210					●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-090-0	01	1	0211-				●
111	CLIP; AIR PIPE	8-94396-371-0	01	1	0307-	●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28080-620-0	01	1	0307-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28050-620-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE (F)	8-97601-489-0	01	1	0307-	●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-94392-031-1	01	1	0211-			●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	0005-0210						●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (E)	8-94394-372-0	01	1	0211-				●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210					●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0211-0306			●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●		●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0307-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210		●			●	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-			●	●

113 110 160 161 160 113 110 49 79 80 51 52 80 52 14 24 221 58 4 27 1 28 19 2 28 28 5 36 6 31 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0307-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-704-2	01	1	0211-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-892-8	01	1	0005-0210					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94396-892-8	01	1	0005-0210					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0211-0302				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0303-0306			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-700-1	01	1	0307-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-891-4	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0307-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-			●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210					●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0211-			●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210					●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110	0-28186-211-0	01	1	0211-0512			●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110 FLANGE	0-28156-211-0	01	1	0601-			●	●
5	BOLT; AIR CMPR FIX ENGINE REAR PTO(SV1) M12X173	1-09020-057-1	01	1	0211-				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0307-0602	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210					●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210					●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-			●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0307-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210		●			●	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512			●	●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-			●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210					●	●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0211-			●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210					●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION (E)	8-97602-063-1	01	1	0307-	●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-809-1	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FR*M) FSR(FS****) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-967-0	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR DOUBLE CAB(FR*W) (B)	8-94395-085-0	01	1	0005-0210					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210		●			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-0306			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0307-	●		●	●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0307-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94390-859-1	01	1	0211-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-954-0	01	1	0005-0210					●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94399-954-0	01	1	0005-0210					●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0211-0302				●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0303-0306			●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94391-629-1	01	1	0307-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-942-1	01	1	0005-0210					●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0307-	●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210		●
49	PIPE; AIR,CHARGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (D)	8-97600-184-1	01	1	0211-			●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE FRR DOUBLE CAB(FR*W) FSR(FS****) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	8-94391-376-3	01	1	0211-				●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94390-063-1	01	1	0005-0112					●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94394-275-1	01	1	0201-0210					●	●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0211-0302				●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0303-0306			●	●
49	PIPE; AIR,CHARGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-97602-706-0	01	1	0307-			●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	8-94390-192-0	01	1	0005-0210						●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0211-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-1	01	1	0307-1404			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0307-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-0	01	1	0211-0302				●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-1	01	1	0303-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-1	01	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0210		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR DOUBLE CAB(FR*W) FSR(FS****) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0211-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A). ID=24.5 OD=32	9-09571-424-0	02	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0307-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0211-0302				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0307-			●	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0307-			●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0211-0302				●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0303-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0307-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0211-0302				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0307-			●	●
110	CLIP; AIR PIPE (B)	1-09701-282-0	02	1	0307-	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0211-0306			●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0211-0306			●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0307-	●		●	●
110	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0307-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0005-0210					●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-090-0	01	1	0211-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28080-620-0	01	1	0307-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28050-620-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE (F)	8-97601-489-0	01	1	0307-	●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-94392-031-1	01	1	0211-			●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	0005-0210						●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (E)	8-94394-372-0	01	1	0211-				●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210					●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0211-0306			●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●		●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0307-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210		●			●	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-			●	●

28 27 30 28 113 110 68 161 31 49 262 263 160 51 79 52 80 68 52 80 24 14 221 233 6 4 19 5 6 2 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0307-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-704-2	01	1	0211-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-892-8	01	1	0005-0210					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94396-892-8	01	1	0005-0210					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0211-0302				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0303-0306			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-700-1	01	1	0307-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-891-4	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0307-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-			●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210					●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0211-			●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210					●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110	0-28186-211-0	01	1	0211-0512			●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110 FLANGE	0-28156-211-0	01	1	0601-			●	●
5	BOLT; AIR CMPR FIX ENGINE REAR PTO(SV1) M12X173	1-09020-057-1	01	1	0211-				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0307-0602	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210					●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210					●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-			●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0307-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210		●			●	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512			●	●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-			●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210					●	●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0211-			●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210					●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION (E)	8-97602-063-1	01	1	0307-	●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-809-1	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FR*M) FSR(FS****) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-967-0	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR DOUBLE CAB(FR*W) (B)	8-94395-085-0	01	1	0005-0210					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210		●			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-0306			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0307-	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0211-0306			●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●	●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0307-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94390-859-1	01	1	0211-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-954-0	01	1	0005-0210					●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94399-954-0	01	1	0005-0210					●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0211-0302				●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0303-0306			●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94391-629-1	01	1	0307-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-942-1	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0307-	●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210		●
49	PIPE; AIR,CHARGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (D)	8-97600-184-1	01	1	0211-			●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE FRR DOUBLE CAB(FR*W) FSR(FS****) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	8-94391-376-3	01	1	0211-				●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94390-063-1	01	1	0005-0112					●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94394-275-1	01	1	0201-0210					●	●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0211-0302				●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0303-0306			●	●
49	PIPE; AIR,CHARGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-97602-706-0	01	1	0307-			●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	8-94390-192-0	01	1	0005-0210						●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0211-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-1	01	1	0307-1404			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0307-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-0	01	1	0211-0302				●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-1	01	1	0303-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-1	01	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0210		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR DOUBLE CAB(FR*W) FSR(FS****) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0211-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A). ID=24.5 OD=32	9-09571-424-0	02	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0307-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0211-0302				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0307-			●	●
68	SLEEVE; RUBBER EXC. A/T<X9D> ID=17 OD=21 L=40	1-09337-012-0	01	1	0211-			●	●
68	SLEEVE; RUBBER A/T<X9D> ID=6 OD=10 L=70	1-09376-512-0	01	1	0211-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0307-			●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0211-0302				●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0303-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0307-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0211-0302				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0307-			●	●
110	CLIP; AIR PIPE (B)	1-09701-282-0	02	1	0307-	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0211-0306			●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0211-0306			●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0307-	●		●	●
110	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0307-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0005-0210					●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-090-0	01	1	0211-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28080-620-0	01	1	0307-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28050-620-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE (F)	8-97601-489-0	01	1	0307-	●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-94392-031-1	01	1	0211-			●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	0005-0210						●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (E)	8-94394-372-0	01	1	0211-				●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210					●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0211-0306			●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●		●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0307-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210		●			●	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-			●	●
233	RING; FRICTION	8-94390-562-0	01	1	0211-0311			●	●
233	RING; FRICTION	8-97603-297-0	01	1	0312-			●	●
262	ADAPTER; AIR SUCTION PIPE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-060-0	01	1	0211-0302				●
262	ADAPTER; AIR SUCTION PIPE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-060-0	01	1	0303-0306			●	●
262	ADAPTER; AIR SUCTION PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-060-0	01	1	0307-			●	●
263	GASKET; ADAPTER ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=24.5 OD=32	9-09571-424-0	01	1	0211-0302				●
263	GASKET; ADAPTER ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=24.5 OD=32	9-09571-424-0	01	1	0303-0306			●	●
263	GASKET; ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	01	1	0307-			●	●

28 27 30 28 68 51 52 80 52 80 24 1 14 221 6 4 233 19 5 6 2 6 113 160 160 113 110 110 161 49 49 79 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0307-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-704-2	01	1	0211-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-892-8	01	1	0005-0210					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94396-892-8	01	1	0005-0210					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0211-0302				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-97600-700-1	01	1	0303-0306			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97600-700-1	01	1	0307-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94396-891-4	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0307-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-			●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210					●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0211-			●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210					●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110	0-28186-211-0	01	1	0211-0512			●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110 FLANGE	0-28156-211-0	01	1	0601-			●	●
5	BOLT; AIR CMPR FIX ENGINE REAR PTO(SV1) M12X173	1-09020-057-1	01	1	0211-				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0307-0602	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210					●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210					●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-			●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0307-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210		●			●	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512			●	●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-			●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210					●	●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0211-			●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210					●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION (E)	8-97602-063-1	01	1	0307-	●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-			●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-809-1	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR STD CAB(FR*M) FSR(FS****) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-94394-967-0	01	1	0005-0210					●	●
27	HOSE; AIR CMPR,SUCTION FRR DOUBLE CAB(FR*W) (B)	8-94395-085-0	01	1	0005-0210					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210		●			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-0306			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0307-	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0211-0306			●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0307-0512	●		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-	●		●	●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0307-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94390-859-1	01	1	0211-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-954-0	01	1	0005-0210					●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR DOUBLE CAB(FR*W) FSR(FS****)	8-94399-954-0	01	1	0005-0210					●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0211-0302				●
31	PIPE; AIR,AIR CMPR SUCTION ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1)	8-94391-629-1	01	1	0303-0306			●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94391-629-1	01	1	0307-			●	●
31	PIPE; AIR,AIR CMPR SUCTION FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94399-942-1	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0307-	●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210		●
49	PIPE; AIR,CHARGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (D)	8-97600-184-1	01	1	0211-			●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ENGINE REAR PTO(SV1) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE FRR DOUBLE CAB(FR*W) FSR(FS****) (B)	8-94395-087-2	01	1	0005-0210					●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	8-94391-376-3	01	1	0211-				●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94390-063-1	01	1	0005-0112					●	●
49	PIPE; AIR,CHARGE FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-94394-275-1	01	1	0201-0210					●	●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0211-0302				●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) (E)	8-97602-706-0	01	1	0303-0306			●	●
49	PIPE; AIR,CHARGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-97602-706-0	01	1	0307-			●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	8-94390-192-0	01	1	0005-0210						●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M24X39	1-09675-132-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-0	01	1	0211-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-132-1	01	1	0307-1404			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0307-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-0	01	1	0005-0210					●	●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-0	01	1	0211-0302				●
51	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M20X38	1-09675-133-1	01	1	0303-0306			●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20X38	1-09675-133-1	01	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0005-0210		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR DOUBLE CAB(FR*W) FSR(FS****) ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=24.5 OD=32	9-09571-424-0	02	1	0211-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A). ID=24.5 OD=32	9-09571-424-0	02	1	0307-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0307-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0005-0210					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0211-0302				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=20.5 OD=28.0	9-09571-420-0	02	1	0303-0306			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=20.5 OD=28.0	9-09571-420-0	02	1	0307-			●	●
68	SLEEVE; RUBBER EXC. A/T<X9D> ID=17 OD=21 L=40	1-09337-012-0	01	1	0211-			●	●
68	SLEEVE; RUBBER A/T<X9D> ID=6 OD=10 L=70	1-09376-512-0	01	1	0211-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR DOUBLE CAB(FR*W) FSR(FS****) M14X27 FLANGE	1-09675-086-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0211-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 FLANGE	1-09675-086-0	01	1	0307-			●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0307-	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0005-0210					●	●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0211-0302				●
79	BOLT; EYE,AIR PIPE TO CMPR ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) M18X33	1-09675-058-0	01	1	0303-0306			●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18X33	1-09675-058-0	01	1	0307-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FR*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR DOUBLE CAB(FR*W) FSR(FS****) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0307-1312	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR STD CAB(FRRM) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0005-0210					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0211-0302				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ,ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0303-0306			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18.2 OD=24.4	1-09630-087-0	02	1	0307-			●	●
110	CLIP; AIR PIPE (B)	1-09701-282-0	02	1	0307-	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0211-0306			●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0211-0306			●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0307-	●		●	●
110	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A)	8-94393-037-0	01	1	0307-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	0005-0210					●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94393-090-0	01	1	0211-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28080-620-0	01	1	0307-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28050-620-0	01	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0211-0306			●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28080-640-0	01	1	0307-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●		●	●
113	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ENGINE REAR PTO(SV1) (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE (F)	8-97601-489-0	01	1	0307-	●
160	BRACKET; AIR PIPE (C)	8-94391-073-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-94392-031-1	01	1	0211-			●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	0005-0210					●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	0005-0210						●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (E)	8-94394-372-0	01	1	0211-				●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210					●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0211-0306			●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0307-0512	●		●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0307-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210		●			●	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-			●	●
233	RING; FRICTION	8-94390-562-0	01	1	0211-0311			●	●
233	RING; FRICTION	8-97603-297-0	01	1	0312-			●	●

190 217 215 216 218 190 220 166 220 190 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E	F
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	0005-0210	●	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	0005-0210	●	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	0005-0210	●	●
216	SPACER; COVER	8-94394-990-1	01	1	0005-0210	●	●
217	NUT; COVER M10	9-09110-410-0	01	1	0005-0210	●	●
218	INSULATOR; COVER	8-94394-995-2	01	1	0005-0210	●	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	0005-0210	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
