Isuzu WW
▶
TRUCKS
▶
FRR
▶
10826 - FRR/FSR/FRD(AUST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶
0-35 — ENGINE CONTROL VALVE AND LEVER
(#9300) — 23 parça
Tümü
A - 6HK1 TCS ENG
B - 6HE1 TC ENG
C - 6HH1 STD ENG
D - 6HH1 N ENG
◀

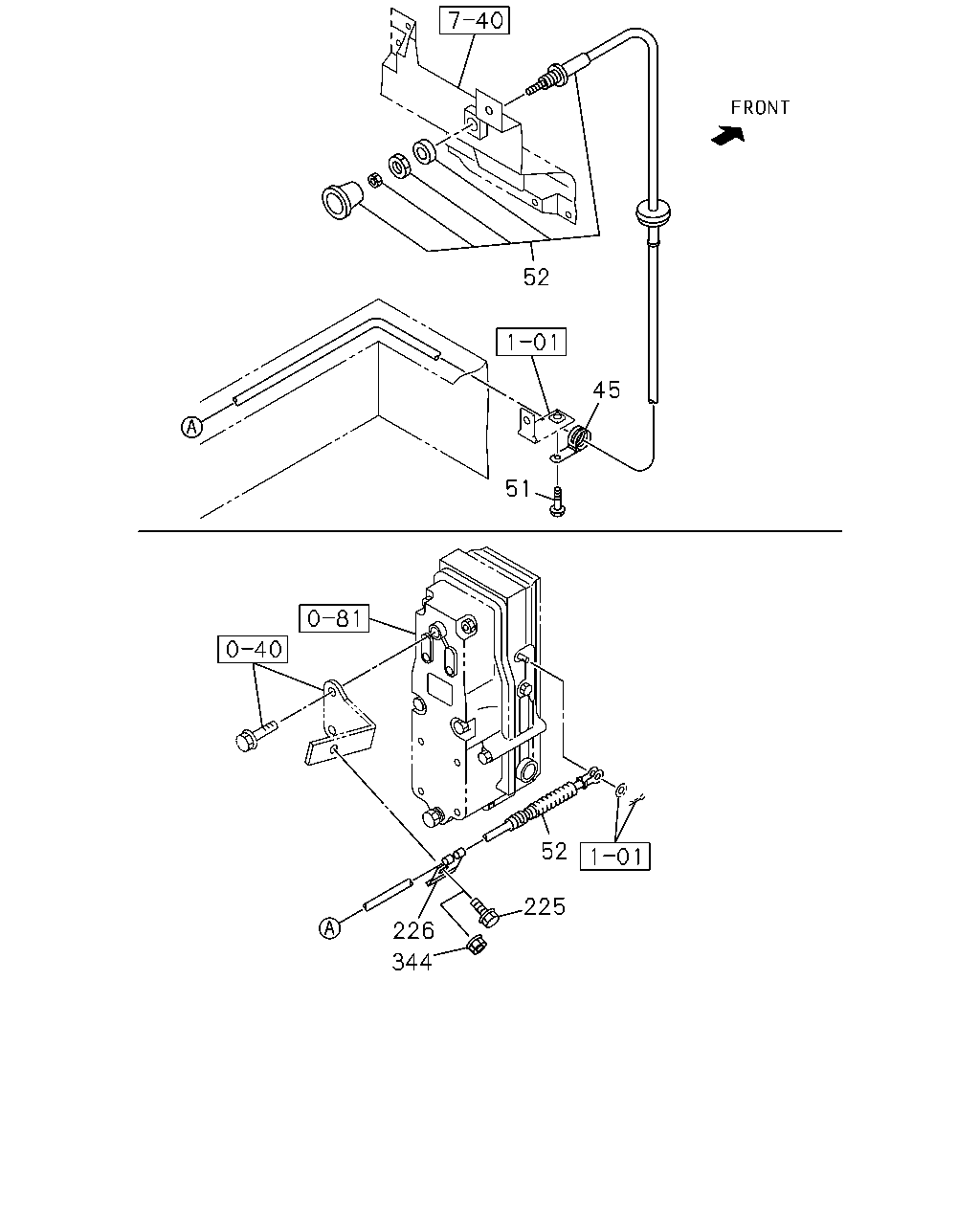

[035A] 6HK1 TCS (13 parça)

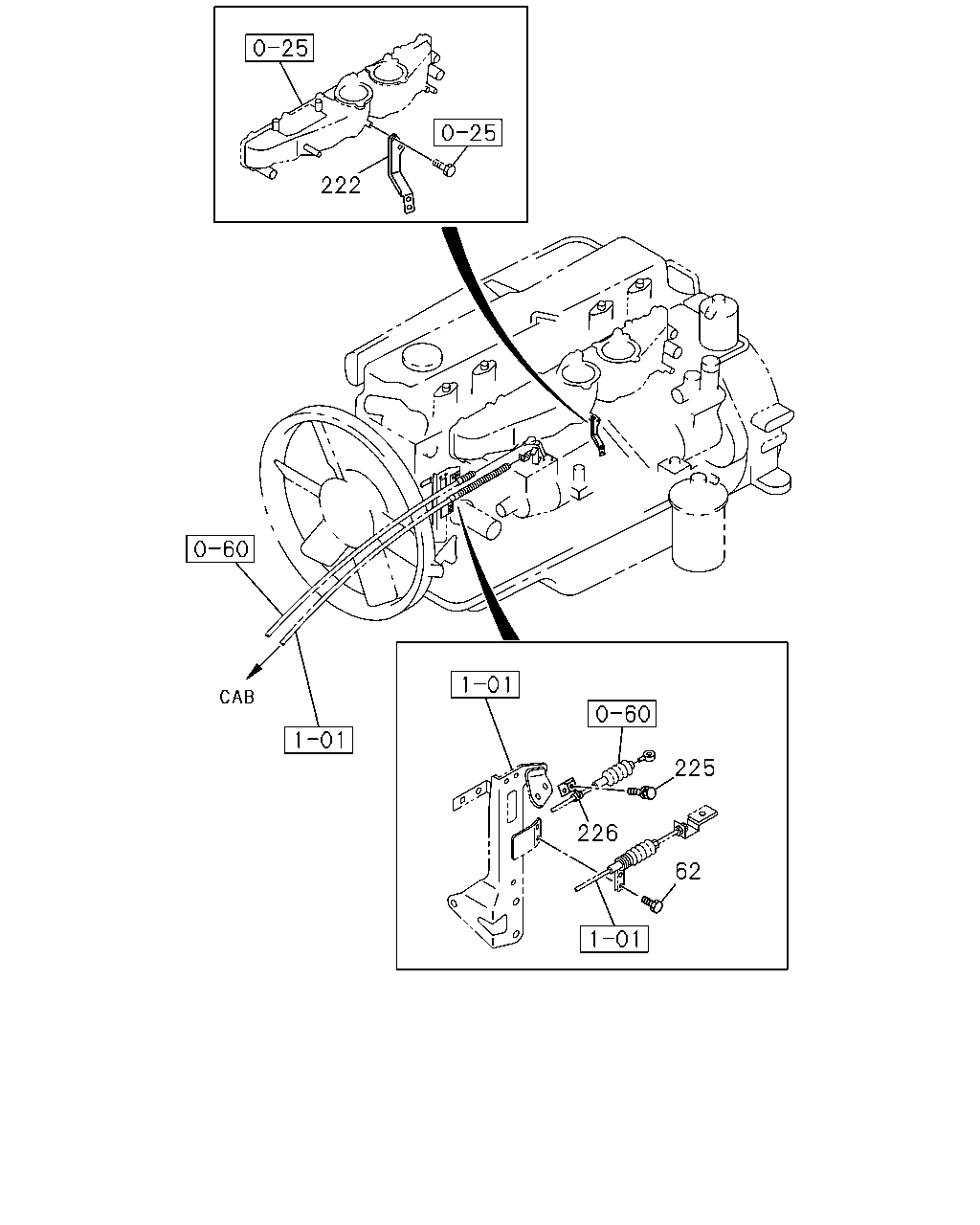

[035A] 6HE1,6HH1 (10 parça)
▶
52
45
51
52
225
226
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
45
CLIP; FUEL CUT CABLE
ID=11 L=20
9-09525-035-0
01
1
0307-0606
●
45
CLIP; FUEL CUT CABLE
ID=11 L=20
0-95235-035-0
01
1
0607-
●
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0307-0904
●
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
●
52
CABLE; FUEL CUT
L=3395
1-73907-623-3
01
1
0307-
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0307-0308
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
●
●
226
CLIP; CABLE END
1-14319-082-0
01
1
0307-
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN>
1-23219-032-0
01
1
0005-0210
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN>
1-09700-787-1
01
1
0005-0210
●
226
CLIP; CABLE END
1-09700-787-1
01
1
0005-0210
●
●
344
NUT; CABLE END
M8 FLANGE
0-91150-108-0
01
1
0309-0602
●
344
NUT; CABLE END
M8 FLANGE
0-91180-108-0
01
1
0603-
●
222
225
226
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
62
BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
62
BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE
0-28680-620-0
02
1
0005-0210
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28680-620-0
02
1
0005-0210
●
●
222
BRACKET; ACTUATOR WIRE
AT545 A/T ALLISON(MD1)
8-94395-221-0
01
1
0005-0210
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
01
1
0307-0308
●
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
●
●
226
CLIP; CABLE END
1-14319-082-0
01
1
0307-
●
226
CLIP; CABLE END
EURO2 SPECIFICATION<THN>
1-23219-032-0
01
1
0005-0210
●
226
CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN>
1-09700-787-1
01
1
0005-0210
●
226
CLIP; CABLE END
1-09700-787-1
01
1
0005-0210
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
