4-33 — STEERING LINKAGE (#9298) — 27 parça

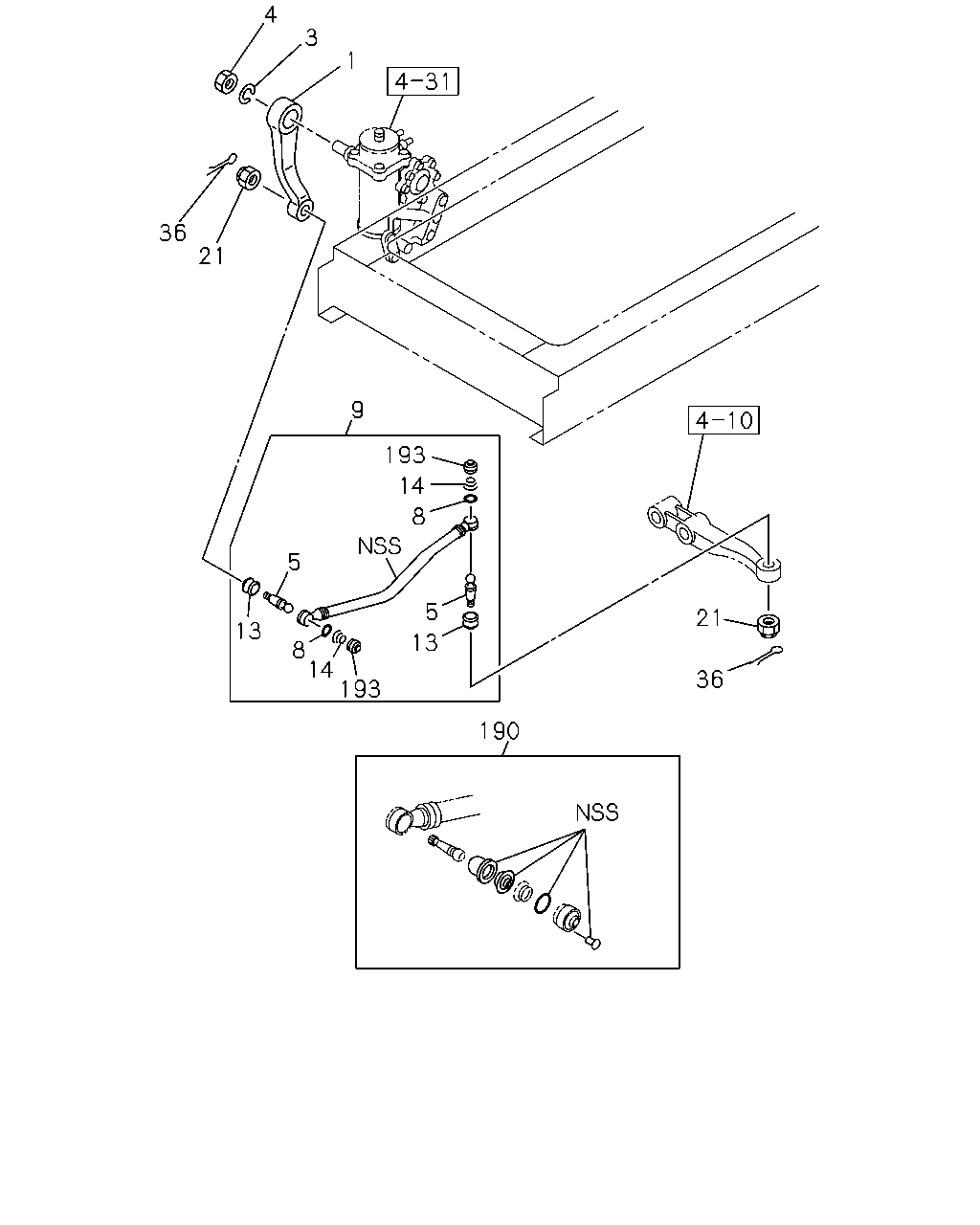

çizim 43257
4 3 1 36 21 9 193 14 8 5 5 21 13 13 8 14 193 36 190
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; PITMAN,STRG 1-44341-409-0 01 1 0005-0011 ● ● ●
1 ARM; PITMAN,STRG 1-44341-409-1 01 1 0012- ● ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0005-0011 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0012- ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0005-0011 ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0012-0805 ● ● ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 0005-0011 ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 0012- ● ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0005-0011 ● ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0012- ● ● ● ●
9 LINK; DRAG 1-44380-227-0 01 1 0005-0011 ● ● ●
9 LINK; DRAG 1-44380-227-2 01 1 0012- ● ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 0005-0011 ● ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 0012- ● ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0005-0011 ● ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0012- ● ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0005-0011 ● ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0012-0805 ● ● ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0005-0011 ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0012-0606 ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 0005-0011 ● ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 0012- ● ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0005-0011 ● ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0012- ● ● ● ●
