4-25B — REAR FINAL DRIVE (#9295) — 162 parça

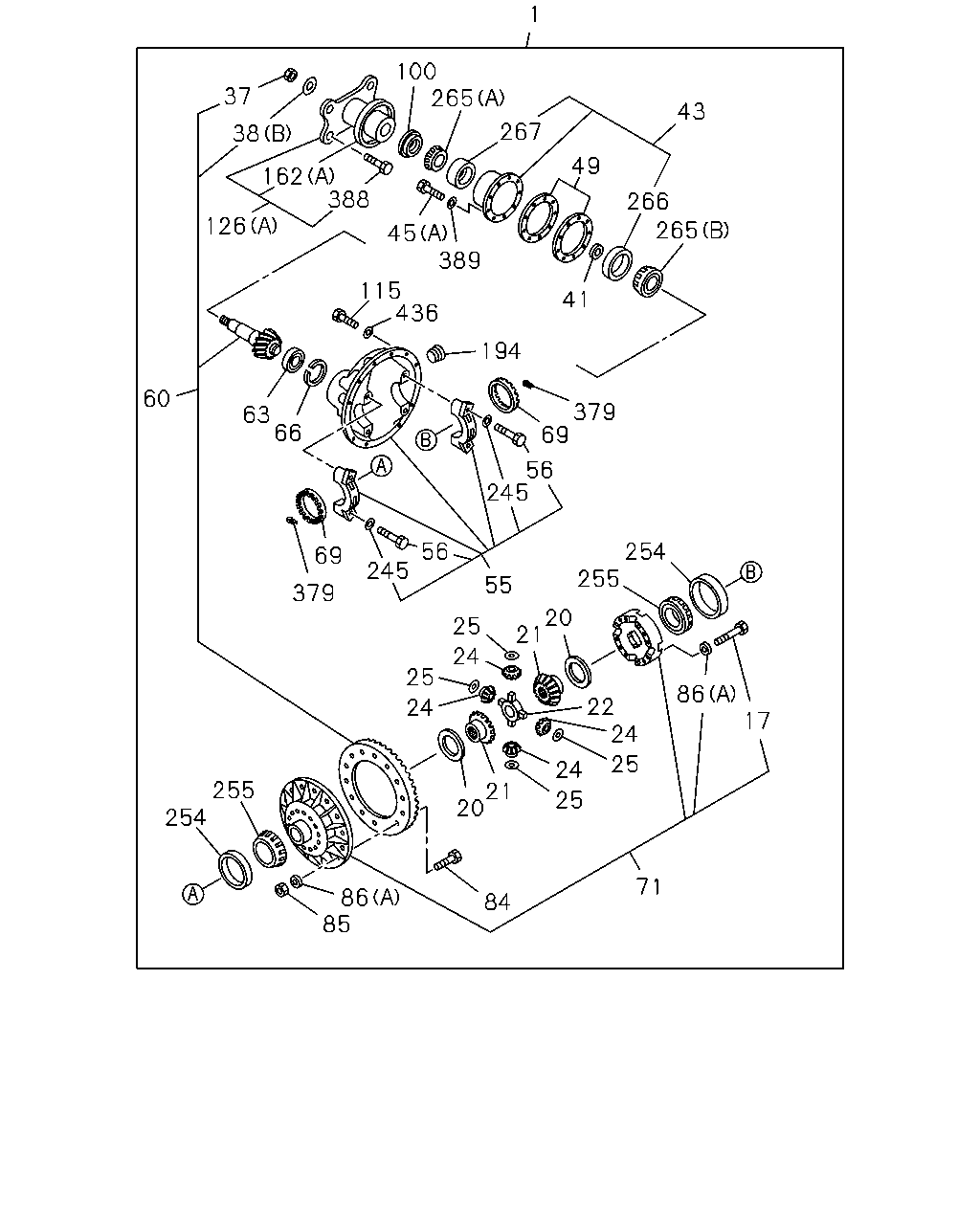

çizim 9551
1 100 265 37 43 267 38 49 162 388 266 126 265 45 389 115 436 41 194 60 379 69 63 66 56 245 254 255 56 69 245 55 379 20 21 25 24 25 86 17 22 24 24 25 24 255 254 21 20 25 71 86 85 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 DRIVE ASM; FINAL,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 43/10 		1-41002-742-0 01 1 0610- ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41002-741-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-743-0 01 1 0005-0210 ●
1 DRIVE ASM; FINAL,RR
45/8 		1-41002-744-0 01 1 0005- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41002-745-0 01 1 0005-0210 ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41002-746-0 01 1 0005-0210 ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-742-0 01 1 0005-0210 ●
1 DRIVE ASM; FINAL,RR
43/12 		1-41002-740-0 01 1 0005- ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 0005-0210 ● ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 0211-0609 ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 0610- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0211-0609 ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0610- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 04 1 0005-0210 ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 0005-0210 ● ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 0211-0609 ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 0610- ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0005-0210 ● ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0211-0609 ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0610- ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0005-0210 ● ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0211-0609 ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0610- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0005-0210 ● ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0211-0609 ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0610- ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0005-0210 ● ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0211-0609 ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0610- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 0005-0210 ● ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 0211- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 0005-0210 ● ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 0211-0609 ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 0610- ● ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 0005-0210 ● ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 0211-0609 ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 0610- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 0005-0210 ● ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 0211-0609 ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41159-008-0 08 1 0610- ● ● ●
45 BOLT; FINAL PINION CAGE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) 		1-41159-008-0 08 1 0610- ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 0005-0210 ● ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 0211-0609 ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 0610- ● ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 0005-0210 ● ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 0211-0609 ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 0610- ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0005-0210 ● ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0211-0609 ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0610- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 43/10 		1-41210-649-0 01 1 0610- ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-648-0 01 1 0005- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-650-0 01 1 0005-0210 ●
60 GEAR SET; FINAL DRIVE,RR
45/8 		1-41210-651-0 01 1 0005- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-652-0 01 1 0005-0210 ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-653-0 01 1 0005-0210 ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-649-0 01 1 0005-0210 ●
60 GEAR SET; FINAL DRIVE,RR
43/12 		1-41210-647-0 01 1 0005- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 0005-0210 ● ● ● ● ● ● ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 0211-0609 ● ● ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 0610- ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 0005-0210 ● ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 0211-0609 ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 0610- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 0005-0210 ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 0211-0609 ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 0610- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 0005-0210 ● ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 0211-0609 ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 0610- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 01 1 0005-0210 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 01 1 0211-0609 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 01 1 0610- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 0005-0210 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 0211- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-284-0 01 1 0005- ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 0005-0210 ● ● ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 0211-0609 ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 0610- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0005-0210 ● ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0211- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0005-0210 ● ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (A) 		1-41229-168-0 24 1 0211-0609 ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0211-0609 ● ●
86 WASHER; PL,DIFF CAGE SETTING
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (A) 		1-41229-168-0 24 1 0610- ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 24 1 0610- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
GVD(GV****) (A) 		1-41229-121-0 24 1 0211- ●
100 SEAL; OIL,FINAL PINION 1-41349-180-0 01 1 0005-0210 ● ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-180-0 01 1 0211-0609 ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-180-0 01 1 0610- ● ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 0005-0210 ● ● ● ● ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 0211-0609 ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 0610- ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0005-0210 ● ● ● ● ● ● ●
126 COUPLING; DRIVING PINION
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (A) 		1-37245-301-0 01 1 0211-0609 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0211-0609 ● ●
126 COUPLING; DRIVING PINION
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (A) 		1-37245-301-0 01 1 0610- ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0610- ● ● ●
126 COUPLING; DRIVING PINION
GVD(GV****) (A) 		1-37245-409-0 01 1 0211- ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0005-0210 ● ● ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (A) 		1-37249-161-0 01 1 0211-0609 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0211-0609 ● ●
162 COVER; DUST,INPUT FLANGE
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) (A) 		1-37249-161-0 01 1 0610- ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0610- ● ● ●
162 COVER; DUST,INPUT FLANGE
GVD(GV****) (A) 		1-37249-190-0 01 1 0211- ●
194 PLUG
GVD(GV****) 		1-41119-077-0 01 1 0211- ●
194 PLUG 1-41119-075-0 01 1 0005-0210 ● ● ● ● ● ● ●
194 PLUG
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41119-075-0 01 1 0211-0609 ●
194 PLUG 1-41119-075-0 01 1 0211-0609 ● ●
194 PLUG
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41119-075-0 01 1 0610- ●
194 PLUG 1-41119-075-0 01 1 0610- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 0005-0210 ● ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 0211-0609 ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 0610- ● ● ● ●
254 CUP; DIFF BRG
GVD(GV****) 		1-41229-132-0 01 1 0211- ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 0005-0210 ● ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 0211-0609 ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 0610- ● ● ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 0005-0210 ● ● ● ● ● ● ●
254 CUP; DIFF BRG
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41519-083-0 01 1 0211-0609 ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 0211-0609 ● ●
254 CUP; DIFF BRG
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41519-083-0 01 1 0610- ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 0610- ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 0005-0210 ● ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 0211-0609 ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 0610- ● ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 0005-0210 ● ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 0211-0609 ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 0610- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 0005-0210 ● ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 0211-0609 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 0610- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-120-0 01 1 0005-0210 ● ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-120-0 01 1 0211-0609 ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-120-0 01 1 0610- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-122-0 01 1 0005-0210 ● ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-122-0 01 1 0211-0609 ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-122-0 01 1 0610- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-121-0 01 1 0005-0210 ● ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-121-0 01 1 0211-0609 ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-121-0 01 1 0610- ● ● ● ●
379 PIN; SPLIT
GVD(GV****) 		1-41129-012-0 02 1 0211-0609 ●
379 PIN; SPLIT
GVD(GV****) 		1-41129-012-0 02 1 0610- ●
379 PIN; SPLIT 1-41129-012-0 01 1 0005-0210 ● ● ● ● ● ● ●
379 PIN; SPLIT
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41129-012-0 01 1 0211-0609 ●
379 PIN; SPLIT 1-41129-012-0 01 1 0211-0609 ● ●
379 PIN; SPLIT
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41129-012-0 01 1 0610- ●
379 PIN; SPLIT 1-41129-012-0 01 1 0610- ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 0005-0210 ● ● ● ● ● ● ●
379 PIN; SPLIT
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41129-013-0 01 1 0211-0609 ●
379 PIN; SPLIT 1-41129-013-0 01 1 0211-0609 ● ●
379 PIN; SPLIT
FVD MIDDLE CHASSIS(FVD5MF) FVL MIDDLE CHASSIS(FVL5MF) 		1-41129-013-0 01 1 0610- ●
379 PIN; SPLIT 1-41129-013-0 01 1 0610- ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 0005-0210 ● ● ● ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 0211-0609 ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 0610- ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 0005-0210 ● ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 0211-0609 ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 0610- ● ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-121-0 01 1 0005-0210 ● ● ● ● ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-121-0 01 1 0211-0609 ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-121-0 01 1 0610- ● ● ● ●
