◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#9293) — 642 parça

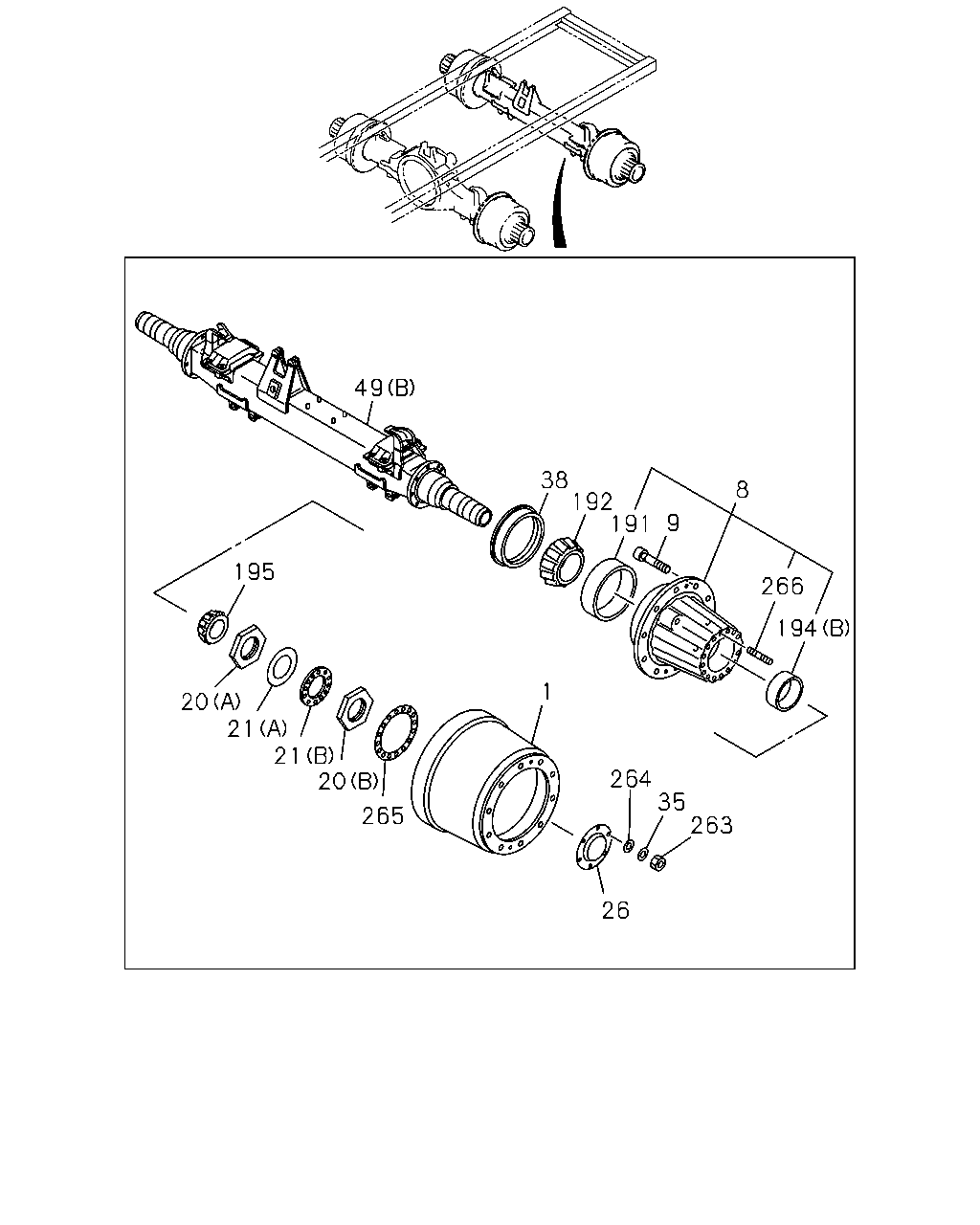

çizim 45068
49 38 192 191 8 9 195 266 194 1 20 21 21 20 264 35 263 265 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0011 ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0005-0011 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ● ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ● ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ● ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 40 1 0005-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 04 1 0005-0210 ●
26 CAP; HUB,RR AXLE 1-42313-026-0 02 1 0012-0609 ●
26 CAP; HUB,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42313-026-0 02 1 0610- ●
35 WASHER; LK,HUB CAP 1-42179-003-0 16 1 0012-0609 ●
35 WASHER; LK,HUB CAP
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42179-003-0 16 1 0610- ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0005-0011 ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 04 1 0005-0210 ●
49 CASE; RR AXLE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 43/12 18" ROCKWELL(W8A) (A) 		1-42190-182-0 01 1 0005-0005 ●
49 CASE; RR AXLE
(A) 		1-42190-182-0 01 1 0005-0005 ●
49 CASE; RR AXLE
(A) 		1-42190-182-0 01 1 0006-0011 ● ●
49 CASE; RR AXLE
(A) 		1-42190-182-0 01 1 0012- ● ● ●
49 CASE; RR AXLE
FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-42190-181-0 01 1 0005-0005 ●
49 CASE; RR AXLE
(C) FORWARD 		1-42190-020-0 01 1 0005- ●
49 CASE; RR AXLE
(C) REARWARD 		1-42190-021-0 01 1 0005- ●
49 CASE; RR AXLE
(B) 		1-42190-246-0 01 1 0012-0609 ●
49 CASE; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) 		1-42190-246-0 01 1 0610- ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0005-0011 ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0005-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0005-0011 ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0005-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ●
194 CUP; BRG,HUB OUTER
(A) 		1-42339-031-0 20 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 04 1 0005-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0005-0011 ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0005-0210 ●
263 NUT; HUB CAP 1-42179-005-0 16 1 0012-0609 ●
263 NUT; HUB CAP
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42179-005-0 16 1 0610- ●
264 SPACER; HUB CAP 1-42319-202-0 16 1 0012-0609 ●
264 SPACER; HUB CAP
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42319-202-0 16 1 0610- ●
265 GASKET; HUB CAP 1-42175-013-0 02 1 0012-0609 ●
265 GASKET; HUB CAP
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42175-013-0 02 1 0610- ●
266 STUD; HUB CAP 1-42319-201-0 16 1 0012-0609 ●
266 STUD; HUB CAP
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42319-201-0 16 1 0610- ●

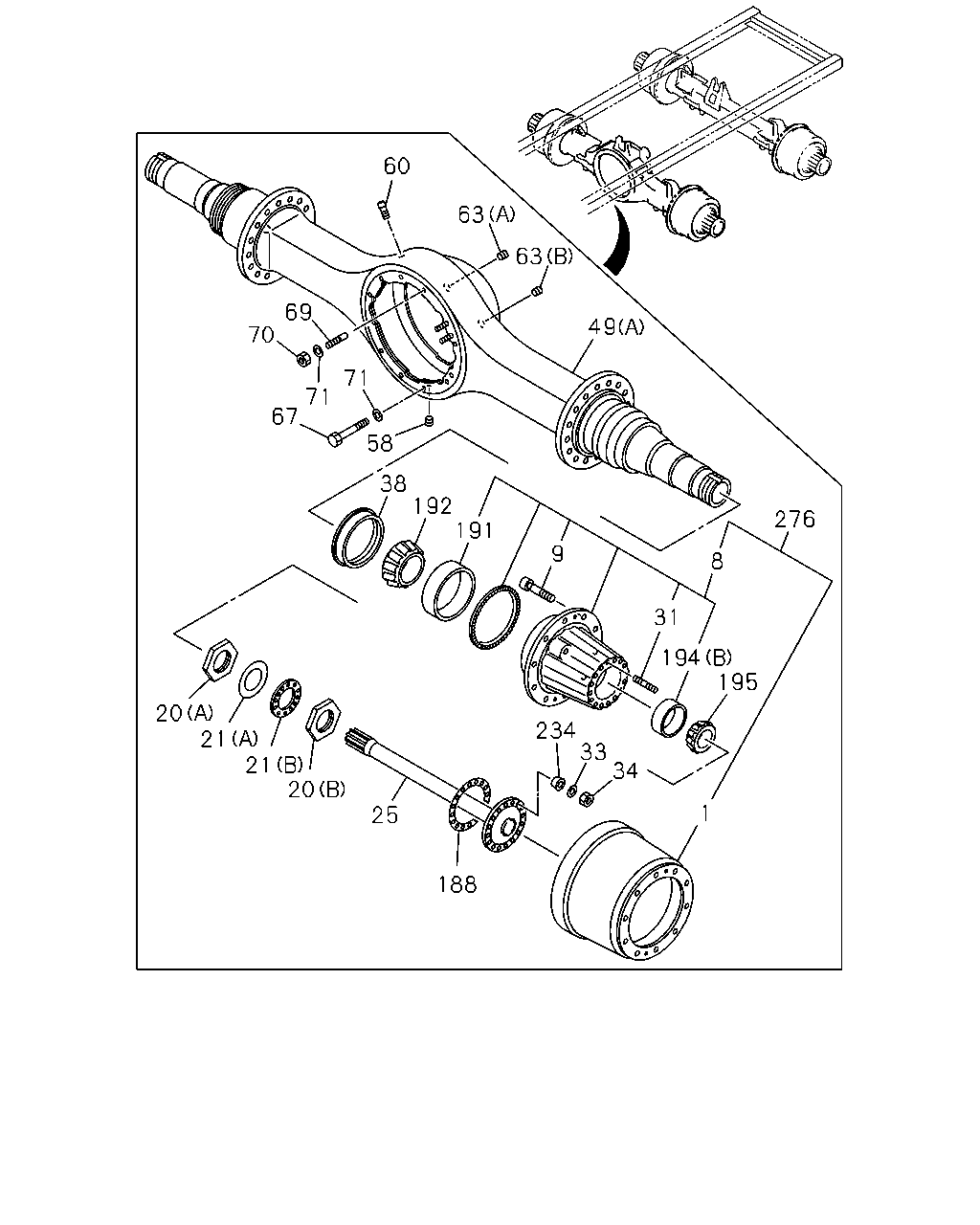

çizim 47012
60 63 63 69 70 71 71 67 58 38 192 191 276 9 8 31 194 195 20 21 21 20 234 33 34 1 25 188
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0011 ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0005-0011 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ● ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ● ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ● ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 40 1 0005-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 04 1 0005-0210 ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0005-0011 ● ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0012- ● ● ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0005-0011 ● ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0012- ● ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0005-0011 ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0012-0210 ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ● ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 32 1 0005-0210 ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0005-0011 ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0012-0210 ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ● ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0005-0011 ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0012-0210 ● ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0211- ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ● ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0610- ● ●
34 NUT; AXLE SHAFT
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-126-0 16 1 0610- ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0005-0011 ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 04 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0005-0011 ● ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0012-0210 ● ● ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0211- ● ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 02 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-41229-148-0 01 1 0211-0609 ● ●
58 PLUG; DRAIN,AXLE CASE 1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE 1-41229-148-0 01 1 0610- ● ●
58 PLUG; DRAIN,AXLE CASE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-148-0 01 1 0610- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0011 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0012- ● ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0005-0011 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0012-0210 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0211- ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0211- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0005-0011 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0012-0210 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0211- ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 04 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0211-0609 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0610- ● ●
63 PLUG; OIL FILLER,AXLE CASE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 02 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0005-0011 ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0012-0210 ● ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0211- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 14 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 06 1 0211- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0005-0011 ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0012- ● ● ●
69 STUD; AXLE CASE
FORWARD AND REARWARD L=88.14 		1-42119-133-0 07 1 0005-0210 ●
69 STUD; AXLE CASE
FORWARD L=88.14 		1-42119-133-0 03 1 0211- ●
69 STUD; AXLE CASE
FORWARD L=69.85 		1-42119-134-0 03 1 0005- ●
69 STUD; AXLE CASE
REARWARD L=88.14 		1-42119-133-0 04 1 0211- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0005-0011 ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0012-0210 ● ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0211- ● ●
70 NUT; CARRIER 1-42179-005-0 10 1 0005-0210 ●
70 NUT; CARRIER 1-41229-126-0 06 1 0211- ●
70 NUT; CARRIER 1-41229-126-0 04 1 0211- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0005-0011 ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0012-0210 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0211- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 24 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0211-0609 ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0610- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-121-0 12 1 0610- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0005-0011 ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0012-0210 ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ● ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 04 1 0005-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0005-0011 ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0005-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0005-0011 ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0005-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ●
194 CUP; BRG,HUB OUTER
(A) 		1-42339-031-0 20 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 04 1 0005-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0005-0011 ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0005-0210 ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0005-0011 ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0012-0210 ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ● ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 32 1 0005-0210 ●
276 HUB & DRUM ASM
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-151-0 02 1 0610- ● ● ● ●

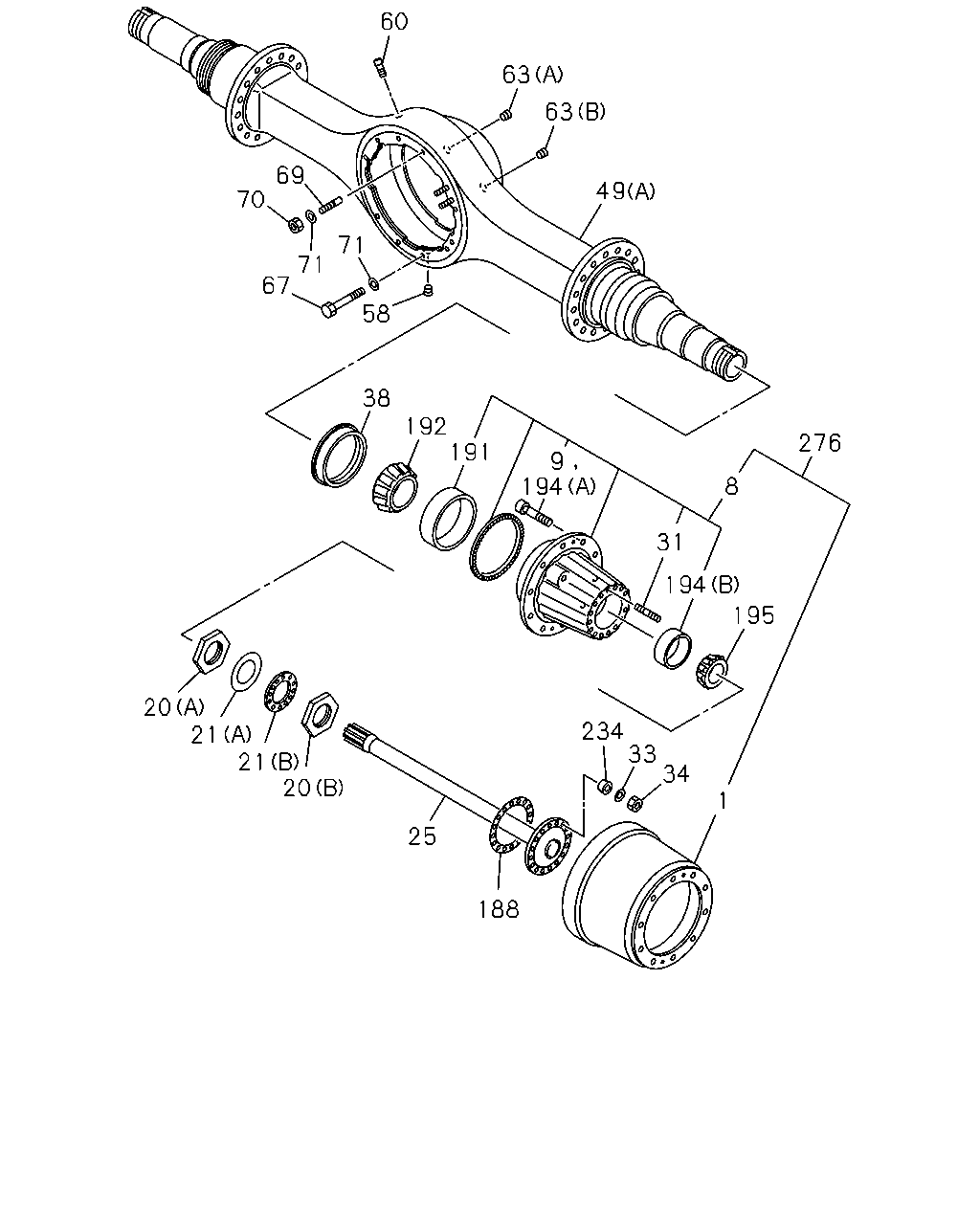

çizim 47929
60 63 63 69 70 71 71 67 8 38 192 191 276 9 194 8 31 194 195 20 21 21 20 234 33 34 1 25 188
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0011 ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0005-0011 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ● ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ● ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ● ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 40 1 0005-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 04 1 0005-0210 ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0005-0011 ● ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0012- ● ● ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0005-0011 ● ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0012- ● ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0005-0011 ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0012-0210 ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ● ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 32 1 0005-0210 ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0005-0011 ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0012-0210 ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ● ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0005-0011 ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0012-0210 ● ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0211- ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ● ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0610- ● ●
34 NUT; AXLE SHAFT
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-126-0 16 1 0610- ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0005-0011 ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 04 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0011 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0012- ● ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0005-0011 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0012-0210 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0211- ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0211- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0005-0011 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0012-0210 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0211- ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 04 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0211-0609 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0610- ● ●
63 PLUG; OIL FILLER,AXLE CASE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 02 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0005-0011 ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0012-0210 ● ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0211- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 14 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 06 1 0211- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0005-0011 ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0012- ● ● ●
69 STUD; AXLE CASE
FORWARD AND REARWARD L=88.14 		1-42119-133-0 07 1 0005-0210 ●
69 STUD; AXLE CASE
FORWARD L=88.14 		1-42119-133-0 03 1 0211- ●
69 STUD; AXLE CASE
FORWARD L=69.85 		1-42119-134-0 03 1 0005- ●
69 STUD; AXLE CASE
REARWARD L=88.14 		1-42119-133-0 04 1 0211- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0005-0011 ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0012-0210 ● ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0211- ● ●
70 NUT; CARRIER 1-42179-005-0 10 1 0005-0210 ●
70 NUT; CARRIER 1-41229-126-0 06 1 0211- ●
70 NUT; CARRIER 1-41229-126-0 04 1 0211- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0005-0011 ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0012-0210 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0211- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 24 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0211-0609 ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0610- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-121-0 12 1 0610- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0005-0011 ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0012-0210 ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ● ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 04 1 0005-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0005-0011 ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0005-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0005-0011 ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0005-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ●
194 CUP; BRG,HUB OUTER
(A) 		1-42339-031-0 20 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 04 1 0005-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0005-0011 ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0005-0210 ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0005-0011 ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0012-0210 ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ● ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 32 1 0005-0210 ●
276 HUB & DRUM ASM
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-151-0 02 1 0610- ● ● ● ●

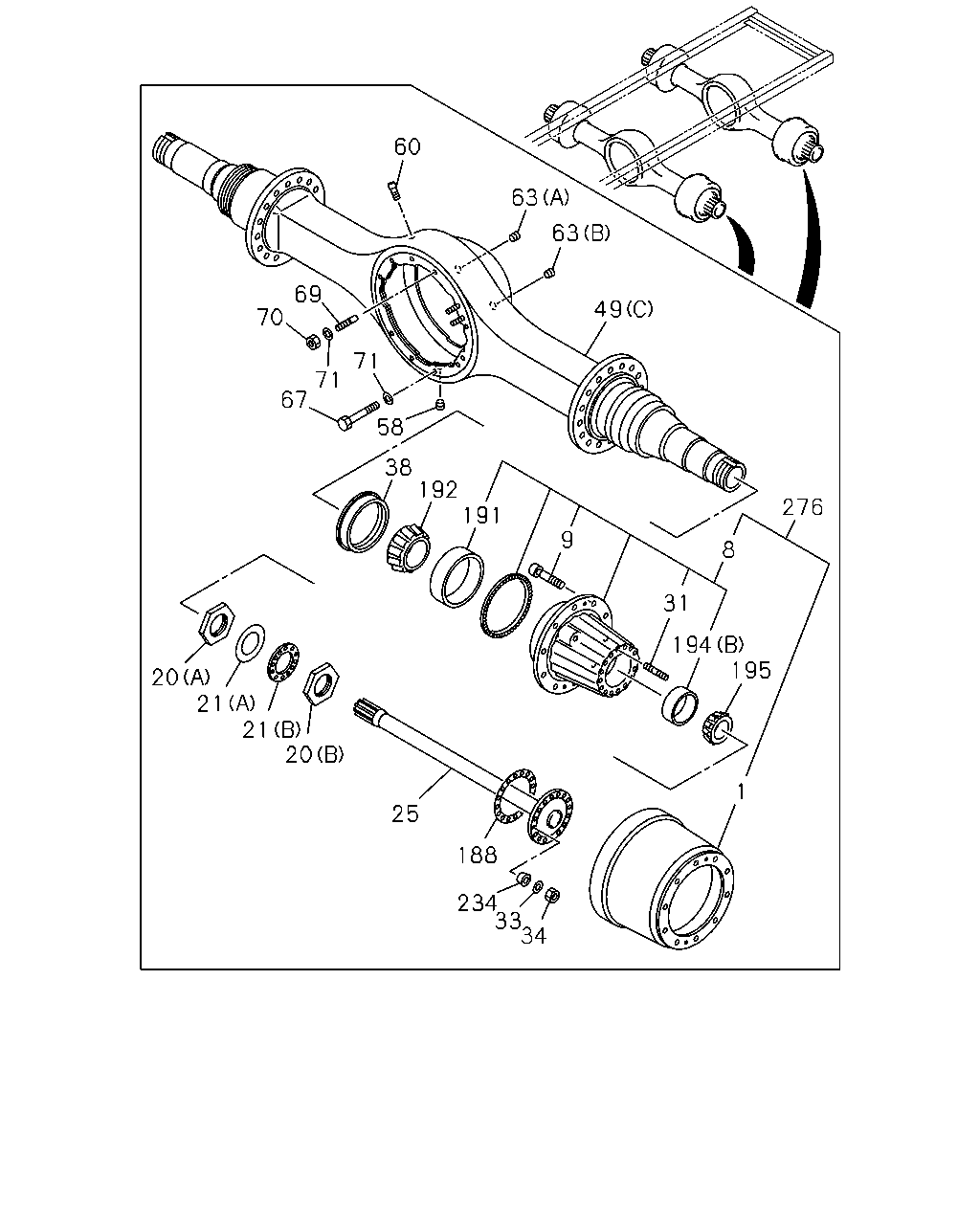

çizim 48950
60 63 63 69 49 70 71 71 67 58 38 192 191 276 9 8 31 194 195 20 21 21 20 1 25 188 234 33 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0011 ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0012-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0005-0011 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ● ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0012-0210 ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ● ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE 1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ● ●
8 HUB; RR AXLE 1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-131-0 02 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0012-0210 ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ● ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0211-0609 ● ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ● ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE 1-42339-031-0 40 1 0005-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0005-0011 ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0012-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ● ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0005-0011 ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0012-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ● ● ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(A) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(B) 		1-42179-018-0 04 1 0005-0210 ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0005-0011 ● ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0012- ● ● ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0005-0011 ● ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0012- ● ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS REAR AXLE DIFF LOCK<8CL>, PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0005-0011 ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0012-0210 ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ● ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 32 1 0005-0210 ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0005-0011 ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0012-0210 ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ● ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0005-0011 ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0012-0210 ● ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0211- ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ● ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0610- ● ●
34 NUT; AXLE SHAFT
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-126-0 16 1 0610- ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0005-0011 ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0012-0210 ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ● ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0211- ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 04 1 0005-0210 ●
49 CASE; RR AXLE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 43/12 18" ROCKWELL(W8A) (A) 		1-42190-182-0 01 1 0005-0005 ●
49 CASE; RR AXLE
(A) 		1-42190-182-0 01 1 0005-0005 ●
49 CASE; RR AXLE
(A) 		1-42190-182-0 01 1 0006-0011 ● ●
49 CASE; RR AXLE
(A) 		1-42190-182-0 01 1 0012- ● ● ●
49 CASE; RR AXLE
FINAL GEAR 43/7 18" ROCKWELL(W6C) (A) 		1-42190-181-0 01 1 0005-0005 ●
49 CASE; RR AXLE
(C) FORWARD 		1-42190-020-0 01 1 0005- ●
49 CASE; RR AXLE
(C) REARWARD 		1-42190-021-0 01 1 0005- ●
49 CASE; RR AXLE
(B) 		1-42190-246-0 01 1 0012-0609 ●
49 CASE; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) 		1-42190-246-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0005-0011 ● ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0012-0210 ● ● ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0211- ● ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 02 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-41229-148-0 01 1 0211-0609 ● ●
58 PLUG; DRAIN,AXLE CASE 1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE 1-41229-148-0 01 1 0610- ● ●
58 PLUG; DRAIN,AXLE CASE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-148-0 01 1 0610- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0011 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0012- ● ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0005-0011 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0012-0210 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0211- ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 02 1 0211- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0005-0011 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0012-0210 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 01 1 0211- ● ●
63 PLUG; OIL FILLER,AXLE CASE
(A) 		1-42119-135-0 04 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0211-0609 ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-41229-148-0 01 1 0610- ● ●
63 PLUG; OIL FILLER,AXLE CASE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42129-054-0 02 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0005-0011 ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0012-0210 ● ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0211- ● ● ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 14 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 06 1 0211- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0005-0011 ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0012- ● ● ●
69 STUD; AXLE CASE
FORWARD AND REARWARD L=88.14 		1-42119-133-0 07 1 0005-0210 ●
69 STUD; AXLE CASE
FORWARD L=88.14 		1-42119-133-0 03 1 0211- ●
69 STUD; AXLE CASE
FORWARD L=69.85 		1-42119-134-0 03 1 0005- ●
69 STUD; AXLE CASE
REARWARD L=88.14 		1-42119-133-0 04 1 0211- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0005-0011 ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0012-0210 ● ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0211- ● ●
70 NUT; CARRIER 1-42179-005-0 10 1 0005-0210 ●
70 NUT; CARRIER 1-41229-126-0 06 1 0211- ●
70 NUT; CARRIER 1-41229-126-0 04 1 0211- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0005-0011 ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0012-0210 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0211- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 24 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0211-0609 ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-121-0 12 1 0610- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41229-121-0 12 1 0610- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0005-0011 ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0012-0210 ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ● ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 04 1 0005-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0005-0011 ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0012-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0005-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0005-0011 ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0012-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0005-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0012-0210 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ●
194 CUP; BRG,HUB OUTER
(A) 		1-42339-031-0 20 1 0005-0011 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 04 1 0005-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0005-0011 ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0012-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0005-0210 ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0005-0011 ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0012-0210 ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ● ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 32 1 0005-0210 ●
276 HUB & DRUM ASM
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-151-0 02 1 0610- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
