◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#9291) — 148 parça

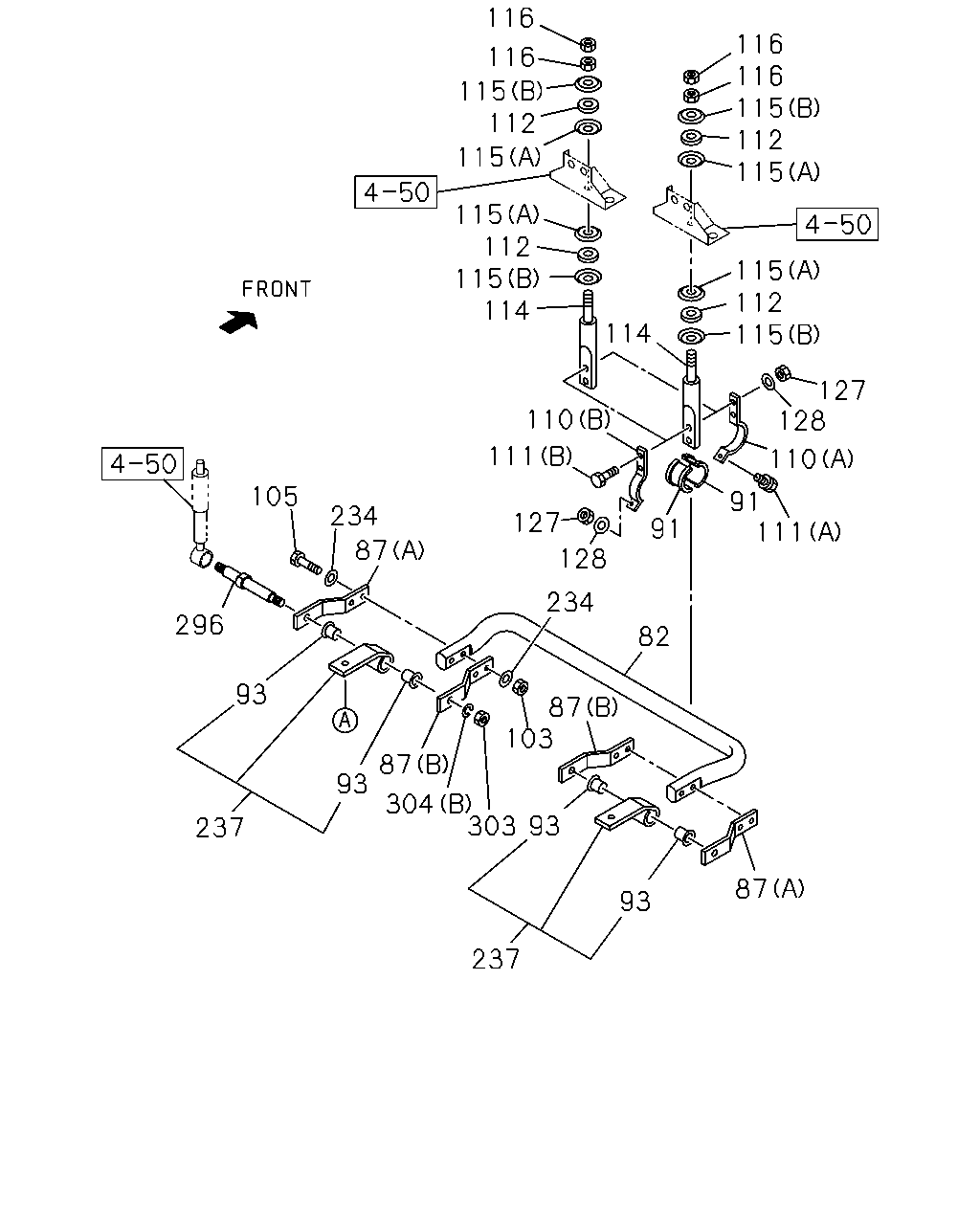

çizim 9576
116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 110 105 91 111 128 234 127 91 87 234 296 82 93 87 103 87 93 304 303 93 237 87 93 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
82 BAR; STAB,FRT SUSP 1-51771-200-0 01 1 0308-0405 ●
82 BAR; STAB,FRT SUSP
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51771-200-0 01 1 0406- ● ● ●
82 BAR; STAB,FRT SUSP 1-51771-200-0 01 1 0406- ●
82 BAR; STAB,FRT SUSP 1-51771-113-0 01 1 0005-0011 ● ● ●
82 BAR; STAB,FRT SUSP 1-51771-113-0 01 1 0012-0307 ● ● ● ●
82 BAR; STAB,FRT SUSP 1-51771-113-0 01 1 0308-0405 ● ● ●
82 BAR; STAB,FRT SUSP
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51771-113-0 01 1 0406- ● ● ●
87 BRACKET; STABILIZER
(A) 		1-51781-083-1 02 1 0005-0011 ● ● ●
87 BRACKET; STABILIZER
(A) 		1-51781-083-1 02 1 0012-0912 ● ● ● ●
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1001- ● ● ● ●
87 BRACKET; STABILIZER
(B) 		1-51781-084-1 02 1 0005-0011 ● ● ●
87 BRACKET; STABILIZER
(B) 		1-51781-084-1 02 1 0012-0912 ● ● ● ●
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1001- ● ● ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-121-0 04 1 0308-0405 ●
91 BUSHING; RUBBER,STAB BAR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51779-121-1 04 1 0406- ● ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-121-1 04 1 0406- ●
91 BUSHING; RUBBER,STAB BAR 1-51779-084-0 04 1 0005-0011 ● ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-084-0 04 1 0012-0307 ● ● ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-084-0 04 1 0308-0405 ● ● ●
91 BUSHING; RUBBER,STAB BAR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51779-084-0 04 1 0406- ● ● ●
93 BUSHING; STABILIZER 1-51689-015-1 04 1 0005-0011 ● ● ●
93 BUSHING; STABILIZER 1-51689-015-3 04 1 0012- ● ● ● ●
103 NUT; BRKT FIX
M14 		9-99110-514-0 04 1 0005-0011 ● ● ●
103 NUT; BRKT FIX
M14 		9-99110-514-0 04 1 0012-0512 ● ● ● ●
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 0601- ● ● ● ●
105 BOLT; BRKT FIX
M14X70 		9-91061-470-0 04 1 0005-0011 ● ● ●
105 BOLT; BRKT FIX
M14X70 		9-91061-470-0 04 1 0012-0206 ● ● ● ●
105 BOLT; BRKT FIX
M14X70 		9-91066-470-0 04 1 0207-0910 ● ● ● ●
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 0911- ● ● ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0005-0011 ● ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0012- ● ● ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0005-0011 ● ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0012- ● ● ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0005-0011 ● ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0012-0910 ● ● ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 0911- ● ● ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0005-0011 ● ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0012-0910 ● ● ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 0911- ● ● ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 0005-0011 ● ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 0012- ● ● ● ●
114 ROD; STAB BAR 1-51773-084-0 02 1 0005-0011 ● ● ●
114 ROD; STAB BAR 1-51773-084-0 02 1 0012- ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.8 		1-51631-022-0 04 1 0005-0011 ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.8 		1-51631-022-0 04 1 0012- ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=14.5 		9-51631-051-0 04 1 0005-0011 ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=14.5 		9-51631-051-0 04 1 0012- ● ● ● ●
116 NUT; LK,STAB TO FRAME
M14 		9-99111-414-0 04 1 0005-0011 ● ● ●
116 NUT; LK,STAB TO FRAME
M14 		9-99111-414-0 04 1 0012-0512 ● ● ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 0601- ● ● ● ●
127 NUT; CLAMP
M12 		9-99110-412-0 06 1 0005-0011 ● ● ●
127 NUT; CLAMP
M12 		9-99110-412-0 06 1 0012-0512 ● ● ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 0601- ● ● ● ●
128 WASHER; LK,CLAMP
ID=12.2 		9-09150-512-0 06 1 0005-0011 ● ● ●
128 WASHER; LK,CLAMP
ID=12.2 		9-09150-512-0 06 1 0012-0603 ● ● ● ●
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-512-0 06 1 0604-0912 ● ● ● ●
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1001- ● ● ● ●
234 WASHER; STAB
ID=15 		9-09651-069-0 08 1 0005-0011 ● ● ●
234 WASHER; STAB
ID=15 		9-09651-069-0 08 1 0012-0910 ● ● ● ●
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 0911- ● ● ● ●
237 SUPPORT; STAB BAR 1-51681-724-0 02 1 0005-0011 ● ● ●
237 SUPPORT; STAB BAR 1-51681-724-0 02 1 0012-0209 ● ● ● ●
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 0210- ● ● ● ●
296 PIN; STAB 1-51682-145-2 02 1 0005-0011 ● ● ●
296 PIN; STAB 1-51682-145-2 02 1 0012-0907 ● ● ● ●
296 PIN; STAB 8-98022-874-1 02 1 0908- ● ● ● ●
303 NUT; PIN
M20 		9-99110-520-0 02 1 0005-0011 ● ● ●
303 NUT; PIN
M20 		9-99110-520-0 02 1 0012-0512 ● ● ● ●
303 NUT; PIN
M20 		0-91110-520-0 02 1 0601- ● ● ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 0005-0011 ● ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 0012- ● ● ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0005-0011 ● ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0012-0907 ● ● ● ●
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908- ● ● ● ●

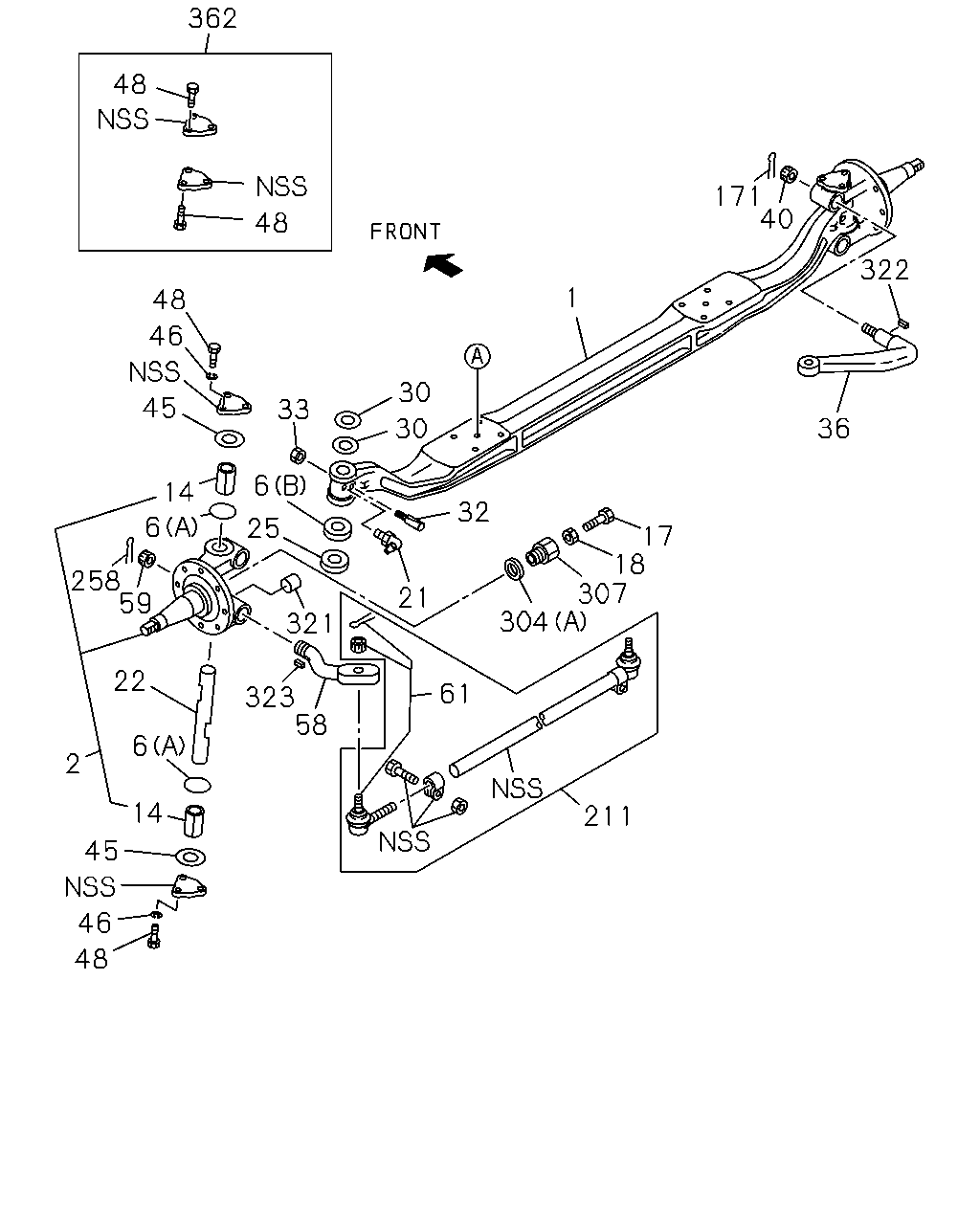

çizim 10228
362 48 322 171 40 48 1 48 46 30 45 33 36 30 6 14 32 6 25 17 18 307 258 59 21 304 321 22 61 323 58 6 2 14 211 45 46 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 AXLE; FRT 1-43111-167-0 01 1 0005-0011 ● ● ●
1 AXLE; FRT 1-43111-167-0 01 1 0012- ● ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 0005-0011 ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 0012- ● ● ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 0005-0011 ● ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 0012- ● ● ● ●
6 SEAL; KING PIN
(A) 		1-09625-634-0 04 1 0005-0011 ● ● ●
6 SEAL; KING PIN
(A) 		1-09625-634-0 04 1 0012- ● ● ● ●
6 SEAL; KING PIN
(B) 		1-09625-635-0 02 1 0005-0011 ● ● ●
6 SEAL; KING PIN
(B) 		1-09625-635-0 02 1 0012- ● ● ● ●
14 BUSHING; KING PIN 1-43149-010-0 04 1 0005-0011 ● ● ●
14 BUSHING; KING PIN 1-43149-010-0 04 1 0012- ● ● ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 0005-0011 ● ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 0012- ● ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 0005-0011 ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 0012- ● ● ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 0005-0011 ● ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 0012- ● ● ● ●
22 PIN; KING,FRT AXLE 1-43161-013-0 02 1 0005-0011 ● ● ●
22 PIN; KING,FRT AXLE 1-43161-013-0 02 1 0012- ● ● ● ●
25 BEARING; THRUST,KING PIN 1-43173-003-0 02 1 0005-0011 ● ● ●
25 BEARING; THRUST,KING PIN 1-43173-003-0 02 1 0012- ● ● ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-327-0 AR 1 0005-0011 ● ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-327-0 AR 1 0012- ● ● ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-328-0 AR 1 0005-0011 ● ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-328-0 AR 1 0012- ● ● ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-329-0 AR 1 0005-0011 ● ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-329-0 AR 1 0012- ● ● ● ●
32 BOLT; KEY,KING PIN
L=98.4 		1-43116-014-0 02 1 0211- ● ● ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 0005-0011 ● ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 0012- ● ● ● ●
32 BOLT; KEY,KING PIN
L=3.34" 		1-43116-007-0 02 1 0005-0011 ● ● ●
32 BOLT; KEY,KING PIN
L=3.34" 		1-43116-007-0 02 1 0012-0210 ● ● ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 0005-0011 ● ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 0012- ● ● ● ●
36 ARM; KNUCKLE 1-43133-081-0 01 1 0005-0011 ● ● ●
36 ARM; KNUCKLE 1-43133-081-0 01 1 0012- ● ● ● ●
40 NUT; KNUCKLE ARM 1-43139-047-0 01 1 0005-0011 ● ● ●
40 NUT; KNUCKLE ARM 1-43139-047-0 01 1 0012- ● ● ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 0005-0011 ● ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 0012- ● ● ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 0005-0011 ● ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 0012- ● ● ● ●
48 BOLT; COVER 1-43139-045-0 12 1 0005-0011 ● ● ●
48 BOLT; COVER 1-43139-045-0 12 1 0012- ● ● ● ●
58 ARM; TIE ROD 1-43135-055-0 01 1 0005-0011 ● ● ●
58 ARM; TIE ROD 1-43135-055-0 01 1 0012- ● ● ● ●
58 ARM; TIE ROD 1-43134-055-0 01 1 0005-0011 ● ● ●
58 ARM; TIE ROD 1-43134-055-0 01 1 0012- ● ● ● ●
59 NUT; TIE ROD ARM 1-43139-049-0 02 1 0005-0011 ● ● ●
59 NUT; TIE ROD ARM 1-43139-049-0 02 1 0012- ● ● ● ●
61 ROD END; TIE ROD 1-43156-056-0 01 1 0005-0011 ● ● ●
61 ROD END; TIE ROD 1-43156-056-0 01 1 0012- ● ● ● ●
61 ROD END; TIE ROD 1-43155-056-0 01 1 0005-0011 ● ● ●
61 ROD END; TIE ROD 1-43155-056-0 01 1 0012- ● ● ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 01 1 0005-0011 ● ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 01 1 0012- ● ● ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-841-0 01 1 0005-0011 ● ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-841-0 01 1 0012- ● ● ● ●
258 PIN; SPLIT,TIE ROD ARM 1-43139-048-0 02 1 0005-0011 ● ● ●
258 PIN; SPLIT,TIE ROD ARM 1-43139-048-0 02 1 0012- ● ● ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 0005-0011 ● ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 0012- ● ● ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0005-0011 ● ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0012-0907 ● ● ● ●
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908- ● ● ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 0005-0011 ● ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 0012- ● ● ● ●
321 BUSHING; KNUCKLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		8-98073-200-0 02 1 0610- ● ● ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 0005-0011 ● ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 0012- ● ● ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 0005-0011 ● ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 0012- ● ● ● ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 0211- ● ● ● ●
