◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#9290) — 3363 parça

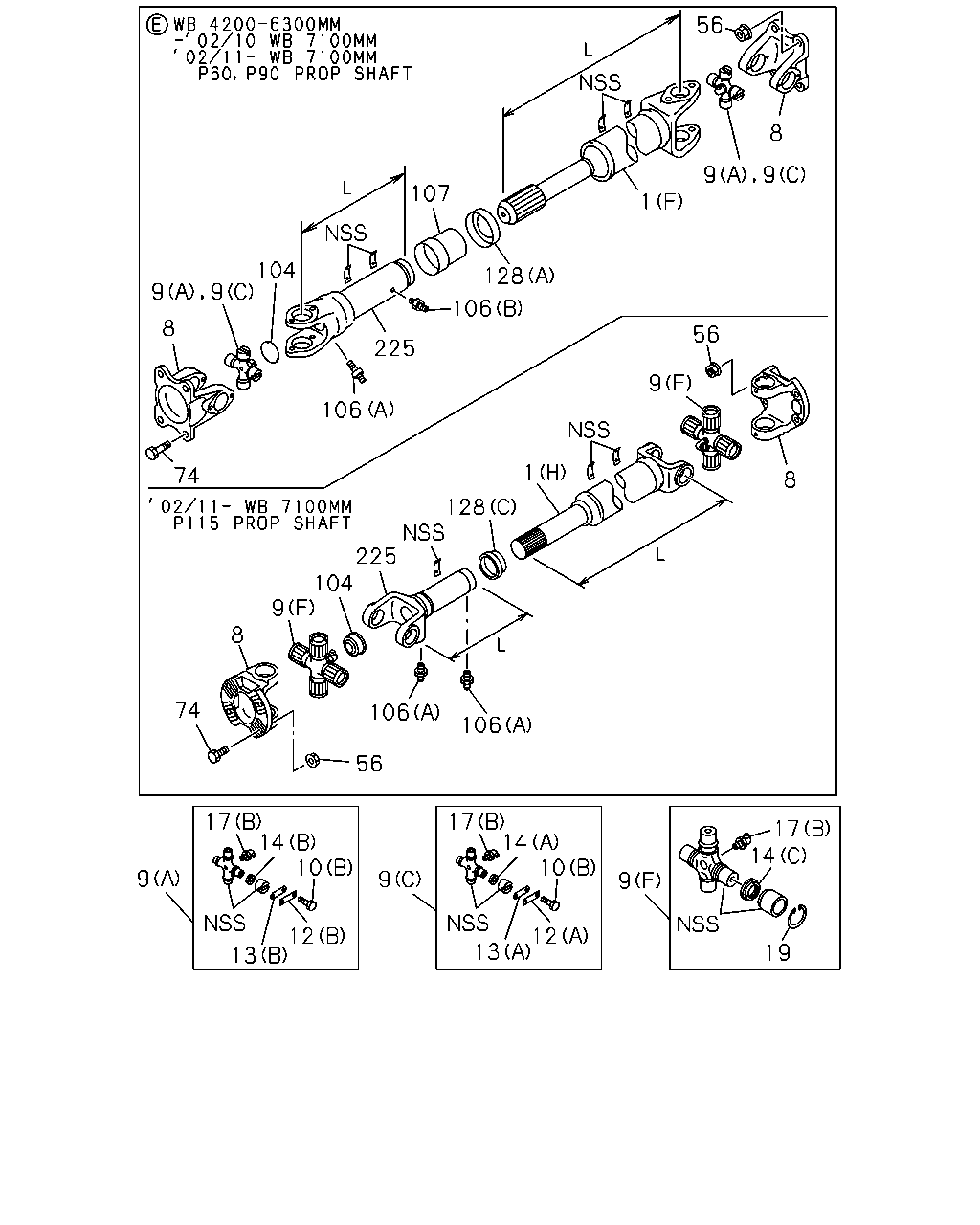

çizim 9649
56 8 9 9 107 1 104 9 128 9 106 8 56 22 9 1 74 8 128 225 104 9 8 74 106 106 56 17 14 10 17 14 10 17 14 9 9 9 12 13 12 13 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) L=918 		1-37152-162-0 01 1 0406- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1547 		1-37153-559-0 01 1 0406- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1489 		1-37153-560-0 01 1 0406- ●
1 SHAFT; PROP
PROVISIONAL PACKAGE<NLY> (J) L=1170 		1-37124-694-1 01 1 0406- ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (C) L=1107 		1-37123-973-0 01 1 0005-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (C) L=1182 		1-37124-805-0 01 1 0005-0210 ●
1 SHAFT; PROP
(F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0211-0405 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0406- ● ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0005-0011 ●
1 SHAFT; PROP
(F) L=1172 		1-37124-182-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1172 		1-37124-182-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0005-0011 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1073 		1-37151-744-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0012-0106 ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0107-0210 ● ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0211-0212 ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0406- ● ● ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0012-0210 ●
1 SHAFT; PROP
(B) L=1056 		1-37152-030-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0303-0405 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1341 		1-37151-877-0 01 1 0303- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (B) L=1288 		1-37152-043-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1288 		1-37152-043-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=833 		1-37152-793-0 01 1 0211-0405 ● ●
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) L=833 		1-37152-793-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
(A) L=646 		1-37152-221-0 01 1 0211- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (F) L=1114 		1-37124-346-0 01 1 0005-0210 ●
1 SHAFT; PROP
(J) L=1095 		1-37125-076-0 01 1 0211-0405 ●
1 SHAFT; PROP
EXC. PROVISIONAL PACKAGE<NLY> (J) L=1095 		1-37125-076-0 01 1 0406- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (G) L=1341 		1-37151-877-0 01 1 0005-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (E) L=1001 		1-37152-557-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (L) L=1069 		1-37152-659-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=927 		1-37124-184-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (F) L=1079 		1-37125-080-0 01 1 0211- ●
1 SHAFT; PROP
(I) L=441 		1-37124-191-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) (I) L=441 		1-37124-191-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (B) L=1076 		1-37153-360-0 01 1 0211- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (A) L=653 		1-37152-940-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (A) L=906 		8-97257-455-0 01 1 0211- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=603 		1-37152-939-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (K) L=854 		1-37153-361-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=962 		1-37124-005-0 01 1 0107-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (H) L=1085 		1-37124-639-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0107-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0211-0212 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0301-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0301-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0012-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 03 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(F) 		1-37300-112-0 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209HD DD M/T(Y3A) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (C) 		1-37300-094-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (D) 		1-37300-095-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) (E) 		1-37300-090-0 02 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (F) 		1-37300-112-2 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0406-0512 ●

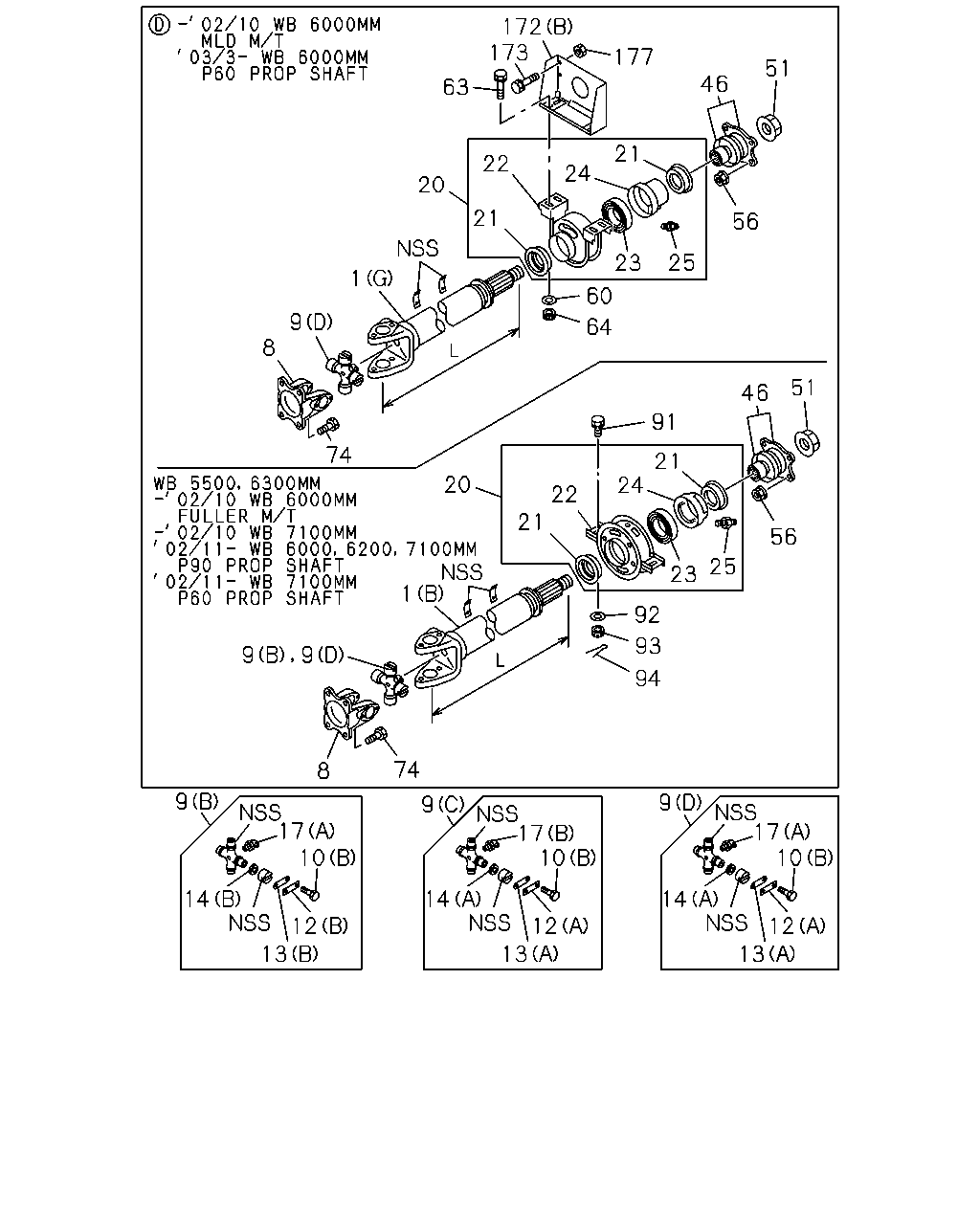

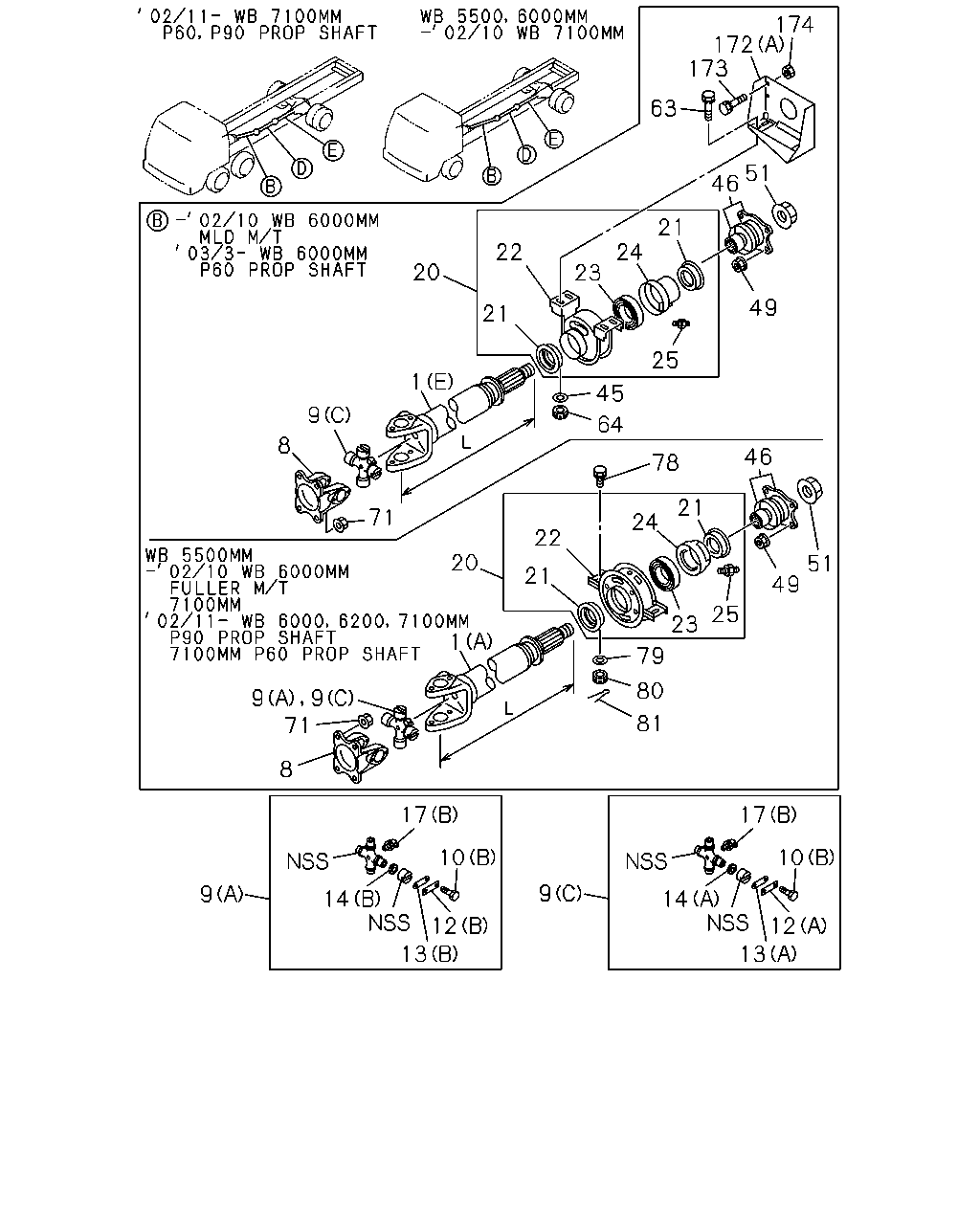

9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-128-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-128-0 AR 1 0601- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-127-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-127-0 AR 1 0601- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0005-0011 ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0012-0106 ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0107-0210 ● ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0211-0405 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0211-0405 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 0005-0210 ●
10 BOLT; UJT
FVY(FVY***) (A) 		1-09087-046-0 AR 1 0211- ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 16 1 0601- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0005-0011 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0005-0011 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0012-0106 ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0012-0106 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0107-0210 ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0107-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) 		1-37356-010-0 AR 1 0005-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0303- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0303- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0211- ● ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0005-0011 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0005-0011 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0012-0106 ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0012-0106 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0107-0210 ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0107-0210 ●
13 COVER; FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) T=6 		1-37355-022-0 AR 1 0005-0210 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0406- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0303- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0303- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0211- ● ●
14 COVER; DUST,SPIDER
(C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0005-0011 ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0005-0011 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0012-0106 ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0012-0106 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0107-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0107-0210 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0211-0212 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0301-0405 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0301-0405 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> (A) 		9-37352-023-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
FVY(FVY***) P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0011 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0012-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0210 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0012-0106 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT

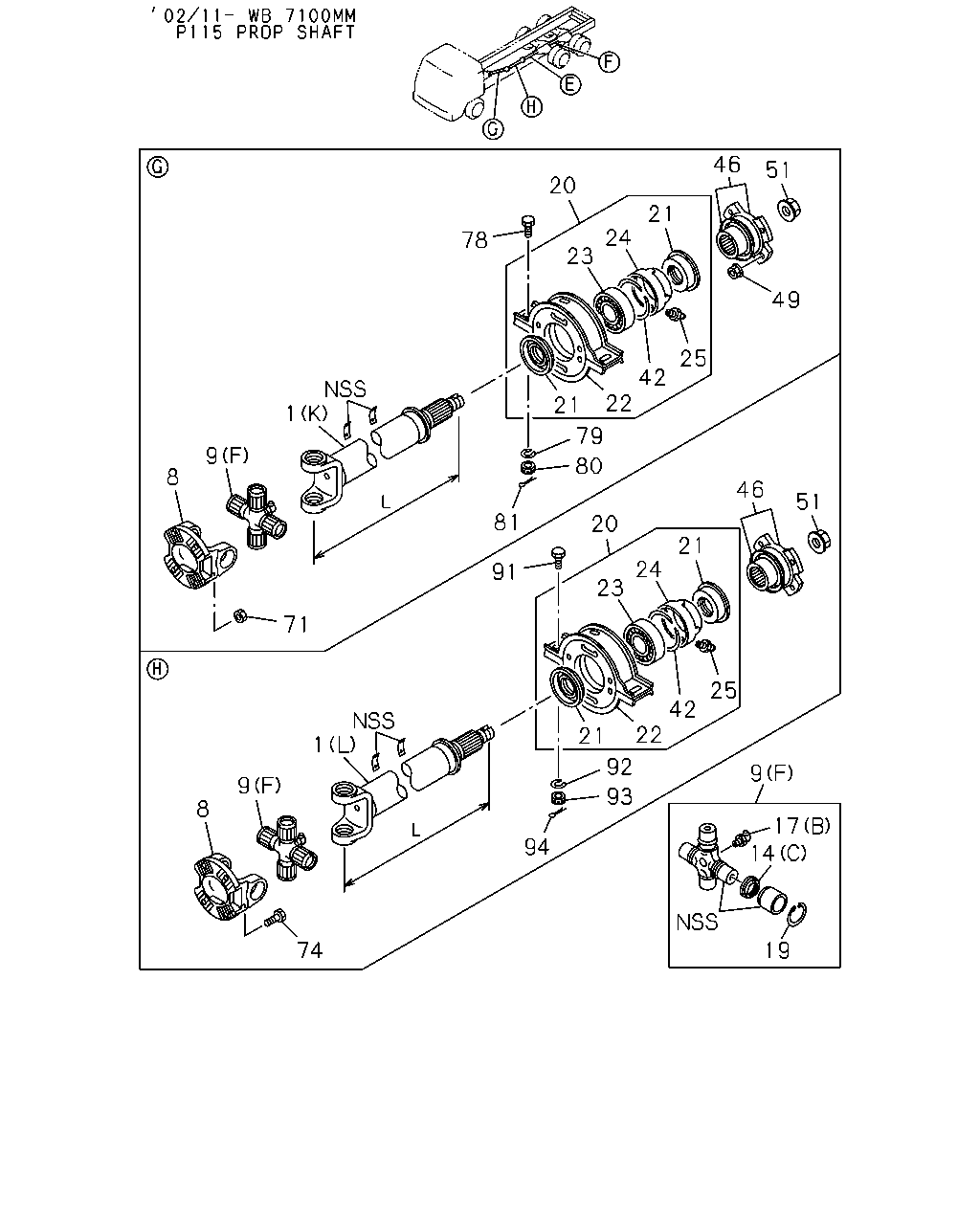

FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FVY(FVY***) P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FVY(FVY***) P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 AR 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ●
56 NUT; YOKE
FULLER FS8209 DD M/T(Y2S) M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ●
56 NUT; YOKE
FULLER FS8209 DD M/T(Y2S) M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
56 NUT; YOKE
MLD7 M/T<X9Z> M16 FLANGE 		1-09449-065-0 08 1 0005-0011 ●
56 NUT; YOKE
MLD7 M/T<X9Z> M16 FLANGE 		1-09449-065-0 08 1 0012-0210 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0012-0210 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0211- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 08 1 0211- ●
74 BOLT; YOKE,TRANS
PROVISIONAL PACKAGE<NLY> M14X50 		1-09000-645-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0005-0011 ● ●
74 BOLT; YOKE,TRANS
MLD7 M/T<X9Z> M16X48 		1-09000-383-0 04 1 0005-0011 ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
74 BOLT; YOKE,TRANS
MLD7 M/T<X9Z> M16X48 		1-09000-383-0 04 1 0012-0106 ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0107-0210 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107-0210 ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0107-0210 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0211-0212 ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 0211-0212 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0301-0302 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0301-0302 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0301-0302 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0301-0302 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0303-0405 ● ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0303-0405 ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0303-0405 ● ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0303-0405 ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0303-0405 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0406- ● ● ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
FVL(FVL***) PROVISIONAL PACKAGE<NLY> M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0005-0011 ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) M16X48 		1-09000-383-0 08 1 0005-0011 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0012-0106 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) M16X48 		1-09000-383-0 08 1 0012-0106 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0107-0210 ● ●
74 BOLT; YOKE,TRANS
FVY(FVY***) P115 PROP SHAFT(C5X) M14X50 		1-09000-645-0 08 1 0211- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0301- ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0005-0011 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0012-0106 ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107-0210 ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0211-0405 ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 0211-0405 ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 0406- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0011 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0106 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0210 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0405 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 02 1 0309-0312 ●
107 COVER; RET,SLEEVE 1-37249-132-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
FULLER FS8209 DD M/T(Y2S) 		1-37249-132-0 01 1 0005-0106 ●
107 COVER; RET,SLEEVE 1-37249-132-0 01 1 0107-0210 ● ● ●
107 COVER; RET,SLEEVE
FULLER FS8209 DD M/T(Y2S) 		1-37249-132-0 01 1 0107-0210 ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0211-0405 ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0406- ● ●
107 COVER; RET,SLEEVE
MLD7 M/T<X9Z> 		1-37249-137-0 01 1 0005-0210 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 01 1 0211-0212 ● ●
107 COVER; RET,SLEEVE 1-37249-137-0 01 1 0301-0308 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 01 1 0301-0308 ● ●
107 COVER; RET,SLEEVE 1-37249-137-0 01 1 0309-0312 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 01 1 0309-0312 ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0401-0405 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0401-0405 ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0406- ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0406- ● ● ●
128 SEAL; SLEEVE
(C) 		1-37247-020-0 01 1 0211- ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (C) 		1-37247-020-0 01 1 0211- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0005-0011 ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0005-0011 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0012-0106 ● ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0012-0106 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0107-0210 ● ● ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0107-0210 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0211-0405 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0406- ● ● ●
128 SEAL; SLEEVE
MLD7 M/T<X9Z> (A) 		1-37247-021-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0211-0212 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-021-0 01 1 0301-0405 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0301-0405 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-021-0 01 1 0406- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0406- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FVY(FVY***) (B) 		1-37247-017-0 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
L=404 		1-37241-139-0 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0005-0011 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) L=332 		1-37241-103-1 01 1 0005-0011 ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0012-0106 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) L=332 		1-37241-103-1 01 1 0012-0106 ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0107-0210 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) L=332 		1-37241-103-1 01 1 0107-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0211-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0406- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7 M/T<X9Z> L=332 		1-37241-109-1 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0211-0212 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0301-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0301-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0406- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) L=339 		1-37241-140-0 01 1 0211- ●
çizim 10227
174 172 173 63 51 46 21 24 22 20 23 49 21 25 1 45 9 64 8 46 78 21 71 24 22 20 51 49 21 25 1 23 79 80 9 9 71 81 8 17 17 10 10 9 9 14 14 12 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) L=918 		1-37152-162-0 01 1 0406- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1547 		1-37153-559-0 01 1 0406- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1489 		1-37153-560-0 01 1 0406- ●
1 SHAFT; PROP
PROVISIONAL PACKAGE<NLY> (J) L=1170 		1-37124-694-1 01 1 0406- ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (C) L=1107 		1-37123-973-0 01 1 0005-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (C) L=1182 		1-37124-805-0 01 1 0005-0210 ●
1 SHAFT; PROP
(F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0211-0405 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0406- ● ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0005-0011 ●
1 SHAFT; PROP
(F) L=1172 		1-37124-182-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1172 		1-37124-182-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0005-0011 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1073 		1-37151-744-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0012-0106 ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0107-0210 ● ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0211-0212 ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0406- ● ● ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0012-0210 ●
1 SHAFT; PROP
(B) L=1056 		1-37152-030-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0303-0405 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1341 		1-37151-877-0 01 1 0303- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (B) L=1288 		1-37152-043-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1288 		1-37152-043-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=833 		1-37152-793-0 01 1 0211-0405 ● ●
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) L=833 		1-37152-793-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
(A) L=646 		1-37152-221-0 01 1 0211- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (F) L=1114 		1-37124-346-0 01 1 0005-0210 ●
1 SHAFT; PROP
(J) L=1095 		1-37125-076-0 01 1 0211-0405 ●
1 SHAFT; PROP
EXC. PROVISIONAL PACKAGE<NLY> (J) L=1095 		1-37125-076-0 01 1 0406- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (G) L=1341 		1-37151-877-0 01 1 0005-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (E) L=1001 		1-37152-557-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (L) L=1069 		1-37152-659-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=927 		1-37124-184-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (F) L=1079 		1-37125-080-0 01 1 0211- ●
1 SHAFT; PROP
(I) L=441 		1-37124-191-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) (I) L=441 		1-37124-191-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (B) L=1076 		1-37153-360-0 01 1 0211- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (A) L=653 		1-37152-940-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (A) L=906 		8-97257-455-0 01 1 0211- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=603 		1-37152-939-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (K) L=854 		1-37153-361-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=962 		1-37124-005-0 01 1 0107-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (H) L=1085 		1-37124-639-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0107-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0211-0212 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0301-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0301-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0012-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 03 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(F) 		1-37300-112-0 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209HD DD M/T(Y3A) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (C) 		1-37300-094-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (D) 		1-37300-095-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) (E) 		1-37300-090-0 02 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (F) 		1-37300-112-2 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-128-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-128-0 AR 1 0601- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-127-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-127-0 AR 1 0601- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0005-0011 ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0012-0106 ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0107-0210 ● ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0211-0405 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0211-0405 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 0005-0210 ●
10 BOLT; UJT
FVY(FVY***) (A) 		1-09087-046-0 AR 1 0211- ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 16 1 0601- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0005-0011 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0005-0011 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0012-0106 ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0012-0106 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0107-0210 ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0107-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) 		1-37356-010-0 AR 1 0005-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0303- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0303- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0211- ● ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0005-0011 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0005-0011 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0012-0106 ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0012-0106 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0107-0210 ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0107-0210 ●
13 COVER; FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) T=6 		1-37355-022-0 AR 1 0005-0210 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0406- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0303- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0303- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0211- ● ●
14 COVER; DUST,SPIDER
(C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0005-0011 ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0005-0011 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0012-0106 ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0012-0106 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0107-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0107-0210 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0211-0212 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0301-0405 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0301-0405 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> (A) 		9-37352-023-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
FVY(FVY***) P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0011 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0012-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0210 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0012-0106 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
45 WASHER; PL,RET TO BRKT
MLD7 M/T<X9Z> ID=12.5 OD=26 		9-09164-612-0 04 1 0005-0210 ●
45 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0303- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0211-0405 ● ●
49 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0211-0405 ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0406- ● ● ●
49 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
49 NUT; YOKE
FVY(FVY***) P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
49 NUT; YOKE
FVY(FVY***) P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7 M/T<X9Z> M12X30 W/LK WASHER 		0-50041-230-0 04 1 0005-0210 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7 M/T<X9Z> M12X30 W/LK WASHER 		0-50041-230-0 04 1 0005-0210 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0303-0405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0303-0405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0406-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0406-0512 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ● ●
64 NUT; RET TO BRKT
MLD7 M/T<X9Z> M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
64 NUT; RET TO BRKT
MLD7 M/T<X9Z> M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0303-0405 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0303-0405 ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 04 1 0406-0602 ● ● ● ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 04 1 0406-0602 ● ● ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0211- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0005-0011 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0005-0011 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0012-0210 ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0012-0210 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0211-0212 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0301- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0301- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0005-0011 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0005-0011 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0012-0210 ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0012-0210 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0211-0212 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0301- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 0301- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0211-0212 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0301-0605 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0301-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0211-0212 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0301-0606 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0301-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
172 BRACKET; CENTER BRG
MLD7 M/T<X9Z> (B) 		1-37515-116-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
MLD7 M/T<X9Z> (A) 		1-37515-117-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-37515-116-0 01 1 0303-0410 ●
172 BRACKET; CENTER BRG
6HK1 TCS ENG(80L) (B) 		1-37515-116-0 01 1 0411- ● ●
172 BRACKET; CENTER BRG
P90 PROP SHAFT(C5T) (A) 		1-37515-117-0 01 1 0303-0410 ●
172 BRACKET; CENTER BRG
6HK1 TCS ENG(80L) (A) 		1-37515-117-0 01 1 0411- ● ●
173 BOLT; BRKT
MLD7 M/T<X9Z> M12X30 FLANGE 		0-28681-230-0 08 1 0005-0210 ●
173 BOLT; BRKT
P90 PROP SHAFT(C5T) M12X30 FLANGE 		0-28681-230-0 04 1 0303-0410 ●
173 BOLT; BRKT
P90 PROP SHAFT(C5T) M12X30 FLANGE 		0-28681-230-0 04 1 0303-0410 ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28681-230-0 04 1 0411-0512 ● ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28681-230-0 04 1 0411-0512 ● ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
174 NUT; BRKT
MLD7 M/T<X9Z> M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
174 NUT; BRKT
P90 PROP SHAFT(C5T) M12 FLANGE 		0-91150-212-0 04 1 0303-0410 ●
174 NUT; BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 04 1 0411-0602 ● ●
174 NUT; BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
çizim 10229
172 173 177 51 46 63 21 22 24 20 21 56 25 23 1 60 9 64 8 51 46 91 74 21 20 24 22 21 56 1 25 23 92 93 94 74 8 9 9 9 17 10 17 10 17 10 14 14 14 12 13 12 13 12 13 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) L=918 		1-37152-162-0 01 1 0406- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1547 		1-37153-559-0 01 1 0406- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1489 		1-37153-560-0 01 1 0406- ●
1 SHAFT; PROP
PROVISIONAL PACKAGE<NLY> (J) L=1170 		1-37124-694-1 01 1 0406- ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (C) L=1107 		1-37123-973-0 01 1 0005-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (C) L=1182 		1-37124-805-0 01 1 0005-0210 ●
1 SHAFT; PROP
(F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0211-0405 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0406- ● ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0005-0011 ●
1 SHAFT; PROP
(F) L=1172 		1-37124-182-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1172 		1-37124-182-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0005-0011 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1073 		1-37151-744-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0012-0106 ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0107-0210 ● ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0211-0212 ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0406- ● ● ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0012-0210 ●
1 SHAFT; PROP
(B) L=1056 		1-37152-030-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0303-0405 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1341 		1-37151-877-0 01 1 0303- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (B) L=1288 		1-37152-043-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1288 		1-37152-043-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=833 		1-37152-793-0 01 1 0211-0405 ● ●
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) L=833 		1-37152-793-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
(A) L=646 		1-37152-221-0 01 1 0211- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (F) L=1114 		1-37124-346-0 01 1 0005-0210 ●
1 SHAFT; PROP
(J) L=1095 		1-37125-076-0 01 1 0211-0405 ●
1 SHAFT; PROP
EXC. PROVISIONAL PACKAGE<NLY> (J) L=1095 		1-37125-076-0 01 1 0406- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (G) L=1341 		1-37151-877-0 01 1 0005-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (E) L=1001 		1-37152-557-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (L) L=1069 		1-37152-659-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=927 		1-37124-184-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (F) L=1079 		1-37125-080-0 01 1 0211- ●
1 SHAFT; PROP
(I) L=441 		1-37124-191-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) (I) L=441 		1-37124-191-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (B) L=1076 		1-37153-360-0 01 1 0211- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (A) L=653 		1-37152-940-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (A) L=906 		8-97257-455-0 01 1 0211- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=603 		1-37152-939-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (K) L=854 		1-37153-361-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=962 		1-37124-005-0 01 1 0107-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (H) L=1085 		1-37124-639-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0107-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0211-0212 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0301-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0301-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0012-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 03 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(F) 		1-37300-112-0 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209HD DD M/T(Y3A) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (C) 		1-37300-094-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (D) 		1-37300-095-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) (E) 		1-37300-090-0 02 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (F) 		1-37300-112-2 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-128-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-128-0 AR 1 0601- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-127-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-127-0 AR 1 0601- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0005-0011 ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0012-0106 ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0107-0210 ● ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0211-0405 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0211-0405 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 0005-0210 ●
10 BOLT; UJT
FVY(FVY***) (A) 		1-09087-046-0 AR 1 0211- ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 16 1 0601- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0005-0011 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0005-0011 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0012-0106 ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0012-0106 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0107-0210 ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0107-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) 		1-37356-010-0 AR 1 0005-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0303- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0303- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0211- ● ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0005-0011 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0005-0011 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0012-0106 ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0012-0106 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0107-0210 ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0107-0210 ●
13 COVER; FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) T=6 		1-37355-022-0 AR 1 0005-0210 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0406- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0303- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0303- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0211- ● ●
14 COVER; DUST,SPIDER
(C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0005-0011 ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0005-0011 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0012-0106 ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0012-0106 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0107-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0107-0210 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0211-0212 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0301-0405 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0301-0405 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> (A) 		9-37352-023-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
FVY(FVY***) P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0011 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0012-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0210 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0012-0106 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ●
56 NUT; YOKE
FULLER FS8209 DD M/T(Y2S) M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ●
56 NUT; YOKE
FULLER FS8209 DD M/T(Y2S) M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
56 NUT; YOKE
MLD7 M/T<X9Z> M16 FLANGE 		1-09449-065-0 08 1 0005-0011 ●
56 NUT; YOKE
MLD7 M/T<X9Z> M16 FLANGE 		1-09449-065-0 08 1 0012-0210 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0012-0210 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0211- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 08 1 0211- ●
60 WASHER; PL,RET TO BRKT
MLD7 M/T<X9Z> ID=12.5 OD=26 		9-09164-612-0 04 1 0005-0210 ●
60 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0303-0405 ●
60 WASHER; PL,RET TO BRKT
6HK1 TCS ENG(80L) ID=12.5 OD=26 		9-09164-612-0 04 1 0406- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7 M/T<X9Z> M12X30 W/LK WASHER 		0-50041-230-0 04 1 0005-0210 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7 M/T<X9Z> M12X30 W/LK WASHER 		0-50041-230-0 04 1 0005-0210 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0303-0405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0303-0405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0406-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0406-0512 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
6HK1 TCS ENG(80L) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ● ●
64 NUT; RET TO BRKT
MLD7 M/T<X9Z> M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
64 NUT; RET TO BRKT
MLD7 M/T<X9Z> M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0303-0405 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0303-0405 ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 04 1 0406-0602 ● ● ● ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 04 1 0406-0602 ● ● ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
74 BOLT; YOKE,TRANS
PROVISIONAL PACKAGE<NLY> M14X50 		1-09000-645-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0005-0011 ● ●
74 BOLT; YOKE,TRANS
MLD7 M/T<X9Z> M16X48 		1-09000-383-0 04 1 0005-0011 ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
74 BOLT; YOKE,TRANS
MLD7 M/T<X9Z> M16X48 		1-09000-383-0 04 1 0012-0106 ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0107-0210 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107-0210 ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0107-0210 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0211-0212 ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 0211-0212 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0301-0302 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0301-0302 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0301-0302 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0301-0302 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0303-0405 ● ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0303-0405 ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0303-0405 ● ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0303-0405 ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0303-0405 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0406- ● ● ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
FVL(FVL***) PROVISIONAL PACKAGE<NLY> M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0005-0011 ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) M16X48 		1-09000-383-0 08 1 0005-0011 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0012-0106 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) M16X48 		1-09000-383-0 08 1 0012-0106 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0107-0210 ● ●
74 BOLT; YOKE,TRANS
FVY(FVY***) P115 PROP SHAFT(C5X) M14X50 		1-09000-645-0 08 1 0211- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0301- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0005-0011 ● ●
91 BOLT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0005-0011 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0012-0210 ● ● ●
91 BOLT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0012-0210 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0211-0212 ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0301-0405 ● ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0301-0405 ●
91 BOLT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16X45 		1-09042-030-0 02 1 0406- ● ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0005-0011 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0005-0011 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0012-0210 ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0012-0210 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0211-0212 ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0301-0405 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 0301-0405 ●
92 WASHER; LK,HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) ID=17 		1-09503-241-1 02 1 0406- ● ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ● ●
93 NUT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ● ● ●
93 NUT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0211-0212 ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0301-0405 ● ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0301-0405 ●
93 NUT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16 SLOTTED 		9-99116-516-0 02 1 0406-0605 ● ● ● ●
93 NUT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ● ● ●
93 NUT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0211-0212 ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0301-0405 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0301-0405 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
6SD1 TCN ENG(31L) OD=3.7 L=25 		9-08114-025-0 02 1 0406-0606 ● ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
6SD1 TCN ENG(31L) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ● ● ●
172 BRACKET; CENTER BRG
MLD7 M/T<X9Z> (B) 		1-37515-116-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
MLD7 M/T<X9Z> (A) 		1-37515-117-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-37515-116-0 01 1 0303-0410 ●
172 BRACKET; CENTER BRG
6HK1 TCS ENG(80L) (B) 		1-37515-116-0 01 1 0411- ● ●
172 BRACKET; CENTER BRG
P90 PROP SHAFT(C5T) (A) 		1-37515-117-0 01 1 0303-0410 ●
172 BRACKET; CENTER BRG
6HK1 TCS ENG(80L) (A) 		1-37515-117-0 01 1 0411- ● ●
173 BOLT; BRKT
MLD7 M/T<X9Z> M12X30 FLANGE 		0-28681-230-0 08 1 0005-0210 ●
173 BOLT; BRKT
P90 PROP SHAFT(C5T) M12X30 FLANGE 		0-28681-230-0 04 1 0303-0410 ●
173 BOLT; BRKT
P90 PROP SHAFT(C5T) M12X30 FLANGE 		0-28681-230-0 04 1 0303-0410 ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28681-230-0 04 1 0411-0512 ● ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28681-230-0 04 1 0411-0512 ● ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
173 BOLT; BRKT
6HK1 TCS ENG(80L) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
177 NUT
MLD7 M/T<X9Z> M12 FLANGE 		0-91150-212-0 04 1 0005-0210 ●
177 NUT
P90 PROP SHAFT(C5T) M12 FLANGE 		0-91150-212-0 04 1 0303-0410 ●
177 NUT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91150-212-0 04 1 0411-0602 ● ●
177 NUT
6HK1 TCS ENG(80L) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
çizim 10654
8 56 107 9 225 1 56 104 128 9 8 106 1 8 128 9 71 225 104 9 8 106 106 9 9 71 17 17 14 10 14 12 13 19 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) L=918 		1-37152-162-0 01 1 0406- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1547 		1-37153-559-0 01 1 0406- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1489 		1-37153-560-0 01 1 0406- ●
1 SHAFT; PROP
PROVISIONAL PACKAGE<NLY> (J) L=1170 		1-37124-694-1 01 1 0406- ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (C) L=1107 		1-37123-973-0 01 1 0005-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (C) L=1182 		1-37124-805-0 01 1 0005-0210 ●
1 SHAFT; PROP
(F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0211-0405 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0406- ● ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0005-0011 ●
1 SHAFT; PROP
(F) L=1172 		1-37124-182-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1172 		1-37124-182-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0005-0011 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1073 		1-37151-744-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0012-0106 ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0107-0210 ● ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0211-0212 ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0406- ● ● ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0012-0210 ●
1 SHAFT; PROP
(B) L=1056 		1-37152-030-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0303-0405 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1341 		1-37151-877-0 01 1 0303- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (B) L=1288 		1-37152-043-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1288 		1-37152-043-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=833 		1-37152-793-0 01 1 0211-0405 ● ●
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) L=833 		1-37152-793-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
(A) L=646 		1-37152-221-0 01 1 0211- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (F) L=1114 		1-37124-346-0 01 1 0005-0210 ●
1 SHAFT; PROP
(J) L=1095 		1-37125-076-0 01 1 0211-0405 ●
1 SHAFT; PROP
EXC. PROVISIONAL PACKAGE<NLY> (J) L=1095 		1-37125-076-0 01 1 0406- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (G) L=1341 		1-37151-877-0 01 1 0005-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (E) L=1001 		1-37152-557-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (L) L=1069 		1-37152-659-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=927 		1-37124-184-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (F) L=1079 		1-37125-080-0 01 1 0211- ●
1 SHAFT; PROP
(I) L=441 		1-37124-191-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) (I) L=441 		1-37124-191-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (B) L=1076 		1-37153-360-0 01 1 0211- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (A) L=653 		1-37152-940-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (A) L=906 		8-97257-455-0 01 1 0211- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=603 		1-37152-939-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (K) L=854 		1-37153-361-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=962 		1-37124-005-0 01 1 0107-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (H) L=1085 		1-37124-639-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0107-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0211-0212 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0301-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0301-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0012-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 03 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(F) 		1-37300-112-0 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209HD DD M/T(Y3A) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (C) 		1-37300-094-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (D) 		1-37300-095-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) (E) 		1-37300-090-0 02 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (F) 		1-37300-112-2 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-128-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-128-0 AR 1 0601- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-127-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-127-0 AR 1 0601- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0005-0011 ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0012-0106 ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0107-0210 ● ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0211-0405 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0211-0405 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 0005-0210 ●
10 BOLT; UJT
FVY(FVY***) (A) 		1-09087-046-0 AR 1 0211- ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 16 1 0601- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0005-0011 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0005-0011 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0012-0106 ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0012-0106 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0107-0210 ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0107-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) 		1-37356-010-0 AR 1 0005-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0303- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0303- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0211- ● ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0005-0011 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0005-0011 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0012-0106 ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0012-0106 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0107-0210 ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0107-0210 ●
13 COVER; FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) T=6 		1-37355-022-0 AR 1 0005-0210 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0406- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0303- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0303- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0211- ● ●
14 COVER; DUST,SPIDER
(C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0005-0011 ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0005-0011 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0012-0106 ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0012-0106 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0107-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0107-0210 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0211-0212 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0301-0405 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0301-0405 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> (A) 		9-37352-023-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
FVY(FVY***) P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0011 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0012-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0210 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0012-0106 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FVY(FVY***) P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FVY(FVY***) P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 AR 1 0211- ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ●
56 NUT; YOKE
FULLER FS8209 DD M/T(Y2S) M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ●
56 NUT; YOKE
FULLER FS8209 DD M/T(Y2S) M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) M16 FLANGE 		1-09449-065-0 04 1 0211- ●
56 NUT; YOKE
MLD7 M/T<X9Z> M16 FLANGE 		1-09449-065-0 08 1 0005-0011 ●
56 NUT; YOKE
MLD7 M/T<X9Z> M16 FLANGE 		1-09449-065-0 08 1 0012-0210 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0012-0210 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0211- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 08 1 0211- ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0211- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 0211- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0005-0011 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0012-0106 ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107-0210 ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0211-0405 ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 0211-0405 ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 0406- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0211-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0011 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0106 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0210 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0405 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 02 1 0309-0312 ●
107 COVER; RET,SLEEVE 1-37249-132-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
FULLER FS8209 DD M/T(Y2S) 		1-37249-132-0 01 1 0005-0106 ●
107 COVER; RET,SLEEVE 1-37249-132-0 01 1 0107-0210 ● ● ●
107 COVER; RET,SLEEVE
FULLER FS8209 DD M/T(Y2S) 		1-37249-132-0 01 1 0107-0210 ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0211-0405 ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0406- ● ●
107 COVER; RET,SLEEVE
MLD7 M/T<X9Z> 		1-37249-137-0 01 1 0005-0210 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 01 1 0211-0212 ● ●
107 COVER; RET,SLEEVE 1-37249-137-0 01 1 0301-0308 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 01 1 0301-0308 ● ●
107 COVER; RET,SLEEVE 1-37249-137-0 01 1 0309-0312 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-0 01 1 0309-0312 ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0401-0405 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0401-0405 ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0406- ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0406- ● ● ●
128 SEAL; SLEEVE
(C) 		1-37247-020-0 01 1 0211- ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (C) 		1-37247-020-0 01 1 0211- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0005-0011 ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0005-0011 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0012-0106 ● ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0012-0106 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0107-0210 ● ● ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0107-0210 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0211-0405 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0406- ● ● ●
128 SEAL; SLEEVE
MLD7 M/T<X9Z> (A) 		1-37247-021-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0211-0212 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-021-0 01 1 0301-0405 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0301-0405 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-021-0 01 1 0406- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0406- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FVY(FVY***) (B) 		1-37247-017-0 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
L=404 		1-37241-139-0 01 1 0211- ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0005-0011 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) L=332 		1-37241-103-1 01 1 0005-0011 ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0012-0106 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) L=332 		1-37241-103-1 01 1 0012-0106 ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0107-0210 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) L=332 		1-37241-103-1 01 1 0107-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0211-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0406- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD7 M/T<X9Z> L=332 		1-37241-109-1 01 1 0005-0210 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0211-0212 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0301-0405 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0301-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0406- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) L=339 		1-37241-140-0 01 1 0211- ●
çizim 10892
46 51 20 21 24 78 23 49 25 42 22 1 21 79 9 80 8 46 51 81 20 21 24 91 23 71 25 42 22 1 21 92 9 9 93 8 17 14 94 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) L=918 		1-37152-162-0 01 1 0406- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1547 		1-37153-559-0 01 1 0406- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1489 		1-37153-560-0 01 1 0406- ●
1 SHAFT; PROP
PROVISIONAL PACKAGE<NLY> (J) L=1170 		1-37124-694-1 01 1 0406- ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (C) L=1107 		1-37123-973-0 01 1 0005-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (C) L=1182 		1-37124-805-0 01 1 0005-0210 ●
1 SHAFT; PROP
(F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0211-0405 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0406- ● ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0005-0011 ●
1 SHAFT; PROP
(F) L=1172 		1-37124-182-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1172 		1-37124-182-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0005-0011 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1073 		1-37151-744-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0012-0106 ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0107-0210 ● ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0211-0212 ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0406- ● ● ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0012-0210 ●
1 SHAFT; PROP
(B) L=1056 		1-37152-030-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0303-0405 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1341 		1-37151-877-0 01 1 0303- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (B) L=1288 		1-37152-043-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1288 		1-37152-043-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=833 		1-37152-793-0 01 1 0211-0405 ● ●
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) L=833 		1-37152-793-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
(A) L=646 		1-37152-221-0 01 1 0211- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (F) L=1114 		1-37124-346-0 01 1 0005-0210 ●
1 SHAFT; PROP
(J) L=1095 		1-37125-076-0 01 1 0211-0405 ●
1 SHAFT; PROP
EXC. PROVISIONAL PACKAGE<NLY> (J) L=1095 		1-37125-076-0 01 1 0406- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (G) L=1341 		1-37151-877-0 01 1 0005-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (E) L=1001 		1-37152-557-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (L) L=1069 		1-37152-659-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=927 		1-37124-184-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (F) L=1079 		1-37125-080-0 01 1 0211- ●
1 SHAFT; PROP
(I) L=441 		1-37124-191-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) (I) L=441 		1-37124-191-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (B) L=1076 		1-37153-360-0 01 1 0211- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (A) L=653 		1-37152-940-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (A) L=906 		8-97257-455-0 01 1 0211- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=603 		1-37152-939-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (K) L=854 		1-37153-361-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=962 		1-37124-005-0 01 1 0107-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (H) L=1085 		1-37124-639-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0107-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0211-0212 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0301-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0301-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0012-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 03 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(F) 		1-37300-112-0 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209HD DD M/T(Y3A) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (C) 		1-37300-094-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (D) 		1-37300-095-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) (E) 		1-37300-090-0 02 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (F) 		1-37300-112-2 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-128-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-128-0 AR 1 0601- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-127-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-127-0 AR 1 0601- ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0005-0011 ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0005-0011 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0012-0106 ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0012-0106 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0107-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0107-0210 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0211-0212 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0301-0405 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0301-0405 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> (A) 		9-37352-023-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
FVY(FVY***) P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0011 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0012-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0210 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0012-0106 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FVY(FVY***) P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 AR 1 0211- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
FVY(FVY***) P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 AR 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 0211- ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-0 01 1 0211- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0211-0405 ● ●
49 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0211-0405 ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0406- ● ● ●
49 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
49 NUT; YOKE
FVY(FVY***) P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
49 NUT; YOKE
FVY(FVY***) P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0211- ● ● ●
74 BOLT; YOKE,TRANS
PROVISIONAL PACKAGE<NLY> M14X50 		1-09000-645-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0005-0011 ● ●
74 BOLT; YOKE,TRANS
MLD7 M/T<X9Z> M16X48 		1-09000-383-0 04 1 0005-0011 ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
74 BOLT; YOKE,TRANS
MLD7 M/T<X9Z> M16X48 		1-09000-383-0 04 1 0012-0106 ●
74 BOLT; YOKE,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0107-0210 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107-0210 ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 04 1 0107-0210 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0211-0212 ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 0211-0212 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0301-0302 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0301-0302 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0301-0302 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0301-0302 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0303-0405 ● ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0303-0405 ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0303-0405 ● ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0303-0405 ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0303-0405 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> M16X48 		1-09000-383-0 04 1 0406- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0406- ● ● ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
FVL(FVL***) PROVISIONAL PACKAGE<NLY> M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
FVL(FVL***) M16X48 		1-09000-383-0 04 1 0406- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0005-0011 ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) M16X48 		1-09000-383-0 08 1 0005-0011 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0012-0106 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FS8209 DD M/T(Y2S) M16X48 		1-09000-383-0 08 1 0012-0106 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 0107-0210 ● ●
74 BOLT; YOKE,TRANS
FVY(FVY***) P115 PROP SHAFT(C5X) M14X50 		1-09000-645-0 08 1 0211- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0301- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0005-0011 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0005-0011 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0012-0210 ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0012-0210 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0211-0212 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0301- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0301- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0005-0011 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0005-0011 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0012-0210 ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0012-0210 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0211-0212 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0301- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 0301- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0211-0212 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0301-0605 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0301-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0211-0212 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0301-0606 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0301-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0005-0011 ● ●
91 BOLT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0005-0011 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0012-0210 ● ● ●
91 BOLT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0012-0210 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0211-0212 ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0301-0405 ● ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0301-0405 ●
91 BOLT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16X45 		1-09042-030-0 02 1 0406- ● ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0005-0011 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0005-0011 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0012-0210 ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0012-0210 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0211-0212 ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0301-0405 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 0301-0405 ●
92 WASHER; LK,HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) ID=17 		1-09503-241-1 02 1 0406- ● ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ● ●
93 NUT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ● ● ●
93 NUT; HOLDER SET,CTR BRG
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0211-0212 ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0301-0405 ● ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0301-0405 ●
93 NUT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16 SLOTTED 		9-99116-516-0 02 1 0406-0605 ● ● ● ●
93 NUT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ● ● ●
93 NUT; HOLDER SET,CTR BRG
6SD1 TCN ENG(31L) M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0211-0212 ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0301-0405 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0301-0405 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
6SD1 TCN ENG(31L) OD=3.7 L=25 		9-08114-025-0 02 1 0406-0606 ● ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
6SD1 TCN ENG(31L) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ● ● ●
çizim 43260
78 51 46 21 24 23 20 22 9 21 49 25 10 12 13 1 79 14 80 81 71 17 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) L=918 		1-37152-162-0 01 1 0406- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1547 		1-37153-559-0 01 1 0406- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1489 		1-37153-560-0 01 1 0406- ●
1 SHAFT; PROP
PROVISIONAL PACKAGE<NLY> (J) L=1170 		1-37124-694-1 01 1 0406- ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (C) L=1107 		1-37123-973-0 01 1 0005-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (C) L=1182 		1-37124-805-0 01 1 0005-0210 ●
1 SHAFT; PROP
(F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0211-0405 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0406- ● ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0005-0011 ●
1 SHAFT; PROP
(F) L=1172 		1-37124-182-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1172 		1-37124-182-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0005-0011 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1073 		1-37151-744-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0012-0106 ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0107-0210 ● ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0211-0212 ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0406- ● ● ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0012-0210 ●
1 SHAFT; PROP
(B) L=1056 		1-37152-030-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0303-0405 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1341 		1-37151-877-0 01 1 0303- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (B) L=1288 		1-37152-043-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1288 		1-37152-043-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=833 		1-37152-793-0 01 1 0211-0405 ● ●
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) L=833 		1-37152-793-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
(A) L=646 		1-37152-221-0 01 1 0211- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (F) L=1114 		1-37124-346-0 01 1 0005-0210 ●
1 SHAFT; PROP
(J) L=1095 		1-37125-076-0 01 1 0211-0405 ●
1 SHAFT; PROP
EXC. PROVISIONAL PACKAGE<NLY> (J) L=1095 		1-37125-076-0 01 1 0406- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (G) L=1341 		1-37151-877-0 01 1 0005-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (E) L=1001 		1-37152-557-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (L) L=1069 		1-37152-659-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=927 		1-37124-184-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (F) L=1079 		1-37125-080-0 01 1 0211- ●
1 SHAFT; PROP
(I) L=441 		1-37124-191-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) (I) L=441 		1-37124-191-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (B) L=1076 		1-37153-360-0 01 1 0211- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (A) L=653 		1-37152-940-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (A) L=906 		8-97257-455-0 01 1 0211- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=603 		1-37152-939-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (K) L=854 		1-37153-361-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=962 		1-37124-005-0 01 1 0107-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (H) L=1085 		1-37124-639-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 0107-0210 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 02 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0012-0106 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37211-066-1 01 1 0107-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-066-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0211-0302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0303-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0303-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD7 M/T<X9Z> 		1-37211-072-1 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0211-0212 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0301-0405 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0301-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-072-1 02 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0005-0011 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 0012-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) 		1-37211-077-1 03 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(F) 		1-37300-112-0 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209HD DD M/T(Y3A) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (C) 		1-37300-094-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (D) 		1-37300-095-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) (E) 		1-37300-090-0 02 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (F) 		1-37300-112-2 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-128-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-128-0 AR 1 0601- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-127-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-127-0 AR 1 0601- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0005-0011 ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0012-0106 ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0107-0210 ● ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0211-0405 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0211-0405 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 0005-0210 ●
10 BOLT; UJT
FVY(FVY***) (A) 		1-09087-046-0 AR 1 0211- ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 16 1 0601- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0005-0011 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0005-0011 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0012-0106 ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0012-0106 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-008-0 AR 1 0107-0210 ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37356-008-0 AR 1 0107-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) 		1-37356-010-0 AR 1 0005-0210 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0406- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0406- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0211-0302 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-010-0 AR 1 0303- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37356-010-0 AR 1 0303- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37356-008-0 AR 1 0211- ● ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0005-0011 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0005-0011 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0012-0106 ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0012-0106 ●
13 COVER; FRT UJT,PROP SHAFT
(B) 		1-37355-020-0 AR 1 0107-0210 ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37355-020-0 AR 1 0107-0210 ●
13 COVER; FRT UJT,PROP SHAFT
MLD7 M/T<X9Z> (A) T=6 		1-37355-022-0 AR 1 0005-0210 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0406- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0406- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0211-0302 ●
13 COVER; FRT UJT,PROP SHAFT
(A) T=6 		1-37355-022-0 AR 1 0303- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (A) T=6 		1-37355-022-0 AR 1 0303- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37355-020-0 AR 1 0211- ● ●
14 COVER; DUST,SPIDER
(C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0005-0011 ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0005-0011 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0012-0106 ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0012-0106 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 AR 1 0107-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
FULLER FS8209 DD M/T(Y2S) (B) 		1-37249-131-0 AR 1 0107-0210 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0211-0212 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0301-0405 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0301-0405 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
MLD7 M/T<X9Z> (A) 		9-37352-023-0 AR 1 0005-0210 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
FVY(FVY***) P115 PROP SHAFT(C5X) (C) 		1-37249-133-0 AR 1 0211- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 AR 1 0406- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0011 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0012-0106 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0210 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0012-0106 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0211- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0406-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005-0011 ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0005-0011 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0012-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0012-0106 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0107-0210 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		1-37510-094-3 01 1 0107-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0303-0405 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0406- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7 M/T<X9Z> 		1-37510-099-1 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-093-3 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005-0011 ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0005-0011 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0012-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0012-0106 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0107-0210 ● ● ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
FULLER FS8209 DD M/T(Y2S) D=120 		1-09625-127-0 02 1 0107-0210 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
MLD7 M/T<X9Z> D=120 		1-09625-126-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0211-0302 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0303-0405 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0303-0405 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0406- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) FRONT OD=114 		1-09625-222-1 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) REAR OD=106 		1-09625-622-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005-0011 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0005-0011 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0012-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0012-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0107-0210 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37516-048-2 01 1 0107-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0303-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37516-053-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-047-2 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005-0011 ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0005-0011 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0012-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0012-0106 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0107-0210 ● ● ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FS8209 DD M/T(Y2S) 		9-00090-256-0 01 1 0107-0210 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT
MLD7 M/T<X9Z> 		9-00090-292-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0211-0302 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0303-0405 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0303-0405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0406- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005-0011 ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0005-0011 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0012-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0012-0106 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0107-0210 ● ● ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37529-041-0 01 1 0107-0210 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST
MLD7 M/T<X9Z> 		1-37529-039-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0211-0302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0303-0405 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0303-0405 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0406- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 0211- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0011 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0012-0106 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107-0210 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005-0011 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0005-0011 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0012-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0012-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0107-0210 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FS8209 DD M/T(Y2S) 		1-37245-271-1 01 1 0107-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7 M/T<X9Z> 		1-37245-283-1 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0211-0302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0303-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0303-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 0211- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0211-0405 ● ●
49 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0211-0405 ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0406- ● ● ●
49 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0406- ●
49 NUT; YOKE
FVY(FVY***) P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
49 NUT; YOKE
FVY(FVY***) P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0005-0011 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0012-0106 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ● ● ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
FULLER FS8209 DD M/T(Y2S) M39 FLANGE 		1-09440-046-0 01 1 0107-0210 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
MLD7 M/T<X9Z> M33 FLANGE 		1-09449-051-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0211-0302 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0303-0405 ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0406- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 0211- ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		1-09440-048-0 04 1 0211-0805 ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
P115 PROP SHAFT(C5X) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0011 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0012-0210 ● ● ● ● ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0211- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0005-0011 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0005-0011 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0012-0210 ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16X45 		1-09042-030-0 02 1 0012-0210 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0211-0212 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0301- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0301- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0005-0011 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0005-0011 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0012-0210 ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) ID=17 		1-09503-241-0 02 1 0012-0210 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0211-0212 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0301- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 0301- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0005-0011 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
FULLER FS8209 DD M/T(Y2S) M16 SLOTTED 		9-99116-516-0 02 1 0012-0210 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0211-0212 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0301-0605 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0301-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0011 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
FULLER FS8209 DD M/T(Y2S) OD=3.7 L=25 		9-08114-025-0 02 1 0012-0210 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0211-0212 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0301-0606 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0301-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
çizim 47245
9 198 96 10 1 9 128 102 96 198 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) L=918 		1-37152-162-0 01 1 0406- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=1547 		1-37153-559-0 01 1 0406- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1489 		1-37153-560-0 01 1 0406- ●
1 SHAFT; PROP
PROVISIONAL PACKAGE<NLY> (J) L=1170 		1-37124-694-1 01 1 0406- ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (C) L=1107 		1-37123-973-0 01 1 0005-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (C) L=1182 		1-37124-805-0 01 1 0005-0210 ●
1 SHAFT; PROP
(F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (F) L=1132 		1-37124-185-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0211-0405 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 0406- ● ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0005-0011 ●
1 SHAFT; PROP
(F) L=1172 		1-37124-182-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1172 		1-37124-182-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0005-0011 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1073 		1-37151-744-0 01 1 0211- ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0012-0106 ●
1 SHAFT; PROP
(A) L=653 		1-37152-351-0 01 1 0107-0210 ● ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0211-0212 ●
1 SHAFT; PROP
(F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0301-0405 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1134 		1-37124-093-0 01 1 0406- ● ● ●
1 SHAFT; PROP
(B) L=1048 		1-37152-382-0 01 1 0012-0210 ●
1 SHAFT; PROP
(B) L=1056 		1-37152-030-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0303-0405 ●
1 SHAFT; PROP
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1061 		1-37151-875-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1341 		1-37151-877-0 01 1 0303- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) (B) L=1288 		1-37152-043-0 01 1 0005-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1288 		1-37152-043-0 01 1 0211- ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
BRAKE SYSTEM RETARDER<RE2> (A) L=833 		1-37152-793-0 01 1 0012-0210 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=833 		1-37152-793-0 01 1 0211-0405 ● ●
1 SHAFT; PROP
FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) L=833 		1-37152-793-0 01 1 0406- ● ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0005-0011 ●
1 SHAFT; PROP
FULLER FS8209 DD M/T(Y2S) EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
EXC. BRAKE SYSTEM RETARDER<RE2> (A) L=918 		1-37152-162-0 01 1 0012-0210 ●
1 SHAFT; PROP
(A) L=646 		1-37152-221-0 01 1 0211- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (F) L=1114 		1-37124-346-0 01 1 0005-0210 ●
1 SHAFT; PROP
(J) L=1095 		1-37125-076-0 01 1 0211-0405 ●
1 SHAFT; PROP
EXC. PROVISIONAL PACKAGE<NLY> (J) L=1095 		1-37125-076-0 01 1 0406- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (G) L=1341 		1-37151-877-0 01 1 0005-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (E) L=1001 		1-37152-557-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (L) L=1069 		1-37152-659-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=927 		1-37124-184-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (F) L=1079 		1-37125-080-0 01 1 0211- ●
1 SHAFT; PROP
(I) L=441 		1-37124-191-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) (I) L=441 		1-37124-191-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=743 		1-37152-350-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (B) L=1076 		1-37153-360-0 01 1 0211- ●
1 SHAFT; PROP
ALLISON MD3560P A/T(Y3B) (A) L=653 		1-37152-940-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P60 PROP SHAFT(C2M) (A) L=906 		8-97257-455-0 01 1 0211- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=603 		1-37152-939-0 01 1 0005-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (K) L=854 		1-37153-361-0 01 1 0211- ●
1 SHAFT; PROP
(F) L=962 		1-37124-005-0 01 1 0107-0210 ●
1 SHAFT; PROP
FVY(FVY***) P115 PROP SHAFT(C5X) (H) L=1085 		1-37124-639-1 01 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(F) 		1-37300-112-0 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0012-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 0107-0210 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (A) 		1-37300-091-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-091-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (A) 		1-37300-091-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0005-0011 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0012-0106 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209 DD M/T(Y2S) (B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 0107-0210 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FS8209HD DD M/T(Y3A) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
FVL(FVL***) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-092-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (C) 		1-37300-094-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
MLD7 M/T<X9Z> (D) 		1-37300-095-0 AR 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 0005-0210 ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) (E) 		1-37300-090-0 02 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
FVY(FVY***) P115 PROP SHAFT(C5X) (F) 		1-37300-112-2 AR 1 0211- ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-095-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-095-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-128-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-128-0 AR 1 0601- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0211-0302 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0303-0405 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0303-0405 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-094-0 AR 1 0406-0512 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-094-0 AR 1 0406-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-127-0 AR 1 0601- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37300-127-0 AR 1 0601- ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0005-0011 ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0012-0106 ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0107-0210 ● ● ● ● ● ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0211-0405 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0211-0405 ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ● ●
10 BOLT; UJT
FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) EXC. PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVL(FVL***) 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
FVY(FVY***) P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) P90 PROP SHAFT(C5T) PROVISIONAL PACKAGE<NLY> (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 08 1 0601- ●
10 BOLT; UJT
(A) 		1-09087-046-0 AR 1 0005-0210 ●
10 BOLT; UJT
FVY(FVY***) (A) 		1-09087-046-0 AR 1 0211- ●
10 BOLT; UJT
(B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		9-02061-020-0 AR 1 0406-0512 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) M10X20 		0-20951-020-0 16 1 0601- ● ●
96 BOLT; PROP SHAFT 1-09088-006-0 08 1 0005-0210 ●
96 BOLT; PROP SHAFT
FVY(FVY***) 		1-09088-006-0 08 1 0211- ●
102 YOKE; TRANSFER TO AXLE
L=303.3 		1-37241-094-0 01 1 0005-0210 ●
102 YOKE; TRANSFER TO AXLE
FVY(FVY***) L=303.3 		1-37241-094-0 01 1 0211- ●
128 SEAL; SLEEVE
(C) 		1-37247-020-0 01 1 0211- ●
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (C) 		1-37247-020-0 01 1 0211- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0005-0011 ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0005-0011 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0012-0106 ● ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0012-0106 ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0107-0210 ● ● ● ● ●
128 SEAL; SLEEVE
FULLER FS8209 DD M/T(Y2S) (A) 		1-37247-019-0 01 1 0107-0210 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0211-0405 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0406- ● ● ●
128 SEAL; SLEEVE
MLD7 M/T<X9Z> (A) 		1-37247-021-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0211-0212 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-021-0 01 1 0301-0405 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0301-0405 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-021-0 01 1 0406- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (A) 		1-37247-021-0 01 1 0406- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 0005-0210 ●
128 SEAL; SLEEVE
FVY(FVY***) (B) 		1-37247-017-0 01 1 0211- ●
198 PLATE; PROP SHAFT 1-37319-009-0 04 1 0005-0210 ●
198 PLATE; PROP SHAFT
FVY(FVY***) 		1-37319-009-0 04 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
