Sayfa 3-78 - Isuzu EPC

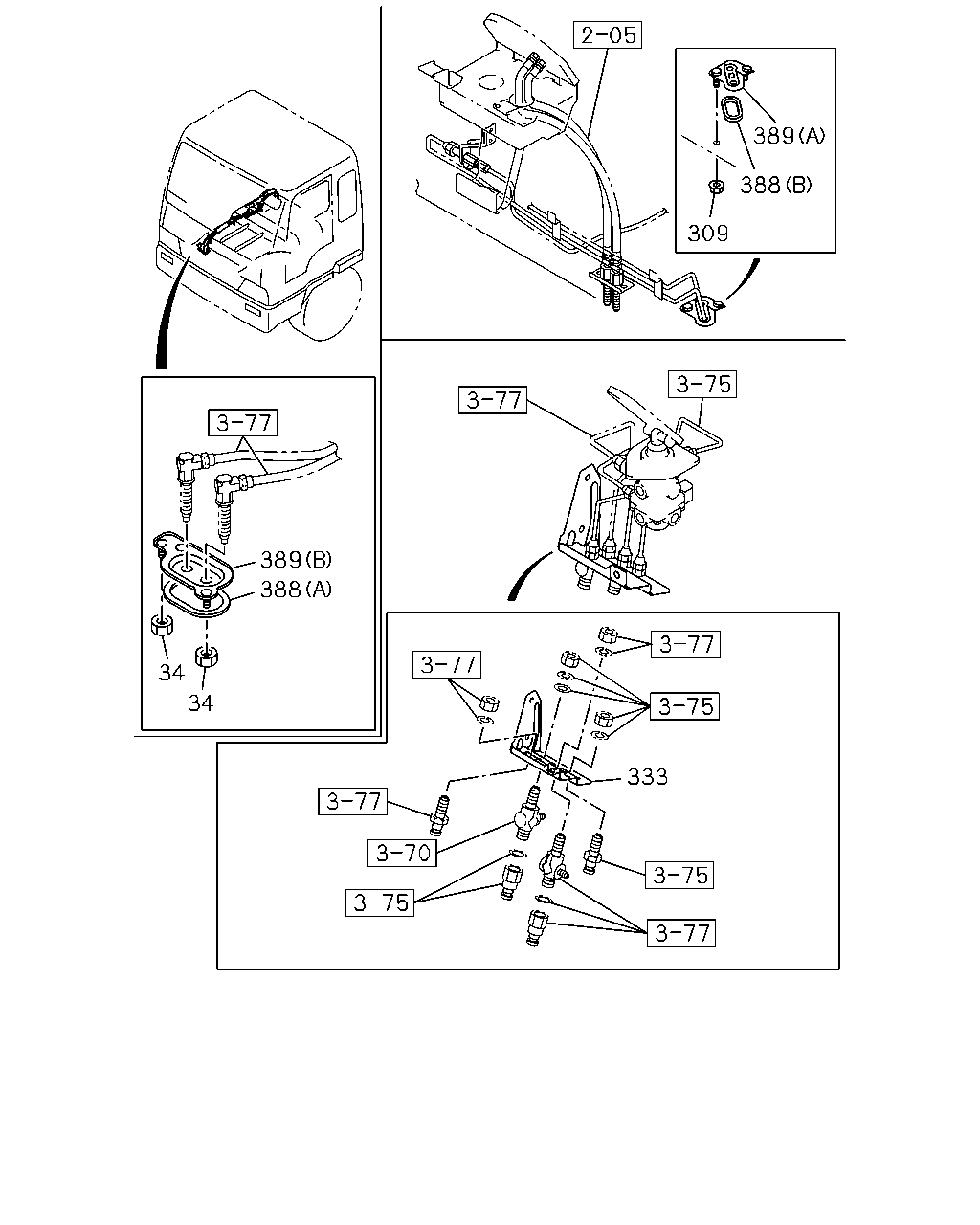

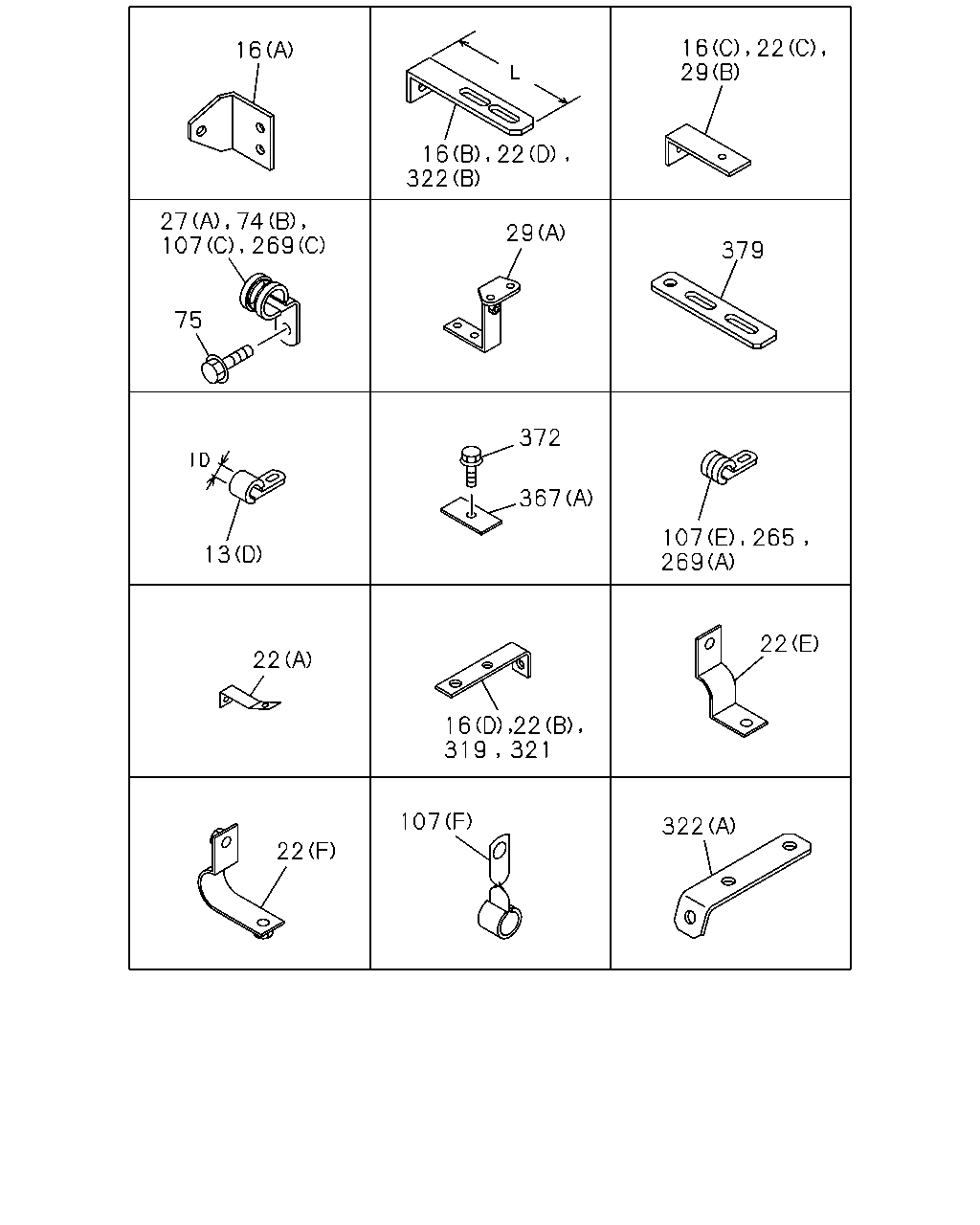

3-78 — FIXING PARTS; AIR PIPING (#9287) — 719 parça

28 30 254 288 300 338 13 27 107 331 31 290 14 20 98 108 267 133 126 97 91 13 4 107 375 6 21 92 99 109 309 299 268 127 13 11 77 297 356 286 331 332 375 128 266 269 270 110 107 76 74 32 24 27 39 41 78 318 297 20 21 322 376 103 367 55 376 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0011	●
4	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0011		●	●
4	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	5-09700-351-0	01	1	0012-0707	●	●	●	●
4	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●	●
6	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
6	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0011		●	●
6	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0012-0602	●	●	●	●
6	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
11	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	04	1	0107-0210	●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0005-0011	●	●	●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0012-0108	●	●	●	●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0109-0210	●	●	●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0211-0512	●	●	●	●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0211-0512		●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●	●	●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0005-0006		●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0007-0210		●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0109-0210				●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0512				●
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-				●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (D) ID=7 L=20	9-09524-635-0	01	1	0005-0210	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0303-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (D) ID=7 L=20	9-09524-635-0	01	1	0303-0606	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (D) ID=7 L=20	0-95234-635-0	01	1	0607-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	9-09524-675-0	01	1	0303-0606	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0005-0011	●	●	●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0012-	●	●	●	●
14	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0005-0011	●
14	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0005-0011		●	●
14	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0012-0512	●	●	●	●
14	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
20	BOLT; CLIP 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●
20	BOLT; CLIP 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	01	1	0303-0512	●
20	BOLT; CLIP 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
20	BOLT; CLIP FULLER RT7608LL M/T(X8P) M8X16 FLANGE	0-28080-816-0	01	1	0108-0210		●
20	BOLT; CLIP 6SD1 TCN ENG(31L) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512	●	●	●	●
20	BOLT; CLIP 6SD1 TCN ENG(31L) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0011	●		●
21	NUT; CLIP FULLER FS8209 DD M/T(Y2S),ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
21	NUT; CLIP ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0005-0011		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0012-0107	●		●	●
21	NUT; CLIP FULLER FS8209 DD M/T(Y2S),ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0012-0107	●
21	NUT; CLIP ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0012-0107		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0108-0210	●		●	●
21	NUT; CLIP FULLER FS8209 DD M/T(Y2S),ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0108-0210	●
21	NUT; CLIP FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0108-0210		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602		●	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
24	CLIP; PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0005-			●
27	CLIP; FLEX HOSE FULLER FS8209 DD M/T(Y2S),ALLISON MD3060P A/T(Y4G) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-0210	●
27	CLIP; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-0210		●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-0210			●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0211-	●
27	CLIP; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0211-		●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0211-			●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0210	●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0210		●	●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0211-		●	●	●
27	CLIP; FLEX HOSE (C) ID=12 & 12	1-09709-280-1	01	1	0007-0112		●
27	CLIP; FLEX HOSE FULLER RT7608LL M/T(X8P) (B) ID=25 L=40	1-09700-215-1	03	1	0005-0010		●
27	CLIP; FLEX HOSE FULLER RT7608LL M/T(X8P) (B) ID=24 L=40	1-09701-139-0	03	1	0011-		●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	04	1	0012-0210				●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0011	●
28	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28680-825-0	04	1	0005-0011		●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0012-0209	●
28	BOLT; CLIP,FLEX HOSE M8X25 FLANGE	0-28680-825-0	04	1	0012-0209		●	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	04	1	0210-0210	●	●	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	03	1	0211-0512	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●	●	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●	●
30	BOLT; CLIP BRKT FULLER FS8209 DD M/T(Y2S) M10X20 FLANGE	0-28081-020-0	02	1	0005-0011	●
30	BOLT; CLIP BRKT M10X20 FLANGE	0-28081-020-0	02	1	0005-0011			●
30	BOLT; CLIP BRKT FULLER FS8209 DD M/T(Y2S) M10X20 FLANGE	0-28081-020-0	02	1	0012-0210	●
30	BOLT; CLIP BRKT M10X20 FLANGE	0-28081-020-0	02	1	0012-0210			●	●
30	BOLT; CLIP BRKT FULLER FS8209HD DD M/T(Y3A) M10X20 FLANGE	0-28081-020-0	02	1	0211-0512	●		●	●
30	BOLT; CLIP BRKT FULLER FS8209HD DD M/T(Y3A) M10X20 FLANGE	0-28051-020-0	02	1	0601-0609	●		●	●
30	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) M10X20 FLANGE	0-28051-020-0	02	1	0610-	●		●	●
30	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28680-835-0	01	1	0005-0011	●
30	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0005-0011		●	●
30	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28680-835-0	01	1	0012-0210	●
30	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0012-0210		●	●	●
30	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0211-0512		●	●	●
30	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-		●	●	●
31	NUT; CLIP BRKT ALLISON MD3060P A/T(Y4G) M10 FLANGE	5-09440-006-0	03	1	0005-	●
31	NUT; CLIP BRKT FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) M10 FLANGE	5-09440-006-0	03	1	0005-		●
31	NUT; CLIP BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0011		●	●
31	NUT; CLIP BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0012-0210	●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0210		●	●	●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602		●	●	●
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
32	CLIP; BAND,RUBBER SLEEVE FULLER FS8209 DD M/T(Y2S) L=250	1-09707-126-0	01	1	0005-0011	●
32	CLIP; BAND,RUBBER SLEEVE L=250	1-09707-126-0	01	1	0005-0011			●
32	CLIP; BAND,RUBBER SLEEVE FULLER FS8209 DD M/T(Y2S) L=250	1-09707-126-0	01	1	0012-0210	●
32	CLIP; BAND,RUBBER SLEEVE L=250	1-09707-126-0	01	1	0012-0210			●	●
32	CLIP; BAND,RUBBER SLEEVE 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) L=250	1-09707-126-0	01	1	0211-	●		●	●
33	CLIP; BOLT ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0005-0106	●
33	CLIP; BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-0210	●
33	CLIP; BOLT 6HE1 TC ENG(57L) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-0210	●
33	CLIP; BOLT ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0211-	●
33	CLIP; BOLT 6HE1 TC ENG(57L) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	0005-0210	●
33	CLIP; BOLT 6HK1 TCS ENG(80L) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	0303-	●
39	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0005-			●
41	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 15	1-09709-276-1	01	1	0005-0210	●
41	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=15 & 15	1-09709-282-1	01	1	0005-0210	●
41	CLIP; AIR PIPE 6HK1 TCS ENG(80L) ID=6.35 & 15	1-09709-276-1	03	1	0303-	●
41	CLIP; AIR PIPE 6HK1 TCS ENG(80L) ID=15 & 15	1-09709-282-1	01	1	0303-	●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	04	1	0005-0210	●
55	BOLT; PIPE CLIP 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	04	1	0303-0512	●
55	BOLT; PIPE CLIP 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
55	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0005-0011	●
55	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0005-0011		●	●
55	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0012-0512	●	●	●	●
55	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●
74	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (A) L=250	1-09707-126-0	05	1	0406-	●
74	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0005-0106	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=24 L=27	1-09700-809-0	01	1	0107-0210	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) ID=24 L=27	1-09700-809-0	01	1	0211-	●
74	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	08	1	0005-0101	●
74	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	11	1	0102-0106	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	07	1	0107-0210	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (A) L=250	1-09707-126-0	11	1	0211-	●
74	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) ID=16 L=28	1-09700-872-0	01	1	0005-0210	●
74	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (A) L=250	1-09707-126-0	05	1	0005-0210	●
74	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) ID=16 L=28	1-09700-872-0	01	1	0303-	●
74	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (A) L=250	1-09707-126-0	05	1	0303-0405	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (A) L=250	1-09707-126-0	12	1	0406-	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	0107-0210	●
76	CLIP; NYLON TUBE L=250	1-09707-126-0	07	1	0005-0106	●
76	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=250	1-09707-126-0	07	1	0107-0210	●
76	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) L=250	1-09707-126-0	07	1	0211-	●
77	NUT; CLIP BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91150-108-0	03	1	0005-0101	●
77	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0102-0106	●
77	NUT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	03	1	0107-0405	●
77	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0406-0602	●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●
77	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0010-0011		●
77	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0602		●		●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●		●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 15	1-09709-276-1	04	1	0005-0011	●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	04	1	0005-0011		●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	05	1	0012-0210				●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 15	1-09709-276-1	04	1	0012-0106	●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	04	1	0012-0106		●
78	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) ID=6.35 & 15	1-09709-276-1	04	1	0107-0210	●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 15	1-09709-276-1	04	1	0107-0210	●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	04	1	0107-0210		●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=6.35 & 15	1-09709-276-1	05	1	0211-	●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	05	1	0211-		●		●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=6.35 & 15	1-09709-276-1	06	1	0005-0106	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=6.35 & 15	1-09709-276-1	06	1	0107-0210	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=15 & 15	1-09709-282-1	01	1	0005-0106	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=15 & 15	1-09709-282-1	01	1	0107-0210	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=15 & 15	1-09709-282-1	01	1	0211-	●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0005-			●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=11 H=20 L=20	5-09700-351-0	04	1	0005-0210	●
91	CLIP; AIR PIPE 6HK1 TCS ENG(80L) ID=11 H=20 L=20	5-09700-351-0	04	1	0303-0707	●
91	CLIP; AIR PIPE 6HK1 TCS ENG(80L) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-	●
91	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	5-09700-351-0	02	1	0005-0011	●
91	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	02	1	0005-0011		●	●
91	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	5-09700-351-0	02	1	0012-0707	●	●	●	●
91	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●	●	●	●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
92	NUT; PIPE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
92	NUT; PIPE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
92	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
92	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0011		●	●
92	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0012-0602	●	●	●	●
92	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
97	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0011	●
97	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0011		●	●
97	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	5-09700-351-0	01	1	0012-0707	●	●	●	●
97	CLIP; AIR PIPE 6SD1 TCN ENG(31L) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●	●	●
98	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0005-0011	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0005-0011		●	●
98	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0012-0512	●	●	●	●
98	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
99	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
99	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0011		●	●
99	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0012-0602	●	●	●	●
99	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
103	NUT; PIPE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
103	NUT; PIPE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
103	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●
103	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0011		●	●
103	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0012-0602	●	●	●	●
103	NUT; PIPE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0410-0609		●		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (E) ID=35 L=33	1-09700-945-0	02	1	0610-	●
107	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) L=250	1-09707-126-0	12	1	0406-0409	●
107	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) L=250	1-09707-126-0	11	1	0410-	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0011	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0012-0106	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=250	1-09707-126-0	03	1	0107-0210	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) L=250	1-09707-126-0	15	1	0211-0409	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0211-0409		●		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) L=250	1-09707-126-0	16	1	0410-0609	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) L=250	1-09707-126-0	14	1	0610-	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0005-0011	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0012-0101	●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) (B) L=250	1-09707-126-0	01	1	0102-0104	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0102-0104	●
107	CLIP; NYLON TUBE ALLISON MD3560P A/T(Y3B) (B) L=250	1-09707-126-0	01	1	0102-0104		●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) (B) L=250	1-09707-126-0	02	1	0105-0611	●
107	CLIP; NYLON TUBE ALLISON MD3560P A/T(Y3B) (B) L=250	1-09707-126-0	02	1	0105-0611		●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) AUXILIARY TRANSMISSION OIL COOLER<V14> (B) L=250	1-09707-126-0	02	1	0612-	●
107	CLIP; NYLON TUBE ALLISON MD3560P A/T(Y3B) AUXILIARY TRANSMISSION OIL COOLER<V14> (B) L=250	1-09707-126-0	02	1	0612-		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	12	1	0005-0210	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (F) ID=18 L=54	1-09701-068-0	01	1	0007-0011	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0105-0210	●
107	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) L=250	1-09707-126-0	12	1	0303-0405	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (B) L=250	1-09707-126-0	16	1	0406-0409	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (B) L=250	1-09707-126-0	17	1	0410-0609	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (B) L=250	1-09707-126-0	15	1	0610-	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0610-		●		●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0005-0006	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (A) ID=18 L=28	1-09701-067-0	01	1	0007-0011	●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0007-0011		●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0012-0206	●	●		●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	02	1	0207-0705	●	●		●
107	CLIP; NYLON TUBE EXC. A/T<X9D> (A) ID=18 L=28	1-09701-067-0	02	1	0706-	●	●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	02	1	0706-				●
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0005-0011	●	●	●
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0012-	●	●	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	02	1	0005-0011	●	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	02	1	0012-0212	●	●	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (C) ID=35 H=45 L=33	1-09700-947-0	02	1	0301-	●	●	●	●
107	CLIP; NYLON TUBE (E) ID=15 L=28	1-09701-216-0	01	1	0005-0011	●	●	●
107	CLIP; NYLON TUBE (E) ID=15 L=28	1-09701-216-0	01	1	0012-0206	●	●	●	●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0207-			●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0011		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0011		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0012-0108		●		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0012-0108		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0109-0210				●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0109-0210		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0109-0210		●
107	CLIP; NYLON TUBE (D) ID=21 L=24	1-09701-201-0	01	1	0005-0006			●
107	CLIP; NYLON TUBE (D) ID=24 L=27	1-09700-809-0	01	1	0007-0705			●
107	CLIP; NYLON TUBE A/T<X9D> (D) ID=24 L=27	1-09700-809-0	01	1	0706-	●	●
107	CLIP; NYLON TUBE (D) ID=24 L=27	1-09700-809-0	01	1	0706-			●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0005-0208			●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	18	1	0209-			●
108	BOLT; TUBE CLIP EXC. A/T<X9D> M8X25 FLANGE	0-28650-825-0	02	1	0706-	●	●
108	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0706-	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0706-			●	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0011	●	●	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0012-0512	●	●	●	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-0609	●	●	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0610-0705	●	●	●	●
108	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0610-0705	●
108	BOLT; TUBE CLIP A/T<X9D> M8X25 FLANGE	0-28650-825-0	01	1	0706-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0005-0011	●	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0012-0212	●	●	●	●
108	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0301-0512	●	●	●	●
108	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0012-0210				●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8 FLANGE	0-91180-108-0	05	1	0706-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	05	1	0706-			●	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0610-	●
109	NUT; TUBE CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
109	NUT; TUBE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	03	1	0303-0602	●
109	NUT; TUBE CLIP 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	03	1	0603-	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	05	1	0005-0011	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0011		●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	0012-0212	●	●	●	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	05	1	0301-0602	●	●	●	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	05	1	0603-0705	●	●	●	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L) A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	0706-	●	●
110	CLIP; BAND,NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) L=250	1-09707-126-0	15	1	0107-0210	●
126	BOLT; CLIP BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	03	1	0005-0101	●
126	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28680-830-0	01	1	0005-0210	●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0210			●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0302		●
126	BOLT; CLIP BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	01	1	0303-0409	●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0303-0409		●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0005	●	●
126	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0006-0106	●
126	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28680-830-0	02	1	0107-0210	●
126	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0211-0409	●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0410-0512	●	●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0005-0011	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●
127	NUT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
127	NUT; CLIP BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0211-0409	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0410-0602	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
127	NUT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	01	1	0005-0005	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0005			●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0006-0011	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0012-0101	●
127	NUT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	01	1	0102-0210	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0102-0210			●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0302		●
127	NUT; CLIP BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0303-0409	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0303-0409		●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0101		●
128	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) L=250	1-09707-126-0	16	1	0410-	●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	18	1	0005-0101	●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	15	1	0102-0210	●
128	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	13	1	0005-0005	●
128	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	14	1	0006-0409	●
128	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	13	1	0410-	●
128	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) L=250	1-09707-126-0	15	1	0005-0005	●
128	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) L=250	1-09707-126-0	16	1	0006-0405	●
128	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=250	1-09707-126-0	16	1	0406-0409	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=250	1-09707-126-0	15	1	0410-	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) L=250	1-09707-126-0	08	1	0107-0210	●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	25	1	0005-0006		●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	27	1	0007-0210		●
128	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) L=250	1-09707-126-0	27	1	0211-		●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	17	1	0005-0108			●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	18	1	0109-0210			●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	17	1	0211-			●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	21	1	0012-0108				●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	22	1	0109-				●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0005-0106		●
133	BOLT; BRKT 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28680-830-0	02	1	0107-0210	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0107-0210		●
133	BOLT; BRKT FULLER RT7608LL M/T(X8P) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512		●
133	BOLT; BRKT FULLER RT7608LL M/T(X8P) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0011	●	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0012-0204	●	●	●	●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205	●	●	●	●
266	CLIP; NYLON TUBE 6HE1 TC ENG(57L) L=250	1-09707-126-0	07	1	0005-0011	●
266	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) L=250	1-09707-126-0	13	1	0012-0210	●
266	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) L=250	1-09707-126-0	07	1	0303-	●
266	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) L=250	1-09707-126-0	12	1	0005-0005	●
266	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) L=250	1-09707-126-0	13	1	0006-0011	●
266	CLIP; NYLON TUBE 6HE1 TC ENG(57L) L=250	1-09707-126-0	07	1	0012-0210	●
266	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) L=250	1-09707-126-0	13	1	0211-	●
267	BOLT; CLIP BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	03	1	0005-0011	●
267	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0211-0212	●
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0301-0512	●
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
267	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●
267	BOLT; CLIP BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	03	1	0012-0210	●
267	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0005-0005	●
267	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0006-0210	●
267	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0211-0212	●
267	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0301-0512	●
267	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
267	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0005-0011		●
267	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0012-0512		●		●
267	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-		●		●
268	NUT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602		●		●
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●		●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0005	●	●
268	NUT; CLIP BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0006-0011	●
268	NUT; CLIP BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0012-0210	●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0210				●
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	05	1	0211-0602	●
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
269	CLIP; BAND,NYLON TUBE (A) ID=16 L=28	1-09700-872-0	02	1	0005-0011	●		●
269	CLIP; BAND,NYLON TUBE (A) ID=16 L=28	1-09700-872-0	02	1	0012-	●		●	●
269	CLIP; BAND,NYLON TUBE (C) ID=16 L=50 H=25	1-09700-838-0	01	1	0005-		●
269	CLIP; BAND,NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	0005-		●
269	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0006			●
269	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	03	1	0007-0011			●
269	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	03	1	0012-			●	●
270	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0302-		●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	11	1	0201-0210		●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	11	1	0211-		●		●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	07	1	0005-0008		●	●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	08	1	0009-0009		●	●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	10	1	0010-0011		●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	10	1	0012-0112		●		●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	10	1	0201-0210				●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	08	1	0010-			●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	03	1	0005-0210	●
288	BOLT; CLIP,AIR PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28680-820-0	03	1	0303-0512	●
288	BOLT; CLIP,AIR PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
290	NUT; CLIP,AIR PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	03	1	0303-0602	●
290	NUT; CLIP,AIR PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	03	1	0603-	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0006			●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0007-0008			●
297	NUT; BRKT EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	01	1	0007-0008			●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0009-0107	●		●
297	NUT; BRKT EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	01	1	0009-0107			●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-0210	●		●
297	NUT; BRKT FULLER RT7608LL M/T(X8P) M8 FLANGE	0-91150-108-0	01	1	0108-0210		●
297	NUT; BRKT EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	01	1	0108-0210			●
297	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
297	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0302			●
297	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0303-0602			●
297	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
299	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0011	●	●	●
299	NUT; CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0012-0210	●	●	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0904	●	●	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●	●	●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-0011	●	●	●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0012-	●	●	●	●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0005-0108		●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0109-0602		●		●
309	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●		●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0005-0106		●
309	NUT; BRKT FIX 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
309	NUT; BRKT FIX FULLER RT7608LL M/T(X8P) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
309	NUT; BRKT FIX FULLER RT7608LL M/T(X8P) M8 FLANGE	0-91180-108-0	02	1	0603-		●
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0005-0011		●
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0012-		●		●
322	BRACKET; CLIP 6HE1 TC ENG(57L) (A) L=90	1-47477-755-1	01	1	0009-0210	●
322	BRACKET; CLIP 6HK1 TCS ENG(80L) (A) L=59 B=20	1-47479-048-0	01	1	0303-	●
322	BRACKET; CLIP FULLER RT7608LL M/T(X8P) (C) L=95	1-82699-085-0	01	1	0108-0210		●
322	BRACKET; CLIP (C) L=95	1-82699-085-0	01	1	0211-	●	●	●	●
322	BRACKET; CLIP EXC. BRAKE SYSTEM RETARDER<RE2> (B) L=150 H=30	1-47477-629-2	01	1	0007-0210			●
322	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0211-			●
331	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (A) L=250	1-09707-126-0	04	1	0005-0106	●
331	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	06	1	0107-0108	●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	06	1	0107-0108		●		●
331	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	06	1	0109-0210	●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	06	1	0109-0210		●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	04	1	0211-	●
331	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0011	●	●	●
331	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0012-0210	●	●	●	●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	0005-0210		●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	0211-		●		●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	06	1	0005-0011		●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	06	1	0012-0106		●		●
331	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	04	1	0107-0210	●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	06	1	0211-		●	●	●
331	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0109-0210				●
332	CLIP; BAND L=250	1-09707-126-0	02	1	0005-	●		●
338	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0005-0011	●	●	●
338	BOLT; PIPE CLIP 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0012-0210	●	●	●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0005-0011	●	●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0012-	●	●	●	●
367	BRACKET ASM 6HE1 TC ENG(57L) (A) L=50	1-47475-299-2	02	1	0005-0210	●
367	BRACKET ASM 6HE1 TC ENG(57L) (B)	1-47475-427-1	02	1	0005-0210	●
367	BRACKET ASM 6HK1 TCS ENG(80L) (A) L=50	1-47475-299-2	02	1	0303-	●
367	BRACKET ASM 6HK1 TCS ENG(80L) (B)	1-47475-427-1	02	1	0303-	●
367	BRACKET ASM 6SD1 TCN ENG(31L) (B)	1-47475-427-1	01	1	0005-0106	●
367	BRACKET ASM 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-47475-427-1	01	1	0107-0210	●
367	BRACKET ASM 6SD1 TCN ENG(31L) (B)	1-47475-427-1	01	1	0211-	●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L) (A) ID=9 H=60	1-09700-956-0	01	1	0005-0210	●
375	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (A) ID=9 H=60	1-09700-956-0	01	1	0303-	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L) (B) L=250	1-09707-126-0	01	1	0009-0210	●
375	CLIP; AIR PIPE (B) L=250	1-09707-126-0	01	1	0009-0210		●	●
375	CLIP; AIR PIPE (B) L=250	1-09707-126-0	01	1	0211-	●	●	●	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	05	1	0107-0210	●
375	CLIP; AIR PIPE (B) L=250	1-09707-126-0	01	1	0005-0008	●	●	●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	02	1	0009-0210	●
375	CLIP; AIR PIPE (B) L=250	1-09707-126-0	02	1	0211-	●
375	CLIP; AIR PIPE (B) L=250	1-09707-126-0	10	1	0012-				●
376	BOLT; BRKT 6HE1 TC ENG(57L) M8X45 FLANGE	0-28080-845-0	02	1	0005-0210	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0211-0512			●
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
376	BOLT; BRKT 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
376	BOLT; BRKT 6HK1 TCS ENG(80L) M8X45 FLANGE	0-28080-845-0	02	1	0303-0512	●
376	BOLT; BRKT 6HK1 TCS ENG(80L) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
376	BOLT; BRKT 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28680-820-0	02	1	0303-0512	●
376	BOLT; BRKT 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
376	BOLT; BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	01	1	0303-0512	●
376	BOLT; BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
376	BOLT; BRKT 6SD1 TCN ENG(31L) M8X45 FLANGE	0-28080-845-0	01	1	0005-0106	●
376	BOLT; BRKT 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X45 FLANGE	0-28080-845-0	01	1	0107-0210	●
376	BOLT; BRKT 6SD1 TCN ENG(31L) M8X45 FLANGE	0-28080-845-0	01	1	0211-0512	●
376	BOLT; BRKT 6SD1 TCN ENG(31L) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0008		●
376	BOLT; BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0009-0108	●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0009-0108			●
376	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0109-0210	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0006			●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0007-0107			●
376	BOLT; BRKT EXC. BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	01	1	0007-0107			●
376	BOLT; BRKT FULLER RT7608LL M/T(X8P) M8X30 FLANGE	0-28680-830-0	01	1	0108-0108		●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0108-0108			●
376	BOLT; BRKT EXC. BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	01	1	0108-0108			●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0109-0210		●	●	●
376	BOLT; BRKT FULLER RT7608LL M/T(X8P) M8X30 FLANGE	0-28680-830-0	01	1	0109-0210		●
376	BOLT; BRKT EXC. BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	01	1	0109-0210			●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0512	●	●	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0512		●		●
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-		●		●

389 388 309 389 388 34 34 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
34	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
34	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	03	1	0303-0602	●
34	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	03	1	0603-	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0011	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0012-0210	●	●		●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0211-	●	●	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-0210			●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-0011	●	●	●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0012-	●	●	●	●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0005-0108		●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0109-0602		●		●
309	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●		●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0005-0106		●
309	NUT; BRKT FIX 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
309	NUT; BRKT FIX FULLER RT7608LL M/T(X8P) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
309	NUT; BRKT FIX FULLER RT7608LL M/T(X8P) M8 FLANGE	0-91180-108-0	02	1	0603-		●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0005-0011	●	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0012-	●	●	●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	0005-0011	●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	0012-	●	●		●
388	SEAL (B)	1-79738-826-0	01	1	0005-0011	●	●	●
388	SEAL (B)	1-79738-826-0	01	1	0012-	●	●	●	●
388	SEAL (A)	1-79738-832-0	01	1	0005-			●
389	BRACKET; UNION (B)	1-79738-814-1	01	1	0005-0011	●	●
389	BRACKET; UNION (B)	1-79738-814-2	01	1	0012-	●	●		●
389	BRACKET; UNION (A)	1-79738-827-1	01	1	0005-0011	●	●	●
389	BRACKET; UNION (A)	1-79738-827-1	01	1	0012-	●	●	●	●
389	BRACKET; UNION (B)	1-79738-837-1	01	1	0005-			●

29 16 322 29 379 75 372 367 269 13 22 22 107 322 22 16 22 16 22 107 265 16 22 319 321 27 74 107 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (D) ID=7 L=20	9-09524-635-0	01	1	0005-0210	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0303-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (D) ID=7 L=20	9-09524-635-0	01	1	0303-0606	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (D) ID=7 L=20	0-95234-635-0	01	1	0607-	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	9-09524-675-0	01	1	0303-0606	●
13	CLIP; AIR PIPE 6HK1 TCS ENG(80L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0005-0011	●	●	●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0012-	●	●	●	●
16	BRACKET; PIPE CLIP (C) L=55	1-47476-177-0	01	1	0005-0210	●
16	BRACKET; PIPE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0211-0212	●
16	BRACKET; PIPE CLIP 6SD1 TCN ENG(31L) (B) L=150 H=30	1-47477-629-2	01	1	0301-0409	●
16	BRACKET; PIPE CLIP (A)	1-47476-699-2	01	1	0005-0210	●
16	BRACKET; PIPE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0005-0006	●
16	BRACKET; PIPE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0005-0006	●
16	BRACKET; PIPE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0007-0101	●
16	BRACKET; PIPE CLIP (B) L=150 H=30	1-47477-629-2	01	1	0102-0106	●
16	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=150 H=30	1-47477-629-2	01	1	0107-0210	●
16	BRACKET; PIPE CLIP (D) L=60 H=30	1-47477-716-1	01	1	0005-0106	●
16	BRACKET; PIPE CLIP 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) L=60 H=30	1-47477-716-1	01	1	0107-0210	●
16	BRACKET; PIPE CLIP 6SD1 TCN ENG(31L) (D) L=60 H=30	1-47477-716-1	01	1	0211-0212	●
16	BRACKET; PIPE CLIP 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) L=60 H=30	1-47477-716-1	01	1	0301-0405	●
16	BRACKET; PIPE CLIP (D) L=60 H=30	1-47477-716-1	01	1	0406-	●
16	BRACKET; PIPE CLIP (B) L=150 H=30	1-47477-629-2	04	1	0007-0101	●
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0005-		●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=60 H=30	1-47477-716-1	01	1	0107-0108	●
22	BRACKET; CLIP 6HE1 TC ENG(57L) (B) L=60 H=30	1-47477-716-1	01	1	0107-0108	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=60 H=30	1-47477-716-1	01	1	0109-0210	●
22	BRACKET; CLIP 6HE1 TC ENG(57L) (B) L=60 H=30	1-47477-716-1	01	1	0109-0210	●
22	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0109-0210				●
22	BRACKET; CLIP 6HE1 TC ENG(57L) (A)	1-47475-881-0	01	1	0005-0006	●
22	BRACKET; CLIP (A)	1-47475-881-0	01	1	0007-0106	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-47475-881-0	01	1	0107-0210	●
22	BRACKET; CLIP 6HE1 TC ENG(57L) (A)	1-47475-881-0	01	1	0107-0210	●
22	BRACKET; CLIP (A)	1-47475-881-0	01	1	0211-	●
22	BRACKET; CLIP 6HE1 TC ENG(57L) (B) L=60 H=30	1-47477-716-1	01	1	0005-0006	●
22	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0005-0006		●
22	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0007-0106	●
22	BRACKET; CLIP 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) (B) L=60 H=30	1-47477-716-1	04	1	0107-0210	●
22	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0211-	●			●
22	BRACKET; CLIP (C) L=145 B=25	1-47477-697-0	01	1	0005-0011	●	●	●
22	BRACKET; CLIP (C) L=145 B=25	1-47477-697-0	01	1	0012-0303	●	●	●	●
22	BRACKET; CLIP (C) L=145 B=25	1-47479-123-0	01	1	0304-	●	●	●	●
22	BRACKET; CLIP (E)	1-47478-588-0	01	1	0005-0011	●	●	●
22	BRACKET; CLIP (E)	1-47478-588-0	01	1	0012-	●	●	●	●
22	BRACKET; CLIP (F)	1-47478-589-0	01	1	0005-0011	●	●	●
22	BRACKET; CLIP (F)	1-47478-589-0	01	1	0012-	●	●	●	●
22	BRACKET; CLIP (D) L=100 H=30	1-47477-645-2	02	1	0005-		●
22	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	03	1	0007-		●
27	CLIP; FLEX HOSE FULLER FS8209 DD M/T(Y2S),ALLISON MD3060P A/T(Y4G) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-0210	●
27	CLIP; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-0210		●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-0210			●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0211-	●
27	CLIP; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0211-		●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0211-			●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0210	●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0210		●	●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0211-		●	●	●
27	CLIP; FLEX HOSE (C) ID=12 & 12	1-09709-280-1	01	1	0007-0112		●
27	CLIP; FLEX HOSE FULLER RT7608LL M/T(X8P) (B) ID=25 L=40	1-09700-215-1	03	1	0005-0010		●
27	CLIP; FLEX HOSE FULLER RT7608LL M/T(X8P) (B) ID=24 L=40	1-09701-139-0	03	1	0011-		●
27	CLIP; FLEX HOSE (A) ID=25 H=30 L=35	1-09700-875-0	04	1	0012-0210				●
29	BRACKET; CLIP,AIR PIPE ALLISON MD3060P A/T(Y4G) (A)	1-82699-639-1	03	1	0005-	●
29	BRACKET; CLIP,AIR PIPE FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) (A)	1-82699-639-1	03	1	0005-		●
29	BRACKET; CLIP,AIR PIPE FULLER FS8209 DD M/T(Y2S) (A)	1-82699-639-1	02	1	0005-0011	●
29	BRACKET; CLIP,AIR PIPE (A)	1-82699-639-1	02	1	0005-0011			●
29	BRACKET; CLIP,AIR PIPE FULLER FS8209 DD M/T(Y2S) (A)	1-82699-639-1	02	1	0012-0210	●
29	BRACKET; CLIP,AIR PIPE (A)	1-82699-639-1	02	1	0012-0210			●	●
29	BRACKET; CLIP,AIR PIPE FULLER FS8209HD DD M/T(Y3A) (A)	1-82699-639-1	02	1	0211-0609	●		●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (A)	1-82699-639-1	02	1	0610-	●		●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 TCN ENG(31L) (B) L=105 B=25	1-47476-161-0	01	1	0005-0011	●
29	BRACKET; CLIP,AIR PIPE (B) L=105 B=25	1-47476-161-0	01	1	0005-0011		●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 TCN ENG(31L) (B) L=105 B=25	1-47476-161-0	01	1	0012-0210	●
29	BRACKET; CLIP,AIR PIPE (B) L=105 B=25	1-47476-161-0	01	1	0012-0210		●	●	●
29	BRACKET; CLIP,AIR PIPE (B) L=95	1-82699-085-0	01	1	0211-		●	●	●
74	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (A) L=250	1-09707-126-0	05	1	0406-	●
74	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0005-0106	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=24 L=27	1-09700-809-0	01	1	0107-0210	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) ID=24 L=27	1-09700-809-0	01	1	0211-	●
74	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	08	1	0005-0101	●
74	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	11	1	0102-0106	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	07	1	0107-0210	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (A) L=250	1-09707-126-0	11	1	0211-	●
74	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) ID=16 L=28	1-09700-872-0	01	1	0005-0210	●
74	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (A) L=250	1-09707-126-0	05	1	0005-0210	●
74	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) ID=16 L=28	1-09700-872-0	01	1	0303-	●
74	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (A) L=250	1-09707-126-0	05	1	0303-0405	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (A) L=250	1-09707-126-0	12	1	0406-	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	0107-0210	●
75	BOLT; CLIP 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
75	BOLT; CLIP 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512	●
75	BOLT; CLIP 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0410-0609		●		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (E) ID=35 L=33	1-09700-945-0	02	1	0610-	●
107	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) L=250	1-09707-126-0	12	1	0406-0409	●
107	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) L=250	1-09707-126-0	11	1	0410-	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0011	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0012-0106	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=250	1-09707-126-0	03	1	0107-0210	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) L=250	1-09707-126-0	15	1	0211-0409	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0211-0409		●		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) L=250	1-09707-126-0	16	1	0410-0609	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (B) L=250	1-09707-126-0	14	1	0610-	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0005-0011	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0012-0101	●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) (B) L=250	1-09707-126-0	01	1	0102-0104	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0102-0104	●
107	CLIP; NYLON TUBE ALLISON MD3560P A/T(Y3B) (B) L=250	1-09707-126-0	01	1	0102-0104		●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) (B) L=250	1-09707-126-0	02	1	0105-0611	●
107	CLIP; NYLON TUBE ALLISON MD3560P A/T(Y3B) (B) L=250	1-09707-126-0	02	1	0105-0611		●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) AUXILIARY TRANSMISSION OIL COOLER<V14> (B) L=250	1-09707-126-0	02	1	0612-	●
107	CLIP; NYLON TUBE ALLISON MD3560P A/T(Y3B) AUXILIARY TRANSMISSION OIL COOLER<V14> (B) L=250	1-09707-126-0	02	1	0612-		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	12	1	0005-0210	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (F) ID=18 L=54	1-09701-068-0	01	1	0007-0011	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0105-0210	●
107	CLIP; NYLON TUBE 6HK1 TCS ENG(80L) (B) L=250	1-09707-126-0	12	1	0303-0405	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (B) L=250	1-09707-126-0	16	1	0406-0409	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (B) L=250	1-09707-126-0	17	1	0410-0609	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (B) L=250	1-09707-126-0	15	1	0610-	●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0610-		●		●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0005-0006	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (A) ID=18 L=28	1-09701-067-0	01	1	0007-0011	●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0007-0011		●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0012-0206	●	●		●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	02	1	0207-0705	●	●		●
107	CLIP; NYLON TUBE EXC. A/T<X9D> (A) ID=18 L=28	1-09701-067-0	02	1	0706-	●	●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	02	1	0706-				●
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0005-0011	●	●	●
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0012-	●	●	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	02	1	0005-0011	●	●	●
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	02	1	0012-0212	●	●	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) (C) ID=35 H=45 L=33	1-09700-947-0	02	1	0301-	●	●	●	●
107	CLIP; NYLON TUBE (E) ID=15 L=28	1-09701-216-0	01	1	0005-0011	●	●	●
107	CLIP; NYLON TUBE (E) ID=15 L=28	1-09701-216-0	01	1	0012-0206	●	●	●	●
107	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0207-			●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0011		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0005-0011		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0012-0108		●		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0012-0108		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0109-0210				●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0109-0210		●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0109-0210		●
107	CLIP; NYLON TUBE (D) ID=21 L=24	1-09701-201-0	01	1	0005-0006			●
107	CLIP; NYLON TUBE (D) ID=24 L=27	1-09700-809-0	01	1	0007-0705			●
107	CLIP; NYLON TUBE A/T<X9D> (D) ID=24 L=27	1-09700-809-0	01	1	0706-	●	●
107	CLIP; NYLON TUBE (D) ID=24 L=27	1-09700-809-0	01	1	0706-			●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0005-0208			●
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	18	1	0209-			●
265	CLIP; NYLON TUBE ID=24 L=27	1-09700-809-0	02	1	0005-0011		●
265	CLIP; NYLON TUBE ID=16 L=28	1-09700-872-0	02	1	0012-				●
265	CLIP; NYLON TUBE ID=24 L=27	1-09700-809-0	02	1	0012-		●
269	CLIP; BAND,NYLON TUBE (A) ID=16 L=28	1-09700-872-0	02	1	0005-0011	●		●
269	CLIP; BAND,NYLON TUBE (A) ID=16 L=28	1-09700-872-0	02	1	0012-	●		●	●
269	CLIP; BAND,NYLON TUBE (C) ID=16 L=50 H=25	1-09700-838-0	01	1	0005-		●
269	CLIP; BAND,NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	0005-		●
269	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0006			●
269	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	03	1	0007-0011			●
269	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	03	1	0012-			●	●
319	BRACKET; CLIP L=60 H=30	1-47477-716-1	01	1	0005-0108		●
319	BRACKET; CLIP L=60 H=30	1-47477-716-1	01	1	0109-		●		●
321	BRACKET; CLIP L=60 H=30	1-47477-716-1	01	1	0005-0108			●
321	BRACKET; CLIP	1-47477-571-3	01	1	0109-			●
322	BRACKET; CLIP 6HE1 TC ENG(57L) (A) L=90	1-47477-755-1	01	1	0009-0210	●
322	BRACKET; CLIP 6HK1 TCS ENG(80L) (A) L=59 B=20	1-47479-048-0	01	1	0303-	●
322	BRACKET; CLIP FULLER RT7608LL M/T(X8P) (C) L=95	1-82699-085-0	01	1	0108-0210		●
322	BRACKET; CLIP (C) L=95	1-82699-085-0	01	1	0211-	●	●	●	●
322	BRACKET; CLIP EXC. BRAKE SYSTEM RETARDER<RE2> (B) L=150 H=30	1-47477-629-2	01	1	0007-0210			●
322	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0211-			●
367	BRACKET ASM 6HE1 TC ENG(57L) (A) L=50	1-47475-299-2	02	1	0005-0210	●
367	BRACKET ASM 6HE1 TC ENG(57L) (B)	1-47475-427-1	02	1	0005-0210	●
367	BRACKET ASM 6HK1 TCS ENG(80L) (A) L=50	1-47475-299-2	02	1	0303-	●
367	BRACKET ASM 6HK1 TCS ENG(80L) (B)	1-47475-427-1	02	1	0303-	●
367	BRACKET ASM 6SD1 TCN ENG(31L) (B)	1-47475-427-1	01	1	0005-0106	●
367	BRACKET ASM 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-47475-427-1	01	1	0107-0210	●
367	BRACKET ASM 6SD1 TCN ENG(31L) (B)	1-47475-427-1	01	1	0211-	●
372	BOLT; CLIP BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0410-0512	●
372	BOLT; CLIP BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
372	BOLT; CLIP BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	01	1	0410-0512	●
372	BOLT; CLIP BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
372	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28680-825-0	03	1	0005-0101	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0102-0106	●
372	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	03	1	0107-0405	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0406-0409	●
372	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	03	1	0410-0512	●
372	BOLT; CLIP BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0010-0011		●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0012-0512		●		●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-		●		●
379	BRACKET; NYLON TUBE	1-47477-514-3	02	1	0005-0106		●
379	BRACKET; NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W)	1-47477-514-3	02	1	0107-0210	●
379	BRACKET; NYLON TUBE	1-47477-514-3	02	1	0107-0210		●
379	BRACKET; NYLON TUBE FULLER RT7608LL M/T(X8P)	1-47477-514-3	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
