Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#9286) — 283 parça

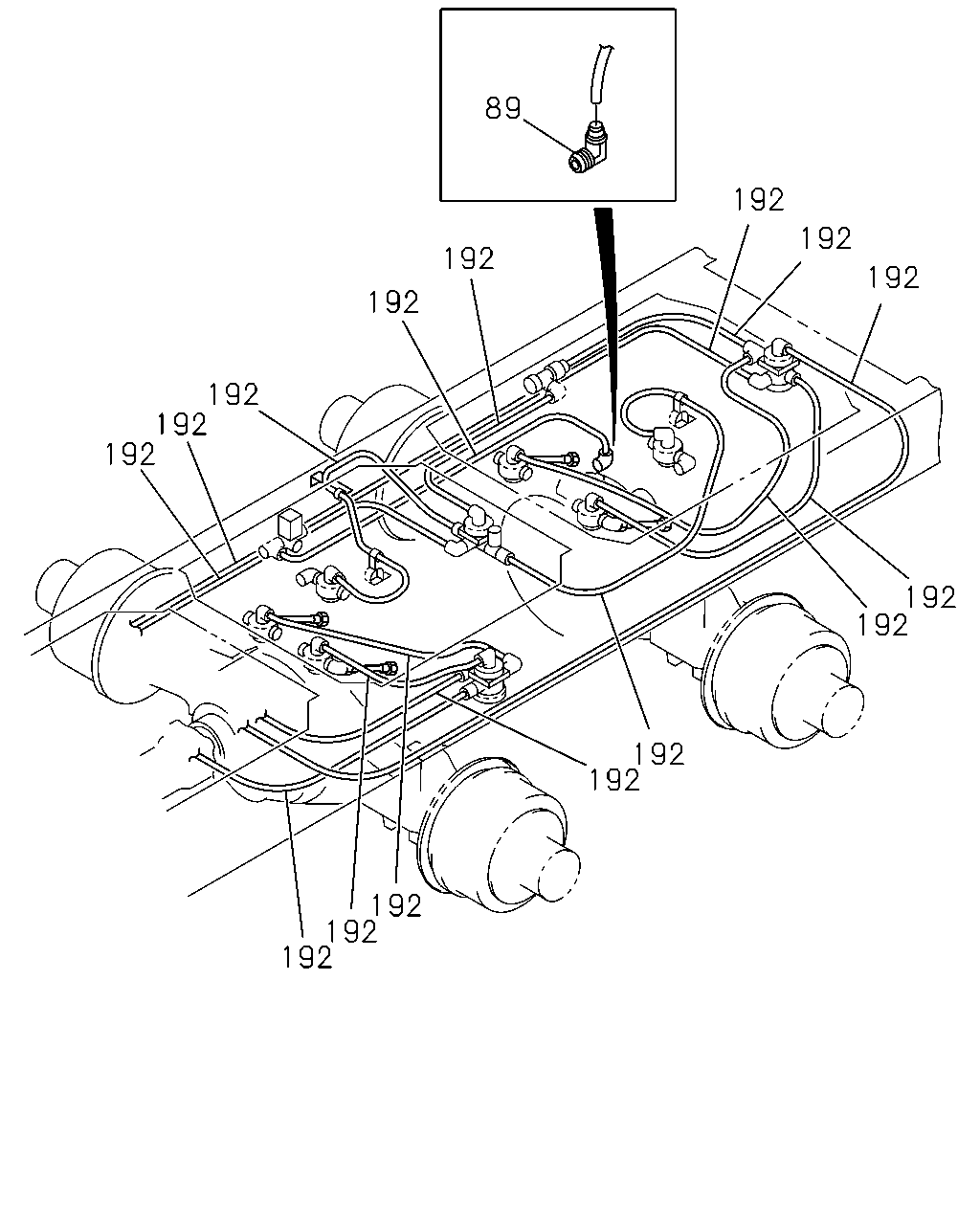

89 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
89	CONNECTOR; NYLON TUBE DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0005-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0403-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0403-	●	●	●	●

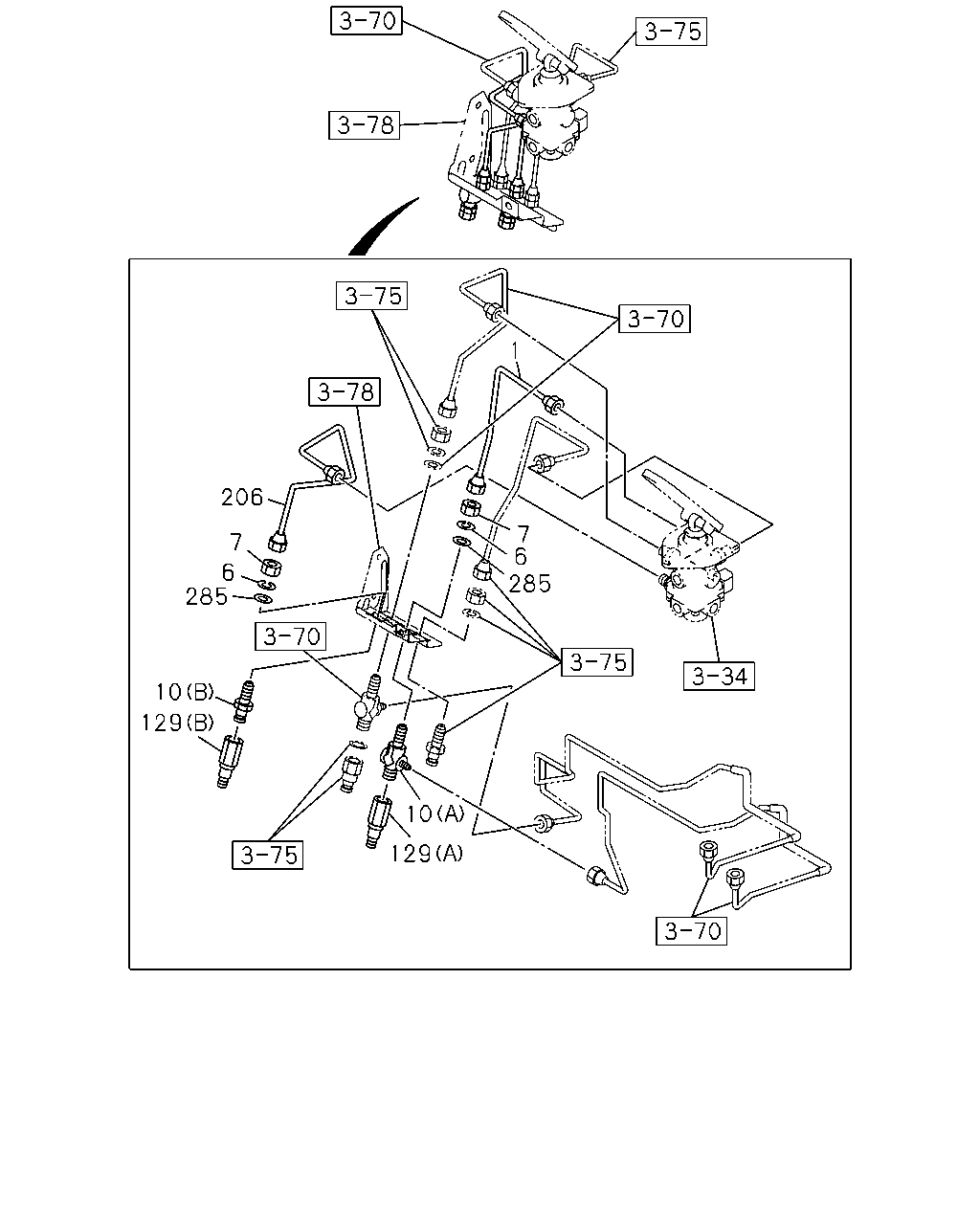

1 206 7 6 285 7 6 285 10 129 10 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0005-0011	●	●		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0012-	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0011	●	●		●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0012-0603	●	●	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0011	●	●		●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0012-0512	●	●	●	●
7	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●	●	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-0011	●	●		●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0012-	●	●	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	0005-0011	●	●		●
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	0012-0103	●	●	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-754-0	01	1	0104-	●	●	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0005-0011	●	●		●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0012-	●	●	●	●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-0011	●	●		●
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0012-	●	●	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0005-0011	●	●		●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0012-	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0005-0011	●	●		●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0012-0605	●	●	●	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●	●	●

192 192 192 192 192 192 192 192 192 192 192 192 180 105 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
105	HOSE; FLEX L=600	0-07909-600-0	02	1	0005-0011	●	●		●
105	HOSE; FLEX L=600	0-07909-600-0	02	1	0012-0607	●	●	●	●
105	HOSE; FLEX L=600	0-57909-600-0	02	1	0608-	●	●	●	●
105	HOSE; FLEX L=630	0-07909-630-0	02	1	0005-0011	●
105	HOSE; FLEX L=630	0-07909-630-0	02	1	0012-0607	●		●
105	HOSE; FLEX L=630	0-57909-630-0	02	1	0608-	●		●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	0005-		●		●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	08	1	0005-0011	●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	08	1	0012-	●		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0403-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0403-	●	●	●	●

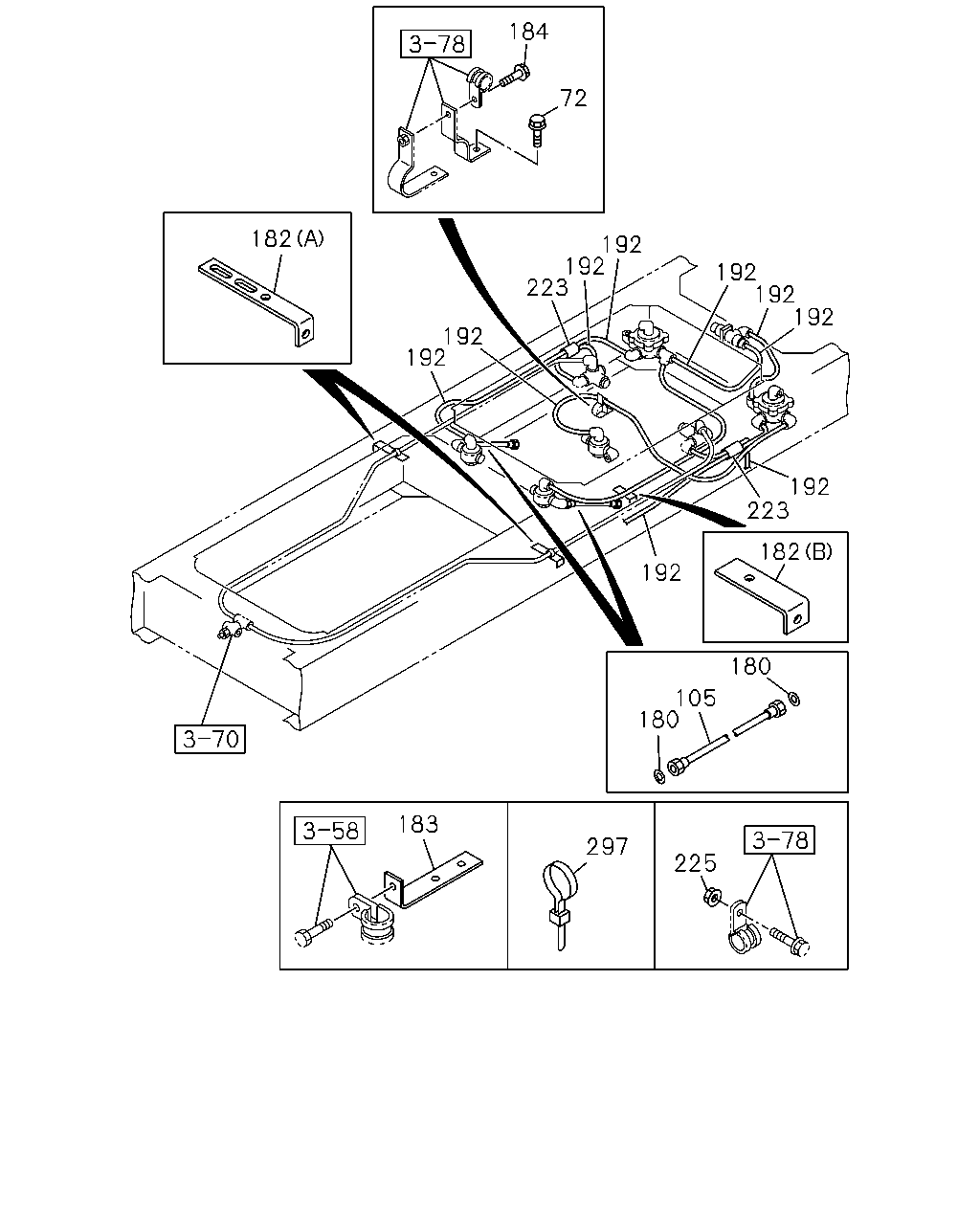

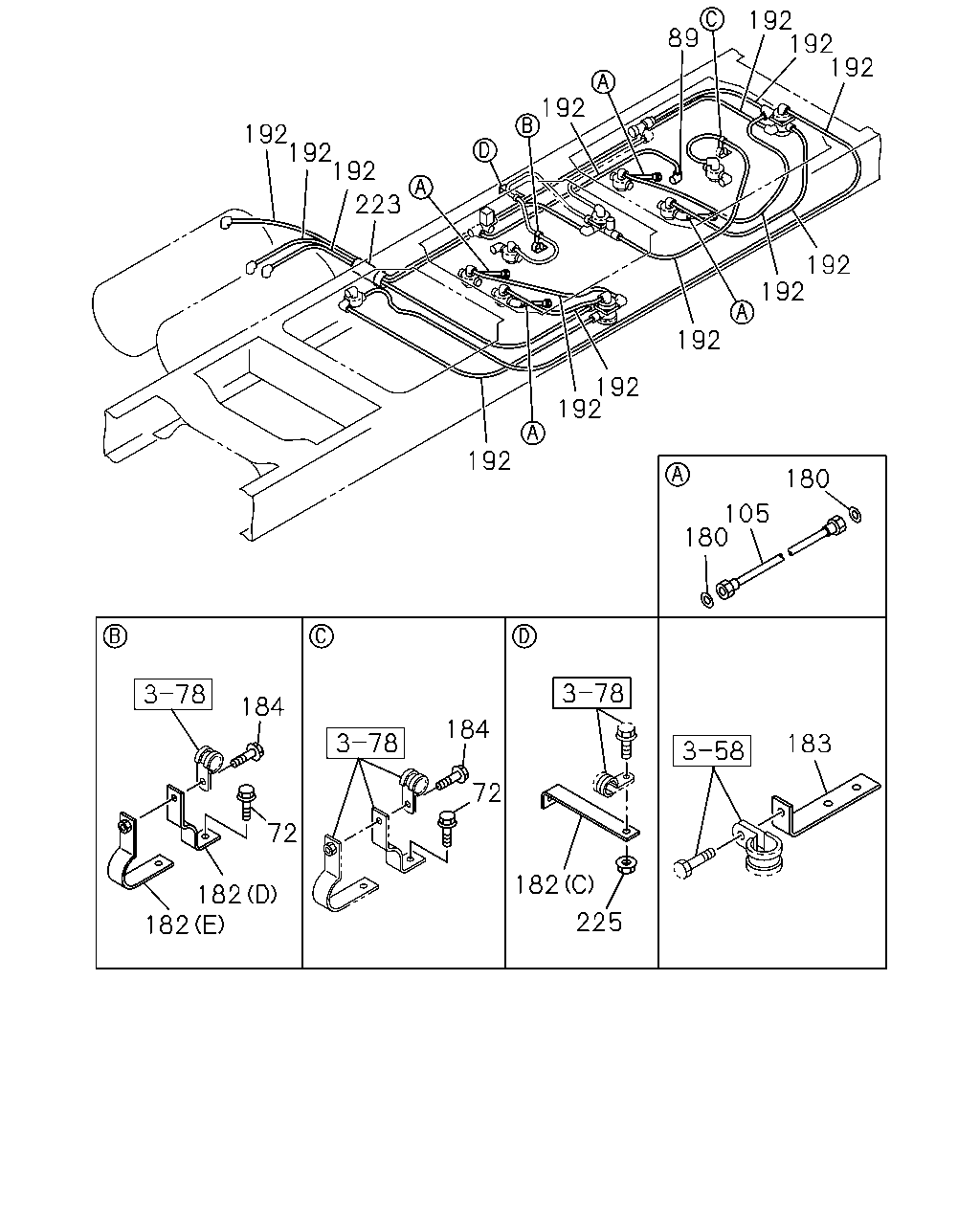

192 192 192 89 192 192 192 192 223 192 192 192 192 192 192 180 105 180 184 184 183 72 72 182 182 182 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
72	NUT; BRKT 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-108-0	04	1	0107-0210		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-			●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0011	●	●		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0108	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0109-0210	●	●		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0109-0210	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0006	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0007-0602	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●	●		●
89	CONNECTOR; NYLON TUBE DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0005-	●
105	HOSE; FLEX L=600	0-07909-600-0	02	1	0005-0011	●	●		●
105	HOSE; FLEX L=600	0-07909-600-0	02	1	0012-0607	●	●	●	●
105	HOSE; FLEX L=600	0-57909-600-0	02	1	0608-	●	●	●	●
105	HOSE; FLEX L=630	0-07909-630-0	02	1	0005-0011	●
105	HOSE; FLEX L=630	0-07909-630-0	02	1	0012-0607	●		●
105	HOSE; FLEX L=630	0-57909-630-0	02	1	0608-	●		●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	0005-		●		●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	08	1	0005-0011	●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	08	1	0012-	●		●
182	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	03	1	0005-0106		●
182	BRACKET; TUBE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=150 H=30	1-47477-629-2	03	1	0107-0210		●
182	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	03	1	0211-		●
182	BRACKET; TUBE CLIP (B) L=55 B=25	1-47478-439-0	01	1	0005-		●
182	BRACKET; TUBE CLIP 6SD1 TCN ENG(31L) (B) L=60 H=30	1-47477-716-1	01	1	0005-0106		●
182	BRACKET; TUBE CLIP 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=60 H=30	1-47477-716-1	01	1	0107-0210		●
182	BRACKET; TUBE CLIP (B) L=60 H=30	1-47477-716-1	01	1	0211-		●
182	BRACKET; TUBE CLIP (C) L=145 B=25	1-47477-697-0	01	1	0005-0011	●
182	BRACKET; TUBE CLIP (C) L=145 B=25	1-47477-697-0	01	1	0012-0303	●		●
182	BRACKET; TUBE CLIP (C) L=145 B=25	1-47479-123-0	01	1	0304-	●		●
182	BRACKET; TUBE CLIP (D)	1-47478-588-0	01	1	0005-0011	●
182	BRACKET; TUBE CLIP (D)	1-47478-588-0	01	1	0012-	●		●
182	BRACKET; TUBE CLIP (E)	1-47478-589-0	01	1	0005-0011	●
182	BRACKET; TUBE CLIP (E)	1-47478-589-0	01	1	0012-	●		●
183	BRACKET; NYLON TUBE	1-42119-175-0	01	1	0008-	●
184	BOLT; TUBE CLIP 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210		●
184	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0012-0210			●
184	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0403-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0403-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-0402	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0403-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0012-0210			●

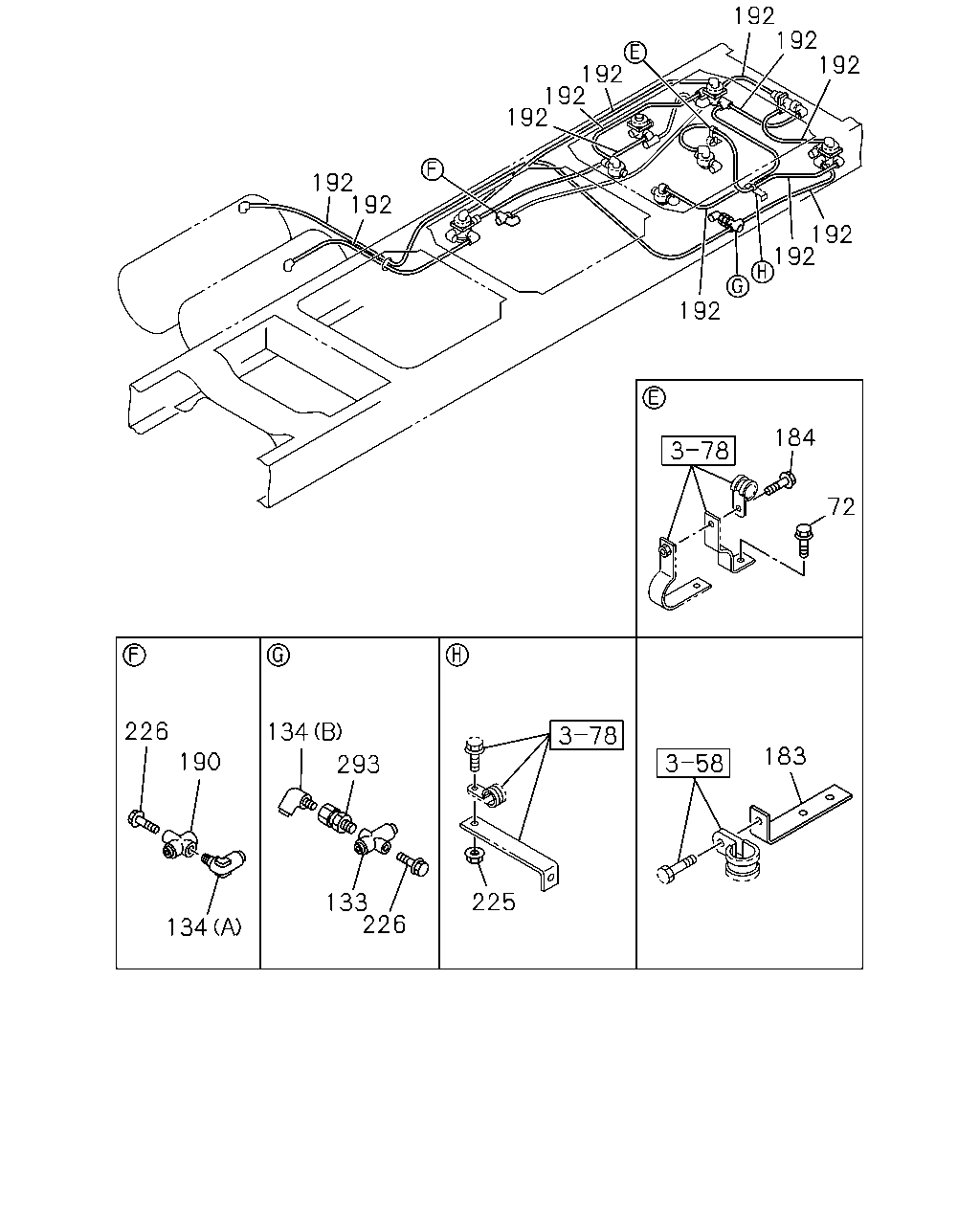

184 72 182 192 192 223 192 192 192 192 192 192 223 182 192 180 105 180 183 297 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
72	NUT; BRKT 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-108-0	04	1	0107-0210		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-			●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0011	●	●		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0108	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0109-0210	●	●		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0109-0210	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0006	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0007-0602	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●	●		●
105	HOSE; FLEX L=600	0-07909-600-0	02	1	0005-0011	●	●		●
105	HOSE; FLEX L=600	0-07909-600-0	02	1	0012-0607	●	●	●	●
105	HOSE; FLEX L=600	0-57909-600-0	02	1	0608-	●	●	●	●
105	HOSE; FLEX L=630	0-07909-630-0	02	1	0005-0011	●
105	HOSE; FLEX L=630	0-07909-630-0	02	1	0012-0607	●		●
105	HOSE; FLEX L=630	0-57909-630-0	02	1	0608-	●		●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	0005-		●		●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	08	1	0005-0011	●
180	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	08	1	0012-	●		●
182	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	03	1	0005-0106		●
182	BRACKET; TUBE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=150 H=30	1-47477-629-2	03	1	0107-0210		●
182	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	03	1	0211-		●
182	BRACKET; TUBE CLIP (B) L=55 B=25	1-47478-439-0	01	1	0005-		●
182	BRACKET; TUBE CLIP 6SD1 TCN ENG(31L) (B) L=60 H=30	1-47477-716-1	01	1	0005-0106		●
182	BRACKET; TUBE CLIP 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=60 H=30	1-47477-716-1	01	1	0107-0210		●
182	BRACKET; TUBE CLIP (B) L=60 H=30	1-47477-716-1	01	1	0211-		●
182	BRACKET; TUBE CLIP (C) L=145 B=25	1-47477-697-0	01	1	0005-0011	●
182	BRACKET; TUBE CLIP (C) L=145 B=25	1-47477-697-0	01	1	0012-0303	●		●
182	BRACKET; TUBE CLIP (C) L=145 B=25	1-47479-123-0	01	1	0304-	●		●
182	BRACKET; TUBE CLIP (D)	1-47478-588-0	01	1	0005-0011	●
182	BRACKET; TUBE CLIP (D)	1-47478-588-0	01	1	0012-	●		●
182	BRACKET; TUBE CLIP (E)	1-47478-589-0	01	1	0005-0011	●
182	BRACKET; TUBE CLIP (E)	1-47478-589-0	01	1	0012-	●		●
183	BRACKET; NYLON TUBE	1-42119-175-0	01	1	0008-	●
184	BOLT; TUBE CLIP 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210		●
184	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0012-0210			●
184	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0403-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0403-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-0402	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0403-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0012-0210			●
297	CLIP; BAND 6HE1 TC ENG(57L) L=250	1-09707-126-0	01	1	0005-0210		●
297	CLIP; BAND 6HK1 TCS ENG(80L) L=250	1-09707-126-0	01	1	0303-		●

19 20 210 210 97 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
19	NUT; PIPE UNION M12	9-99111-412-0	01	1	0005-0512			●
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	0601-	●	●	●
20	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0005-0603			●
20	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-	●	●	●
97	UNION; AIR PIPE M16 2WAY	1-09650-182-1	01	1	0005-			●
210	PIPE; AIR,UNION TO UNION	1-49121-496-0	01	1	0005-			●
299	CONNECTOR; ADAPTOR DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007			●
299	CONNECTOR; ADAPTOR DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-			●

192 192 192 192 192 192 192 192 192 192 192 184 72 226 134 183 190 293 225 133 226 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
72	NUT; BRKT 6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-108-0	04	1	0107-0210		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602			●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-			●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0011	●	●		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0108	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0109-0210	●	●		●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0109-0210	●	●	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0006	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0007-0602	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●	●		●
133	UNION; NIPPLE DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0005-				●
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-				●
134	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-				●
183	BRACKET; NYLON TUBE	1-42119-175-0	01	1	0008-	●
184	BOLT; TUBE CLIP 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210		●
184	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0005-0011	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0012-0210			●
184	BOLT; TUBE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-				●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0403-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0403-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0012-0210			●
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0005-0512				●
226	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●		●
226	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0005-0512				●
226	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●		●
293	VALVE; CHECK	1-48320-013-2	01	1	0005-				●

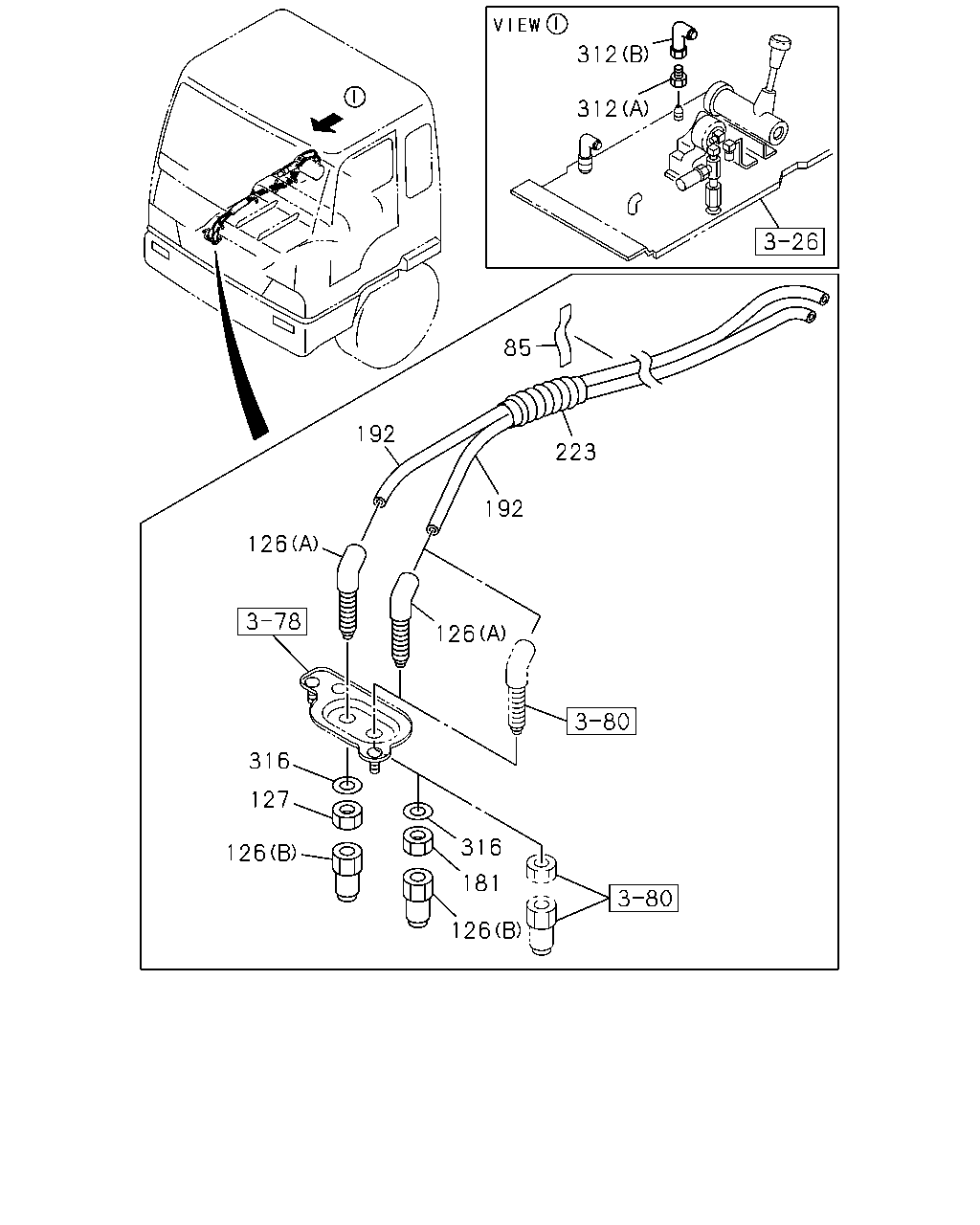

312 312 85 192 223 192 126 126 316 127 316 126 181 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
85	GASKET; NYLON TUBE 100X40	1-72498-022-0	05	1	0005-0011	●	●		●
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	0012-	●	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0011	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0012-0210	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	01	1	0211-0706	●	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	01	1	0211-0706	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	8-98078-117-0	01	1	0707-	●	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	8-98078-117-0	01	1	0707-	●	●	●
126	UNION; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007	●	●
126	UNION; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0011	●	●
126	UNION; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0012-0706	●	●	●
126	UNION; NYLON TUBE (A) DIN8 & M20 ELBOW	1-09661-015-0	01	1	0005-0210				●
126	UNION; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-056-0	01	1	0005-0007				●
126	UNION; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09661-381-0	01	1	0008-0706				●
127	NUT; UNION M20	9-99111-420-0	01	1	0005-0011	●	●		●
127	NUT; UNION M20	9-99111-420-0	01	1	0012-0512	●	●	●	●
127	NUT; UNION M20	0-91111-520-0	01	1	0601-	●	●	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0005-0011	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0012-0512	●	●	●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0402	●	●	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0403-	●	●	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0403-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-0402	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	0005-	●	●	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0403-	●	●	●	●
312	CONNECTOR; SUPPLY (A)	1-09660-924-1	01	1	0005-1008				●
312	CONNECTOR; SUPPLY (A)	8-97633-756-0	01	1	1009-	●	●		●
312	CONNECTOR; SUPPLY (B)	1-09660-930-1	01	1	0005-1008				●
312	CONNECTOR; SUPPLY (B)	8-97633-768-0	01	1	1009-	●	●		●
316	WASHER; PL ID=21	9-09160-520-0	02	1	0005-0011	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	0012-0605	●	●	●
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-	●	●	●
316	WASHER; PL ID=21	9-09160-520-0	01	1	0005-0605				●
316	WASHER; PL ID=21	0-91610-520-0	01	1	0606-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
