Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#9285) — 404 parça

48 56 56 55 55 55 56 55 48 48 56 55 50 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	NUT; UNION BRKT EXC. A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	0706-	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	07	1	0706-		●
48	NUT; UNION BRKT A/T<X9D> M8 FLANGE	0-91180-108-0	06	1	0706-	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0005-0104			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0104	●			●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0005-0104	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	02	1	0105-0105			●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	02	1	0105-0105	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0106-0210			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0210	●			●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0106-0210	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	09	1	0211-0409			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	10	1	0410-0602			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0410-0602				●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	10	1	0603-0705			●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	10	1	0603-0705				●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) A/T<X9D> M8 FLANGE	0-91180-108-0	09	1	0706-			●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	13	1	0005-0101			●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	14	1	0102-0210			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	07	1	0211-0602	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	07	1	0603-0705	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8 FLANGE	0-91180-108-0	10	1	0706-			●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	10	1	0706-				●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	11	1	0303-0602			●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	11	1	0603-			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	08	1	0005-0105			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	08	1	0005-0105	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	09	1	0106-0112			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	09	1	0106-0112	●			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	08	1	0201-0210			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	08	1	0201-0210	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0211-0405			●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0211-0405	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0406-0602			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8 FLANGE	0-91150-108-0	01	1	0406-0602			●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0603-			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8 FLANGE	0-91180-108-0	01	1	0603-			●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	01	1	0603-	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0105	●		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	09	1	0005-0105				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	09	1	0201-0210				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0211-0409				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	06	1	0012-0108		●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	08	1	0109-0112		●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	07	1	0201-0210		●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3060P A/T(Y4G) AUXILIARY TRANSMISSION OIL COOLER<V14> ID=29 OD=39 L=40	1-09337-013-0	02	1	0612-			●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3560P A/T(Y3B) AUXILIARY TRANSMISSION OIL COOLER<V14> ID=29 OD=39 L=40	1-09337-013-0	02	1	0612-	●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3060P A/T(Y4G) ID=29 OD=39 L=40	1-09337-013-0	01	1	0102-0104			●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3560P A/T(Y3B) ID=29 OD=39 L=40	1-09337-013-0	01	1	0102-0104	●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3060P A/T(Y4G) ID=29 OD=39 L=40	1-09337-013-0	02	1	0105-0210			●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3560P A/T(Y3B) ID=29 OD=39 L=40	1-09337-013-0	02	1	0105-0210	●
55	BRACKET; TUBE UNION EXC. A/T<X9D> (B) L=160 B=25	1-53441-518-0	02	1	0706-	●		●
55	BRACKET; TUBE UNION (B) L=160 B=25	1-53441-518-0	02	1	0706-		●		●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (E) L=95	1-82699-085-0	02	1	0610-			●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (E) L=100 H=30	1-47477-645-2	01	1	0105-0105			●
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B) (E) L=100 H=30	1-47477-645-2	01	1	0105-0105	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (E) L=100 H=30	1-47477-645-2	01	1	0106-0108			●
55	BRACKET; TUBE UNION (E) L=100 H=30	1-47477-645-2	01	1	0106-0108	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (E) L=100 H=30	1-47477-645-2	01	1	0109-0112			●
55	BRACKET; TUBE UNION (E) L=100 H=30	1-47477-645-2	01	1	0109-0112	●	●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (E) L=100 H=30	1-47477-645-2	01	1	0201-0210			●
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B) (E) L=100 H=30	1-47477-645-2	01	1	0201-0210	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (E) L=100 H=30	1-47477-645-2	02	1	0211-0302			●
55	BRACKET; TUBE UNION (E) L=100 H=30	1-47477-645-2	02	1	0303-0609			●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (E) L=100 H=30	1-47477-645-2	02	1	0610-			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (D)	1-47477-514-3	03	1	0005-0210			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (E) L=150 H=30	1-47477-629-2	04	1	0005-0101			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (E) L=150 H=30	1-47477-629-2	05	1	0102-0210			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (E) L=100 H=30	1-47477-645-2	02	1	0005-0106			●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) L=100 H=30	1-47477-645-2	02	1	0107-0210			●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (E) L=100 H=30	1-47477-645-2	01	1	0211-			●
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B) (E) L=100 H=30	1-47477-645-2	01	1	0211-	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (C) L=225	1-47477-646-3	02	1	0005-0210			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (B) L=145 B=25	1-47477-697-0	01	1	0005-0011			●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) (B) L=160 B=25	1-53441-518-0	01	1	0005-0011			●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (E) L=150 H=30	1-47477-629-2	03	1	0303-0409			●
55	BRACKET; TUBE UNION (E) L=150 H=30	1-47477-629-2	02	1	0410-			●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (C) L=225	1-47477-646-3	01	1	0303-0405			●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (C) L=225	1-47477-646-3	01	1	0406-			●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (C) L=225	1-47477-646-3	01	1	0406-			●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (B) L=60 H=30	1-47477-716-1	02	1	0303-			●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=160 B=25	1-53441-518-0	02	1	0005-0011			●
55	BRACKET; TUBE UNION (B) L=160 B=25	1-53441-518-0	02	1	0005-0011	●			●
55	BRACKET; TUBE UNION (A)	1-47477-256-1	01	1	0005-0011	●		●	●
55	BRACKET; TUBE UNION (A)	1-47477-256-1	01	1	0012-	●	●	●	●
55	BRACKET; TUBE UNION (E) L=150 H=30	1-47477-629-2	01	1	0005-0011	●		●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (D)	1-47477-514-3	01	1	0005-0011	●		●	●
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) (D)	1-47477-514-3	01	1	0005-0011	●		●
55	BRACKET; TUBE UNION (D)	1-47477-514-3	01	1	0012-0112	●	●	●	●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (D)	1-47477-514-3	01	1	0012-0112			●
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B) (D)	1-47477-514-3	01	1	0012-0112	●
55	BRACKET; TUBE UNION (D)	1-47477-514-3	01	1	0201-	●	●	●	●
55	BRACKET; TUBE UNION (E) L=150 H=30	1-47477-629-2	01	1	0012-0210	●	●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (E) L=150 H=30	1-47477-629-2	01	1	0012-0210			●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (E) L=150 H=30	1-47477-629-2	01	1	0211-0409	●	●	●	●
55	BRACKET; TUBE UNION (E) L=150 H=30	1-47477-629-2	01	1	0211-0409			●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (E) L=150 H=30	1-47477-629-2	01	1	0410-	●	●	●	●
55	BRACKET; TUBE UNION (E) L=160 B=25	1-53441-518-0	02	1	0012-0705	●	●	●	●
55	BRACKET; TUBE UNION A/T<X9D> (B) L=160 B=25	1-53441-518-0	01	1	0706-	●		●
55	BRACKET; TUBE UNION (B) L=60 H=30	1-47477-716-1	01	1	0005-0108	●			●
55	BRACKET; TUBE UNION (B) L=60 H=30	1-47477-716-1	01	1	0109-	●	●	●	●
55	BRACKET; TUBE UNION (E) L=100 H=30	1-47477-645-2	03	1	0005-				●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8X25 FLANGE	0-28650-825-0	06	1	0706-	●		●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	06	1	0706-			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	06	1	0706-		●		●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	07	1	0406-0409			●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	06	1	0410-0512			●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	06	1	0601-			●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0005-0104			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0104	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0106-0210			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28680-825-0	01	1	0106-0210	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0211-0302	●	●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	06	1	0303-0512	●	●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	06	1	0601-0705	●	●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) A/T<X9D> M8X25 FLANGE	0-28650-825-0	05	1	0706-	●		●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	10	1	0005-0101			●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	11	1	0102-0210			●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	03	1	0005-0210			●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	03	1	0005-0210				●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	07	1	0303-0405			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8X30 FLANGE	0-28680-830-0	01	1	0406-0409			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	01	1	0410-0512			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8X30 FLANGE	0-28680-830-0	01	1	0410-0512			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	01	1	0601-			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8X30 FLANGE	0-28650-830-0	01	1	0601-			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	06	1	0005-0105			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0005-0105	●			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	07	1	0106-0112			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	07	1	0106-0112	●			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	06	1	0201-0210			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0201-0210	●			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0211-0405	●		●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	01	1	0211-0405			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512	●		●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0406-0512			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B),ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0005-0210			●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0108	●			●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	01	1	0109-0210	●	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	04	1	0211-0512	●	●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	05	1	0012-0108		●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0109-0112		●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	05	1	0201-0210	●	●	●	●

98 98 98 98 98 98 65 66 32 35 107 106 41 141 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

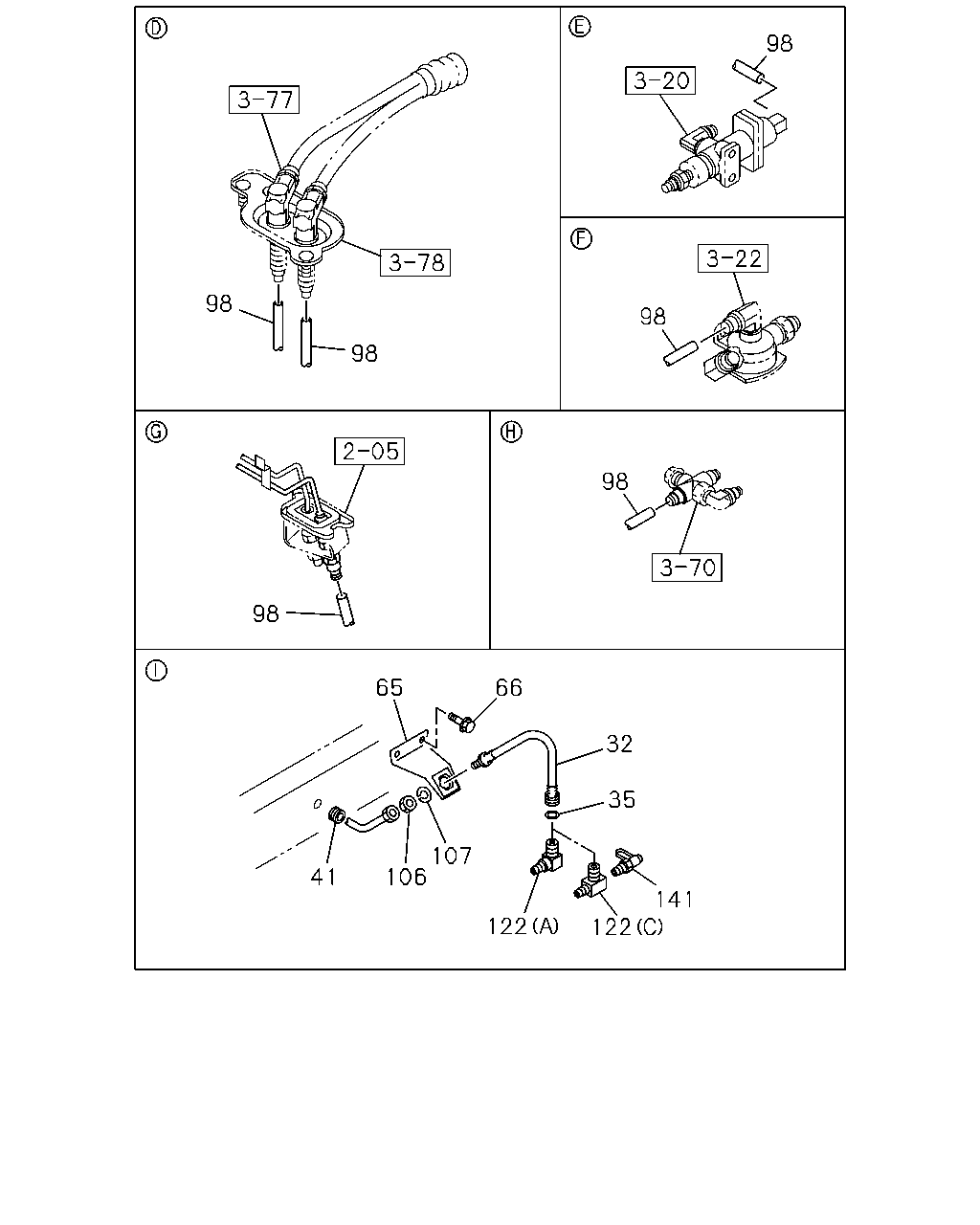

32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	0005-0011	●		●	●
32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	0012-0605	●	●	●	●
32	HOSE; FLEX,FRT L=630	0-57475-630-1	02	1	0606-	●	●	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0005-0011	●		●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0012-	●	●	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0005-0011	●		●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0012-	●	●	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0005-0011	●		●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0012-	●	●	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0005-0011	●		●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0012-	●	●	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0005-0011	●		●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0012-0210	●	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0211-0512	●	●	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●	●	●
66	BOLT; HOSE BRKT M8X14 FLANGE	0-28080-814-0	04	1	0005-0210				●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	02	1	0706-	●
98	TUBE; NYLON 6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●

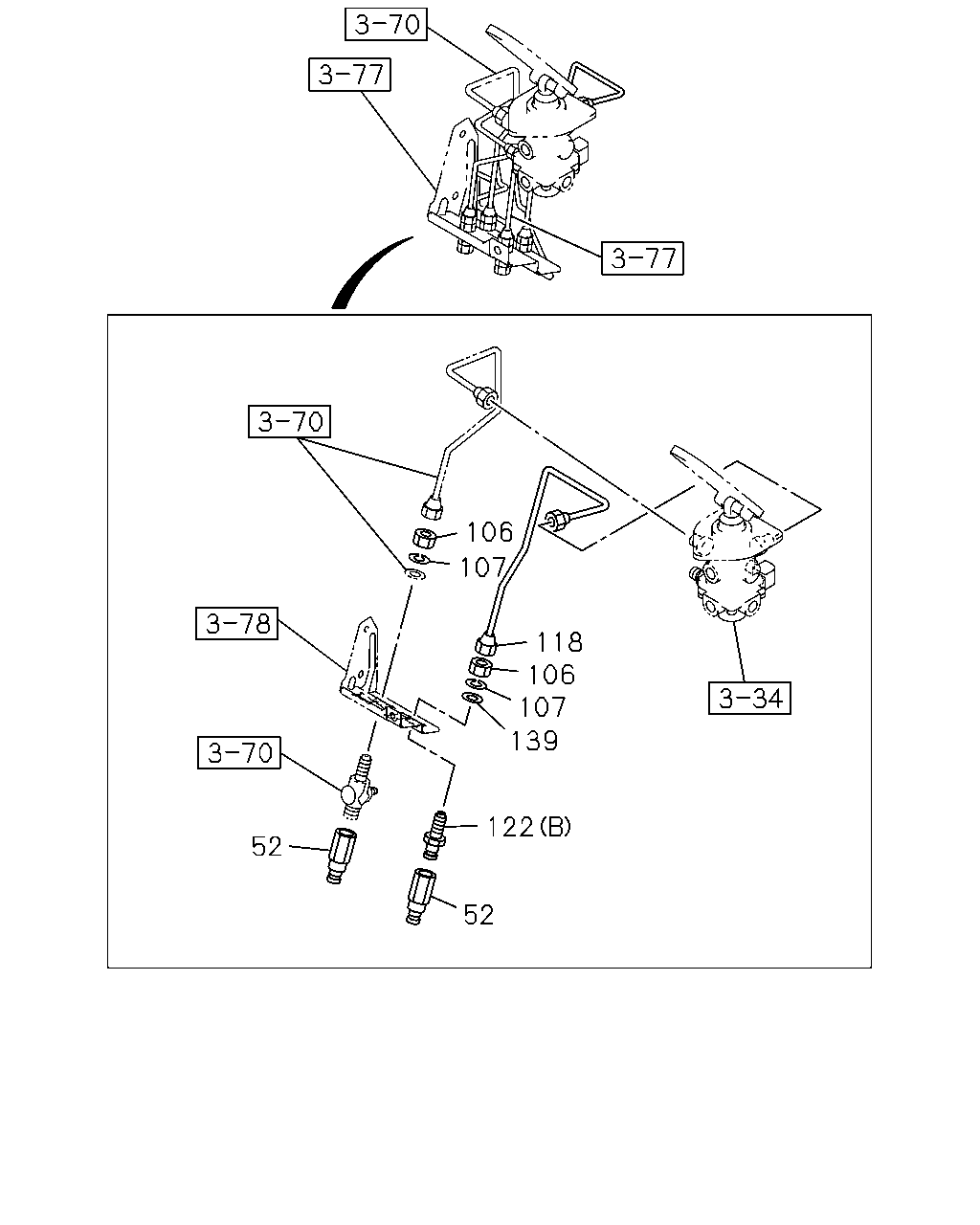

106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●		●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●		●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0211-0512	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	04	1	0601-	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0012-0210		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●		●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●		●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0211-0603	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	04	1	0604-	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0012-0210		●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-0011	●		●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0012-	●	●	●	●
122	CONNECTOR; FLEX HOSE (A)	1-09660-685-0	01	1	0005-0011	●		●	●
122	CONNECTOR; FLEX HOSE (A)	1-09660-685-0	01	1	0012-	●	●	●	●
122	CONNECTOR; FLEX HOSE (C)	1-09660-838-0	01	1	0005-0011	●		●	●
122	CONNECTOR; FLEX HOSE (C)	1-09660-838-0	01	1	0012-0305	●	●	●	●
122	CONNECTOR; FLEX HOSE (C)	1-09661-592-0	01	1	0306-	●	●	●	●
141	CONNECTOR; TEST	1-47459-013-0	01	1	0005-0011	●		●	●
141	CONNECTOR; TEST	1-47459-013-1	01	1	0012-	●	●	●	●

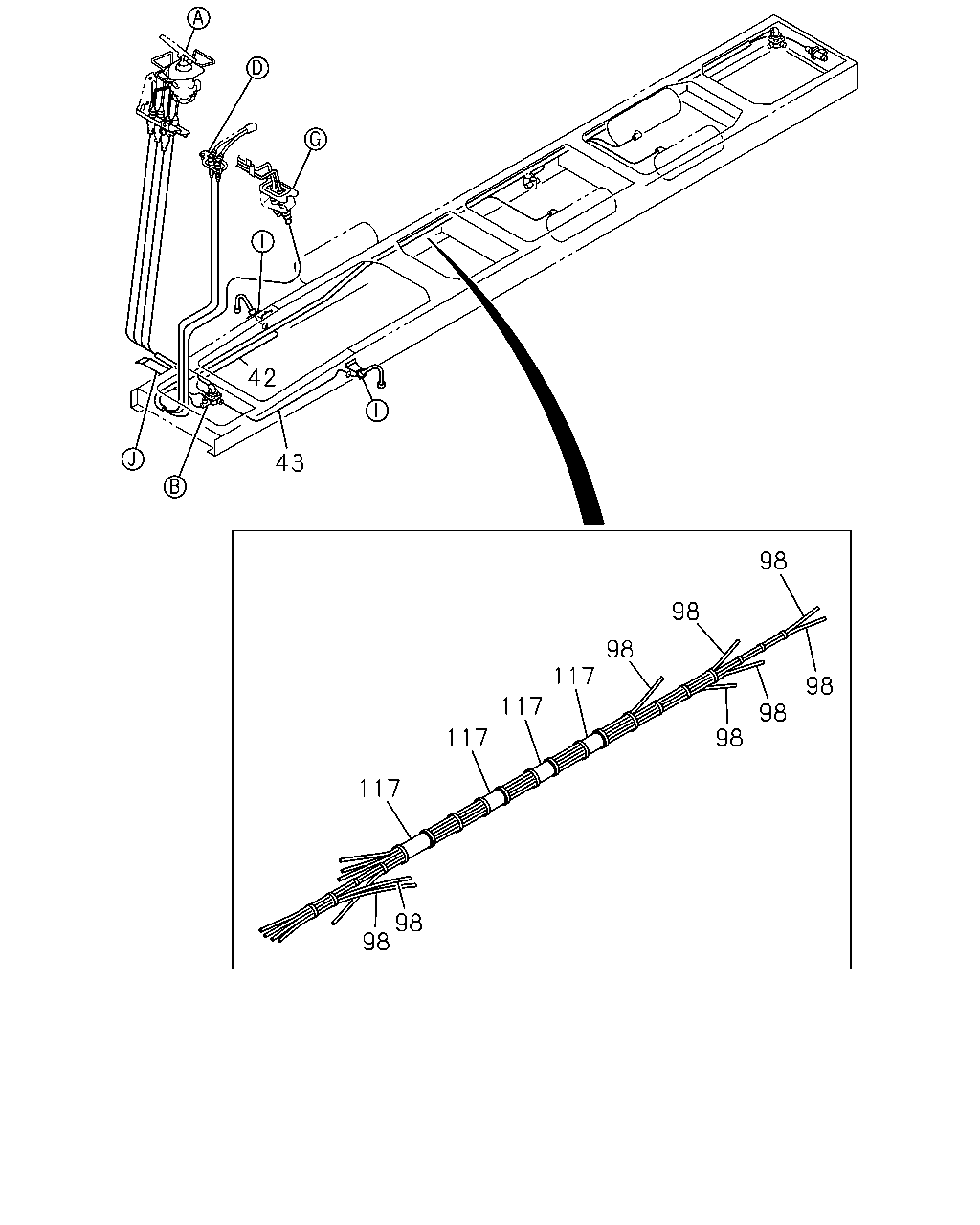

42 43 98 98 98 117 98 117 98 117 98 117 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L) L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0210			●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HK1 TCS ENG(80L) L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0303-			●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0210			●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0303-			●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	02	1	0706-	●
98	TUBE; NYLON 6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●
117	TUBE; CORRUGATE WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-			●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	02	1	0706-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0706-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0706-			●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-			●
117	TUBE; CORRUGATE FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0706-			●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0610-	●	●	●	●

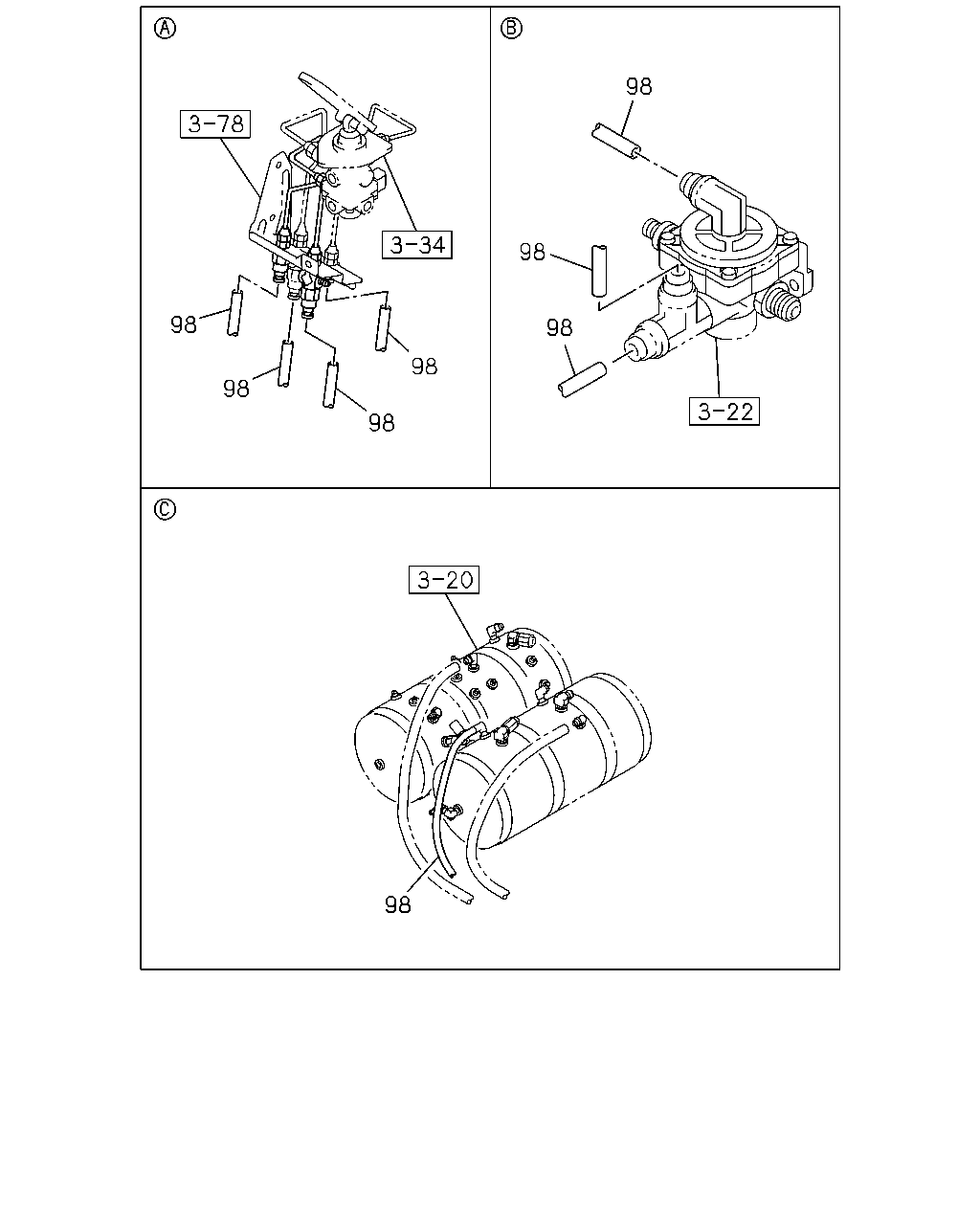

98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	02	1	0706-	●
98	TUBE; NYLON 6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●

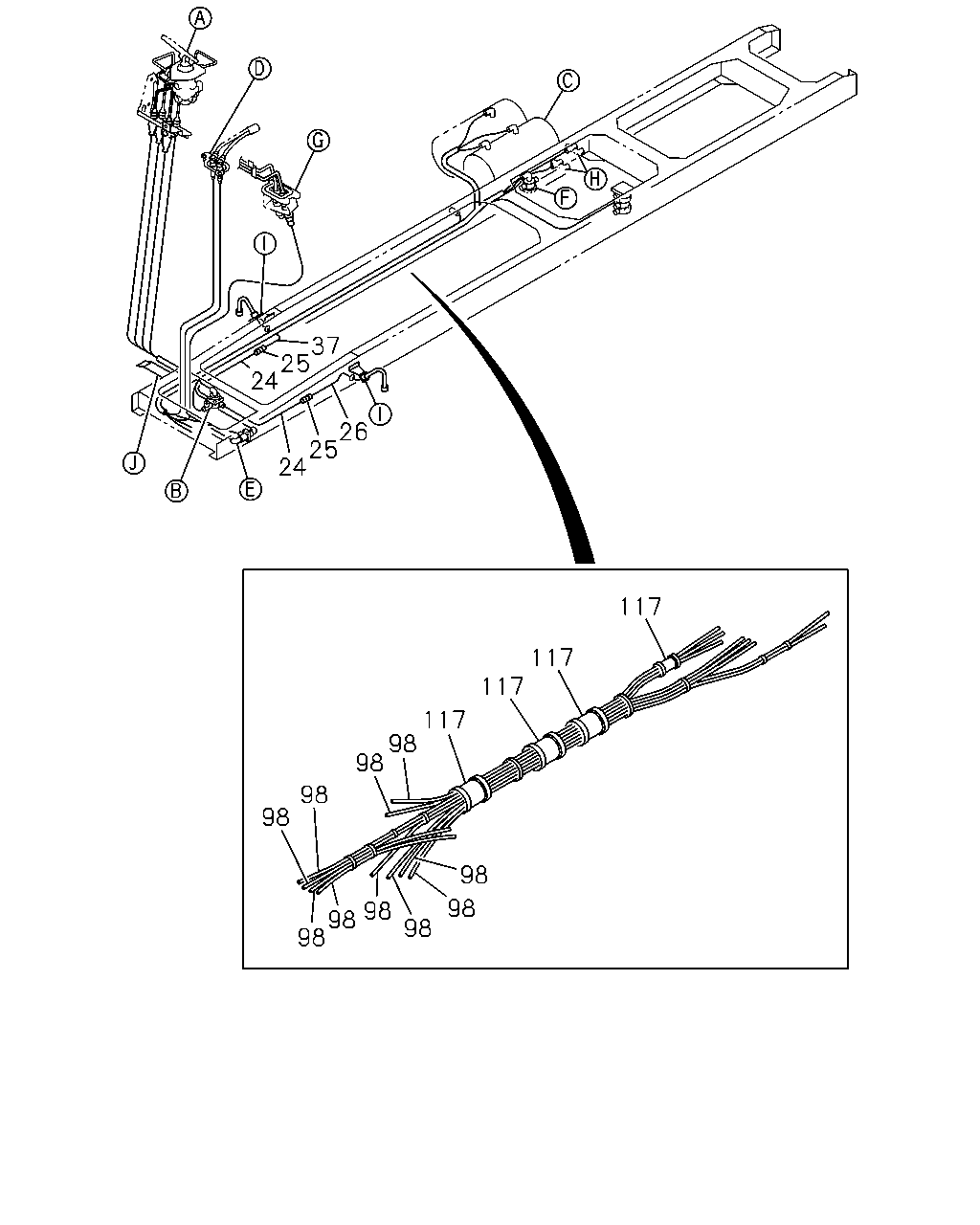

37 25 24 26 25 24 117 117 117 117 98 98 98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-0011			●
24	PIPE; AIR,RELAY VLV TO UNION L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-0011	●			●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) L=883 SERVICED BY L=900	1-47428-788-0	01	1	0012-	●	●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-0011			●
24	PIPE; AIR,RELAY VLV TO UNION L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-0011	●			●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) L=883 SERVICED BY L=900	1-47428-788-0	01	1	0012-0301	●	●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49124-010-0	01	1	0302-	●	●	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	9-09233-010-1	02	1	0005-0011			●
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	0005-0011	●			●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	9-09233-010-1	02	1	0012-0607	●	●	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	0-92123-010-0	02	1	0608-	●	●	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	0005-0011			●
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0005-0011	●			●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	0012-	●	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	0005-0011			●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0005-0011	●			●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	0012-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	02	1	0706-	●
98	TUBE; NYLON 6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON WHEEL BASE 6200MM(62W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0706-	●
98	TUBE; NYLON 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-			●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0706-	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●
117	TUBE; CORRUGATE WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-			●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	02	1	0706-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0706-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0706-			●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-			●
117	TUBE; CORRUGATE FULLER RT7608LL M/T(X8P) WHEEL BASE 7100MM(71W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0706-			●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0610-	●	●	●	●

106 107 118 106 107 139 122 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0005-0011	●		●	●
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0012-	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●		●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●		●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0211-0512	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	04	1	0601-	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0012-0210		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●		●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●		●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0211-0603	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	04	1	0604-	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0012-0210		●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0005-0011	●		●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0012-	●	●	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-0011	●		●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0012-	●	●	●	●
122	CONNECTOR; FLEX HOSE (A)	1-09660-685-0	01	1	0005-0011	●		●	●
122	CONNECTOR; FLEX HOSE (A)	1-09660-685-0	01	1	0012-	●	●	●	●
122	CONNECTOR; FLEX HOSE (C)	1-09660-838-0	01	1	0005-0011	●		●	●
122	CONNECTOR; FLEX HOSE (C)	1-09660-838-0	01	1	0012-0305	●	●	●	●
122	CONNECTOR; FLEX HOSE (C)	1-09661-592-0	01	1	0306-	●	●	●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0011	●		●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0012-0605	●	●	●	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
