◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶

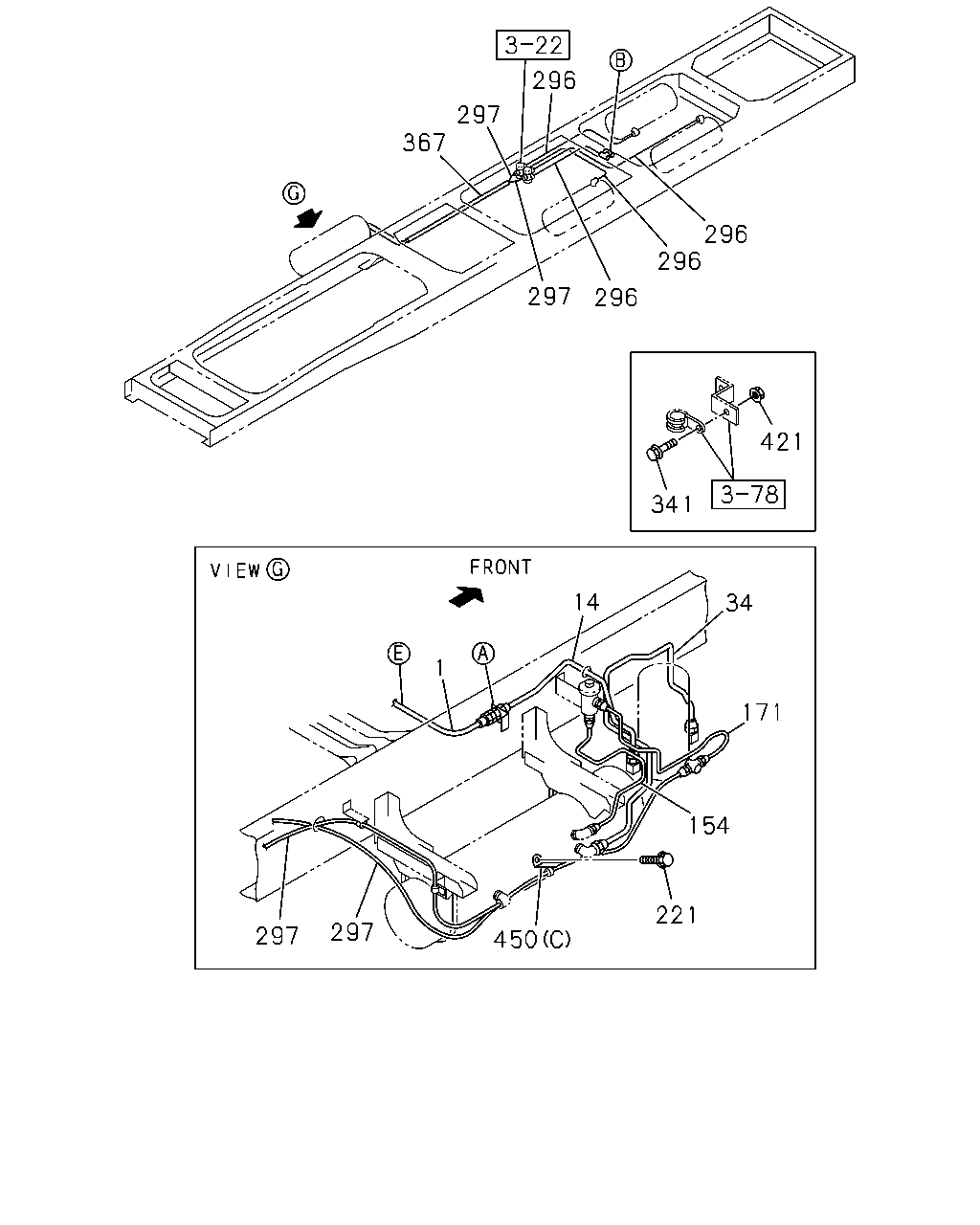

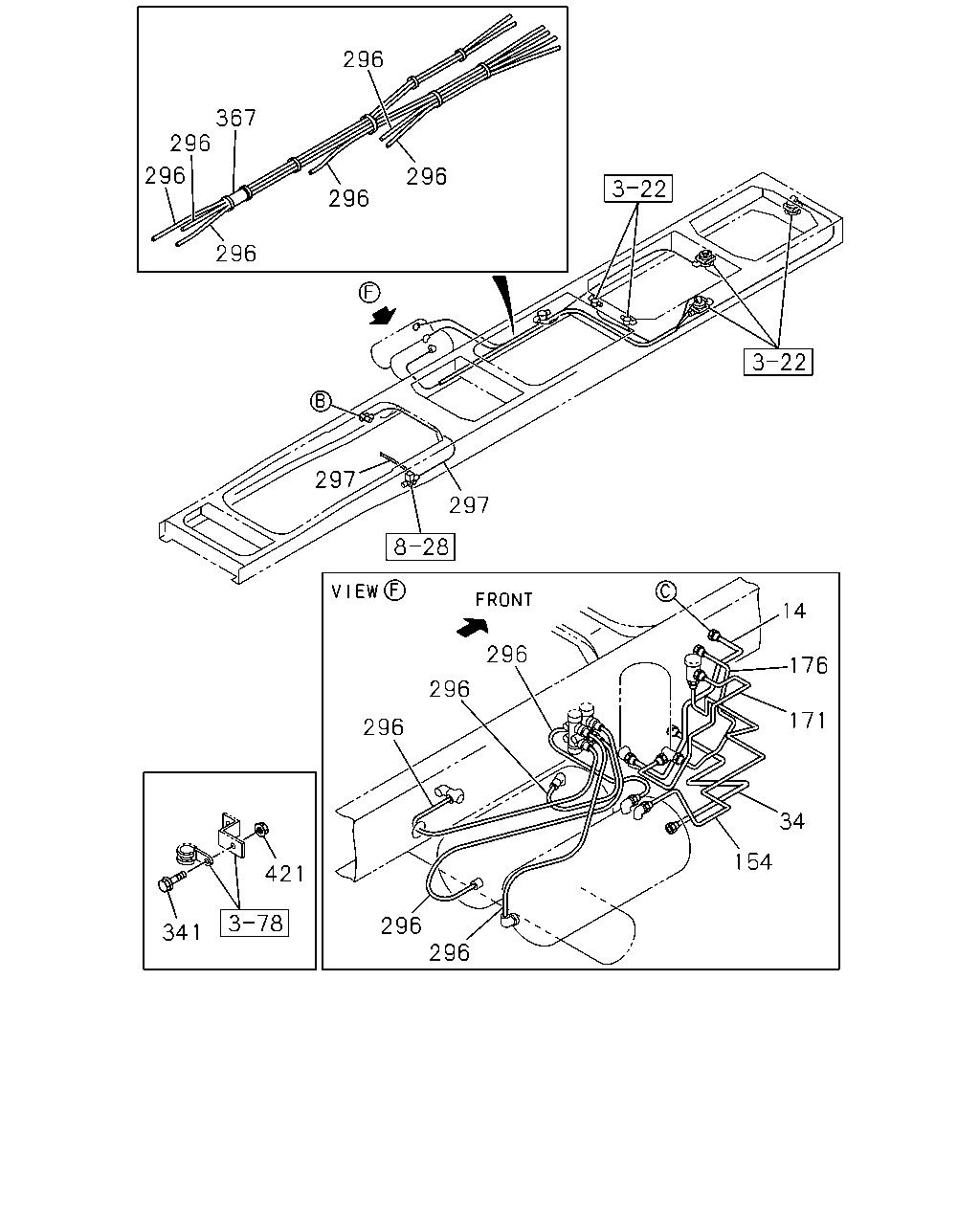

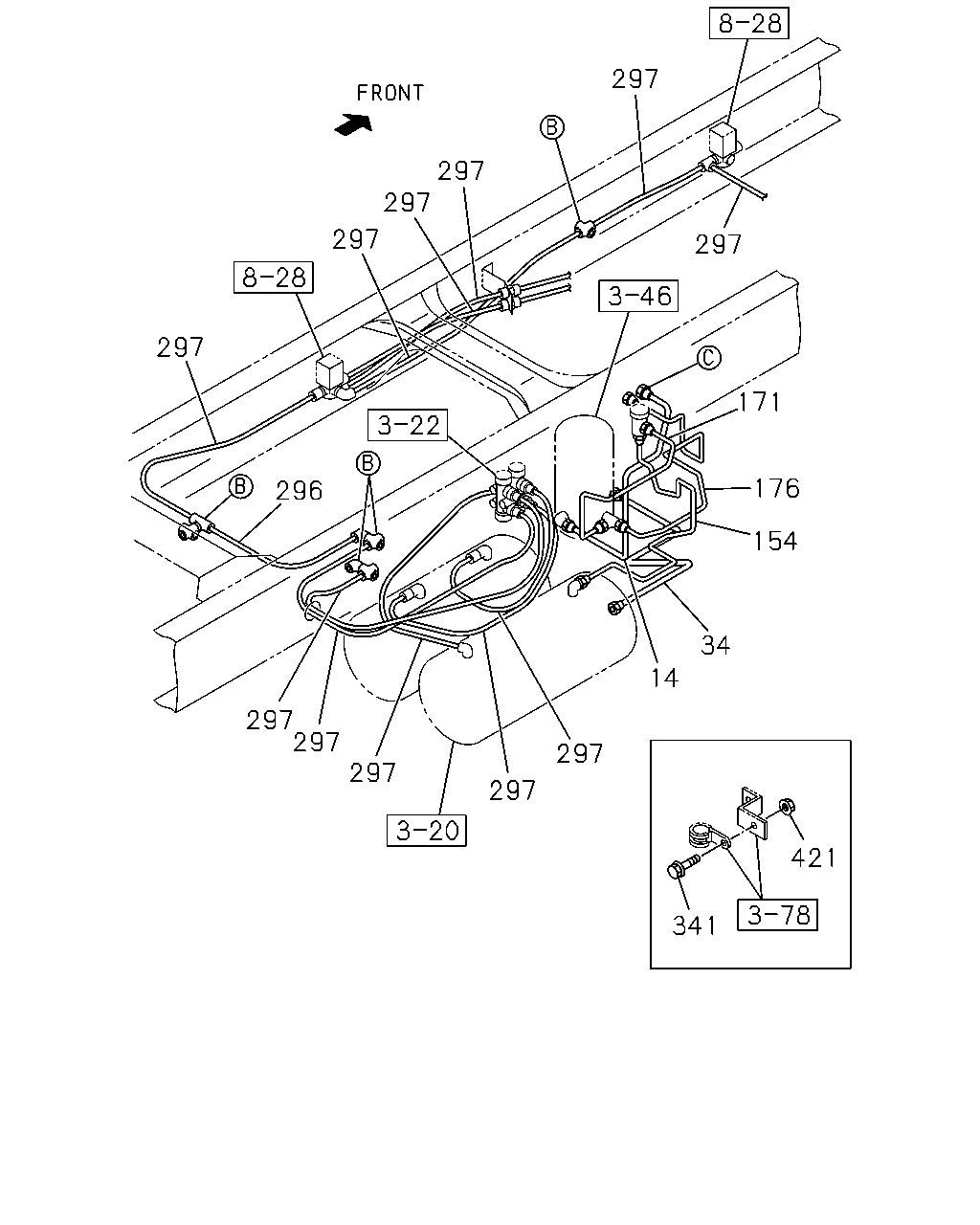

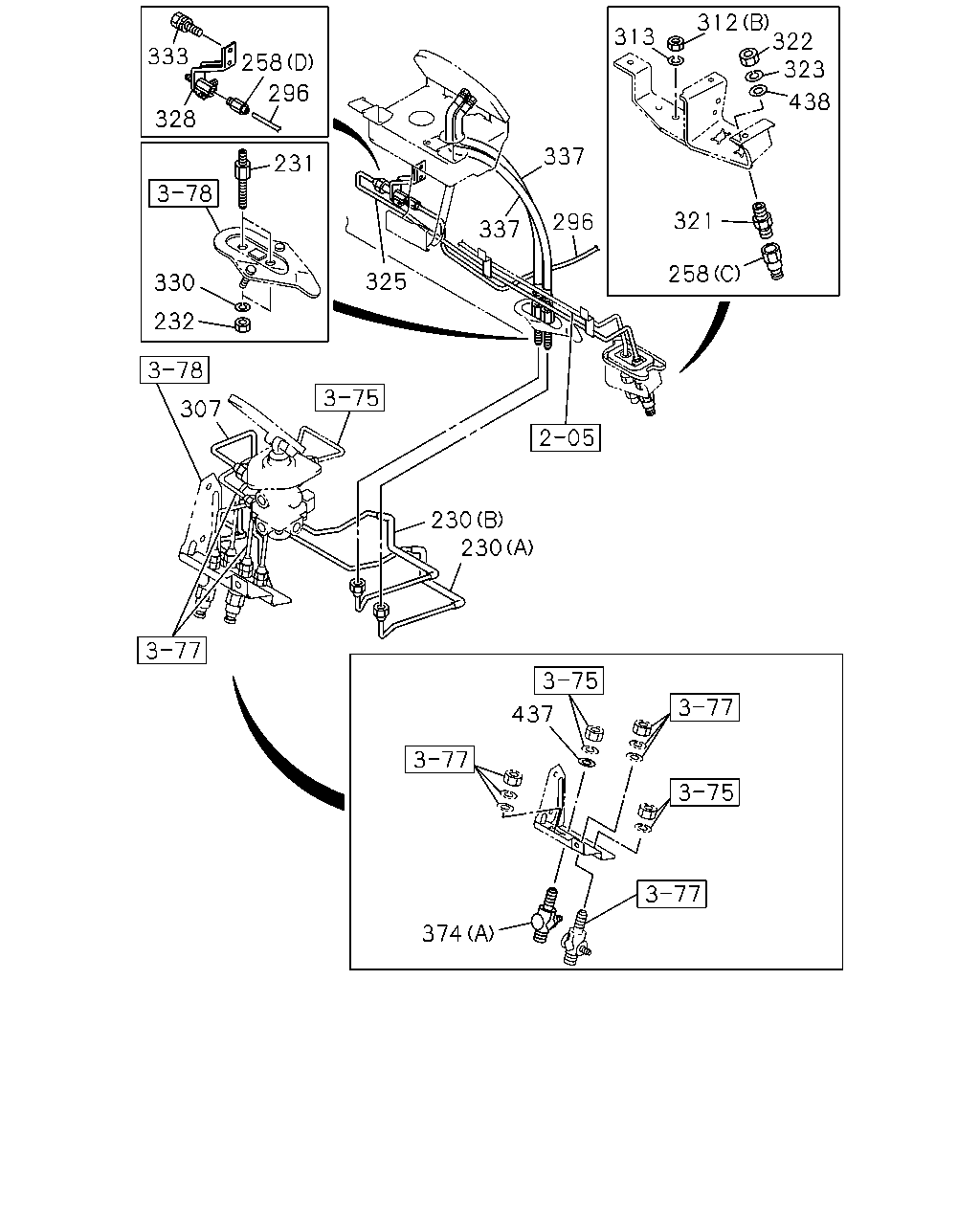

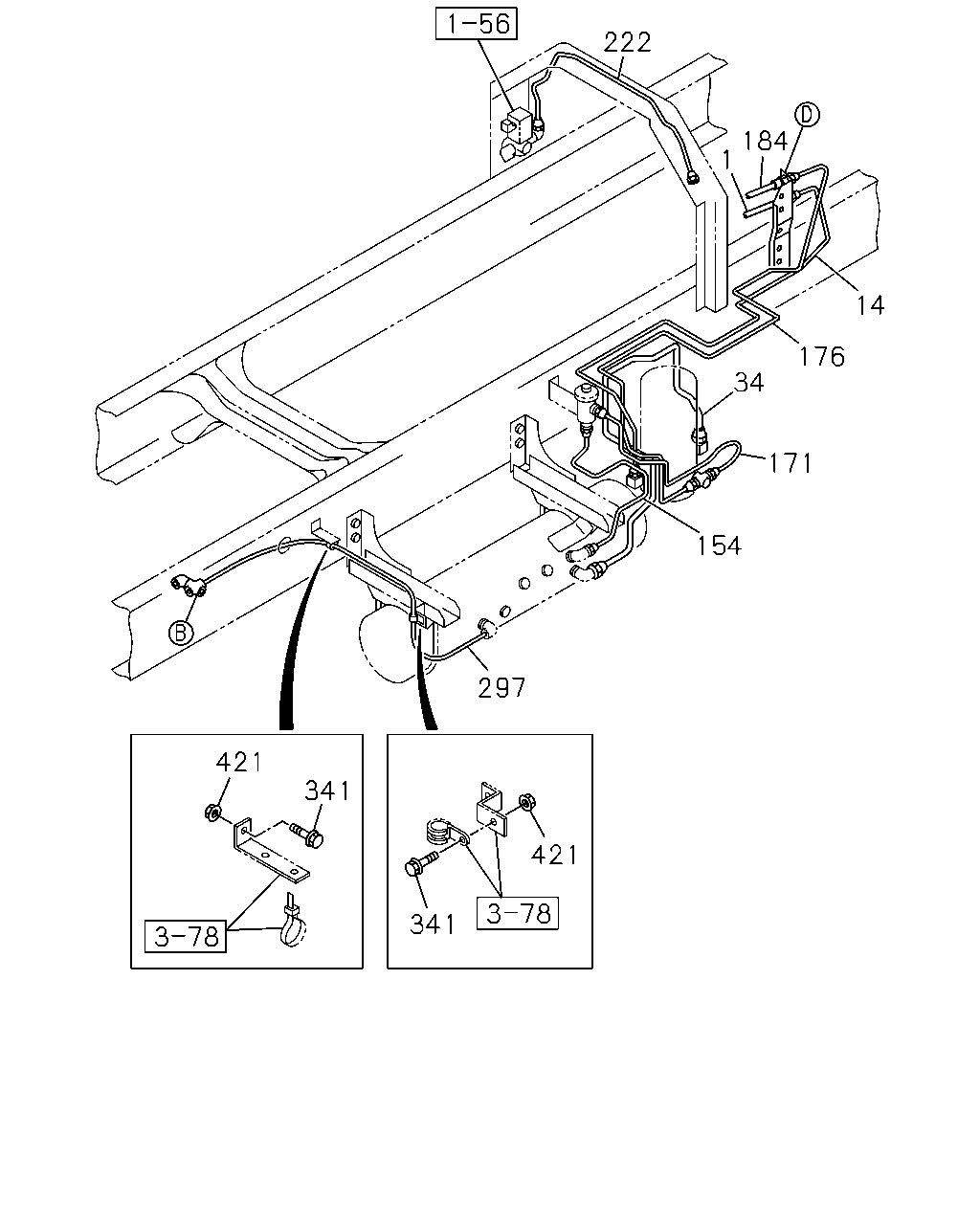

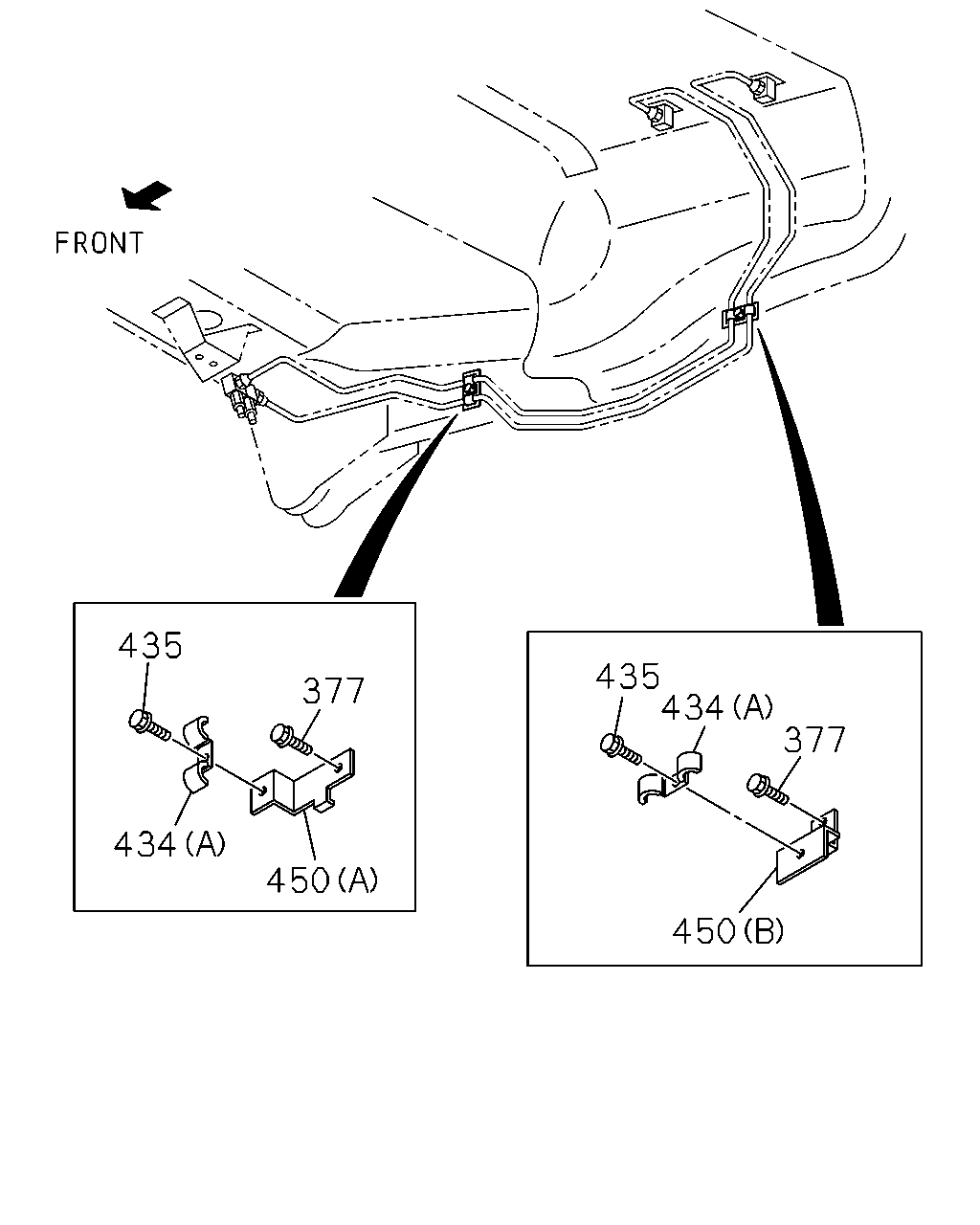

3-70 — BRAKE PIPING; AIR,AIR MASTER (#9284) — 845 parça

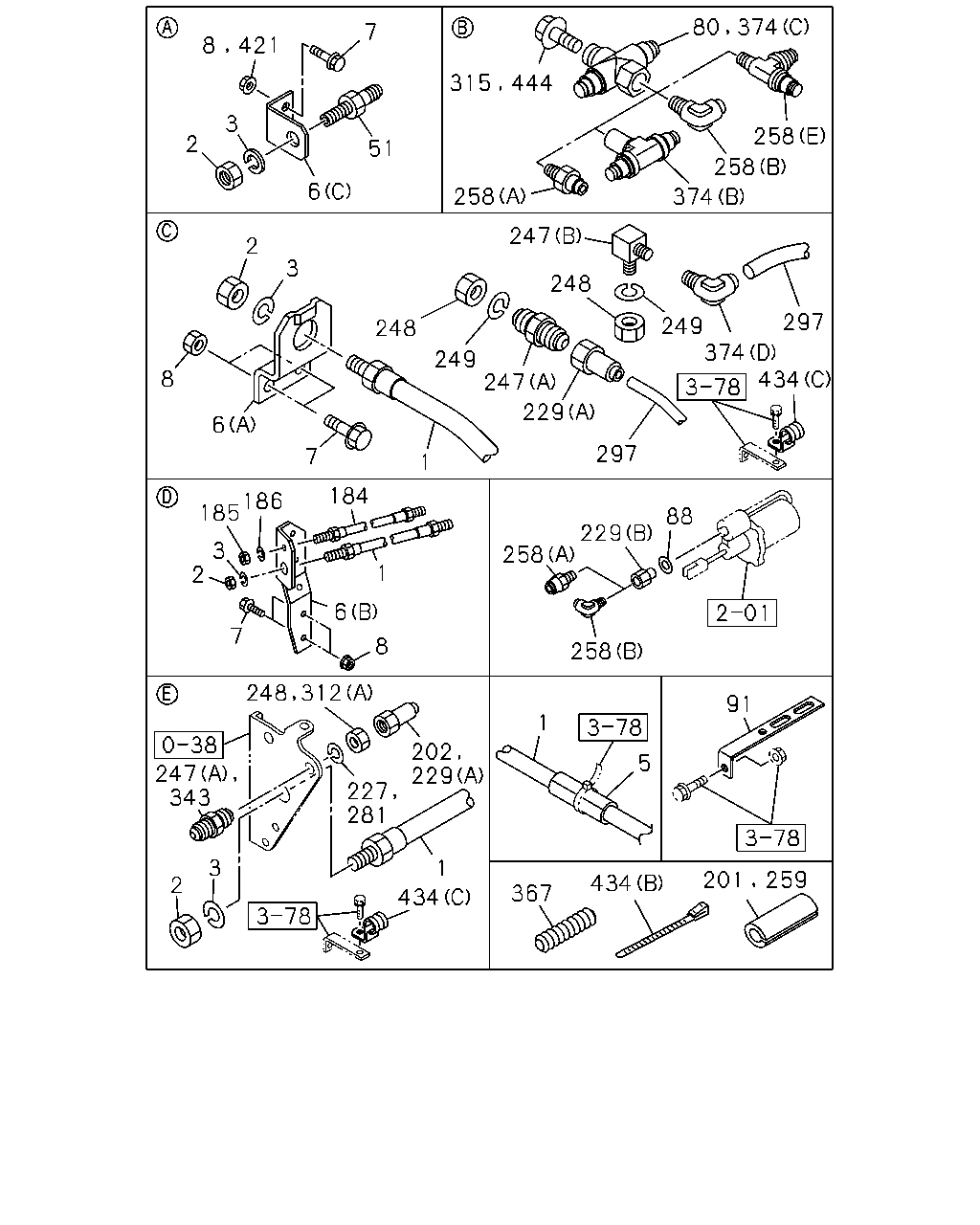

çizim 10466
7 8 421 3 258 2 51 258 6 258 374 247 2 3 248 297 249 374 434 248 249 247 8 229 6 297 7 1 184 186 185 88 229 3 2 258 1 6 7 8 258 91 1 202 229 5 247 343 227 281 3 1 201 259 434 2 367 434 248 312 315 444 80 374
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,AIR TANK
FULLER FS8209 DD M/T(Y2S) L=1350 		0-17816-135-1 01 1 0009-0210 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A) L=1350 		0-17816-135-1 01 1 0211-0605 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A) L=1350 		0-77816-135-1 01 1 0606-0609 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A),6SD1 TCN ENG(31L) L=1350 		0-77816-135-1 01 1 0610- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 0005-0210 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0303- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) 		0-17816-139-1 01 1 0005-0008 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-17816-139-1 01 1 0009-0106 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) 		0-17816-139-1 01 1 0107-0210 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-17816-139-1 01 1 0211-0605 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-77816-139-1 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0005-0011 ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0012-0106 ● ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) WHEEL BASE 4200MM(42W) L=1500 		0-17726-150-0 01 1 0107-0210 ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0107-0210 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0211-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-77726-150-0 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-17726-140-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-77726-140-0 01 1 0606- ●
2 NUT; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M22 		9-09111-422-0 01 1 0005-0210 ●
2 NUT; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M22 		9-09111-422-0 01 1 0303-0512 ●
2 NUT; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M22 		0-91111-522-0 01 1 0601- ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M22 		9-09111-422-0 02 1 0005-0011 ● ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M22 		9-09111-422-0 02 1 0012-0512 ● ● ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M22 		0-91111-522-0 02 1 0601- ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) ID=22.5 		9-09150-522-0 01 1 0005-0210 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) ID=22.5 		9-09150-522-0 01 1 0303-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) ID=22.5 		0-91510-522-0 01 1 0604- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=22.5 		9-09150-522-0 02 1 0005-0011 ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=22.5 		9-09150-522-0 02 1 0012-0603 ● ● ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) ID=22.5 		0-91510-522-0 02 1 0604- ● ● ● ●
5 SLEEVE; FLEX HOSE
FULLER FS8209 DD M/T(Y2S) L=1300 		1-09360-677-1 01 1 0005-0011 ●
5 SLEEVE; FLEX HOSE
L=1300 		1-09360-677-1 01 1 0005-0011 ●
5 SLEEVE; FLEX HOSE
FULLER FS8209 DD M/T(Y2S) L=1300 		1-09360-677-1 01 1 0012-0210 ●
5 SLEEVE; FLEX HOSE
L=1300 		1-09360-677-1 01 1 0012-0210 ● ●
5 SLEEVE; FLEX HOSE
FULLER FS8209HD DD M/T(Y3A) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0211-0609 ● ● ●
5 SLEEVE; FLEX HOSE
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0610- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) (B) 		1-47477-264-2 01 1 0005-0210 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) (B) 		1-47477-264-2 01 1 0303-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) (B) 		1-47478-864-0 01 1 0305- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) (C) 		1-47478-389-0 01 1 0005-0106 ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		1-47478-389-0 01 1 0107-0210 ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) (C) 		1-47478-389-0 01 1 0211- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-693-1 01 1 0005-0011 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-693-1 01 1 0012-0106 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
WHEEL BASE 4200MM(42W) (A) 		1-47476-693-1 01 1 0107-0210 ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-693-1 01 1 0107-0210 ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47476-693-2 01 1 0211- ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0210 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M8X30 FLANGE 		0-28680-830-0 02 1 0303-0512 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1 TCS ENG(80L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28680-835-0 02 1 0005-0011 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 0005-0011 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28680-835-0 02 1 0012-0210 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 0012-0210 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28680-835-0 02 1 0211-0512 ● ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0005-0011 ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0012-0602 ● ● ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
51 UNION
6SD1 TCN ENG(31L) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0005-0210 ●
51 UNION
6SD1 TCN ENG(31L) M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0211- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0007 ● ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-0007 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0008-0008 ● ●
80 UNION; 3 WAY
FULLER FS8209 DD M/T(Y2S),ALLISON MD3060P A/T(Y4G) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0008-0008 ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0008-0008 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0009-0011 ● ●
80 UNION; 3 WAY
FULLER FS8209 DD M/T(Y2S) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0009-0011 ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0009-0011 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0012-0210 ●
80 UNION; 3 WAY
ALLISON MD3560P A/T(Y3B) DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0211- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0012-0106 ● ●
80 UNION; 3 WAY
FULLER FS8209 DD M/T(Y2S) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0012-0106 ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0012-0106 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107-0210 ● ●
80 UNION; 3 WAY
FULLER FS8209 DD M/T(Y2S) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107-0210 ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107-0210 ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),ALLISON MD3560P A/T(Y3B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0107-0210 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ● ● ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0211-0405 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406-0609 ● ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406-0609 ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406-0609 ●
80 UNION; 3 WAY
FULLER FS8209HD DD M/T(Y3A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0406-0609 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0610- ● ● ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0610- ●
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0610- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0610- ●
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0005-0011 ● ●
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0012-0106 ● ● ●
80 UNION; 3 WAY
WHEEL BASE 4200MM(42W) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107-0205 ●
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107-0205 ● ● ●
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0206-0210 ● ● ● ●
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0206-0210 ● ●
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0211- ● ● ● ●
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0211- ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005-0011 ●
88 GASKET; NYLON TUBE
EXC. A/T<X9D> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005-0011 ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005-0011 ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0012-0210 ●
88 GASKET; NYLON TUBE
EXC. A/T<X9D> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0012-0210 ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0012-0210 ● ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0211- ● ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0211- ● ●
91 BRACKET; TUBE CLIP
6SD1 TCN ENG(31L) L=150 H=30 		1-47477-629-2 01 1 0410- ●
91 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W) L=150 H=30 		1-47477-629-2 03 1 0005-0101 ●
91 BRACKET; TUBE CLIP
6SD1 TCN ENG(31L) L=150 H=30 		1-47477-629-2 03 1 0102-0106 ●
91 BRACKET; TUBE CLIP
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=150 H=30 		1-47477-629-2 03 1 0107-0405 ●
91 BRACKET; TUBE CLIP
L=150 H=30 		1-47477-629-2 03 1 0406-0409 ●
91 BRACKET; TUBE CLIP
L=150 H=30 		1-47477-629-2 02 1 0410- ●
91 BRACKET; TUBE CLIP
L=225 		1-47477-646-3 01 1 0010-0011 ● ● ●
91 BRACKET; TUBE CLIP
L=225 		1-47477-646-3 01 1 0012-0409 ● ●
91 BRACKET; TUBE CLIP
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=225 		1-47477-646-3 01 1 0410- ●
91 BRACKET; TUBE CLIP
L=225 		1-47477-646-3 01 1 0410- ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0005-0210 ●
184 HOSE; FLEX,AIR GOV
6HK1 TCS ENG(80L) L=330 		1-09363-584-0 01 1 0303- ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) M12 		9-09840-280-0 01 1 0005-0210 ●
185 NUT; FLEX HOSE,AIR GOV
6HK1 TCS ENG(80L) M12 		9-09840-280-0 01 1 0303- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L) ID=12.2 		9-09150-512-0 01 1 0005-0210 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HK1 TCS ENG(80L) ID=12.2 		9-09150-512-0 01 1 0303-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HK1 TCS ENG(80L) ID=12.2 		0-91510-512-0 01 1 0604- ●
201 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0007-0106 ●
201 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0107-0210 ●
201 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0211- ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0011 ● ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0012- ● ● ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0005-0011 ● ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0012-0210 ● ● ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0006 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0011 ●
229 ADAPTER; NYLON TUBE
EXC. A/T<X9D> (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0011 ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0011 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) M14 & PT1/4 		9-48319-149-0 01 1 0012-0210 ●
229 ADAPTER; NYLON TUBE
EXC. A/T<X9D> (B) M14 & PT1/4 		9-48319-149-0 01 1 0012-0210 ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0012-0210 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) M14 & PT1/4 		9-48319-149-0 01 1 0211-0403 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (B) M14 & PT1/4 		9-48319-149-0 01 1 0211-0403 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0005 ● ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006-0006 ● ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0007-0007 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0007-0007 ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0007-0007 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0011 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0011 ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0011 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0012-0106 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0012-0106 ● ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0012-0106 ● ●
229 ADAPTER; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-0210 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-0210 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-0210 ● ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0107-0210 ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0211- ● ● ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0211- ● ● ●
229 ADAPTER; NYLON TUBE
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0012-0210 ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		9-09223-306-1 01 1 0005-0011 ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0005-0011 ● ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0005-0011 ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		9-09223-306-1 01 1 0012-0106 ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0012-0106 ● ● ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0012-0106 ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L) (A) M12 L=66.5 		9-09223-306-1 01 1 0107-0210 ●
247 UNION; AIR PIPE
WHEEL BASE 4200MM(42W) (A) M12 L=66.5 		9-09223-306-1 01 1 0107-0210 ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0107-0210 ● ● ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0107-0210 ● ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0211-0607 ● ● ●
247 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0608- ● ● ●
247 UNION; AIR PIPE
(B) M12 ELBOW 		9-09225-206-1 01 1 0012-0210 ●
247 UNION; AIR PIPE
(B) M12 ELBOW 		9-09225-206-1 01 1 0211-0607 ● ●
247 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 0005-0011 ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0005-0011 ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0005-0011 ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 0012-0210 ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 0012-0106 ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0012-0106 ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0012-0106 ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 0107-0210 ●
248 NUT; PIPE UNION
WHEEL BASE 4200MM(42W) M12 		9-09840-280-0 01 1 0107-0210 ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0107-0210 ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0107-0210 ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0211- ● ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0005-0011 ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0012-0106 ● ● ●
249 WASHER; LK,PIPE UNION
WHEEL BASE 4200MM(42W) ID=12.2 		9-09150-512-0 01 1 0107-0210 ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0107-0210 ● ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0211-0603 ● ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408- ● ● ● ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0012-0210 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0012-0210 ● ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0211- ●
258 CONNECTOR; NYLON TUBE
MLD7Q M/T(X5K),ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0008-0008 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0008-0008 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0008-0008 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0009-0011 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0009-0011 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0106 ● ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0210 ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0210 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0210 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211-0302 ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211-0302 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211-0302 ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0303-0405 ● ●
258 CONNECTOR; NYLON TUBE
6HK1 TCS ENG(80L) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0303-0405 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0303-0405 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
6HK1 TCS ENG(80L) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ●
258 CONNECTOR; NYLON TUBE
EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0211- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0211- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0011 ● ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0012-0302 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0011 ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0012-0407 ● ● ● ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ● ● ● ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005-0210 ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209HD DD M/T(Y3A) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0211- ● ● ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0211- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005-0011 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0012-0106 ● ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-0205 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-0205 ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0206-0210 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0206-0210 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0211- ● ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0211- ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 5500MM(55W) ID=29 OD=39 L=100 		1-09337-022-0 01 1 0005-0210 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W) ID=29 OD=39 L=100 		1-09337-022-0 01 1 0211- ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 0005-0011 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 0012- ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0005-0011 ● ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0012-0210 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-0212 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0406- ● ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0005-0011 ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0012-0210 ● ● ● ●
312 NUT; UNION
(B) M12 		9-99111-412-0 01 1 0005-0512 ●
312 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0601- ● ● ●
315 BOLT; CONNECTOR
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 0005-0011 ● ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 0012-0210 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0005- ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0005-0405 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0005-0405 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0406- ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0406- ● ● ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 0005-0011 ● ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 0012-0103 ● ● ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104- ● ● ● ●
374 CONNECTOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0005-0106 ● ●
374 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0107-0205 ●
374 CONNECTOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0107-0205 ●
374 CONNECTOR
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0005-0106 ● ●
374 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107-0205 ●
374 CONNECTOR
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107-0205 ●
374 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ●
421 NUT; BRKT
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 02 1 0005-0006 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0007-0106 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0210 ● ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
434 CLIP
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) (B) L=250 		1-09707-126-0 01 1 0107-0210 ●
434 CLIP
FULLER RT7608LL M/T(X8P) (C) ID=18 L=25 H=50 		1-09701-096-0 01 1 0108-0210 ●
434 CLIP
6SD1 TCN ENG(31L) (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0211- ● ● ● ●
434 CLIP
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0005- ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28080-825-0 02 1 0005-0011 ●
444 BOLT; UNION
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28080-825-0 02 1 0012-0210 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 02 1 0012-0210 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0005-0106 ● ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 0005-0106 ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0107-0210 ● ● ●
444 BOLT; UNION
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X25 FLANGE 		0-28080-825-0 01 1 0107-0210 ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0107-0210 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0211-0212 ● ● ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28080-825-0 01 1 0211-0212 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0211-0212 ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0301-0512 ● ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0301-0512 ● ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0011 ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0012-0106 ● ● ●
444 BOLT; UNION
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0210 ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0210 ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
çizim 46792
435 435 434 377 377 434 450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D
377 BOLT; BRKT FIX
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0005- ●
434 CLIP
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) (B) L=250 		1-09707-126-0 01 1 0107-0210 ●
434 CLIP
FULLER RT7608LL M/T(X8P) (C) ID=18 L=25 H=50 		1-09701-096-0 01 1 0108-0210 ●
434 CLIP
6SD1 TCN ENG(31L) (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0211- ● ● ● ●
434 CLIP
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0005- ●
435 BOLT; CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0005- ●
450 BRACKET; CLIP
6SD1 TCN ENG(31L) (C) 		1-47477-571-3 01 1 0005-0006 ●
450 BRACKET; CLIP
(B) 		1-47475-461-0 01 1 0005- ●
450 BRACKET; CLIP
(A) 		1-79738-841-3 01 1 0005- ●
çizim 46997
296 297 367 296 296 297 296 421 341 14 34 1 171 154 221 297 297 450
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,AIR TANK
FULLER FS8209 DD M/T(Y2S) L=1350 		0-17816-135-1 01 1 0009-0210 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A) L=1350 		0-17816-135-1 01 1 0211-0605 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A) L=1350 		0-77816-135-1 01 1 0606-0609 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A),6SD1 TCN ENG(31L) L=1350 		0-77816-135-1 01 1 0610- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 0005-0210 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0303- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) 		0-17816-139-1 01 1 0005-0008 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-17816-139-1 01 1 0009-0106 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) 		0-17816-139-1 01 1 0107-0210 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-17816-139-1 01 1 0211-0605 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-77816-139-1 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0005-0011 ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0012-0106 ● ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) WHEEL BASE 4200MM(42W) L=1500 		0-17726-150-0 01 1 0107-0210 ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0107-0210 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0211-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-77726-150-0 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-17726-140-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-77726-140-0 01 1 0606- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) 		1-49124-009-0 01 1 0303- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49121-287-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49123-075-0 01 1 0104-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0005-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-653-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0211-0609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) L=636 		1-49124-966-0 01 1 0610- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0005-0011 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0012-0106 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) 		1-49121-577-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0107-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0211- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0211- ●
34 PIPE; AIR 1-49122-034-0 01 1 0005-0005 ●
34 PIPE; AIR 1-49122-684-0 01 1 0006-0011 ●
34 PIPE; AIR 1-49122-213-0 01 1 0012-0210 ●
34 PIPE; AIR 1-49122-213-0 01 1 0211-0401 ● ●
34 PIPE; AIR
L=864 		1-49124-435-0 01 1 0402- ● ●
34 PIPE; AIR 1-49122-684-0 01 1 0012-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR
6HE1 TC ENG(57L) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-684-0 01 1 0211-0212 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0301-0405 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) 		1-49122-684-0 01 1 0406- ●
34 PIPE; AIR
6HK1 TCS ENG(80L) 		1-49123-682-0 01 1 0303- ●
34 PIPE; AIR 1-49121-921-0 01 1 0005-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-210-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0012-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0211- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-067-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) 		1-49122-656-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0006-0011 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0012-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49123-040-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49121-922-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0211- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-215-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0005-0011 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0012-0106 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 4200MM(42W) 		1-49121-294-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0107-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0211- ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-216-0 01 1 0005- ●
221 BOLT; BRKT
6SD1 TCN ENG(31L) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0106 ●
221 BOLT; BRKT
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0210 ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0212 ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-0212 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0406- ● ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0212 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0301-0512 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0005- ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0005-0405 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0005-0405 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0406- ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0406- ● ● ● ●
421 NUT; BRKT
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 02 1 0005-0006 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0007-0106 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0210 ● ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
450 BRACKET; CLIP
6SD1 TCN ENG(31L) (C) 		1-47477-571-3 01 1 0005-0006 ●
450 BRACKET; CLIP
(B) 		1-47475-461-0 01 1 0005- ●
450 BRACKET; CLIP
(A) 		1-79738-841-3 01 1 0005- ●
çizim 47149
296 367 296 296 296 296 296 297 297 14 296 176 296 171 296 34 154 421 296 296 341
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) 		1-49124-009-0 01 1 0303- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49121-287-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49123-075-0 01 1 0104-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0005-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-653-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0211-0609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) L=636 		1-49124-966-0 01 1 0610- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0005-0011 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0012-0106 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) 		1-49121-577-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0107-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0211- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0211- ●
34 PIPE; AIR 1-49122-034-0 01 1 0005-0005 ●
34 PIPE; AIR 1-49122-684-0 01 1 0006-0011 ●
34 PIPE; AIR 1-49122-213-0 01 1 0012-0210 ●
34 PIPE; AIR 1-49122-213-0 01 1 0211-0401 ● ●
34 PIPE; AIR
L=864 		1-49124-435-0 01 1 0402- ● ●
34 PIPE; AIR 1-49122-684-0 01 1 0012-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR
6HE1 TC ENG(57L) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-684-0 01 1 0211-0212 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0301-0405 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) 		1-49122-684-0 01 1 0406- ●
34 PIPE; AIR
6HK1 TCS ENG(80L) 		1-49123-682-0 01 1 0303- ●
34 PIPE; AIR 1-49121-921-0 01 1 0005-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-210-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0012-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0211- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-067-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) 		1-49122-656-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0006-0011 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0012-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49123-040-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49121-922-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0211- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-215-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0005-0011 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0012-0106 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 4200MM(42W) 		1-49121-294-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0107-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0211- ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-216-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) 		1-49121-290-0 01 1 0005-0007 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) L=1713 SERVICED BY L=1700 		1-47428-821-0 01 1 0008-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) L=1749 SERVICED BY L=1820 		1-47428-822-0 01 1 0303- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0005-0011 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0012-0106 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W) 		1-49121-578-0 01 1 0107-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0107-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0211- ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-217-0 01 1 0005- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0212 ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-0212 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0406- ● ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0212 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0301-0512 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0005- ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0005-0405 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0005-0405 ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0406- ● ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0406- ● ● ● ●
421 NUT; BRKT
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 02 1 0005-0006 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0007-0106 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0210 ● ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
çizim 47188
222 184 1 14 176 34 171 154 297 421 341 421 341
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,AIR TANK
FULLER FS8209 DD M/T(Y2S) L=1350 		0-17816-135-1 01 1 0009-0210 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A) L=1350 		0-17816-135-1 01 1 0211-0605 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A) L=1350 		0-77816-135-1 01 1 0606-0609 ●
1 HOSE; FLEX,AIR TANK
FULLER FS8209HD DD M/T(Y3A),6SD1 TCN ENG(31L) L=1350 		0-77816-135-1 01 1 0610- ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) L=320 		1-09363-560-1 01 1 0005-0210 ●
1 HOSE; FLEX,AIR TANK
6HK1 TCS ENG(80L) L=350 		1-09363-558-0 01 1 0303- ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) 		0-17816-139-1 01 1 0005-0008 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-17816-139-1 01 1 0009-0106 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) 		0-17816-139-1 01 1 0107-0210 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-17816-139-1 01 1 0211-0605 ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) 		0-77816-139-1 01 1 0606- ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0005-0011 ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0012-0106 ● ●
1 HOSE; FLEX,AIR TANK
ALLISON MD3060P A/T(Y4G) WHEEL BASE 4200MM(42W) L=1500 		0-17726-150-0 01 1 0107-0210 ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0107-0210 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-17726-150-0 01 1 0211-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=1500 		0-77726-150-0 01 1 0606- ● ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-17726-140-0 01 1 0005-0605 ●
1 HOSE; FLEX,AIR TANK
L=1400 		0-77726-140-0 01 1 0606- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) 		1-49124-009-0 01 1 0303- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49121-287-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49123-075-0 01 1 0104-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0005-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-653-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0211-0609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) L=636 		1-49124-966-0 01 1 0610- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0005-0011 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0012-0106 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) 		1-49121-577-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0107-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0211- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0211- ●
34 PIPE; AIR 1-49122-034-0 01 1 0005-0005 ●
34 PIPE; AIR 1-49122-684-0 01 1 0006-0011 ●
34 PIPE; AIR 1-49122-213-0 01 1 0012-0210 ●
34 PIPE; AIR 1-49122-213-0 01 1 0211-0401 ● ●
34 PIPE; AIR
L=864 		1-49124-435-0 01 1 0402- ● ●
34 PIPE; AIR 1-49122-684-0 01 1 0012-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR
6HE1 TC ENG(57L) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-684-0 01 1 0211-0212 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0301-0405 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) 		1-49122-684-0 01 1 0406- ●
34 PIPE; AIR
6HK1 TCS ENG(80L) 		1-49123-682-0 01 1 0303- ●
34 PIPE; AIR 1-49121-921-0 01 1 0005-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-210-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0012-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0211- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-067-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) 		1-49122-656-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0006-0011 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0012-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49123-040-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49121-922-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0211- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-215-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0005-0011 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0012-0106 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 4200MM(42W) 		1-49121-294-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0107-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0211- ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-216-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) 		1-49121-290-0 01 1 0005-0007 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) L=1713 SERVICED BY L=1700 		1-47428-821-0 01 1 0008-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) L=1749 SERVICED BY L=1820 		1-47428-822-0 01 1 0303- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0005-0011 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0012-0106 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W) 		1-49121-578-0 01 1 0107-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0107-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0211- ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-217-0 01 1 0005- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0005-0210 ●
184 HOSE; FLEX,AIR GOV
6HK1 TCS ENG(80L) L=330 		1-09363-584-0 01 1 0303- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCS ENG(80L) L=1224 SERVICED BY L=1250 		1-47428-817-0 01 1 0303- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-0212 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0406- ● ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0212 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0301-0512 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
421 NUT; BRKT
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 02 1 0005-0006 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0007-0106 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0210 ● ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
çizim 47690
312 322 323 313 333 258 296 438 328 337 231 321 296 337 258 325 330 232 307 230 230 437 374
BalonParca AdiParca NoAdetTipApplied Date A B C D
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 0005-0011 ● ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 0012-0103 ● ● ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0104- ● ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 0005-0011 ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 0012-0103 ● ● ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0104- ● ● ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0005-0011 ● ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0012- ● ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0005-0011 ● ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0012- ● ● ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408- ● ● ● ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0012-0210 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0012-0210 ● ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0211- ●
258 CONNECTOR; NYLON TUBE
MLD7Q M/T(X5K),ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0007 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0008-0008 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0008-0008 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0008-0008 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0009-0011 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0009-0011 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0106 ● ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0012-0106 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0210 ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0210 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0210 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211-0302 ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211-0302 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0211-0302 ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0303-0405 ● ●
258 CONNECTOR; NYLON TUBE
6HK1 TCS ENG(80L) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0303-0405 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0303-0405 ●
258 CONNECTOR; NYLON TUBE
ALLISON MD3060P A/T(Y4G) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
6HK1 TCS ENG(80L) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0406- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ●
258 CONNECTOR; NYLON TUBE
EXC. A/T<X9D> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) EXC. A/T<X9D> (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0211- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L) (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0211- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0011 ● ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0012-0302 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0011 ● ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0012-0407 ● ● ● ●
258 CONNECTOR; NYLON TUBE
EXC. AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0408- ● ● ● ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005-0210 ●
258 CONNECTOR; NYLON TUBE
FULLER FS8209HD DD M/T(Y3A) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0211- ● ● ●
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0211- ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005-0011 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0012-0106 ● ● ●
258 CONNECTOR; NYLON TUBE
WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-0205 ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-0205 ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0206-0210 ● ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0206-0210 ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0211- ● ● ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0211- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0212 ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0005- ● ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0005-0011 ● ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0012- ● ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0005-0011 ● ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) (A) M12 		9-09840-280-0 01 1 0012-0210 ● ● ● ●
312 NUT; UNION
(B) M12 		9-99111-412-0 01 1 0005-0512 ●
312 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0601- ● ● ●
313 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0005-0603 ●
313 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> 		1-09656-728-1 01 1 0406-0407 ● ● ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> 		1-09656-712-0 01 1 0408- ● ● ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0005-0011 ● ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0012-0405 ● ● ● ●
321 JOINT; FLEX HOSE
EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 0406- ● ● ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005-0011 ● ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0012- ● ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0011 ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0012-0603 ● ● ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0005-0011 ● ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0012- ● ● ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0005-0011 ● ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0012- ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0005-0011 ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0012-0603 ● ● ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ● ● ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0011 ● ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0012- ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0005-0011 ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0012-0608 ● ● ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ● ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 0005-0011 ● ● ●
374 CONNECTOR
(A) 		1-09656-721-0 01 1 0012-0103 ● ● ● ●
374 CONNECTOR
(A) 		1-09656-754-0 01 1 0104- ● ● ● ●
374 CONNECTOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0005-0106 ● ●
374 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0107-0205 ●
374 CONNECTOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0107-0205 ●
374 CONNECTOR
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0005-0106 ● ●
374 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107-0205 ●
374 CONNECTOR
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0107-0205 ●
374 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012-0210 ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0011 ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0012-0605 ● ● ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ● ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0011 ● ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0012- ● ● ● ●
çizim 48905
297 297 297 297 297 297 171 176 296 154 34 14 297 297 297 297 297 421 341
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HK1 TCS ENG(80L) 		1-49124-009-0 01 1 0303- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49121-287-0 01 1 0005-0103 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) 		1-49123-075-0 01 1 0104-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0005-0106 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-653-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) 		1-49122-653-0 01 1 0211-0609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) L=636 		1-49124-966-0 01 1 0610- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0005-0011 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0012-0106 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) 		1-49121-577-0 01 1 0107-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0107-0210 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49121-577-0 01 1 0211- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49117-717-0 01 1 0211- ●
34 PIPE; AIR 1-49122-034-0 01 1 0005-0005 ●
34 PIPE; AIR 1-49122-684-0 01 1 0006-0011 ●
34 PIPE; AIR 1-49122-213-0 01 1 0012-0210 ●
34 PIPE; AIR 1-49122-213-0 01 1 0211-0401 ● ●
34 PIPE; AIR
L=864 		1-49124-435-0 01 1 0402- ● ●
34 PIPE; AIR 1-49122-684-0 01 1 0012-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR
6HE1 TC ENG(57L) 		1-49122-684-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-684-0 01 1 0211-0212 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-684-0 01 1 0301-0405 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) 		1-49122-684-0 01 1 0406- ●
34 PIPE; AIR
6HK1 TCS ENG(80L) 		1-49123-682-0 01 1 0303- ●
34 PIPE; AIR 1-49121-921-0 01 1 0005-0106 ●
34 PIPE; AIR
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49121-921-0 01 1 0107-0210 ●
34 PIPE; AIR 1-49122-210-0 01 1 0005- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0012-0106 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-656-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0211- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) 		1-49122-067-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) 		1-49122-656-0 01 1 0005-0005 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-656-0 01 1 0006-0011 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0012-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L) WHEEL BASE 4200MM(42W) 		1-49123-040-0 01 1 0107-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49121-922-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-194-0 01 1 0211- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-215-0 01 1 0005- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0005-0106 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) 		1-49121-289-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-289-0 01 1 0211- ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0005-0011 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0012-0106 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
WHEEL BASE 4200MM(42W) 		1-49121-294-0 01 1 0107-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0107-0210 ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49121-294-0 01 1 0211- ● ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-216-0 01 1 0005- ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) 		1-49121-290-0 01 1 0005-0007 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) L=1713 SERVICED BY L=1700 		1-47428-821-0 01 1 0008-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HK1 TCS ENG(80L) L=1749 SERVICED BY L=1820 		1-47428-822-0 01 1 0303- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0005-0011 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0012-0106 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W) 		1-49121-578-0 01 1 0107-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0107-0210 ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49121-578-0 01 1 0211- ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-217-0 01 1 0005- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0212 ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301- ● ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-0212 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0005-0405 ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0406- ● ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0406- ● ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
6HE1 TC ENG(57L) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0006 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0007-0106 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0210 ● ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0212 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0301-0512 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
421 NUT; BRKT
6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 02 1 0005-0006 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0007-0106 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0210 ● ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
