◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#9279) — 132 parça

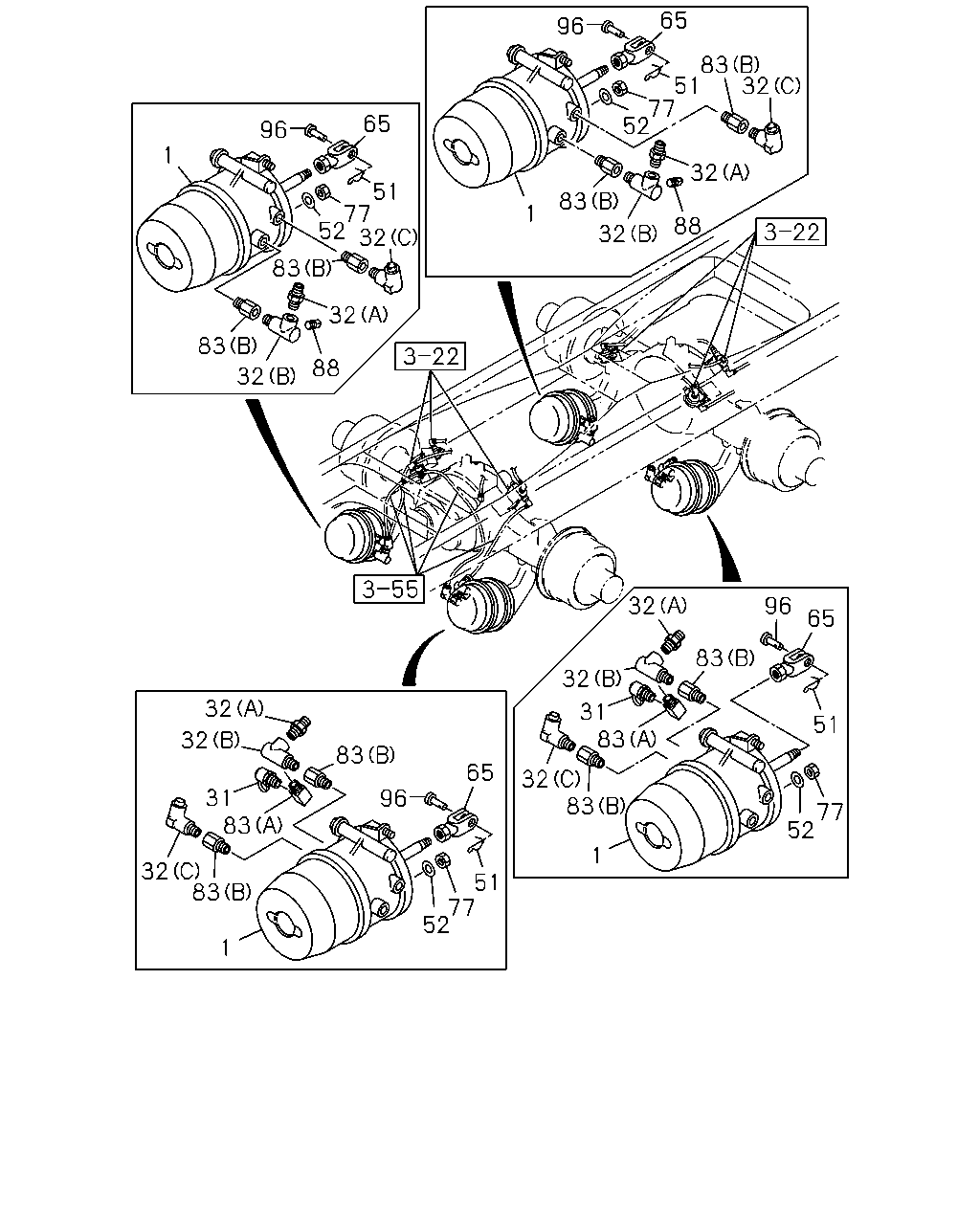

çizim 10733
65 96 83 51 32 77 52 65 96 1 32 51 77 52 32 83 1 88 32 83 32 83 88 32 32 96 65 83 32 32 31 83 51 32 83 65 32 83 31 83 96 77 52 1 32 83 51 77 52 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 0005-1006 ● ●
1 CHAMBER ASM; SPRING 1-48250-955-0 02 1 1007- ● ●
1 CHAMBER ASM; SPRING 1-48250-638-0 04 1 0005-0210 ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0012-0210 ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0012-0210 ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0211- ● ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0211- ● ●
31 CONNECTOR 1-47459-013-1 01 1 0005- ● ●
31 CONNECTOR 1-47459-013-0 02 1 0005-0011 ●
31 CONNECTOR 1-47459-013-1 02 1 0012- ● ●
32 CONNECTOR; SPR CHAMBER
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0005- ● ●
32 CONNECTOR; SPR CHAMBER
(B) 		1-09660-697-1 02 1 0005- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0005-0005 ● ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0006- ● ●
32 CONNECTOR; SPR CHAMBER
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 04 1 0005-0011 ●
32 CONNECTOR; SPR CHAMBER
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 04 1 0012- ● ●
32 CONNECTOR; SPR CHAMBER
(B) 		1-09660-697-1 04 1 0005-0011 ●
32 CONNECTOR; SPR CHAMBER
(B) 		1-09660-697-1 04 1 0012- ● ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 04 1 0005-0005 ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0006-0011 ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0012- ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 0211-0609 ● ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 0610- ● ● ●
51 PIN; SPLIT
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-48259-275-0 02 1 0610- ●
52 WASHER; PL 1-41519-038-0 04 1 0005-0011 ● ●
52 WASHER; PL 1-41519-038-0 04 1 0012-0210 ● ● ●
52 WASHER; PL 1-41519-038-0 04 1 0012-0210 ●
52 WASHER; PL 1-41519-038-0 04 1 0211- ● ●
52 WASHER; PL 1-41519-038-0 04 1 0211- ●
52 WASHER; PL 1-41519-038-0 08 1 0005-0210 ●
52 WASHER; PL 1-41519-035-0 04 1 0211-0609 ● ●
52 WASHER; PL 1-41519-035-0 04 1 0211-0609 ●
52 WASHER; PL 1-41519-035-0 04 1 0610- ● ●
52 WASHER; PL
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41519-035-0 04 1 0610- ●
65 JOINT; JAW 1-48259-321-0 02 1 0211-0609 ● ● ●
65 JOINT; JAW 1-48259-321-0 02 1 0610- ● ● ●
65 JOINT; JAW
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-48259-321-0 02 1 0610- ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0005-0011 ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0012-0210 ● ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0012-0210 ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0211- ● ● ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0211- ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 08 1 0005-0210 ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005-0007 ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0008-0210 ● ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0008-0210 ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0211- ● ● ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0211- ● ●
83 ADAPTER; SPR CHAMBER
(B) PT3/8 		1-09664-210-0 02 1 0005-0005 ● ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0006-0007 ● ●
83 ADAPTER; SPR CHAMBER
6HE1 TC ENG(57L) (B) NPTF3/8 & RC3/8 		1-09660-548-0 04 1 0008-0101 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 04 1 0102- ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0005-0007 ●
83 ADAPTER; SPR CHAMBER
6SD1 TCN ENG(31L) (B) NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0008-0101 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0008-0101 ●
83 ADAPTER; SPR CHAMBER
(B) PT3/8 		1-09664-210-0 04 1 0005-0005 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 04 1 0006-0007 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 08 1 0008-0011 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 08 1 0012- ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0012-0210 ●
88 PLUG; SPR CHAMBER
PT3/8 		9-09204-517-0 01 1 0005- ● ●
88 PLUG; SPR CHAMBER
PT3/8 		9-09204-517-0 02 1 0005-0011 ●
88 PLUG; SPR CHAMBER
PT3/8 		9-09204-517-0 02 1 0012- ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 0211-0609 ● ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 0610- ● ● ●
96 PIN; JAW JOINT
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-48259-273-0 02 1 0610- ●

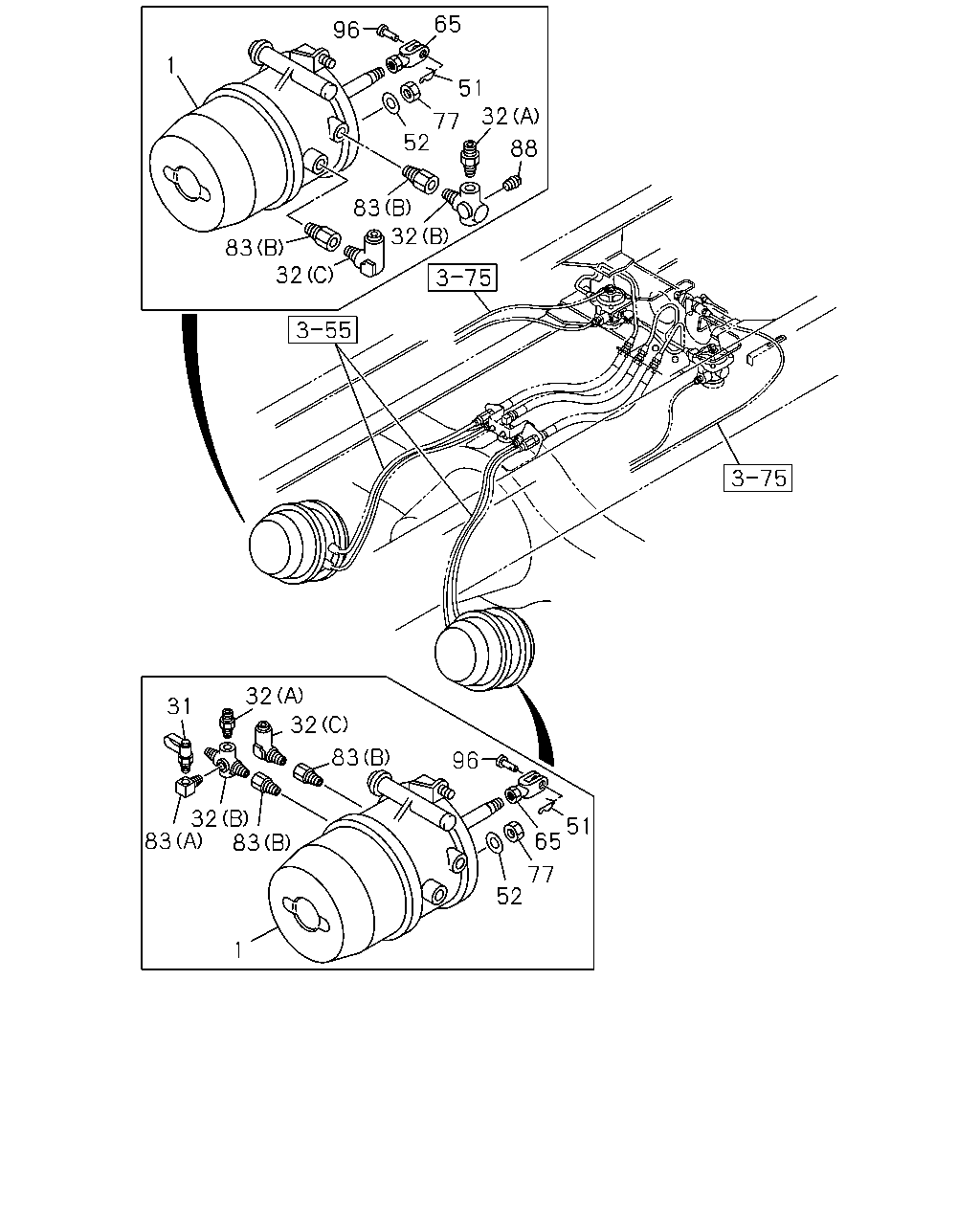

çizim 46154
65 96 1 51 32 77 52 88 83 32 83 32 32 31 32 83 96 32 83 83 51 65 77 52 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; SPRING 1-48250-558-0 02 1 0005-1006 ● ●
1 CHAMBER ASM; SPRING 1-48250-955-0 02 1 1007- ● ●
1 CHAMBER ASM; SPRING 1-48250-638-0 04 1 0005-0210 ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0012-0210 ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0012-0210 ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0211- ● ●
1 CHAMBER ASM; SPRING 1-48250-638-0 02 1 0211- ● ●
31 CONNECTOR 1-47459-013-1 01 1 0005- ● ●
31 CONNECTOR 1-47459-013-0 02 1 0005-0011 ●
31 CONNECTOR 1-47459-013-1 02 1 0012- ● ●
32 CONNECTOR; SPR CHAMBER
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0005- ● ●
32 CONNECTOR; SPR CHAMBER
(B) 		1-09660-697-1 02 1 0005- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0005-0005 ● ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0006- ● ●
32 CONNECTOR; SPR CHAMBER
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 04 1 0005-0011 ●
32 CONNECTOR; SPR CHAMBER
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 04 1 0012- ● ●
32 CONNECTOR; SPR CHAMBER
(B) 		1-09660-697-1 04 1 0005-0011 ●
32 CONNECTOR; SPR CHAMBER
(B) 		1-09660-697-1 04 1 0012- ● ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 04 1 0005-0005 ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0006-0011 ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0012- ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 0211-0609 ● ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 0610- ● ● ●
51 PIN; SPLIT
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-48259-275-0 02 1 0610- ●
52 WASHER; PL 1-41519-038-0 04 1 0005-0011 ● ●
52 WASHER; PL 1-41519-038-0 04 1 0012-0210 ● ● ●
52 WASHER; PL 1-41519-038-0 04 1 0012-0210 ●
52 WASHER; PL 1-41519-038-0 04 1 0211- ● ●
52 WASHER; PL 1-41519-038-0 04 1 0211- ●
52 WASHER; PL 1-41519-038-0 08 1 0005-0210 ●
52 WASHER; PL 1-41519-035-0 04 1 0211-0609 ● ●
52 WASHER; PL 1-41519-035-0 04 1 0211-0609 ●
52 WASHER; PL 1-41519-035-0 04 1 0610- ● ●
52 WASHER; PL
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-41519-035-0 04 1 0610- ●
65 JOINT; JAW 1-48259-321-0 02 1 0211-0609 ● ● ●
65 JOINT; JAW 1-48259-321-0 02 1 0610- ● ● ●
65 JOINT; JAW
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-48259-321-0 02 1 0610- ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0005-0011 ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0012-0210 ● ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0012-0210 ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0211- ● ● ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 0211- ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 08 1 0005-0210 ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0005-0007 ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0008-0210 ● ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0008-0210 ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0211- ● ● ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0211- ● ●
83 ADAPTER; SPR CHAMBER
(B) PT3/8 		1-09664-210-0 02 1 0005-0005 ● ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0006-0007 ● ●
83 ADAPTER; SPR CHAMBER
6HE1 TC ENG(57L) (B) NPTF3/8 & RC3/8 		1-09660-548-0 04 1 0008-0101 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 04 1 0102- ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0005-0007 ●
83 ADAPTER; SPR CHAMBER
6SD1 TCN ENG(31L) (B) NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0008-0101 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0008-0101 ●
83 ADAPTER; SPR CHAMBER
(B) PT3/8 		1-09664-210-0 04 1 0005-0005 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 04 1 0006-0007 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 08 1 0008-0011 ●
83 ADAPTER; SPR CHAMBER
(B) NPTF3/8 & RC3/8 		1-09660-548-0 08 1 0012- ● ●
83 ADAPTER; SPR CHAMBER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0012-0210 ●
88 PLUG; SPR CHAMBER
PT3/8 		9-09204-517-0 01 1 0005- ● ●
88 PLUG; SPR CHAMBER
PT3/8 		9-09204-517-0 02 1 0005-0011 ●
88 PLUG; SPR CHAMBER
PT3/8 		9-09204-517-0 02 1 0012- ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 0211-0609 ● ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 0610- ● ● ●
96 PIN; JAW JOINT
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-48259-273-0 02 1 0610- ●
