◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 3 - Brakes, Brake System ▶ 3-26 - TRAILER CONTROL ▶
3-26 — TRAILER CONTROL (#9276) — 186 parça

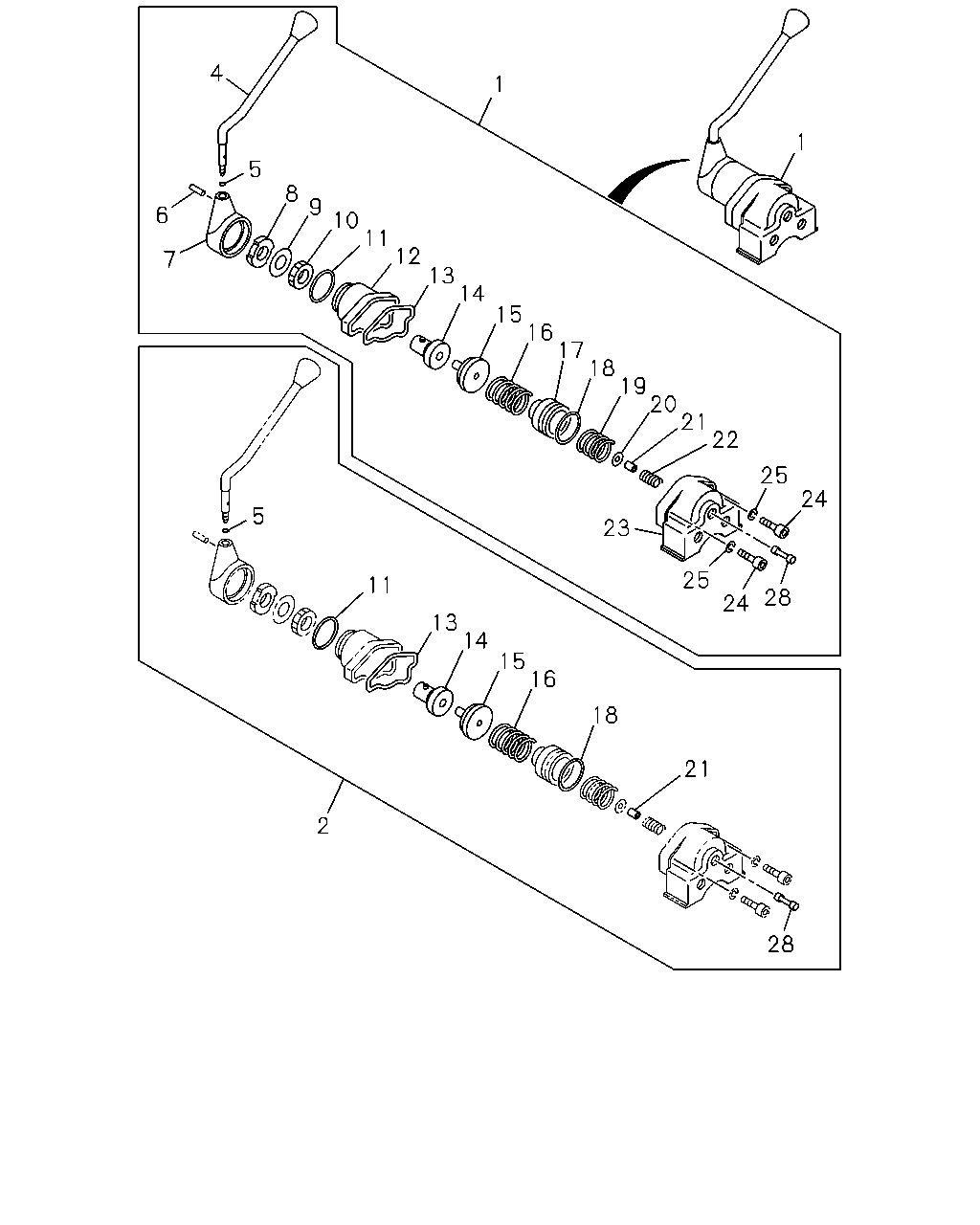

çizim 9472
4 1 1 5 8 9 6 10 11 12 7 13 14 15 16 17 18 19 20 21 22 25 24 5 23 25 11 28 24 13 14 15 16 18 21 2 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; HAND BRK 1-48100-674-0 01 1 0005- ●
2 REPAIR KIT; HAND BRK VLV 1-85576-180-0 01 1 0005- ●
4 HANDLE ASM; BRK VLV 1-48119-144-0 01 1 0005- ●
5 GASKET; HANDLE 1-48119-128-0 01 1 0005- ●
6 PIN; SPR 1-48119-143-0 01 1 0005- ●
7 HEAD; BRK VLV 1-48119-131-1 01 1 0005- ●
8 STOPPER; BRK VLV 1-48119-136-0 01 1 0005- ●
9 WASHER; LK,ADJ 1-48119-123-0 01 1 0005- ●
10 RING; ADJ 1-48119-122-0 01 1 0005- ●
11 GASKET; HD TO COVER 1-48119-130-0 01 1 0005- ●
12 COVER; BRK VLV 1-48129-097-1 01 1 0005- ●
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0005- ●
14 FOLLOWER; CAM 1-48129-109-0 01 1 0005- ●
15 CAM; FOLLOWER 1-48129-110-0 01 1 0005- ●
16 SPRING; GRUDUATING 1-48129-101-0 01 1 0005- ●
17 PISTON; SPR 1-48129-095-0 01 1 0005- ●
18 GASKET; BODY 1-48129-096-0 01 1 0005- ●
19 SPRING; PISTON 1-48129-094-0 01 1 0005- ●
20 GUIDE; VLV 1-48129-090-0 01 1 0005- ●
21 VALVE; IN & EXH 1-48121-017-0 01 1 0005- ●
22 SPRING; VLV 1-48123-024-0 01 1 0005- ●
23 BODY; BRK VLV 1-48111-060-1 01 1 0005- ●
24 BOLT; EXH VLV 1-48129-092-0 02 1 0005- ●
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 0005- ●
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0005- ●

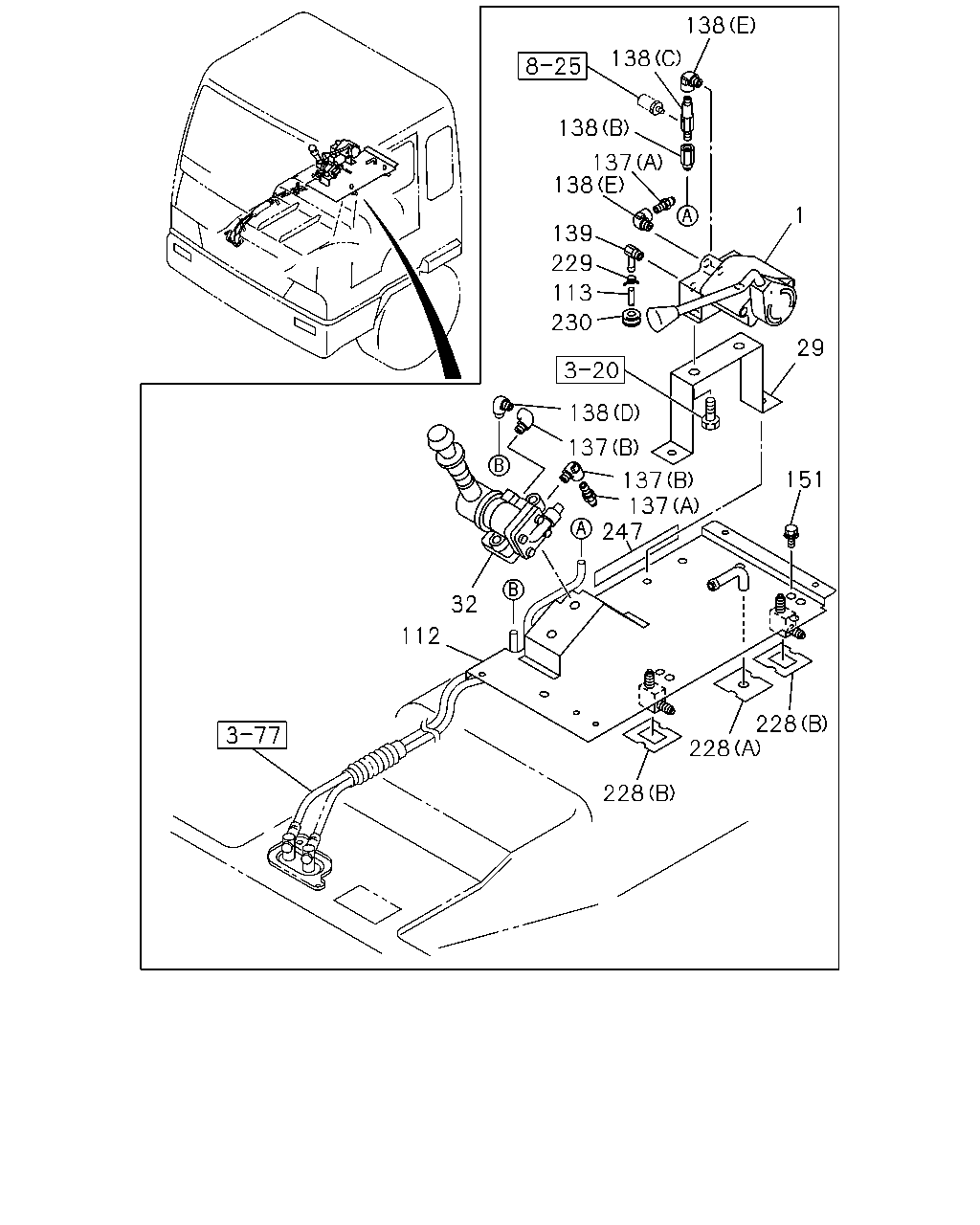

çizim 43178
138 138 138 137 138 1 139 229 113 230 29 138 137 151 137 137 247 32 112 228 228 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; HAND BRK 1-48100-674-0 01 1 0005- ●
29 BRACKET; HAND BRK 1-73908-268-0 01 1 0005- ●
32 VALVE; BRK,HAND CONT 1-48460-306-0 01 1 0005-0011 ● ● ●
32 VALVE; BRK,HAND CONT 1-48460-306-0 01 1 0012- ● ● ● ●
112 BRACKET; CONT VLV 1-73908-054-6 01 1 0005-0011 ● ●
112 BRACKET; CONT VLV 1-73908-054-7 01 1 0012- ● ● ●
112 BRACKET; CONT VLV 1-73908-282-2 01 1 0005- ●
113 PIPE; EXH,BRK VLV
L=180 SERVICED BY L=10000 		9-09914-701-0 01 1 0005- ●
137 CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ●
137 CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012- ● ● ●
137 CONNECTOR; SUPPLY
(B) PT1/4 2WAY 		1-09660-693-0 02 1 0005- ●
137 CONNECTOR; SUPPLY
(A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005- ●
138 CONNECTOR; DELIVERY
(A) 		1-09650-240-1 01 1 0005-0011 ● ●
138 CONNECTOR; DELIVERY
(A) 		1-09650-240-1 01 1 0012- ● ● ●
138 CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 0005-0007 ● ● ●
138 CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008-0011 ● ● ●
138 CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0012- ● ● ● ●
138 CONNECTOR; DELIVERY
(C) M14 		1-09656-391-2 01 1 0005- ●
138 CONNECTOR; DELIVERY
(E) PT1/4 2WAY 		1-09660-693-0 02 1 0005- ●
138 CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
139 CONNECTOR; EXH 8-97062-077-1 01 1 0005- ●
151 BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0011 ● ●
151 BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0012- ● ● ●
151 BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ●
228 SEAL; BRKT
(A) 		1-79996-382-0 01 1 0005- ●
228 SEAL; BRKT
(B) 		1-79998-766-2 02 1 0005- ●
229 CLIP; PIPE
ID=14 		8-94238-572-0 01 1 0005- ●
230 GROMMET; EXH
OD=24 		9-61166-007-0 01 1 0005- ●
247 SEAL; HOSE
100X40 		1-72498-022-1 01 1 0005- ●

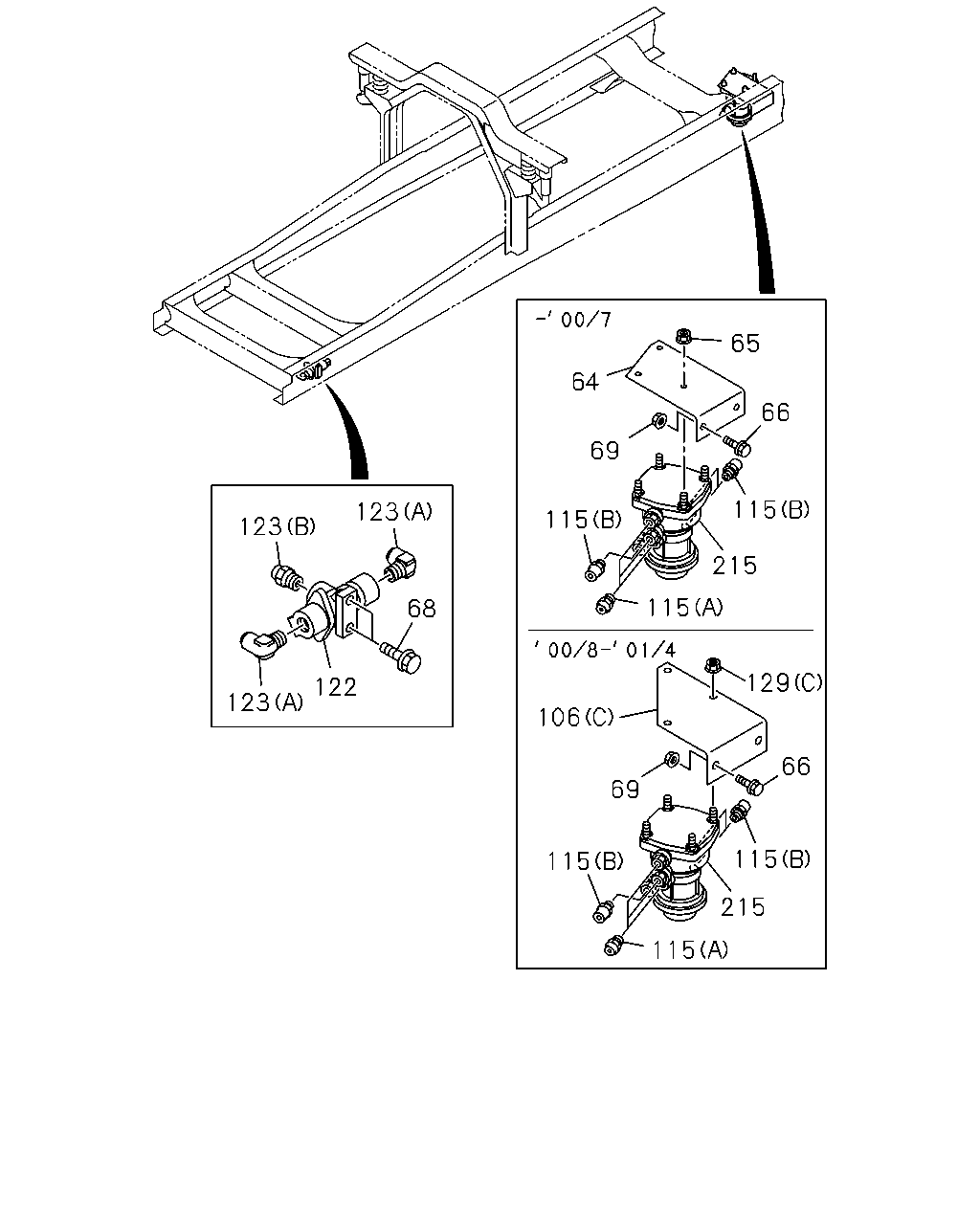

çizim 43213
65 64 66 69 115 123 115 123 215 115 68 129 122 123 106 66 69 115 115 215 115
BalonParca AdiParca NoAdetTipApplied Date A B C D
64 BRACKET; RELAY VLV 1-48495-193-0 01 1 0005-0007 ●
65 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 03 1 0005-0007 ●
66 BOLT; VLV BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512 ●
66 BOLT; VLV BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
68 BOLT; DOUBLE CHECK VLV
M8X20 FLANGE 		0-28080-820-0 02 1 0005-0512 ●
68 BOLT; DOUBLE CHECK VLV
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
69 NUT; VLV BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ●
69 NUT; VLV BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
106 BRACKET; VLV
(C) 		1-48495-226-0 01 1 0008-0104 ●
106 BRACKET; VLV
(A) 		1-47479-252-0 01 1 0105- ●
106 BRACKET; VLV
(B) 		1-48495-228-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 03 1 0005-0104 ●
115 CONNECTOR; DUAL RELAY VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0005-0104 ●
115 CONNECTOR; DUAL RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(C) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(D) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0105- ●
122 VALVE ASM; DOUBLE CHECK 1-48410-531-1 01 1 0005- ●
123 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0005- ●
123 CONNECTOR; DBL CHECK VLV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0005- ●
129 NUT; VLV
(C) M8 FLANGE 		0-91150-108-0 03 1 0008-0104 ●
129 NUT; VLV
(A) M6 FLANGE 		0-91150-106-0 02 1 0105-0602 ●
129 NUT; VLV
(A) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
129 NUT; VLV
(B) M10 FLANGE 		0-91150-110-0 02 1 0105-0602 ●
129 NUT; VLV
(B) M10 FLANGE 		0-91180-110-0 02 1 0603- ●
215 VALVE; TRAILER CONT 1-48210-684-0 01 1 0005-0104 ●

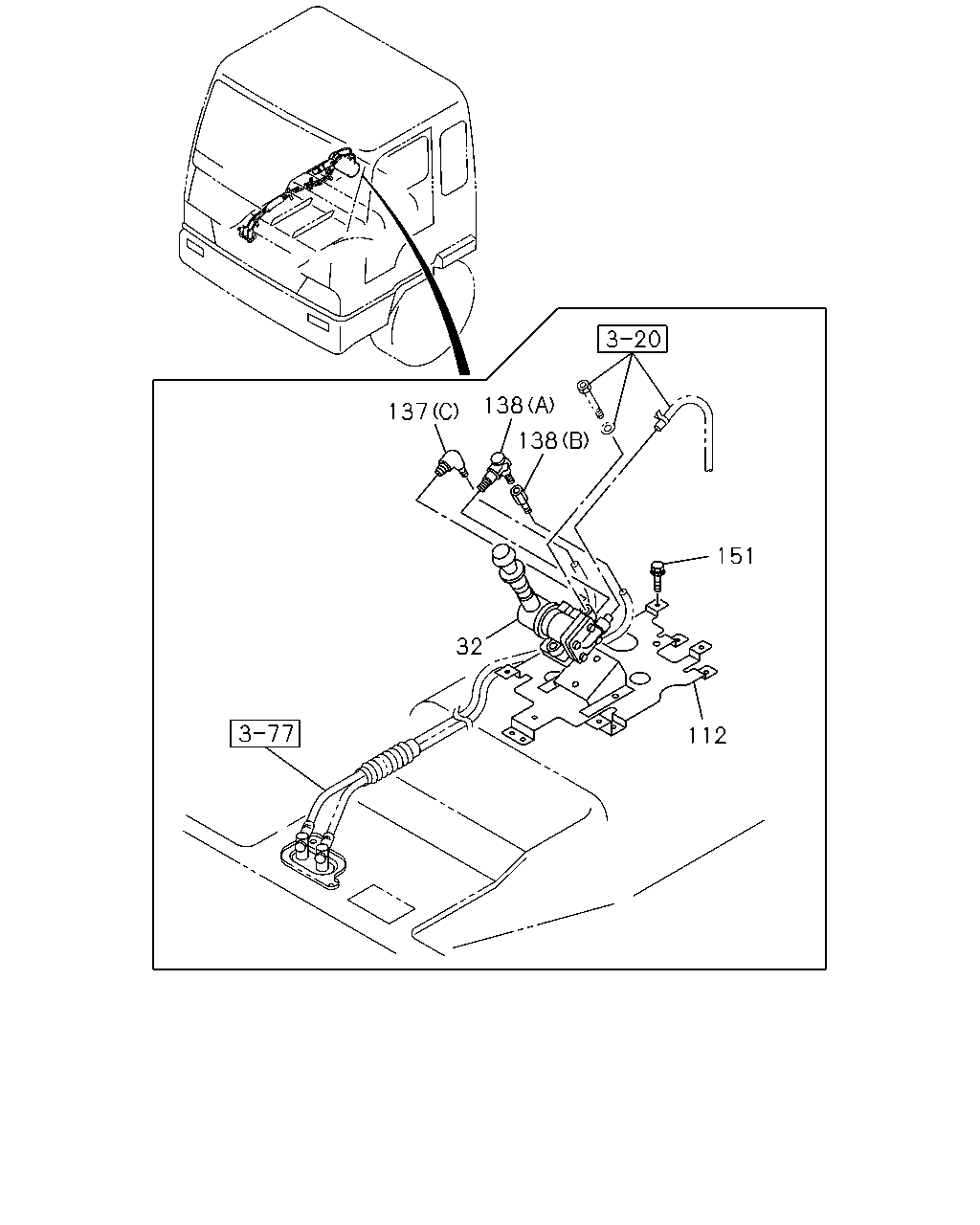

çizim 44187
138 137 138 151 32 112
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 VALVE; BRK,HAND CONT 1-48460-306-0 01 1 0005-0011 ● ● ●
32 VALVE; BRK,HAND CONT 1-48460-306-0 01 1 0012- ● ● ● ●
112 BRACKET; CONT VLV 1-73908-054-6 01 1 0005-0011 ● ●
112 BRACKET; CONT VLV 1-73908-054-7 01 1 0012- ● ● ●
112 BRACKET; CONT VLV 1-73908-282-2 01 1 0005- ●
137 CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0011 ● ●
137 CONNECTOR; SUPPLY
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0012- ● ● ●
137 CONNECTOR; SUPPLY
(B) PT1/4 2WAY 		1-09660-693-0 02 1 0005- ●
137 CONNECTOR; SUPPLY
(A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005- ●
138 CONNECTOR; DELIVERY
(A) 		1-09650-240-1 01 1 0005-0011 ● ●
138 CONNECTOR; DELIVERY
(A) 		1-09650-240-1 01 1 0012- ● ● ●
138 CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 0005-0007 ● ● ●
138 CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008-0011 ● ● ●
138 CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0012- ● ● ● ●
138 CONNECTOR; DELIVERY
(C) M14 		1-09656-391-2 01 1 0005- ●
138 CONNECTOR; DELIVERY
(E) PT1/4 2WAY 		1-09660-693-0 02 1 0005- ●
138 CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
151 BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0011 ● ●
151 BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0012- ● ● ●
151 BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ●

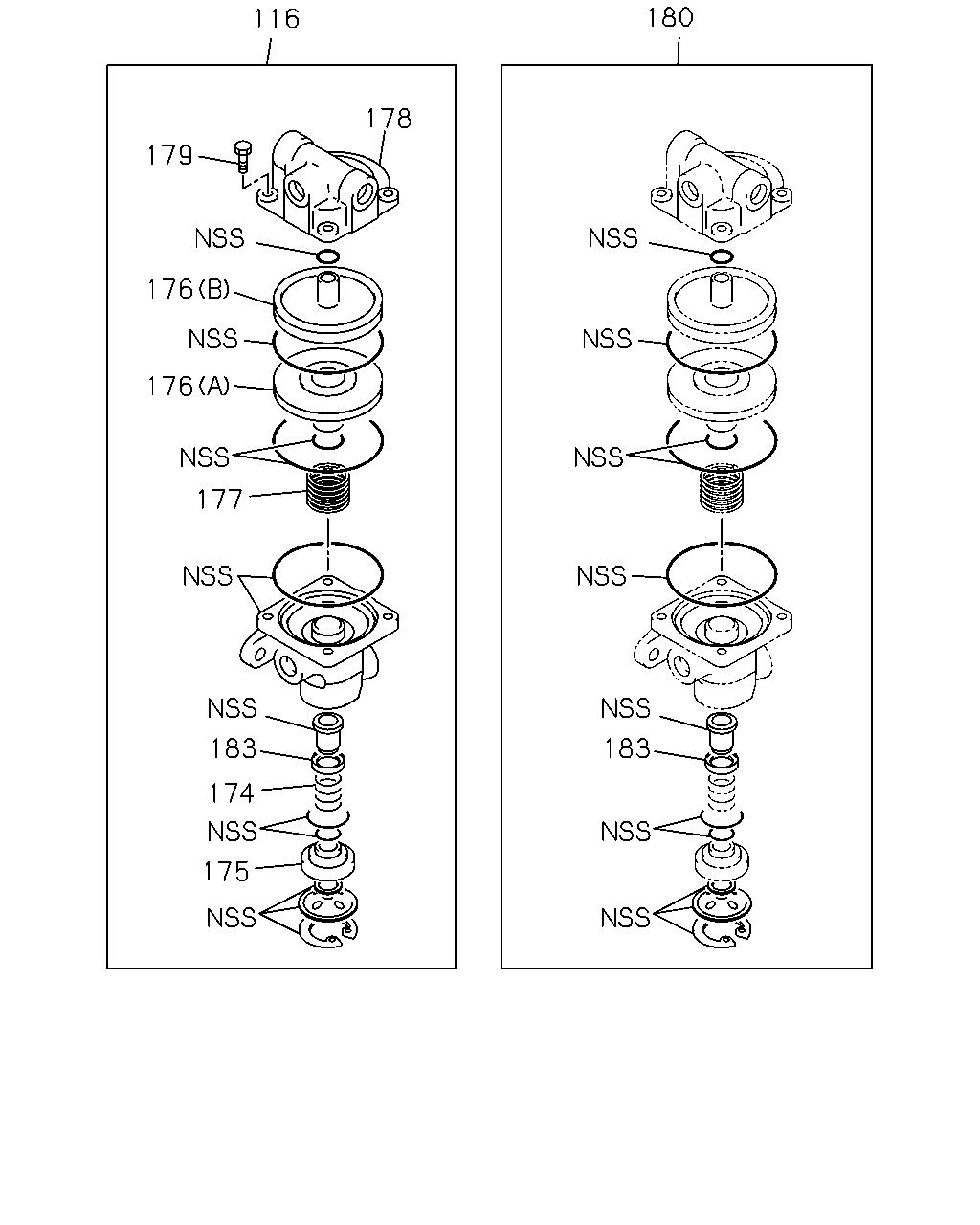

çizim 45170
180 116 178 179 176 176 177 183 183 174 175
BalonParca AdiParca NoAdetTipApplied Date A B C D
116 VALVE; DUAL RELAY 1-48210-157-1 01 1 0105- ●
174 SPRING; INL VLV 1-47819-040-0 01 1 0105- ●
175 GUIDE; VLV,RELAY VLV 1-48129-078-0 01 1 0105- ●
176 PISTON; RELAY VLV
(A) 		1-48219-032-0 01 1 0105- ●
176 PISTON; RELAY VLV
(B) 		1-48219-047-0 01 1 0105- ●
177 SPRING; RELAY VLV 1-48219-048-0 01 1 0105- ●
178 COVER; RELAY VLV 1-48219-050-1 01 1 0105- ●
179 BOLT; COVER,RELAY VLV 1-48219-041-0 04 1 0105- ●
180 REPAIR KIT; RELAY VLV 1-85576-035-0 01 1 0105- ●
183 RETAINER; VALVE 1-48213-002-0 01 1 0105- ●

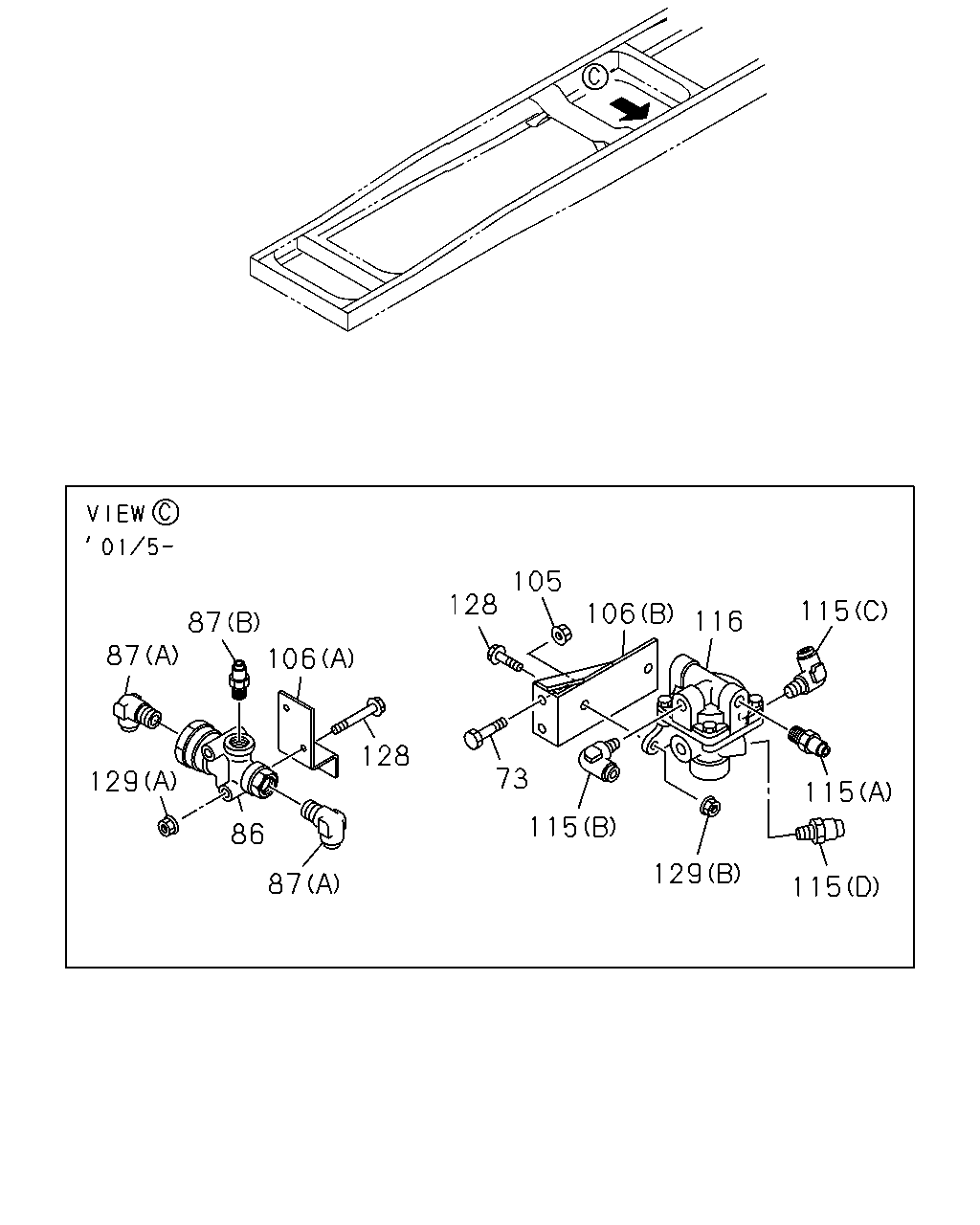

çizim 45549
105 128 115 106 116 87 87 106 128 73 129 115 115 86 129 87 115
BalonParca AdiParca NoAdetTipApplied Date A B C D
73 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ●
73 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
86 VALVE; SYN 1-48460-173-0 01 1 0105- ●
87 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0105- ●
87 CONNECTOR; DBL CHECK VLV
(B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0105- ●
105 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ●
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
106 BRACKET; VLV
(C) 		1-48495-226-0 01 1 0008-0104 ●
106 BRACKET; VLV
(A) 		1-47479-252-0 01 1 0105- ●
106 BRACKET; VLV
(B) 		1-48495-228-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 03 1 0005-0104 ●
115 CONNECTOR; DUAL RELAY VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0005-0104 ●
115 CONNECTOR; DUAL RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(C) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0105- ●
115 CONNECTOR; DUAL RELAY VLV
(D) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0105- ●
116 VALVE; DUAL RELAY 1-48210-157-1 01 1 0105- ●
128 BOLT; VLV
M6X50 FLANGE 		0-28080-650-0 02 1 0105-0512 ●
128 BOLT; VLV
M6X50 FLANGE 		0-28050-650-0 02 1 0601- ●
128 BOLT; VLV
M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512 ●
128 BOLT; VLV
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
129 NUT; VLV
(C) M8 FLANGE 		0-91150-108-0 03 1 0008-0104 ●
129 NUT; VLV
(A) M6 FLANGE 		0-91150-106-0 02 1 0105-0602 ●
129 NUT; VLV
(A) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
129 NUT; VLV
(B) M10 FLANGE 		0-91150-110-0 02 1 0105-0602 ●
129 NUT; VLV
(B) M10 FLANGE 		0-91180-110-0 02 1 0603- ●

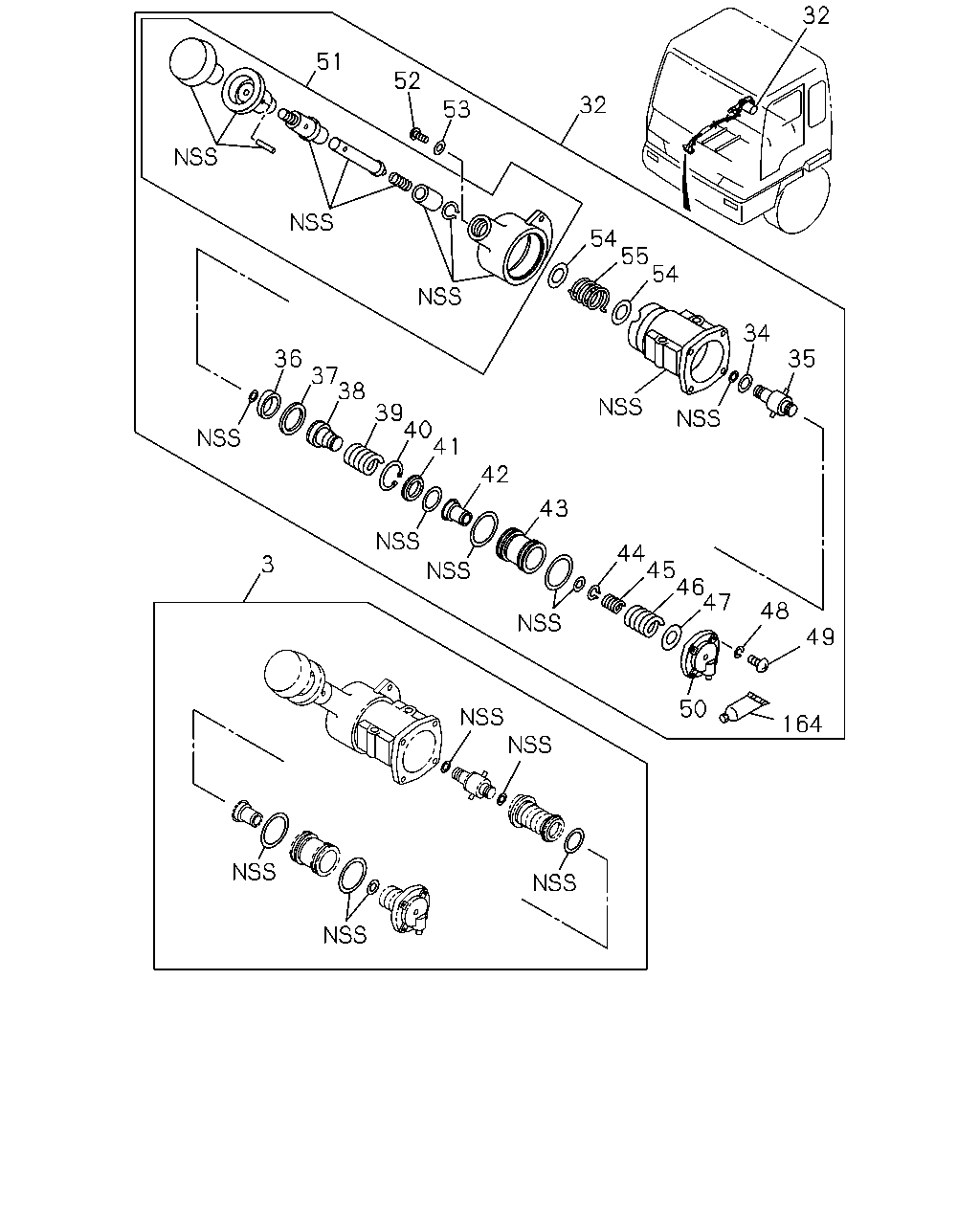

çizim 48401
32 51 52 32 53 54 55 54 34 35 36 37 38 39 40 41 42 43 44 45 46 47 3 48 49 50 164
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 REPAIR KIT; HAND BRK VLV 1-48469-096-0 01 1 0005-0011 ● ● ●
3 REPAIR KIT; HAND BRK VLV 1-48469-096-0 01 1 0012- ● ● ● ●
32 VALVE; BRK,HAND CONT 1-48460-306-0 01 1 0005-0011 ● ● ●
32 VALVE; BRK,HAND CONT 1-48460-306-0 01 1 0012- ● ● ● ●
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0005-0011 ● ● ●
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0012- ● ● ● ●
35 HOLDER; CAM 1-48469-054-0 01 1 0005-0011 ● ● ●
35 HOLDER; CAM 1-48469-054-0 01 1 0012- ● ● ● ●
36 RING; CAM 1-48469-056-0 01 1 0005-0011 ● ● ●
36 RING; CAM 1-48469-056-0 01 1 0012- ● ● ● ●
37 GUIDE; CAM RING 1-48469-058-0 01 1 0005-0011 ● ● ●
37 GUIDE; CAM RING 1-48469-058-0 01 1 0012- ● ● ● ●
38 SEAT; EXH VLV 1-48469-057-0 01 1 0005-0011 ● ● ●
38 SEAT; EXH VLV 1-48469-057-0 01 1 0012- ● ● ● ●
39 SPRING; RETURN,CAM RING 1-48469-063-0 01 1 0005-0011 ● ● ●
39 SPRING; RETURN,CAM RING 1-48469-063-0 01 1 0012- ● ● ● ●
40 RING; SNAP 1-48469-067-0 01 1 0005-0011 ● ● ●
40 RING; SNAP 1-48469-067-0 01 1 0012- ● ● ● ●
41 SEAT; FEED VLV 1-48469-066-0 01 1 0005-0011 ● ● ●
41 SEAT; FEED VLV 1-48469-066-0 01 1 0012- ● ● ● ●
42 VALVE; FEED 1-48469-065-0 01 1 0005-0011 ● ● ●
42 VALVE; FEED 1-48469-065-0 01 1 0012- ● ● ● ●
43 PISTON; HAND BRK VLV 1-48469-064-0 01 1 0005-0011 ● ● ●
43 PISTON; HAND BRK VLV 1-48469-064-0 01 1 0012- ● ● ● ●
44 RING; SNAP,FEED VLV 1-48469-068-0 02 1 0005-0011 ● ● ●
44 RING; SNAP,FEED VLV 1-48469-068-0 02 1 0012- ● ● ● ●
45 SPRING; FEED VLV 1-48469-070-0 01 1 0005-0011 ● ● ●
45 SPRING; FEED VLV 1-48469-070-0 01 1 0012- ● ● ● ●
46 SPRING; MAIN,PISTON 1-48469-089-0 01 1 0005-0011 ● ● ●
46 SPRING; MAIN,PISTON 1-48469-089-0 01 1 0012- ● ● ● ●
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0005-0011 ● ● ●
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0012- ● ● ● ●
48 WASHER; COVER 1-48469-091-0 04 1 0005-0011 ● ● ●
48 WASHER; COVER 1-48469-091-0 04 1 0012- ● ● ● ●
49 SCREW; COVER 1-48469-092-0 04 1 0005-0011 ● ● ●
49 SCREW; COVER 1-48469-092-0 04 1 0012- ● ● ● ●
50 COVER; HAND BRK VLV 1-48469-090-0 01 1 0005-0011 ● ● ●
50 COVER; HAND BRK VLV 1-48469-090-0 01 1 0012- ● ● ● ●
51 HANDLE ASM; HAND BRK VLV 1-48469-122-0 01 1 0005-0011 ● ● ●
51 HANDLE ASM; HAND BRK VLV 1-48469-122-0 01 1 0012- ● ● ● ●
52 SCREW; HANDLE 1-48469-062-0 01 1 0005-0011 ● ● ●
52 SCREW; HANDLE 1-48469-062-0 01 1 0012- ● ● ● ●
53 WASHER; HANDLE 1-48469-061-0 01 1 0005-0011 ● ● ●
53 WASHER; HANDLE 1-48469-061-0 01 1 0012- ● ● ● ●
54 SEAT; SPRING 1-48469-123-0 02 1 0005-0011 ● ● ●
54 SEAT; SPRING 1-48469-082-0 02 1 0012- ● ● ● ●
55 SPRING; RETURN,HANDLE 1-48469-059-0 01 1 0005-0011 ● ● ●
55 SPRING; RETURN,HANDLE 1-48469-059-0 01 1 0012- ● ● ● ●
164 GREASE; HAND BRK VLV 1-48469-084-0 01 1 0005-0011 ● ● ●
164 GREASE; HAND BRK VLV 1-48469-084-0 01 1 0012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
