Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#9275) — 715 parça

31 34 93 33 35 30 93 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	0005-0011	●	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0012-	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0011	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0012-0512	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
33	BRACKET; GOV,AIR CONT	1-48359-106-1	01	1	0005-0106	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-48359-106-1	01	1	0107-0210	●
33	BRACKET; GOV,AIR CONT	1-48359-106-1	01	1	0211-	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-0011		●	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0012-0106		●	●	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 4200MM(42W)	1-48359-107-1	01	1	0107-0210	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0107-0210		●	●	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0211-		●	●	●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	0005-0011	●	●	●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	0012-0512	●	●	●	●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-0011	●	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0012-	●	●	●	●

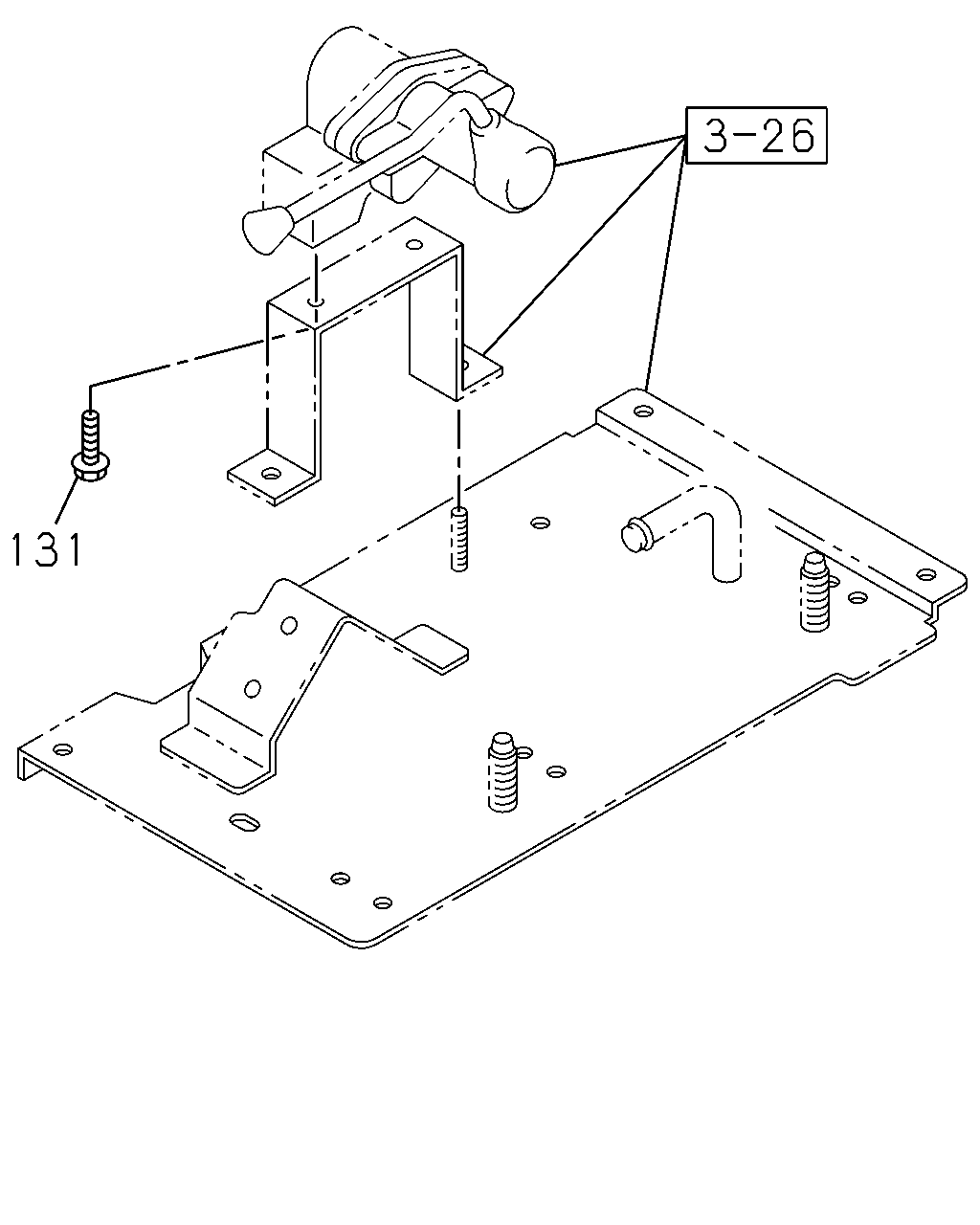

131

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	131	BOLT; HAND BRK VLV M10X20 FLANGE	0-28081-020-0	02	1	0005-0512			●
	131	BOLT; HAND BRK VLV M10X20 FLANGE	0-28051-020-0	02	1	0601-			●

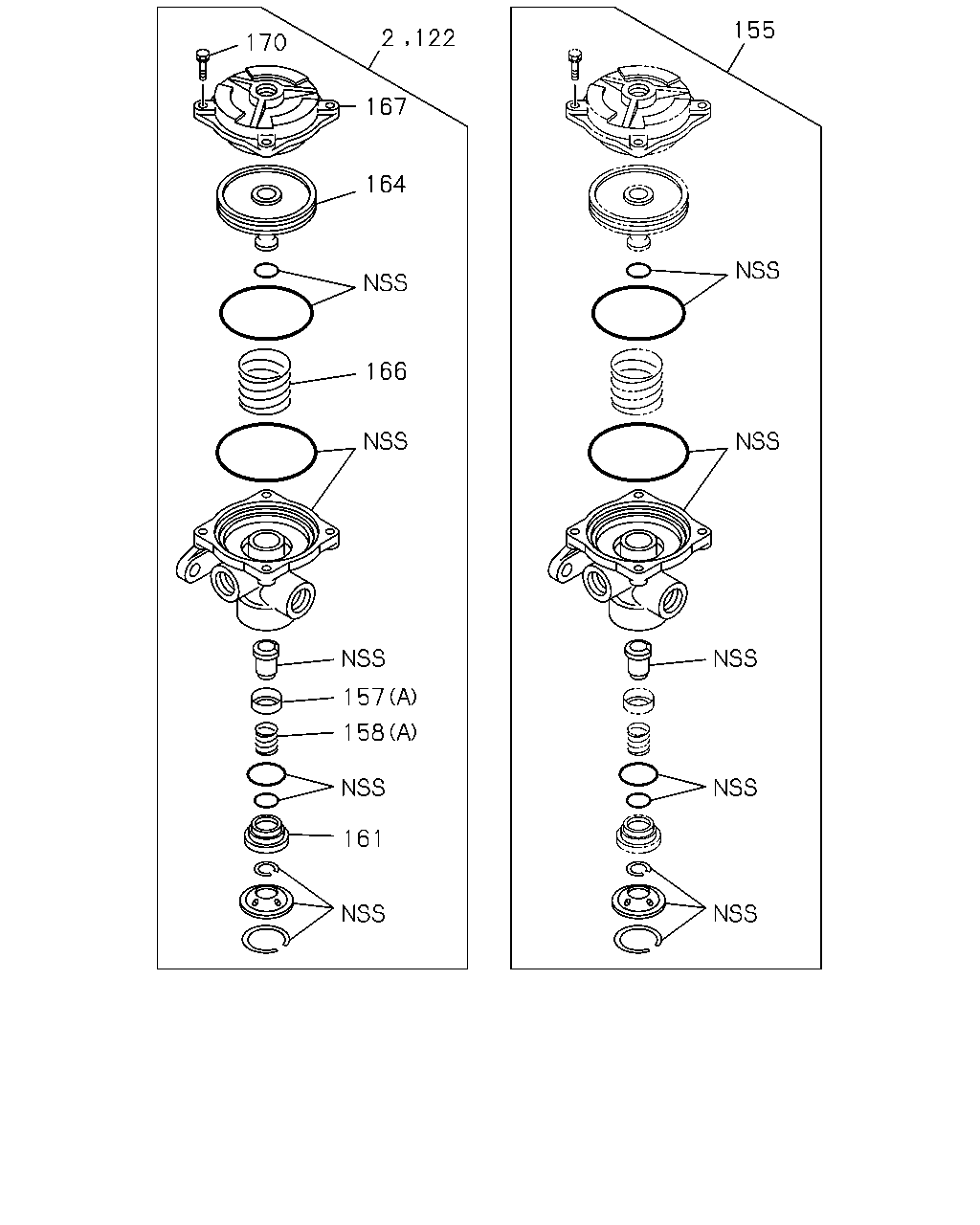

155 2 122 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
2	VALVE; RELAY	1-48210-755-0	02	1	0005-0210		●
2	VALVE; RELAY	1-48210-755-0	03	1	0012-0210				●
2	VALVE; RELAY	1-48210-755-0	02	1	0211-		●		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0011	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0012-	●	●	●	●
155	REPAIR KIT; RELAY VALVE 6HE1 TC ENG(57L)	1-85576-033-0	02	1	0005-0210	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0005-0210			●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0211-		●		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0005-0210	●	●	●
155	REPAIR KIT; RELAY VALVE 6SD1 TCN ENG(31L)	1-85576-033-0	01	1	0005-0210	●
155	REPAIR KIT; RELAY VALVE 6SD1 TCN ENG(31L)	1-85576-033-0	01	1	0005-0210	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0211-	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0211-	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0211-	●		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	03	1	0005-0210		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	04	1	0012-0210				●
157	RETAINER; VALVE (B)	1-48419-020-0	03	1	0211-				●
157	RETAINER; VALVE (B)	1-48419-020-0	05	1	0211-		●
157	RETAINER; VALVE 6HE1 TC ENG(57L) (A)	1-48213-002-0	02	1	0005-0210	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0005-0210			●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0211-		●		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0210	●	●	●
157	RETAINER; VALVE 6SD1 TCN ENG(31L) (A)	1-48213-002-0	01	1	0005-0210	●
157	RETAINER; VALVE 6SD1 TCN ENG(31L) (A)	1-48213-002-0	01	1	0005-0210	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●		●
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	0005-0210		●
157	RETAINER; VALVE (A)	1-48213-002-0	04	1	0012-0210				●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0012-	●	●	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0012-	●		●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0012-	●		●	●
158	SPRING; VALVE (B)	9-48419-003-0	03	1	0211-				●
158	SPRING; VALVE (B)	9-48419-003-0	05	1	0211-		●
158	SPRING; VALVE 6HE1 TC ENG(57L) (A)	1-47819-089-0	02	1	0005-0210	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0005-0210			●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0211-		●		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0210	●	●	●
158	SPRING; VALVE 6SD1 TCN ENG(31L) (A)	1-47819-089-0	01	1	0005-0210	●
158	SPRING; VALVE 6SD1 TCN ENG(31L) (A)	1-47819-089-0	01	1	0005-0210	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●		●
158	SPRING; VALVE (A)	1-47819-089-0	03	1	0005-0210		●
158	SPRING; VALVE (A)	1-47819-089-0	04	1	0012-0210				●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0012-	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0012-	●		●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0012-	●		●	●
161	GUIDE; VALVE 6HE1 TC ENG(57L)	1-48129-014-0	02	1	0005-0210	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0005-0210			●
161	GUIDE; VALVE	1-48129-014-0	02	1	0211-		●		●
161	GUIDE; VALVE	1-48129-014-0	01	1	0005-0210	●	●	●
161	GUIDE; VALVE 6SD1 TCN ENG(31L)	1-48129-014-0	01	1	0005-0210	●
161	GUIDE; VALVE 6SD1 TCN ENG(31L)	1-48129-014-0	01	1	0005-0210	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0211-	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0211-	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0211-	●		●
161	GUIDE; VALVE	1-48129-014-0	03	1	0005-0011		●
161	GUIDE; VALVE	1-48129-014-0	03	1	0012-0210		●
161	GUIDE; VALVE	1-48129-014-0	04	1	0012-0210				●
164	PISTON; RELAY VALVE 6HE1 TC ENG(57L)	1-48219-071-0	02	1	0005-0210	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0005-0210			●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0211-		●		●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0005-0011	●	●	●
164	PISTON; RELAY VALVE 6SD1 TCN ENG(31L)	1-48219-071-0	01	1	0005-0011	●
164	PISTON; RELAY VALVE 6SD1 TCN ENG(31L)	1-48219-071-0	01	1	0005-0011	●
164	PISTON; RELAY VALVE	1-48219-071-0	04	1	0012-0210				●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0012-0210	●	●	●
164	PISTON; RELAY VALVE 6SD1 TCN ENG(31L)	1-48219-071-0	01	1	0012-0210	●
164	PISTON; RELAY VALVE 6SD1 TCN ENG(31L)	1-48219-071-0	01	1	0012-0210	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0211-	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0211-	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0211-	●		●
164	PISTON; RELAY VALVE	1-48219-071-0	03	1	0005-0210		●
166	SPRING; PISTON 6HE1 TC ENG(57L)	1-47819-090-0	02	1	0005-0210	●
166	SPRING; PISTON	1-47819-090-0	02	1	0005-0210			●
166	SPRING; PISTON	1-47819-090-0	02	1	0211-		●		●
166	SPRING; PISTON	1-47819-090-0	01	1	0005-0210	●	●	●
166	SPRING; PISTON 6SD1 TCN ENG(31L)	1-47819-090-0	01	1	0005-0210	●
166	SPRING; PISTON 6SD1 TCN ENG(31L)	1-47819-090-0	01	1	0005-0210	●
166	SPRING; PISTON	1-47819-090-0	01	1	0211-	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0211-	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0211-	●		●
166	SPRING; PISTON	1-47819-090-0	03	1	0005-0210		●
166	SPRING; PISTON	1-47819-090-0	04	1	0012-0210				●
167	COVER; VALVE 6HE1 TC ENG(57L)	1-48219-070-0	02	1	0005-0210	●
167	COVER; VALVE	1-48219-070-0	02	1	0005-0210			●
167	COVER; VALVE	1-48219-070-0	02	1	0211-		●		●
167	COVER; VALVE	1-48219-070-0	01	1	0005-0210	●	●	●
167	COVER; VALVE 6SD1 TCN ENG(31L)	1-48219-070-0	01	1	0005-0210	●
167	COVER; VALVE 6SD1 TCN ENG(31L)	1-48219-070-0	01	1	0005-0210	●
167	COVER; VALVE	1-48219-070-0	01	1	0211-	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0211-	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0211-	●		●
167	COVER; VALVE	1-48219-070-0	03	1	0005-0210		●
167	COVER; VALVE	1-48219-070-0	04	1	0012-0210				●
170	SCREW; COVER TO BODY 6HE1 TC ENG(57L)	1-48219-039-0	08	1	0005-0210	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0005-0210			●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0211-		●		●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0005-0011	●	●	●
170	SCREW; COVER TO BODY 6SD1 TCN ENG(31L)	1-48219-039-0	04	1	0005-0011	●
170	SCREW; COVER TO BODY 6SD1 TCN ENG(31L)	1-48219-039-0	04	1	0005-0011	●
170	SCREW; COVER TO BODY	1-48219-039-0	16	1	0012-0210				●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0012-0210	●	●	●
170	SCREW; COVER TO BODY 6SD1 TCN ENG(31L)	1-48219-039-0	04	1	0012-0210	●
170	SCREW; COVER TO BODY 6SD1 TCN ENG(31L)	1-48219-039-0	04	1	0012-0210	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0211-	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0211-	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0211-	●		●
170	SCREW; COVER TO BODY	1-48219-039-0	12	1	0005-0210		●

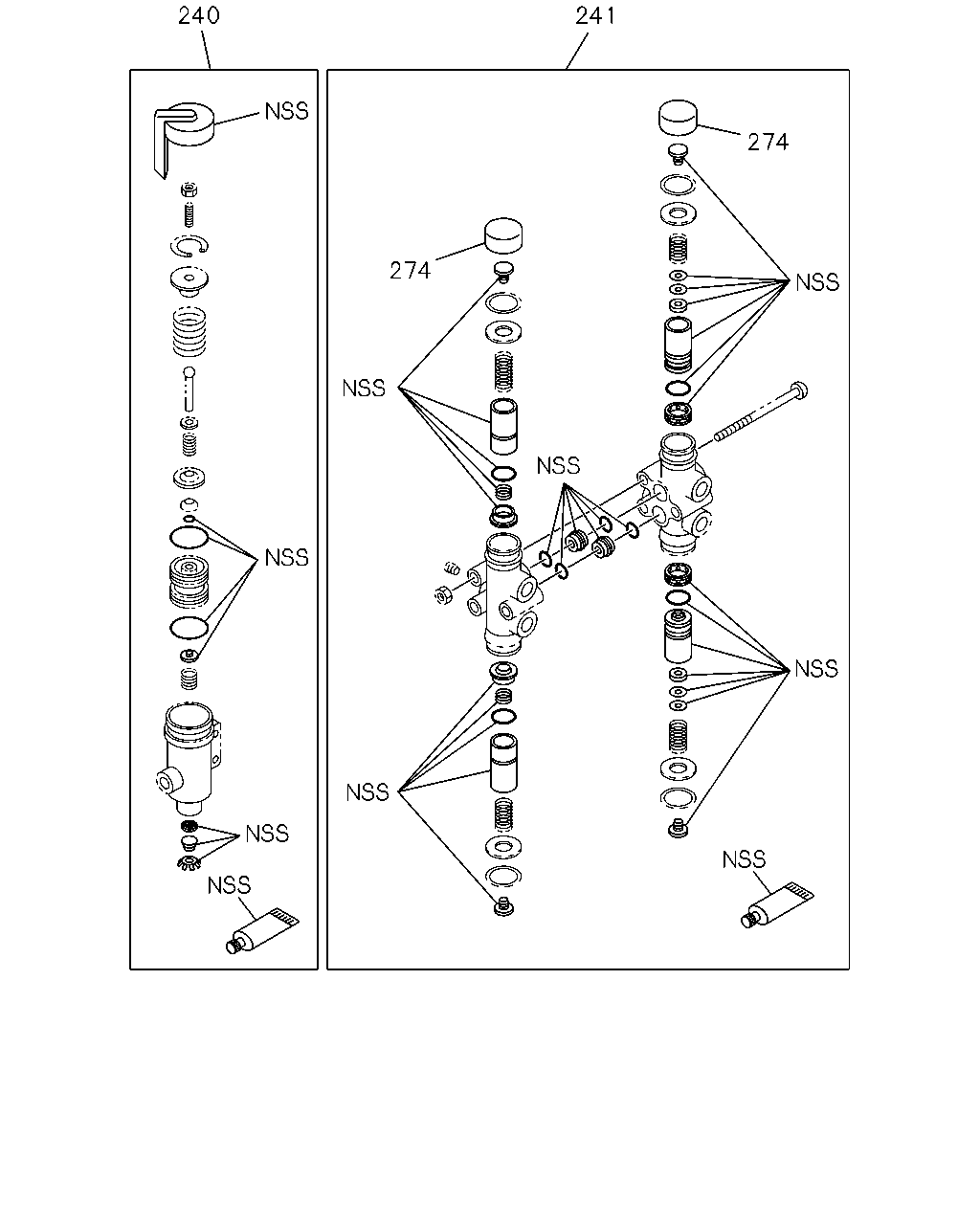

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0211-	●	●	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0005-0011	●	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0012-0210	●	●	●	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0211-	●	●	●	●
274	COVER; DUST	1-48119-450-0	02	1	0211-	●	●	●	●

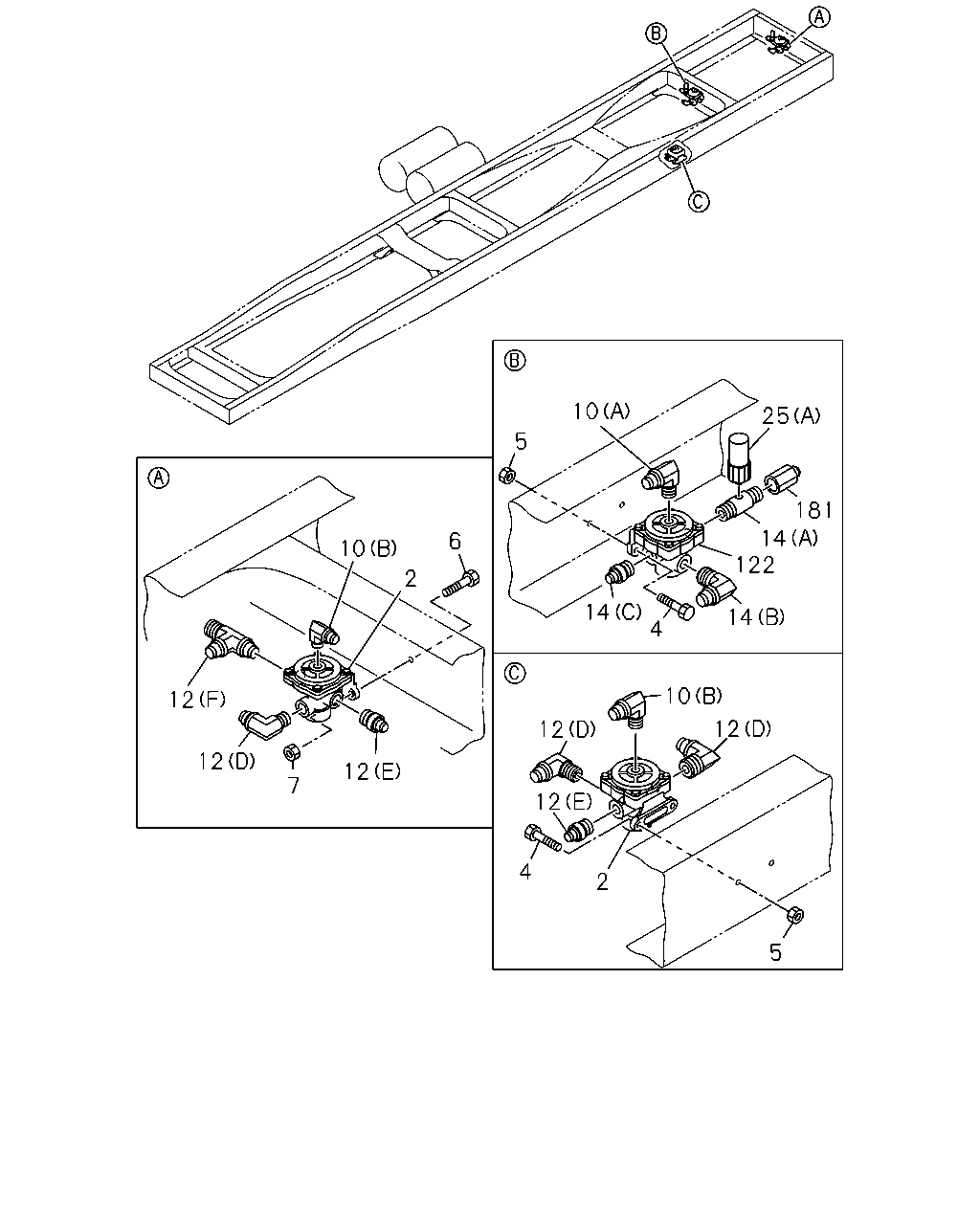

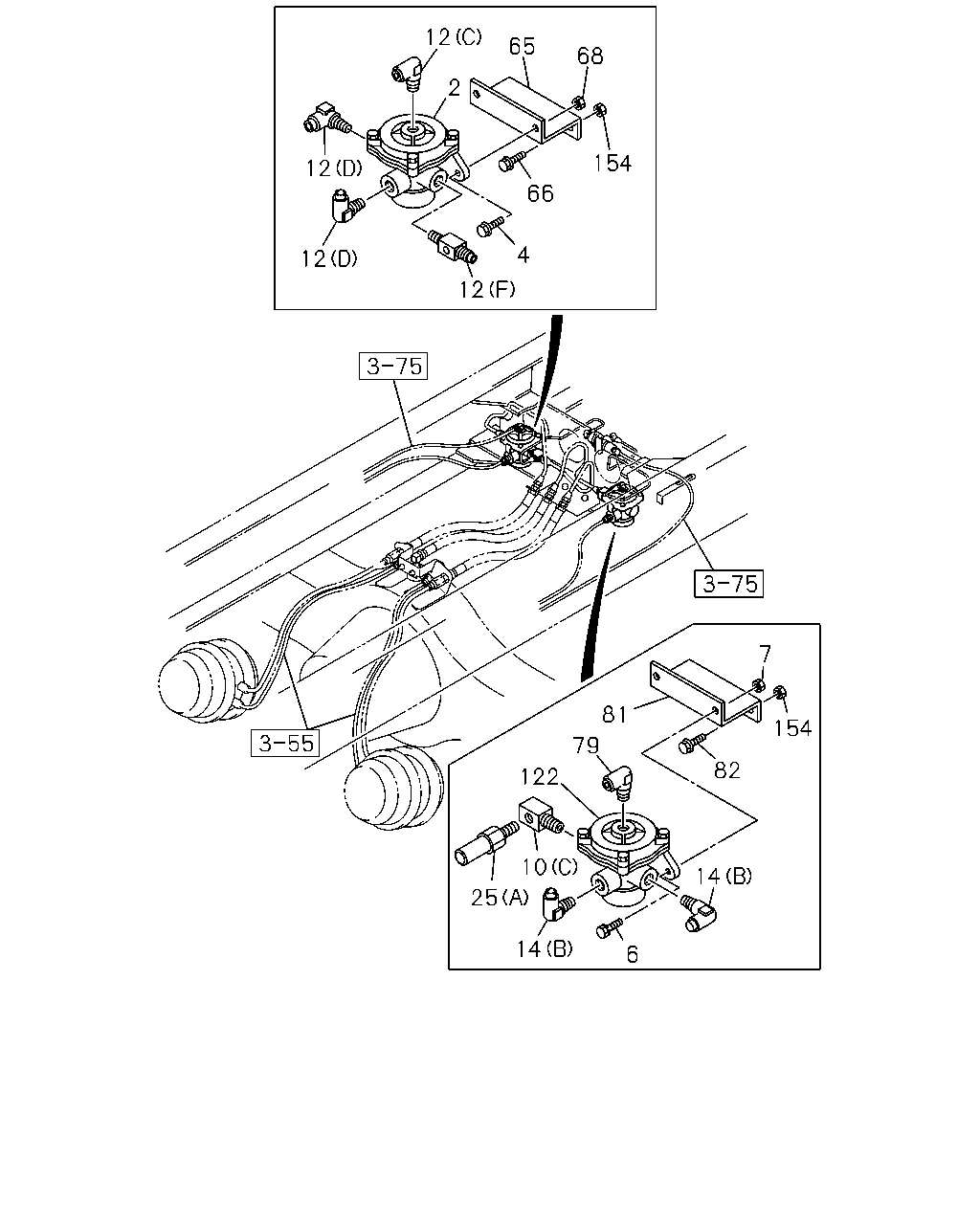

12 65 68 2 154 12 66 4 12 12 7 81 154 79 82 122 10 14 25 14 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
2	VALVE; RELAY	1-48210-755-0	02	1	0005-0210		●
2	VALVE; RELAY	1-48210-755-0	03	1	0012-0210				●
2	VALVE; RELAY	1-48210-755-0	02	1	0211-		●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0009		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0010-0011		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0012-0512		●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-		●		●
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	02	1	0005-0011		●
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	02	1	0012-0512		●		●
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-		●		●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0008-0512	●		●
6	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	0008-0011		●
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	0012-0512		●		●
6	BOLT; VLV M10X35 FLANGE	0-28651-035-0	02	1	0601-		●		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0005-0011	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0012-0602	●	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
10	CONNECTOR (C) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	0005-	●		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0011		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0012-		●		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0011		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0012-0210		●		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-		●		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0011	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0012-	●	●		●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0005-0011	●	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0012-	●	●	●	●
12	CONNECTOR; RELAY VLV (F)	1-09661-075-0	01	1	0005-0011	●	●	●
12	CONNECTOR; RELAY VLV (F)	1-09661-075-0	01	1	0012-	●	●	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0005-0011		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0012-0210		●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0211-		●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0005-0011		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0012-0210		●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0211-		●		●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-			●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-	●		●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0005-0011		●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0012-		●		●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-0011		●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0012-		●		●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-0011		●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0012-		●		●
25	SWITCH; PRESSURE (B) 530KPA	1-48340-054-1	01	1	0211-	●
25	SWITCH; PRESSURE (A)	1-82410-163-0	01	1	0005-0011	●	●	●
25	SWITCH; PRESSURE (A)	1-82410-163-1	01	1	0012-	●	●	●	●
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	0005-	●		●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0005-0207	●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
79	CONNECTOR; RELAY VLV DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●		●
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	0005-	●		●
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	0005-0207	●		●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●		●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0011	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0012-	●	●	●	●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●		●

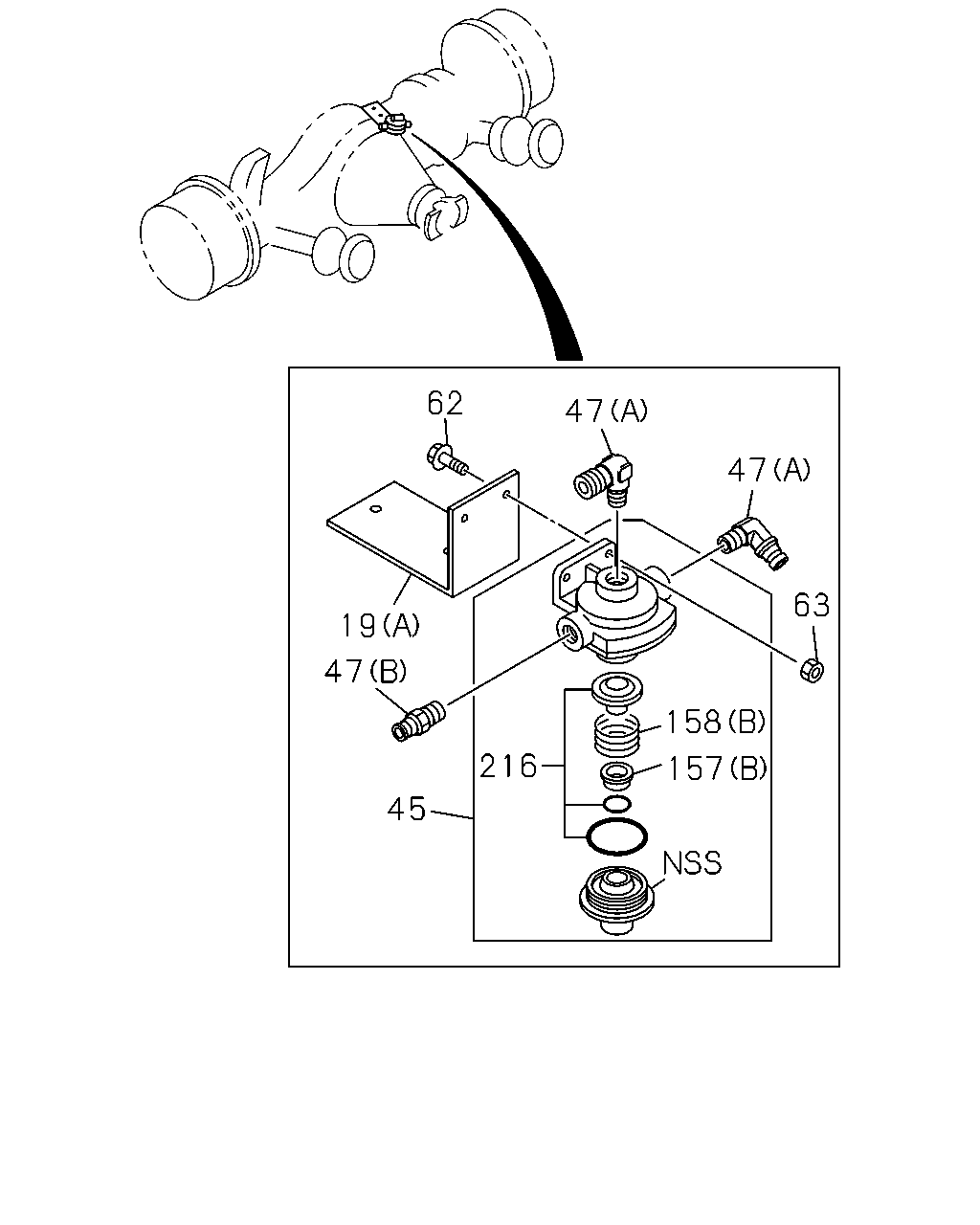

62 47 47 63 19 47 158 216 157 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0005-0210	●	●	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0005-0210		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0211-	●	●	●	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0211-		●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	02	1	0005-	●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0005-0011		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0012-0207		●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	04	1	0208-				●
19	BRACKET; QUICK RELEASE VLV (B)	1-47479-005-0	01	1	0005-0011		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47479-005-0	01	1	0012-0207		●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47479-005-0	01	1	0208-		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0208-		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0012-0210				●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109	●	●	●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109		●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-0210	●	●	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-0210		●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0211-	●	●	●	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0211-		●		●
45	VALVE; QUICK RELEASE	1-48410-320-0	02	1	0012-0109				●
45	VALVE; QUICK RELEASE	1-48410-659-0	02	1	0110-0210				●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0210	●	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0210		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-	●	●	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-		●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-0011	●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-0011		●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0012-0210	●	●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0012-0210		●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0211-	●	●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0211-		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0012-0210				●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0211-				●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●	●	●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	0005-0210		●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	0211-0512	●	●	●	●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●		●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●	●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	04	1	0012-0210				●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0005-0210	●	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0005-0210		●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0211-0512	●	●	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0211-0512		●		●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-	●	●	●	●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-		●		●
63	NUT; BRKT FIX M8	9-09110-408-0	04	1	0012-0210				●
157	RETAINER; VALVE (B)	1-48419-020-0	03	1	0211-				●
157	RETAINER; VALVE (B)	1-48419-020-0	05	1	0211-		●
157	RETAINER; VALVE 6HE1 TC ENG(57L) (A)	1-48213-002-0	02	1	0005-0210	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0005-0210			●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0211-		●		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0210	●	●	●
157	RETAINER; VALVE 6SD1 TCN ENG(31L) (A)	1-48213-002-0	01	1	0005-0210	●
157	RETAINER; VALVE 6SD1 TCN ENG(31L) (A)	1-48213-002-0	01	1	0005-0210	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●		●
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	0005-0210		●
157	RETAINER; VALVE (A)	1-48213-002-0	04	1	0012-0210				●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0012-	●	●	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0012-	●		●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0012-	●		●	●
158	SPRING; VALVE (B)	9-48419-003-0	03	1	0211-				●
158	SPRING; VALVE (B)	9-48419-003-0	05	1	0211-		●
158	SPRING; VALVE 6HE1 TC ENG(57L) (A)	1-47819-089-0	02	1	0005-0210	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0005-0210			●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0211-		●		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0210	●	●	●
158	SPRING; VALVE 6SD1 TCN ENG(31L) (A)	1-47819-089-0	01	1	0005-0210	●
158	SPRING; VALVE 6SD1 TCN ENG(31L) (A)	1-47819-089-0	01	1	0005-0210	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●		●
158	SPRING; VALVE (A)	1-47819-089-0	03	1	0005-0210		●
158	SPRING; VALVE (A)	1-47819-089-0	04	1	0012-0210				●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0012-	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0012-	●		●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0012-	●		●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	03	1	0211-				●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	05	1	0211-		●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0012-	●	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0012-	●		●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0012-	●		●	●

10 25 5 181 14 122 6 10 2 14 4 14 10 12 12 12 12 12 7 12 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
2	VALVE; RELAY	1-48210-755-0	02	1	0005-0210		●
2	VALVE; RELAY	1-48210-755-0	03	1	0012-0210				●
2	VALVE; RELAY	1-48210-755-0	02	1	0211-		●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0009		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0010-0011		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0012-0512		●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-		●		●
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	02	1	0005-0011		●
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	02	1	0012-0512		●		●
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28651-040-0	02	1	0601-		●		●
5	NUT M10 FLANGE	0-91150-210-0	02	1	0005-0009		●
5	NUT M10 FLANGE	0-91150-210-0	04	1	0005-0011		●
5	NUT M10 FLANGE	0-91150-210-0	04	1	0012-0602		●		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-		●		●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0008-0512	●		●
6	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	0008-0011		●
6	BOLT; VLV M10X35 FLANGE	0-28681-035-0	02	1	0012-0512		●		●
6	BOLT; VLV M10X35 FLANGE	0-28651-035-0	02	1	0601-		●		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0005-0011	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0012-0602	●	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
10	CONNECTOR (C) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	0005-	●		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0011		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0012-		●		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0011		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0012-0210		●		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-		●		●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0011	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0012-	●	●		●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0005-0011	●	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0012-	●	●	●	●
12	CONNECTOR; RELAY VLV (F)	1-09661-075-0	01	1	0005-0011	●	●	●
12	CONNECTOR; RELAY VLV (F)	1-09661-075-0	01	1	0012-	●	●	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0005-0011		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0012-0210		●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0211-		●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0005-0011		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0012-0210		●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0211-		●		●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-			●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-	●		●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0005-0011		●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0012-		●		●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-0011		●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0012-		●		●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-0011		●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0012-		●		●
25	SWITCH; PRESSURE (B) 530KPA	1-48340-054-1	01	1	0211-	●
25	SWITCH; PRESSURE (A)	1-82410-163-0	01	1	0005-0011	●	●	●
25	SWITCH; PRESSURE (A)	1-82410-163-1	01	1	0012-	●	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0011	●	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0012-	●	●	●	●
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0005-0007		●
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-0011		●
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0012-		●		●

12 12 12 12 12 2 2 9 9 12 12 52 52 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
2	VALVE; RELAY	1-48210-755-0	02	1	0005-0210		●
2	VALVE; RELAY	1-48210-755-0	03	1	0012-0210				●
2	VALVE; RELAY	1-48210-755-0	02	1	0211-		●		●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0011	●	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0012-0512	●	●	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0005-0011	●	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0012-0602	●	●	●	●
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0011	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0012-	●	●		●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0005-0011	●	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0012-	●	●	●	●
12	CONNECTOR; RELAY VLV (F)	1-09661-075-0	01	1	0005-0011	●	●	●
12	CONNECTOR; RELAY VLV (F)	1-09661-075-0	01	1	0012-	●	●	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0005-0011		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0012-0210		●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0211-		●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0005-0011		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0012-0210		●		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0211-		●		●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-			●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L) (A) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0210	●
52	CONNECTOR; RELAY VLV 6HK1 TCS ENG(80L) (A) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0303-	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-0011	●
52	CONNECTOR; RELAY VLV (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-0011		●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0012-0210	●
52	CONNECTOR; RELAY VLV (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0012-0210		●	●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0211-	●
52	CONNECTOR; RELAY VLV (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0211-		●	●	●

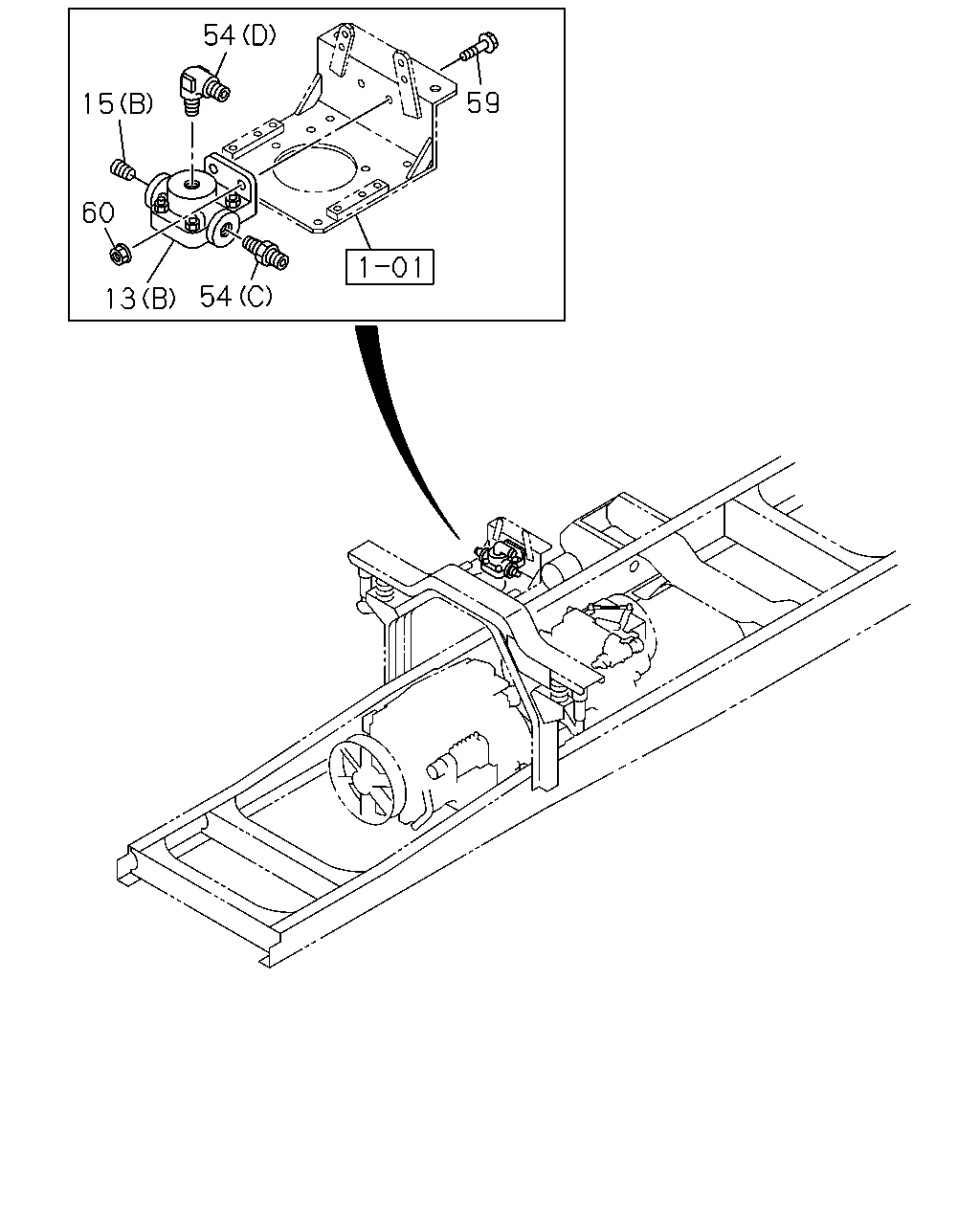

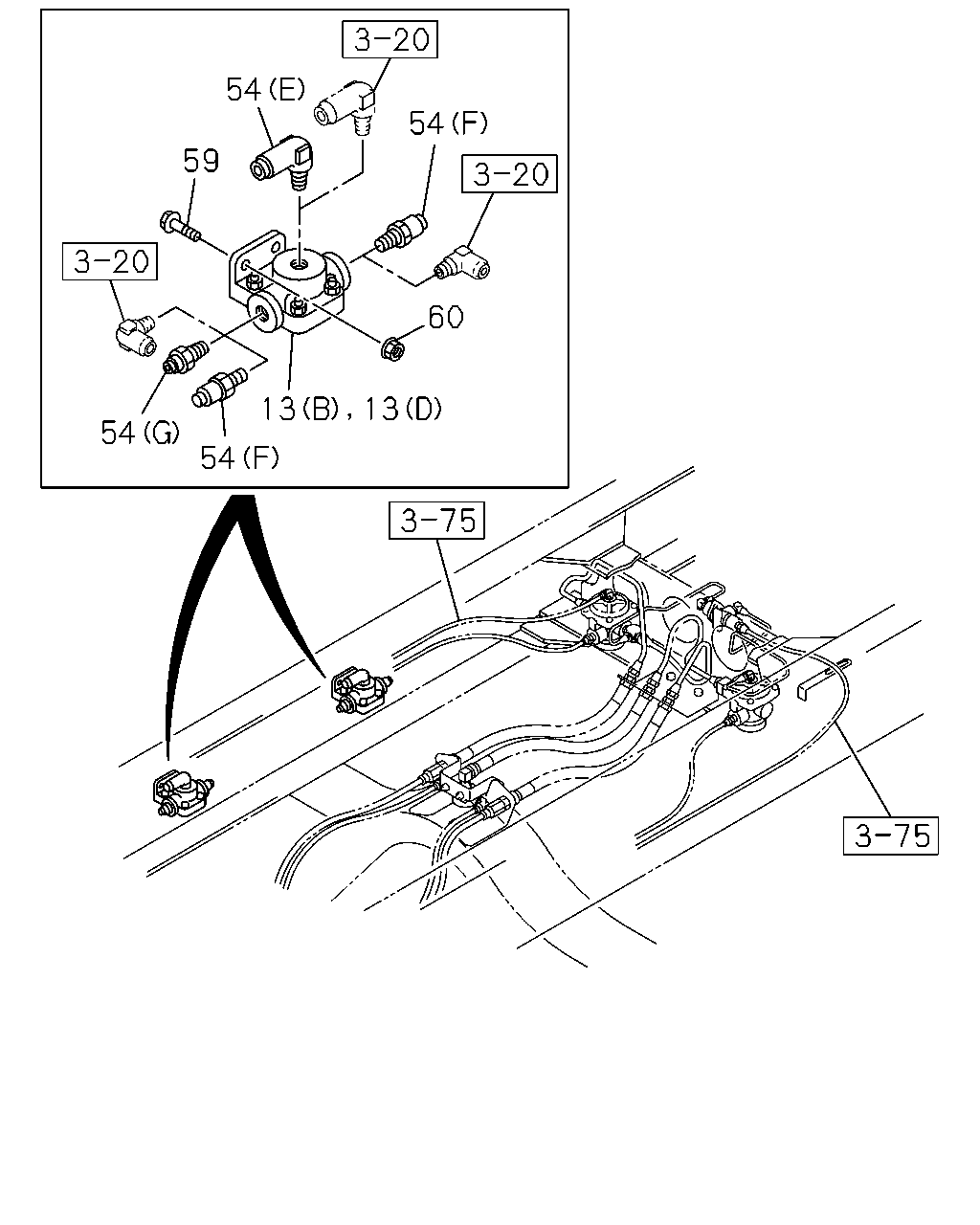

54 59 15 60 54 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	VALVE ASM; QUICK RELEASE 6HE1 TC ENG(57L) (A)	1-48410-320-0	02	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE 6HE1 TC ENG(57L) (A)	1-48410-659-0	02	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-	●		●	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-	●		●	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0211-				●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0011		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0012-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-0210		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0211-		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701		●	●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	01	1	0702-0703		●	●	●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	01	1	0704-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0012-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703			●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	02	1	0704-			●
15	PLUG; VALVE 6HE1 TC ENG(57L) (A) PT3/8	9-09204-517-0	02	1	0005-0210	●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0211-	●		●	●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0211-	●		●	●
15	PLUG; VALVE 6SD1 TCN ENG(31L) (A) PT3/8	9-09204-517-0	01	1	0005-0210	●
15	PLUG; VALVE 6SD1 TCN ENG(31L) (A) PT3/8	9-09204-517-0	01	1	0005-0210	●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0005-0210			●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0005-0210			●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	02	1	0211-				●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0005-0011		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0012-0210		●		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0211-		●
15	PLUG; VALVE (B)	1-09605-111-0	01	1	0005-0411			●
15	PLUG; VALVE (B) NPTF3/8-18	8-94231-272-1	01	1	0412-0805			●
15	PLUG; VALVE (B) NPTF3/8-18	8-97329-623-0	01	1	0806-			●
54	CONNECTOR; QUICK RELEASE VLV 6HE1 TC ENG(57L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV 6HE1 TC ENG(57L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	0211-				●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-				●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0005-0011		●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0012-0210		●		●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-0011		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0012-0210		●		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	02	1	0005-0701		●
54	CONNECTOR; QUICK RELEASE VLV (C) M16 & NPT3/8	1-09650-327-1	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-961-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0005-0011			●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0012-			●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0005-0011		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0012-0108				●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0109-0512			●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-			●	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	10	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28680-830-0	02	1	0109-0512		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0012-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0512			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0005-0108	●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0109-0210		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	10	1	0005-0108		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	06	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0109-0602			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	04	1	0603-			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0012-0108				●

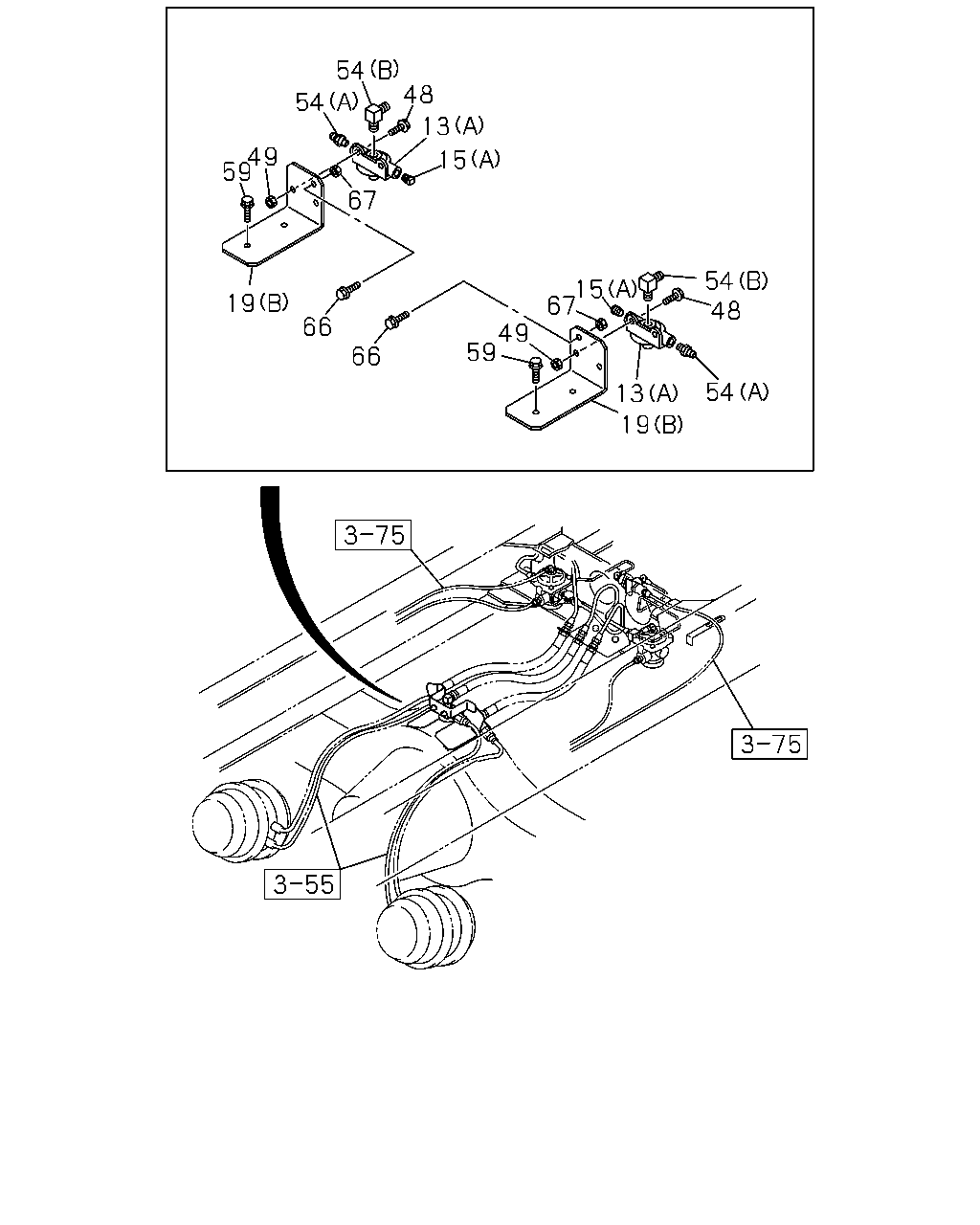

48 49 59 67 54 48 15 67 49 59 66 66 54 13 19 19 15 13 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	VALVE ASM; QUICK RELEASE 6HE1 TC ENG(57L) (A)	1-48410-320-0	02	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE 6HE1 TC ENG(57L) (A)	1-48410-659-0	02	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-	●		●	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-	●		●	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0211-				●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0011		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0012-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-0210		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0211-		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701		●	●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	01	1	0702-0703		●	●	●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	01	1	0704-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0012-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703			●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	02	1	0704-			●
15	PLUG; VALVE 6HE1 TC ENG(57L) (A) PT3/8	9-09204-517-0	02	1	0005-0210	●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0211-	●		●	●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0211-	●		●	●
15	PLUG; VALVE 6SD1 TCN ENG(31L) (A) PT3/8	9-09204-517-0	01	1	0005-0210	●
15	PLUG; VALVE 6SD1 TCN ENG(31L) (A) PT3/8	9-09204-517-0	01	1	0005-0210	●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0005-0210			●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	01	1	0005-0210			●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	02	1	0211-				●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0005-0011		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0012-0210		●		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0211-		●
15	PLUG; VALVE (B)	1-09605-111-0	01	1	0005-0411			●
15	PLUG; VALVE (B) NPTF3/8-18	8-94231-272-1	01	1	0412-0805			●
15	PLUG; VALVE (B) NPTF3/8-18	8-97329-623-0	01	1	0806-			●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0005-0210	●	●	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0005-0210		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0211-	●	●	●	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	01	1	0211-		●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	02	1	0005-	●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0005-0011		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0012-0207		●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	04	1	0208-				●
19	BRACKET; QUICK RELEASE VLV (B)	1-47479-005-0	01	1	0005-0011		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47479-005-0	01	1	0012-0207		●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47479-005-0	01	1	0208-		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47475-540-1	03	1	0208-		●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	02	1	0012-0210				●
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●		●
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28650-825-0	04	1	0601-	●		●
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28680-825-0	08	1	0005-0011		●
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28680-825-0	08	1	0012-0512		●		●
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE	0-28650-825-0	08	1	0601-		●		●
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	04	1	0005-0602	●		●
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91180-108-0	04	1	0603-	●		●
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	08	1	0005-0011		●
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91150-108-0	08	1	0012-0602		●		●
49	NUT; QUICK RELEASE VLV M8 FLANGE	0-91180-108-0	08	1	0603-		●		●
54	CONNECTOR; QUICK RELEASE VLV 6HE1 TC ENG(57L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV 6HE1 TC ENG(57L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	0211-				●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-				●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0005-0011		●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0012-0210		●		●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-0011		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0012-0210		●		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	02	1	0005-0701		●
54	CONNECTOR; QUICK RELEASE VLV (C) M16 & NPT3/8	1-09650-327-1	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-961-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0005-0011			●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0012-			●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0005-0011		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0012-0108				●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0109-0512			●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-			●	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	10	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28680-830-0	02	1	0109-0512		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0012-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0512			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0005-0207	●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0005-0602	●		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-	●		●

54 54 59 60 13 13 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	VALVE ASM; QUICK RELEASE 6HE1 TC ENG(57L) (A)	1-48410-320-0	02	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE 6HE1 TC ENG(57L) (A)	1-48410-659-0	02	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-	●		●	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0211-	●		●	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-320-0	01	1	0005-0109	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	01	1	0005-0109			●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE 6SD1 TCN ENG(31L) (A)	1-48410-659-0	01	1	0110-0210	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	01	1	0110-0210			●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0211-				●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0011		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0012-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-0210		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0211-		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701		●	●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	01	1	0702-0703		●	●	●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	01	1	0704-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0012-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703			●
13	VALVE ASM; QUICK RELEASE (D)	1-48410-782-0	02	1	0704-			●
54	CONNECTOR; QUICK RELEASE VLV 6HE1 TC ENG(57L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV 6HE1 TC ENG(57L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	0211-				●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0211-				●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0005-0011		●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0012-0210		●		●
54	CONNECTOR; QUICK RELEASE VLV (A) M27 & PT3/8 ELBOW	1-09660-136-1	04	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-0011		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0012-0210		●		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0211-		●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	02	1	0005-0701		●
54	CONNECTOR; QUICK RELEASE VLV (C) M16 & NPT3/8	1-09650-327-1	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-961-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0005-0011			●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0012-			●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0005-0011		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0012-0108				●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0109-0512			●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-			●	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	10	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28680-830-0	02	1	0109-0512		●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0012-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0512			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0005-0108	●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0109-0210		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	10	1	0005-0108		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	06	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0109-0602			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	04	1	0603-			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0012-0108				●

105 103 104 274 274 99 224 29 99 104 224 103 274 274 29 105 29 29 29 25 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	SWITCH; PRESSURE (B) 530KPA	1-48340-054-1	01	1	0211-	●
25	SWITCH; PRESSURE (A)	1-82410-163-0	01	1	0005-0011	●	●	●
25	SWITCH; PRESSURE (A)	1-82410-163-1	01	1	0012-	●	●	●	●
29	CONNECTOR; AIR VLV (A)	1-09661-207-0	01	1	0005-0106	●
29	CONNECTOR; AIR VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-09661-207-0	01	1	0107-0210	●
29	CONNECTOR; AIR VLV (A)	1-09661-207-0	01	1	0211-	●
29	CONNECTOR; AIR VLV (D)	1-09661-027-0	01	1	0211-	●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-0011	●	●	●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0012-0210	●	●	●	●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0211-	●
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0011		●	●
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0012-0106		●	●	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-0210	●
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-0210		●	●	●
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-		●	●	●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0211-		●	●	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0005-0011	●	●	●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0012-	●	●	●	●
103	BRACKET; PROTECTION VALVE	1-47478-694-0	01	1	0005-0106	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	1-47478-694-0	01	1	0107-0210	●
103	BRACKET; PROTECTION VALVE	1-47478-694-0	01	1	0211-	●
103	BRACKET; PROTECTION VALVE	1-47477-860-0	01	1	0005-0011		●	●
103	BRACKET; PROTECTION VALVE	1-47477-860-0	01	1	0012-0106		●	●	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 4200MM(42W)	1-47477-860-0	01	1	0107-0210	●
103	BRACKET; PROTECTION VALVE	1-47477-860-0	01	1	0107-0210		●	●	●
103	BRACKET; PROTECTION VALVE	1-47477-860-0	01	1	0211-		●	●	●
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28680-835-0	02	1	0005-0011	●	●	●
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28680-835-0	02	1	0012-0512	●	●	●	●
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0005-0011	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0005-0011	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0012-0602	●	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
274	COVER; DUST	1-48119-450-0	02	1	0211-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
