Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#9262) — 231 parça

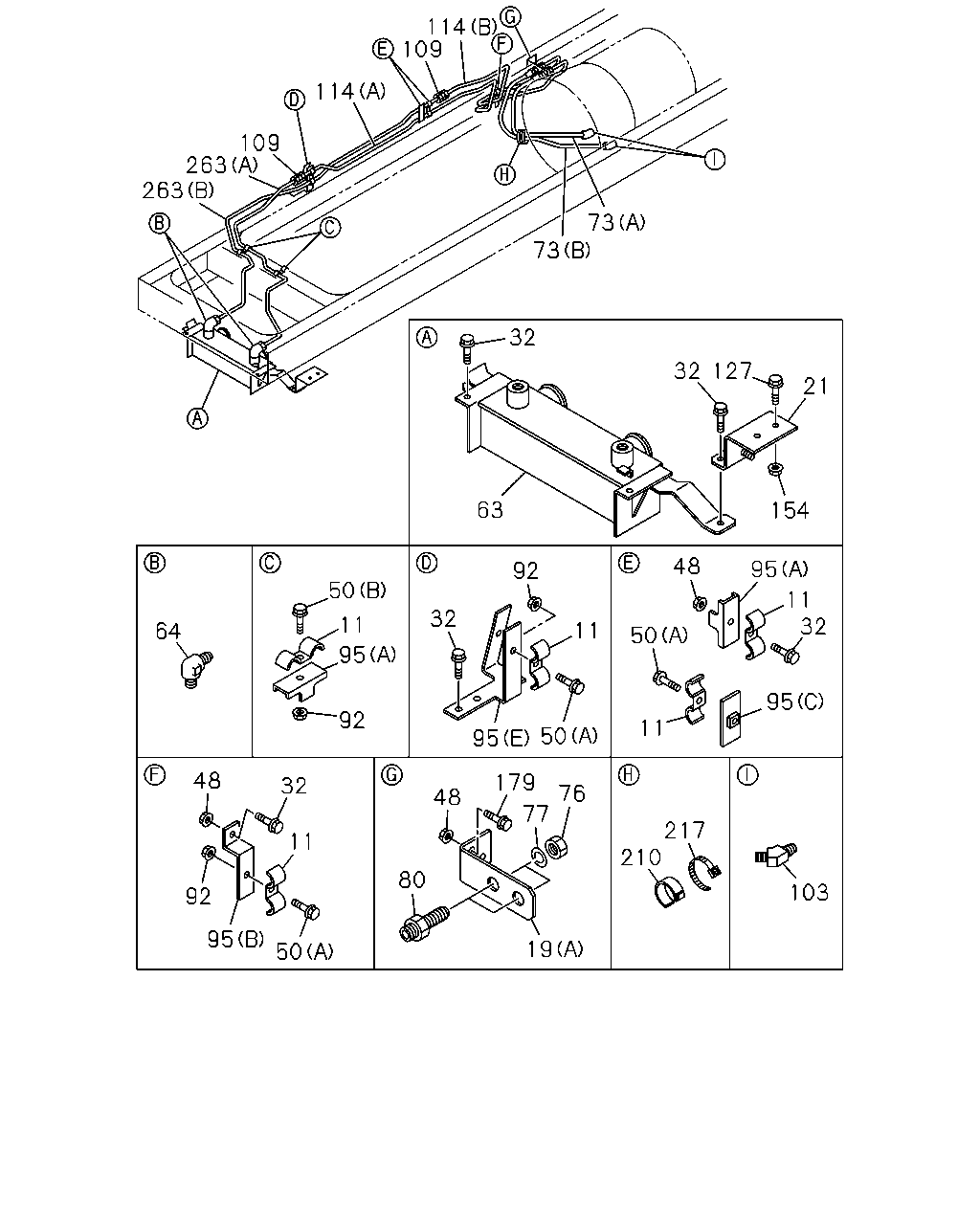

114 109 114 109 263 263 73 73 32 32 127 21 63 154 48 95 92 50 11 32 32 11 11 64 50 95 95 92 11 50 95 48 179 32 76 77 48 217 210 11 80 103 92 95 19 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE AUXILIARY TRANSMISSION OIL COOLER<V14> ID=19 & 19	1-09701-324-0	05	1	0610-0706	●	●
11	CLIP; PIPE AUXILIARY TRANSMISSION OIL COOLER<V14> ID=19 & 19	1-09701-324-0	06	1	0707-	●	●
11	CLIP; PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0609	●	●
11	CLIP; PIPE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-	●	●
11	CLIP; PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0005-0609	●	●
11	CLIP; PIPE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0610-	●	●
19	BRACKET; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-469-0	01	1	0610-0706	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01> AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-469-0	01	1	0610-0706		●
19	BRACKET; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-481-0	01	1	0707-	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01> AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-481-0	01	1	0707-		●
19	BRACKET; FLEX HOSE	1-47478-708-0	01	1	0005-0405	●
19	BRACKET; FLEX HOSE	1-47478-708-0	01	1	0406-0609	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01>	1-47478-708-0	01	1	0406-0609		●
19	BRACKET; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-708-0	01	1	0610-	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-708-0	01	1	0610-		●
19	BRACKET; FLEX HOSE	1-47478-704-0	01	1	0005-0405		●
19	BRACKET; FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F01>	1-47478-704-0	01	1	0406-		●
21	BRACKET; COOLER AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98065-997-0	01	1	0612-	●	●
21	BRACKET; COOLER AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98065-998-0	01	1	0612-	●	●
32	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> M12X35 FLANGE	0-28651-235-0	04	1	0612-	●	●
32	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	02	1	0610-0706	●	●
32	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0406-0512	●	●
32	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0005-0405	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0406-0512	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-0609	●	●
32	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	03	1	0610-0706	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
32	BOLT; BRKT M8X45 FLANGE	0-28080-845-0	01	1	0211-0512	●	●
32	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	01	1	0601-0609	●	●
32	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X45 FLANGE	0-28050-845-0	01	1	0610-0706	●	●
32	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	01	1	0707-	●	●
48	NUT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0211-0602	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-0609	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0610-	●	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0211-0512	●	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
50	BOLT; CLIP (B) M8X40 FLANGE	0-28680-840-0	02	1	0005-0512	●	●
50	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
63	COOLER; OIL AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98065-996-0	01	1	0612-	●	●
63	COOLER; OIL	1-21700-326-1	01	1	0005-0210	●	●
63	COOLER; OIL	1-21700-311-0	01	1	0211-0602	●	●
63	COOLER; OIL	1-21700-395-0	01	1	0603-0611	●	●
63	COOLER; OIL EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21700-395-1	01	1	0612-	●	●
64	CONNECTOR; OIL COOLER AUXILIARY TRANSMISSION OIL COOLER<V14>	9-09903-722-0	02	1	0610-	●	●
64	CONNECTOR; OIL COOLER M22	1-09650-277-0	02	1	0005-0210	●	●
73	HOSE; FLEX,TRANS (A) L=700	1-09365-016-0	01	1	0005-	●	●
73	HOSE; FLEX,TRANS (B) L=750	1-09365-017-0	01	1	0005-	●	●
76	NUT; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> M30	9-09840-252-1	02	1	0610-	●	●
76	NUT; FLEX HOSE M22	9-09111-422-0	02	1	0005-0512	●	●
76	NUT; FLEX HOSE M22	0-91111-522-0	02	1	0601-0609	●	●
76	NUT; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M22	0-91111-522-0	02	1	0610-	●	●
77	WASHER; LK AUXILIARY TRANSMISSION OIL COOLER<V14> ID=30.5	9-09150-530-0	02	1	0610-	●	●
77	WASHER; LK ID=22.5	9-09150-522-0	02	1	0005-0603	●	●
77	WASHER; LK ID=22.5	0-91510-522-0	02	1	0604-0609	●	●
77	WASHER; LK EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=22.5	0-91510-522-0	02	1	0610-	●	●
80	UNION; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> M30 & M30 STRAIGHT	1-09664-191-0	02	1	0610-	●	●
80	UNION; FLEX HOSE M22 & M30 STRAIGHT	1-09664-237-0	02	1	0005-0609	●	●
80	UNION; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M22 & M30 STRAIGHT	1-09664-237-1	02	1	0610-	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0211-0602	●	●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (E)	1-47471-467-0	01	1	0610-	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-47471-468-0	01	1	0610-0706	●	●
95	BRACKET; CLIP EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-47475-427-1	03	1	0610-0706	●	●
95	BRACKET; CLIP (A)	1-47475-427-1	03	1	0707-	●	●
95	BRACKET; CLIP (A)	1-47475-427-1	02	1	0005-0210	●	●
95	BRACKET; CLIP (A)	1-47475-427-1	03	1	0211-0609	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-47475-427-1	02	1	0610-0706	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (C) L=50	1-47475-299-2	01	1	0707-	●	●
95	BRACKET; CLIP (B)	1-47475-702-0	01	1	0005-	●	●
95	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0005-0210	●	●
95	BRACKET; CLIP (D) L=68	1-47475-525-0	02	1	0005-0609	●	●
95	BRACKET; CLIP EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (D) L=68	1-47475-525-0	02	1	0610-	●	●
103	CONNECTOR; OIL PIPE	1-34119-114-0	02	1	0201-	●	●
109	UNION AUXILIARY TRANSMISSION OIL COOLER<V14>	1-09664-263-0	02	1	0610-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-21117-909-0	01	1	0610-0706	●	●
114	PIPE; OIL,UNION TO FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-21117-918-0	01	1	0707-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-21117-910-0	01	1	0610-0706	●	●
114	PIPE; OIL,UNION TO FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-21117-921-0	01	1	0707-	●	●
127	BOLT; COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	04	1	0612-	●	●
127	BOLT; COOLER M8X25 FLANGE	0-28680-825-0	06	1	0005-0210	●	●
127	BOLT; COOLER M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●
127	BOLT; COOLER M8X25 FLANGE	0-28650-825-0	02	1	0601-0611	●	●
127	BOLT; COOLER EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●
128	BRACKET; COOLER	1-47477-873-0	02	1	0005-0210	●	●
154	NUT; COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> M8 FLANGE	0-91180-108-0	04	1	0612-	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
210	BAND; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> L=175	1-09707-178-0	02	1	0610-	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0005-0210	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0211-0609	●	●
210	BAND; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> L=175	1-09707-178-0	01	1	0610-	●	●
217	CLIP; BAND,FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> L=250	1-09707-126-0	02	1	0610-	●	●
217	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0005-0209	●	●
217	CLIP; BAND,FLEX HOSE L=250	1-09707-126-0	01	1	0210-0210	●	●
217	CLIP; BAND,FLEX HOSE L=250	1-09707-126-0	02	1	0211-0609	●	●
217	CLIP; BAND,FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> L=250	1-09707-126-0	01	1	0610-	●	●
263	PIPE ASM; OIL,UNION TO COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-21117-908-0	01	1	0610-0706	●	●
263	PIPE ASM; OIL,UNION TO COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-21117-919-0	01	1	0707-	●	●
263	PIPE ASM; OIL,UNION TO COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-21117-911-0	01	1	0610-0706	●	●
263	PIPE ASM; OIL,UNION TO COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-21117-920-0	01	1	0707-	●	●

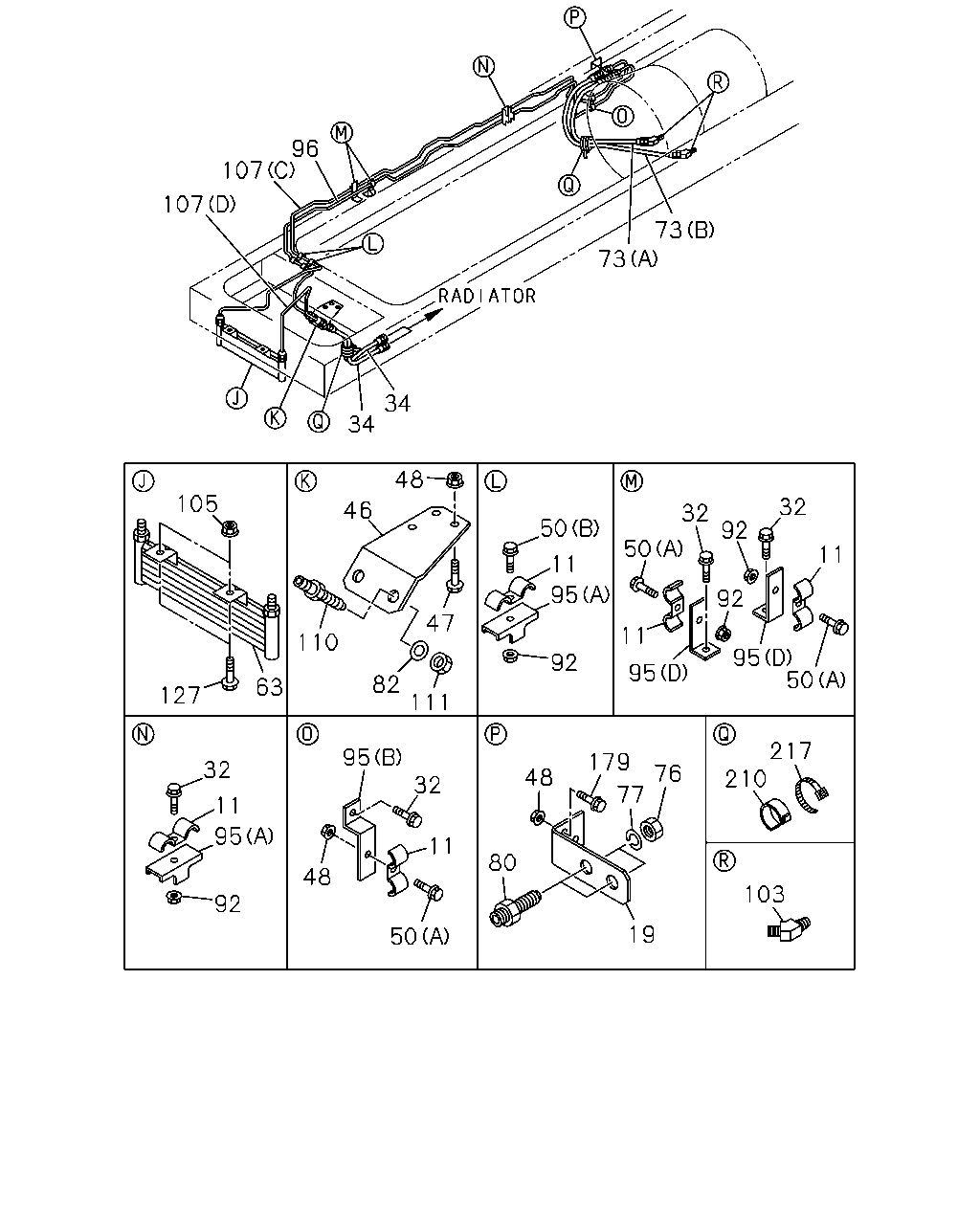

96 107 107 73 73 34 34 48 105 32 46 32 50 92 50 11 11 92 95 47 11 95 50 110 92 95 82 63 127 111 217 210 95 179 32 76 77 48 32 11 95 11 80 48 103 92 19 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE AUXILIARY TRANSMISSION OIL COOLER<V14> ID=19 & 19	1-09701-324-0	05	1	0610-0706	●	●
11	CLIP; PIPE AUXILIARY TRANSMISSION OIL COOLER<V14> ID=19 & 19	1-09701-324-0	06	1	0707-	●	●
11	CLIP; PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0609	●	●
11	CLIP; PIPE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-	●	●
11	CLIP; PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0005-0609	●	●
11	CLIP; PIPE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0610-	●	●
19	BRACKET; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-469-0	01	1	0610-0706	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01> AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-469-0	01	1	0610-0706		●
19	BRACKET; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-481-0	01	1	0707-	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01> AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47471-481-0	01	1	0707-		●
19	BRACKET; FLEX HOSE	1-47478-708-0	01	1	0005-0405	●
19	BRACKET; FLEX HOSE	1-47478-708-0	01	1	0406-0609	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01>	1-47478-708-0	01	1	0406-0609		●
19	BRACKET; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-708-0	01	1	0610-	●
19	BRACKET; FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F01> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47478-708-0	01	1	0610-		●
19	BRACKET; FLEX HOSE	1-47478-704-0	01	1	0005-0405		●
19	BRACKET; FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F01>	1-47478-704-0	01	1	0406-		●
32	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> M12X35 FLANGE	0-28651-235-0	04	1	0612-	●	●
32	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	02	1	0610-0706	●	●
32	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0406-0512	●	●
32	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0005-0405	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0406-0512	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-0609	●	●
32	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	03	1	0610-0706	●	●
32	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
32	BOLT; BRKT M8X45 FLANGE	0-28080-845-0	01	1	0211-0512	●	●
32	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	01	1	0601-0609	●	●
32	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X45 FLANGE	0-28050-845-0	01	1	0610-0706	●	●
32	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	01	1	0707-	●	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE L=395	1-09364-830-0	02	1	0211-0609	●	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> L=395	1-09364-830-0	02	1	0610-	●	●
46	BRACKET; OIL PIPE	1-47479-426-0	01	1	0211-0609	●	●
46	BRACKET; OIL PIPE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-47479-426-0	01	1	0610-	●	●
47	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●
47	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	02	1	0601-0609	●	●
47	BOLT; BRKT TO FRAME EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X20 FLANGE	0-28650-820-0	02	1	0610-	●	●
48	NUT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210	●	●
48	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0211-0602	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-0609	●	●
48	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0610-	●	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0211-0512	●	●
50	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
50	BOLT; CLIP (B) M8X40 FLANGE	0-28680-840-0	02	1	0005-0512	●	●
50	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
63	COOLER; OIL AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98065-996-0	01	1	0612-	●	●
63	COOLER; OIL	1-21700-326-1	01	1	0005-0210	●	●
63	COOLER; OIL	1-21700-311-0	01	1	0211-0602	●	●
63	COOLER; OIL	1-21700-395-0	01	1	0603-0611	●	●
63	COOLER; OIL EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21700-395-1	01	1	0612-	●	●
73	HOSE; FLEX,TRANS (A) L=700	1-09365-016-0	01	1	0005-	●	●
73	HOSE; FLEX,TRANS (B) L=750	1-09365-017-0	01	1	0005-	●	●
76	NUT; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> M30	9-09840-252-1	02	1	0610-	●	●
76	NUT; FLEX HOSE M22	9-09111-422-0	02	1	0005-0512	●	●
76	NUT; FLEX HOSE M22	0-91111-522-0	02	1	0601-0609	●	●
76	NUT; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M22	0-91111-522-0	02	1	0610-	●	●
77	WASHER; LK AUXILIARY TRANSMISSION OIL COOLER<V14> ID=30.5	9-09150-530-0	02	1	0610-	●	●
77	WASHER; LK ID=22.5	9-09150-522-0	02	1	0005-0603	●	●
77	WASHER; LK ID=22.5	0-91510-522-0	02	1	0604-0609	●	●
77	WASHER; LK EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=22.5	0-91510-522-0	02	1	0610-	●	●
80	UNION; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> M30 & M30 STRAIGHT	1-09664-191-0	02	1	0610-	●	●
80	UNION; FLEX HOSE M22 & M30 STRAIGHT	1-09664-237-0	02	1	0005-0609	●	●
80	UNION; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M22 & M30 STRAIGHT	1-09664-237-1	02	1	0610-	●	●
82	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0211-0603	●	●
82	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-0609	●	●
82	WASHER; LK,UNION EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=22.5	0-91510-522-0	02	1	0610-	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●
92	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0211-0602	●	●
92	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (E)	1-47471-467-0	01	1	0610-	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-47471-468-0	01	1	0610-0706	●	●
95	BRACKET; CLIP EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-47475-427-1	03	1	0610-0706	●	●
95	BRACKET; CLIP (A)	1-47475-427-1	03	1	0707-	●	●
95	BRACKET; CLIP (A)	1-47475-427-1	02	1	0005-0210	●	●
95	BRACKET; CLIP (A)	1-47475-427-1	03	1	0211-0609	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-47475-427-1	02	1	0610-0706	●	●
95	BRACKET; CLIP AUXILIARY TRANSMISSION OIL COOLER<V14> (C) L=50	1-47475-299-2	01	1	0707-	●	●
95	BRACKET; CLIP (B)	1-47475-702-0	01	1	0005-	●	●
95	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0005-0210	●	●
95	BRACKET; CLIP (D) L=68	1-47475-525-0	02	1	0005-0609	●	●
95	BRACKET; CLIP EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (D) L=68	1-47475-525-0	02	1	0610-	●	●
96	PIPE; OIL,A/T TO FLEX HOSE	1-21117-298-0	01	1	0211-0609	●	●
96	PIPE; OIL,A/T TO FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-298-0	01	1	0610-	●	●
103	CONNECTOR; OIL PIPE	1-34119-114-0	02	1	0201-	●	●
105	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	06	1	0005-0210	●	●
105	NUT; OIL COOLER M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●
105	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	02	1	0603-0611	●	●
105	NUT; OIL COOLER EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (A)	1-49164-864-0	01	1	0005-0008	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (A)	1-49165-818-0	01	1	0009-0104	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (A)	1-21117-025-0	01	1	0105-0110	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (A)	1-21117-180-0	01	1	0111-0111	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (A)	1-21117-187-0	01	1	0112-0210	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (A)	1-21117-297-0	01	1	0211-0609	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A)	1-21117-297-0	01	1	0610-	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (B)	1-49164-865-0	01	1	0005-0008	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (B)	1-49165-819-0	01	1	0009-0104	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (B)	1-21117-026-0	01	1	0105-0110	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (B)	1-21117-181-0	01	1	0111-0111	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (B)	1-21117-188-0	01	1	0112-0210	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE (B)	1-21117-237-0	01	1	0211-0609	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B)	1-21117-237-0	01	1	0610-	●	●
110	UNION; OIL PIPE	1-09654-261-1	02	1	0211-0609	●	●
110	UNION; OIL PIPE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-09654-261-1	02	1	0610-	●	●
111	NUT; UNION M22	9-09111-422-0	02	1	0211-0512	●	●
111	NUT; UNION M22	0-91111-522-0	02	1	0601-0609	●	●
111	NUT; UNION EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M22	0-91111-522-0	02	1	0610-	●	●
127	BOLT; COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	04	1	0612-	●	●
127	BOLT; COOLER M8X25 FLANGE	0-28680-825-0	06	1	0005-0210	●	●
127	BOLT; COOLER M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●
127	BOLT; COOLER M8X25 FLANGE	0-28650-825-0	02	1	0601-0611	●	●
127	BOLT; COOLER EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X25 FLANGE	0-28650-825-0	02	1	0612-	●	●
128	BRACKET; COOLER	1-47477-873-0	02	1	0005-0210	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
210	BAND; FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> L=175	1-09707-178-0	02	1	0610-	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0005-0210	●	●
210	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0211-0609	●	●
210	BAND; FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> L=175	1-09707-178-0	01	1	0610-	●	●
217	CLIP; BAND,FLEX HOSE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> L=250	1-09707-126-0	02	1	0610-	●	●
217	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0005-0209	●	●
217	CLIP; BAND,FLEX HOSE L=250	1-09707-126-0	01	1	0210-0210	●	●
217	CLIP; BAND,FLEX HOSE L=250	1-09707-126-0	02	1	0211-0609	●	●
217	CLIP; BAND,FLEX HOSE AUXILIARY TRANSMISSION OIL COOLER<V14> L=250	1-09707-126-0	01	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
