◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#9260) — 30 parça

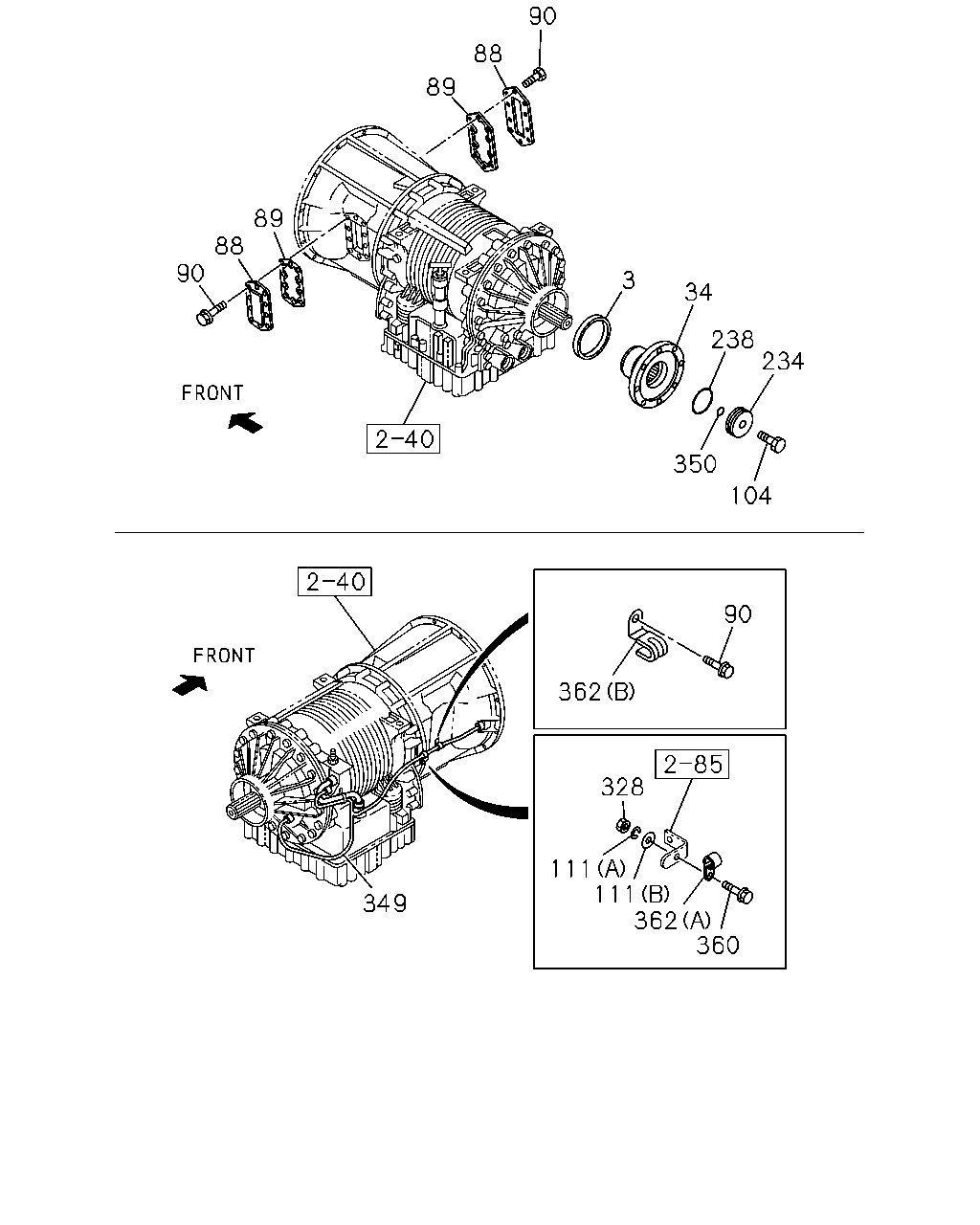

çizim 45831
90 88 89 89 88 90 3 34 238 234 350 104 90 362 328 111 111 362 360 349
BalonParca AdiParca NoAdetTipApplied Date A B
3 SEAL; OIL,RR COVER,A/T
SERIAL NO.652038442- 		1-34119-127-0 01 1 0502- ● ●
3 SEAL; OIL,RR COVER,A/T
SERIAL NO.-652038441 		1-34119-071-0 01 1 0005- ● ●
34 FLANGE; OIL PUMP,A/T 1-37243-412-0 01 1 0502- ● ●
34 FLANGE; OIL PUMP,A/T
SERIAL NO.-652038441 		1-34119-072-0 01 1 0005- ● ●
34 FLANGE; OIL PUMP,A/T
SERIAL NO.652038442- 		1-37243-412-0 01 1 0502- ● ●
88 COVER; SIDE,A/T 1-38181-011-0 01 1 0005-0112 ●
88 COVER; SIDE,A/T 1-38181-011-0 02 1 0005-0112 ●
88 COVER; SIDE,A/T 1-38181-011-0 02 1 0201- ● ●
89 GASKET; SIDE COVER 1-38183-012-0 01 1 0005-0112 ●
89 GASKET; SIDE COVER 1-38183-012-0 02 1 0005-0112 ●
89 GASKET; SIDE COVER 1-38183-012-0 02 1 0201- ● ●
90 BOLT; SIDE COVER 1-34119-068-0 10 1 0005-0112 ●
90 BOLT; SIDE COVER 1-34119-068-0 20 1 0005-0112 ●
90 BOLT; SIDE COVER 1-34119-068-0 20 1 0201- ● ●
104 BOLT; RET 1-09029-094-0 01 1 0005-0112 ●
104 BOLT; RET 1-09029-100-0 01 1 0201- ● ●
111 WASHER; PL,RR COVER
(B) 		1-34119-091-0 01 1 0201- ● ●
111 WASHER; PL,RR COVER
(A) 		1-34119-092-0 01 1 0201- ● ●
234 PLATE; RETAINER 1-37249-191-0 01 1 0211-0501 ● ●
234 PLATE; RETAINER 1-37249-192-0 01 1 0502- ● ●
234 PLATE; RETAINER 1-37249-191-0 01 1 0005-0112 ● ●
234 PLATE; RETAINER 1-37249-192-0 01 1 0201-0210 ● ●
238 GASKET; PLUG 1-09623-634-0 01 1 0005- ● ●
328 NUT; RR COVER 1-34119-093-0 01 1 0201- ● ●
349 HARNESS; SENSOR 1-82673-917-0 01 1 0201- ● ●
350 GASKET; BOLT,FLANGE 1-09623-666-0 01 1 0005-0112 ● ●
350 GASKET; BOLT,FLANGE 1-09623-674-0 01 1 0201- ● ●
360 BOLT; CLIP
M6X1.00 		1-34119-090-0 01 1 0201- ● ●
362 CLIP; HARNESS
(A) 		1-34119-089-0 01 1 0201- ● ●
362 CLIP; HARNESS
(B) 		5-09709-095-0 01 1 0203- ● ●
